ISO 8478:2017 specifies a method for measuring the spectral transmittance of camera lenses. It describes particular conditions for measuring the axial spectral transmittance, over a wavelength range from 350 nm to 700 nm, of camera lenses which are intended to be used mainly for taking pictures of very distant objects. If the spectral transmittance values are used exclusively for the calculation of the ISO colour contribution index (see ISO 6728) throughout ISO 8478:2017, the wavelength range reads 370 nm to 680 nm. ISO 8478:2017 is also applicable to mirror lenses (see Annex A).
Optique et photonique — Objectifs photographiques — Mesurage du facteur spectral de transmission ISO
General Information
Relations
Overview
ISO 8478:2017 - Optics and photonics - Camera lenses - Measurement of ISO spectral transmittance - specifies a standardized method to measure the spectral transmittance of camera lenses. The standard defines conditions and apparatus for measuring axial transmittance for lenses intended mainly for imaging distant objects over the wavelength range 350 nm to 700 nm (or 370 nm to 680 nm when values are used exclusively for the ISO colour contribution index). It is also applicable to mirror lenses (see Annex A).
Key topics and requirements
- Measurement principle: Determine spectral transmittance τλ by measuring incident radiant flux Φi,λ and transmitted radiant flux Φτ,λ and calculating τλ = Φτ,λ / Φi,λ.
- Wavelength range & resolution: 350–700 nm nominal; 10 nm wavelength interval and bandwidth required (20 nm allowed when spectral variation < 0.2%/nm). For ISO colour contribution index (ISO CCI) use 370–680 nm and 10 nm intervals.
- Optical setup: Light source → condenser → monochromator (double preferred) or narrow-band filters → adjustable aperture stop → collimator (lens or off‑axis paraboloid mirror) → integrating sphere → detector.
- Beam geometry: Use a collimated beam along the optical axis filling the central half diameter (50% ±5%) of the lens entrance pupil at the lens’s minimum f‑number. Collimator focal length ≥ 30× monochromator exit slit length.
- Integrating sphere & detector: Sphere radius and port size chosen to keep beam location/diameter consistent with and without lens (±50%). Internal coating should be high, non‑selective reflectance 350–700 nm. Detector responsivity must be calibrated across the measuring range and physically matched to the sphere surface.
- Procedure & presentation: Measure incident and transmitted signals at each wavelength, compute ISO/τλ(), present values with two decimal places, state measurement error and provide lens metadata (brand, manufacturer, serial number, focal length, f‑number, measurement date, cleaning notes).
- Mirror lenses (Annex A): Uses same apparatus with a movable integrating sphere; for annular pupils adjust beam to half the annular radial width and repeat measurements at three mirror orientations.
Applications - who uses it
- Optical and lens manufacturers for product verification and quality control.
- Calibration and test laboratories performing standardized camera lens measurements.
- R&D and photonics researchers comparing lens coatings and materials.
- Camera OEMs and QA teams ensuring spectral performance for imaging systems.
- Use cases include colorimetric calculations, spectral characterization for imaging pipelines, and compliance testing.
Related standards
- ISO 6728 - Photography - Camera lenses - Determination of ISO colour contribution index (ISO/CCI) - referenced for colour index calculations.
Frequently Asked Questions
ISO 8478:2017 is a standard published by the International Organization for Standardization (ISO). Its full title is "Optics and photonics - Camera lenses - Measurement of ISO spectral transmittance". This standard covers: ISO 8478:2017 specifies a method for measuring the spectral transmittance of camera lenses. It describes particular conditions for measuring the axial spectral transmittance, over a wavelength range from 350 nm to 700 nm, of camera lenses which are intended to be used mainly for taking pictures of very distant objects. If the spectral transmittance values are used exclusively for the calculation of the ISO colour contribution index (see ISO 6728) throughout ISO 8478:2017, the wavelength range reads 370 nm to 680 nm. ISO 8478:2017 is also applicable to mirror lenses (see Annex A).
ISO 8478:2017 specifies a method for measuring the spectral transmittance of camera lenses. It describes particular conditions for measuring the axial spectral transmittance, over a wavelength range from 350 nm to 700 nm, of camera lenses which are intended to be used mainly for taking pictures of very distant objects. If the spectral transmittance values are used exclusively for the calculation of the ISO colour contribution index (see ISO 6728) throughout ISO 8478:2017, the wavelength range reads 370 nm to 680 nm. ISO 8478:2017 is also applicable to mirror lenses (see Annex A).
ISO 8478:2017 is classified under the following ICS (International Classification for Standards) categories: 37.040.10 - Photographic equipment. Projectors. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 8478:2017 has the following relationships with other standards: It is inter standard links to ISO 8478:1996. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 8478:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)

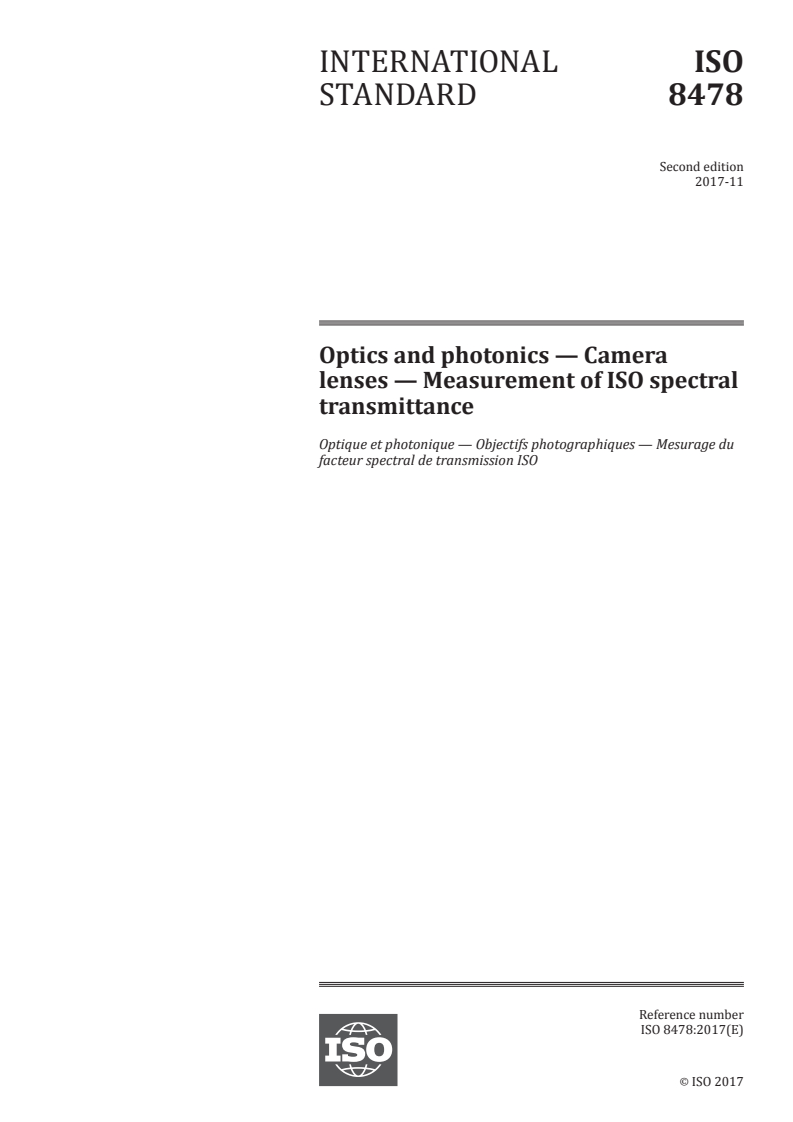

INTERNATIONAL ISO
STANDARD 8478
Second edition
2017-11
Optics and photonics — Camera
lenses — Measurement of ISO spectral
transmittance
Optique et photonique — Objectifs photographiques — Mesurage du
facteur spectral de transmission ISO
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

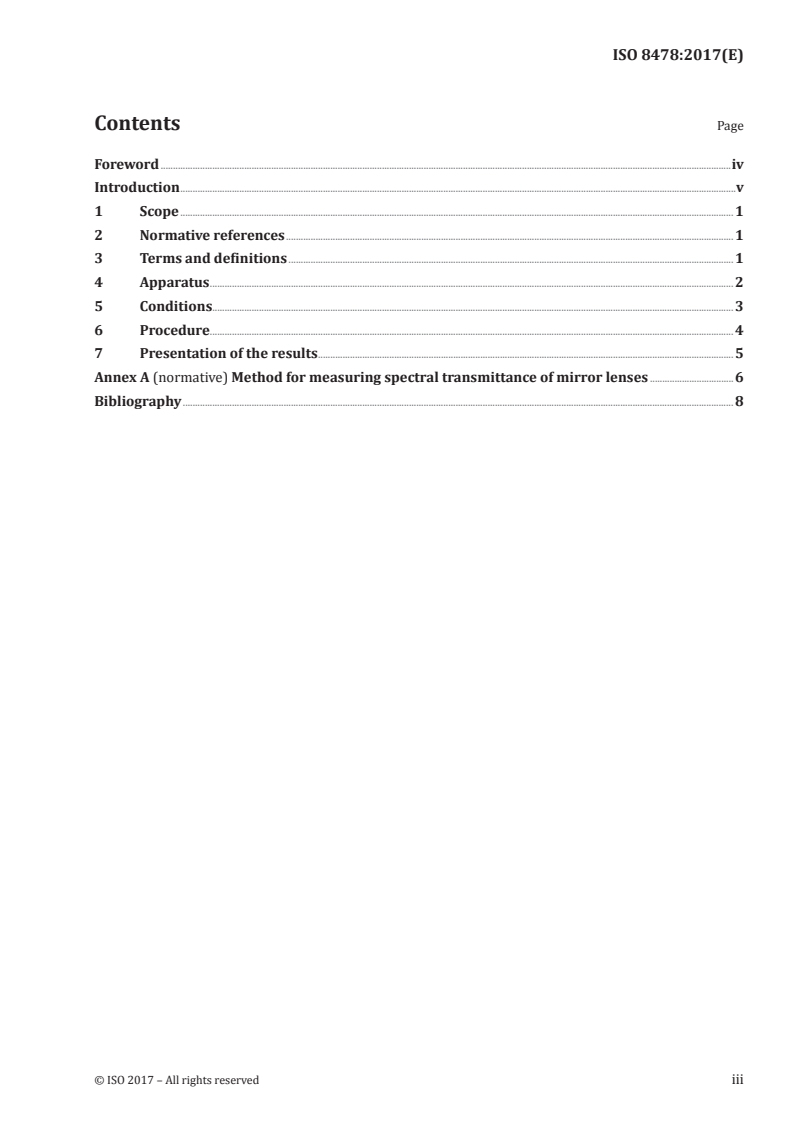

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Apparatus . 2
5 Conditions. 3
6 Procedure. 4
7 Presentation of the results . 5
Annex A (normative) Method for measuring spectral transmittance of mirror lenses .6
Bibliography . 8

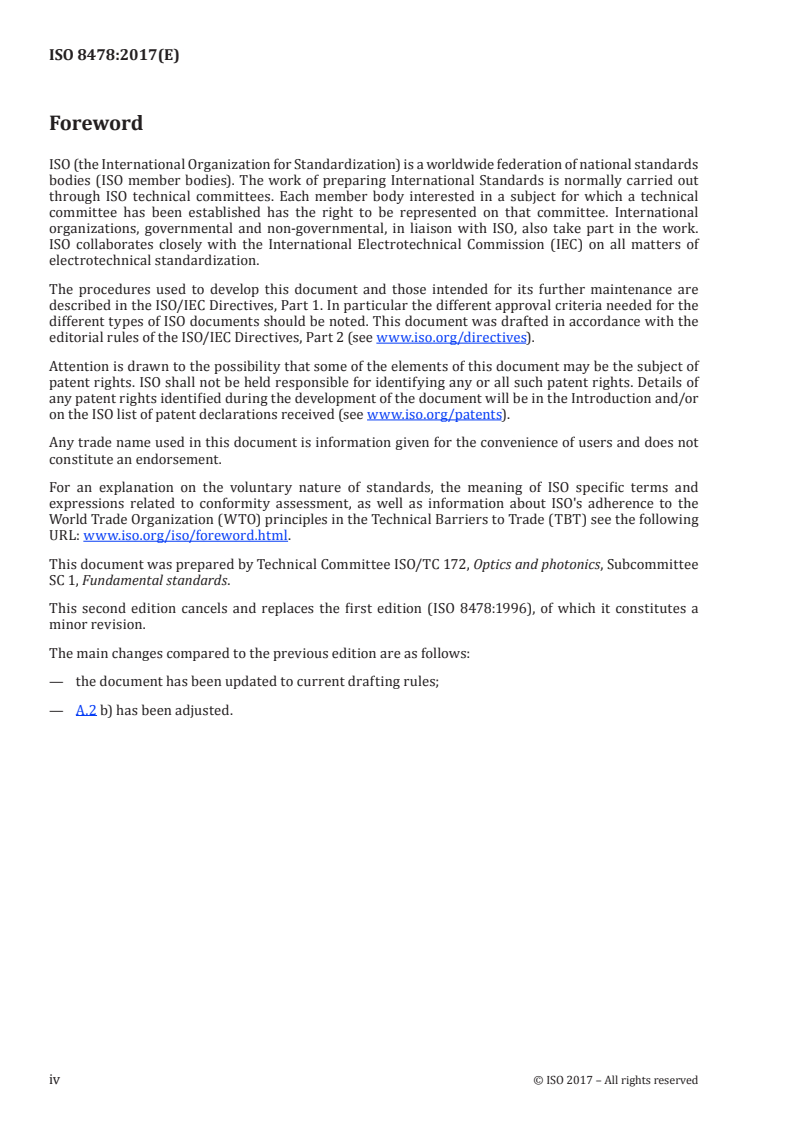

Foreword
