ISO 3547-5:2007

SLOVENSKI STANDARD
SIST ISO 3547-5:2008
01-julij-2008
1DGRPHãþD
SIST ISO 12307-1:2002
Drsni ležaji - Zvite puše - 5. del: Merjenje zunanjega premera
Plain bearings - Wrapped bushes - Part 5: Checking the outside diameter
Gleitlager - Gerollte Buchsen - Teil 5: Prüfung des Außendurchmessers
Paliers lisses - Bagues roulées - Partie 5: Contrôle du diamètre extérieur
Ta slovenski standard je istoveten z: ISO 3547-5:2007
ICS:
21.100.10 Drsni ležaji Plain bearings
SIST ISO 3547-5:2008 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

INTERNATIONAL ISO
STANDARD 3547-5
First edition
2007-10-01

Plain bearings — Wrapped bushes —
Part 5:
Checking the outside diameter
Paliers lisses — Bagues roulées —
Partie 5: Contrôle du diamètre extérieur




Reference number
ISO 3547-5:2007(E)
©
ISO 2007

---------------------- Page: 2 ----------------------

ISO 3547-5:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2007 – All rights reserved

---------------------- Page: 3 ----------------------

ISO 3547-5:2007(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Symbols and units. 2
4 Outside diameter, D . 2
o
5 Purpose of checking. 3
6 Methods of checking . 3
7 Selection of checking method for outside diameter . 3
8 ISO 3547-2, test A — Outside diameter, D . 3
o
9 ISO 3547-2:2006, test B — Outside diameter, D . 11
o
10 ISO 3547-2:2006, test D — Outside diameter, D > 120 mm. 13
o
11 Specifications on drawings of bushes . 14
12 Specifications for control of the checking equipment. 14
Bibliography . 15

© ISO 2007 – All rights reserved iii

---------------------- Page: 4 ----------------------

ISO 3547-5:2007(E)

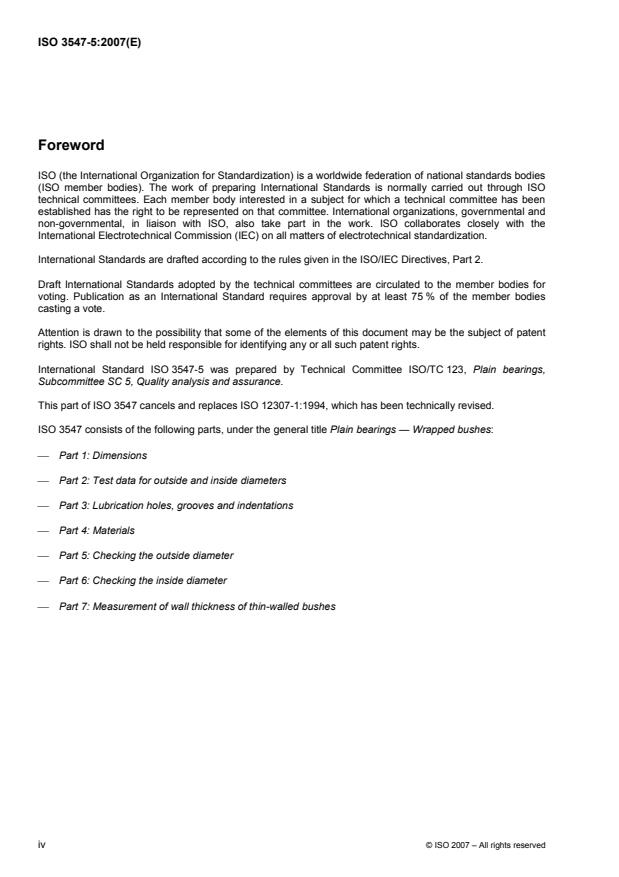

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted according to the rules given in the ISO/IEC Directives, Part 2.
Draft International Standards adopted by the technical committees are circulated to the member bodies for
voting. Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 3547-5 was prepared by Technical Committee ISO/TC 123, Plain bearings,
Subcommittee SC 5, Quality analysis and assurance.
This part of ISO 3547 cancels and replaces ISO 12307-1:1994, which has been technically revised.
ISO 3547 consists of the following parts, under the general title Plain bearings — Wrapped bushes:
⎯ Part 1: Dimensions
⎯ Part 2: Test data for outside and inside diameters
⎯ Part 3: Lubrication holes, grooves and indentations
⎯ Part 4: Materials
⎯ Part 5: Checking the outside diameter
⎯ Part 6: Checking the inside diameter
⎯ Part 7: Measurement of wall thickness of thin-walled bushes

iv © ISO 2007 – All rights reserved

---------------------- Page: 5 ----------------------

INTERNATIONAL STANDARD ISO 3547-5:2007(E)

Plain bearings — Wrapped bushes —
Part 5:
Checking the outside diameter
1 Scope
This part of ISO 3547 specifies, following ISO 12301, the checking of the outside diameter of wrapped bushes
(ISO 3547-2:2006, methods A, B and D) and describes the necessary checking methods and measuring
equipment.
Wrapped bushes in the free condition are flexible, but after insertion they adapt largely to the shape of the
housing bore due to the oversize between the outside diameter of the bush and the housing bore. For this
reason, checking of the outside diameter of wrapped bushes can only be carried out under a constraining load
by use of specialized measuring equipment.
NOTE 1 The dimensions and tolerances of wrapped bushes are given in ISO 3547-1. Checking the wall thickness is
the subject of ISO 3547-7.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 286-2:1988, ISO system of limits and fits — Part 2: Tables of standard tolerance grades and limit
deviations for holes and shafts
ISO/R 1938-1:1971, ISO system of limits and fits — Part 1: Inspection of plain workpieces
ISO 3547-2:2006, Plain bearings — Wrapped bushes — Part 2: Test data for outside and inside diameters
© ISO 2007 – All rights reserved 1

---------------------- Page: 6 ----------------------

ISO 3547-5:2007(E)
3 Symbols and units
Table 1 — Symbols and units
Symbol Parameter SI unit
B Width of the bush millimetres
b Width of the checking block millimetres
ch, 1
b Width of the setting plug millimetres
ch, 2
d Outside diameter of the ring gauge millimetres

o
D Outside diameter of the bush millimetres
o
d Diameter of the checking block bore (see ISO 3547-2) millimetres
ch, 1
d Diameter of the setting plug (see ISO 3547-2) millimetres
ch, 2
d Actual diameter of the checking block millimetres
ch, a, 1
d Actual diameter of the setting plug millimetres
ch, a, 2
F Checking load newtons
ch
C Correction factor millimetres
n Number of test pieces —
R Surface roughness micrometres
a
t . t Tolerances of form and position millimetres
1 6
x Length of checking block millimetres
y Width of checking block millimetres
z Distance between checking block halves millimetres
∆D Tolerance of D millimetres

o o
∆z Indicator reading millimetres
∆z Circumference indicator reading millimetres
D

4 Outside diameter, D
o
For the outside diameter of a wrapped bush, see Figure 1.

Key
1 split line
NOTE The free diameter of a wrapped bush is not measured directly because of the flexible nature of the component.
Figure 1 — Outside diameter of a wrapped bush
2 © ISO 2007 – All rights reserved

---------------------- Page: 7 ----------------------

ISO 3547-5:2007(E)
5 Purpose of checking
The outside diameter shall be checked to ensure the designated mounting compression (interference fit) for
the wrapped bush in the housing bore.
6 Methods of checking
NOTE Checking method C is for measuring the inside diameter and is covered by ISO 3547-6.
6.1 Checking method A — Measurement of outside diameter, D
o
NOTE See ISO 3547-2.
Check the outside diameter of a wrapped bush using measuring equipment as shown in Figure 2, with a
checking block consisting of upper and lower halves (see Figures 3 and 4) and setting plugs (see Figures 5
and 6), at a determined checking load, F .
ch
Measure the outside diameter indirectly as the difference in the value of z, ∆z.
The checking load is calculated so that the bush outside diameter is reduced only elastically during checking
and that there is no permanent deformation.
6.2 Checking method B — Gauging of outside diameter, D
o
NOTE See ISO 3547-2.
Check the outside diameter of a wrapped bush in “GO” and “NO GO” ring gauges.
6.3 Checking method D — Measurement of outside diameter, D > 120 mm
o
NOTE See ISO 3547-2.
Check the outside diameter of a wrapped bush above 120 mm diameter using a precision measuring tape.
7 Selection of checking method for outside diameter
Method A is a precise method involving complex tooling. Method B is an attributive method using simpler
tooling. Method D is used only for wrapped bushes with an outside diameter > 120 mm. All three methods are
in general use. Method A is generally unsuitable for small bushes up to 10 mm outside diameter but is
preferred for bushes over 10 mm outside diameter.
8 ISO 3547-2, test A — Outside diameter, D
o
8.1 Measuring equipment
See Tables 2 and 3.
Typical equipment for measuring the bush consists essentially of the following components:
⎯ base plate used as fixture and guiding device for the split checking block;
⎯ means to generate the checking load;
⎯ means to calibrate the load;
© ISO 2007 – All rights reserved 3

---------------------- Page: 8 ----------------------

ISO 3547-5:2007(E)
⎯ upper plate;
⎯ system for transmitting the distance, z, of both checking block halves to the measuring pin (see Figure 2);
⎯ measuring pin with indicating instrument;
⎯ checking block (see Figures 3 and 4) with setting plug (see Figures 5 and 6).

Key
1 split line
2 bush
3 checking block
4 measuring pins
5 indicating instrument
Figure 2 — Typical outside diameter measuring system
Figure 2 shows a typical outside diameter measuring system. This may be operated hydraulically,
pneumatically or mechanically.
The force, F , may be smoothly applied from the top or from below.
ch
The bush split shall be in the vertical direction and pointing towards the upper checking block.
4 © ISO 2007 – All rights reserved
