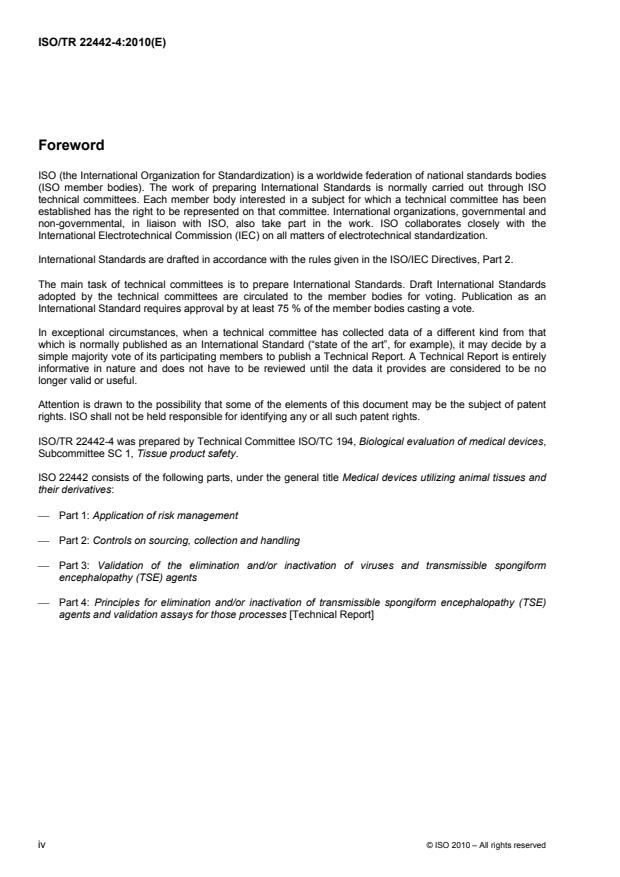

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 22442-4 was prepared by Technical Committee ISO/TC 194, Biological evaluation of medical devices,
Subcommittee SC 1, Tissue product safety.
ISO 22442 consists of the following parts, under the general title Medical devices utilizing animal tissues and
their derivatives:
⎯ Part 1: Application of risk management
⎯ Part 2: Controls on sourcing, collection and handling
⎯ Part 3: Validation of the elimination and/or inactivation of viruses and transmissible spongiform
encephalopathy (TSE) agents
⎯ Part 4: Principles for elimination and/or inactivation of transmissible spongiform encephalopathy (TSE)
agents and validation assays for those processes [Technical Report]
iv © ISO 2010 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 22442-4:2010(E)
Introduction
Certain medical devices utilize materials of animal origin.
Animal tissues and their derivatives are used in the design and manufacture of medical devices to provide
performance characteristics that were chosen for advantages over non-animal based materials. The range
and quantities of materials of animal origin in medical devices vary. These materials can comprise a major
part of the device (e.g. bovine/porcine heart valves, bone substitutes for use in dental or orthopaedic
applications, haemostatic devices), can be a product coating or impregnation (e.g. collagen, gelatine,
heparin), or can be used in the device manufacturing process (e.g. tallow derivatives such as oleates and
stearates, fetal calf serum, enzymes, culture media).
This document is a Technical Report (TR) to offer suggestions for designing and conducting validation assays
to help determine if processes used in the manufacture of medical devices derived from non-viable animal
tissues might serve to reduce the risk of iatrogenic transmission of transmissible spongiform encephalopathies
(TSEs). This document will refer to the infective vector as “TSE agent” rather than prion to remain consistent
with the other Parts of ISO 22442. Some current information on human tissues and TSEs is also presented
which may be applied by analogy to other animal tissues.
Iatrogenic transmission of the human TSE Creutzfeldt-Jakob disease (CJD) has been convincingly attributed
to exposure to the human dura mater allograft (Hannah, E. L., E. D. Belay, et al. 2001) used in surgery as a
patching material and to hormones extracted from human pituitary glands (Mills, J. L., L. B. Schonberger, et
al. 2004)—both non-viable tissues; recently, sub-clinical infection with the vCJD agent was detected at
autopsy in a patient with hemophilia and plausibly attributed to his treatment with processed human plasma-
derived coagulation factor (UK Health Protection Agency 2009 at:
http://www.hpa.org.uk/webw/HPAweb&HPAwebStandard/HPAweb_C/1234859690542?p=1231252394302
and
http://www.dh.gov.uk/en/Publicationsandstatistics/Publications/PublicationsPolicyAndGuidance/DH_100357).
In addition, corneal grafts have transmitted CJD (Kennedy, Hogan et al, 2001) and several transfused red
blood cell concentrates have transmitted variant CJD (vCJD) (Llewelyn, Hewitt et al 2004; Peden, Head et al
2004; Peden, Ritchie and Ironside 2005).
Exposure to the agent of bovine spongiform encephalopathy (BSE) has been responsible for more than 210
cases of vCJD worldwide, most of them thought to have resulted from dietary exposure to infected beef
products. Although, except for the iatrogenic vCJD infections just described, no transmissions of a BSE-
derived agent via medical or veterinary products have been recognized, there is no reason to doubt that a
medical device contaminated with BSE agent of ruminant origin could transmit infection to a susceptible
subject. Indeed, two veterinary vaccines derived from non-viable ovine tissues transmitted the ovine/caprine
TSE scrapie to sheep (World Health Organization 2006). Humans are not known to have been infected with
the scrapie agent.
This Technical Report generally uses terminology suggested by the World Health Organization (WHO
Guidelines on Tissue Infectivity Distribution in Transmissible Spongiform Encephalopathies, 2006 (World
Health Organization 2006)), while recognizing that there is no international consensus regarding either
preferred terminology, the probable molecular nature of the transmissible agents (the all-protein or “prion”
theory (Prusiner 1982) currently most widely held) or the precise role of various forms of the host-coded prion
protein in the replication of the infectious agents or pathogenesis of disease. The sole intent of the TR is to
suggest strategies to validate the effectiveness of methods that might reduce the risk of accidentally
transmitting TSEs by medical devices prepared using non-viable animal tissues.
© ISO 2010 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/TR 22442-4:2010(E)
The following referenced documents are standards helpful for the proper interpretation of this document:
⎯ ISO 22442-1, Medical devices utilizing animal tissues and their derivatives — Part 1: Application of risk
management
⎯ ISO 22442-2, Medical devices utilizing animal tissues and their derivatives — Part 2: Controls on
sourcing, collection and handling
⎯ ISO 22442-3, Medical devices utilizing animal tissues and their derivatives — Part 3: Validation of the
elimination and/or inactivation of viruses and transmissible spongiform encephalopathy (TSE) agents
⎯ ISO 14160, Sterilization of health care products — Liquid chemical sterilizing agents for single-use
medical devices utilizing animal tissues and their derivatives — Requirements for characterization,
development, validation and routine control of a sterilization process for medical devices
These documents include both normative and informative annexes also directly relevant to the topic of this
ISO TR. All terms defined in those documents are used verbatim in this report.
Due to the lack of consistent process steps that can reliably eliminate TSEs, it is important that one must use
low-risk source animals and tissues.
Although not directly applicable to validating methods purported to reduce the TSE risk from medical devices
manufactured from non-viable animal tissues, UK and US competent authorities have solicited expert advice
on desirable features of validation studies for devices intended to remove TSE infectivity from human blood
potentially contaminated with TSE agents, and this advice may be helpful in evaluating methods for animal-
derived tissues as well. These features included preliminary evaluation using TSE-spiked material with high
titers of infectivity, selecting experimental agents relevant to the infection of concern, and accepting studies
TSE
using assays for PrP as a preliminary screening strategy to dismiss unpromising methods. These methods
were required to indicate significant reduction in infectivity demonstrated by bioassays in known susceptible
experimental animals. To qualify a method as potentially useful, the assay needed to demonstrate similar
results for the same candidate method with two TSE agent-bioassay combinations, whenever possible. These
criteria should be met before concluding that the method offers sufficient promise to consider in practice.
Demonstration that a method reduces TSE infectivity for tissues endogenously infected, and that the complete
manufacturing process eliminates all detectable infectivity, while desirable, are not currently feasible. Very low
titers of infectivity in most tissues outside the nervous system and limited animals known to be susceptible to
naturally occurring TSE agents without adaptation to a new species are limiting factors. The lack of standard
reference infected materials of known titer and biological properties from humans and animals with TSEs is
thought to be an additional impediment to developing validation studies (World Health Organization (2006),
Annex 2). Considering the extremely limited attempted validation efforts for methods for improving TSE safety
of human blood-derived and other human tissue-derived medical products — products with demonstrated
iatrogenic transmissions — care must be taken not to discourage new efforts to validate methods that might
improve the TSE safety of medical devices derived from animal tissues.
It should be noted again that, as summarized above, animal tissues have not been directly implicated in
causing any iatrogenic TSE infections of humans (Minor, Newham et al. 2004). However, experience with
food-borne BSE and field transmissions of scrapie to sheep by ovine tissue-derived veterinary vaccines
suggests that the risk of iatrogenic transmissions of TSEs (other than BSE) from animals to humans, while
theoretical, remains worthy of continued attention.

vi © ISO 2010 – All rights reserved

---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 22442-4:2010(E)

Medical devices utilizing animal tissues and their derivatives —
Part 4:
Principles for elimination and/or inactivation of transmissible
spongiform encephalopathy (TSE) agents and validation assays
for those processes
1 Scope
This Technical Report offers suggestions for designing and conducting validation assays to help determine if
processes used in the manufacture of medical devices derived from non-viable animal tissues might serve to
reduce the risk of iatrogenic transmission of transmissible spongiform encephalopathies (TSEs).
The TSE-removal methods used to process animal tissues should also reduce the risk of transmitting TSE
infections via non-viable tissues of human origin; this Technical Report does not address this issue. Some
current information on human tissues and TSEs is presented which may be applied by analogy to other animal
tissues.
This Technical Report does not intend to imply a need for validation of methods involving specific materials
identified as having a “negligible risk” of contamination with TSE agents as listed in Annex C of
ISO 22442-1:2007.
This Technical Report is intended to clarify final draft international standards included in the ISO 22442 series,
as well as in ISO 14160.
This Technical Report builds upon the specific discussion in ISO 22442-3 relative to TSE agents and attempts
to summarize the current state of the art in the arena of TSE agent elimination. As the understanding of
inactivation and elimination of TSE agents evolves, this document will be revised when possible.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 22442-1, Medical devices utilizing animal tissues and their derivatives — Part 1: Application of risk
management
ISO 22442-2, Medical devices utilizing animal tissues and their derivatives — Part 2: Controls on sourcing,
collection and handling
ISO 22442-3, Medical devices utilizing animal tissues and their derivatives — Part 3: Validation of the
elimination and/or inactivation of viruses and transmissible spongiform encephalopathy (TSE) agents
ISO 14160, Sterilization of single-use medical devices incorporating materials of animal origin — Validation
and routine control of sterilization by liquid chemical sterilants
© ISO 2010 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/TR 22442-4:2010(E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 22442-1, ISO 22442-2,
ISO 22442-3, and ISO 14160 apply.
4 Elimination of TSE agents: basic considerations
4.1 General
4.1.1 TSEs of concern
BSE of cattle is the only TSE of animal origin known so far to have transmitted disease to humans (i.e, a
zoonosis). Scrapie, while of theoretical concern, has not been recognized as a zoonosis in spite of hundreds
of years of experience. Nonetheless, some competent regulatory authorities have adopted precautionary
policies that discourage the sourcing of ovine-derived and caprine-derived injectable materials from herds with
a history of scrapie (e.g. transcripts of the FDA TSE Advisory Committee meeting 03 June 1999, accessed 16
July 2009 at http://www.fda.gov/ohrms/dockets/ac/cber99.htm#Transmissible%20Spongiform, European
Union Directive from 2003 [OJ L 105, 26.4.2003 p. 18, http://eur-
lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2003:105:0018:0023:EN:PDF ], and Japanese notification
177 http://www.nihs.go.jp/cgtp/cgtp/guidline/03052001.pdf). The susceptibility of sheep and goats to infection
with the BSE agent has posed another more recent concern (World Health Organization 2006). Although pigs
have been experimentally infected with the BSE agent (Wells, Hawkins et al. 2003; Castilla, Gutierrez-Adan et
al. 2004), they were not infected when exposed by the oral route and no naturally transmitted porcine TSE has
been recognized, and most authorities remain generally satisfied that porcine tissues are an unlikely source of
human exposure to any TSE agent. The same thing is true for tissues of other animals less commonly used in
the manufacture of medical devices, such as horses. (Animals not susceptible to infection with TSE agents by
the oral route have not been considered “TSE-relevant animal species” by EMEA; tissues of such species
were not considered to be of concern regarding TSE risk in the manufacture of medicinal products for human
or veterinary use in a 2004 note for guidance of the EMEA at
http://www.emea.europa.eu/pdfs/human/bwp/TSE%20NFG%20410-rev2.pdf.)
4.1.2 Animal tissues of concern
Examples of animal tissues currently used in their non-viable form to manufacture medical devices include
porcine heart valves, bovine pericardium, and bovine collagen. While none of these tissues has been
demonstrated to contain a TSE agent (World Health Organization 2006), experiments with animal tissues
have been very limited in number, and the assays used vary in sensitivity of detection. Furthermore, it is
conceivable that almost any animal tissue collected as part of routine slaughter might be accidentally
contaminated with higher-risk tissues. Regulations and procedures requiring removal, segregation and safe
disposal of “specified-risk” materials from animal carcasses — especially from carcasses of older animals —
should reduce but not completely eliminate this risk. The European Commission has recently proposed “risk-
proportionate rules for animal by-products” to clarify and facilitate risk management in selection of source
materials of animal origin (see EU regulation 1069/2009).
4.1.3 Tissues infected with TSE agents
Agents might contaminate tissues in two ways: (1) a tissue infected during the TSE disease process, or (2)
infectivity introduced into the tissue from infected tissue (for example, due to contact with tissues of the
nervous system, lymphoreticular cells or from blood in the tissues). This second or “exogenous” source of
contamination with a TSE agent might occur during harvesting of the tissue from an infected source or from
instruments or surfaces contaminated with TSE agent from a previously handled source. These distinctions
are important for several reasons: Endogenously infected tissues (except for tissues of the CNS, which have
been found to contain the great majority of total infectivity in the body of an infected animal) generally contain
very small amounts of agent, so suitable models to validate methods for eliminating endogenous infectivity are
logistically difficult to develop. Exogenous contamination is more easily modeled by intentionally spiking
tissues with TSE agents of known provenance, biological characteristics and content of infectivity as defined
by titrations in susceptible animals. Several strains of scrapie agent and one strain of BSE-derived agent
2 © ISO 2010 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/TR 22442-4:2010(E)
(301V) adapted to propagate to high titers in rodents have been especially useful to model exogenously
infected materials (see C.1 of ISO 22442-3:2007 and Annex D of ISO 22442-03:2007. The selection of model
agents for validation studies is constrained by several considerations:
a) although the actual unpassaged TSE agent likely to be present in the tissue of concern might be
considered most “relevant” for purposes of validating inactivation/removal studies, the infectivity titers in
such agents are usually both unknown and lower than those of rodent-adapted agents (Wells 2007); and
b) or handling of the BSE agent and rodent-adapted strains derived from BSE agent, regulatory authorities
may require high-containment research facilities not widely available. In general, studies with rodent-
adapted scrapie agent have been considered acceptable, keeping in mind that reported resistance of
various strains of TSE to inactivation procedures has not been uniform (Peretz, Supattapone et al. 2006)
5 Potential methods to eliminate TSE agents
5.1 Methods for inactivating infectivity
5.1.1 General
Most authorities recommend that, whenever possible, TSE agents potentially contaminating source materials
be inactivated rather than simply separated from the raw materials. The presence of residual active agent
might pose a continuing danger of later accidental contamination of a tissue-derived product as well as
contaminating manufacturing facilities and non-disposable equipment. However, unfortunately, most of the
physical and chemical methods known to be effective for inactivating TSE agents are relatively harsh and
often impair the functional properties of tissues. For sanitizing the facilities and processing equipment that
cannot be destroyed after single use or protected from direct contact with potentially contaminated materials,
decontamination methods that reliably inactivate TSE agents are preferred to those that simply remove the
agents.
5.1.2 Physical methods for inactivating TSE infectivity
5.1.2.1 Heat
When suspensions of tissue from scrapie-infected rodents were rapidly heated with continuous stirring,
relatively rapid loss of infectivity occurred within a few minutes (Rohwer 1984; Rohwer 1984), reaching the
assay limit of detection. However, macerates and dried preparations of TSE agents retained some infectivity
even after long exposures to heat (Asher, Pomeroy et al. 1986; Asher, Pomeroy et al. 1987; Taylor, Fraser et
al. 1994). Dry heat appears to be less effective than moist heat for inactivating TSE agents (Taylor 2001).
(Indeed, two reports suggesting surgical transmissions of iatrogenic CJD involved instruments that had been
sterilized by exposure to dry heat (Nevin, McMenemy et al. 1960; Foncin, Gaches et al. 1980).) One series of
studies even found small amounts of infectivity in ash from scrapie agent incinerated in an oven at
o
temperatures up to 600 C (Brown, Liberski, et al. 1990), though not at a higher temperature (Brown, Rau et al.
2004). Tissue devices are unlikely to tolerate heat treatments adequate to inactivate TSE agents without loss
of function.
There have been suggestions that for adequate decontamination of TSE agents one should specify exposure
to steam in a porous-load autoclave for at least 18 minutes at 20-bar pressure. This has been shown to be
ineffective (Taylor and McBride 1987). A WHO Consultation (World Health Organization 1999) warned that
such treatment was unlikely to decontaminate a surface soiled with dried-on tissue from a TSE-contaminated
source. A consultant to the US CDC cautioned that many pathogens survive heat and chemical treatments
when contaminated surfaces have not been thoroughly cleaned and that thorough cleaning of critical surfaces
must be employed for safe reuse of all medical devices (Rutala W, FDA TSE Advisory Committee, 17 July
2003 accessed 16 July 2009 at http://www.fda.gov/ohrms/dockets/ac/03/slides/3969s1.htm); the same
consultant (Rutala 2010) noted, however, that the extreme rarity of iatrogenic transmissions of CJD attributed
to surgical instruments (none documented in medical literature since 1980) suggests that current standard
methods for sanitization and terminal sterilization of surgical instruments are probably effective in removing
sufficient CJD agent to reduce the risk to undetectable levels.
© ISO 2010 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/TR 22442-4:2010(E)
This observed efficacy is likely a combined effect of cleaning and moist heat and the potential efficacy of
either method individually has been shown in the laboratory to be insufficient. (Bundesgesundheitsbl-
Gesundheitsforsch-Gesundheitsschutz 2001, UK Department of Health 2009)
5.1.2.2 Radiation
The TSE agents have resisted inactivation by both ultraviolet and ionizing radiations (Alper, Haig et al. 1966;
Latarjet, Muel et al. 1970; Latarjet 1979).
5.1.3 Chemical methods for inactivating TSE infectivity
5.1.3.1 Alkaline hydrolysis treatments
Exposure to sodium hydroxide (≥ 1N, especially at elevated temperatures) has been found effective in
removing
...
