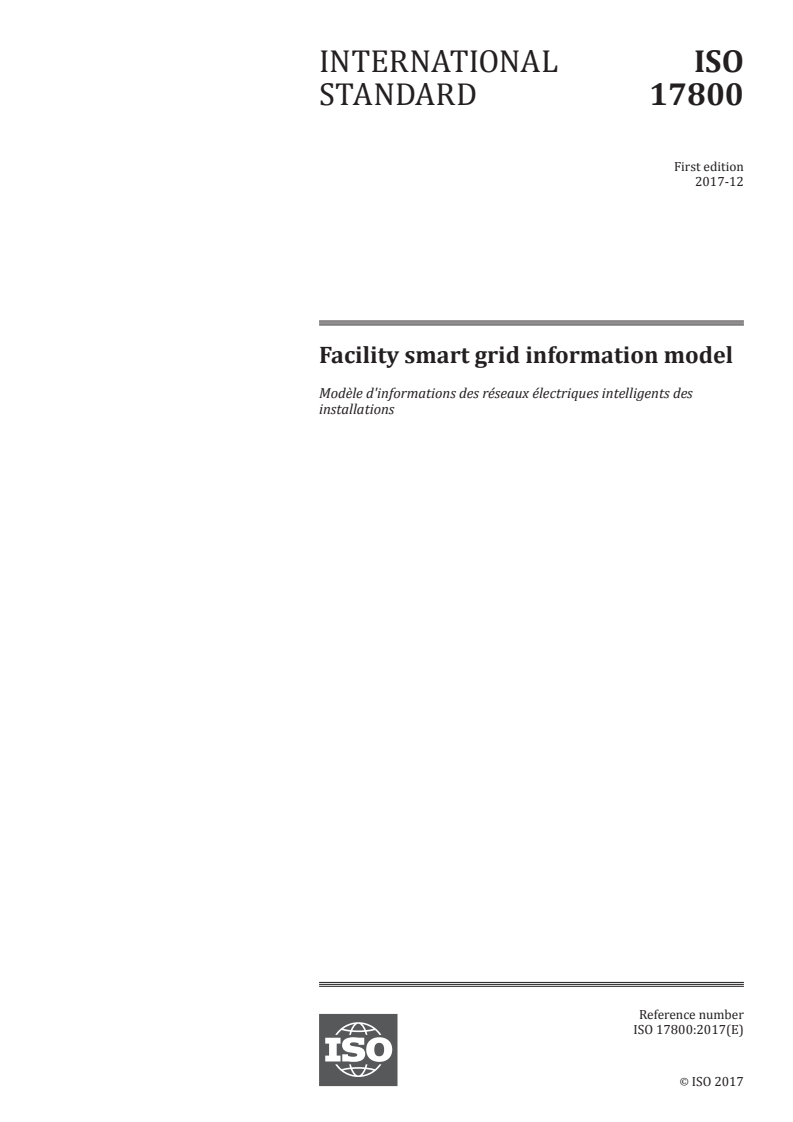

ISO 17800:2017

INTERNATIONAL ISO
STANDARD 17800
First edition
2017-12
Facility smart grid information model
Modèle d'informations des réseaux électriques intelligents des
installations
Reference number
ISO 17800:2017(E)
©
ISO 2017

---------------------- Page: 1 ----------------------
ISO 17800:2017(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 17800:2017(E)

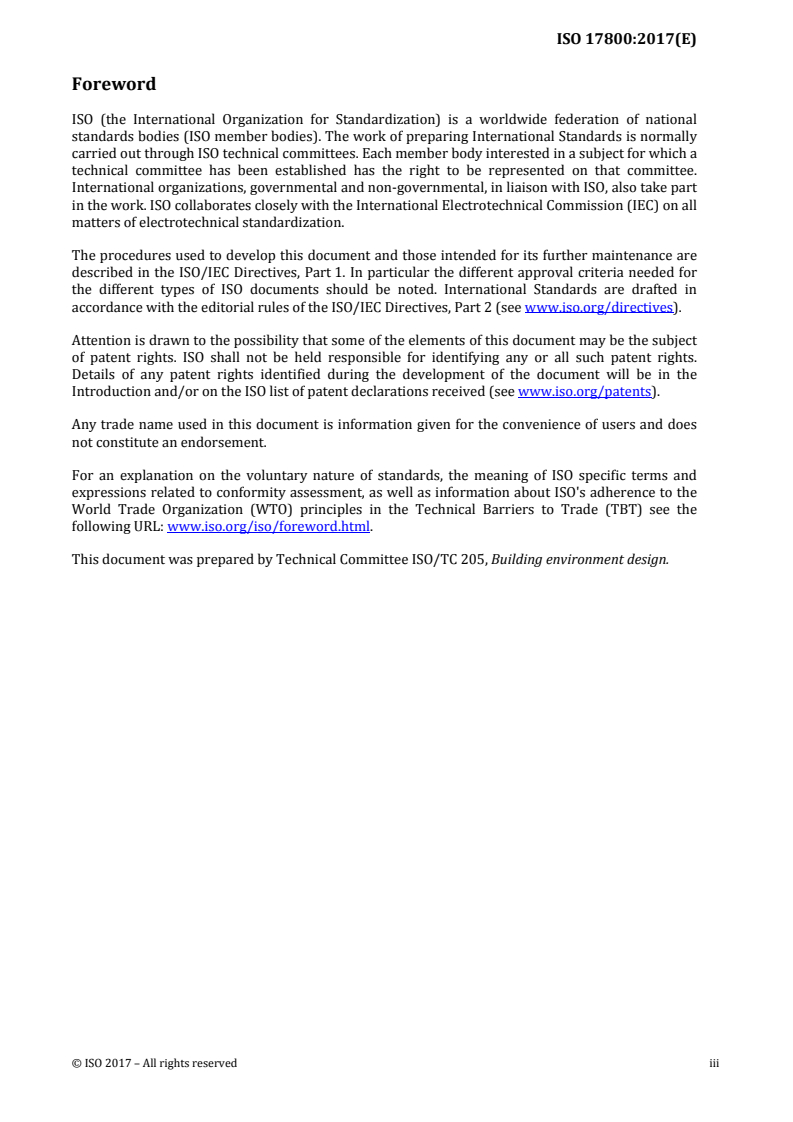

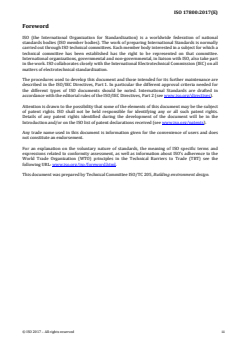

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national
standards bodies (ISO member bodies). The work of preparing International Standards is normally
carried out through ISO technical committees. Each member body interested in a subject for which a
technical committee has been established has the right to be represented on that committee.
International organizations, governmental and non‐governmental, in liaison with ISO, also take part
in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all
matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of ISO documents should be noted. International Standards are drafted in
accordance with the editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does
not constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the
following URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 205, Building environment design.

© ISO 2017 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 17800:2017(E)

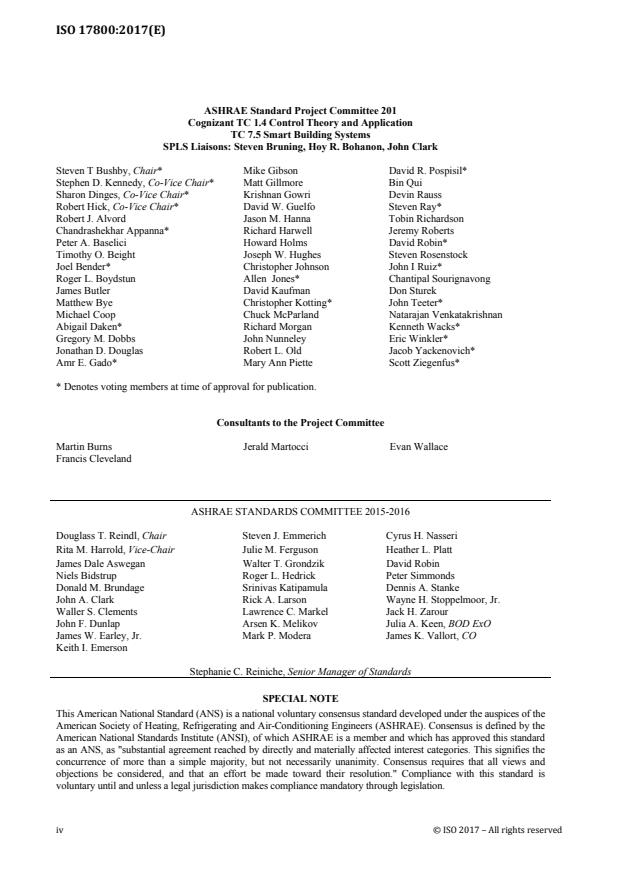

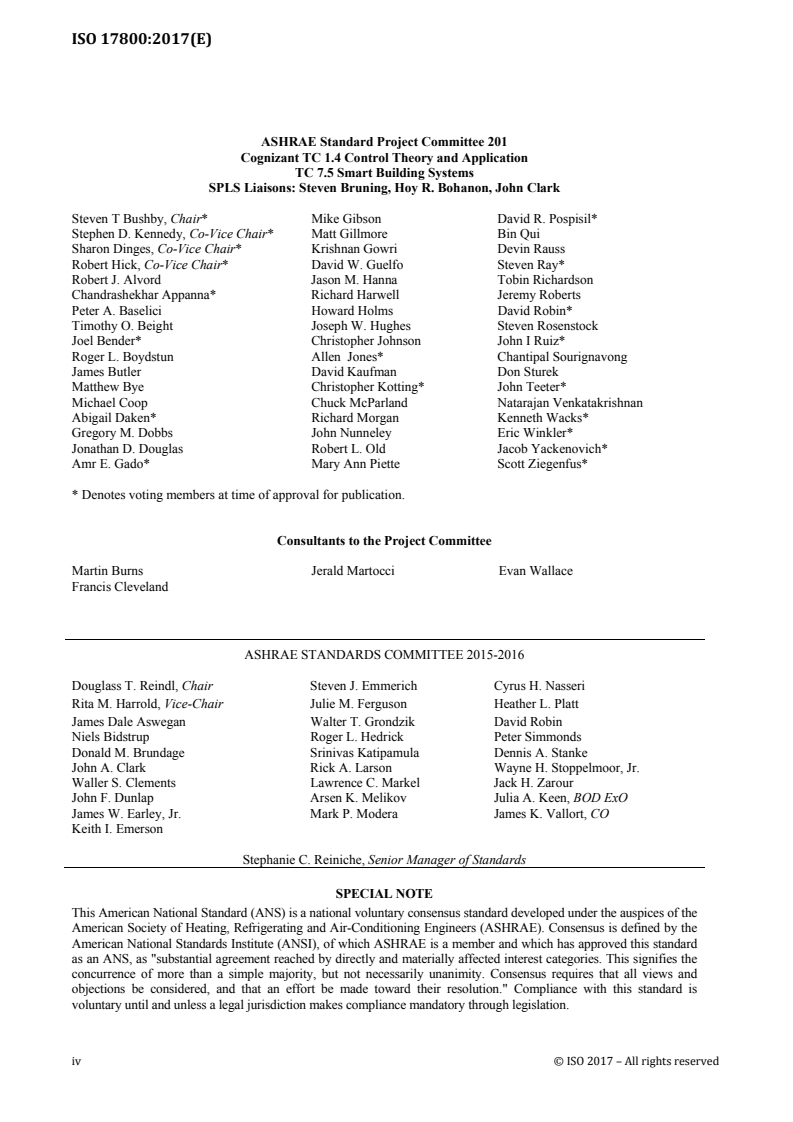

ASHRAE Standard Project Committee 201
Cognizant TC 1.4 Control Theory and Application
TC 7.5 Smart Building Systems
SPLS Liaisons: Steven Bruning, Hoy R. Bohanon, John Clark

Steven T Bushby, Chair* Mike Gibson David R. Pospisil*
Stephen D. Kennedy, Co-Vice Chair* Matt Gillmore Bin Qui
Sharon Dinges, Co-Vice Chair* Krishnan Gowri Devin Rauss
Robert Hick, Co-Vice Chair* David W. Guelfo Steven Ray*
Robert J. Alvord Jason M. Hanna Tobin Richardson
Chandrashekhar Appanna* Richard Harwell Jeremy Roberts
Peter A. Baselici Howard Holms David Robin*
Timothy O. Beight Joseph W. Hughes Steven Rosenstock
Joel Bender* Christopher Johnson John I Ruiz*
Roger L. Boydstun Allen Jones* Chantipal Sourignavong
James Butler David Kaufman Don Sturek
Matthew Bye Christopher Kotting* John Teeter*
Michael Coop Chuck McParland Natarajan Venkatakrishnan
Abigail Daken* Richard Morgan Kenneth Wacks*
Gregory M. Dobbs John Nunneley Eric Winkler*
Jonathan D. Douglas Robert L. Old Jacob Yackenovich*
Amr E. Gado* Mary Ann Piette Scott Ziegenfus*

* Denotes voting members at time of approval for publication.


Consultants to the Project Committee

Martin Burns Jerald Martocci Evan Wallace
Francis Cleveland



ASHRAE STANDARDS COMMITTEE 2015-2016

Douglass T. Reindl, Chair Steven J. Emmerich Cyrus H. Nasseri
Rita M. Harrold, Vice-Chair Julie M. Ferguson Heather L. Platt
James Dale Aswegan Walter T. Grondzik David Robin
Niels Bidstrup Roger L. Hedrick Peter Simmonds
Donald M. Brundage Srinivas Katipamula Dennis A. Stanke
John A. Clark Rick A. Larson Wayne H. Stoppelmoor, Jr.
Waller S. Clements Lawrence C. Markel Jack H. Zarour
John F. Dunlap Arsen K. Melikov Julia A. Keen, BOD ExO
James W. Earley, Jr. Mark P. Modera James K. Vallort, CO
Keith I. Emerson

Stephanie C. Reiniche, Senior Manager of Standards

SPECIAL NOTE
This American National Standard (ANS) is a national voluntary consensus standard developed under the auspices of the
American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). Consensus is defined by the
American National Standards Institute (ANSI), of which ASHRAE is a member and which has approved this standard
as an ANS, as "substantial agreement reached by directly and materially affected interest categories. This signifies the
concurrence of more than a simple majority, but not necessarily unanimity. Consensus requires that all views and
objections be considered, and that an effort be made toward their resolution." Compliance with this standard is
voluntary until and unless a legal jurisdiction makes compliance mandatory through legislation.

iv © ISO 2017 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 17800:2017(E)

ASHRAE obtains consensus through participation of its national and international members, associated societies, and
public review.

ASHRAE Standards are prepared by a Project Committee appointed specifically for the purpose of writing the
Standard. The Project Committee Chair and Vice-Chair must be members of ASHRAE; while other members may or
may not be members of ASHRAE, all must be technically qualified in the subject area of the standard. Every effort is
made to balance the concerned interests on all Project Committees.

The Manager of Standards of ASHRAE should be contacted for:
 a. interpretation of the contents of this Standard,
 b. participation in the next review of the Standard,
 c. offering constructive criticism for improving the Standard,
 d. permission to reprint portions of the Standard.

OASIS DISCLAIMER

Excerpts from OASIS [WS-Calendar v1.0 Committee Specification 01] [and] [OASIS Energy Market Information
Exchange (EMIX) v1.0 Committee Specification] are reprinted with permission from OASIS Open, and are Copyright
© OASIS Open 2009-2012. All Rights Reserved.

[WS-Calendar][and][EMIX] [is]/[are] subject to the terms of the OASIS IPR Policy, and all capitalized terms in the
following text have the meanings assigned to them in that Policy, which may be found at the OASIS website:
http://www.oasis-open.org/who/intellectualproperty.php.

[WS-Calendar][and][EMIX] and translations thereof may be copied and furnished to others, and derivative works that
comment on or otherwise explain it or assist in its implementation may be prepared, copied, published, and distributed,
in whole or in part, without restriction of any kind, provided that the above copyright notice and this section are
included on all such copies and derivative works.

[WS-Calendar][and][EMIX] and the information contained therein is provided on an "AS IS" basis and OASIS
DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY
WARRANTY THAT THE USE OF THE INFORMATION HEREIN WILL NOT INFRINGE ANY OWNERSHIP
RIGHTS OR ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. "


© ISO 2017 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 17800:2017(E)



vi © ISO 2017 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 17800:2017(E)

CONTENTS
FOREWORD . iii
INTRODUCTION . viii
1.  Purpose . 1
2.  Scope . 1
3.  Definitions . 2
3.1.  Terms Adopted from External Sources . 2
3.2.  Terms Defined for this Standard . 3
3.3.  Abbreviations and Acronyms Used in this Standard . 5
4.  FSGIM Structure and Usage . 7
4.1.  Overview . 7
4.2.  How the FSGIM Component Model can be Applied to Real-World Examples . 9
5.  Device and Model Components . 14
5.1.  Facility Model Overview Diagram . 14
5.2.  Device . 18
5.3.  Meter Component . 29
5.4.  Load Component . 36
5.5.  Generator Component . 59
5.6.  Energy Manager Component . 94
5.7.  Model Elements from External Sources . 241
6.  Common Primitive Types, Classes, and Enumerations . 509
6.1.  Time . 509
6.2.  Enumerations . 510
6.3.  Primitive Data Types . 515
6.4.  Measurements . 516
6.5.  Other Common Classes. 548
6.6.  Elements Defined in the Common Primitive Types, Classes, and Enumerations Model . 551
7.  Conformance Requirements. 595
7.1.  Introduction . 595
7.2.  Conformance Requirements . 596
7.3.  Conformance Blocks . 599
8.  References . 815
9.  Annex A – UML Model (Normative) . 816
© ISO 2017 – All rights reserved vii

---------------------- Page: 7 ----------------------
ISO 17800:2017(E)

INTRODUCTION

The effort to substantially modernize and transform the national electric grid and create what has become known as
a "smart grid" is an enormous undertaking that reflects both the size and importance of the electric grid. Viewed in
its entirety, it is an international effort involving hundreds of organizations and companies, and it will impact
billions of people. The standards infrastructure that will be needed to support this transformation may include over
one hundred standards by the time that it is fully in place. This standard is one part of that infrastructure.
Almost all electricity is consumed in a building of some kind – homes, retail establishments, offices, schools,
factories, hospitals – the list goes on. This standard attempts to capture the breadth and diversity of these consumers
by using the term "facility." A facility is any kind of building or collection of buildings, and all of the electrical loads
or local generation sources contained within them or controlled by the facility owner.
Historically, electricity consumption has been viewed as a collection of dumb loads at the end of a distribution
system. There has been almost no interaction between the "loads" and those responsible for electricity generations
and distribution. The vision of the smart grid changes this picture radically. In a smart grid world, facilities become
full partners in supporting and managing the electric grid. Facilities become generators using local renewable or
other generation capacity. Facilities moderate electrical demand in response to fluctuations in the price or availably
of electricity. Facilities communicate and negotiate with energy providers, sharing information about the facility's
projected electrical demand or ability to respond to the energy provider's needs for maintaining grid stability and
reliability.
In some respects all facilities have common characteristics and needs with respect to interactions with a smart grid,
regardless of whether the facility is a commercial, institutional, or industrial building, or a private home. The
Facility Smart Grid Information Model (FSGIM) standard attempts to capture this commonality and standardize the
content of the information that a facility manager needs to have, or, in some cases, needs to exchange with the
energy provider, in order to manage the facility. Energy providers benefit from the FSGIM standard because it
enables interaction with all different types of facilities in a common way. Facility owners benefit because products
can be designed for use in multiple facility types and products designed primarily for one type of facility, a home for
example, can more easily be used in another, say a commercial building.
An information model is an abstraction, not an implementation. This abstract representation is a way to account for
the reality that the technology used to manage a facility may be quite different depending on the type of facility. It is
intended that the FSGIM will be used to develop or enhance other standards that define technology and
communication protocol specific implementations of the model for particular markets.
The FSGIM was developed in the context of a much larger framework of smart grid standards. It builds on some of
those standards in a way that is intended to maintain consistency and harmony with established and developing
standards that impact the information needed to managing the facility, while at the same time capturing all of the
key information needed in one place.
If the smart grid is to become a reality there must be smart facilities of all types that interact with it. The
considerable time and talent that went into developing the FSGIM was invested in order to lay a solid foundation
upon which to fulfill this vision.

viii © ISO 2017 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 17800:2017(E)
1. PURPOSE
The purpose of this standard is to define an abstract, object-oriented information model to enable appliances and control
systems in homes, buildings, and industrial facilities to manage electrical loads and generation sources in response to
communication with a “smart” electrical grid and to communicate information about those electrical loads to utility and
other electrical service providers.

2. SCOPE
This model provides the basis for common information exchange between control systems and end use devices
found in single - and multi-family homes, commercial and institutional buildings, and industrial facilities that is
independent of the communication protocol in use. It provides a common basis for electrical energy consumers to
describe, manage, and communicate about electrical energy consumption and forecasts.
The model defines a comprehensive set of data objects and actions that support a wide range of energy management
applications and electrical service provider interactions including:
a) on-site generation,
b) demand response,
c) electrical storage,
d) peak demand management,
e) forward power usage estimation,
f) load shedding capability estimation,
g) end load monitoring (sub metering),
h) power quality of service monitoring,
i) utilization of historical energy consumption data, and
j) direct load control.

© ISO 2017 – All rights reserved 1

---------------------- Page: 9 ----------------------
ISO 17800:2017(E)

3. DEFINITIONS
See Clause 8 for external standards that are referenced by this standard.
3.1. Terms Adopted from External Sources
The following terms used in this standard are drawn from other standards or published reference sources. The
definitions are repeated here and a reference to the appropriate standard or document is provided. Words or phrases
in italics refer to terms defined elsewhere in this clause.

asset
A logical entity with measurable and reportable consumption, e.g., an asset may be a physical device with its own
meter, or the main meter at the service delivery point of a service location.
(NAESB 2010a).

baseline
A method of estimating the electricity that would have been consumed by a customer or demand resource in the
absence of a demand response event. It may be calculated using interval metering and/or statistical sampling
techniques.
(NAESB 2010a).

combined heat and power
Combined heat and power (CHP), also known as cogeneration, is the simultaneous production of electricity and heat
from a single fuel source, such as: natural gas, biomass, biogas, coal, waste heat, or oil.
(http://www.epa.gov/chp/basic/index.html).

electrical coupling point
Point of electrical connection between the DER source of energy (generation or storage) and any electric power
system (EPS). Each DER (generation or storage) unit has an ECP connecting it to its local power system; groups of
DER units have an ECP where they interconnect to the power system at a specific site or plant; a group of DER units
plus local loads have an ECP where they are interconnected to the utility power system.
(IEC 61850 Part 7-420).

energy management system
A system used to monitor and control the energy consuming devices in a building. Within this standard, "energy
management system" always refers to a customer/facility energy management system and not a utility energy
management system.
(EIS Alliance Use-Cases).

non-spinning reserve
1. That generating reserve not connected to the system but capable of serving demand within a specified time.
2. Interruptible load that can be removed from the system in a specified time.
(NERC Glossary).

peak load
The maximum amount of power delivered (load) for a given time period.
(NEMA glossary (http://www.nema.org/gov/energy/glossary/)).

power quality
Characteristics of the electricity at a given point on an electrical system, evaluated against a set of reference
technical parameters.
NOTE: These parameters might, in some cases, relate to the compatibility between electricity supplied on a network
and the loads connected to that network.
(IEC 61000-4-30 (2008)).

pricing node (Pnode)
A single network Node or subset of networked Nodes where a physical injection or withdrawal is modeled and for
which a Locational Marginal Price is calculated and used for financial settlements.
(CAISO Tariff).

program administrator
An investor-owned, governmental or cooperative distribution company with the responsibility for developing and
operating specific programs.
(NAESB REQ.0.2.179).

2 © ISO 2017 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 17800:2017(E)
spinning reserve
Unloaded generation that is synchronized and ready to serve additional demand.
(NERC Glossary).


3.2. Terms Defined for this Standard
aggregated pricing node
An aggregated pricing node is a location in the electric grid where the locational marginal price is calculated by a
weighted average of one or more underlying pricing nodes.

capacity restraint
A limitation in the generating capacity or transmission capacity of an energy supplier that constrains the amount of
electricity that is available to be bought or sold.

Commercial Buildings Energy Consumption Survey
A national sample survey that collects information on the stock of U.S. commercial buildings.

control system
A device or set of devices used to manage, command, direct, or regulate the behavior of other devices or systems.

critical loads
Individual loads deemed to be critical to the operation of the facility or process.

critical peak period
A time period during which a special high price for electricity is applied as a way to reduce demand.

curtailable load
Loads whose power consumption can be increased or decreased for the purpose of increasing or decreasing the total
electrical demand on the grid.

demand
The rate at which energy is delivered to or used by a system or part of a system at a given instant in time or averaged
over any designated interval of time.

demand forecast
Predictions regarding future electrical demand.

demand interval
The period of time over which an energy supplier calculates demand. Typical values range from five minutes to 60
minutes.

demand resource
A load, aggregation of loads, behind-the-meter generator, electrical storage system, or thermal storage system
capable of providing measurable and verifiable demand response.

demand response
A temporary change in electricity usage by a demand resource in response to market or reliability conditions.

demand response event
A period of time defined by the program administrator, including notifications, deadlines, and transitions, during
which demand resources provide demand response. All notifications, deadlines, and transitions may not be
applicable to all demand response products or services.

demand target
Target in demand management; peak demand is a key factor in contract charges for electricity use.

direct load control
A demand response activity by which the program administrator remotely shuts down or cycles a customer's
electrical equipment (e.g., air conditioner, water heater). Direct load control programs are primarily offered to
residential or small commercial retail customers.

© ISO 2017 – All rights reserved 3

---------------------- Page: 11 ----------------------
ISO 17800:2017(E)

dispatchable generator
Generators whose power supply may be increased or decreased for the purpose of decreasing or increasing the total
electrical demand on the grid.

distributed energy resource
A small, modular, energy generation or storage device located within the electrical distribution system at or near the
end user. Distributed energy resources may be connected to the local electrical power grid (e.g., for voltage support)
or isolated from the grid in standalone applications, such as part of a micro grid.

emergency standby generation
The provision of capacity deployed by the balancing authority to meet NERC and regional reliability organization
contingency requirements.

end device
A physical end-use device that consumes or supplies electricity.

energy consumption
A measure of the quantity of electricity used in a given time period, measured in kilowatt hours.

energy cost
That portion of the charge for electric service based upon the electric energy (kWh) consumed or billed.

energy emissions
The pollution emissions associated with generating a quantity of electrical energy.

energy information provider
A business that provide energy supply or demand information to customers or authorized third parties.

energy services company
A business providing energy savings, efficiency, and generation solutions.

energy services interface
An abstract representation of a bi-directional communication interface between devices within a facility and an
external electric service provider. This interface enables exchange of information including pricing, energy
consumption, demand response interactions, load forecasts, energy production forecasts, and weather information.

energy supplier
An entity that delivers electricity to end use customers. Examples include investor-owned utilities, municipal
utilities, and private companies.

forward pricing forecast
The compilation of prices of actual transactions for forward (future) delivery periods that are executed today.

independent system operator
An independent system operator maintains balance of the grid system by controlling the dispatch of plants and
ensuring that loads match system resources. As such, the operator must be neutral and independent.

intelligent end point
A system that internally measures, collects, and analyzes its energy cost/consumption.

load
A device, system or process that consumes electrical energy.

local codes
Local laws, regulations, and building codes that determine building operation and capabilities.

measurement and verification
Energy measurements that can be determined to a degree of accuracy and trust that is acceptable to all stakeholders.

net demand
Total demand minus total supply. Net demand is determined at the facility interconnection point, billing meter, or
internal location, and may be positive or negative.

4 © ISO 2017 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 17800:2017(E)
peak demand
The highest measured demand encountered during a specified period of time (e.g., month, year, or finite set of time
intervals).

plug load
A device that is powered by means of an electrical plug and matching socket or receptacle. This excludes devices
that are accounted for as part of major building end uses such as HVAC, lighting systems, and water heating.

present demand
Demand occurring during the present demand interval or subinterval (e.g., Watts or VA).

present subinterval demand
Average rate of energy used over a small portion of a demand interval.

present subinterval net demand
Average net rate of energy used over a small portion of a demand interval.

present subinterval supply
Average rate of energy supplied over a small portion of a demand interval.

ramp rate
The rate at which a generator changes its output or a demand resource changes its demand.

service delivery point
The location where electric service is delivered to the facility.

service level agreement
A part of a service contract where the level of service is formally agreed upon.

smart power distribution unit
A device that measures and distributes electric power to an electrical circuit.

smart power strip
A power strip that measures electrical power being drawn by the connected equipment.

supply
The rate of energy generation or storage output that is used to serve facility load and possibly provided to the grid as
a generation resource.

time of use pricing
A rate structure characterized by different prices for electricity use in a 24-hour time frame. Time of use pricing is
generally used to encourage electricity use during periods of lower demand and discourage elect
...
