ISO/TR 4277:2009

TECHNICAL ISO/TR
REPORT 4277
First edition
2009-11-01

Cryolite, natural and artificial —
Conventional test for evaluation of free
fluorides content
Cryolithe, naturelle et artificielle — Essai conventionnel pour l'évaluation
de la teneur en fluorures libres




Reference number
ISO/TR 4277:2009(E)
©
ISO 2009

---------------------- Page: 1 ----------------------
ISO/TR 4277:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2009 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 4277:2009(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 4277 was prepared by Technical Committee ISO/TC 226, Materials for the production of primary
aluminium.
This first edition cancels and replaces ISO 4277:1977, of which it constitutes a minor revision.
© ISO 2009 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 4277:2009(E)

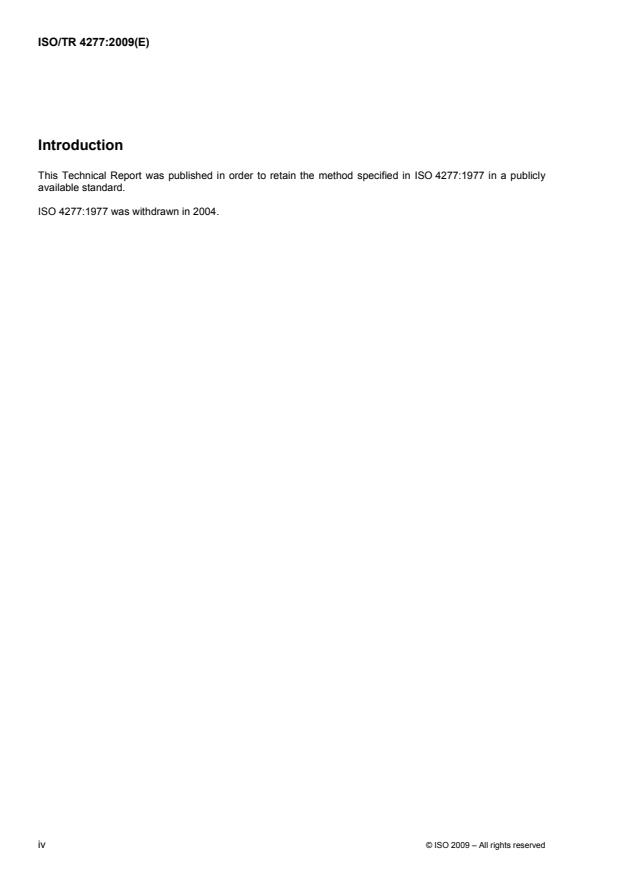

Introduction
This Technical Report was published in order to retain the method specified in ISO 4277:1977 in a publicly
available standard.
ISO 4277:1977 was withdrawn in 2004.

iv © ISO 2009 – All rights reserved

---------------------- Page: 4 ----------------------
TECHNICAL REPORT ISO/TR 4277:2009(E)

Cryolite, natural and artificial — Conventional test for
evaluation of free fluorides content
1 Scope
This Technical Report describes a conventional test for the evaluation of the free fluorides content of natural,
artificial and recovered cryolite.
This method is applicable to products having free fluorides content greater than 0,15 % (mass fraction) of AIF
3
or 0,4 % (mass fraction) of NaF.
2 Principle
A test portion is sintered with a known quantity of sodium fluoride at 790 ± 20 °C for 20 minutes. Under these
conditions, aluminium fluoride in excess of that required for the stoichiometric formula AlF ·3NaF reacts with
3
some of the sodium fluoride to form cryolite.
The ground sintered mass is extracted with boiling water and the solution is acidified with hydrochloric acid
solution to a pH less than 3,7, followed by titration of the excess sodium fluoride with standard volumetric
thorium nitrate solution in the presence of alizarin-S as indicator.
3 Reagents
During the analysis, use only reagents of recognized analytical grade and only distilled water or water of
equivalent purity.
3.1 Sodium fluoride, anhydrous, dried at about 120 °C to constant mass in a platinum crucible and cooled
in a desiccator.
3.2 Gelatine, 3 % freshly prepared solution.
3.3 Hydrochloric acid, approximately 0,1 N solution.
3.4 Sodium fluoride, 4,20 g/l standard solution (corresponding to 0,1 N).
Weigh, to the nearest 0,001 g, 4,20 g of the sodium fluoride (3.1). Transfer quantitatively to a 1 000 ml one-
mark volumetric flask containing a little water and, after dissolution, dilute to the mark and mix. Transfer the
solution to a suitable plastics bottle.
1 ml of this solution contains 4,20 mg of NaF.
3.5 Thorium nitrate, 0,1 N standard volumetric solution.
Weigh, to the nearest 0,001 g, 13,805 g of thorium nitrate tetrahydrate [Th(NO ) ·4H O], transfer
3 4 2
quantitatively to a 1 000 ml one-mark volumetric flask, dissolve in water, dilute to the mark and mix.
© ISO 2009 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO/TR 4277:2009(E)
3.6 Buffer solution, pH 2,7.
Neutralize a 9,5 % (mass fraction) solution of monochloroacetic acid (CH CI-COOH) with an approximately
2
10 N sodium hydroxide solution, in the presence of phenolphthalein. Add 50 ml of this solution to 50 ml of the
same monochloroacetic acid solution and mix.
3.7 Alizarin-S (sodium alizarinsulfonate), 0,5 g/l solution.
4 Apparatus
Ordinary laboratory apparatus and in particular the following.
4.1 Platinum crucible, diameter approximately 40 mm, height approximately 30 mm.
4.2 Electric furnace, capable of being controlled at 790 ± 20 °C.
5 Procedure
5.1 Test portion
Weigh, to the nearest 0,001 g, 4 g of the dried sample (see ISO 1619:1976, 3.3).
5.2 Preparation of the calibration graph
5.2.1 Preparation of the standard matching solutions
Into a series of seven 100 ml conical plastics flasks, place the volumes of the standard sodium fluoride
solution (3.4) shown in the following table.
Table 1 — Volumes of standard sodium fluoride solution
Standard sodium fluoride
Corresponding mass of NaF
solution (3.4)
ml mg
0 0
1,0 4,20
3,0 12,60
5,0 21,00
7,0 29,40
9,0 37,80
10,0 42,00

5.2.2 Titration
Add to each conical flask 40 ml of water, 5 ml of the buffer solution (3.6), 1 ml of the alizarin-S solution (3.7)
and 10 ml of the gelatine solution (3.2). Titrate with the standard volumetric thorium nitrate solution (3.5) until
the colour of the indicator changes to pink.
