Overview
ISO 1127:1992 - Stainless steel tubes: Dimensions, tolerances and conventional masses per unit length defines standardized outside diameters, wall thicknesses, dimensional tolerances and conventional linear masses for stainless steel tubes. It adopts tube sizes from ISO 4200 and provides tabulated conventional masses for different stainless steel families (austenitic; ferritic and martensitic). The edition clarifies tolerance selection and gives conventional-mass adjustments based on assumed average densities.
Key topics
- Dimensions and size series: Outside diameters and thicknesses are selected from ISO 4200; for thicknesses greater than 14.2 mm ISO 4200 sizes apply.
- Tolerances: Specifies tolerances on outside diameter (including ovality) and on wall thickness (including eccentricity). Tolerances are given as selectable classes in the standard’s tables.
- Conventional masses per unit length: Tabulated masses for austenitic and for ferritic/martensitic stainless steel tubes. The standard explains conversion factors relative to ISO 4200 masses:
- Austenitic masses = ISO 4200 masses × 1.015 (assumed density 7.97 kg/dm³).
- Ferritic/martensitic masses = ISO 4200 masses × 0.985 (assumed density 7.73 kg/dm³).
- Other dimensional tolerances: References ISO 5252 for tolerances on dimensions not covered (e.g., ends, chamfers).
Practical applications
ISO 1127:1992 is used where consistent tube geometry, interchangeability and predictable mass/weight are required:
- Engineering and piping design for chemical, petrochemical and food processing plants.
- Specification and procurement of stainless steel tubing for instrumentation, heat exchangers and structural elements.
- Quality control, inspection and acceptance testing to verify outside diameter, wall thickness and straightness/ovality.
- Manufacturing planning for tube producers and fabricators to meet international dimensional classes.
Typical users: mechanical and piping engineers, procurement/specification writers, metallurgists, tube manufacturers, welding/fabrication shops and inspection authorities.
Related standards
- ISO 4200 - source table of plain-end steel tube sizes (used for diameter/thickness selection and base masses).
- ISO 5252 - tolerance systems for steel tubes (referenced for other dimensional tolerances).
ISO 1127:1992 helps ensure consistent sizing, tolerance control and reliable mass data for stainless steel tubing - essential for accurate material take-offs, fabrication fit-up and cross-border procurement. Keywords: ISO 1127:1992, stainless steel tubes, dimensions, tolerances, conventional mass per unit length, austenitic, ferritic, martensitic, ISO 4200, ISO 5252.
ISO 1127:1992 - Stainless steel tubes -- Dimensions, tolerances and conventional masses per unit length
ISO 1127:1992 - Tubes en acier inoxydable -- Dimensions, tolérances et masses linéiques conventionnelles
ISO 1127:1992 - Tubes en acier inoxydable -- Dimensions, tolérances et masses linéiques conventionnelles
Frequently Asked Questions
ISO 1127:1992 is a standard published by the International Organization for Standardization (ISO). Its full title is "Stainless steel tubes - Dimensions, tolerances and conventional masses per unit length". This standard covers: The outside diameters and thicknesses of the tubes have been selected from ISO 4200. If thicknesses greater than 14,2 mm are needed, they should be choosen from ISO 4200. Specifies the diameters, tolerances and other parameters of tubes. It tabulates conventional masses for austenitic (table 1) and for ferritic and martensitic (table 2) stainless steel tubes.
The outside diameters and thicknesses of the tubes have been selected from ISO 4200. If thicknesses greater than 14,2 mm are needed, they should be choosen from ISO 4200. Specifies the diameters, tolerances and other parameters of tubes. It tabulates conventional masses for austenitic (table 1) and for ferritic and martensitic (table 2) stainless steel tubes.
ISO 1127:1992 is classified under the following ICS (International Classification for Standards) categories: 23.040.10 - Iron and steel pipes. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 1127:1992 has the following relationships with other standards: It is inter standard links to ISO 1127:1980. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 1127:1992 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL
STANDARD
Third edition
1992-l 2-l 5
- Dimensions, tolerances
Stainless steel tubes
and conventional masses per unit length
- Dimensions, tokrances et masses lirkiques
Tubes en acier inoxydable
conventionne~~es
-
Reference number
IS0 1127:1992(E)
IS0 1127:1992(E)
Foreword
IS0 (the International Organization for Standardization) is a worldwide
federation of national standards bodies (IS0 member bodies). The work
of preparing International Standards is normally carried out through IS0
technical committees. Each member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the
work. IS0 collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an Inter-
national Standard requires approval by at least 75 % of the member
bodies casting a vote.
International Standard IS0 1127 was prepared by Technical Committee
ISO/TC 5, Ferrous metal pipes and metallic fittings, Sub-Committee SC
1, Steel tubes.
This third edition cancels and replaces the second edition
(IS0 1127:1980), of which tables 1 and 2 (now tables 3 and 4 ) have been
technically revised. In particular, the diameter 12,7 mm has been added
to series 2 in these two tables.
Annex A of this International Standard is for information only.
0 IS0 1992
All rights reserved. No part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without
permission in writing from the publisher.
International Organization for Standardization
Case Postale 56 l CH-1211 Geneve 20 l Switzerland
Printed in Switzerland
ii
IS0 1127:1992(E)
INTERNATIONAL STANDARD
Stainless steel tubes - Dimensions, tolerances and
conventional masses per unit length
4.1 Tolerances on outside diameter
1 Scope
See table 1.
This International Standard specifies the diameters,
thicknesses, tolerances and conventional masses
per unit length of stainless steel tubes.
Table 1 - Tolerances on outside diameter
I I
Tolerance
Tolerance on outside diameter
class
I
I
I
I
* I,5 %
2 Normative reference Dl
with & 0,75 mm min.
&I %
The following standard contains provisions which,
with & 0,5 mm min.
through reference in this text, constitute provisions
of this International Standard. At the time of publi-
If: 0,75 %
cation, the edition indicated was valid. All standards
with * 0,3 mm min.
are subject to revision, and parties to agreements
* 0,5 %
based on this International Standard are encour-
with & 0,l mm min.
aged to investigate the possibility of applying the
I D4 I
most recent edition of the standard indicated below.
Members of IEC and IS0 maintain registers of cur-
The tolerances on outside diameter include ovality.
rently valid International Standards.
4.2 Tolerances on thickness
IS0 5252:1991, Steel tubes - Tolerance systems.
See table 2.
Table 2 - Tolerances on thickness
3 Dimensions
\
Tolerance
Tolerance on thickness
class
The outside diameters and thicknesses of the tubes
specified in this International Standard have been
* 15 %
selected from IS0 4200. If thicknesses greater than
with * 0,6 mm min.
14,2 mm are needed, they should be chosen from
Ifr 12,5 %
IS0 4200.
T2
with * 0,4 mm min.
* 10 %
with & 0,2 mm min.
4 Tolerances
* 7,5 %
with j-- 0,15 mm min.
The tolerances permitted on the outside diameter
*so/,
and thickness of the tubes result from the method
with k 0,l mm min.
of manufacture, the steel types and the heat treat-
ment. The tolerances shall be selected from the
The tolerances on thickness include eccentricity.
values given in tables 1 and 2.
IS0 1127:1992(E)
masses given in IS0 4200 multiplied by a factor of
4.3 Other tolerances
1,015. This factor assumes an average density for
For tolerances on dimensions other than outside di-
these tubes of 7,97 kg/dm3.
ameter and thickness, reference shall be made to
IS0 5252. The conventional masses per unit length given in
table 4 for ferritic and martensitic stainless steel
tubes are the masses given in IS0 4200 multiplied
5 Conventional masses per unit length
by a factor of 0,985. This factor assumes an average
density for these tubes of 7,73 kg/dm3.
The conventional masses per unit length given in
table 3 for austenitic stainless steel tubes are the
...
IS0
NORME
I NTE R NATI 0 NALE
Troisieme edition
1992-1 2-1 5
Tubes en acier inoxydable - Dimensions,
tolerances et masses lineiques conventionnelles
Stainless steel tubes - Dimensions, tolerances and conventional masses
per unit length
Nutnero de reference
[SO 1127:1992(F)
IS0 1127:1992(F)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une federation
rnondiale d’organisrnes nationaux de normalisation (comites rnernbres
de I’ISO). L’elaboration des Norrnes internationales est en general
confiee aux comites techniques de I’ISO. Chaque cornite rnernbre inte-
resse par une etude a le droit de faire partie du cornite technique Cree
a cet effet. Les organisations internationales, gouvernernentales et non
gouvernernentales, en liaison avec I’ISO participent egalernent aux tra-
vaux. L’ISO collabore etroiternent avec la Commission electrotechnique
internationale (CEI) en ce qui concerne la normalisation electrotech-
nique.
Les projets de Norrnes internationales adoptes par les comites techni-
ques sont sournis aux comites mernbres pour vote. Leur publication
comrne Norrnes internationales requiert I’approbation de 75 Oh au rnoins
des comites rnernbres votants.
La Norrne internationale IS0 1127 a ete elaboree par le cornite techni-
que ISO/TC 5, Tuyauteries en metaux ferreux et raccords metalliques,
sous-cornite SC 1. Tubes en acier.
Cette troisierne edition annule et rernplace la deuxierne edition
(IS0 1127:1980), dont les tableaux 1 et 2 (actuellernent 3 et 4) ont fait
I’objet d’une revision technique. En particulier, le diarnetre 12,7 rnrn a
ete ajoute dans la serie 2 de ces deux tableaux.
L’annexe A de la presente Norrne internationale est donnee uniquernent
a titre d’inforrnation.
0 IS0 1992
Droits de reproduction reserves. Aucune partie de cette publication ne peut etre repro-
duite ni utilisee sous quelque forme que ce soit et par aucun procede, electronique ou
mecanique, y compris la photocopie et ies microfilms, sans I’accord ecrit de I’editeur.
Organisation internationale de normalisation
Case Postale 56 CH-1211 Geneve 20 Suisse
lmprime en Suisse
ii
~ ~ ~ ~~
NORME INTERNATIONALE IS0 1127:1992(F)
Tubes en acier inoxydable - Dimensions, tolerances et
masses I i neiques convent ionnel les
1 Domaine d’application 4 Tolerances
La presente Norme internationale prescrit les dia-
Les tolerances admises pour les diametres exte-
metres, les epaisseurs, les tolerances et les masses
rieurs et les epaisseurs des tubes resultent de la
lineiques conventionnelles des tubes en acier
methode de fabrication, du type d’acier et du
i noxyd a ble.
traitement thermique. Les tolerances doivent etre
selectionnees parmi les valeurs donnees dans les
tableaux 1 et 2.
2 Reference normative
La norme suivante contient des dispositions qui, par
suite de la reference qui en est faite, constituent des
dispositions valables pour la presente Norme inter-
4.1 Tolerances sur le diametre exterieur
nationale. Au moment de la publication, I’edition in-
diquee etait en vigueur. Toute norme est sujette a
Voir tableau 1
revision et les parties prenantes des accords fondes
sur la presente Norme interriationale sont invitees
Tableau 1 - Tolerances sur le diarnetre exterieur
a rechercher la possibilite d‘appliquer I’edition la
plus recente de la norme indiquee ci-apres. Les
Classe de
Tolerance sur diametre exterieur
tolerance
membres de la CEI et de I’ISO possedent le registre
des Normes internationales en vigueur a un moment
f 1,5 Yo
donne.
avec f 0,75 mm min.
I Dl I
f 1 %
IS0 5252:1991, Tubes en acier - Systemes de tole-
D2
avec f 0,5 mm min.
ra
...
IS0
NORME
I NTE R NATlO NALE 1127
Troisieme edition
1992-1 2-1 5
Tubes en acier inoxydable - Dimensions,
tolerances et masses lineiques conventionnelles
Stainless steel tubes - Dimensions, tolerances and conventional masses
per unit length
Numero de reference
IS0 1127:1992(F)
IS0 11 27:1992(F)
Avant- pro pos
L’ISO (Organisation internationale de normalisation) est une federation
mondiale d’organismes nationaux de normalisation (comites membres
de I’ISO). L’elaboration des Normes internationales est en general

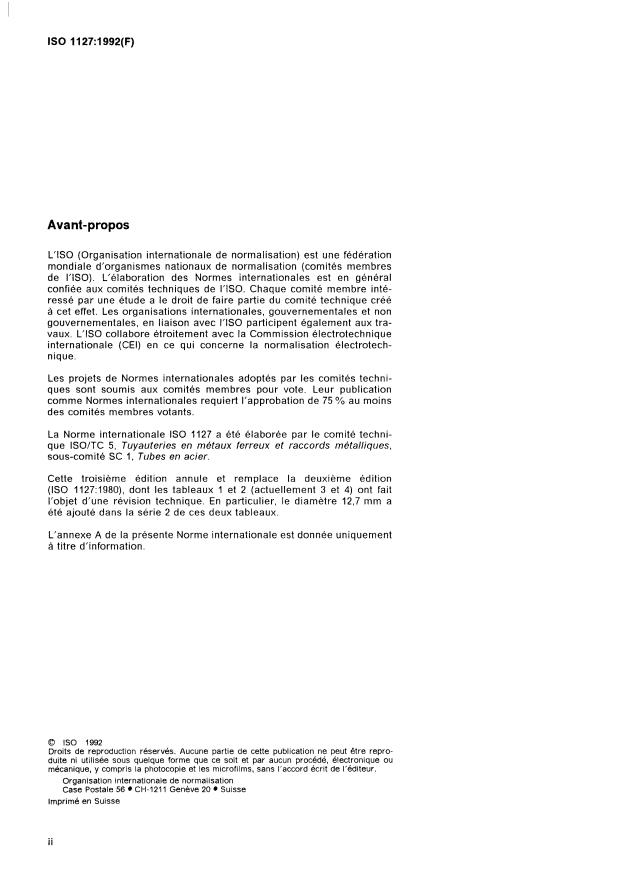

confiee aux comites techniques de I’ISO. Chaque comite membre inte-
resse par une etude a le droit de faire partie du comite technique Cree
a cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l’lS0 participent egalement aux tra-
vaux. L’ISO collabore etroitement avec la Commission electrotechnique
internationale (CEI) en ce qui concerne la normalisation electrotech-
nique.
Les projets de Normes internationales adoptes par les comites techni-
ques sont soumis aux comites membres pour vote. Leur publication
comme Normes internationales requiert I’approbation de 75 O% au moins
des comites membres votants.
La Norme internationale IS0 1127 a ete elaboree par le comite techni-
que ISO/TC 5, Tuyauteries en metaux ferreux et raccords metalliques,
sous-comite SC 1, Tubes en acier.
Cette troisieme edition annule et remplace la deuxieme edition
(IS0 1127:1980), dont les tableaux 1 et 2 (actuellement 3 et 4) ont fait
I’objet d’une revision technique. En particulier, le diametre 12,7 mm a
ete ajoute dans la serie 2 de ces deux tableaux.
L’annexe A de la presente Norme internationale est donnee uniquement
a titre d’information.
8 IS0 1992
Droits de reproduction reserves. Aucune partie de cette publication ne peut &re repro-
duite ni utiiisee sous quelque forme que ce soit et par aucun procede, electronique ou
mecanique, y compris la photocopie et ies microfilms, sans I’accord ecrit de i‘editeur.
Organisation internationale de normalisation
Case Postale 56 CH-1211 Geneve 20 Suisse
lrnprime en Suisse
ii
NORME INTERNATIONALE IS0 11 27:1992(F)
Tubes en acier inoxydable - Dimensions, tolerances et
masses lineiques conventionnelles
4 Tolerances
1 Domaine d’application
La presente Norme internationale prescrit les dia-
Les tolerances admises pour les diarnetres exte-
metres, les epaisseurs, les tolerances et les masses
rieurs et les epaisseurs des tubes resultent de la
lineiques conventionnelles des tubes en acier
methode de fabrication, du type d’acier et du
i noxyda ble.
traitement thermique. Les tolerances doivent etre
selectionnees parmi les valeurs donnees dans les
tableaux 1 et 2.
2 Reference normative
La norme suivante contient des dispositions qui, par
suite de la reference qui en est faite, constituent des
dispositions valables pour la presente Norme inter-
4.1 Tolerances sur le diametre exterieur
nationale. Au moment de la publication, I‘edition in-
diquee etait en vigueur. Toute norme est sujette a
Voir tableau 1.
revision et les parties prenantes des accords fondes
sur la presente Norme internationale sont invitees
Tableau 1 - Tolerances sur le diametre exterieur
a rechercher la possibilite d’appliquer I’edition la
plus recente de la norme indiq
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
