ISO 8566-4:1998

Overview

ISO 8566-4:1998 is an international standard developed by the International Organization for Standardization (ISO) that specifies the requirements for operator cabins specifically designed for jib cranes. As part of the broader ISO 8566 series on crane cabins, this standard addresses safety, comfort, and operational efficiency criteria that ensure optimal performance and protection of crane operators in various working environments. The standard is aligned with ISO 4306-1 definitions concerning jib cranes and complements related standards governing crane controls and cabin construction.

Key Topics

Cabin Construction Requirements

• Minimum cabin dimensions: inside height of 1700 mm, breadth of 1000 mm, and depth of 1500 mm to accommodate operators comfortably.
• Internal volume must not be less than 3.1 cubic meters, allowing for both sitting and standing positions depending on work conditions.
• Structural design must provide visibility above and below the operator’s line of sight where necessary.
• Provision of an electric socket inside the cabin for maintenance and operational needs.

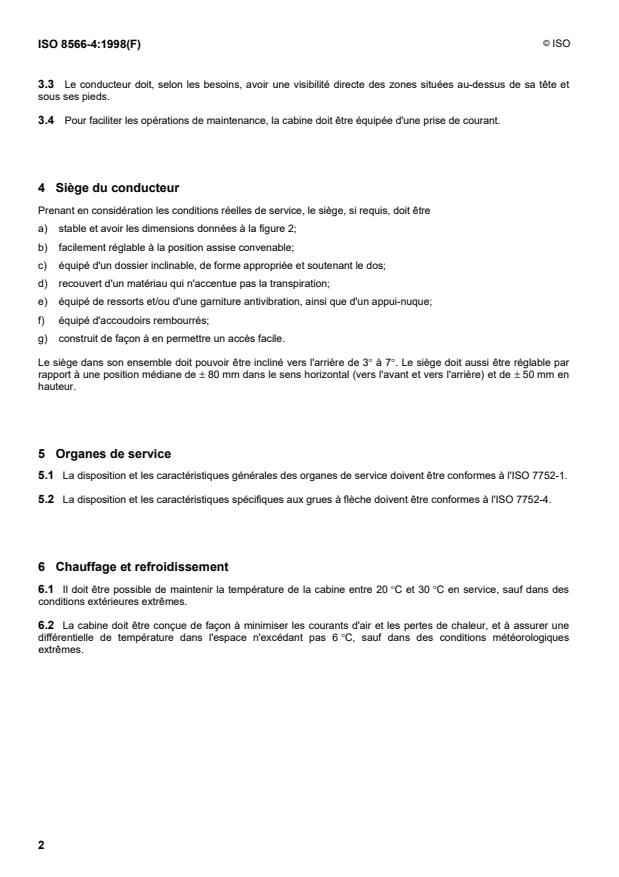

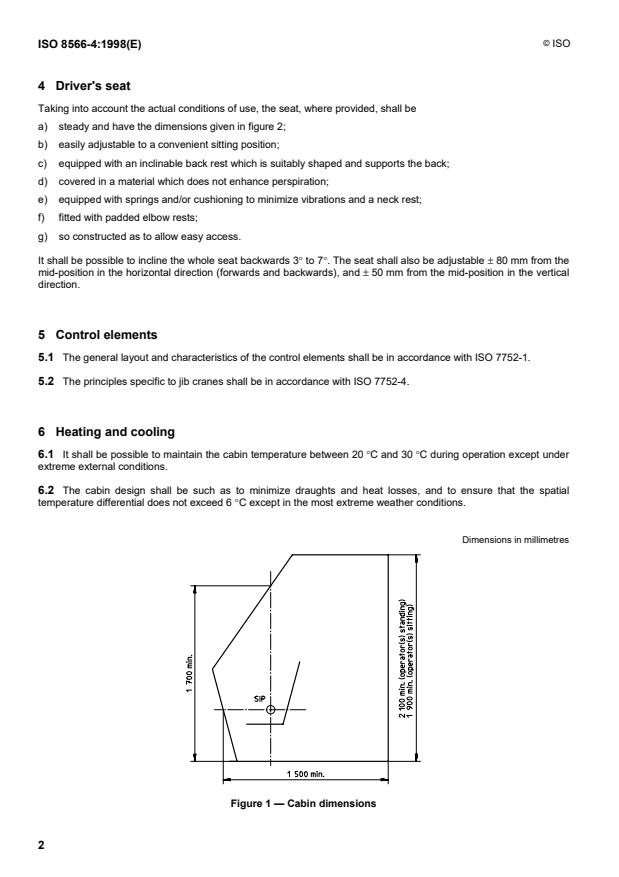

Driver’s Seat Specifications

• Seats must be steady, ergonomically designed, and adjustable to fit various operator physiques and postures.
• Seat adjustments include backward inclination of 3° to 7°, horizontal movement of ±80 mm, and vertical movement of ±50 mm.
• Features should include a shaped backrest, cushioning or springs for vibration dampening, padded elbow rests, and materials that prevent excess perspiration.
• Design must facilitate easy access to the seat.

Control Elements

• General control layout and features conform to ISO 7752-1 standards.
• Control principles specific to jib crane operation follow ISO 7752-4 guidelines, ensuring intuitive and safe control manipulation.

Temperature Control

• The cabin environment must be maintainable between 20 °C and 30 °C during normal operation to ensure operator comfort.
• Cabin construction should minimize drafts and heat loss, limiting temperature differentials inside the cabin to no more than 6 °C except under extreme external weather conditions.

Applications

ISO 8566-4:1998 serves as a critical reference for manufacturers, crane operators, safety engineers, and regulatory bodies focusing on jib crane applications, including:

• Industrial lifting and material handling where jib cranes are utilized for precision positioning.
• Construction sites requiring ergonomic and safe operator cabins to enhance productivity.
• Manufacturing and assembly plants benefitting from standardized cabin designs to improve operator safety and comfort.
• Maintenance and inspection processes by ensuring accessible cabin design with power availability.

The standard supports compliance with international safety norms and helps improve operational efficiency and operator well-being.

Related Standards

• ISO 4306-1:1990 - Cranes - Vocabulary - Part 1: General (defines crane types including jib cranes).
• ISO 7752-1:1983 - Lifting appliances - Controls - Layout and characteristics - Part 1: General principles.
• ISO 7752-4:1989 - Cranes - Controls - Layout and characteristics - Part 4: Jib cranes.
• ISO 8566-1:1992 - Cranes - Cabins - Part 1: General requirements applicable across cabin types.
• Other parts of ISO 8566 series addressing cabins for mobile cranes, tower cranes, and overhead travelling cranes.
