INTERNATIONAL STANDARD ISO/IEC 9594-9:1998
TECHNICAL CORRIGENDUM 2
Published 2002-08-15
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION
INTERNATIONAL ELECTROTECHNICAL COMMISSION • МЕЖДУНАРОДНАЯ ЭЛЕКТРОТЕХНИЧЕСКАЯ КОМИССИЯ • COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
Information technology — Open Systems Interconnection —
The Directory: Replication
TECHNICAL CORRIGENDUM 2
Technologies de l'information — Interconnexion de systèmes ouverts (OSI) — L'annuaire: Duplication
RECTIFICATIF TECHNIQUE 2
Technical Corrigendum 2 to ISO/IEC 9594-9:1998 was prepared by Joint Technical Committee ISO/IEC
JTC 1, Information technology, Subcommittee SC 6, Telecommunications and information exchange between
systems.
ICS 35.100.70 Ref. No. ISO/IEC 9594-9:1998/Cor.2:2002(E)
© ISO/IEC 2002 – All rights reserved
Published in Switzerland
ISO/IEC 9594-9:1998/Cor.2:2002 (E)
INTERNATIONAL STANDARD
ITU-T RECOMMENDATION
Information technology – Open Systems Interconnection – The Directory:
Replication
TECHNICAL CORRIGENDUM 2
NOTE – This Technical Corrigendum covers the result of the ballot resolutions of Draft Technical Corrigenda 2, 3, and 4.
1) Defect reports covered by Draft Technical Corrigendum 2
(Covering resolutions to defect report 187, 208 and 243)
1.1) This corrects the defects reported in defect report 9594/187
In 7.2.1.1, add root to the list of SDSE types.
In 11.3.1.1, delete root from the list of SDSE types.
1.2) This corrects the defects reported in defect report 9594/208
Insert the following text into 7.2.2.3, at the end of both the second paragraph and the first sentence of the third
paragraph (after "appropriate knowledge"):
and access control information.
Insert a new third paragraph into 7.2.2.3 as follows:
If subordinate knowledge is supplied, and the supplying DSE (of type subr) is also of type admPoint, then the SDSE
shall additionally be of type admPoint and the administrativeRole attribute shall be supplied. If such a DSE has any
immediately subordinate subentries containing PrescriptiveACI relating to the administrative point, then they shall also
be supplied as SDSEs in the shadowed information.
NOTE – A DSE can be of type subr and admPoint in a superior DSA, when the naming context in the subordinate DSA is the
start of a new administrative area.
Update Figure 3 as follows to show a subentry immediately below a subordinate reference. The subentry contains
prescriptiveACI and is part of the shadowed information.
Etc.
Etc.
Replicated Area
Subordinate
Knowledge
Prescriptives ACI
Subentries
TISO9410-01
Unit of Replication Shadowed Information
ITU-T Rec. X.525 (1997)/Cor.2 (02/2001) 1
ISO/IEC 9594-9:1998/Cor.2:2002 (E)
Add supporting text to 7.2 in the paragraph after Figure 3. Insert the following sentences after the sentence
"Subordinate knowledge may also be replicated":
Implicit in the subordinate knowledge is the access control information which governs access to the RDN of the
subordinate knowledge. When the subordinate entry is an administrative point in another DSA, then part of this access
control information may be held in prescriptiveACI subentries beneath the subordinate knowledge.
Add the following new point d) to 9.2.4.1:
d) if subordinate knowledge (not extended knowledge) is shadowed then any prescriptiveACI in
subordinate subentries shall also be copied.
1.3) This corrects the defects reported in defect report 9594/243
In 2.1, change all references ISO/IEC 9594-x:1997 to ISO/IEC 9594-x:1998.
In clause 6, change ITU-T Rec. X.518 | ISO/IEC 9594-5 to ITU-T Rec. X.519 | ISO/IEC 9594-5.
In 9.2 in the UnitOfReplication type, change ContextType to CONTEXT.&id.
In 11.1:
Change CoordinateShadowUpdate to coordinateShadowUpdate.
Remove the last right curly parenthesis in the CoordinateShadowUpdateArgument.
Replace the ASN.1 in Annex A with:
DirectoryShadowAbstractService
{joint-iso-itu-t ds(5) module(1) directoryShadowAbstractService(15) 3}
DEFINITIONS IMPLICIT TAGS ::=
BEGIN
-- EXPORTS All --
-- The types and values defined in this module are exported for use in the other ASN.1 modules contained
-- within the Directory Specifications, and for the use of other applications which will use them to access
-- directory services. Other applications may use them for their own purposes, but this will not constrain
-- extensions and modifications needed to maintain or improve the directory service.
IMPORTS
-- from ITU-T Rec. X.501 | ISO/IEC 9594-2
directoryAbstractService, directoryOperationalBindingTypes, informationFramework,
disp, distributedOperations, dsaOperationalAttributeTypes, enhancedSecurity,
opBindingManagement
FROM UsefulDefinitions {joint-iso-itu-t ds(5) module(1) usefulDefinitions(0) 3}
Attribute, AttributeType, CONTEXT, DistinguishedName, RelativeDistinguishedName,
SubtreeSpecification
FROM InformationFramework informationFramework
OPERATIONAL-BINDING, OperationalBindingID
FROM OperationalBindingManagement opBindingManagement
DSEType, SupplierAndConsumers
FROM DSAOperationalAttributeTypes dsaOperationalAttributeTypes
OPTIONALLY-PROTECTED, OPTIONALLY-PROTECTED-SEQ
FROM EnhancedSecurity enhancedSecurity
-- from ITU-T Rec. X.511 | ISO/IEC 9594-3
CommonResultsSeq, ContextSelection, directoryBind, directoryUnbind, EntryModification,
SecurityParameters
FROM DirectoryAbstractService directoryAbstractService
2 ITU-T Rec. X.525 (1997)/Cor.2 (02/2001)
ISO/IEC 9594-9:1998/Cor.2:2002 (E)
-- from ITU-T Rec. X.518 | ISO/IEC 9594-4
AccessPoint
FROM DistributedOperations distributedOperations
-- from ITU-T Rec. X.519 | ISO/IEC 9594-5
id-op-binding-shadow
FROM DirectoryOperationalBindingTypes directoryOperationalBindingTypes
id-errcode-shadowError, id-opcode-coordinateShadowUpdate, id-opcode-requestShadowUpdate,
id-opcode-updateShadow, reliableShadowSupplierInitiatedAC,
reliableShadowConsumerInitiatedAC,
shadowConsumerInitiatedAC, shadowSupplierInitiatedAC
FROM DirectoryInformationShadowProtocol disp
-- from ITU-T Rec. X.880 | ISO/IEC 13712-1
ERROR, OPERATION
FROM Remote-Operations-Information-Objects
{joint-iso-itu-t remote-operations(4) informationObjects(5) version1(0) } ;
-- bind and unbind operations --
dSAShadowBind OPERATION ::= directoryBind
dSAShadowUnbind OPERATION ::= directoryUnbind
-- shadow operational binding --
shadowOperationalBinding OPERATIONAL-BINDING ::= {
AGREEMENT ShadowingAgreementInfo
APPLICATION CONTEXTS {
{ shadowSupplierInitiatedAC
APPLIES TO { All-operations-supplier-initiated } } |
{ shadowConsumerInitiatedAC
APPLIES TO { All-operations-consumer-initiated } } |
{ reliableShadowSupplierInitiatedAC
APPLIES TO { All-operations-supplier-initiated } } |
{ reliableShadowConsumerInitiatedAC
APPLIES TO { All-operations-consumer-initiated } } }
ASYMMETRIC
ROLE-A { -- shadow supplier role
ESTABLISHMENT-INITIATOR TRUE
ESTABLISHMENT-PARAMETER NULL
MODIFICATION-INITIATOR TRUE
TERMINATION-INITIATOR TRUE }
ROLE-B { -- shadow consumer role
ESTABLISHMENT-INITIATOR TRUE
ESTABLISHMENT-PARAMETER NULL
MODIFICATION-INITIATOR TRUE
MODIFICATION-PARAMETER ModificationParameter
TERMINATION-INITIATOR TRUE }
ID id-op-binding-shadow }
-- types --
ModificationParameter ::= SEQUENCE {
secondaryShadows SET OF SupplierAndConsumers }
AgreementID ::= OperationalBindingID
ShadowingAgreementInfo ::= SEQUENCE {
shadowSubject UnitOfReplication,
updateMode UpdateMode DEFAULT supplierInitiated : onChange : TRUE,
master AccessPoint OPTIONAL,
secondaryShadows [2] BOOLEAN DEFAULT FALSE }
ITU-T Rec. X.525 (1997)/Cor.2 (02/2001) 3
ISO/IEC 9594-9:1998/Cor.2:2002 (E)
UnitOfReplication ::= SEQUENCE {
area AreaSpecification,
attributes AttributeSelection,
knowledge Knowledge OPTIONAL,
subordinates BOOLEAN DEFAULT FALSE,
contextSelection ContextSelection OPTIONAL,
supplyContexts [0] CHOICE {
allContexts
...

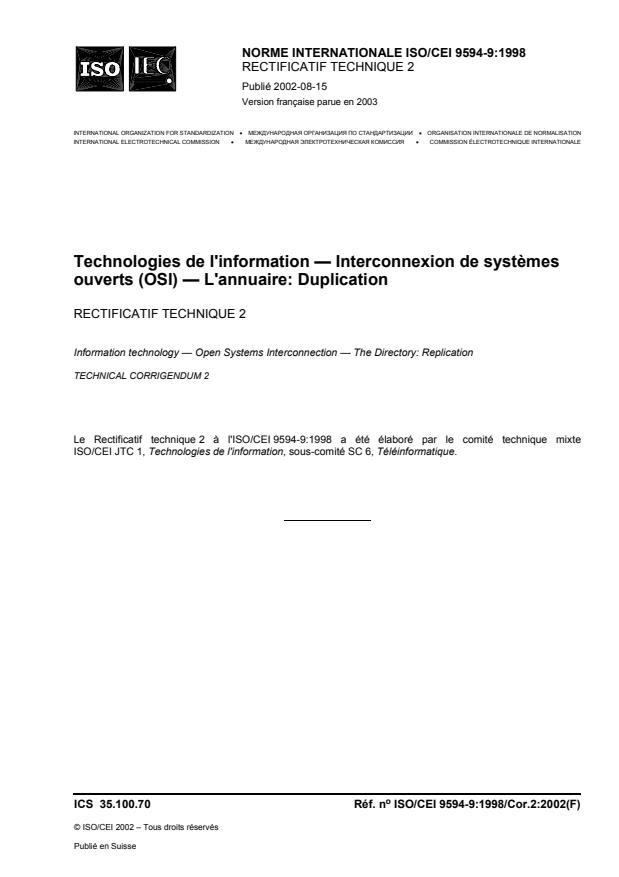

NORME INTERNATIONALE ISO/CEI 9594-9:1998
RECTIFICATIF TECHNIQUE 2
Publié 2002-08-15
Version française parue en 2003
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION
INTERNATIONAL ELECTROTECHNICAL COMMISSION • МЕЖДУНАРОДНАЯ ЭЛЕКТРОТЕХНИЧЕСКАЯ КОМИССИЯ • COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
Technologies de l'information — Interconnexion de systèmes
ouverts (OSI) — L'annuaire: Duplication
RECTIFICATIF TECHNIQUE 2
Information technology — Open Systems Interconnection — The Directory: Replication
TECHNICAL CORRIGENDUM 2
Le Rectificatif technique 2 à l'ISO/CEI 9594-9:1998 a été élaboré par le comité technique mixte
ISO/CEI JTC 1, Technologies de l'information, sous-comité SC 6, Téléinformatique.
o
ICS 35.100.70 Réf. n ISO/CEI 9594-9:1998/Cor.2:2002(F)
© ISO/CEI 2002 – Tous droits réservés
Publié en Suisse

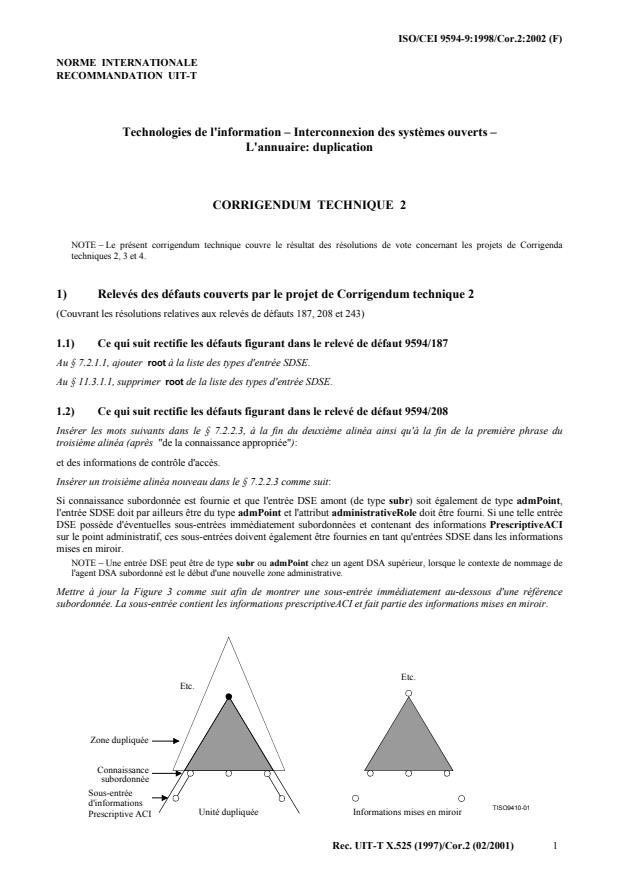

ISO/CEI 9594-9:1998/Cor.2:2002 (F)
NORME INTERNATIONALE
RECOMMANDATION UIT-T
Technologies de l'information – Interconnexion des systèmes ouverts –
L'annuaire: duplication
CORRIGENDUM TECHNIQUE 2
NOTE – Le présent corrigendum technique couvre le résultat des résolutions de vote concernant les projets de Corrigenda
techniques 2, 3 et 4.
1) Relevés des défauts couverts par le projet de Corrigendum technique 2
(Couvrant les résolutions relatives aux relevés de défauts 187, 208 et 243)
1.1) Ce qui suit rectifie les défauts figurant dans le relevé de défaut 9594/187
Au § 7.2.1.1, ajouter root à la liste des types d'entrée SDSE.
Au § 11.3.1.1, supprimer root de la liste des types d'entrée SDSE.
1.2) Ce qui suit rectifie les défauts figurant dans le relevé de défaut 9594/208
Insérer les mots suivants dans le § 7.2.2.3, à la fin du deuxième alinéa ainsi qu'à la fin de la première phrase du
troisième alinéa (après "de la connaissance appropriée"):
et des informations de contrôle d'accès.
Insérer un troisième alinéa nouveau dans le § 7.2.2.3 comme suit:
Si connaissance subordonnée est fournie et que l'entrée DSE amont (de type subr) soit également de type admPoint,
l'entrée SDSE doit par ailleurs être du type admPoint et l'attribut administrativeRole doit être fourni. Si une telle entrée
DSE possède d'éventuelles sous-entrées immédiatement subordonnées et contenant des informations PrescriptiveACI
sur le point administratif, ces sous-entrées doivent également être fournies en tant qu'entrées SDSE dans les informations
mises en miroir.
NOTE – Une entrée DSE peut être de type subr ou admPoint chez un agent DSA supérieur, lorsque le contexte de nommage de
l'agent DSA subordonné est le début d'une nouvelle zone administrative.
Mettre à jour la Figure 3 comme suit afin de montrer une sous-entrée immédiatement au-dessous d'une référence
subordonnée. La sous-entrée contient les informations prescriptiveACI et fait partie des informations mises en miroir.
Etc.
Etc.
Zone dupliquée
Connaissance
subordonnée
Sous-entrée
d'informations
TISO9410-01
Unité dupliquée Informations mises en miroir
Prescriptive ACI
Rec. UIT-T X.525 (1997)/Cor.2 (02/2001) 1

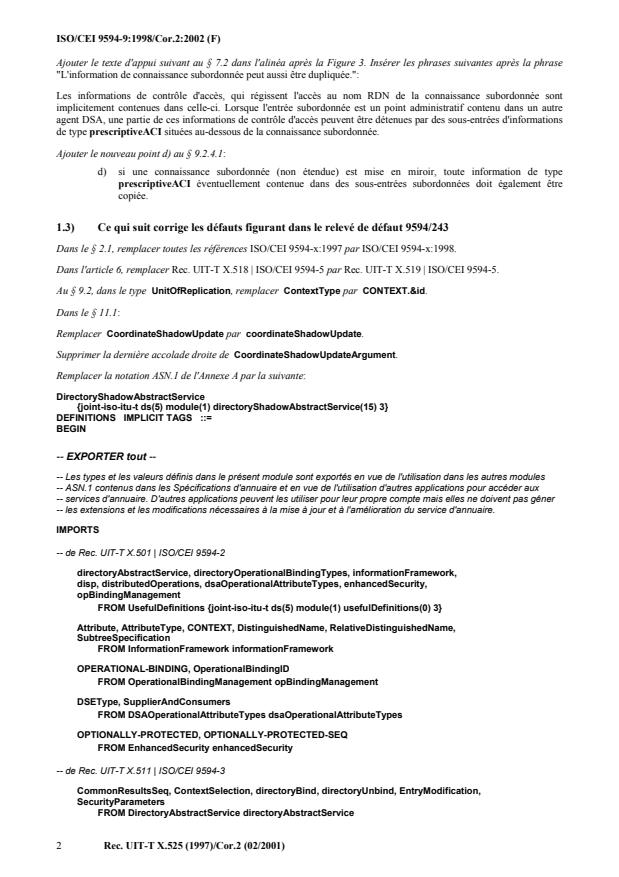

ISO/CEI 9594-9:1998/Cor.2:2002 (F)
Ajouter le texte d'appui suivant au § 7.2 dans l'alinéa après la Figure 3. Insérer les phrases suivantes après la phrase
"L'information de connaissance subordonnée peut aussi être dupliquée.":
Les informations de contrôle d'accès, qui régissent l'accès au nom RDN de la connaissance subordonnée sont
implicitement contenues dans celle-ci. Lorsque l'entrée subordonnée est un point administratif contenu dans un autre
agent DSA, une partie de ces informations de contrôle d'accès peuvent être détenues par des sous-entrées d'informations
de type prescriptiveACI situées au-dessous de la connaissance subordonnée.
Ajouter le nouveau point d) au § 9.2.4.1:
d) si une connaissance subordonnée (non étendue) est mise en miroir, toute information de type
prescriptiveACI éventuellement contenue dans des sous-entrées subordonnées doit également être
copiée.
1.3) Ce qui suit corrige les défauts figurant dans le relevé de défaut 9594/243
Dans le § 2.1, remplacer toutes les références ISO/CEI 9594-x:1997 par ISO/CEI 9594-x:1998.
Dans l'article 6, remplacer Rec. UIT-T X.518 | ISO/CEI 9594-5 par Rec. UIT-T X.519 | ISO/CEI 9594-5.
Au § 9.2, dans le type UnitOfReplication, remplacer ContextType par CONTEXT.&id.
Dans le § 11.1:
Remplacer CoordinateShadowUpdate par coordinateShadowUpdate.
Supprimer la dernière accolade droite de CoordinateShadowUpdateArgument.
Remplacer la notation ASN.1 de l'Annexe A par la suivante:
DirectoryShadowAbstractService
{joint-iso-itu-t ds(5) module(1) directoryShadowAbstractService(15) 3}
DEFINITIONS IMPLICIT TAGS ::=
BEGIN
-- EXPORTER tout --
-- Les types et les valeurs définis dans le présent module sont exportés en vue de l'utilisation dans les autres modules
-- ASN.1 contenus dans les Spécifications d'annuaire et en vue de l'utilisation d'autres applications pour accéder aux
-- services d'annuaire. D'autres applications peuvent les utiliser pour leur propre compte mais elles ne doivent pas gêner
-- les extensions et les modifications nécessaires à la mise à jour et à l'amélioration du service d'annuaire.
IMPORTS
-- de Rec. UIT-T X.501 | ISO/CEI 9594-2
directoryAbstractService, directoryOperationalBindingTypes, informationFramework,
disp, distributedOperations, dsaOperationalAttributeTypes, enhancedSecurity,
opBindingManagement
FROM UsefulDefinitions {joint-iso-itu-t ds(5) module(1) usefulDefinitions(0) 3}
Attribute, AttributeType, CONTEXT, DistinguishedName, RelativeDistinguishedName,
SubtreeSpecification
FROM InformationFramework informationFramework
OPERATIONAL-BINDING, OperationalBindingID
FROM OperationalBindingManagement opBindingManagement
DSEType, SupplierAndConsumers
FROM DSAOperationalAttributeTypes dsaOperationalAttributeTypes
OPTIONALLY-PROTECTED, OPTIONALLY-PROTECTED-SEQ
FROM EnhancedSecurity enhancedSecurity
-- de Rec. UIT-T X.511 | ISO/CEI 9594-3
CommonResultsSeq, ContextSelection, directoryBind, directoryUnbind, EntryModification,
SecurityParameters
FROM DirectoryAbstractService directoryAbstractService
2 Rec. UIT-T X.525 (1997)/Cor.2 (02/2001)
ISO/CEI 9594-9:1998/Cor.2:2002 (F)
-- de Rec. UIT-T X.518 | ISO/CEI 9594-4
AccessPoint
FROM DistributedOperations distributedOperations
-- de Rec. UIT-T X.519 | ISO/CEI 9594-5
id-op-binding-shadow
FROM DirectoryOperationalBindingTypes directoryOperationalBindingTypes
id-errcode-shadowError, id-opcode-coordinateShadowUpdate, id-opcode-requestShadowUpdate,
id-opcode-updateShadow, reliableShadowSupplierInitiatedAC,
reliableShadowConsumerInitiatedAC,
shadowConsumerInitiatedAC, shadowSupplierInitiatedAC
FROM DirectoryInformationShadowProtocol disp
-- de Rec. UIT-T X.880 | ISO/CEI 13712-1
ERROR, OPERATION
FROM Remote-Operations-Information-Objects
{joint-iso-itu-t remote-operations(4) informationObjects(5) version1(0) } ;
-- opérations de rattachement et de détachement --
dSAShadowBind OPERATION ::= directoryBind
dSAShadowUnbind OPERATION ::= directoryUnbind
-- rattachement opérationnel miroir --
shadowOperationalBinding OPERATIONAL-BINDING ::= {
AGREEMENT ShadowingAgreementInfo
APPLICATION CONTEXTS {
{ shadowSupplierInitiatedAC
APPLIES TO { All-operations-supplier-initiated } } |
{ shadowConsumerInitiatedAC
APPLIES TO { All-operations-consumer-initiated } } |
{ reliableShadowSupplierInitiatedAC
APPLIES TO { All-operations-supplier-initiated } } |
{ reliableShadowConsumerInitiatedAC
APPLIES TO { All-operations-consumer-initiated } } }
ASYMMETRIC
ROLE-A { -- rôle de fournisseur miroir
ESTABLISHMENT-INITIATOR TRUE
ESTABLISHMENT-PARAMETER NULL
MODIFICATION-INITIATOR TRUE
TERMINATION-INITIATOR TRUE }
ROLE-B { -- rôle de consommateur miroir
ESTABLISHMENT-INITIATOR TRUE
ESTABLISHMENT-PARAMETER NULL
MODIFICATION-INITIATOR TRUE
MODIFICATION-PARAMETER ModificationParameter
TERMINATION-INITIATOR TRUE }
ID id-op-binding-shadow }
-- types --
ModificationParameter ::= SEQUENCE {
secondaryShadows SET OF SupplierAndConsumers }
AgreementID ::= OperationalBindingID
ShadowingAgreementInfo ::= SEQUENCE {
shadowSubject UnitOfReplication,
updateMode UpdateMode DEFAULT supplierInitiated : onChange : TRUE,
master AccessPoint OPTIONAL,
secondaryShadows [2] BOOLEAN DEFAULT FALSE }
Rec. UIT-T X.525 (1997)/Cor.2 (02/2001) 3
ISO/CEI 9594-9:1998/Cor.2:2002 (F)
UnitOfReplication ::= SEQUENCE {
area AreaSpecificati
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
