ISO 12576-1:2001

INTERNATIONAL ISO
STANDARD 12576-1
First edition
2001-09-15
Thermal insulation — Insulating materials
and products for buildings — Conformity
control systems
Part 1:
Factory-made products
Isolation thermique — Matériaux et produits d'isolation pour le bâtiment —
Systèmes de contrôle de la conformité
Partie 1: Produits fabriqués en usine
Reference number

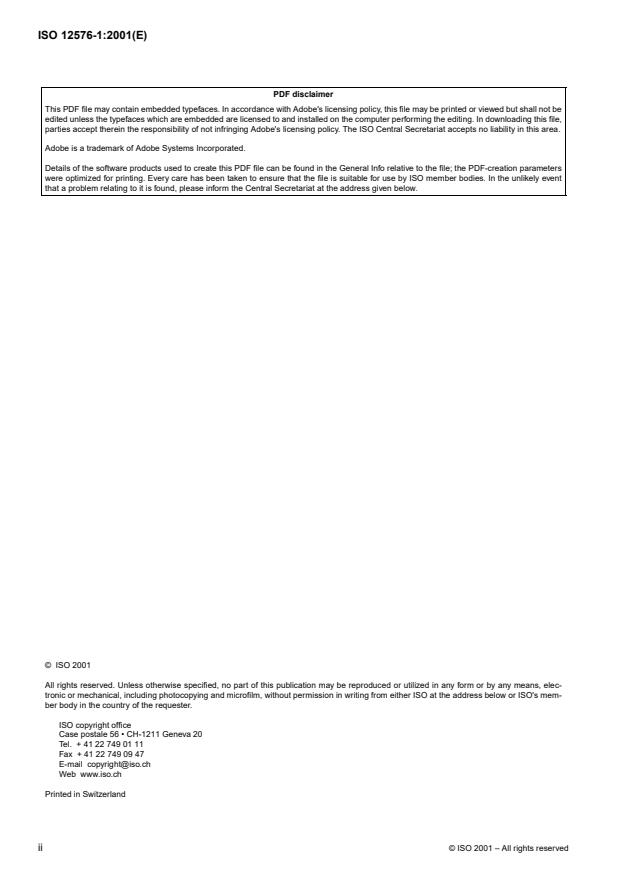

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be
edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file,
parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, elec-
tronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's mem-
ber body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
©
ii ISO 2001 – All rights reserved

Contents Page
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Conformity systems, their elements and recommended application of the systems . 4
4.1 General . 4
4.2 System 1 — Manufacturer's declaration of conformity without any participation of a third party . 5
4.3 System 2 — Manufacturer's declaration of conformity, where the manufacturer's production control is certified
by a third party . 5
4.4 System 3 — Manufacturer's declaration of conformity, where the manufacturer's production control is certified
by a third party and initial type testing is done by a third party . 5
4.5 System 4 — Product certification by an independent approved certification body . 5
4.6 System 5 — Lot testing of the consignment by the customer or his representative . 6
5 Factory production control . 6
5.1 General . 6
5.2 Quality manual . 6
5.3 Nature, extent and frequency of inspections and tests . 7
5.4 Testing . 8
5.5 Indirect testing . 8
5.6 Manufacturer's log . 9
5.7 Persons responsible for factory production control . 9
5.8 Measures in the event of non-compliance with the requirements . 9
6 Certification of factory production control and of products . 10
6.1 General . 10
6.2 Surveillance and assessment of factory production control . 10
6.3 Product certification . 11
6.4 Measures in the case of non-compliance with the specification or other omissions . 12
7 Sampling . 12
8 Sample size and acceptance criteria for lot testing (System 5) . 13
8.1 Sampling and sample size . 13
8.2 Acceptance criteria . 14
Bibliography. 16
©
ISO 2001 – All rights reserved iii

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 12576 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 12576-1 was prepared by Technical Committee ISO/TC 163, Thermal insulation,
Subcommittee SC 3, Insulation products for building applications.
ISO 12576 consists of the following parts, under the general title Thermal insulation — Insulating materials and
products for buildings — Conformity control systems
— Part 1: Factory-made products
Part 2 (Site-made products) is in course of preparation.
©
iv ISO 2001 – All rights reserved

INTERNATIONAL STANDARD ISO 12576-1:2001(E)
Thermal insulation — Insulating materials and products for
buildings — Conformity control systems
Part 1:
Factory-made products
1 Scope
This part of ISO 12576 establishes five systems for the conformity control of thermal insulating materials and
products for buildings that are factory made.
Its purpose is to provide uniform methods that are used to determine whether a production or a consignment of a
thermal insulating material should be accepted as conforming to the relevant specification requirements.
This part of ISO 12576 provides minimum requirements for each of the systems.
Other systems may be additionally applied when agreed upon between the supplier and purchaser.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 12576. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 12576 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated references,
the latest edition of the normative document referred to applies. Members of ISO and IEC maintain registers of
currently valid International Standards.
ISO 2859-1:1999, Sampling procedures for inspection by attributes — Part 1: Sampling schemes indexed by
acceptance quality limit (AQL) for lot-by-lot inspection.
ISO 9001:2000, Quality management systems — Requirements.
ISO 9229:1991, Thermal insulation — Materials, products and systems — Vocabulary.
ISO 14001:1996, Environmental management systems — Specification with guidance for use.
ISO 14004:1996, Environmental management systems — General guidelines on principles, systems and supporting
techniques.
ISO/IEC Guide 40:1983, General requirements for the acceptance of certification bodies.
ISO/IEC 17025:1999, General requirements for the competence of testing and calibration laboratories.
3 Terms and definitions
For the purposes of this part of ISO 12576, the terms and definitions given in ISO 9229 and the following apply.
3.1
acceptance testing
tests to be carried out to prove whether a product may be accepted as conforming to specified requirements
©
ISO 2001 – All rights reserved 1

3.2
Acceptance Quality Limit
AQL
designated value of percent nonconforming (or nonconformities per 100 units) that will be accepted most of the time
by thesampling schemetobe used
NOTE See ISO 2859-1:1999.
3.3
assessment of factory production control
action by an approved body demonstrating that the factory production control is in conformity with the requirements,
based on initial inspection of the factory and the factory production control and continuous surveillance of it
3.4
audit test
one or more tests usually performed by, or on behalf of a certification body, to confirm that a product continues to
conform to the requirements of a specification and to provide information to assess the effectiveness of the factory
production control
3.5
certification body
body that conducts certification
NOTE A certification body may operate its own testing and inspection activities or oversee these activities carried out on its
behalf by other bodies.
[ISO/IEC Guide 2:1996, definition 15.2]
3.6
certification of conformity
action by an approved certification body demonstrating that adequate confidence is provided that a product is in
conformity with the relevant product specification
3.7
conformity control
performance of control methods to prove whether a product may be accepted as conforming to specified
requirements
3.8
consignment
quantity of packages or boards of the same category delivered at one time
NOTE The consignment may consist of one or more inspection lots or parts of an inspection lot.
3.9
factory production control
permanent internal control of production exercised by the manufacturer or his agent
NOTE Factory production control comprises operational techniques and all measures necessary to maintain and to regulate the
quality of the product up to delivery. It consists of inspections and tests and the utilization of their results with regard to equipment,
basic materials and constituents, manufacturing processes and the products themselves, and of taking into account the
corresponding requirements given by the product specification.
3.10
initial type test
one or more tests performed on a product prior to commencing normal production to prove that the product is
capable of conforming to the relevant requirements of a specification
©
2 ISO 2001 – All rights reserved

3.11
inspection lot
definite quantity of packages (product items) manufactured under conditions which are presumed uniform, and that
are submitted for inspection and accepted or rejected as a whole, depending on the quality found by inspection of the
representative samples drawn from the lot
3.12
item
defined quantity of material, on which a set of observations may be made
EXAMPLE A full-size product, board, roll or package.
3.13
lot testing
system under which a lot, represented by a specified number of items of the product, is tested and the result used to
judge the measure of conformity with the specification
NOTE The judgement is on the lot and not on the ongoing production as a whole.
3.14
manufacturer's declaration of conformity
action by which a manufacturer declares under his own responsibility that the product is in conformity with the
specification, without being under procedures of a third-party certification system
3.15
manufacturer's routine test
test performed by the manufacturer, at specified intervals, to confirm that the product conforms to the relevant
requirements of the specification
3.16
production batch
definite quantity of some commodity manufactured or produced under conditions which are presumed uniform
3.17
production line
production unit
set of equipment which produces a product
3.18
sample
one or more items taken from a production batch and intended to provide information on the production batch and
possibly to serve as a basis for a decision on the production batch or the process which produced it
3.19
sample size
number of items in the sample
[ISO 2859-1:1999]
3.20
sampling unit
for the purpose of sampling, an item taken from the production batch
3.21
