Overview
ISO 7802:2013 defines the wrapping test method for metallic wires, specifically targeting wires with diameters or thicknesses ranging from 0.1 mm to 10 mm inclusive. This internationally recognized standard assesses the wire's ability to undergo plastic deformation during wrapping without cracking or failure. Originally published in 1983, the updated 2013 edition provides refined procedures to ensure consistent, reliable testing across industries that rely on metallic wire performance.
Key Topics
Scope and Purpose
ISO 7802:2013 covers the wrapping test as a method to evaluate ductility and deformation properties of metallic wire materials. It is applicable to wires with specified dimensional limits, ensuring that wires can maintain integrity under coiling and uncoiling stress conditions.Test Principle
The wire is wrapped tightly around a mandrel of predetermined diameter to form a closely packed helix. This test evaluates the wire’s plastic deformation characteristics by simulating real-world stressing during manufacturing or end use. Some tests may include sequences of winding, unwinding, or rewinding.Equipment Requirements
The testing machine must facilitate consistent winding ensuring coil turns are in contact. The mandrel can be a piece of wire matching the prescribed diameter and hardness. The equipment setup allows for precise control of wrapping speed and tension.Testing Procedure
- Conduct tests at ambient temperatures between 10°C and 35°C (preferably 23°C ± 5°C under controlled conditions).
- Wrap the wire at a controlled rate (not exceeding 1 turn per second), avoiding heat buildup.
- Apply tensile stress during winding up to 5% of the wire’s nominal tensile strength to ensure tightness.
- When unwinding is included, it should be done slowly to prevent temperature rises that could affect outcomes.
- Post-test evaluation is based on visual inspection for cracks, using magnification (approx. 10x) for wires below 0.5 mm diameter.
Test Reporting
Reports must reference ISO 7802:2013 and include detailed test piece identification, wire dimensions, mandrel diameter, test conditions (turn count or wound length), and the test result. This facilitates traceability and comparison across batches or suppliers.
Applications
ISO 7802:2013's wrapping test is critical in industries where wire ductility and flexibility determine product quality and safety. Common applications include:
- Electrical wiring manufacturing, ensuring that wires can withstand bending and coiling during installation.
- Automotive wire harnesses, where wires must endure repeated flexing without failure.
- Construction and engineering, where metallic wires are used in reinforcing, binding, or structural applications requiring reliable deformation characteristics.
- Metal wire products like springs and cables, where the wrapping test helps predict performance and lifespan.
This standard supports quality control, material selection, and product development by verifying metal wire performance under mechanical stress conditions mimicking practical use.
Related Standards
- ISO 8532 – Methods for mechanical testing of wire and wire products, complementing wrapping test procedures.
- ISO 6892 – Metallic materials tensile testing, useful in conjunction with ductility assessments like wrapping tests.
- ISO 7801 – Metallic wire bending test, another method evaluating wire flexibility and endurance.
- IEC standards for electrical wires, which may reference ISO 7802 for verifying wire deformation resistance in electrical applications.
By integrating ISO 7802:2013 with these related standards, organizations can establish a comprehensive testing protocol ensuring metallic wire quality for diverse industrial needs.
Keywords: ISO 7802:2013, metallic wire wrapping test, wire plastic deformation, wire ductility testing, metallic wire standards, wire wrapping procedure, metal wire quality control, industrial wire testing, wire deformation resistance, wire wrapping test method.
ISO 7802:2013 - Metallic materials — Wire — Wrapping test Released:31. 10. 2013
ISO 7802:2013 - Matériaux métalliques — Fils — Essai d'enroulement Released:31. 10. 2013
Frequently Asked Questions
ISO 7802:2013 is a standard published by the International Organization for Standardization (ISO). Its full title is "Metallic materials - Wire - Wrapping test". This standard covers: ISO 7802:2013 specifies a method for determining the ability of metallic wire of diameter or thickness 0,1 mm to 10 mm inclusive, to undergo plastic deformation during wrapping.
ISO 7802:2013 specifies a method for determining the ability of metallic wire of diameter or thickness 0,1 mm to 10 mm inclusive, to undergo plastic deformation during wrapping.
ISO 7802:2013 is classified under the following ICS (International Classification for Standards) categories: 77.040.10 - Mechanical testing of metals. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 7802:2013 has the following relationships with other standards: It is inter standard links to ISO 7802:1983. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 7802:2013 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2015
1DGRPHãþD
SIST ISO 7802:1996
Kovinski materiali - Žica - Vzvojni preskus
Metallic materials - Wire - Wrapping test
Matériaux métalliques - Fils - Essai d'enroulement
Ta slovenski standard je istoveten z: ISO 7802:2013
ICS:
77.040.10 Mehansko preskušanje kovin Mechanical testing of metals
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
INTERNATIONAL ISO
STANDARD 7802
Second edition
2013-11-01
Metallic materials — Wire —
Wrapping test
Matériaux métalliques — Fils — Essai d’enroulement
Reference number
©
ISO 2013

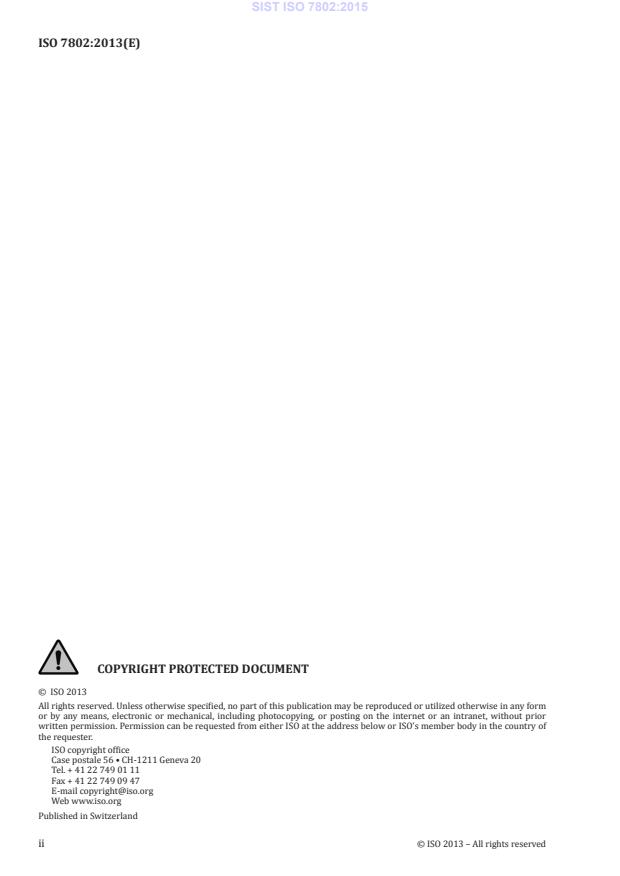

© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Principle . 1
3 Test equipment. 1
4 Procedure. 1
5 Test report . 1

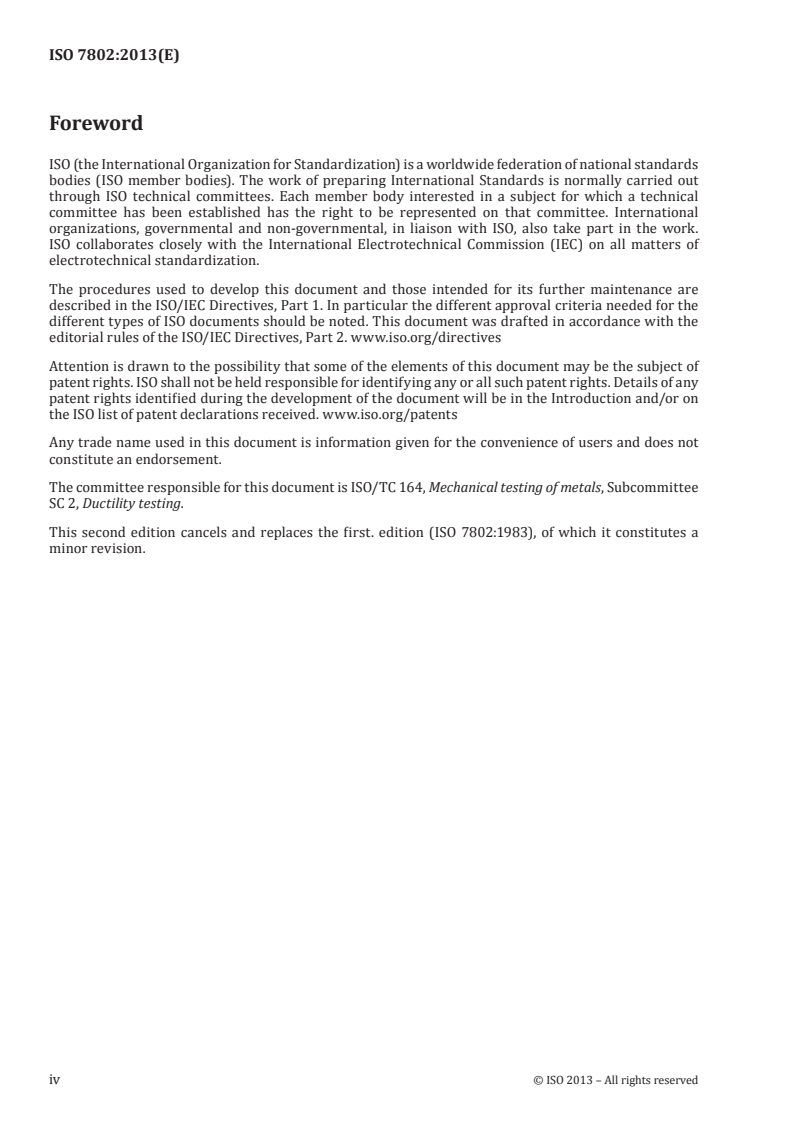

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its fu
...
INTERNATIONAL ISO
STANDARD 7802
Second edition
2013-11-01
Metallic materials — Wire —
Wrapping test
Matériaux métalliques — Fils — Essai d’enroulement
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
Contents Page
Foreword .iv
1 Scope . 1
2 Principle . 1
3 Test equipment. 1
4 Procedure. 1
5 Test report . 1

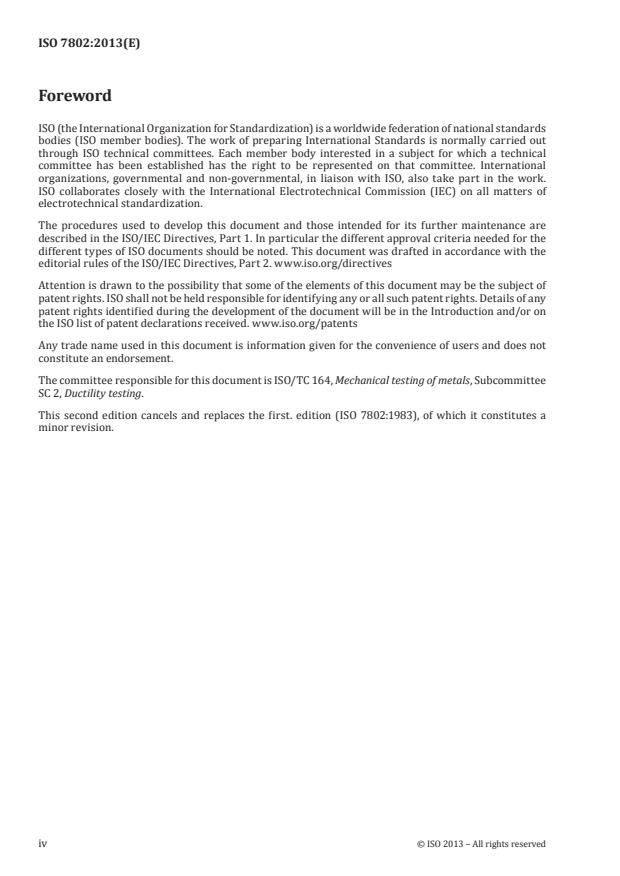

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the su
...
NORME ISO
INTERNATIONALE 7802
Deuxième édition
2013-11-01
Matériaux métalliques — Fils — Essai
d’enroulement
Metallic materials — Wire — Wrapping test
Numéro de référence
©
ISO 2013
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2013
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2013 – Tous droits réservés
Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Principe . 1
3 Équipement d’essai . 1
4 Mode opératoire. 1
5 Rapport d’essai . 1

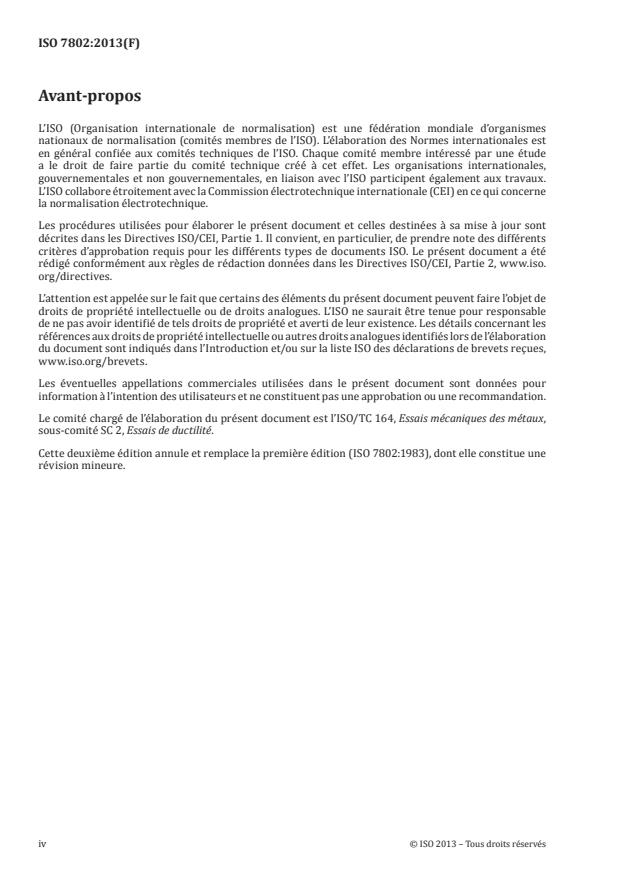

Avant-propos
