ISO/IEC 9594-4:1990/Cor 1:1991

INTERNATIONAL STANDARD ISO/IEC 9594-4 : 1990
TECHNICAL CORRIGENDUM 1
Published 1991-12-15
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.MEXflYHAPOfiHAfl OP!-AHM3A~MFi fl0 CTAH~APTM3A~MM. ORGANISATION INTERNATIONALE DE NORMALISATION
INTERNATIONAL ELECTROTECHNICAL COMMISSION . COMMISSION ELECTROTECHNIQUE INTERNATIONALE
ME~jJYHAPOjJHAFl 3JlEKTPOTEXHbl14ECKAR KOMMCCMF1 l
Information technology - Open Systems
Interconnection - The Directory -
Part 4:
Procedures for distributed Operation
TECHNICAL CORRIGENDUM 1
Technologies de l’informa tion - lnterconnexion de systemes ouverts - 1 ‘annuaire -
Partie 4: Prockdures pour Ie fonctionnement reparti
RECTIFICATIF TECHNIQUE I
: 1990 was prepared by Joint Technical Committee ISO/IEC
Technical corrigendum 1 to International Standard ISOAEC 9594-4
JTC 1, Information technology.
Page 9
Subclause 10.4.1
Second Paragraph, first sentence, and third Paragraph, second sentence, replace “returnCrossReference” with
“returnCrossRefs”.
Ref. No. ISO/IEC9594-4 : 199OKor.l : 1991 (E)
UDC 681.3: 621.39
open Systems interconnection, directories, procedure.
Descriptors : data processing, information interchange, network interconnection,
GI ISO/IEC 1991
Printed in Switzerland
ISO/IEC 9594-4 : 199OKZor.l : 1991 (E)

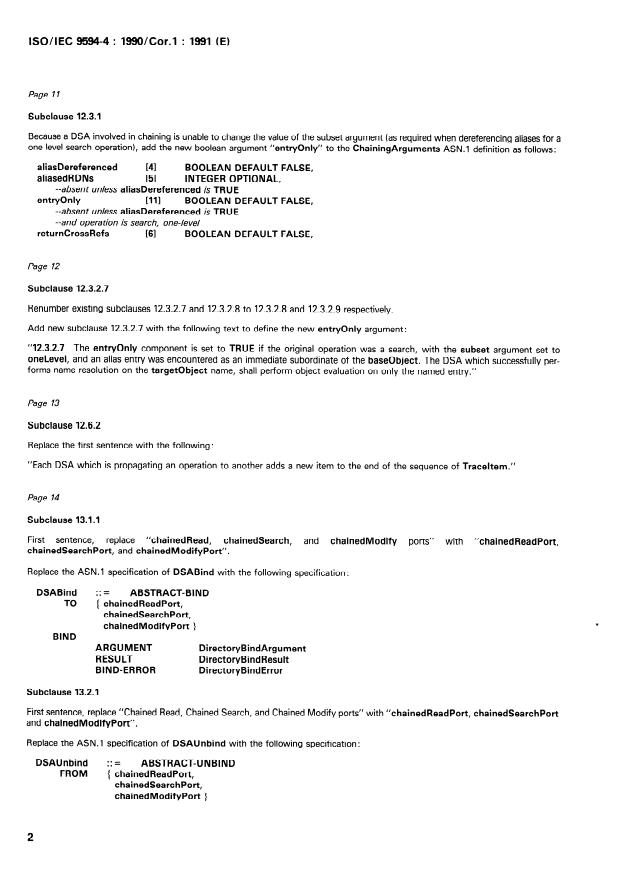

Page 77
Subclause 12.3.1
Because a DSA involved in chaining is unable to Change the
value of the subset ar ‘gument (as required w Ihen dereferencing aliases for a
one level search Operation) , add the new boolean argument “entryonly” to the ChainingA rguments
ASN. 1 definition as follows:
aliasDereferenced [41 BOOLEAN DEFAULT FALSE,
aliasedRDNs
151 INTEGER OPTIONAL,
--absent unless aliasDereferenced is TRU E
entryonly [Ill BOOLEAN DEFAULT FALSE,
--absent unless aIiasDereferenced is TRUE
--and Operation is search, one-level
returnCrossRefs
BI BOOLEAN DEFAULT FALSE,
Page 72
Subclause 12.3.2.7
Renumber existing subclauses 12.3.2.7 and 12.3.2.8 to 12.3.2.8 and 12.3.2.9 respectively.
Add new subclause 12.3.2.7 with the following text to define the new entryonly argument:
“12.3.2.7 The entryonly component is set to TRUE if the original Operation was a search, with the subset argument set to
onelevel, and an alias entry was encountered as an immediate subordinate of the baseobject. The DSA which successfully per-
forms name resolution on the targetobject name, shall perform Object evaluation on only the named entry.”
Page 73
Subclause 12.6.2
Replace the first sentence with the following:
“Esch DSA which is propagating an Operation to another adds a new item to the end of the sequence of Traceltem.”
Page 74
Subclause 13.1 .l
First sentence, replace “chainedRead, chainedsearch, and chainedModify ports” with “ChainedReadPort
I
ChainedSearchPort, and chainedhnodifyport”.
Replace the ASN.1 specification of DSABind with the following specification:
DSABind :: = ABSTRACT-BIND
TO { ChainedReadPort,
ChainedSearchPort,
ChainedModifyPort }
BIND
ARGUMENT DirectoryBindArgument
RESULT DirectoryBindResult
BIND-ERROR DirectoryBindError
Subclause 13.2.1
First sentence, replace “Chained Read, Chained Search, and Chained Modify ports” with “ChainedReadPort, ChainedSearchPort
and ChainedModifyPort”.
Replace the ASN.1 specification of DSAUnbind with the following specification:
DSAUnbind :: = ABSTRACT-UNBIND
FROM { Chained
...
