ISO/IEC 19794-5:2005/Amd 2:2009

INTERNATIONAL ISO/IEC
STANDARD 19794-5
First edition
2005-06-15
AMENDMENT 2
2009-11-01
Information technology — Biometric data
interchange formats —
Part 5:
Face image data
AMENDMENT 2: Three-dimensional face
image data interchange format
Technologies de l'information — Formats d'échange de données
biométriques —
Partie 5: Données d'image de la face
AMENDEMENT 2: Format d'échange de données d'image de la face
tridimensionnelles
Reference number
ISO/IEC 19794-5:2005/Amd.2:2009(E)
©
ISO/IEC 2009

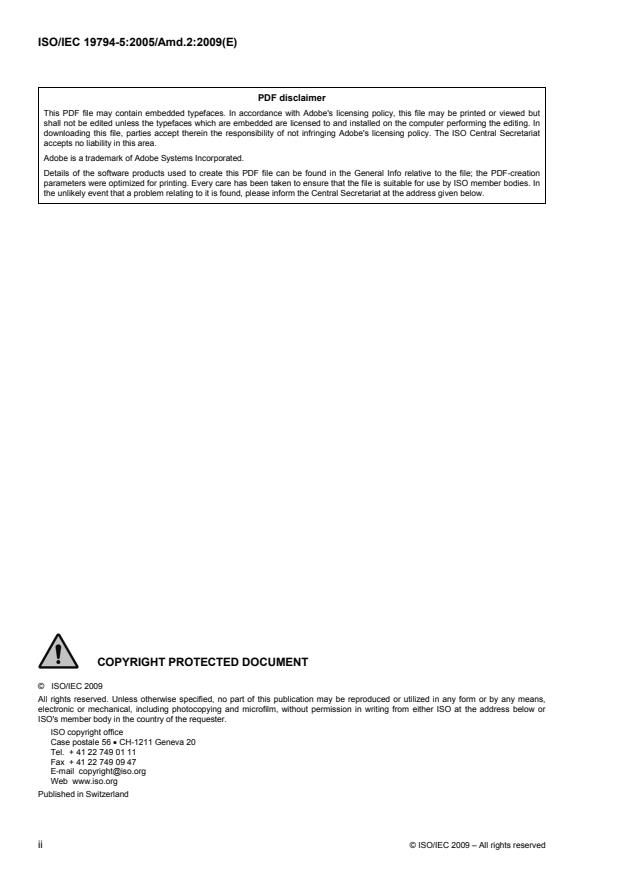

ISO/IEC 19794-5:2005/Amd.2:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to ISO/IEC 19794-5:2005 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 37, Biometrics.
This amendment is intended to establish a data interchange format for storing three-dimensional (3D) human
face images. To achieve this, several new image types are introduced that are a combination of 2D facial
images and associated 3D shape information.
This amendment describes the necessary changes to the data interchange format regarding the capability to
hold 3D information and the additional requirements for 3D data.

© ISO/IEC 2009 – All rights reserved iii

ISO/IEC 19794-5:2005/Amd.2:2009(E)

Information technology — Biometric data interchange
formats —
Part 5:
Face image data
AMENDMENT 2: Three-dimensional face image data interchange
format
Page 3
Add the following reference to Clause 3:
ISO/IEC 15948:2004, Information technology — Computer graphics and image processing — Portable
Network Graphics (PNG): Functional specification
Page 5
Replace 4.16 with the following:
4.16
2D image
two-dimensional representation that encodes the luminance and/or colour texture of a capture subject in a
given lighting environment
Page 5
Add the following definitions to Clause 4:
4.24
3D image
representation that encodes a surface in a 3D space
4.25
3D point map
3D point cloud representing a capture subject, where each surface point is encoded with a triplet, representing
the x, y and z values of the point in 3D
4.26
3D vertex representation
representation using 3D vertices and triangles between these points for coding of a 3D surface
4.27
anthropometric landmark
landmark point on the face used for identification and classification of humans
4.28
anthropometric landmark code
two-part code that defines an anthropometric landmark uniquely
© ISO/IEC 2009 – All rights reserved 1

ISO/IEC 19794-5:2005/Amd.2:2009(E)
4.29
Cartesian coordinate system
3D orthogonal coordinate system
4.30
cylindrical coordinate system
three-dimensional polar coordinate system describing a point by the three components radius, azimuth and
height
4.31
range image
numerical matrix that encodes a surface point in 3D space, where the position encodes the first two
coordinates and the value at that position encodes the third coordinate
4.32
PNG format
lossless image compression standard specified in ISO/IEC 15948
4.33
texture
two-dimensional representation of the luminance and/or colour of a capture subject in a given lighting
environment
4.34
texture projection matrix
3x4 matrix to transform a 3D surface coordinate from a metric Cartesian Coordinate System to a 2D texture
image coordinate, where the transformation makes use of the 3D homogenous coordinates of the 3D point as
well as the 2D homogenous coordinates of the 2D point
NOTE See bibliography item [13] for details.
Page 5
Replace clause 5.1 with the following:
5.1 Overview
The face record format specified in this document is a format to store face image data within a biometric data
record. Each record shall pertain to a single subject and shall contain at least one or more 2D image and zero
or more geometric representations (range images, 3D point maps, 3D vertex representations) of a human
face. Depending on the face image type, a 3D representation of a face may be included in addition to the 2D
image. This record is embedded in the biometric data block in a CBEFF compliant structure. The record
structure is depicted in Figure 2 and Figure 3.
Adherence to this format requires compliance to the standards referred to above. In particular, the header and
the entire data structure will be CBEFF compatible, 2D image data will be encoded using either JPEG or
JPEG2000.
2 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
CBEFF Facial Record Facial CBEFF
Header Header Record Data Signature
Facial
Number of Facial
Format Identifier Version Number Length of Record
Record
Images
Header
4 4 4 2
2D/3D
Facial Facial Image 3D
Image Data
Landmark 3D Data
Information Information Information
Record Data
Points
20 8x 92
Variable Variable
Facial Number of
Facial
Property Pose Angle
Record Data Landmark Gender Eye Colour Hair Colour Expression Pose Angle
Mask Uncertainty
Information
Length Points
4 2 1 1 3 2 3 3
Landmark Landmark Landmark
X coordinate Y coordinate Z coordinate
Point Type Point Code
Point
1 2 2 2
Face Image Image Data
Width Height Colour Source Type Device Type Quality
Type Type
Information
Space
1 1 2 2 1 2 2
Length of
JPEG or
Image Data Image Data
JPEG2000
Block
Variable
Must be Can be
Optional
Specified unspecified
Figure 2 — The Face Image Record format. The length value of each field in bytes is shown below the
field. The white boxes indicate fields or blocks that shall be specified, light grey boxes that the fields
are mandatory, but an unspecified value is acceptable, and dark grey boxes indicate optional fields.
Note, that the 3D Information block and 3D Data block are mandatory for the 3D Types.
© ISO/IEC 2009 – All rights reserved 3

ISO/IEC 19794-5:2005/Amd.2:2009(E)
Length of 3D
3D to 2D 3D to 2D
Coordinate Texture ScaleX, OffsetX, Reserved
3D 3D 3D 2D Texture
3D
Data 3D Source 3D Device Image Texture Texture Map Texture Map
Representation Supplemental
System Projection ScaleY, OffsetY, for Future Acquisition Acquisition
representati Type Type Temporal Temporal Type Spectrum
Information Type Data Time
Type Matrix ScaleZ OffsetZ Use Time
on Synchronicity Synchronicity
1 48 12 12
4 48 1 1 1 1 1 2 2 2 2 1 1
Range
3D Data Range
Image Bit Error Map Texture Map
Range Image
Depth
1 Variable Variable Variable
3D Data 3D Point 3D Point 3D Point
Error Map Texture Map
Map Width Map Height Map
3D Point Map
2 2 Variable Variable Variable
3D Data Vertex Triangle Triangle
Normal Flag Vertex Data Texture Map
Vertex Count Face Count Data
2 4 1 Variable Variable Variable
Vertex Vertex Vertex Vertex
Vertex Data
Coordinates Normals Errors Texture
Vertex Vertex X Vertex Y Vertex Z
Coordinates coordinate coordinate coordinate
2 2 2
Vertex Normals Normal X Normal Y Normal Z
2 2 2
Vertex Errors Vertex Error
Vertex Vertex
Vertex Textures
Texture X Texture Y
2 2
Triangle Triangle Triangle
Triangle Data
Index 1 Index 2 Index 3
2 2 2
Must be Can be
Optional
Specified unspecified
Figure 3 — The 3D Information block and the three possible 3D Data blocks specified in this standard.
The length value of each field in bytes is shown below the field. The white boxes indicate fields or
blocks that shall be specified, light grey boxes that the fields are mandatory, but an unspecified value
is acceptable, and dark grey boxes indicate optional fields.
When referring to elements of the record format, 'field' denotes the elementary unit of information such as
Face Image Type and Image Data Type, “block” denotes the group of fields such as Facial Information block
or Image Information block, and “record” denotes the biometric reference which consists of the Facial Record
Header and one or more Facial Record Data.
With the exception of the Format Identifier and the Version Number for the standard, which are null-terminated
ASCII character strings, all data is represented in binary format.
There are no record separators or field tags; fields are parsed by byte count.
The organization of the record format is as follows:
• A fixed-length (14 byte) Facial Record Header containing information about the overall record,
including the number of facial images represented and the overall record length in bytes.
• A Facial Record Data block for each facial image. This data consists of
o A fixed length (20 byte) Facial Information block describing discernable characteristics of the
subject such as gender.
o Multiple (including none) fixed length (8 byte) Landmark Point blocks describing 2D or 3D
Landmark Points on a face.
4 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
o A fixed length (12 byte) Image Information block describing digital properties of the image
such as Face Image Type and dimensions such as width and height.
o Image Data consisting of a JPEG or JPEG2000 encoded data block.
o For Face Image Types containing 3D information a 3D Information block (92 byte) describing
properties of this data.
o For Face Image Types containing 3D information the 3D Data block describing the 3D shape
of the face.
Multiple images / 3D-representations of the same biometric data subject can be described in a single CBEFF
record. This is accomplished by including multiple Facial Record Data blocks after the Facial Record Header
block and before the CBEFF Signature block. Facial Record Data blocks containing 2D data can be stored
together with Facial Record Data blocks also containing 3D data. The structure of this embedding is illustrated
in Figure Amd.2-1.
Figure Amd.2-1 – Embedding multiple images / 3D representations in the same record.
Page 8, 5.4
Replace Table 2 with the following:

Table 2 – The Facial Record Header
Field Size Valid values Notes
Format Identifier 4 bytes 0x46414300 (‘F’ ‘A’ ‘C’ 0x0)  Indicates face image
data
Version Number 4 bytes 0x30323000 (‘0’ ’ 2’ ’0’ 0x0) “020” in ASCII
Length of Record 4 bytes 48 < Length of Record ≤ 2 - 1  Includes Facial
Record Header and
Facial Record Data
Number of Facial Images / 2 bytes 1 ≤ Number ≤ 65535
3D representations
© ISO/IEC 2009 – All rights reserved 5

ISO/IEC 19794-5:2005/Amd.2:2009(E)
Page 8
Replace clause 5.4.2 with the following:
5.4.2 Version Number
The (4 byte) Version Number field shall consist of three ASCII numerals followed by a zero byte as a NULL
string terminator.
The first and second characters represent the major version number and the third character represents the
minor revision number.
The Version Number of ISO/IEC 19794-5 shall be 0x30323000; “020” – Version 2 revision 0.
Page 15
Replace 5.6 with the following:
5.6 The Landmark Point block
The optional (8 byte) Landmark Point block specifies the type, code and position of a Landmark Point in the
facial image. The number of Landmark Point blocks shall be specified in the Number of Landmark Points field
of the Facial Information block. The structure of this block is shown in Table 8.
Landmark Points can be specified as MPEG-4 Feature Points as given by Annex C of ISO/IEC 14496-2:2004
or Anthropometric Landmarks in two or three dimensions. The description of the Anthropometric Landmarks
and their relation with the set of MPEG4 Feature Points is discussed in clause 5.6.5.

6 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
The horizontal and vertical position of Landmark Points are either texture image coordinates or in the
Cartesian Coordinate system (see clause 5.9.2.1).
Table 8 – The Landmark Point block
Field Size Value Notes
Landmark Point Type 1 byte See clause 5.6.1 Denotes the type of the
Landmark Point.
Landmark Point Code 1 byte See clause 5.6.2 Denotes the Landmark
Point, e.g. the left eye.
X coordinate, 2 bytes See clause 5.6.1, Denotes the coordinate
of the landmark point.
Y coordinate Table Amd.2-1
For Landmark Point
Types 0x01 and 0x02
this coordinate denotes
the relevant pixel count
from upper left pixel
starting at 0.
For Landmark Point
Type 0x03 the value
codes the coordinate of
a point in 3D.
Z coordinate 2 bytes  See clause 5.6.1, Denotes the Z-coordi-
nate of the landmark
Table Amd.2-1 point.
For Landmark Point
Type 0x01 and Type
0x02 this field is
ignored.
For Landmark Point
Type 0x03 the value
codes the Z coordinate
of a point in 3D.
5.6.1 Landmark Point Type
The (1 byte) Landmark Point Type field represents the type of the Landmark Point stored in the Landmark
Point block. This field shall be set to 0x01 to denote that landmark point is an MPEG4 Feature Point as given
by Annex C of ISO/IEC 14496-2:2004 and is represented by the 2D image coordinates. The field shall be set
to 0x02 to denote that the landmark point is an Anthropometric 2D landmark and is represented by the 2D
image coordinates. Finally, the field shall be set to 0x03 to denote that the landmark point is an
Anthropometric 3D landmark and is represented by it's 3D coordinates. All other field values are reserved for
future definition of Landmark Point types.
© ISO/IEC 2009 – All rights reserved 7

ISO/IEC 19794-5:2005/Amd.2:2009(E)
Table Amd.2-1 — The Landmark Point Type
Description Value Comment
MPEG4 Feature 0x01 The Horizontal and Vertical position of the landmark
point are measured in pixels with values from 0 to
Width-1 and Height-1, respectively. The Z coordinate
field is ignored.
Anthropometric 0x02 The landmark point is considered as a anthropometric
landmark point in the 2-D image and its coordinates are
2D landmark measured in pixels with values from 0 to Width-1 and
Height-1, respectively. The Z coordinate field is ignored.
Anthropometric 0x03 X coordinate, Y coordinate and Z coordinate are
interpreted as 2 byte values with fixed precision of 0.02
mm ranging from -655.34 mm to 655.34 mm. The
3D landmark
landmark point is considered as a 3D point in the
Cartesian Coordinate System.
Example: The value of 10001
corresponds to
-655.34mm + 10001 x 0.02mm = -455.32mm.
Reserved 0x04-0xFF Reserved for future use.

5.6.2 Landmark Point Code
The (1 byte) Landmark Point Code field shall specify the Landmark Point that is stored in the Landmark Point
block.
For the Landmark Point Type 0x01 the codes of the Landmark Points in clause 5.6.3, taken from Annex C of
ISO/IEC 14496-2:2004 and defined as MPEG4 Feature Points, or the additional eye and nostril Landmark
Points in clause 5.6.4 shall be stored in this block.
If the Landmark Point Type is 0x02 or 0x03, i.e. Anthropometric 2D landmark or Anthropometric 3D landmark,
the codes of the Landmark Points defined in 5.6.5 shall be stored in this block.
5.6.3 MPEG4 Feature Points
The normative Figure 6 denotes the Landmark Point codes associated with Feature Points as given by Annex
C of ISO/IEC 14496-2:2004. Each Landmark Point code is represented by a notation A.B using a major (A)
and a minor (B) value. The encoding of the Landmark Point code is given by the (1 byte) value of A*16 + B.
8 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
11.5 11.5
11.4
11.4
11.2
11.1
11.1
11.2 11.3
4.4 4.3 4.4
4.2 4.1
4.6 4.5
4.2
11.6
4.6
10.2
10.1
10.2
10.10 10.9
10.10
10.4 10.3
5.3 5.4
5.4
10.7
10.8 10.4
10.5
10.6
10.8
5.2 5.1
10.6
5.2
y
x
y
2.14 2.13 2.10
z
7.1
2.10
2.1
2.12 2.11 2.14 2.12
x
2.1
z
3.13
3.14
3.2
3.1
3.8 3.11
3.5
3.6
3.12 3.7
3.3
3.4
3.10
3.9
9.6 9.7
Right eye Left eye
9.8
9.12
Nose
9.14
9.13
9.10
9.11
9.3
9.1
9.9 9.2
9.15 9.5
9.4
Teeth
8.9 8.10
8.6
8.5
8.1
8.4 8.3
2.7 2.6
2.4
2.5
2.2
6.3
6.4
6.2
2.8
2.9
2.3
8.7
8.8
8.2
Tongue Mouth
6.1
Feature points affected by FAPs
Other feature points
Figure 6 – The MPEG4 Feature Point codes defined in ISO/IEC 14496-2.

Each Landmark Point code in Figure 7 is given by major value A and minor value B. For example, the code
for the left corner of the left eye is given by major value 3 and minor value 7.
© ISO/IEC 2009 – All rights reserved 9

ISO/IEC 19794-5:2005/Amd.2:2009(E)
5.6.4 Eye and nostril Landmark Points
The eye centre Landmark Points 12.1 (left) and 12.2 (right) are defined to be the horizontal and vertical
midpoints of the eye corners (3.7, 3.11) and (3.8, 3.12) respectively. The left nostril centre Landmark Point
12.3 is defined to be the midpoint of the nose Landmark Points (9.1, 9.15) in the horizontal direction and
(9.3,9.15) in the vertical direction. Similarly, the right nostril centre Landmark Point 12.4 is defined to be the
midpoint of the nose Landmark Points (9.2, 9.15) in the horizontal direction and (9.3,9.15) in the vertical
direction. Both the eye centre and nostril centre Landmark Points are shown in Figure 7 and values given in
Table 9.
Figure 7 – The eye and nostril centre Landmark Points are defined by midpoints of MPEG4 Feature
Points.
Table 9 – Eye and nostril centre Landmark Point codes
Centre Landmark Point Midpoint of Landmark Landmark Point code
Points
Left Eye 3.7, 3.11 12.1
Right Eye 3.8, 3.12 12.2
Left Nostril Horizontal Vertical 12.3
9.1, 9.15 9.3, 9.15
Right Nostril Horizontal Vertical 12.4
9.2, 9.15 9.3, 9.15
10 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
5.6.5 Anthropometric Landmarks
Anthropometric Landmarks extend the MPEG4 feature model with new points that are used in forensics and
anthropology for person identification via two facial images or image and skull over a long time. They also
allow specification of points that are in use by criminal experts and anthropologists.
Figure Amd.2-2 and Table Amd.2-2 show the definition of the Anthropometric Landmarks. The set of points
represents the craniofacial landmark points of the head and face. The latter are used in forensics for “Face to
face” and “Skull to face” identification. Some of these points have MPEG 4 counterparts, others not.

Figure Amd.2-2: Anthropometric Landmarks with (red) and without (blue) MPEG4 counterparts.

Definitions for these points are presented in the Table Amd.2-2.

Table Amd.2-2 – Definitions of the Anthropometric Landmarks

Point ID Point Anthropometric
MPEG4 How to point
Code point name
v 1.1 11.4 vertex The highest point of head when the head
is oriented in Frankfurt Horizon. Refer to
Annex C for the definition of the Frankfurt
Horizon.
g 1.2 glabella The most prominent middle point
between the eyebrows
© ISO/IEC 2009 – All rights reserved 11

ISO/IEC 19794-5:2005/Amd.2:2009(E)
op 1.3 opisthocranion Situated in the occipital region of the
head is most distant from the glabella
eu 1.5 eurion The most prominent lateral point on each
side of the skull in the area of the parietal
and temporal bones
1.6
ft 1.7 frontotemporale The point on each side of the forehead,
laterally from the elevation of the linea
1.8 temporalis
tr 1.9 11.1 trichion The point on the hairline in the midline of
the forehead
zy 2.1 zygion
The most lateral point of each of the
zygomatic
2.2
go 2.3 2.15 gonion
The most lateral point on the mandibural
angle close to the bony gonion
2.4 2.16
sl 2.5 sublabiale Determines the lower border of the lower
lip or the upper border of the chin
pg 2.6 2.10 pogonion The most anterior midpoint of the chin,
located on the skin surface in the front of
the identical bony landmark of the
mandible
gn 2.7 2.1 menton (or The lowest median landmark on the
gnathion) lower border of the mandible
cdl 2.9 condylion laterale
The most lateral point on the surface of
the condyle of the mandible
2.10
en 3.1 3.11 endocanthion
The point at the inner commissure of the
eye fissure
3.2 3.8
ex 3.3 3.7 exocanthion (or
The point at the outer commissure of the
ectocanthion)
eye fissure
3.4 3.12
p 3.5 3.5 center point of pupil Is determined when the head is in the
rest position and the eye is looking
3.6 3.6 straight forward
or 3.7 3.9 orbitale
The lowest point on the lower margin of
each orbit
3.8 3.10
ps 3.9 3.1 palpebrale superius
The highest point in the midportion of the
free margin of each upper eyelid
3.10 3.2
12 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
pi 3.11 3.3 palpebrale inferius
The lowest point in the midportion of the
free margin of each lower eyelid
3.12 3.4
os 4.1 orbitale superius
The highest point on the lower border of
the eyebrow
4.2
sci 4.3 4.3 superciliare
The highest point on the upper border in
the midportion of each eyebrow
4.4 4.4
n 5.1 nasion The point in the middle of both the nasal
root and nasofrontal suture
se 5.2 sellion (or Is the deepest landmark located on the
subnasion) bottom of the nasofrontal angle
al 5.3 9.1 alare
The most lateral point on each alar
contour
5.4 9.2
prn 5.6 9.3 pronasale The most protruded point of the apex
nasi
sn 5.7 9.15 subnasale The midpoint of the angle at the
columella base where the lower border of
the nasal septum and the surface of the
upper lip meet
sbal 5.9 subalare The point at the lower limit of each alar
base, where the alar base disappears
5.10 into the skin of the upper lip
ac 5.11 9.1 alar curvature (or
The most lateral point in the curved base
alar crest) point
line of each ala
5.12 9.2
mf 5.13 9.6 maxillofrontale
The base of the nasal root medially from
each endocanthion
5.14 9.7
cph 6.1 8.9 christa philtri
The point on each elevated margin of the
landmark
philtrum just above the vermilion line
6.2 8.10
ls 6.3 8.1 labiale (or labrale)
The midpoint of the upper vermillion line
superius
li 6.4 8.2 labiale (or labrale)
The midpoint of the lower vermillion line
inferius
ch 6.5 8.3 cheilion
The point located at each labial
commissure
6.6 8.4
© ISO/IEC 2009 – All rights reserved 13

ISO/IEC 19794-5:2005/Amd.2:2009(E)
sto 6.7 stomion The imaginary point at the crossing of
the vertical facial midline and the
horizontal labial fissure between gently
closed lips, with teeth shut in the natural
position
sa 7.1 10.1 superaurale
The highest point of the free margin of
the auricle
7.2 10.2
sba 7.3 10.5 subaurale
The lowest point of the free margin of the
ear lobe
7.4 10.6
pra 7.5 10.9 preaurale The most anterior point on the ear,
located just in front of the helix
7.6 10.10 attachment to the head
pa 7.7 postaurale
The most postrerior point on the free
margin of the ear
7.8
obs 7.9 10.3 otobasion
The point of attachment of the helix in
superious
the temporal region
7.10 10.4
obi 7.11 otobasion infrious
The point of attachment of the ear lobe to
the cheek
7.12
po 7.13 porion (soft)
The highest point of the upper margin of
the cutaneous auditory meatus
7.14
t 8.1 tragion
The notch on the upper margin of the

tragus
8.2
The Anthropometric Landmark Code has the format: A.B. A specifies the global landmark of the face to which
this landmark belongs such as nose, mouth, etc. B specifies the particular point. In case a landmark point has
two symmetrical entities (left and right) the right entity always has a greater and even minor code value.
Hence, all landmark points from the left part of the face have odd minor codes, and from the right part – even
minor codes. Both A and B are in the range from 1 to 15. Hence, the code A*16 + B is written to the 1 byte
Landmark Point Code field.
5.6.6 Anthropometric 3D landmark
The error of an Anthropometric 3D landmark point location should be no greater than 3 mm. The point shall
withstand from the nearest point on the surface no further than 3 mm. The point on the surface is a vertex, or
a point on an edge, or a point on a face of the surface.

5.6.7 Z coordinate
This field is not used if the Landmark Point Type is equal to MPEG4 Feature or Anthropometric 2D landmark.
In case the Landmark Point Type equals Anthropometric 3D landmark this field along with the horizontal and
14 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
vertical positions denotes the coordinates of the landmark point in the 3D Cartesian Coordinate System. The
metric coordinates of 3D landmarks shall be obtained by multiplying the X, Y, and Z coordinates by a fixed
scale of 0.02 mm. Note, that the Landmark Point Type field codes the type of the landmark point and
determines the interpretation of the Z coordinate.
Page 19
Replace 5.7.1 with the following:
5.7.1 Face Image Type
The Face Image Type field shall represent the type of the facial image stored in the Image Information block
and, if applicable, the 3D Data block according to Table 10. Note that all Frontal Image Types are either Full
Frontal, Token Frontal, or one of the respective 3D Full Frontal or Token Frontal Image Types. Therefore a
separate Frontal Value is not required.

Table 10 – Face Image Type codes
Description Value
Basic 0x00
Full Frontal 0x01
Token Frontal 0x02
Reserved 0x03 – 0x7F
Basic 3D 0x80
Full Frontal 3D 0x81
Token Frontal 3D 0x82
Reserved 0x83 - 0xFF
The Basic Face Image Type is defined in clause 6. The Frontal, Frontal/Full and Frontal/Token Face Image
Types are defined in clauses 7, 8, and 9 respectively. Face Image Types use the notion of inheritance. For
example, the Frontal Face Image Type inherits all of the requirements of the Basic Face Image Type - the
Frontal Face Image type obeys all normative requirements of the Basic Face Image Type. The inheritance
structure of currently defined image types is shown in Figure 8. Relations are indicated by an arrow from the
child to the parents.
If a 2D record that is compliant to the Basic, Full Frontal or Token Frontal requirements, respectively, contains
3D data, this is indicated by the highest bit of the Face Image Type set to one, resulting in the Face Image
Type codes 0x80 to 0x82.
The 3D Image types are defined in clauses 10, 11, and 12 respectively.
© ISO/IEC 2009 – All rights reserved 15

ISO/IEC 19794-5:2005/Amd.2:2009(E)

Figure 8 – 2D Face Image Types and their inheritance map. Normative requirements for the Basic,
Frontal, Full Frontal and Token Frontal Face Images Types are given in clauses 6, 7, and 8,
respectively.
Page 22
Add the following new subclauses after 5.8
5.9 The 3D Information Block
The 3D Information block consists of the following fields and sub blocks:
The Length of 3D Data Representation, the Coordinate System Type, the Texture Projection Matrix, Scale,
Offset, the 3D Representation Type, the 3D Supplemental Data, the 3D Source Type, the 3D Device Type, the
3D to 2D Image Temporal Synchronicity, the 3D to 2D-Texture Temporal Synchronicity, the 3D Acquisition
Time, the 2D-Texture Acquisition Time, the Texture Map Type and finally the Texture Map Spectrum.
5.9.1 Length of 3D Data Representation
This (4 byte) field codes the length of the 3D Information and 3D Data block including the optional fields and
blocks, if they are present.
5.9.2 Coordinate System Type
Originally, 3D data is acquired in a device dependent coordinate system. Based on the knowledge about
several device parameters the 3D data can be transformed in metric world coordinates with two
disadvantages:
• the regular structure of the device dependent data gets lost (e.g. leading to varying distances between
data points)
• to obtain a regular structure in world coordinates, one has to interpolate. The original data is not
preserved. This may be sufficient for many applications, but this standard is intended to be able to
store the original data, too.
Thus the standard features several ways to store 3D data in different representations. All representations
support a Cartesian coordinate system. The Range data representation additionally supports a Cylindrical
Coordinate system. Note that the coordinate system may be further restricted for different Face Image Types
(see clauses 10 to 12, and Annex A.7).
16 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
The transformation to metric world coordinates is described by appropriate scaling factors and implicit rules
(e.g. as used in the 3D anthropometric landmark type) defined in this standard (see clause 5.9.2.1 to 5.9.2.2),
The (1 byte) Coordinate System Type field specifies the coordinate system of the 3D data by using the
following values.
Table Amd.2-3 – The Coordinate System Type
Description Value
Cartesian Coordinate System 0x00
Cylindrical Coordinate System 0x01
Reserved 0x02 – 0xFF
The different coordinate systems are defined as follows:
5.9.2.1 Cartesian Coordinate System
In the Cartesian Coordinate system the point of origin of the sensor data typically is used as the point of origin
of the coordinate system.
The transformation from cartesian coordinates to metric cartesian coordinates is derived as follows:
X= x *ScaleX+OffsetX ;
Y= y *ScaleY+OffsetY;
Z= z *ScaleZ+OffsetZ.
For certain Image Types the origin of the Cartesian Coordinate System shall be the nose, i.e. the Prn
landmark as defined in Table Amd.2-2.
NOTE For certain Image Types the pose of the head is restricted. The frontal pose is defined by the Frankfurt Horizon
FH (see Annex C) as the XZ plane and the vertical symmetry plane as the YZ plane with the Z axis oriented in the
direction of the face sight.
Furthermore note, that a strong relation between anthropometric landmarks and the coordinate system is still
established by
• the anatomical alignment requirements of the corresponding 2D image and
• the alignment between the 3D range data and the corresponding 2D image after applying the Texture
Projection Matrix.
© ISO/IEC 2009 – All rights reserved 17

ISO/IEC 19794-5:2005/Amd.2:2009(E)

Figure Amd.2-3 – A sample of a Cartesian Coordinate System

5.9.2.2 The Cylindrical Coordinate System
A point in the Cylindrical Coordinate System is given by (α,h,r). The angle α and the h -axis are defined
in a way that they form a clockwise coordinate system.
The transformation from cylindrical coordinates to metric cartesian coordinates is derived as follows:
X= r *ScaleZ *sin(α *ScaleX )+OffsetX ;
Y= h *ScaleY+OffsetY;
Z= r *ScaleZ *cos(α *ScaleX )+OffsetZ;
ScaleX, ScaleY, ScaleZ, OffsetX, OffsetY and OffsetZ are the necessary constants for the transformation.
ScaleX has the physical unit of rad (degree radian). ScaleY, ScaleZ, OffsetX, OffsetY and OffsetZ are given in
the physical unit mm (millimetre). Note, that large values of ScaleX, ScaleY or ScaleZ indicate a low resolution
in the respective dimension.
Typically, the point of origin of the sensor data is used as the point of origin of the Cylindrical Coordinate
System.
For certain Image Types the origin of the Cylindrical Coordinate System shall be the nose, i.e. the Prn
landmark as defined in Table Amd.2-2.
Furthermore note, that a strong relation between anthropometric landmarks and the coordinate system is still
established by
• the anatomical alignment requirements of the corresponding 2D image and
18 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
• the alignment between the 3D data and the corresponding 2D image after applying the Texture
Projection Matrix.
The transformation from cylindrical coordinates to cartesian coordinates is done by applying the
transformation denoted in clause 5.9.2.2 and then inverting the transformation given in 5.9.2.1.

Figure Amd.2-4 – A sample of a Cylindrical Coordinate System. FH is the Frankfurt Horizon as defined
in Annex C.
5.9.3 Texture Projection Matrix
The Texture Projection Matrix P (3x4 float, 48 bytes) is required to map the 3D data onto the 2D texture image
of the Image Data block. The matrix shall be stored row by row starting from the left top.
T
One can project a point in 3D space [X ,Y,Z] on the texture image of the Image Data block by multiplying
the Texture Projection Matrix P with the so called homogeneous 3D coordinates of the 3D point [2].
T T
[x,y,w] = P *[X ,Y,Z,1]
T
Homogeneous 3D coordinates are a vector of four values[X ,Y,Z,1] . Here X, Y, Z are the coordinates of a
T
point in the metric cartesian coordinate system. The multiplication results in [x,y,w] the so called
homogeneous 2D coordinates with the auxiliary coordinate w. One obtains the resulting 2D image pixel
coordinates of the texture image in the Image Data block by dividing the first two coordinates of the 2D
homogeneous coordinates by the respective 3rd auxiliary coordinate w. Hence [x:w, y:w] are the resulting
T
image pixel coordinates of the texture image related to the given 3D point [X ,Y,Z] . Note, that the obtained
coordinates are floating point values. In this standard there are no rules about how the necessary rounding or
interpolation to the integer pixel coordinates has to be done.
© ISO/IEC 2009 – All rights reserved 19

ISO/IEC 19794-5:2005/Amd.2:2009(E)
In case the Cylindrical Coordinate System is used one shall transform to the metric Cartesian coordinate
system to map the 3D data onto the texture. If there is overlapping, the texture is mapped to the first 3D point
in the line of sight (closest to the observer).
The next two blocks store all necessary data to compute metric depth values from the 3D data.
5.9.4 ScaleX, ScaleY, ScaleZ, OffsetX, OffsetY, OffsetZ
As outlined in clause 5.9.2.1 and 5.9.2.2 ScaleX, ScaleY, ScaleZ, OffsetX, OffsetY and OffsetZ are needed to
transform digital coordinates to metric coordinates. This applies to all three 3D representations defined in this
part of ISO/IEC 19794. The values are given in the physical unit mm (millimetre). In the case of Cartesian
coordinates ScaleX also has the physical unit mm, in the case of a cylindrical coordinate system ScaleX has
the physical unit of rad (degree radian). Each factor is represented by a mandatory four byte float value.
Note that large values of ScaleX, ScaleY or ScaleZ indicate a low resolution in the respective dimension.
Note that boundary values of ScaleX, ScaleY and ScaleZ may be strongly restricted for different Face Image
Types (see clauses 10 to 12, and Annex A.7).
Furthermore note, that ScaleX and ScaleY in a range image represent sampling intervals while the ones in a
3D point map do quantization of the 3D space. Also, ScaleZ in either of these representations denotes
quantization.
5.9.5 3D Representation Type
The (1 byte) 3D Representation Type shall be used to indicate the representation type that codes the 3D data.
Table Amd.2-4 – 3D Representation Type
Description Value
Range Image 0x00
3D Point Map 0x01
Vertex Data 0x02
Reserved for future definition 0x03-0xFF

5.9.6 3D Supplemental Data
The (1 byte) 3D Supplemental Data mask is a bit mask of one byte and each bit of the mask position listed in
Table Amd.2-5 shall be set to 1 if the corresponding 3D information is present and set to 0 if absent. So, a bit
mask of all zeros will indicate, that none of the options are present. The mask position starts from 0 at the
lowest significant bit. The Mask indicates if an Error Map/Vertex Error and/or a Texture map is attached to the
data.
Table Amd.2-5 – 3D Supplemental Data
Description Mask Position
Error Map or Vertex Error present 0
Texture Map present 1
Reserved for future definition 2-7
20 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
5.9.7 3D Source Type
In analogy to the “Source Type” field in the 2D Image Information block, where the source of the 2D data can
be coded, the (1 byte) 3D Source Type field should be used to indicate the type of the source that was used to
acquire the 3D data. Additionally, the most significant bit (MSB) indicates if the scanning technology is active or
passive for each source type.
Table Amd.2-6 – The 3D Source Type

Description Value (passive technology) Value (active technology)
Unspecified 0x00 0x00
stereoscopic scanner 0x81 0x01
moving (monochromatic) laser line Not available 0x02
structured light Not available 0x03
colour coded light Not available 0x04
ToF (Time of Flight) Not available 0x05
Shape from Shading 0x86 0x06
Reserved 0x87-0xFF 0x07 – 0x80

5.9.8 3D Device Type
The (2 byte) 3D Device Type field denotes the vendor specific capture device type ID. A value of all zeros will
be acceptable and will indicate that the 3D Device Type ID is unspecified. Application developers may obtain
the values for these codes from the vendor.

5.9.9 3D to 2D Image Temporal Synchronicity
The mandatory (2 byte) 3D to 2D Image Temporal Synchronicity shall be used to indicate the temporal
relation between the 3D data and the 2D image of the image data block. It does not reference to the optional
2D Image Texture of the 3D data block. The value indicates the temporal difference between the start of the
2D and the start of the 3D acquisition process in milliseconds (ms). The field allows the coding of positive as
well as negative differences. Here, a negative time difference denotes that the 3D acquisition started before
the 2D acquisition. The time difference in milliseconds (ms) is coded in the two's complement system. So, a
value of 0x8001 codes the maximum negative temporal difference of −32767 ms and the value 0x7FFF
corresponds to the maximum positive temporal difference of +32767 ms. A value of 0x8000 is acceptable and
indicates that the 3D Temporal Synchronicity is unspecified.
Table Amd.2-7 – The 3D to 2D Image Temporal Synchronicity
Description Value
Temporal difference between the start of the 2D 0x0000 – 0x7FFF
and the 3D acquisition process in milliseconds (ms)
in two's complement coding.
0x8001 – 0xFFFF
Unspecified 0x8000
© ISO/IEC 2009 – All rights reserved 21

ISO/IEC 19794-5:2005/Amd.2:2009(E)
5.9.10 3D to 2D Texture Temporal Synchronicity
The mandatory (2 byte) 3D to 2D Texture Temporal Synchronicity shall be used to indicate the temporal
relation between the 3D data and the 2D textural data of the optional 2D texture map of the 3D data block.
The value indicates the temporal difference between the start of the 2D Texture Map acquisition and the start
of the 3D acquisition process in milliseconds (ms). NOTE It does not refer to the synchronicity between the
acquisition of the 2D image in the image data block and the 3D data.
The field allows the coding of positive as well as negative differences. Here a negative time difference denotes
that the 3D acquisition started before the 2D acquisition. The time difference in milliseconds (ms) is coded in
the two's complement system. So, a value of 0x8001 codes the maximum negative temporal difference of
−32767 ms and the value 0x7FFF corresponds to the maximum positive temporal difference of +32767 ms. A
value of 0x8000 is acceptable and indicates that the 3D to 2D Texture Temporal Synchronicity is unspecified.
Table Amd.2-8 – The 3D to 2D Texture Temporal Synchronicity
Description Value
Temporal difference between the start of the 0x0000 – 0x7FFF
optional 2D Texture Map and the 3D acquisition
process in milliseconds (ms) in two's complement 0x8001 – 0xFFFF
coding.
Unspecified 0x8000
5.9.11 3D Acquisition Time
Different 3D scanning techniques strongly vary in their acquisition time and this time may directly influence the
quality of the data (if the subject moves during acquisition). Therefore, the (2 byte) 3D Acquisition Time field is
used to code the time span between the start of the 3D acquisition process and the end of the 3D acquisition
process in ms (milliseconds). A value of 0xFFFF is acceptable and indicates that the field is not specified.

Table Amd.2-9 – The 3D Acquisition Time
Description Value
Duration of the 3D acquisition process in 0x0000 – 0xFFFE
milliseconds (ms)
Unspecified 0xFFFF
5.9.12 2D Texture Acquisition Time
The optional 2D texture map of the 3D record may or may not be simultaneously acquired with the 3D data.
Therefore, the (2 byte) 2D Texture Acquisition Time field is used to code the time span between the start of
the 2D acquisition process and the end of the 2D acquisition process of the optional texture map in ms
(milliseconds). A value of 0xFFFF is acceptable and indicates that the field is not specified. NOTE this is not
the time needed to acquire the 2D image of the image data block.
22 © ISO/IEC 2009 – All rights reserved

ISO/IEC 19794-5:2005/Amd.2:2009(E)
Table Amd.2-10 – The 2D Texture Acquisition Time
Description Value
Duration of the 2D acquisition process in 0x0000 – 0xFFFE
milliseconds (ms)
Unspecified 0xFFFF
5.9.13 Texture Map Type
The (1 byte) Texture Map Type field denotes the encoding type of the Texture Map block. If the 3D
Supplemental Data field specifies that there is a Texture Map
...
