ISO/IEC 19763-10:2014

INTERNATIONAL ISO/IEC
STANDARD 19763-10
First edition
2014-12-15
Information technology — Metamodel
framework for interoperability (MFI) —
Part 10:
Core model and basic mapping
Technologies de l’information — Cadre du métamodèle pour
l’interopérabilité (MFI) —
Partie 10: Modèle de base et de cartographie de base
Reference number
ISO/IEC 19763-10:2014(E)
©
ISO/IEC 2014

---------------------- Page: 1 ----------------------
ISO/IEC 19763-10:2014(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2014 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 19763-10:2014(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 2
3 Terms, definitions and abbreviated terms . 2
3.1 Terms and definitions . 2
3.2 Abbreviated terms . 3
4 Conformance . 3
4.1 General . 3
4.2 Conformance Levels . 3
4.2.1 Conformance Level 1 . 3
4.2.2 Conformance Level 2 . 3
4.3 Implementation Conformance Statement (ICS) . 3
5 Overview of MFI Core and mapping . 4
5.1 Basic Structure . 4
5.2 Overview of the Core_Model package . 4
5.3 Overview of the Basic_Mapping_Model package . 5
6 Detail provided in each metaclass definition . 7
7 The Core_Model package . 7
7.1 Modelling_Language . 7
7.2 Model . 8
7.3 Model_Element . 8
7.4 Annotating_Registered_Ontology_Atomic_Construct . 9
8 The Basic_Mapping_Model package .10
8.1 Model (as specialized) .10
8.2 Model_Element (as specialized) .10
8.3 Model_Mapping .11
8.4 Model_Element_Set_Mapping .11
8.5 Model_Element_Set_Mapping_Type .12
8.6 Model_Element_Set .12
8.7 Model_Element_Set_Mapping_Degree .13
9 Use of the common facilities types specified in ISO/IEC 11179 within ISO/IEC 19763 .13
9.1 General principles .13
9.2 Application to this part .14
Annex A (informative) Examples .15
Bibliography .32
© ISO/IEC 2014 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 19763-10:2014(E)

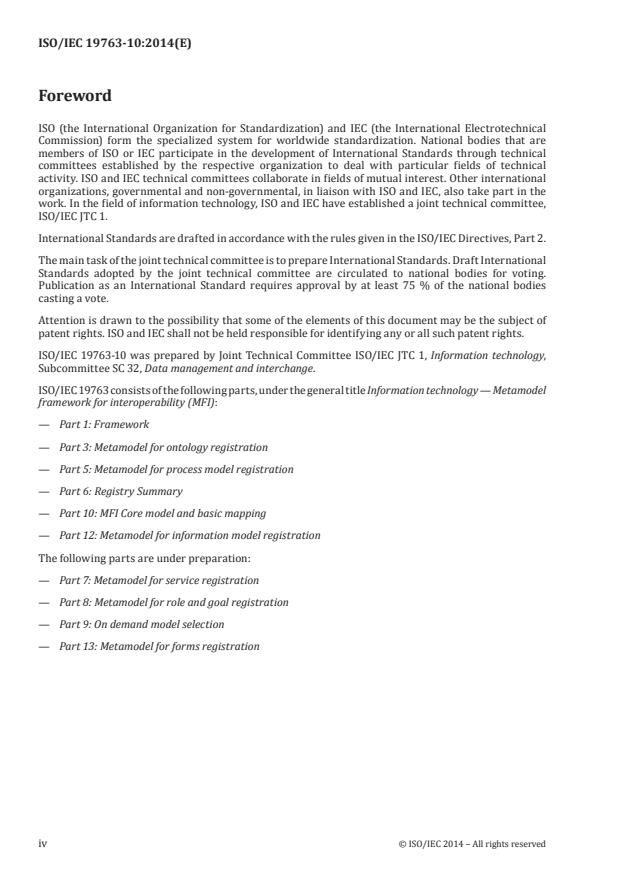

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 19763-10 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 32, Data management and interchange.
ISO/IEC 19763 consists of the following parts, under the general title Information technology — Metamodel
framework for interoperability (MFI):
— Part 1: Framework
— Part 3: Metamodel for ontology registration
— Part 5: Metamodel for process model registration
— Part 6: Registry Summary
— Part 10: MFI Core model and basic mapping
— Part 12: Metamodel for information model registration
The following parts are under preparation:
— Part 7: Metamodel for service registration
— Part 8: Metamodel for role and goal registration
— Part 9: On demand model selection
— Part 13: Metamodel for forms registration
iv © ISO/IEC 2014 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 19763-10:2014(E)

Introduction
Industrial consortia have engaged in the standardization of domain-specific business objects including
business process models and software components using common modelling facilities and interchange
facilities such as UML and XML. They are very active in standardizing domain-specific business process
models and standard modelling constructs such as data elements, entity profiles, and value domains.
However, to promote interoperability across business domains, a generic framework for registering a
variety of models and the mapping between them is required. This part of ISO/IEC 19763 provides a
core metamodel as the basis for the other parts of ISO/IEC 19763 and a metamodel for registering the
mappings between models registered in those other parts of ISO/IEC 19763.
NOTE UML is a trademark of the Object Management Group.
© ISO/IEC 2014 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 19763-10:2014(E)
Information technology — Metamodel framework for
interoperability (MFI) —
Part 10:
Core model and basic mapping
1 Scope
The primary purpose of this International Standard is to specify a metamodel framework for
interoperability. This part of ISO/IEC 19763 specifies the metamodel that provides a facility to register
administrative information and common semantics of models and mapping between two models.
This part of ISO/IEC 19763 does not specify the metamodel of models in a specific language, but provides
a common core metamodel for the other parts of ISO/IEC 19763, each of which specifies a metamodel for
a registry that can register models of a specific type, such as ontologies, process models or information
models, in a number of different languages.
This part of ISO/IEC 19763 also provides a metamodel for registering the mappings between two models
registered in those other parts of ISO/IEC 19763.
This part of ISO/IEC 19763 utilises the common facilities specified in ISO/IEC 11179-3. ISO/IEC 11179
(all parts) specifies a metadata registry (MDR). These common facilities provide the ability to identify
and register models and their associated model elements and modelling languages within a metadata
registry used to register models.
Figure 1 shows the relationship between this part of ISO/IEC 19763 and other parts of ISO/IEC 19763.
Figure 1 — Relationships between MFI Core and mapping and other parts
© ISO/IEC 2014 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/IEC 19763-10:2014(E)

2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 11179-3:2013, Information technology — Metadata registries (MDR) — Part 3: Registry metamodel
and basic attributes
ISO/IEC 11179-6, Information technology — Metadata registries (MDR) — Part 6: Registration
1)
ISO/IEC 19763-1 , Information technology — Metamodel framework for interoperability (MFI) — Part 1:
Reference model
ISO/IEC 19763-3:2010, Information technology — Metamodel framework for interoperability (MFI) —
Part 3: Metamodel for ontology registration
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11179-3, ISO/IEC 11179-6,
ISO/IEC 19763-1, and the following apply.
3.1.1
modelling language
language or notation that is used to model some aspect of a domain of interest
3.1.2
model
representation of some aspect of a domain of interest using a normative modelling facility and
modelling constructs
Note 1 to entry: Models can be used to express a set of information requirements, processes, services, roles, goals,
or some other aspect of a domain of interest.
[SOURCE: ISO/IEC 19763-1:2007, 4.1.7, modified]
3.1.3
model element
element or component in a model
Note 1 to entry: Examples of model elements are a representation of an entity type in an information model, a
representation of an event in a process model, a representation of a service operation in a service model, or a
representation of an actor in a role and goal model.
3.1.4
model element set
means by which a set of model elements are grouped together for the purposes of mapping, with each
set forming one half of a model element set mapping
3.1.5
model mapping
collection of model element set mappings
Note 1 to entry: A model mapping is a statement that the domains represented by two models intersect and
there is a need to register details of the correspondence between the structures in the models that semantically
represent this overlap to achieve interoperability.
1) This standard is under revision.
2 © ISO/IEC 2014 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 19763-10:2014(E)

3.1.6
model element set mapping
part of a model mapping, comprising two sets of model elements, one from each of the models being
mapped, that model similar real-world requirements.
3.1.7
model element set mapping type
classification for a set of model element set mappings
3.2 Abbreviated terms
MFI
metamodel framework for interoperability
MFI Core and mapping
ISO/IEC 19763-10, Information technology — Metamodel framework for interoperability (MFI) — Part 10:
Core model and basic mapping
MFI Ontology registration
ISO/IEC 19763-3, Information technology — Metamodel framework for interoperability (MFI) — Part 3:
Metamodel for ontology registration
MDR
metadata registry
4 Conformance
4.1 General
An implementation claiming conformance to this part of ISO/IEC 19763 shall conform as further
described in this Clause.
4.2 Conformance Levels
4.2.1 Conformance Level 1
The metamodel specified in Clause 7 (The Core_Model package) is supported.
4.2.2 Conformance Level 2
The metamodels specified in Clause 7 (The Core_Model package) and Clause 8 (The Basic_Mapping_
Model package) are supported.
4.3 Implementation Conformance Statement (ICS)
An implementation claiming conformance to this part of ISO/IEC 19763 shall include an Implementation
Conformance Statement stating:
a) which conformance level it claims (4.2);
b) for each of the ISO/IEC 19763 metaclasses supported in the implementation, what types specified in
ISO/IEC 11179-3:2013, 5.5 are used to extend that metaclass.
NOTE 1 The use of the types specified in ISO/IEC 11179-3:2013, 5.5 is explained in Clause 9.
© ISO/IEC 2014 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/IEC 19763-10:2014(E)

NOTE 2 Other parts of ISO/IEC 19763 will require a conformance to this part of ISO/IEC 19763 as a part of its
conformance claim. It will follow 4.3.
5 Overview of MFI Core and mapping
5.1 Basic Structure
MFI Core and mapping consists of two packages: Core_Model package and Basic_Mapping_Model
package. Figure 2 shows the package structure of MFI Core and mapping.
The Core_Model package specifies a core model that is inherited by other parts of ISO/IEC 19763 to
register administrative information and common semantics of models. The Basic_Mapping_Model
package specifies a basic mapping model that allows the registration of information about mappings
between models.
Figure 2 — Package structure of MFI Core and Mapping
5.2 Overview of the Core_Model package
Figure 3 shows the metamodel in the Core_Model package.
NOTE 1 Metaclasses whose names are italicized are abstract metaclasses.
NOTE 2 Metaclasses grey shaded are metaclasses that are defined in the other parts of ISO/IEC 19763.
Figure 3 — The Metamodel in the Core_Model package
4 © ISO/IEC 2014 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 19763-10:2014(E)

It comprises the following metaclasses:
— Modelling_Language;
— Model;
— Model_Element;
— Annotating_Registered_Ontology_Atomic_Construct.
The metaclasses that represent models in other parts of ISO/IEC 19763 will be subclasses of Model
and the metaclasses representing the content of these models will be subclasses of Model_Element.
Some of the metaclasses in other parts of ISO/IEC 19763 inherited from Model or Model_Element may
override some attributes and/or references of the metaclasses defined in this part. The metaclasses that
represent the language in which these models are expressed will be subclasses of Modelling_Language.
Each modelling language is a language or notation that is used to model concepts found in the other
parts of the ISO/IEC 19763 family of standards.
NOTE 1 Examples are languages used to express ontologies and/or to model information requirements,
processes, services, forms, roles, goals, or some other set of concepts that can be modelled.
Each model is a representation of concepts found in the other parts of the ISO/IEC 19763 family of standards.
NOTE 2 Examples are an ontology or a model used to represent a set of information requirements, processes,
services, forms roles, goals, or some other set of concepts that can be represented in a model.
Each model element is an element or component in a model, such as a non-logical symbol in an ontology,
an entity type in an information model, an event in a process model, a service operation in a service
model, or an actor in a role and goal model.
Each model element is an element or component in a model, such as those found in the other parts of the
ISO/IEC 19763 family of standards.
NOTE 3 Examples are non-logical symbol in an ontology, an entity type in an information model, an event in a
process model, a service operation in a service model, a section or question on a form, or an actor in a role and goal
model or other types found in ISO/IEC 19763 family of standards.
Each model shall be expressed in one or more modelling language. Each modelling language is used to
describe zero, one, or more models.
Each model contains zero, one, or more model elements. Each model element is part of zero, one, or more
models.
Each annotating registered ontology atomic construct annotates zero, one, or more models. Each model
is annotated by zero, one, or more annotating registered ontology atomic constructs.
Each annotating registered ontology atomic construct annotates zero, one, or more model elements.
Each model element is annotated by zero, one, or more annotating registered ontology atomic constructs.
The exact specification of each metaclass in the Core_Model package is given in Clause 7.
5.3 Overview of the Basic_Mapping_Model package
Figure 4 shows the metamodel in the Basic_Mapping_Model package.
It comprises the following metaclasses:
— Model_Mapping;
— Model_Element_Set_Mapping;
— Model_Element_Set_Mapping_Type;
© ISO/IEC 2014 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/IEC 19763-10:2014(E)

— Model_Element_Set.
Each model mapping is a mapping from one model to another model, one of which is the subject model
and the other is the object model.
Each model element set is the means by which a set of model elements are grouped together for the
purposes of mapping, with each set forming one half of a model element set mapping.
Figure 4 — The Metamodel in the Basic_Mapping_Model package
Each model element set mapping is part of a model mapping. Each model element set mapping comprises
a set of model elements from the subject model and a set of elements from the object model that model
similar real-world requirements. Each model element set mapping is subject to a model element set
mapping degree.
Each model element set mapping type is a classification for a set of model element mappings.
Each model mapping shall be from one and only one model, which is the subject model. Each model is the
subject of zero, one, or more model mappings.
Each model mapping shall be to one and only one model, which is the object model. Each model is the
object of zero, one, or more model mappings.
Each model element set mapping shall be described by one and only one model element set mapping type.
Each model element set mapping type is the description of zero, one, or more model element set mappings.
Each model element set mapping shall be from one and only one model element set, which is the subject
model element set. Each model element set is the subject of zero, one, or more model element set mappings.
Each model element set mapping shall be to one and only one model element set, which is the object
model element set. Each model element set is the object of zero, one, or more model element set mappings.
6 © ISO/IEC 2014 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/IEC 19763-10:2014(E)

Each model mapping shall be comprised of one or more model element set mappings. Each model element
set mapping shall be part of one or more model mappings.
Each model element set contains zero, one, or more model elements. Each model element is mapped
though zero, one, or more model element sets.
The exact specification of each metaclass in the Basic_Mapping_Model package is given in Clause 8.
6 Detail provided in each metaclass definition
In this part of ISO/IEC 19763, each metaclass is defined in the following form. Other parts of ISO/IEC 19763
also use this notation and format unless otherwise specified.
Each metaclass is defined at its relevant subclause.
Title of a subclause is the metaclass name and the first paragraph is a brief description of the metaclass.
Its direct superclass is specified under the heading of Superclass.
Its attributes are listed and defined under the headings Attribute, DataType, Multiplicity, and
Description, under each of which, the name of the attribute, its datatype, its multiplicity, and a
description are given, respectively.
Its references are listed and defined under the headings Reference, Class, Multiplicity, Description,
Inverse, and Precedence, under each of which, the name of the reference, the name of the associated
metaclass, its multiplicity, a description, its inverse reference name, and whether it has precedence over
its inverse reference or not, are given, respectively. The inverse reference name shall be the name of the
reference in the associated metaclass which is complementary to this reference.
If a class has any other constraints, they are described in a natural language under the heading of Constraints.
In UML, an association is equivalent to a reference and its inverse reference. In this part of ISO/IEC 19763,
to formally define a metaclass, associations are not used, but each association is replaced by two
references, a reference and its inverse reference. If a reference has precedence over its inverse reference,
it means that instances of the relevant metaclass have responsibility for maintenance of the links of the
association defined by it and its inverse reference.
For better understandability, diagrams shows associations, rather than references. A role name of an
association is a reference name of the associated metaclass.
For simplicity, a diagram does not show attributes.
Multiplicity constraints of attributes and references and other constraints of a metaclass are to be
enforced when registration status of an instance of the metaclass is “recorded” or higher.
NOTE Registration statuses are defined in ISO/IEC 11179-6.
7 The Core_Model package
7.1 Modelling_Language
Modelling_Language is an abstract metaclass each instance of which represents a language or notation
that is used to model concepts found in the other parts of the ISO/IEC 19763 family of standards. The
subclasses of Modelling_Language are specified in the subordinate parts of ISO/IEC 19763.
NOTE Examples are languages used to express ontologies and/or to model information requirements,
processes, services, forms, roles, goals, or some other set of concepts that can be modelled.
© ISO/IEC 2014 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/IEC 19763-10:2014(E)

Superclass
[None]
Attribute
[None]
Reference Class Multiplicity Description Inverse Precedence
describes Model 0.* The set of models that described_by No
this language describes
Constraints
[None]
7.2 Model
Model is an abstract metaclass each instance of which represents a representation of concepts found in
the other parts of the ISO/IEC 19763 family of standards. The subclasses of Model are specified in the
subordinate parts of ISO/IEC 19763.
NOTE Examples are an ontology or is a model used to represent a set of information requirements, processes,
services, form designs, roles, goals, or some other set of concepts that can be represented in a model.
Superclass
[None]
Attribute
[None]
Reference Class Multiplicity Description Inverse Precedence
described_by Modelling_Language 1.* The set of languages used describes Yes
to express this model
contains Model_Element 0.* The set of model elements contained_by Yes
that are part of this model
annotation Annotating_Regis- 0.* The set of annotating annotated_ No
tered_ registered ontology model
Ontology_Atomic_ atomic constructs that
Construct annotate this model
Constraints
[None]
7.3 Model_Element
Model_Element is an abstract metaclass each instance of which represents an element or component in
a model, such as those found in the other parts of the ISO/IEC 19763 family of standards. The subclasses
of Model_Element are specified in the subordinate parts of ISO/IEC 19763.
NOTE Examples are non-logical symbol in an ontology, an entity type in an information model, an event in a
process model, a service operation in a service model, a section or question on a form, or an actor in a role and goal
model or other types found in ISO/IEC 19763 family of standards.
8 © ISO/IEC 2014 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/IEC 19763-10:2014(E)

Superclass
[None]
Attribute
[None]
Reference Class Multiplicity Description Inverse Precedence
contained_by Model 0.* The set of models that contains No
contain this model
element
annotation Annotating_Registered_ 0.* The set of annotating annotated_ No
Ontology_Atomic_ registered ontology model_
Construct atomic constructs that element
annotate this model
element
Constraints
[None]
7.4 Annotating_Registered_Ontology_Atomic_Construct
Annotating_Registered_Ontology_Atomic_Construct is a metaclass each instance of which is a particular
instance of Registered_Ontology_Atomic_Construct that annotates one or more instances of Model or
Model_Element.
Superclass
Registered_Ontology_Atomic_Construct (from MFI Ontology registration)
Attribute
[None]
Reference Class Multiplicity Description Inverse Precedence
annotated_model Model 0.* The set of models that annotation Yes
are annotated by this
annotating registered
ontology atomic
construct
annotated_model_ Model_Element 0.* The set of model annotation Yes
element elements that are
annotated by this
annotating registered
ontology atomic
construct
Constraints
At least, one of the cardinalities of annotated_model or of annotated_model_element shall be one or more.
© ISO/IEC 2014 – All rights reserved 9

---------------------- Page: 14 ----------------------
ISO/IEC 19763-10:2014(E)

8 The Basic_Mapping_Model package
8.1 Model (as specialized)
Model is a subclass of Model in the Core_Model package, each instance of which r
...
