ISO/IEC TR 19763-9:2015

TECHNICAL ISO/IEC TR
REPORT 19763-9
First edition
2015-10-15
Information technology —
Metamodel framework for
interoperability (MFI) —
Part 9:
On demand model selection
Technologies de l’information — Cadre du métamodèle pour
l’interopérabilité (MFI) —
Partie 9: Sélection de modèle à la demande
Reference number
ISO/IEC TR 19763-9:2015(E)
©
ISO/IEC 2015

---------------------- Page: 1 ----------------------
ISO/IEC TR 19763-9:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC TR 19763-9:2015(E)
Contents

Foreword . v
Introduction . vi
1 Scope . 1
2 References . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 2
4 Preliminaries of ODMS . 3
4.1 Associations in RGPS . 3
4.2 Semantic annotation . 5
5 Framework of ODMS . 6
5.1 Model selection approaches . 6
5.2 General procedure of ODMS . 7
6 Typical model selection cases . 8
6.1 Model selection from goal to service . 8
6.2 Model selection from process to service . 9
Annex A  (informative) Example of on demand model selection . 10


© ISO/IEC 2015 – All rights reserved
iii

---------------------- Page: 3 ----------------------
ISO/IEC TR 19763-9:2015(E)

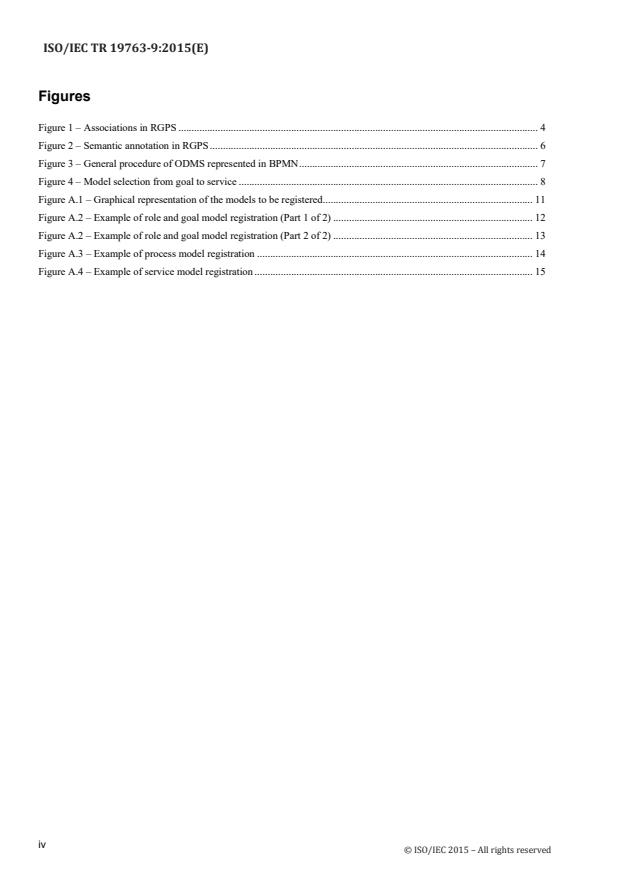

Figures


Figure 1 – Associations in RGPS . 4
Figure 2 – Semantic annotation in RGPS . 6
Figure 3 – General procedure of ODMS represented in BPMN . 7
Figure 4 – Model selection from goal to service . 8
Figure A.1 – Graphical representation of the models to be registered . 11
Figure A.2 – Example of role and goal model registration (Part 1 of 2) . 12
Figure A.2 – Example of role and goal model registration (Part 2 of 2) . 13
Figure A.3 – Example of process model registration . 14
Figure A.4 – Example of service model registration . 15

iv
© ISO/IEC 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC TR 19763-9:2015(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the different types of
document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on the ISO
list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO's adherence to the WTO principles in the Technical Barriers to Trade (TBT),
see the following URL: Foreword — Supplementary information.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 19763-9 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information Technology,
Subcommittee SC 32, Data management and Interchange.
ISO/IEC 19763 consists of the following parts, under the general title Information technology — Metamodel
framework for interoperability (MFI):
Part 1: Framework
Part 3: Metamodel for ontology registration
Part 5: Metamodel for process model registration
Part 6: Registry summary
Part 7: Metamodel for service model registration
Part 8: Metamodel for role and goal model registration
Part 9: On demand model selection [Technical Report]
Part 10: Core model and basic mapping
Part 12: Metamodel for information model registration
Part 13: Metamodel for form design registration
© ISO/IEC 2015 – All rights reserved
v

---------------------- Page: 5 ----------------------
ISO/IEC TR 19763-9:2015(E)

Introduction
Industrial consortia have engaged in the standardization of domain-specific objects including business
process models and software components using common modelling facilities and interchange facilities such
as UML and XML. They are very active in standardizing domain-specific business process models and
standard modelling constructs such as data elements, entity profiles, and value domains.
ISO/IEC 19763 provides registration mechanisms for different kinds of information resources in business
domains, such as ontologies, roles, goals, processes, and services. Faced with the abundant and
heterogeneous models, how to select appropriate services and/or models to meet user-requests becomes an
important issue. Based on the metamodels defined in parts 3, 5, 7 and 8 of ISO/IEC 19763, this technical
report describes a framework and procedures for model selection so as to help users discover corresponding
models or services that support their requests.
© ISO/IEC 2015 – All rights reserved
vi

---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/IEC TR 19763-9:2015(E)
Information technology – Metamodel framework for interoperability (MFI)
— Part 9: On demand model selection
1 Scope
This ISO/IEC Technical Report specifies a technical guideline on how to use the Role and Goal, Process, and
Service (RGPS) metamodels to select appropriate combinations of models and/or services to support user-
requests.
The scope of ISO/IEC TR 19763-9 is limited to model selection based on ISO/IEC 19763-5, ISO/IEC 19763-7,
and ISO/IEC 19763-8.
2 References
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 19763-1, Information technology – Metamodel framework for interoperability (MFI) – Part 1:
Framework
ISO/IEC 19763-3, Information technology – Metamodel framework for interoperability (MFI) – Part 3:
Metamodel for ontology registration
ISO/IEC 19763-5, Information technology – Metamodel framework for interoperability (MFI) – Part 5:
Metamodel for process model registration
ISO/IEC 19763-7, Information technology – Metamodel framework for interoperability (MFI) – Part 7:
Metamodel for service model registration
ISO/IEC 19763-8, Information technology – Metamodel framework for interoperability (MFI) – Part 8:
Metamodel for role and goal model registration
ISO/IEC 19763-10, Information technology – Metamodel framework for interoperability (MFI) – Part 10: Core
model and basic mapping
ISO/IEC 11179-6, Information technology – Metadata registries (MDR) – Part 6: Registration
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this part, the terms and definitions contained in ISO/IEC 19763-1, 3, 5, 7, 8, 10 and the
following shall apply.
3.1.1
goal
intended outcome of user interaction with a process (3.1.4) or service (3.1.10)
[ISO/IEC 19763-8, 3.1.1]
3.1.2
involvement type
statement that indicates the type of involvement of a role (3.1.8) with a process (3.1.4) or service (3.1.10)
NOTE Examples are performer, beneficiary, and customer
[ISO/IEC 19763-8, 3.1.4]
1

© ISO/IEC 2015 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC TR 19763-9:2015(E)

3.1.3
ontology
specification of concrete or abstract things, and the relationships among them, in a prescribed domain of
knowledge
NOTE The specification should be computer processable
[ISO/IEC 19763-3:2010, 3.1.1.1]
3.1.4
process
collection of related, structured activities or tasks that achieve a particular goal (3.1.1)
NOTE The activities and tasks are represented by the Process metaclass in this part
[ISO/IEC 19763-5, 3.1.12]
3.1.5
process involvement
statement that specifies how a particular role (3.1.8) is engaged in or contributes in a particular process
(3.1.4)
[ISO/IEC 19763-8, 3.1.6]
3.1.6
request type
target class in the MFI model to be used in the search, e.g., goal (3.1.1), process (3.1.4) or service (3.1.10)
3.1.7
return type
kind of models that the user would like to find in the search
3.1.8
role
named specific behaviour of an entity participating in a particular context
[ISO/IEC 19763-8, 3.1.7]
3.1.9
search term
term specified by the user in the search
3.1.10
service
application which encapsulates one or more computing modules and can be accessed through a specified
interface
[ISO/IEC 19763-7, 3.1.17]
3.1.11
service involvement
statement that specifies how a particular role (3.1.8) is involved in a particular service (3.1.10)
[ISO/IEC 19763-8, 3.1.8]
3.2 Abbreviated terms
BPMN
Business Process Model and Notation
[OMG BPMN version 2, formal/2011-01-03]
© ISO/IEC 2015 – All rights reserved
2

---------------------- Page: 8 ----------------------
ISO/IEC TR 19763-9:2015(E)
KAOS
Keep All Objects Satisfied
MFI
Metamodel framework for interoperability
[ISO/IEC 19763-1: 2007, 4.2]
ODMS
On Demand Model Selection
QoS
Quality of Service
RGPS
Role, Goal, Process, and Service
UML
Unified Modeling Language
[ISO/IEC 19505-1:2012] and [ISO/IEC 19505-2:2012]
WADL
Web Application Description Language
WSDL
Web Service Description Language
4 Preliminaries of ODMS
In order to show how to realize On Demand Model Selection (ODMS), some preliminaries need to be
introduced first. The associations in RGPS classes and their semantic annotations form the basis for ODMS.
The RGPS associations specify how the different models are related, and the ontology concepts used in the
semantic annotations form the basis for matching user-requests with registered models.
4.1 Associations in RGPS
Since the scope of ISO/IEC TR 19763-9 is limited to model selection based on ISO/IEC 19763-5,
ISO/IEC 19763-7, and ISO/IEC 19763-8, the three parts will be introduced first.
ISO/IEC 19763-5 specifies a metamodel to enable organizations to create a registry storing the administrative
and descriptive information of process models. The process model registration metamodel is intended to
promote semantic discovery and reuse of process models within/across organizations.
ISO/IEC 19763-7 specifies a metamodel to enable organizations to create a registry storing the administrative
and descriptive information of service models. The service model registration metamodel is intended to
promote semantic discovery and reuse of services within/across organizations.
ISO/IEC 19763-8 specifies a metamodel to enable organizations to create a registry storing the administrative
and descriptive information of role and goal models. The role and goal model registration metamodel is
intended to promote semantic discovery and reuse of role and goal models within/across organizations.
For the purposes of this technical report, RGPS is viewed as a generic term referring to the method of
applying associations between RGPS models to support ODMS.
As shown in Figure 1, there are associations between the metamodels defined in parts 5, 7 and 8 of
ISO/IEC 19763.

© ISO/IEC 2015 – All rights reserved
3

---------------------- Page: 9 ----------------------
Figure 1 – Associations in RGPS
The associations in ISO/IEC 19763-8 are:

Each role sets zero, one or more goals.
Each goal is set by zero, one or more roles.

Each role is involved in processes through zero, one or more process involvements.
Each process involvement represents the involvement in processes of one and only one role.

Each role is involved in services through zero, one or more service involvements.
Each service involvement represents the involvement in services of one and only one role.

Each involvement type is used to describe zero, one or more process involvements.
Each process involvement is described by one and only one involvement type.

Each involvement type is used to describe zero, one or more service involvements.
Each service involvement is described by one and only one involvement type.

The associations in ISO/IEC 19763-7 are:

Each service contains zero, one or more service operations.
Each service operation is contained by one and only one service.

The associations that associate ISO/IEC 19763-5 with ISO/IEC 19763-8 are:
4
© ISO/IEC 2015 – All rights reserved

ISO/IEC TR 19763-9:2015(E)

---------------------- Page: 10 ----------------------
ISO/IEC TR 19763-9:2015(E)

Each process is used to achieve zero, one or more goals.
Each goal is achieved by zero, one or more processes.

Each process is represented in zero, one or more process involvements.
Each process involvement is involved in one and only one process.

The associations that associate ISO/IEC 19763-7 with ISO/IEC 19763-8 are:

Each service is used to achieve zero, one or more goals.
Each goal is achieved by zero, one or more services.

Each service operation is used to achieve zero, one or more goals.
Each goal is achieved by zero, one or more service operations.

Each service is represented in zero, one or more service involvements.
Each service involvement is involved in one and only one service.

The associations that associate ISO/IEC 19763-7 with ISO/IEC 19763-5 are:

Each service operation is used to fully realize zero, one or more processes.
Each process is fully realized by zero, one or more service operations.

NOTE 1 The instance of involvement type can be performer, beneficiary, customer, and so on.
NOTE 2 In the case that a process is fully realized by a set of service operations, the process should be decomposed into
a certain level such that each sub-process of the process can be fully realized by a service operation.
To facilitate ODMS within an organization’s set of registries based on the metamodels defined in the various
parts of ISO/IEC 19763, the associations in RGPS should be recorded. However, it is not necessary to
maintain a separate registry to record these associations. In order to record these associations, the following
strategies might be adopted. The associations between processes with their roles and goals will be registered
in a registry based on the metamodel defined in ISO/IEC 19763-5; the associations between services with
their roles, goals, and processes will be registered in a registry based on the metamodel defined in
ISO/IEC 19763-7. Note that Figure 1 only shows the associations among roles, goals, processes and services,
not all associations in the metamodels defined in parts 5, 7 and 8 of ISO/IEC 19763.
4.2 Semantic annotation
An essential issue in ODMS is how to match user-requests with registration information of the registered
RGPS models. The use of semantic annotations of registered models based on domain specific ontologies
can be used to bridge the gap between the registered RGPS models, as well as the gap between user-
requests and the registration information.
In order to semantically annotate the registered RGPS models, two kinds of domain sub-ontologies, entity
ontology and operation ontology, are considered (Figure 2). The entity ontology mainly describes the entity
concepts and semantic relationships among them, and the operation ontology mainly describes the
operational or functional concepts as well as semantic relationships among them. The domain ontology can
be used to annotate the goal class with attributes in a registry based on the
metamodel defined in ISO/IEC 19763-8. When registering a process in a registry based on the metamodel
defined in ISO/IEC 19763-5, the goals achieved by the process can be defined by setting the reference
achieved_goal, whose values are from goals registered in the registry based on the metamodel defined in
ISO/IEC 19763-8, i.e., the same ontology is used to annotate the goals achieved by the process.
For example, given a transportation domain goal “Book ticket” with attributes ,
where the goal operation is annotated by the concept “Book” in the operation ontology of transportation
domain, while the goal object would be annotated by the concept “Ticket” in the entity ontology of
transportation domain. A user searching for a process that can achieve a goal “Reserve ticket” might find the
concept in the transportation domain ontology with a synonym “Book ticket”. Using the same ontology to
annotate the RGPS models enables the ontology to provide support for semantic matching based on concept
synonyms. Then the processes that are associated with the concept, regardless of whether the process is
named “Book ticket” or “Reserve ticket”, will be searched.
5
© ISO/IEC 2015 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/IEC TR 19763-9:2015(E)

Provision is made in ISO/IEC 19763 for all models and model elements to be annotated with concepts within
ontologies registered in a registry based on the metamodel defined in ISO/IEC 19763-3. Hence, in parts 5, 7
and 8 of ISO/IEC 19763, the metaclasses of role, goal, role and goal model, process, process model, event,
resource, service model, service, service operation, input and output can be annotated by concepts from
domain ontologies, and these annotations can be used to support model discovery across registries based on
the metamodels defined in the various parts of ISO/IEC 19763.

Figure 2 – Semantic annotation in RGPS
A registry based on the metamodels defined in the various parts of ISO/IEC 19763 does not hold all of the
semantics of the registered models, but it is possible to retrieve all the semantics using the identifiers of the
models registered in the registry. Figure 1 describes the associatio
...
