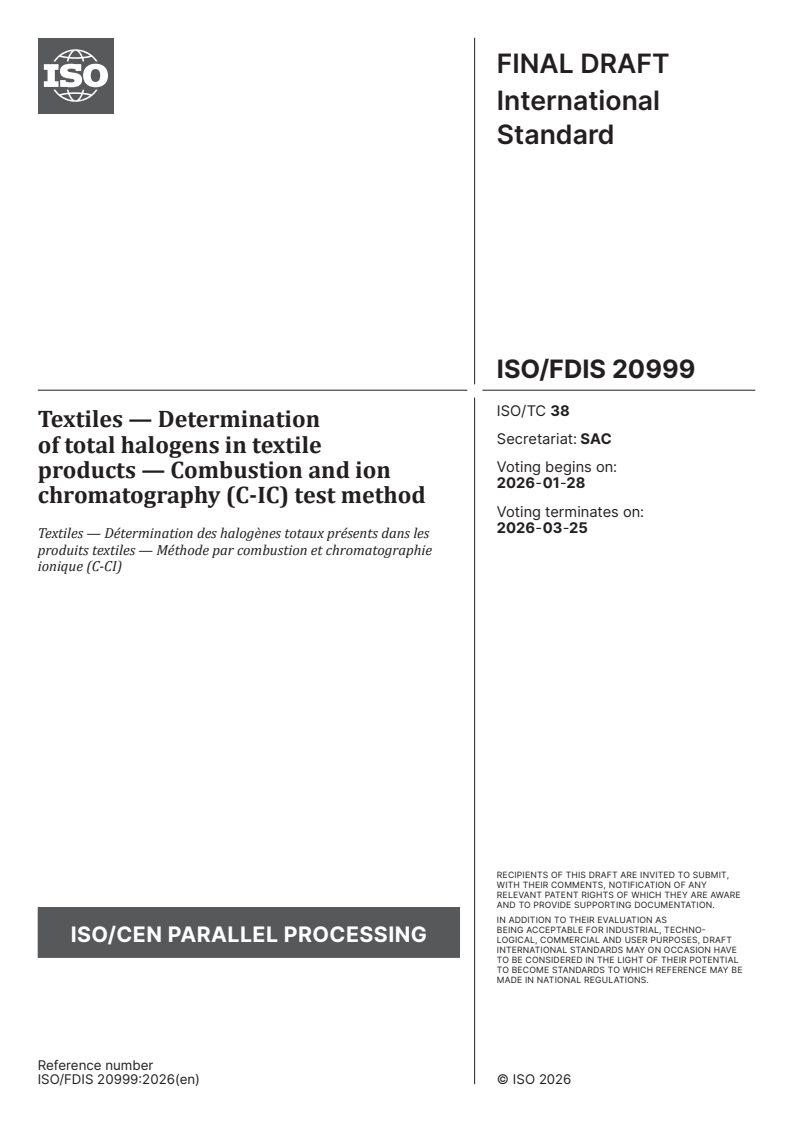

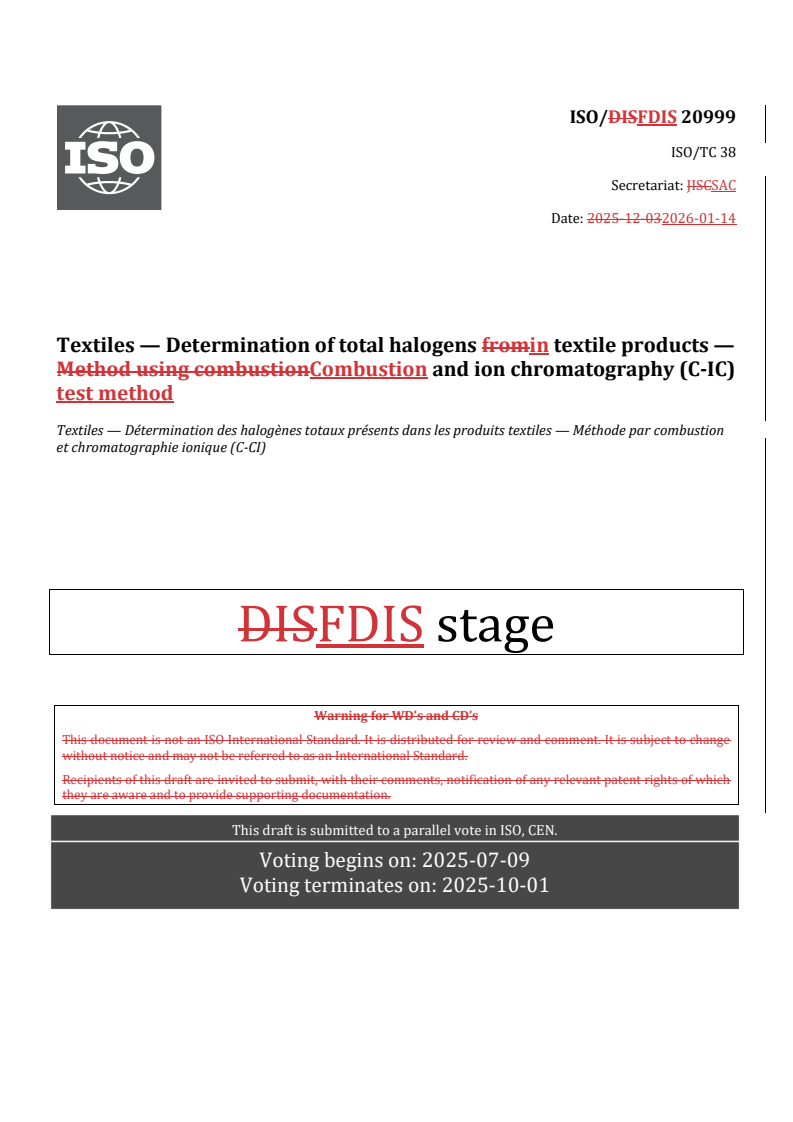

ISO/FDIS 20999

ISO/DISFDIS 20999
ISO/TC 38
Secretariat: JISCSAC
Date: 2025-12-032026-01-14
Textiles — Determination of total halogens fromin textile products —
Method using combustionCombustion and ion chromatography (C-IC)
test method

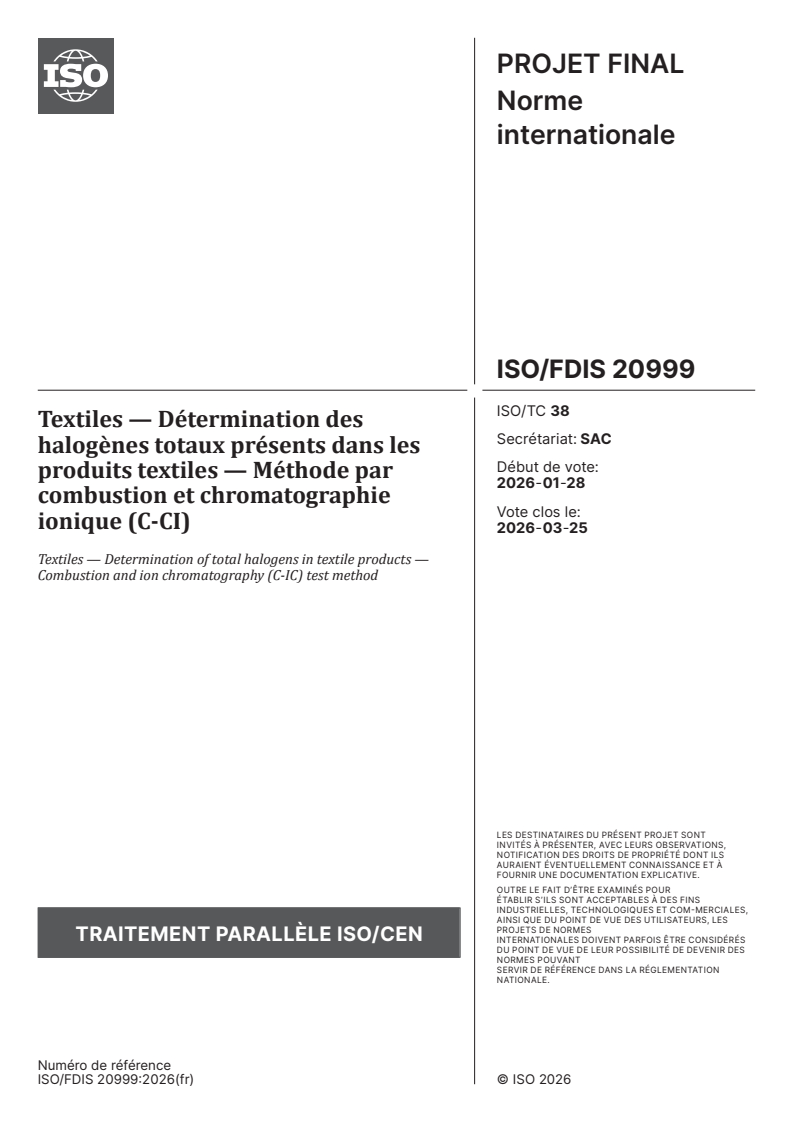

Textiles — Détermination des halogènes totaux présents dans les produits textiles — Méthode par combustion
et chromatographie ionique (C-CI)
DISFDIS stage
Warning for WD’s and CD’s
This document is not an ISO International Standard. It is distributed for review and comment. It is subject to change
without notice and may not be referred to as an International Standard.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which
they are aware and to provide supporting documentation.
ThiThis drs drafaft is t is submitted tsubmitted too a a p parallel arallel vovote in ISOte in ISO, CE, CEN.N.
Voting bVoting begins on:egins on: 2025 2025--0707--009    9
Voting tVoting tererminates on: 20minates on: 202525--1010--0101

ISO/DISFDIS 20999:20252026(en)

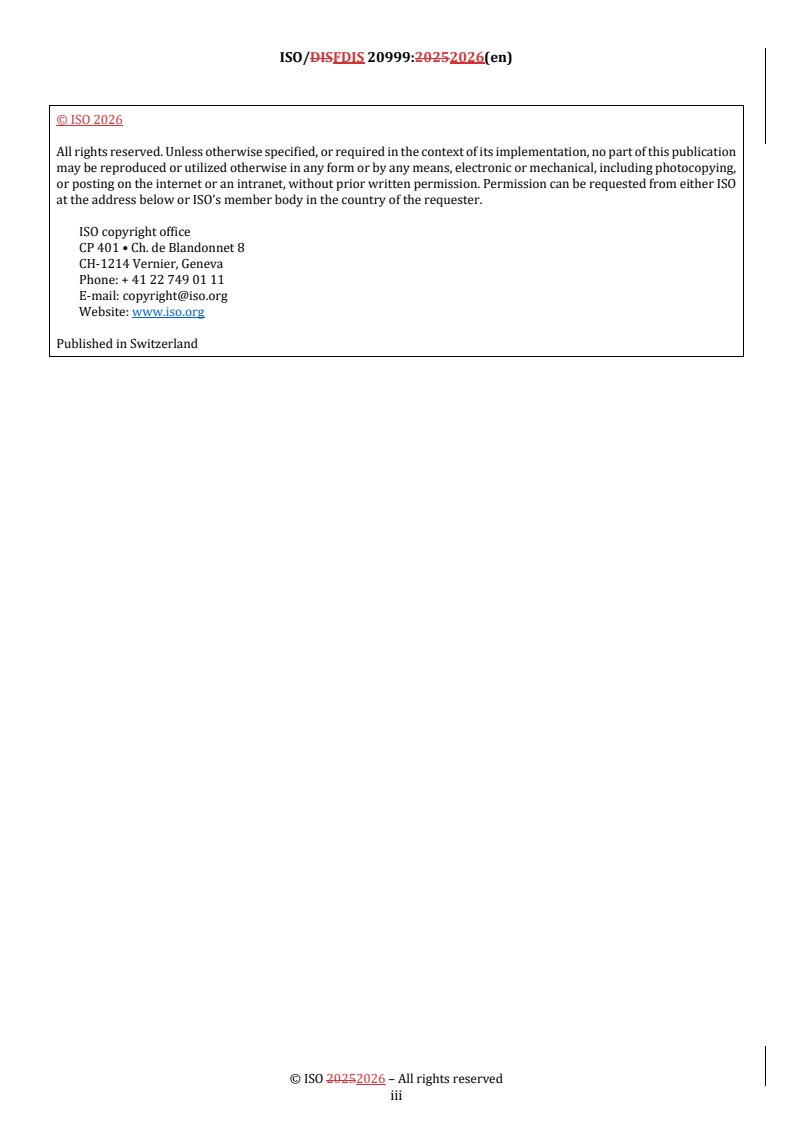

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
E-mail: copyright@iso.org
Website: www.iso.org
Published in Switzerland
iii
ISO/DISFDIS 20999:20252026(en)

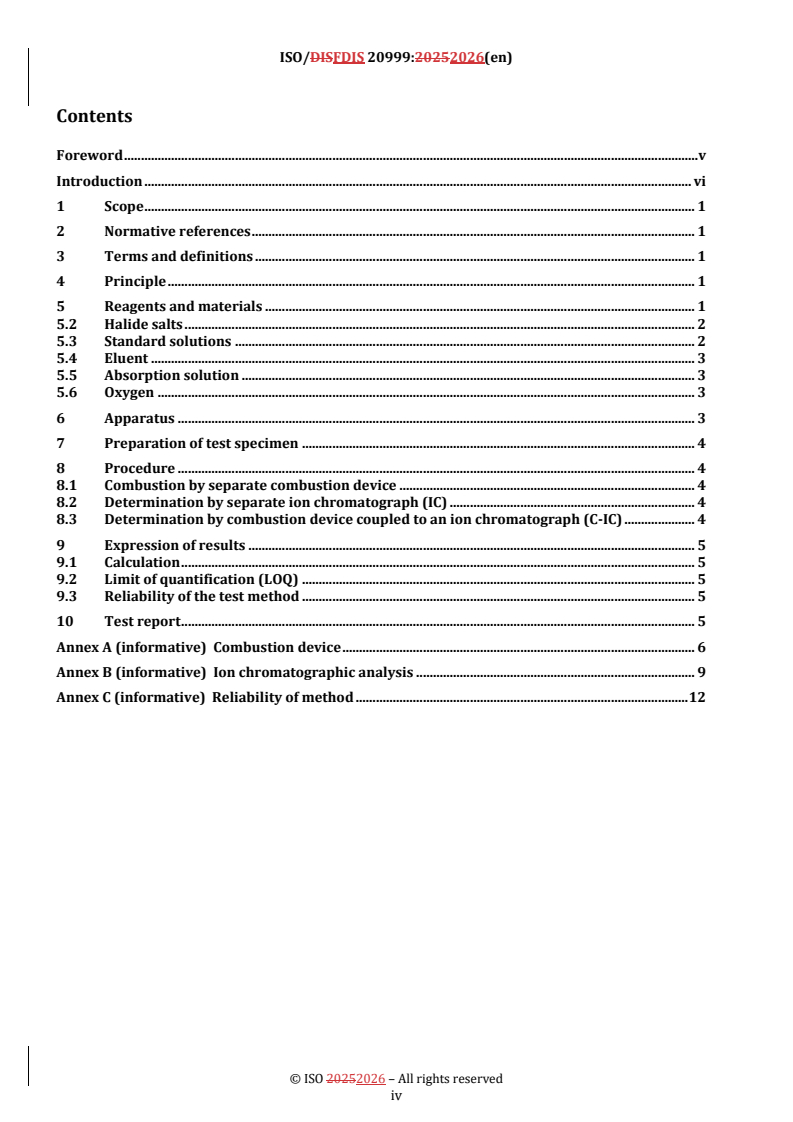

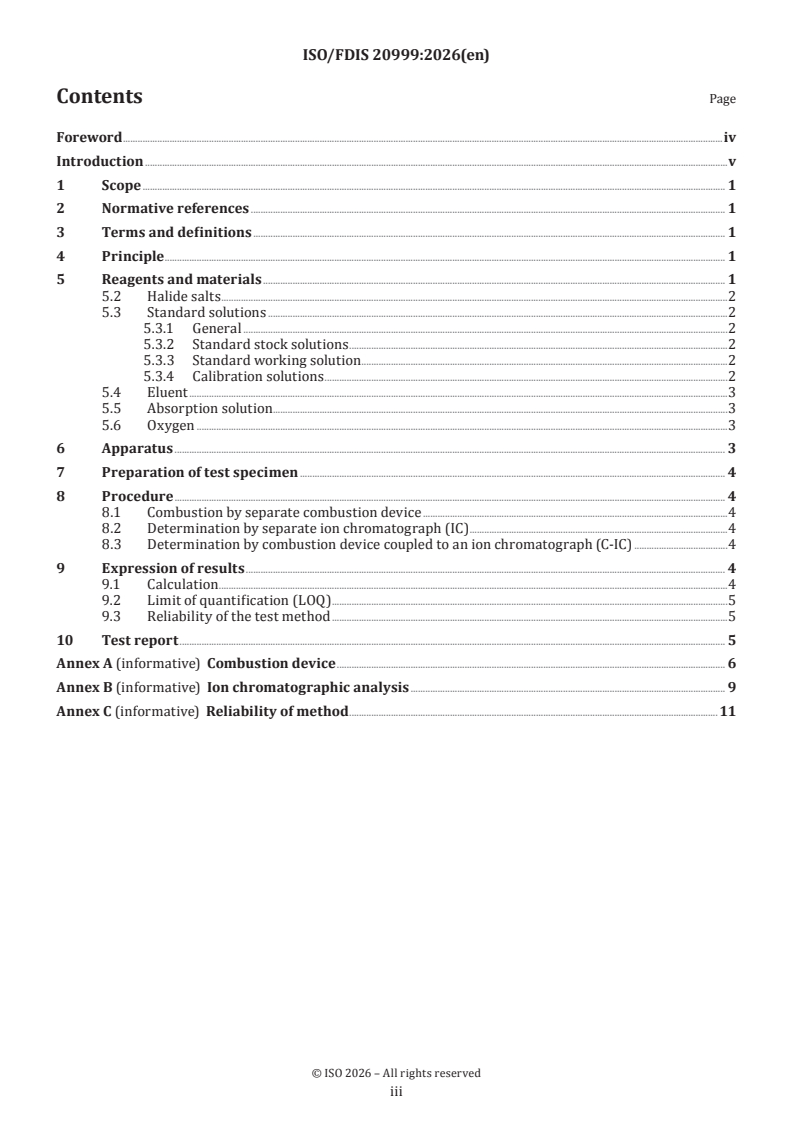

Contents
Foreword . v
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents and materials . 1
5.2 Halide salts . 2
5.3 Standard solutions . 2
5.4 Eluent . 3
5.5 Absorption solution . 3
5.6 Oxygen . 3
6 Apparatus . 3
7 Preparation of test specimen . 4
8 Procedure . 4
8.1 Combustion by separate combustion device . 4
8.2 Determination by separate ion chromatograph (IC) . 4
8.3 Determination by combustion device coupled to an ion chromatograph (C-IC) . 4
9 Expression of results . 5
9.1 Calculation . 5
9.2 Limit of quantification (LOQ) . 5
9.3 Reliability of the test method . 5
10 Test report . 5
Annex A (informative) Combustion device . 6
Annex B (informative) Ion chromatographic analysis . 9
Annex C (informative) Reliability of method . 12

iv
ISO/DISFDIS 20999:20252026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO [had/had not] received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that this
may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents.ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee TC 38, Textiles, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 248, Textiles and textile products, in
accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
v
ISO/DISFDIS 20999:20252026(en)
Introduction
The determination of the total content of various halogens can be used as a screening method for harmful
substances whose constituents include one or more of these halogens. For example, the fluorine content of a
textile can indicate that it contains legally restricted perfluorinated and polyfluorinated alkyl substances
(PFAS) or organic fluorine. High chlorine and bromine concentrations can indicate the presence of flame
retardants or biocides in the textile. It should be noted that the test method is not able to distinguish between
organically and inorganically bound halogens. It can also not distinguish between PFAS which are
characterised by at least one fully fluorinated methyl (-CF ) or methylene (-CF -) carbon atoms and fluorinated
3 2
alkyl substances which do comply with this specification.
vi
ISO/DISFDIS 20999:20252026(en)
Textiles — Determination of total halogens fromin textile products —
Method using combustionCombustion and ion chromatography (C-IC)
test method
1 Scope
This document specifies a test method for the determination of total amount of halogens (including fluorine,
chlorine, bromine and iodine) present in textile products by combustion and ion chromatography (C-IC).
This document is applicable to all materials of textile productswhichproducts which are combustible, e.g.
fibres, fabrics, plastic components (including coating), wood.
WARNING — If the textile products are made of halogenated fibres, the high amount of halogens can
contaminate the combustion and IC system.
2 Normative references
There are no normative references in this document.
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 3696, Water for analytical laboratory use — Specification and test methods
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
4 Principle
The test specimen is placed into a sample boat, and introduced into a combustion tube to be combusted at a
high temperature under a stream of oxygen and water vapour (pyrohydrolysis). The emerged hydrogen halide
gases are carried away with the gas stream, cooled and collected in an absorption solution. The concentrations
of the different halogens in the absorption solution are determined by ion chromatography (IC).
5 Reagents and materials
Unless otherwise specified, analytical grade chemicals shall be used.
5.1 Water, Grade 1 water as specified in ISO 3696.
ISO/DISFDIS 20999:20252026(en)
5.2 Halide salts
® ® ®1)
5.2.1 Sodium fluoride (NaF), CAS Registry Number (CAS RN ) 7681-49-4. ®
5.2.2 Sodium chloride (NaCl), CAS RN 7647-14-5. ®
5.2.3 Potassium bromide (KBr), CAS RN 7758-02-3. ®
5.2.4 Potassium iodide (KI), CAS RN 7681-11-0.
5.3 Standard solutions
5.3.1 General
The laboratory shall decide which halogens need to be determined. Based on this decision, the required
standard solutions shall be prepared.
Commercially available certified reference materials can be used.
5.3.2 Standard stock solutions
Prepare standard stock solutions of fluorine, chlorine, bromine or iodine with an appropriate concentration
(e.g. c=1 000 mg/l) by dissolving the halide salts (5.2(5.2)) in water (5.1(5.1).). An example for preparing the
standard stock solutions is given in 0Table 1.
It is recommended that the standard stock solution of fluorine should be stored in polypropylene or high-
density polyethylene container. The standard stock solutions of fluorine, chlorine, bromine or iodine should
be stored in a brown bottle at 0 °C to 4 °C for 6 months.
Table 1 — Example for preparing standard stock solutions of halogens
Standard stock Halide salts Mass Final volume Solvent
sol
...
