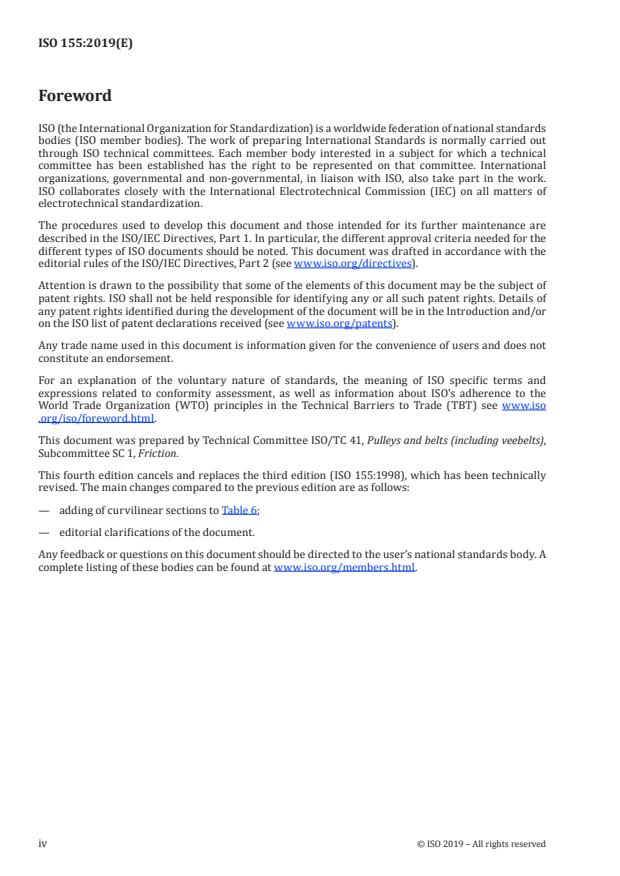

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 41, Pulleys and belts (including veebelts),
Subcommittee SC 1, Friction.
This fourth edition cancels and replaces the third edition (ISO 155:1998), which has been technically
revised. The main changes compared to the previous edition are as follows:
— adding of curvilinear sections to Table 6;
— editorial clarifications of the document.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 155:2019(E)
Belt drives — Pulleys — Limiting values for adjustment
of centres
1 Scope
This document specifies the limiting values for the adjustment of centres of two transmission pulleys.
It is applicable to:
— crowned pulleys for flat belts;
— grooved pulleys for V-belts, either single, multiple or joined;
— grooved pulleys for V-ribbed belts;
— toothed pulleys for synchronous belts.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Symbols
For the purpose of this document, the following symbols apply.
Symbol Definition Unit
d ± δ Limits of small flat pulley diameter mm
D ± δ Limits of large flat pulley diameter mm
e Groove pitch of a V-ribbed pulley mm
E Nominal centre distance mm
E - i Lower limit for the adjustment of centre distance mm
...
