ISO 6038:1993

INTERNATIONAL
ISO
STANDARD
Second edition
1993-04-15
Cinematography - Splices for use on
70 mm, 65 mm, 35 mm and 16 mm
motion-picture films - Dimensions and
locations
Cinema tographie - Ratcords sur films cinematographiques 70 mm,
65 mm, 35 mm et 16 mm - Dimensions et emplacemen ts
Reference number
ISO 60389 993(E)

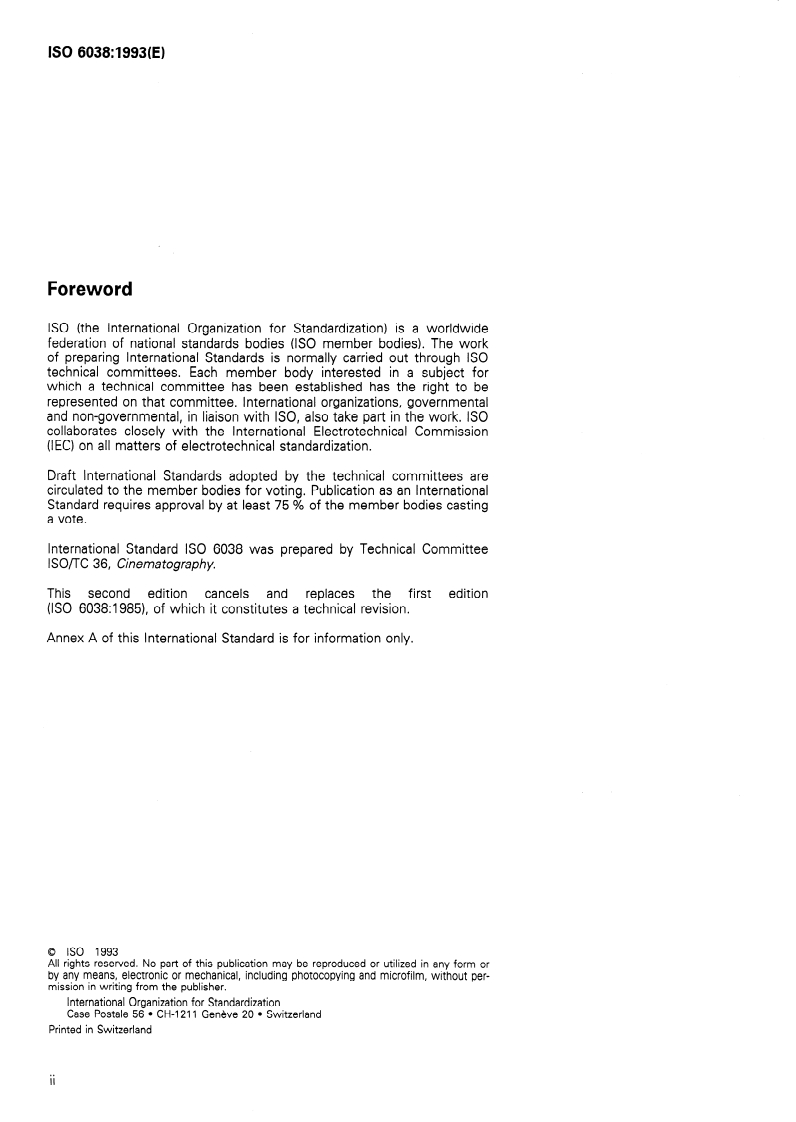

Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national Standards bodies (ISO member bodies). The work
of preparing International Standards is normally carried out through ISO
technical committees. Esch member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 6038 was prepared by Technical Committee
lSO/TC 36, Cinema tography.
This second edition cancels and replaces the first edition
(ISO 6038:1985), of which it constitutes a technical revision.
Annex A of this International Standard is for information only.
0 ISO 1993
All rights reserved. No part of this publication may be reproduced or utilized in any form or
by any means, electronie or mechanical, including photocopying and microfilm, without per-
mission in writing from the publisher.
International Organization for Standardization
Case Postale 56 * CH-l 211 Geneve 20 l Switzerland
Printed in Switzerland
ii
INTERNATIONAL STANDARD
Cinematography - Splices for use on 70 mm, 65 mm,
35 mm and 16 mm motion-picture films -
Dimensions and locations
2 Dimensions
1 Scope
1.1 This International Standard specifies the dimen-
2.1 The dimensions specified in tables 1 to 5 apply
sions and locations of transverse cemented or welded
films which contain nominal
to motion-picture
overlap splices and butt splices on 70 mm, 65 mm,
shrinkage up to 0,2 %, and recently made splices.
35 mm and 16 mm motion-picture films and prints
with magnetic or photographic Sound records.
2.2 The dimensions of cemented or welded overlap
splices for 16 mm motion-picture films shall be as
1.2 The following types are specified:
shown in figures 1, 2 and 5 and as given in tables 1
and 5.
- Laboratory type, overlap splice intended
a) Type 1
for negatives and intermediate films, perforated
short pitch;
2.3 The dimensions of butt splices shall be in ac-
cordante with the dimensions B and E as specified in
b) Type 2 - Projection type, overlap splice intended
tables 1 to 5.
for prints with non-anamorphic type picture;
2.4 The dimensions for 70 mm, 65 mm and 35 mm
c) Type 3 - Projection type, overlap splice intended
motion-picture films shall be as shown in figures 3 to
for prints with anamorphic type picture;
5 and as given in tables 2 to 5.
d) Type 4 - Projection type, overlap splice made
with transparent adhesive tape and intended for
2.5 The film width at the splice shall not exceed
prints;
- 70,05 mm (2,758 in) for 70 mm films;
Projection type specialized uses, butt - 65,05 mm (2,561 in) for 65 mm’ films;
e) Type 5 -
- 35,03 mm (1,379 in) for 35 mm films;
splice made with transparent tape and intended for
- 16,OO mm (0,630 in) for 16 mm films.
prints.
I - -7

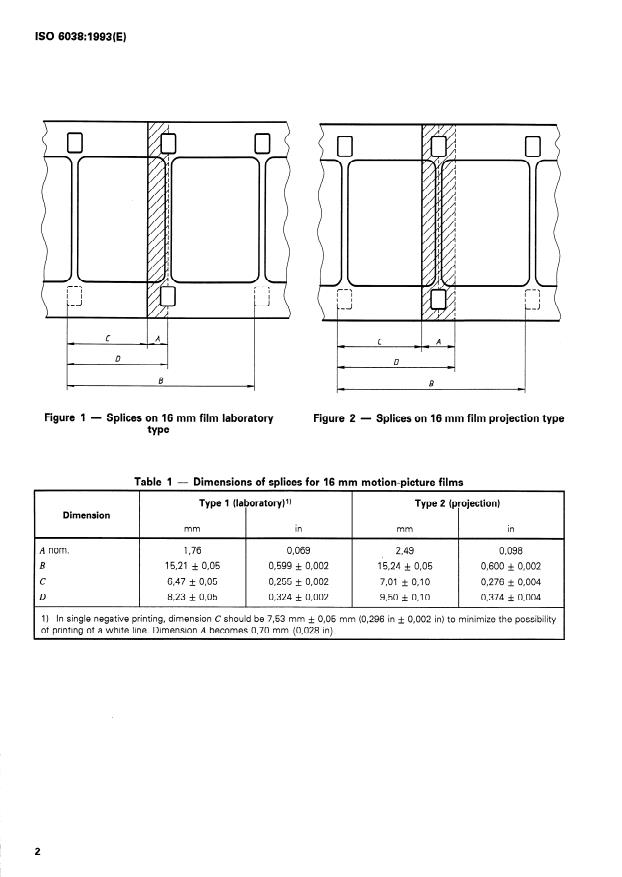

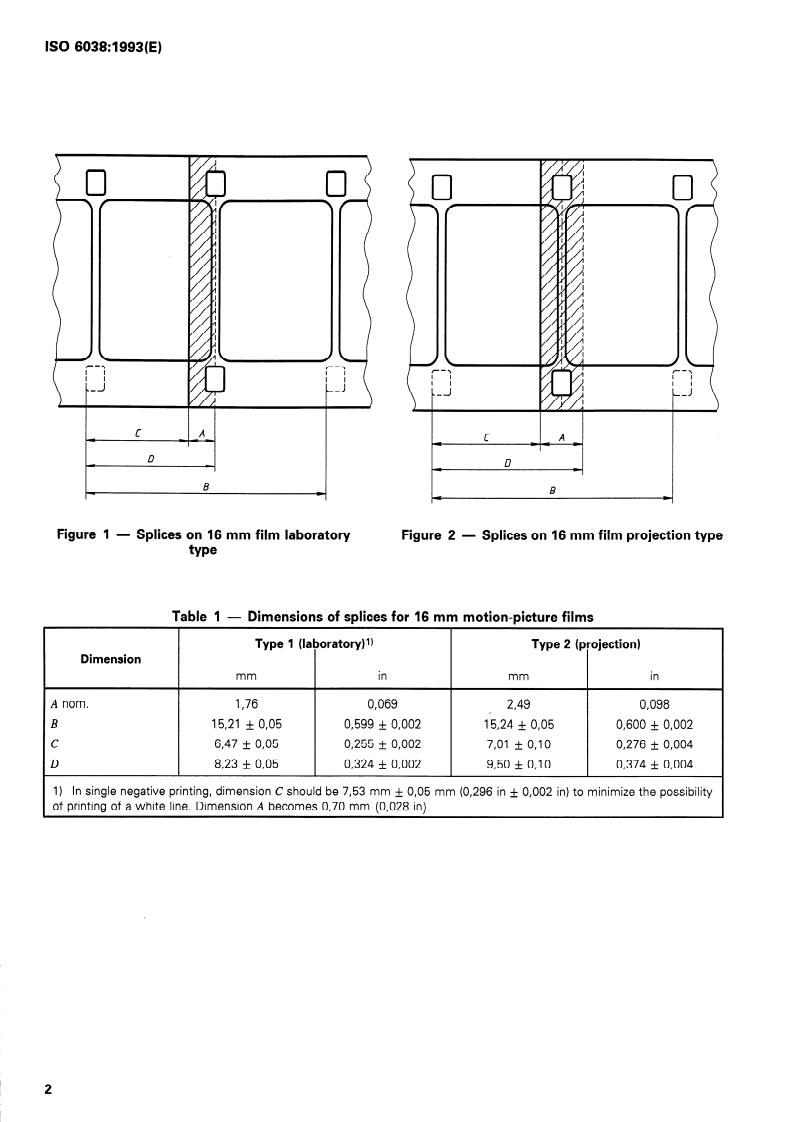

Figure 1 - Splices on 16 mm film laboratory Figure 2 - Splices on 16 mm film projection type
tYPe
Table 1 - Dimensions of splices for 16 mm motion-picture films
Type 2 (projection)
Type 1 (IaboratoryP
Dimension
in
mm in mm
2,49 0,098
A nom. 1,76 0,069
15,21 & 0,05 0,599 + 0,002 li,24 + 0,05 0,600 + - 0,002
B -
6,47 + 0,05 0,255 + 0,002 7,Ol + 0,lO 0,276 $r 0,004
C - -
8,23 rf- 0,05 0,324 k 0,002 9,50 + 0,lO 0,374 + - 0,004
D
1) In Single negative printing, dimension C should be 7,53 mm + 0,05 mm (0,296 in & 0,002 in) to minimize the possibility
of printing of a white line. Dimension A becomes 0,70 mm (0,028 in).

I - I
Figure 3 - Splices on 70 mm, 65 mm and 35 mm films
Table 2 - Dimensions of splices for 35 mm motion-picture film
Type 1 (laboratory)l) Type 2 (projection) Type 3 (projection)
(non-anamorphic) (anamorphic)*)
Dimension
mm in mm in mm in
A nom. 1,24 0,049 1,83 0,072 1,24
0,049
B 14,22 & 0,05 0,560 5 0,002 14,25 & 0,05 0,561 & 0,002 14,25 & 0,05
0,561 & 0,002
c 7,42 & 0,05 0,292 &- 0,002 7,21 + 0,lO 0,284 + 0,004 7,42 * 0,05 0,292 + 0,002
-
D 8,66 + 0,05 0,341 * 0,002 9,04 & 0,lO 0,356 + 0,004 8,66 * 0,05
0,341 * 0,002
1) Dimension A should not be greater than 1,02 mm (0,040 in) in the anamorphic negative in Order to minimize intrusion
of the splice in the projected image area.
2) It should be noted that Type 3 splices on anamorphic film will fall within the projected area and extra care should be
taken in making a clean splice.
Table 3
- Dimensions of splices for 70 mm and 65 mm motion-picture films
Type 1 (laboratory)
Type 2 (projection)
Dimension 65 mm
70 mm
mm in mm in
L
A nom. 1,70
0,067 1,70 0,067
B 14,22 f 0,05
0,560 & 0,002 14,25 & 0,05 0,561 * 0,002
c
7,27 & 0,05 0,286 f 0,002 7,27 & 0,05 0,286 & 0,002
D
8,97 i- 0,05 0,353 * 0,002 8,97 i- 0,05 0,353 * 0,002
Figure 4 - Full Perforation splices on 35 mm projection prints

---------
...
