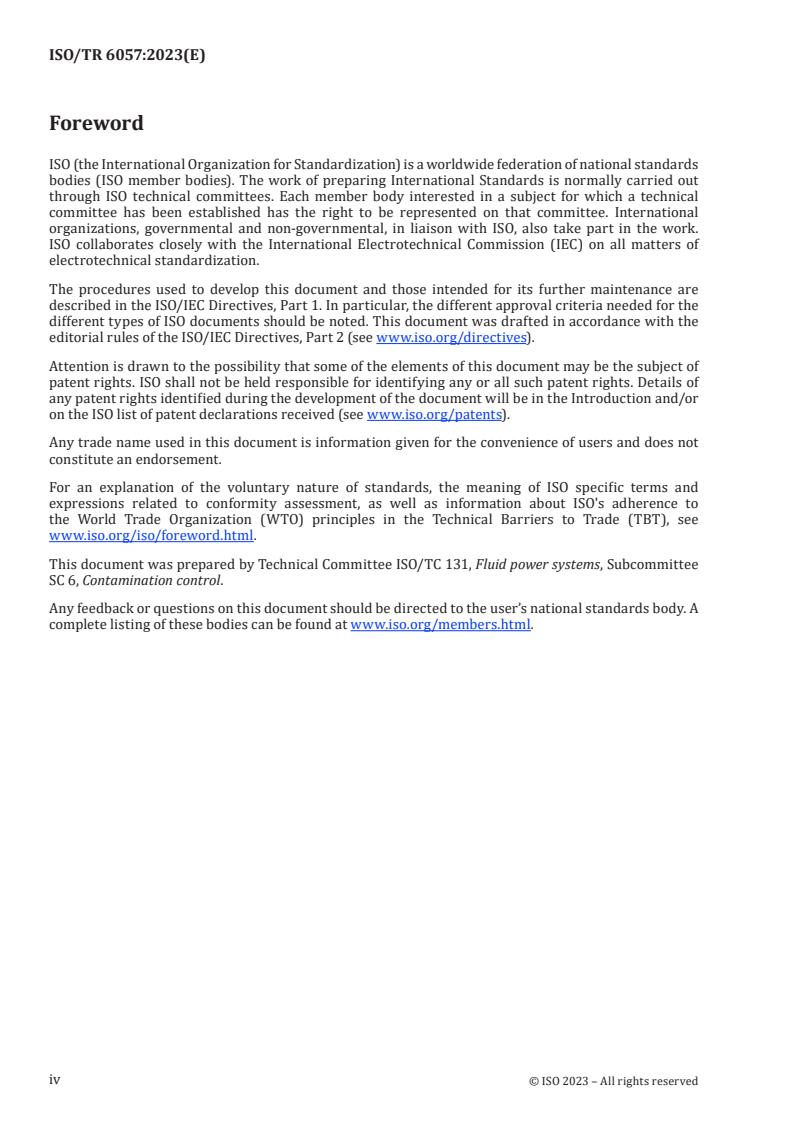

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 131, Fluid power systems, Subcommittee
SC 6, Contamination control.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
ISO 11171:2022, like its predecessors, retains traceability to the internationally accepted definition
of a metre and reports particle size in units of µm(c). The methods for determining data acceptance
criteria, coincidence error limit, working flow rate and resolution remain unchanged, but mathematical
calculations and tools were first introduced in ISO 11171:2020 to ensure consistency in terms of how
automatic particle counter (APC) calibration curves are created and used. For example, mathematical
techniques have been introduced to determine the APC threshold settings used to obtain calibration
data and a tool provided to generate calibration curves. Other mathematical equations to estimate
the standard error of the calibration, to calculate normalized concentrations for diluted samples, and
to calibrate at particle sizes larger than 30 µm(c) were first introduced in 2020. This document uses
example calculations that fully conform to ISO 11171.
v
TECHNICAL REPORT ISO/TR 6057:2023(E)
Hydraulic fluid power — Sample calculations for ISO 11171
1 Scope
This document shows how to use the normative mathematical formulae and tools of ISO 11171.
Examples are used to demonstrate their use for calibrating automatic particle counters (APCs).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 11171, Hydraulic fluid power — Calibration of automatic particle counters for liquids
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 11171 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Example 1: Selection of threshold voltage settings
The method of selecting threshold voltages for particle sizing calibration is specified in ISO 11171:2022,
6.3, which requires that:
— a minimum of 12 different threshold settings be used to construct a calibration curve;
— the first (lowest) threshold setting, J, be 1,5 times the threshold noise level of the APC;
— the highest threshold setting, H, corresponds to a particle size of approximately 30 μm(c) or smaller
for primary calibrations and corresponds to a size that does not exceed the largest reported particle
size that is in conformance with ISO 11171:2022, Annex F, for secondary calibrations;
— intermediate threshold settings be logarithmically spaced such that the value of each channel is K
times greater than its preceding channel, where K is a constant defined by Formula (1):
()loglHJ− og /()G−1
K =10 (1)
where G is the number of threshold settings used to construct the calibration curve and is greater
than or equal to 12.
This example considers an APC with eight threshold settings that can be adjusted in 1 mV increments.
The threshold noise level of the APC was determined to be 5 mV and its manufacturer indicated that
30 μm(c) is expected to correspond to a threshold voltage setting of about 2 600 mV.
The calibration curve will be determined using 12 threshold voltage settings, the minimum number
permitted by ISO 11171. Thus, the value of H is 2 600 mV and the value of G is 12. The value of J is
determined by Formula (2):
J =×15,,57= 5 (2)
Since this APC can only be adjusted in 1 mV increments, the value of J is rounded up to 8 mV for
calibration. Using the values of G, H and J, the value of K can be calculated by Formula (3):
(logHJ−−log)/(G 12)(log( 600)l−−og()81)/()21
K ==10 10 =1,692 (3)
The threshold settings for the 10 intermediate channels are set at values corresponding to 1,692 times
the value of each preceding channel as shown in Table 1.
Table 1 — Threshold voltage settings for APC in Example 1
a
Threshold setting number         Calculation   Threshold voltage setting
1 1,5 × 5 mV =   8 mV
2 1,692 × 8 mV =   14 mV
3 1,692 × 14 mV =   23 mV
4 1,692 × 23 mV =   39 mV
5 1,692 × 39 mV =   66 mV
6 1,692 × 66 mV =   111 mV
7 1,692 × 111 mV =   188 mV
8 1,692 × 188 mV =   317 mV
9 1,692 × 317 mV =   537 mV
10 1,692 × 537 mV =   908 mV
11 1,692 × 908 mV =   1 537 mV
12 1,692 × 1 537 mV =   2 600 mV
a
Threshold voltage settings rounded off to the nearest mV based upon the capabilities of the APC in the example.
This APC only has the minimum number of channels required in ISO 11171:2022, 6.4 (eight channels),
but ISO 11171:2022, 6.3, requires data from twelve or more threshold settings to construct a calibration
curve. ISO 11171:2022, 6.8, requires that data from at least two different samples be obtained for each of
the threshold voltage settings (refer to ISO 11171:2022, 6.8) and that the channels used for a particular
sample be distributed over the entire range to the extent possible. To meet these requirements in
this example, eight different threshold settings chosen from the list of twelve can be used for the first
sample and different combinations of eight threshold settings used for each of the other two samples.
An example of how to allocate threshold settings among the eight channels is shown in Table 2, where
the first column lists the twelve required threshold voltage settings and columns 2, 3 and 4 show the
channels used to collect data at these settings for the indicated sample. The last column in Table 2
shows the number of samples for which data are obtained for each threshold setting, confirming these
requirements have been met.
Table 2 — Allocation of threshold voltage settings among the eight channels
of the Example 1 APC
Channel number corresponding to indicated threshold Number of samples
Threshold
voltage setting and sample at indicated thresh-
voltage
a old voltage setting
setting mV
Sample A    Sample B    Sample C
8 1 1 2
14 1 2 2
23 2 3 2
39 3 2 2
66 3 4 2
111 4 5 2
188 5 4 2
317 5 6 2
537 6 7 2
908 7 6 2
1 537 7 8 2
2 600 8 8 2
a
Threshold voltage settings determined in Table 1.
5 Example 2: Evaluating data quality
ISO 11171:2022, 6.6, specifies how to verify the acceptability of particle count data for APC calibration
purposes. In brief, the process involves:
— calculation of the total number of particles, N, counted for a given APC channel and sample;
— calculation of the data quality factor, D ;
Q
— identification of potential outliers among the data if the D is unacceptable.
Q
This process is used throughout ISO 11171 to ensure the integrity of data used for APC calibration. This
example uses a calibration suspension sample analysed as described in ISO 11171:2022, 6.5 and 6.6,
using a sample volume, V, of 10 mL. Unless otherwise noted, the term “particle concentration” refers to
cumulative particle concentration throughout this document. Particle concentrations of 26 068
particles/mL, 25 757 particles/mL, 25 802 particles/mL, 31 771 particles/mL and 25 834 particles/mL
were obtained. The mean particle concentration, X , for these five counts is 27 046. The mean observed
number of particles counted for the five particle counts, X, is given by Formula (4):
XV ==X 27 046×= 10 270460 (4)
The total number of particles, N, counted for the sample is calculated using Formula (5):
NX==5 270 460×=51352300 (5)
This value is greater than 1 000, as required by ISO 11171:2022, 6.6, hence is sufficiently high for
calibration purposes.
Using ISO 11171:2022, Table C.2, and the value of X previously calculated, the maximum allowable D
Q
for the data can be determined. Referring to the first two columns of the table, a value of 270 460 for X
corresponds to the first row of the table, i.e. X greater than or equal to 10 000. The maximum allowable
D can be found in the third column, which is used for ISO 11171:2022, 6.6, 6.13, B.5, C.9, D.4, D.9, E.6
Q
and F.5. Thus, the maximum allowable D is 11,0 for this example. The value of D expressed as a
Q Q,
percentage, for the data in this example is calculated using Formula (6):
XX−
31 771−25757
maxmin
D = ×=100 ×=100 22,24 (6)
Q
X 27 046
where
X is the maximum number of counts observed among the five particle counts or 31 771;
max
X is the minimum number of counts observed among the five particle counts or 25 757.
min
Since the value of D is greater than the maximum allowable D , the data are unacceptable for
Q Q
calibration purposes and can be examined for possible outliers.
The outlier test parameter, D , for the data in this example is calculated using Formula (7):
XX−
31771 −25757
maxmin
D = = =10, 5 (7)
XX− 31771 −26068
0 N
where
X is the observed particle concentration of suspected data outlier (either X or X ), 31 771
0 max min
particles/mL;
X is the observed particle concentration closest in value to the suspected outlier, 26 068
N
particles/mL.
If the value of D is less than 1,44, as in this example, X can be discarded as a statistical outlier. In
0 0
Example 2, D was found to be 1,05, well below 1,44, hence the suspect data point, 31 771, can be
discarded as an outlier. The remaining four data points are used to recalculate X , giving a value of
25 865 particles/mL, which will be used in constructing the calibration curve.
In another example, data from a different channel setting is considered for the same calibration
suspension sample analysed in the previous example. For this channel setting, particle concentrations
of 810 particles/mL, 802 particles/mL, 800 particles/mL, 805 particles/mL and 803 particles/mL were
obtained.
The mean particle concentration, X , for these five counts is 804. The mean observed number of
particles counted for the five particle counts, X, is given by Formula (8):
XV ==X 804 ×=10 8040 (8)
The total number of particles, N, counted for the sample is calculated using Formula (9):
NX==58 040×=540200 (9)
This value is greater than 1 000, as required by ISO 11171:2022, 6.6, hence is sufficiently high for
calibration purposes.
Using ISO 11171:2022, Table C.2, and the value of X previously calculated, the maximum allowable D
Q
for the data can be determined. Referring to the first two columns of the table, a value of 8 040 for X
corresponds to the second row of the table, i.e. X greater than or equal to 5 000 but less than 10 000.
The maximum allowable D can be found in the third column, which is used for ISO 11171:2022, 6.6,
Q
6.13, B.5, C.9, D.4, D.9, E.6 and F.5. Thus, the maximum allowable D is 11,3 for this example. The value of
Q
D , expressed as a percentage, for the data in this example is calculated using Formula (10):
Q
XX−
810−800
maxmin
D = ×=100 ×=100 12, 0 (10)
Q
X 804
where
X is the maximum number of counts observed among the five particle counts or 810;
max
X is the minimum number of counts observed among the five particle counts or 800.
min
Since the value of D is less than the maximum allowable D , the data are acceptable for calibration
Q Q
purposes and can be used in constructing the calibration curve.
6 Example 3: Dilution of samples
To facilitate calibration at small particle sizes, ISO 11171:2022, Annex G, provides a standardized
procedure for diluting calibration suspensions and ISO 11171:2022, 6.7, specifies a method for
normalizing the resultant particle count data. To use this procedure, it is necessary to know the
coincidence error limit of the APC and the approximate size of the smallest particles that it can count.
In this example, the APC is capable of counting particles as small as 2 µm(c) and has a coincidence error
limit, X , of 12 713 particles/mL. The certified particle size distribution of the calibration samples is
A
shown in Table 3.
Table 3 — Certified particle size distribution of calibration sample for Example 3
Certified particle
Certified particle size
concentration
µm(c)
particles/mL
2 33 066
3 17 714
4 10 865
5 6 637,0
6 4 210,0
7 2 886,4
8 2 007,2
9 1 478,7
10 1 114,9
11 847,55
12 649,63
13 502,37
14 389,25
15 299,27
16 230,39
17 180,38
18 142,77
19 114,53
20 93,176
21 77,445
22 65,134
23 55,040
24 46,831
25 40,194
26 34,678
27 29,990
TTaabblle 3 e 3 ((ccoonnttiinnueuedd))
Certified particle
Certified particle size
concentration
µm(c)
particles/mL
28 26,006
29 22,665
30 19,697
The expected number concentration of particles in the diluted calibration suspension samples at the
smallest particle size, X , is calculated as shown in Formula (11):
D
X 12 713
A
X == =9 779 (11)
D
13,,13
The smallest size that the APC can count is 2 µm(c). Referring to Table 3, the certified particle
concentration at this size, X , is 33 066 particles/mL. The minimum dilution ratio, D , that is required
C RR
to achieve X can be estimated using Formula (12):
D
X 33 066
C
D == =33, 8 (12)
RR
X 9 779
D
ISO 11171:2022, Annex G, permits either volumetric or mass dilution. In this example, it can be
assumed that diluted calibration suspension samples were prepared by mixing 100,0 mL of calibration
suspension weighing 86,0 g with 300,0 mL of dilution fluid weighing 258,0 g. Both sample and fluid
have a density of 0,86 g/mL. If volumetric dilution is used, the actual dilution ratio, D , is given by
R
Formula (13):
vv+
300,,0+100 0
0 S
D = = =40, 0 (13)
R
v 100,0
S
where
v is the volume of dilution fluid = 300,0 mL;
v is the volume of sample fluid = 100,0 mL.
S
If mass dilution is used for the same sample, the actual dilution ratio, D , is given by Formula (14):
R
MM− M
344,,08− 60 86,0
t s s
+
+
ρρ
08, 6 08, 6
d s
D = = =40, 0 (14)
R
M 86,0
s
08, 6
ρ
s
where
M is the total mass of diluted sample = 344,0 g;
t
M is the mass of sample = 86,0 g;
s
ρ is the density of dilution fluid = 0,86 g/mL;
d
ρ is the density of sample = 0,86 g/mL.
s
Since D is 4,00, greater than D , the actual diluted samples will have particle concentrations below
R RR
the coincidence error limit of the APC and can be used for calibration.
Continuing the example, the diluted sample was analysed and a mean particle concentration, X , of
7 041,6 particles/mL obtained. This is below the coincidence error limit of 12 713 particles/mL hence
the data are not in coincidence error. Formula (15) can be used to calculate the particle concentration in
the undiluted sample, X :
N
XX= D =×7 041,,64 00 =28166 (15)
N R
where D is 4,00 as calculated in Formula (14). Thus, the value of X , 28 166, is used for this threshold
R N
setting when constructing the calibration curve for this APC.
7 Example 4: Relating particle size to threshold voltage setting for particles
30 µm(c) and smaller
Once acceptable particle count data are obtained, particle size data can be related to threshold voltage
1)
setting. ISO 11171:2022, 6.9, provides a link to an Excel spreadsheet tool that uses the constrained
cubic spline interpolation method for this purpose.
This example uses the same APC and calibration suspensions used in the previous examples. Table 2
lists the twelve threshold settings used and how they were allocated among the eight channels of the
APC for each of the three samples. Table 3 is the certified particle size distribution for the secondary
calibration suspensions. Table 4 shows the threshold settings and corresponding particle count data for
the three calibration suspension samples in the first four columns of the completed worksheet from
ISO 11171:2022, 6.9, for this example. The values for all twelve of the threshold settings are entered
consecutively in the first column in order of decreasing value (highest to lowest). No empty cells are
permitted in the first column between the maximum and minimum threshold settings. Mean normalized
particle concentrations, X , for the eight channel settings used for sample 1 are entered in the second
N
column adjacent to their corresponding threshold settings. Similarly, X for the eight channels of
N
sample 2 are entered in the third column and for sample 3 in the fourth column. Each row contains data
from at least two different calibration samples. If a threshold setting was not used for a particular
sample, the corresponding normalized particle concentration data cell in the spreadsheet is left empty.
The mean X for the samples for each threshold setting is automatically calculated and displayed in
N
yellow column 5. A value of #DIV/0! is displayed in column 5 for any threshold setting lacking particle
count data. A numerical value for the mean X is displayed for each threshold setting before proceeding.
N
All particle size and corresponding concentration data obtained from the certificate of analysis for
the calibration samples, given in Table 3 for this example, are entered in blue columns 6 and 7. The
corresponding interpolated threshold voltage setting for each size is automatically displayed in yellow
column 8. A value of 0 is displayed for any particle size whose concentration lies outside the range of
the particle concentrations shown in column 5, or if no particle concentration is entered. The particle
size values shown in blue column 6 and corresponding threshold settings in yellow column 8 relate
particle size to threshold setting, e.g. a particle size of 2 µm(c) corresponds to 10 mV in the example.
These values will later be used to construct the calibration curve.
1) Excel is the trademark of a product supplied by Microsoft. This information is given for the convenience of users
of this document and does not constitute an endorsement by ISO of the product named. Equivalent products may be
used if they can be shown to lead to the same results.
Table 4 — Output from the worksheet from ISO 11171:2022, 6.9, for Example 4
Enter all of the threshold settings determined in 6.3 in column A in order of decreasing value of The particle size and concentration data from the particle
size calibration summary portion of Table 4 are entered in
threshold setting. For each calibration suspension sample, enter the Values of X obtained for
N
columns F and G. The corresponding interpolated threshold
each threshold setting actually used for a sample in the appropriate cells of columns B, C or D. If a
voltage setting displayed in column H of this worksheet is
threshold setting was not used for a particular sample, leave the cell for that sample blank
entered in Table 4.
Interpolated
Threshold    X for first   X for second   X for third     Particle
N N N
Particle size
...
