ISO/IEC 29120-1:2015

INTERNATIONAL ISO/IEC
STANDARD 29120-1
First edition
2015-05-01
Information technology — Machine
readable test data for biometric
testing and reporting —
Part 1:
Test reports
Technologies de l’information — Données d’essai lisibles par machine
pour les rapports et les essais biométriques —
Partie 1: Rapports d’essai
Reference number
©
ISO/IEC 2015
© ISO/IEC 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2015 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Conformance . 1
3 Normative references . 1
4 Terms and definitions . 2
5 Symbols and abbreviated terms . 2
6 ASN.1 format . 2
6.1 Encoding rules . 2
6.2 ASN.1 object identifier for test report . 2
6.3 BiometricTestReport type . 2
6.4 Data types for technology tests . 3
6.4.1 Overview . 3
6.4.2 Product information . 3
6.4.3 Information about test report . 5
6.4.4 Test report under a specific condition . 7
6.5 Data types for scenario tests .12
6.5.1 Overview .12
6.5.2 Test report under a specific condition .12
6.6 Data types for signed test reports .13
Annex A (normative) ASN.1 module for machine readable biometric test reports .15
Annex B (informative) Common elements.22
Annex C (informative) Test reports .29
Bibliography .37
© ISO/IEC 2015 – All rights reserved iii

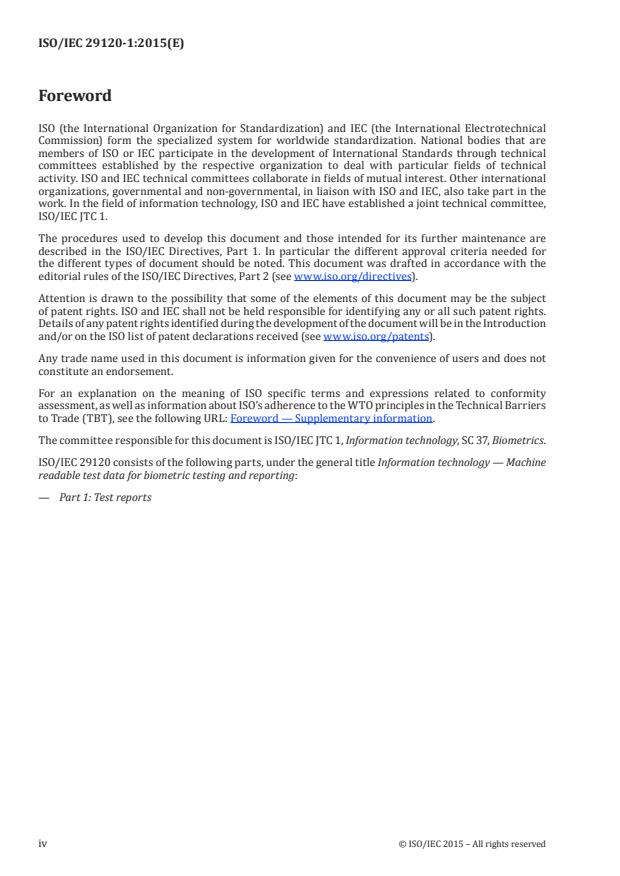

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Details of any patent rights identified during the development of the document will be in the Introduction
and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT), see the following URL: Foreword — Supplementary information.
The committee responsible for this document is ISO/IEC JTC 1, Information technology, SC 37, Biometrics.
ISO/IEC 29120 consists of the following parts, under the general title Information technology — Machine
readable test data for biometric testing and reporting:
— Part 1: Test reports
iv © ISO/IEC 2015 – All rights reserved

Introduction
This International Standard will enhance the usability of biometric test data by providing them in a
common and machine readable form. This International Standard is intended to provide
— documentary evidence that a product has been tested,
— a statement of authenticity of the test report,
— an ability to maintain of registry of products,
— a clear mechanism for maintaining product availability and certification status, and
— an ability for a relying system to depend on a biometric product used in a remote authentication context.
This International Standard is not intended to replace traditional biometric test reports. Indeed,
because such texts are essential to the complete documentation of a test, they are viewed as parents of
the machine readable content defined in ISO/IEC 29120 and are explicitly referenced in these reports.
Accordingly, the parts of this International Standard establish requirements for, and define formats for,
signed test reports and biometric datasets as follows.
This part of ISO/IEC 29120 establishes machine readable records for documenting the output of a
biometric test. This supports the documentary reporting requirements of some parts of ISO/IEC 19795.
This part of ISO/IEC 29120 is primarily intended to support scenario and technology tests. Additionally,
interoperability tests can be documented by a collection of ISO/IEC 29120-1 test reports (one for each
tested combination of components). The International Standard also includes mechanism to protect the
integrity of the test report. This assures a receiving system that the test information (date, laboratory,
accreditation body, manner of testing, conformance, test size, accuracy) can be relied upon and used
appropriately.
As the parts of ISO/IEC 19795 have been developed and testing standards have been published, there
is an increasing reliance on the correct conduct of tests and their documented outputs. Although the
ISO/IEC 19795 standards include extensive disclosure and reporting requirements, they do not establish
definitive data formats for those pieces of information. Other data concerning the commissioning,
accreditation, and conduct of the test can also be valuable to consumers of the test reports. In addition,
this International Standard will benefit users of biometric tests via improved
— conformance to testing standards,
— reliability (via automation of relevant activities), and
— comparability of test results.
© ISO/IEC 2015 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 29120-1:2015(E)
Information technology — Machine readable test data for
biometric testing and reporting —
Part 1:
Test reports
1 Scope
This part of ISO/IEC 29120 establishes
— machine readable records for documenting the output of a biometric test,
— formats for data that ISO/IEC 19795 tests are required to report, and
— an ASN.1 syntax for test reports.
This standard specifically does not
— require, prohibit, or otherwise specify, the format of biometric samples or templates used in a test,
— require, prohibit or otherwise specify, the encapsulation of biometric samples or templates used
in a test, or
— regulate metrics for tests.
NOTE ISO/IEC 19795-1 establishes the reportable metrics.
2 Conformance
A test report shall be conformant to this part of ISO/IEC 29120 if it meets all normative requirements of
this part of ISO/IEC 29120.
3 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 8601:2004, Data elements and interchange formats — Information interchange — Representation of
dates and times
ISO/IEC 8825-1:2008, Information technology — ASN.1 encoding rules: Specification of Basic Encoding
Rules (BER), Canonical Encoding Rules (CER) and Distinguished Encoding Rules (DER) — Part 1
ISO/IEC 8825-4:2008, Information technology — ASN.1 encoding rules: XML Encoding Rules (XER) — Part 4
ISO/IEC 9594-2, Information technology — Open Systems Interconnection — The Directory — Part 2: Models
ISO/IEC 19785-3:2007, Information technology — Common Biometric Exchange Formats Framework —
Part 3: Patron format specifications
ISO/IEC 19795-1, Information technology — Biometric performance testing and reporting — Part 1:
Principles and framework
© ISO/IEC ISO pub-date year – All rights reserved 1

RFC 3852, Cryptographic Message Syntax (CMS)
RFC 5911, New ASN.1 Modules for Cryptographic Message Syntax (CMS) and S/MIME
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19795-1 apply.
5 Symbols and abbreviated terms
For the purposes of this part of ISO/IEC 29120, the following abbreviations apply.
ASN Abstract Syntax Notation
BDB Biometric Data Block
CDF Cumulative Distribution Function
CMC Cumulative match characteristic
DET Detection error tradeoff
FAR False accept rate
FTA Failure to acquire rate
FTE Failure to enrol rate
FMR False match rate
FNIR False-negative identification error rate
FNMR False non-match rate
FPIR False-positive identification error rate
FRR False reject rate
ROC Receiver operating characteristic
IUT Implementation under test
6 ASN.1 format
6.1 Encoding rules
The test reports specified in this part of the International Standard shall be encoded using the XML Encoding
Rules (XER) [ISO/IEC 8825-4:2008] or the Basic Encoding Rules (BER) [ISO/IEC 8825-1:2008] of ASN.1.
6.2 ASN.1 object identifier for test report
MachineReadableBiometricTestingAndReportingTestReport {
iso(1) standard(0) MRTDBTR(29120) testReport(1) module(1) rev(0)
}
6.3 BiometricTestReport type
BiometricTestReport ::= SEQUENCE {
contentType CONTENT-TYPE.&id({ContentTypeBiometricTestReport }),
content [0] EXPLICIT CONTENT-TYPE.&Type
2 © ISO/IEC 2015 – All rights reserved

({ContentTypeBiometricTestReport}{@contentType})
}
Type BiometricTestReport is composed of two components, contentType and content.
The first component contentType is an object identifier, which indicates the type of content in the
second component content. The value of contentType takes one of the following three values; id-
estReportTechnology, id-testReportScenario, and id-signedTestReport. This
is done by the following definition of ContentTypeBiometricTestReport and those of
testReportTechnology, testReportScenario, and signedDataBTR.
ContentTypeBiometricTestReport CONTENT-TYPE ::= { testReportTechnology |
testReportScenario |
signedTestReport }
testReportTechnology CONTENT-TYPE ::= {
TestReportTechnology
IDENTIFIED BY id-testReportTechnology
}
testReportScenario CONTENT-TYPE ::= {
TestReportScenario
IDENTIFIED BY id-testReportScenario
}
signedTestReport CONTENT-TYPE ::= {
SignedTestReport
IDENTIFIED BY id-signedTestReport
}
Each of these content types corresponds to report of technology test, scenario test, and signed test report.
The object identifiers are defined as follows:
id-testReportTechnology OBJECT IDENTIFIER ::= {
iso(1) standard(0) MRTDBTR(29120) testReport(1) contentType(2)
testReportTechnology(1)
}
id-testReportScenario OBJECT IDENTIFIER ::= {
iso(1) standard(0) MRTDBTR(29120) testReport(1) contentType(2)
testReportScenario(2)
}
id-signedTestReport OBJECT IDENTIFIER ::= {
iso(1) standard(0) MRTDBTR(29120) testReport(1) contentType(2) signedTestReport(3)
}
6.4 Data types for technology tests
6.4.1 Overview
Type TestReportTechnology is a type to express results of technology test. The first field version
is the version of this test report format of type MRTDBTRVersion. The second field targetInfo
is of type ProductInformation and gives information of the evaluated product. The third field
testReportInfo gives the information about the test report of type TestReportInformation.
The fourth part is a sequence testReports of type TestReportTechnologyForOneCondition.
Each element of this sequence corresponds to a test result under a specific condition.
TestReportTechnology ::= SEQUENCE {
version  MRTDBTRVersion DEFAULT v0,
targetInfo  ProductInformation,
testReportInfo TestReportInformation,
testReports  SEQUENCE OF TestReportTechnologyForOneCondition
}
MRTDBTRVersion ::= INTEGER { v0(0) } ( v0, . )
6.4.2 Product information
Type ProductInformation has six fields and gives information about the tested product.
ProductInformation ::= SEQUENCE {
provider Provider,
© ISO/IEC 2015 – All rights reserved 3

nameProduct NameProduct,
description VisibleString OPTIONAL,
functionProduct SEQUENCE OF Function,
outputProduct DataType OPTIONAL,
modalityProduct Modality
}
6.4.2.1 Provider information
The first field provider is of type Provider and gives information about the provider of the tested
biometric product.
Provider ::= SEQUENCE {
nameProvider  Name,
typeProvider  TypeProvider,
roleProvider  RoleProvider,
contactInformation VisibleString OPTIONAL
}
The first field nameProvider identifies the name of the provider. The type Name for this field is
specified in ISO/IEC 9592-2:2005.
The second field typeProvider shows the type of the provider, and shall take a value chosen from the values
of type TypeProvider: non-profit, university, corporation, individual, government.
TypeProvider ::= ENUMERATED {
non-profit(1),
university(2),
corporation(3),
individual(4),
government(5)
}
The third field roleProvider shows the role of the provider, and shall take a value chosen from
the values of type RoleProvider: manufacturer, reseller, integrator, other.
manufacturer is for the role of the entity responsible for the design or creation of the component.
reseller is for the role of the entity which packages or resells the component. integrator is for the
role of the entity which may combine components into a single atomic component.
RoleProvider ::= ENUMERATED {
manufacturer(1),
reseller(2),
integrator(3),
other(4)
}
The fourth field contactInformation, which is optional, shows the contact informationof the
provider, such as the mail address of the provider, in VisibleString.
6.4.2.2 Other information in product information
The second field nameProduct in type ProductInformation is of NameProduct and gives basic
information about the product.
NameProduct ::= SEQUENCE {
modelName Name,
productCBEFF Product OPTIONAL,
version VersionProduct,
softwareVersion VersionProduct,
firmwareVersion VersionProduct
}
VersionProduct ::= INTEGER { v0(0) } ( v0, . )
The first field modelName in NameProduct is of type Name and identifies the product. The second
field productCBEFF is an optional field of type Product imported from 19785-3 CBEFF Part 3. If the
product is registered to a certain biometric organization, this field may be used to identify the product.
The third, fourth, and fifth field version, softwareVersion, and firmwareVersion are all of type
4 © ISO/IEC 2015 – All rights reserved

VersionProduct and indicate the version of the product, the version of the software of the product,
the version of the firmware of the product respectively.
The third field description in type ProductInformation gives a complete unique description of
the component under the test in VisibleString. This field should be used to describe prototypes,
experimental models, use of biometric modalities not listed in ISO/IEC 19785-3, or to give additional
information about the biometric modality (e.g. for iris recognition in the visible spectrum).
The fourth field functionProduct in type ProductInformation expresses the function of the
tested product with type Function.Type Function is specified as follows:
Function ::= ENUMERATED {
acquisition(1),
enrolment(2),
verification(3),
identification(4),
...
}
The fifth field outputProduct in type ProductInformation expresses the data type of the output
of the tested product with type DataType. Type DataType consists of two fields, processedLevel
and purpose. The former takes a value which corresponds to raw data, intermediate data, processed
data, comparison score, or comparison decision. The latter takes a value which corresponds to biometric
reference or biometric sample.
DataType ::= SEQUENCE {
processedLevel ProcessedLevel,
purpose  Purpose OPTIONAL
}
ProcessedLevel ::= ENUMERATED {
raw-data(1),
intermediate-data(2),
processed-data(3),
comparison-score(4),
comparison-result(5),
...
}
Purpose ::= ENUMERATED {
reference(1),
sample(2)
}
The sixth field modalityProduct in type ProductInformation indicate the modality of
biometric data which the tested product processes, with type Modality. Type modality consists
of a pair of fields type and subtype. type is mandatory if processedLevel in outputProduct
takes neither comparison-score nor comparison-result. The types BiometricType and
BiometricSubtype are defined in ISO/IEC 19785-3:2007, Clause 6.2.
Modality ::= SEQUENCE {
type BiometricType,
subtype BiometricSubtype OPTIONAL
}
6.4.3 Information about test report
Type TestReportInformation has four fields and gives information about the test report.
TestReportInformation ::= SEQUENCE {
testLabInformation  TestLabInformation,
compliantStandard  StandardDescription,
testReportIssuaranceDate  Date,
parentTestReport  ExternalDocument
}
The first field testLabInformation in type TestReportInformation identifies the test laboratory
conducting the test, with type TestLabInformation. Type TestLabInformation consists of two
fields: identificationTestLab of type IdentificationTestLab and accreditationStatus
of type AccreditationStatus.
© ISO/IEC 2015 – All rights reserved 5

TestLabInformation ::= SEQUENCE {
identificationTestLab IdentificationTestLab,
accreditationStatus AccreditationStatus
}
Type IdentificationTestLab has five fields of type VisibleString : nameLab to show the name
of the responsible laboratory, location to show location of the laboratory, optional testImplementor
to show the employee or representative who executed the test, testReportSignatory to show
the employee or representative assuring the integrity, correctness and completeness of the test, and
contactInformation to show the contact information for enquiries concerning the test report.
IdentificationTestLab ::= SEQUENCE {
nameLab  VisibleString,
location  VisibleString,
testImplementor  VisibleString OPTIONAL,
testReportSignatory VisibleString,
contactInformation VisibleString
}
AccreditationStatus ::= SEQUENCE {
accreditingBodies SEQUENCE OF AccreditingBody,
scopeAccreditation ScopeAccreditation OPTIONAL
}
AccreditingBody ::= SEQUENCE {
nameAccreditingBody VisibleString,
identifierCertificate OBJECT IDENTIFIER,
signatory  OCTET STRING
}
The second field compliantStandard in type TestReportInformation indicates which testing
standards were used for the test with type StandardDescription. Type StandardDescription
has four fields: standardName in VisibleString to show the name of the standard such as
Biometric Testing and Reporting – Principles and Framework, standardNumber in VisibleString
to show the number of the standard such as 19795, standardPart in VisibleString to show the
part number of the standard, and standardPublicationDate of type Date to show the publication
date of the standard.
Type Date is expressed in VisibleString with fixed length of 8 of form YYYYMMDD, which
comforms to ISO 8601.
StandardDescription ::= SEQUENCE {
standardName  VisibleString,
standardNumber  VisibleString,
standardPart  VisibleString,
standardPublicationDate Date
}
Date ::= VisibleString
-- conforms to ISO 8601
-- length = 8
-- fixed
-- YYYYMMDD
The third field testReportIssuaranceDate in type TestReportInformation encodes the date
on which the test report was signed by the test laboratory official with type Date.
The fourth field parentTestReport in type TestReportInformation gives the information
about the non-machine readable, traditional test report for complete human-readable documentation of
the test with type ExternalDocument. Type ExternalDocument consists of three mandatory fields
and five optional fields. The first field link of type URI expresses the URL where the document can
be referenced. The second field title of type VisibleString shows the title of the document. The
third and optional field authors of type SEQUENCE OF VisibleString shows the author or the
group of authors of the document. The fourth and optional field publisher of type VisibleString
shows the publisher of the document. The fifth and optional field editior of type VisibleString
shows the editor of the document. The sixth and optional field typeDocument of type TypeDocument
shows the type of the document: article, technical report, in proceedings, abstract, book, in book, or
collection. The seventh and optional field publicationDate of type Date shows the publication date
6 © ISO/IEC 2015 – All rights reserved

of the document. The eighth field availability of type Availability shows the availability of the
document: public, restricted, unavailable, or superseded.
ExternalDocument ::= SEQUENCE {
link  URI,
title  VisibleString,
authors SEQUENCE OF VisibleString OPTIONAL,
publisher VisibleString OPTIONAL,
editior VisibleString OPTIONAL,
typeDocument TypeDocument OPTIONAL,
publicationDate Date OPTIONAL,
availability Availability
}
TypeDocument ::= ENUMERATED {
article(1),
technical-report(2),
in-proceedings(3),
abstract(4),
book(5),
in-book(6),
collection(7)
}
Availability ::= ENUMERATED {
public(1),
restricted(2),
unavailable(3),
superseded(4)
}
6.4.4 Test report under a specific condition
6.4.4.1 Overview
Type TestReportTechnologyForOneCondition gives a set of information for a result of
technology test under a given condition. TestReportTechnologyForOneCondition consists of
four fields; corpusInfo of type CorpusInformation, dateStarted of type Date, dateEnded
of type Date, and testResult of type SEQUENCE OF TestResult. The second and third are
optional fields.
TestReportTechnologyForOneCondition ::= SEQUENCE {
corpusInfo  CorpusInformation,
dateStarted  Date OPTIONAL,
dateEnded  Date OPTIONAL,
testResult  SEQUENCE OF TestResult
}
6.4.4.2 Corpus information
Type CorpusInformation represents the information of the corpus which was used in the
evaluation with two fields; composition of type CorpusComposition and environInfo of type
EnvironmentalInformation.
CorpusInformation ::= SEQUENCE {
composition CorpusComposition,
environInfo EnvironmentalInformation
}
In type CorpusComposition, the corpus is identified with the first field identifier of type OBJECT
IDENTIFIER. The second field nameCorpus of type VisibleString gives the name of the corpus. The
third field corpusStatistics of type CorpusStatistics gives statistical information of the corpus.
CorpusComposition ::= SEQUENCE {
identifier  OBJECT IDENTIFIER,
nameCorpus  VisibleString,
corpusStatistics CorpusStatistics
}
© ISO/IEC 2015 – All rights reserved 7

Type CorpusStatistics consists of four fields. The first field corpusBasicStatistics of type
CorpusCrewBasicStatistics gives the statistical information common to corpus and crew. The
second field numSamples indicates the number of biometric samples in the test corpus. The mean
number of samples per person can be obtained by dividing this number by the number of individuals
numIndividuals in corpusBasicStatistics. The number of samples numSamples might be
used in computation of uncertainties. The third and fourth fields, samplesPerIndividualEnrol
and samplesPerIndividualProbe, are optional and indicate the number of enrolment samples per
individual and the number of probe samples per individual respectively. Both are expressed with type
SamplesPerIndividual.
CorpusStatistics ::= SEQUENCE {
corpusBasicStatistics CorpusCrewBasicStatistics,
numSamples  INTEGER,
samplesPerIndividualEnrol SamplesPerIndividual OPTIONAL,
samplesPerIndividualProbe SamplesPerIndividual OPTIONAL
}
Type SamplesPerIndividual is used to exhaustively tabulate a value for each member of the volunteer
corpus. This type consists of four fields. The first field numSubjects indicates the number of subjects
in the sample. The second and third fields, mean and median, are computed over all subjects. These two
support applications that might not need data on the entire distribution expressed in distrSubjSample.
The fourth field distrSubjSample is of type DistributionIntegerInteger, which is defined as
SEQUENCE OF ExpressionPointIntegerInteger. Type ExpressionPointIntegerInteger
consists of a pair of integers, subjectId and numberOfSamples. numberOfSamples expresses the
number of samples for the subjectId. For example, 20 samples are given for subject ID 1, 30 samples
for ID 2, 22 samples for ID 3, 16 samples for ID 4, 23 samples for ID 5, then distrSubjSample is ((1,
20), (2,30), (3,22), (4, 16), (5, 23)).
SamplesPerIndividual ::= SEQUENCE {
numSubjects INTEGER,
mean  INTEGER,
median  INTEGER,
distrSubjSample DistributionIntegerInteger
}
DistributionIntegerInteger ::= SEQUENCE OF ExpressionPointIntegerInteger
ExpressionPointIntegerInteger ::= SEQUENCE {
subjectId  INTEGER,
numberOfSamples INTEGER
}
Type CorpusCrewBasicStatistics is used to express corpusBasicStatistics in
CorpusStatistics and testCrewInfo in TestReportScenarioForOneCondition (see 6.4.1).
This type consists of nine fields. The former five fields, numIndividuals, numMales, numFemales,
numIndividualsEnrol, and numIndividualsVeriId, are of type INTEGER and indicate the
number of unique individuals in the test corpus/crew, that of male subjects, that of female subjects, that
in the enrolment set, and that in the verification or identification set respectively. numIndividuals
shall be equal to or greater than numIndividualsEnrol and numIndividualsVeriId. For
identification, numIndividualsVeriId shall be the size of the population searched. The second and
third fields are optional. The latter four fields ageDistrMale, ageDistrFemale, elapsDistr, and
visitsDayDistr, are all optional and of type InfoCumulativeDistribution, and express the
table of proportions of the males whose age in years is less or equal to X, the table of proportions of the
females whose age in years is less or equal to X, the table of proportions of the subjects for whom the
number of the days between the visits is less or equal to T, and the table of proportions of the samples
collected on the day less or equal to n-th day, respectively.
CorpusCrewBasicStatistics ::= SEQUENCE {
numIndividuals INTEGER,
numMales  INTEGER OPTIONAL,
numFemales  INTEGER OPTIONAL,
numIndividualsEnrol INTEGER,
numIndividualsVeriId INTEGER,
ageDistrMale  InfoCumulativeDistribution OPTIONAL,
ageDistrFemale  InfoCumulativeDistribution OPTIONAL,
elapsDistr  InfoCumulativeDistribution OPTIONAL,
8 © ISO/IEC 2015 – All rights reserved

visitsDayDistr  InfoCumulativeDistribution OPTIONAL
}
Type InfoCumulativeDistribution is used for t abulat ion and relevant informat ion of the cumulat ive
distribution function of a random variable. The first and second fields, mean and median, are computed
over all xValues in cumulativeDistribution. These two fields support applications that do not
need data on the entire cumulative distribution expressed in cumulativeDistribution. The third
field cumulativeDistribution expresses the tabulation of the cumulative distribution with type
DistributionIntegerReal, which is defined as SEQUENCE OF ExpressionPointIntegerReal.
Each element of DistributionIntegerReal is a pair of xValue of type INTEGER and yValue of
type REAL. An element of type ExpressionPointIntegerReal expresses that the proportion of the
values which are less or equal to xValue is yValue. The elements shall appear in inceasing order in
xValue. For example, the expression of the following table in DistributionIntegerReal is ((0, 0),
(1, 0), (2, 0.7), (3, 0.92), (4, 0.97),. (5,1)).
xValue yValue
0 0
1 0
2 0.7
3 0.92
4 0.97
5 1
InfoCumulativeDistribution ::= SEQUENCE {
mean  INTEGER,
median  INTEGER,
cumulativeDistribution DistributionIntegerReal
}
DistributionIntegerReal ::= SEQUENCE OF ExpressionPointIntegerReal
ExpressionPointIntegerReal ::= SEQUENCE {
xValue INTEGER,
yValue REAL
}
To describe environment of the corpus collection, type EnvironmentalInformation is specified.
The first field exceptionalCondition allows free text keywords indicating that the collection
environment was adverse. The second field celsiusTemp represents the temperature expressed
in Celsius in which the collection was done. The third field dBNoise represents the ambient noise
expressed in dB in which the collection was exec done. The fourth and optional field lightingInfo
allows free text in VisibleString to give the lighting information in which the collection was done.
EnvironmentalInformation ::= SEQUENCE {
exceptionalCondition VisibleString,
celsiusTemp  REAL OPTIONAL, -- temperature
dBNoise  REAL OPTIONAL, -- ambient noise
lightingInfo  VisibleString OPTIONAL
}
6.4.4.3 Test result under a specific condition
To express a test result for technology test, type TestResult is specified as follows. According to
what is tested, i.e. enrolment, acquisition, matching in verification, or matching in identification, the
component shall be chosen.
TestResult ::= CHOICE {
testResultEnrol TestResultEnrol, -- enrolment
testResultAcquire TestResultAcquire, -- acquisition
testResultVerify TestResultVerify, -- verification
testResultIdentify TestResultIdentify -- identification
}
© ISO/IEC 2015 – All rights reserved 9

6.4.4.3.1 Test result for enrolment
If the test is on enrolment, testResultEnrol of type TestResultEnrol shall be the component.
Type TestResultEnrol consists of two fields, failureToEnrolRate and durationEnrol. The
first field failureToEnrolRate expresses FTE, the fraction of enrolment samples not converted into
a template. The second and optional field durationEnrol of type StatisticInformationSet
gives statistical information on enrolment. This type gives a fundamental set of statistical information
common to enrolment, acquisition, verification, and identification. The first field unitTime indicates
the unit of time used in the third to the eighth field, millisecond or second. The second field is optional
and indicates the number of measurements. Fields from the third to the eighth are optional and express
the median, mean, minimum value, maximum value, standard deviation, and median absolute deviation
of the value sets respectively.
TestResultEnrol ::= SEQUENCE {
failureToEnrolRate REAL,
durationEnrol  StatisticInformationSet OPTIONAL
}
StatisticInformationSet ::= SEQUENCE {
unitTime  UnitTime,
numberOfMeasurements INTEGER OPTIONAL,
median   REAL OPTIONAL,
mean   REAL OPTIONAL,
minimum  REAL OPTIONAL,
maximum  REAL OPTIONAL,
stdDev   REAL OPTIONAL,
medAbsDev  REAL OPTIONAL
}
UnitTime ::= ENUMERATED {
millisecond(1),
second(2)
}
6.4.4.3.2 Test result for acquisition
If the test is on acquisition, testResultAcquire of type TestResultAcquire shall be the
component in type TestResult. The type consists of failureToAcquireRate and optional
durationAcquire of StatisticInformationSet type. The first field failureToAcquireRate
expresses FTA, the fraction of acquisition samples not converted into a template.
TestResultAcquire ::= SEQUENCE {
failureToAcquireRate REAL,
durationAcquire StatisticInformationSet OPTIONAL
}
6.4.4.3.3 Test result for verification
For the test on matching in verification, type TestResultVerify is specified. This type consists of
two fields; resultMatchVerify of type ResultMatchVerify and optional durationVerify of
type StatisticInformationSet. The first three fields of type ResultMatchVerify are all of
type InfoDETCurve and give information about three DET curves, InfoDETFNMRFMR for the DET
curve of FNMR and FMR, infoDETFRRFAR for the DET curve of FRR and FAR, and infoDETGFRRGFAR
for the DET curve of GFRR and GFAR. The fourth field of type ResultMatchVerify is the distribution
of comparison scores cmpScrDistr of type DistributionRealReal.
TestResultVerify ::= SEQUENCE {
resultMatchVerify ResultMatchVerify,
durationVerify StatisticInformationSet OPTIONAL
}
ResultMatchVerify::= SEQUENCE {
InfoDETFNMRFMR InfoDETCurve, -- pair of error types shall be fnmr-fmr
infoDETFRRFAR InfoDETCurve, -- pair of error types shall be frr-far
infoDETGFRRGFAR InfoDETCurve, -- pair of error types shall be gfrr-gfar
cmpScrDistr DistributionRealReal OPTIONAL
}
The first and second fields in type InfoDETCurve are the number of samples used in estimation of
Type I estimate and that of Type II estimate. The third field expressionDETCurve approximates a
10 © ISO/IEC 2015 – All rights reserved

DET curve with type InfoDETCurve. InfoDETCurve represents a curve with an arbitrary number of
points on the curve. Each point on the curve is expressed with ExpressionPointDETCurve, which is
a triple of the threshold threshold, the Type I error rate value typeIError, and the Type II error rate
value typeIIError.The sequence of points shall appear in increasing order in typeIError. If the
threshold is unknown, threshold shall take the value -1. If the threshold is unavailable, threshold
shall take the value 0.
InfoDETCurve ::= SEQUENCE {
numOfSamplesEstTypeIError INTEGER,
numOfSamplesEstTypeIIError INTEGER,
expressionDETCurve  ExpressionDETCurve
}
ExpressionDETCurve ::= SEQUENCE OF ExpressionPointDETCurve
ExpressionPointDETCurve ::= SEQUENCE {
threshold REAL OPTIONAL, -- -1 for unavailable, -2 for unknown
typeIError REAL,
typeIIError REAL
}
Distribution of comparison score is expressed with type DistributionRealReal which is a sequence
of ExpressionPointRealReal. Each element of DistributionRealReal is a pair of xValue of
type REAL and yValue of type REAL. An element of type ExpressionPointRealReal expresses
that the proportion of the values which are less or equal to xValue is yValue. The elements shall
appear in inceasing order in xValue.
DistributionRealReal ::= SEQUENCE OF ExpressionPointRealReal
ExpressionPointRealReal ::= SEQUENCE {
xValue REAL,
yValue REAL
}
6.4.4.3.4 Test result for identification
For the test on matching in identification, type TestResultIdentify is specified. This type
consists of two fields; the result of closed-set identification resultMatchClosedIdentify
of type ResultMatchClosedIdentify and the result of open-set identification
resultMatchOpenIdentify of type ResultMatchOpenIdentify where the latter is optional.
TestResultIdentify ::= SEQUENCE {
resultMatchClosedIdentify ResultMatchClosedIdentify,
resultMatchOpenIdentify ResultMatchOpenIdentify OPTIONAL
}
NOTE Closed set metrics are mandatory because, as rank based statistics, they always be computed.
Type ResultMatchClosedIdentify consists of three fields; cmcCurveClosed, srchExecDistr,
and durationClosedIdentify. cmcCurveClosed expresses the CMC curve of the test result with
type DistributionIntegerReal. srchExecDistr expresses the histogram of number of searches
executed in the closed-set identification. Type ExpressionHistogram represents a histogram
with a sequence of IntervalIntegerFrequency. The first and second fields, lowerLimit and
upperLimit, represent an interval, and the third field frequency represents the frequency on that
interval. The elements in ExpressionHistogram shall appear in inceasing order in lowerLimit.
The last optional field durationClosedIdentify expresses the statistics of closed-set identification
search duration with type StatisticInformationSet.
ResultMatchClosedIdentify ::= SEQUENCE {
cmcCurveClosed DistributionIntegerReal,
srchExecDistr  ExpressionHistogram,
durationClosedIdentify StatisticInformationSet OPTIONAL
}
ExpressionHistogram ::= SEQUENCE OF IntervalIntegerFrequency
IntervalIntegerFrequency ::= SEQUENCE {
lowerLimit INTEGER,
upperLimit INTEGER,
frequency INTEGER
}
Type ResultMatchOpenIdentify consists of five fields: the expression of the CMC curve
cmcCurveOpen, the number of searches with enroled mate srchExecDistrEnroled, the number of
© ISO/IEC 2015 – All rights reserved 11

searches with no enroled mate srchExecDistrNoEnroled, the information about the DET curve of
FNIR and FPIR infoDETCurveFNIRFPIR, and the statistics of open-set identification search duration
durationOpenIdentify where the fourth and fifth fields are optional. The types to express these
fields are as follows and already defined.
ResultMatchOpenIdentify ::= SEQUENCE {
cmcCurveOpen  DistributionIntegerReal,
srchExecDistrEnroled ExpressionHistogram,
srchExecDistrNoEnroled ExpressionHistogram,
infoDETCurveFNIRFPIR InfoDETCurve OPTIONAL,
-- pair of error types shall be fnir-fpir
durationOpenIdentify StatisticInformationSet OPTIONAL
}
6.5 Data types for scenario tests
6.5.1 Overview
Type TestReportScenario is the type to express results of scenario test. The first field version
is the version of this test report format of type MRTDBTRVersion.The second field targetInfos is a
sequence of type ProductInformation and gives information of set of the tested products. The third
field testReportInfo gives the information about the test report of type TestReportInformation.
The fourth field testReports is a sequence of type TestReportScenarioForOneCondition. Each
element of this sequence corresponds to a test result under a specific condition. Types testReportInfo
and TestReportInformation are already defined. For details, see 6.4.1 and 6.4.3.
TestReportScenario ::= SEQUENCE {
version  MRTDBTRVersion DEFAULT v0,
targetInfos  SEQUENCE OF ProductInformation,
testReportInfo TestReportInformation,
testReports  SEQUENCE OF TestReportScenarioForOneCondition
}
6.5.2 Test report under a specific condition
Type TestReportScenarioForOneCondition gives a set of information for a result of
scenario test under a given condition. TestReportScenarioForOneCondition consists of six
fields; testCrewInfo of type TestCrewInformation, levelPolicyAssistance of type
LevelPolicyAssistance, environInfo of type EnvironmentalInformation, dateStarted
of type Date, dateEnded of type Date, and testResult of a sequence of type TestResult. The
fields of type Date are optional.
TestReportScenarioForOneCondition ::= SEQUENCE {
testCrewInfo  TestCrewInformation,
levelPolicyAssistance LevelPolicyAssistance,
environInfo  EnvironmentalInformation,
dateStarted  Date OPTIONAL,
dateEnded  Date OPTIONAL,
testResult  SEQUENCE OF TestResult
}
Type TestCrewInformation gives information on the test crew. The test crew is identified with the
first field identifier of type OBJECT IDENTIFIER. The second field location in VisibleString
is the information on the location where the scenario test is done. The third field habituation is
expressed as a histogram of the past usage counts on the system with type ExpressionHistogram.
The fourth field testCrewStatistics gathers statistical information of the test crew whose items
are common to those for corpus. Type CorpusCrewBasicStatistics is defined in 6.4.4.2.
TestCrewInformation ::= SEQUENCE {
identifier  OBJECT IDEN
...
