ISO/IEC 30193:2013

(Main)

Information technology - Digitally recorded media for information interchange and storage - 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable disk

Information technology - Digitally recorded media for information interchange and storage - 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable disk

ISO/IEC 30193:2013 specifies the mechanical, physical and optical characteristics of a 120 mm rewritable optical disk with a capacity of 100,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written, read and overwritten many times using a reversible method. This disk is identified as a BD Rewritable disk. ISO/IEC 30193:2013 specifies one disk Type, the conditions for conformance, the environments in which the disk is to be operated and stored, the mechanical and physical characteristics of the disk, so as to provide mechanical interchange between data processing systems, the format of the information on the disk, including the physical disposition of the Tracks and Sectors, the error-correcting codes and the coding method used, the characteristics of the signals recorded on the disk, enabling data processing systems to read data from the disk. ISO/IEC 30193:2013 provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

Technologies de l'information — Supports enregistrés numériquement pour échange et stockage d'information — Disques BD réinscriptibles de 120 mm triple couche (100,0 Go par disque)

General Information

Status
Withdrawn
Publication Date
14-Jul-2013
Withdrawal Date
14-Jul-2013
ICS
35.220.30 - Optical storage devices
Technical Committee
ISO/IEC JTC 1/SC 23 - Digitally recorded media for information interchange and storage
Drafting Committee
ISO/IEC JTC 1/SC 23 - Digitally recorded media for information interchange and storage
Current Stage
9599 - Withdrawal of International Standard
Start Date
06-Jun-2016
Completion Date
30-Oct-2025
Ref Project

Relations

Revised
ISO/IEC 30193:2016 - Information technology - Digitally recorded media for information interchange and storage - 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable disk
Effective Date
05-Nov-2015
ISO/IEC 30193:2013 - Information technology -- Digitally recorded media for information interchange and storage -- 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable diskISO/IEC 30193:2013 - Information technology -- Digitally recorded media for information interchange and storage -- 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable disk
PreviousNext
Standard
ISO/IEC 30193:2013 - Information technology -- Digitally recorded media for information interchange and storage -- 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable disk
English language
252 pages
sale 15% off
Preview
sale 15% off
Preview

Frequently Asked Questions

ISO/IEC 30193:2013 is a standard published by the International Organization for Standardization (ISO). Its full title is "Information technology - Digitally recorded media for information interchange and storage - 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable disk". This standard covers: ISO/IEC 30193:2013 specifies the mechanical, physical and optical characteristics of a 120 mm rewritable optical disk with a capacity of 100,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written, read and overwritten many times using a reversible method. This disk is identified as a BD Rewritable disk. ISO/IEC 30193:2013 specifies one disk Type, the conditions for conformance, the environments in which the disk is to be operated and stored, the mechanical and physical characteristics of the disk, so as to provide mechanical interchange between data processing systems, the format of the information on the disk, including the physical disposition of the Tracks and Sectors, the error-correcting codes and the coding method used, the characteristics of the signals recorded on the disk, enabling data processing systems to read data from the disk. ISO/IEC 30193:2013 provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

ISO/IEC 30193:2013 specifies the mechanical, physical and optical characteristics of a 120 mm rewritable optical disk with a capacity of 100,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written, read and overwritten many times using a reversible method. This disk is identified as a BD Rewritable disk. ISO/IEC 30193:2013 specifies one disk Type, the conditions for conformance, the environments in which the disk is to be operated and stored, the mechanical and physical characteristics of the disk, so as to provide mechanical interchange between data processing systems, the format of the information on the disk, including the physical disposition of the Tracks and Sectors, the error-correcting codes and the coding method used, the characteristics of the signals recorded on the disk, enabling data processing systems to read data from the disk. ISO/IEC 30193:2013 provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

ISO/IEC 30193:2013 is classified under the following ICS (International Classification for Standards) categories: 35.220.30 - Optical storage devices. The ICS classification helps identify the subject area and facilitates finding related standards.

ISO/IEC 30193:2013 has the following relationships with other standards: It is inter standard links to ISO/IEC 30193:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase ISO/IEC 30193:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.

Standards Content (Sample)


INTERNATIONAL ISO/IEC
STANDARD 30193
First edition
2013-07-01
Information technology — Digitally
recorded media for information
interchange and storage — 120 mm Triple
Layer (100,0 Gbytes per disk) BD
Rewritable disk
Technologies de l'information — Supports enregistrés numériquement
pour échange et stockage d'information — Disques BD réinscriptibles
de 120 mm triple couche (100,0 Go par disque)

Reference number
©
ISO/IEC 2013
©  ISO/IEC 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any
means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.
Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2013 – All rights reserved

Contents Page
Foreword . x
Introduction . x
1 Scope . 1
2 Conformance . 1
2.1 Optical Disk . 1
2.2 Generating system . 1
2.3 Receiving system . 2
2.4 Compatibility statement . 2
3 Normative References . 2
4 Terms and definitions . 2
5 Conventions and notations . 7
5.1 Terminology: . 7
5.1.1 Meaning of words . 7
5.1.2 Levels of grouping . 7
5.2 Representation of numbers . 7
5.3 Integer calculus . 8
5.4 Names . 8
6 List of acronyms . 9
7 General description of disk . 11
8 General requirements . 12
8.1 Environments . 12
8.1.1 Test environment . 12
8.1.2 Operating environment . 12
8.1.3 Storage environment . 13
8.1.4 Transportation . 14
8.2 Safety requirements . 14
8.3 Flammability . 14
9 Reference drive . 14
9.1 General . 14
9.2 Measurement conditions . 14
9.3 Optical system . 14
9.4 Optical beam . 15
9.5 HF read channel . 16
9.6 Radial PP read channel . 16
9.7 Disk Clamping . 16
9.8 Rotation of disk and Measurement Velocity . 17
9.9 Normalized servo transfer function . 17
9.10 Measurement Velocities and Reference servos for axial tracking . 18
9.10.1 General . 18
9.10.2 Reference servo for axial tracking . 18
9.11 Measurement Velocities and Reference servos for radial tracking . 19
9.11.1 General . 19
9.11.2 Reference servo for radial tracking . 19
10 Dimensional characteristics . 20
10.1 General . 20
10.2 Disk reference planes and reference axis. 21
10.3 Overall dimensions . 22

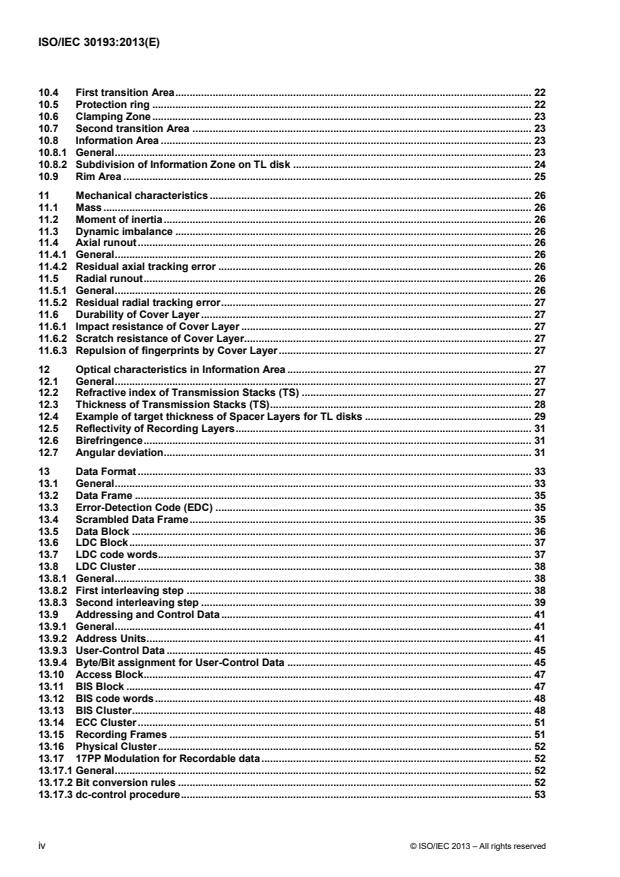

© ISO/IEC 2013 – All rights reserved iii

10.4 First transition Area . 22
10.5 Protection ring . 22
10.6 Clamping Zone . 23
10.7 Second transition Area . 23
10.8 Information Area . 23
10.8.1 General . 23
10.8.2 Subdivision of Information Zone on TL disk . 24
10.9 Rim Area . 25
11 Mechanical characteristics . 26
11.1 Mass . 26
11.2 Moment of inertia . 26
11.3 Dynamic imbalance . 26
11.4 Axial runout . 26
11.4.1 General . 26
11.4.2 Residual axial tracking error . 26
11.5 Radial runout . 26
11.5.1 General . 26
11.5.2 Residual radial tracking error . 27
11.6 Durability of Cover Layer . 27
11.6.1 Impact resistance of Cover Layer . 27
11.6.2 Scratch resistance of Cover Layer. 27
11.6.3 Repulsion of fingerprints by Cover Layer . 27
12 Optical characteristics in Information Area . 27
12.1 General . 27
12.2 Refractive index of Transmission Stacks (TS) . 27
12.3 Thickness of Transmission Stacks (TS) . 28
12.4 Example of target thickness of Spacer Layers for TL disks . 29
12.5 Reflectivity of Recording Layers . 31
12.6 Birefringence . 31
12.7 Angular deviation. 31
13 Data Format . 33
13.1 General . 33
13.2 Data Frame . 35
13.3 Error-Detection Code (EDC) . 35
13.4 Scrambled Data Frame . 35
13.5 Data Block . 36
13.6 LDC Block . 37
13.7 LDC code words. 37
13.8 LDC Cluster . 38
13.8.1 General . 38
13.8.2 First interleaving step . 38
13.8.3 Second interleaving step . 39
13.9 Addressing and Control Data . 41
13.9.1 General . 41
13.9.2 Address Units . 41
13.9.3 User-Control Data . 45
13.9.4 Byte/Bit assignment for User-Control Data . 45
13.10 Access Block . 47
13.11 BIS Block . 47
13.12 BIS code words . 48
13.13 BIS Cluster . 48
13.14 ECC Cluster . 51
13.15 Recording Frames . 51
13.16 Physical Cluster . 52
13.17 17PP Modulation for Recordable data . 52
13.17.1 General . 52
13.17.2 Bit conversion rules . 52
13.17.3 dc-control procedure . 53
iv © ISO/IEC 2013 – All rights reserved

13.17.4 Frame Sync . 53
13.18 Modulation and NRZI conversion . 55
14 Physical Data Allocating and Linking . 55
14.1 General . 55
14.2 Recording-Unit Block (RUB). 55
14.2.1 General . 55
14.2.2 Data Run-in . 56
14.2.3 Data Run-out . 57
14.2.4 Guard_3 field . 58
14.3 Locating data relative to wobble addresses . 58
14.3.1 General . 58
14.3.2 Start-Position Shift (SPS) . 58
15 Track format . 60
15.1 General . 60
15.2 Track shape . 60
15.3 Track path. 62
15.4 Track Pitch . 62
15.4.1 Track Pitch in BCA Zone . 62
15.4.2 Track Pitch in Embossed HFM Areas . 62
15.4.3 Track Pitch in Rewritable Areas . 62
15.4.4 Track Pitch between Embossed HFM Area and Rewritable Area . 63
15.5 Track layout of HFM Grooves . 63
15.5.1 General . 63
15.5.2 Data Format . 63
15.5.3 Addressing and Control Data . 64
15.5.4 Recording Frames . 67
15.6 Track layout of Wobbled Grooves . 69
15.6.1 General . 69
15.6.2 Modulation of wobbles . 69
15.6.3 Wobble polarity . 70
15.7 ADIP information . 71
15.7.1 General . 71
15.7.2 ADIP-Unit Types . 71
15.7.3 ADIP word structure . 72
15.7.4 ADIP data structure . 73
15.7.5 ADIP error correction . 76
15.8 Disk Information in ADIP Aux Frame . 78
15.8.1 General . 78
15.8.2 Error protection for Disk Information Aux Frames . 78
15.8.3 Disk-Information data structure . 79
16 General description of Information Zone . 122
16.1 General . 122
16.2 Format of Information Zone. 122
17 Layout of Rewritable Area of Information Zone . 122
18 Inner Zone . 127
18.1 General . 127
18.2 Permanent Information & Control data (PIC) Zone . 130
18.2.1 General . 130
18.2.2 Content of PIC Zone . 131
18.2.3 Emergency Brake . 132
18.3 Rewritable Area of Inner Zone(s) . 133
18.3.1 Protection-Zone 2 . 133
18.3.2 Buffer . 133
18.3.3 INFO 2 / Reserved 8 . 133
18.3.4 INFO 2 / Reserved 7 . 134
18.3.5 INFO 2 / Reserved 6 . 134
18.3.6 INFO 2 / Reserved 5 . 134
© ISO/IEC 2013 – All rights reserved v

18.3.7 INFO2 / PAC 2 . 134
18.3.8 INFO2 / Reserved . 134
18.3.9 INFO2 / DMA 2 . 134
18.3.10 INFO2 / Control Data 2 . 134
18.3.11 INFO2 / Buffer 2 . 134
18.3.12 OPC / Test Zone . 134
18.3.13 Reserved . 134
18.3.14 INFO1 / Buffer 1 . 135
18.3.15 INFO1 / Drive Area (optional) . 135
18.3.16 INFO1 / Reserved 3 . 136
18.3.17 INFO1 / Reserved 2 . 136
18.3.18 INFO1 / Reserved 1 . 136
18.3.19 INFO1 / DMA 1 . 136
18.3.20 INFO1 / Control Data 1 . 136
18.3.21 INFO1 / PAC 1 . 136
18.3.22 INFO1 / Reserved . 137
19 Data Zone . 137
20 Outer Zone(s) . 137
20.1 General . 137
20.2 INFO3 / Buffer 3 . 138
20.3 INFO3 / DMA 3 . 138
20.4 INFO3 / Control Data 3 . 138
20.5 Angular buffer . 138
20.6 INFO4 / DMA 4 . 138
20.7 INFO4 / Control Data 4 . 138
20.8 INFO4 / Buffer 4 . 138
20.9 DCZ0 / Test Zone, DCZ1 / Test Zone and DCZ2 / Test Zone . 138
20.10 Protection-Zone 3 . 138
21 Physical-Access Control Clusters . 138
21.1 General . 138
21.2 Layout of PAC Zones . 139
21.3 General structure of PAC Clusters . 140
21.4 Primary PAC Cluster (mandatory) . 144
21.5 Disk Write-Protect PAC Cluster (optional) . 147
21.6 IS1 and IS2 PAC Clusters . 151
22 Disk Management . 153
22.1 General . 153
22.2 Disk-Management Structure (DMS). 154
22.2.1 General . 154
22.2.2 Disk-Definition Structure (DDS) . 156
22.2.3 Defect List (DFL) . 160
23 Assignment of Logical-Sector Numbers (LSNs) . 165
24 Characteristics of Grooved Areas. 167
25 Method of testing for Grooved Area . 167
25.1 General . 167
25.2 Environment . 167
25.3 Reference drive . 167
25.3.1 General . 167
25.3.2 Read power . 167
25.3.3 Read channels . 167
25.3.4 Tracking requirements . 167
25.3.5 Scanning velocities . 168
25.4 Definition of signals. 168
26 Signals from HFM Grooves . 169
26.1 Push-Pull polarity . 169
26.2 Push-Pull signal . 169
vi © ISO/IEC 2013 – All rights reserved

26.3 Wobble signal . 169
26.4 Jitter of HFM signal . 169
27 Signals from Wobbled Grooves . 170
27.1 Phase depth . 170
27.2 Push-Pull signal . 170
27.3 Wobble signal . 170
27.3.1 General . 170
27.3.2 Measurement of NWS . 170
27.3.3 Measurement of the wobble CNR . 171
27.3.4 Measurement of harmonic distortion of wobble . 171
28 Characteristics of Recording Layer . 171
29 Method of testing for Recording Layer . 171
29.1 General . 171
29.2 Environment . 171
29.3 Reference drive . 171
29.3.1 General . 171
29.3.2 Read power . 172
29.3.3 Read channels . 172
29.3.4 Tracking requirements . 172
29.3.5 Scanning velocities . 172
29.4 Write conditions . 172
29.4.1 Write-pulse waveform . 172
29.4.2 Write powers . 172
29.4.3 Average power . 173
29.4.4 Write conditions for i-MLSE measurement . 173
29.4.5 Write conditions for cross-erase measurements . 173
29.5 Definition of signals . 173
30 Signals from Recorded Areas . 174
30.1 HF signals. 174
30.2 Modulated amplitude . 174
30.3 Reflectivity-Modulation product . 175
30.4 Asymmetry . 176
30.5 i-MLSE@DOW(n). 176
30.6 Cross-erase @ DOW(n) . 176
XE
30.7 Read stability . 177
31 Local defects . 177
32 Characteristics of User Data . 178
33 Method of testing for User Data . 178
33.1 General . 178
33.2 Environment . 178
33.3 Reference drive . 178
33.3.1 General . 178
33.3.2 Read power . 178
33.3.3 Read channels . 178
33.3.4 Error correction . 178
33.3.5 Tracking requirements . 178
33.3.6 Scanning velocities . 178
33.4 Definition of signals . 179
34 Minimum quality of recorded information . 180
34.1 General . 180
34.2 Random Symbol Error Rate. 180
34.3 Maximum burst errors . 180
34.4 User-written Data . 180
35 BCA . 180
© ISO/IEC 2013 – All rights reserved vii

Annex A (normative) Thickness of Transmission Stacks in case of multiple layers . 182
A.1 General . 182
A.2 Refractive Index n of all layers in Cover and Spacer Layers . 182
i
A.3 Thickness variation of Transmission Stack . 182
A.4 Thickness variations of Spacer Layers . 182
A.5 Example of thickness calculation . 183
Annex B (normative) Measurement of reflectivity . 184
B.1 General . 184
B.2 Calibration method . 184
B.3 Measuring method .
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

Loading comments...

This May Also Interest You

ISO
ISO/IEC 18630:2023(Main)
Information technology - Digitally recorded media for information interchange and storage - Quality discrimination method for optical disks and operating method of storage systems for long-term data preservation

This document specifies a quality discrimination method for optical disks and the operating method of storage systems for long-term digital data preservation using optical disks and optical disk drives (hereinafter referred to as "drives"). It is applicable to recordable (write-once) optical disks which can prevent physical overwriting and deletion by erroneous or intentional operation in contexts where greater importance is given to evidence. It is also applicable to read-only (ROM) optical disks. This document specifies: - combinations of recordable optical disks and drives used for long-term data preservation; - quality discrimination criteria for recordable optical disks and the operation method of long-term storage systems; - a quality test for read-only optical disks and the operation method of long-term storage systems; - quality discrimination criteria for BD recordable disks when adopting defect management.

  • Standard
    15 pages
    English language
    sale 15% off
ISO
ISO/IEC 9660:2023(Main)
Information processing - Volume and file structure of CD-ROM for information interchange

This document specifies the volume and file structure of compact disc read-only memory (CD-ROM) for the interchange of information between users of information processing systems. This document specifies: - the attributes of the volume and the descriptors recorded on it; - the relationship among volumes of a volume set; - the placement of the files; - the attributes of the files; - record structures intended for use in the input or output data streams of an application program when such data streams are required to be organized as sets of records; - three nested levels of medium interchange; - two nested levels of implementation; - requirements for the processes which are provided within information processing systems, to enable information to be interchanged between different systems, utilizing recorded CD-ROM as the medium of interchange; for this purpose, this document specifies the functions to be provided within systems which are intended to originate or receive CD-ROM which conform to this document.

  • Standard
    58 pages
    English language
    sale 15% off
ISO
ISO/IEC 30193:2021(Main)
Information technology - Digitally recorded media for information interchange and storage - 120 mm triple layer (100,0 Gbytes per disk) BD rewritable disk

This document specifies the mechanical, physical and optical characteristics of a 120 mm rewritable optical disk with a capacity of 100,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written, read and overwritten many times using a reversible method. This disk is identified as a BD rewritable disk. This document specifies the following: - the one disk type; - the conditions for conformance; - the environments in which the disk is to be operated and stored; - the mechanical and physical characteristics of the disk, in order to provide mechanical interchange between data processing systems; - the format of the information on the disk, including the physical disposition of the tracks and sectors; - the error-correcting codes and the coding method used; - the characteristics of the signals recorded on the disk, enabling data processing systems to read data from the disk. This document provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

  • Standard
    267 pages
    English language
    sale 15% off
ISO
ISO/IEC 29121:2021(Main)
Information technology - Digitally recorded media for information interchange and storage - Data migration method for optical disks for long-term data storage

This document specifies the data migration method for DVD-R, DVD-RW, DVD-RAM, +R, +RW, CD-R, CD-RW, BD Recordable and BD Rewritable disks for long-term data storage. By applying this document for information storage, digital data can be migrated to a next new disk without loss from the present disk if data errors are completely corrected before and during the migration and provided copying of the data is allowed. This document specifies: - a data migration method for long-term data storage; - test methods for measuring maximum data error, including ambient condition, test area, test drive, disk preparation and test execution; - an initial performance test and a periodic performance test that check an error rate of data recorded on the disks with categorized maximum data error tables; - precautions to reduce the possibility of deterioration in order to assure the integrity of the disks during their use, storage, handling or transportation; and - the estimated lifetime of Bmig (B0,000 1) life to determine the test interval for the periodic performance test.

  • Standard
    26 pages
    English language
    sale 15% off
ISO
ISO/IEC 30192:2021(Main)
Information technology - Digitally recorded media for information interchange and storage - 120 mm Single Layer (25,0 Gbytes per disk) and Dual Layer (50,0 Gbytes per disk) BD Rewritable disk

This document specifies the mechanical, physical and optical characteristics of a 120 mm rewritable optical disk with a capacity of 25,0 Gbytes or 50,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written, read and overwritten many times using a reversible method. This disk is identified as a BD rewritable disk. This document specifies the following: - two related but different types of this disk; - conditions for conformance; - environments in which the disk is to be operated and stored; - mechanical and physical characteristics of the disk, which allow mechanical interchange between data processing systems; - format of the information on the disk, including the physical disposition of the tracks and sectors; - error-correcting codes and coding method used; - characteristics of the signals recorded on the disk, which enable data processing systems to read data from the disk. This document provides for interchange of disks between drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

  • Standard
    214 pages
    English language
    sale 15% off
ISO
ISO/IEC 30190:2021(Main)
Information technology - Digitally recorded media for information interchange and storage - 120 mm Single Layer (25,0 Gbytes per disk) and Dual Layer (50,0 Gbytes per disk) BD Recordable disk

This document specifies mechanical, physical and optical characteristics of a 120 mm recordable optical disk with a capacity of 25,0 Gbytes or 50,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written once and read many times using a non-reversible method. This disk is identified as BD recordable disk. This document specifies the following: - three related but different types of this disk; - the conditions for conformance; - the environments in which the disk is to be operated and stored; - the mechanical and physical characteristics of the disk, so as to provide mechanical interchange between data processing systems; - the format of the information on the disk, including the physical disposition of the tracks and sectors; - the error-correcting codes and the coding method used; - the characteristics of the signals recorded on the disk, enabling data processing systems to read data from the disk. This document provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

  • Standard
    231 pages
    English language
    sale 15% off
ISO
ISO/IEC 30191:2021(Main)
Information technology - Digitally recorded media for information interchange and storage - 120 mm Triple Layer (100,0 Gbytes single sided disk and 200,0 Gbytes double sided disk) and Quadruple Layer (128,0 Gbytes single sided disk) BD Recordable disk

This document specifies the mechanical, physical and optical characteristics of a 120 mm recordable optical disk with a capacity of 100,0 Gbytes, 128,0 Gbytes or 200,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written once and read many times using a non-reversible method. This disk is identified as BD recordable disk. This document specifies the following: - three related but different types of this disk; - the conditions for conformance; - the environments in which the disk is to be operated and stored; - the mechanical and physical characteristics of the disk, so as to provide mechanical interchange between data processing systems; - the format of the information on the disk, including the physical disposition of the tracks and sectors; - the error correcting codes and the coding method used; - the characteristics of the signals recorded on the disk, enabling data processing systems to read the data from the disk. This document provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

  • Standard
    298 pages
    English language
    sale 15% off
ISO
ISO/IEC 16963:2017(Main)
Information technology - Digitally recorded media for information interchange and storage - Test method for the estimation of lifetime of optical disks for long-term data storage

ISO/IEC 16963:2017 specifies an accelerated ageing test method for estimating the lifetime of the retrievability of information stored on recordable or rewritable optical disks. The method is based on the theoretical assumption that the lifetime of data recorded on an optical disk has a lognormal distribution. Detailed testing is specified for the following formats: DVD-R/RW/RAM disks, +R/+RW disks, CD-R/RW disks and BD recordable/rewritable disks. The testing can be applied to additional optical-disk formats with substitution of the appropriate specifications and can also be updated by the committee in the future as required. ISO/IEC 16963:2017 includes: - stress conditions: - Basic and Rigorous stress-conditions for testing and subsequent analysis using both the Eyring and Arrhenius methods; - ambient storage conditions in which the lifetime of data stored on optical disk is estimated: - a Controlled storage-condition, Temp = 25 °C and RH = 50 %, representing full-time air conditioning. The Eyring method is used to estimate the lifetime under this storage condition; - a Harsh storage-condition, Temp = 30 °C and RH = 80 %, representing the most severe conditions in which users handle and store optical disks. The Arrhenius method is used to estimate the lifetime under this storage condition; - a description of the evaluation system; - procedures for specimen preparation and data acquisition; - definitions and methods used in testing specific disk types; - analysis of test results to determine the lifetime of stored data; - a format for reporting the estimated lifetime of stored data. The methodology includes only the effects of temperature and relative humidity. It does not attempt to model degradation due to complex failure mechanism kinetics, nor does it test for exposure to light, corrosive gases, contaminants, handling, or variations in playback subsystems. Disks exposed to these additional sources of stress or higher levels of temperature and relative humidity are expected to experience shorter usable lifetime.

  • Standard
    52 pages
    English language
    sale 15% off
ISO
ISO/IEC 10995:2011(Main)
Information technology - Digitally recorded media for information interchange and storage - Test method for the estimation of the archival lifetime of optical media

ISO/IEC 10995:2011 specifies an accelerated aging test method for estimating the life expectancy for the retrievability of information stored on recordable or rewritable optical disks. This test includes details on the following formats: DVD-R/-RW/-RAM, +R/+RW. It can be applied to additional optical disk formats with the appropriate specification substitutions and can be updated in the future as required. ISO/IEC 10995:2011 includes - stress conditions, - assumptions, - ambient conditions: controlled storage conditions, e.g. 25 °C and 50 % RH, using the Eyring model; and uncontrolled storage conditions, e.g. 30 °C and 80 % RH, using the Arrhenius model, - evaluation system description, - specimen preparation, - data acquisition procedure, and - data interpretation.

  • Standard
    27 pages
    English language
    sale 15% off
ISO
ISO/IEC 12862:2011(Main)
Information technology - 120 mm (8,54 Gbytes per side) and 80 mm (2,66 Gbytes per side) DVD recordable disk for dual layer (DVD-R for DL)

ISO/IEC 12862:2011 specifies the mechanical, physical and optical characteristics of a 120 mm and an 80 mm dual layer DVD recordable disk to enable the interchange of such disks. It specifies the quality of the pre-recorded, unrecorded and recorded signals, the format of the data, the format of the information zone, the format of the unrecorded zone, and the recording method, thereby allowing for information interchange by means of such disks. This disk is identified as a DVD recordable disk for dual layer (DVD-R for DL). ISO/IEC 12862:2011 specifies the following: 120 mm and 80 mm nominal diameter disks that can be either single- or double-sided; the conditions for conformance; the environments in which the disk is to be operated and stored; the mechanical and physical characteristics of the disk, so as to provide mechanical interchange between data processing systems; the format of the pre-recorded information on an unrecorded disk, including the physical disposition of the tracks and sectors, the error correcting codes and the coding method used; the format of the data and the recorded information on the disk, including the physical disposition of the tracks and sectors, the error correcting codes and the coding method used; the characteristics of the signals from pre-recorded and unrecorded areas on the disk, enabling data processing systems to read the pre-recorded information and to write to the disks; the characteristics of the signals recorded on the disk, enabling data processing systems to read the data from the disk. ISO/IEC 12862:2011 provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

  • Standard
    182 pages
    English language
    sale 15% off
