ISO/IEC 30106-1:2016

DRAFT INTERNATIONAL STANDARD
ISO/IEC DIS 30106-1
ISO/IEC JTC 1/SC 37 Secretariat: ANSI
Voting begins on: Voting terminates on:
2014-12-04 2015-03-04
Information technology — BioAPI for object oriented
programming languages —
Part 1:
Architecture
Titre manque
ICS: 35.040
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/IEC DIS 30106-1:2014(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO/IEC 2014

ISO/IEC DIS 30106-1:2014(E)

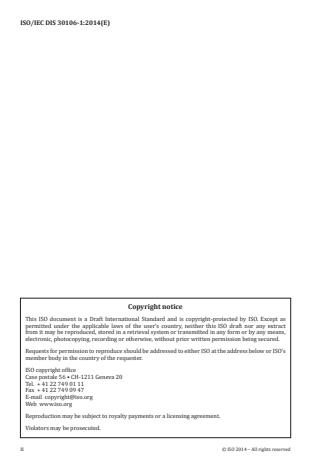

Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as
permitted under the applicable laws of the user’s country, neither this ISO draft nor any extract
from it may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, photocopying, recording or otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2014 – All rights reserved

ISO/IEC DIS 30106-1
Contents Page
Foreword . v
Introduction . vi
1 Scope . 1
2 Conformance . 1
3 Normative references . 1
4 Terms and definitions . 1
5 Symbols and abbreviated terms . 1
6 Object Oriented BioAPI architecture . 2
6.1 Summary of BioAPI architecture . 2
6.2 BioAPI compatibility requirements . 4
6.3 Graphical User Interface (GUI) . 5
6.4 Implementation guidelines . 6
6.4.1 Basic concepts . 6
6.4.2 BioAPI_Unit development. 6
6.4.3 BFP development . 7
6.4.4 BSP development . 8
6.4.5 Framework and component registry . 8
6.4.6 Application development . 9
7 BioAPI C# CBEFF Patron Formats . 9
8 Constants . 9
8.1 General . 9
8.2 Biometric Types . 9
8.3 Biometric Subtypes . 10
8.4 Error Codes . 10
9 OO BioAPI UML Structure . 13
9.1 Introduction . 13
9.2 Relationships among data structures . 14
9.2.1 Class BIR . 14
9.2.2 Class UnitSchema . 15
9.2.3 Class BFPSchema . 16
9.2.4 Class BSPSchema . 17
9.2.5 Class FrameworkSchema . 18
9.3 BioAPI_Unit structures . 18
9.3.1 IArchive. 18
9.3.2 IComparison . 19
9.3.3 IProcessing . 19
9.3.4 ISensor. 20
9.4 BFP Structure . 20
9.5 BSP Structure . 21
9.6 Framework structure . 22
9.7 Application related structure . 22
Annex A (normative) Conformance statements . 23
A.1 General . 23
A.2 BioAPI OO Conformant Biometric Application . 23
A.3 BioAPI OO Conformant Framework . 23
A.4 BioAPI OO Conformant BSPs . 24
A.4.1 BioAPI OO Conformant Verification BSPs . 26
A.4.2 BioAPI OO Conformant Identification BSPs . 27
© ISO/IEC 2014 – All rights reserved iii

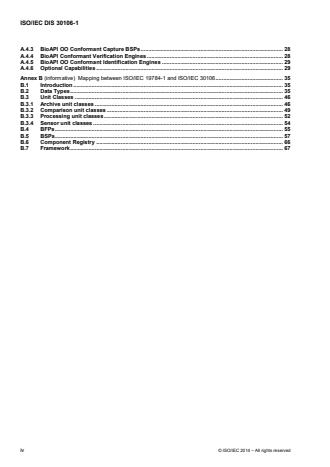

ISO/IEC DIS 30106-1
A.4.3 BioAPI OO Conformant Capture BSPs . 28
A.4.4 BioAPI Conformant Verification Engines . 28
A.4.5 BioAPI OO Conformant Identification Engines . 29
A.4.6 Optional Capabilities . 29
Annex B (informative) Mapping between ISO/IEC 19784-1 and ISO/IEC 30106 . 35
B.1 Introduction . 35
B.2 Data Types . 35
B.3 Unit Classes . 46
B.3.1 Archive unit classes . 46
B.3.2 Comparison unit classes . 49
B.3.3 Processing unit classes . 52
B.3.4 Sensor unit classes . 54
B.4 BFPs . 55
B.5 BSPs . 57
B.6 Component Registry . 66
B.7 Framework . 67

iv © ISO/IEC 2014 – All rights reserved

ISO/IEC DIS 30106-1
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 30106-1 was prepared by Technical Committee ISO/TC JTC1, Information Technology,
Subcommittee SC 37, Biometrics.
This second/third/. edition cancels and replaces the first/second/. edition (), [clause(s) / subclause(s) /
table(s) / figure(s) / annex(es)] of which [has / have] been technically revised.
ISO/IEC 30106 consists of the following parts, under the general title Information Technology — BioAPI for
Object Oriented Programming Languages:
 Part 1: Architecture
 Part 2: Java implementation
 Part 3: C# implementation
© ISO/IEC 2014 – All rights reserved v

ISO/IEC DIS 30106-1
Introduction
The existing versions of BioAPI, the ANSI version-INCITS 358 and ISO/IEC 19784-1, specify an application
programming interface expressed in the C language. The use of this language ensures the wide applicability
and implementability of BioAPI across multiple computing platforms and application domains. This API is an
appropriate fit for applications written in the same language, and is adequate for applications written in C++.
Lack of portability of applications written in C is an issue that can be answered with an object oriented (OO)
version of BioAPI. A C API does not work well with applications written in Java, C#, and other programming
languages. In particular, the use of a C API from within an Object oriented (apart from C++) application is very
unnatural, and requires certain programming artifices that introduce complications in the application, thus
increasing the cost of application development and maintenance. If a standard OO version of BioAPI were
available, the development of Java, C#, etc. applications that use a standard biometric API would be easier
and cheaper than it is today.
A standard Object Oriented version of BioAPI would also allow, in case of Java, BSPs that are intended for
loading into a Java-based application server to perform verification and/or identification operations. In those
application servers, a Java BioAPI framework and Java BSPs would work better than their C counterparts.
Another area in which a standard OO version of BioAPI would be useful is that of small computing devices
based on object oriented language (OOL), where (as on the large application servers mentioned above) a OO
BioAPI framework and OO BSPs would fit better than their C counterparts.
This standard is expected to have the following impact:
 Enable creation of many new BioAPI applications by developers more comfortable with Object
Oriented Languages.
 Create a market of OO components that are standard OO BioAPI BSPs, and that can be used (along
with a OO BioAPI framework) in OO environments such as Java-based application servers, Java
applets, or small Java-based devices, .NET servers, .NET applications, Web Services;and
 Increase the level of adoption of BioAPI by enabling OO application developers to access C BSPs
(as if they were OO BSPs) through special versions of the BioAPI framework that will bridge a
standard OO BioAPI framework to a standard C BioAPI framework.

vi © ISO/IEC 2014 – All rights reserved

DRAFT INTERNATIONAL STANDARD ISO/IEC DIS 30106-1

Information Technology — BioAPI for Object Oriented
Programming Languages — Part 1: Architecture
1 Scope
The proposed standard will specify a generic architecture for the interface of a BioAPI OO framework and
BioAPI OO BSP which will mirror the corresponding components specified in ISO/IEC 19784-1. Therefore, the
position occupied by the proposed standard within the general picture of biometrics standards will be the
same position that ISO/IEC 19784-1 occupies, the only difference being the programming language of the
interfaces. The concepts such as BioAPI_Unit, component registry, etc. are present in this standard and will
have the same meaning as in ISO/IEC 19784-1. The semantic equivalence of this standard will be maintained
with ISO/IEC 19784-1, but there are differences in actual parameters passed between functions and the
sequence of function calls. These differences exist to take advantage of the object oriented benefits of Object
Oriented Programming Languages.
2 Conformance
Annex A specifies the conformance requirements for systems/components claiming conformance to this
standard.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 19784-1:2006, Information Technology – Biometric Application Programming Interface – Part 1:
BioAPI Specification
ISO/IEC 19785-1:2006, Information Technology – Common Biometric Exchange Formats Framework – Part 1:
Data Element Specification
ISO/IEC 19785-2:2006, Information Technology – Common Biometric Exchange Formats Framework – Part 2:
Procedures for the Operation of the Biometric Registration Authority
4 Terms and definitions
For the purposes of this document, the terms defined in ISO/IEC 19784-1, ISO/IEC 19785 and ISO 2382-37
apply.
5 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms defined in ISO/IEC 19784-1, ISO/IEC
19785 and the following applies:
API – Application Programming Interface
BDB – Biometric Data Block
BFP – Biometric (OO) Function Provider
© ISO/IEC 2014 – All rights reserved 1

ISO/IEC DIS 30106-1
BIR – Biometric Information Record
BSP – Biometric Service Provider
CBEFF – Common Biometric Exchange Formats Framework
FMR – False Match Rate
FPI – Function Provider Interface
GUI – Graphical User Interface
ID – Identity/Identification/Identifier
MOC – Match on Card
OOBioAPI – Object Oriented BioAPI
PID – Product ID
SB - Security Block
NOTE This term and abbreviation is imported from ISO/IEC 19785-1.
SBH – Standard Biometric Header
NOTE This term and abbreviation is imported from ISO/IEC 19785-1.
SPI – Service Provider Interface
UUID – Universally Unique Identifier

6 Object Oriented BioAPI architecture
6.1 Summary of BioAPI architecture
Object Oriented BioAPI shall be defined in a way that allows both, structured development of applications and
services, as well as interoperability between application and BSPs, and among BSPs. Therefore the definition
has to be done respecting the hierarchical structure of BioAPI (19784-1). In few words, this has to allow the
development of applications in a system based on a BioAPI Framework, as well as applications in a system
where no Framework is used (framework-free). Starting with the latter, and application in a framework-free
based system shall be developed using an OO BioAPI that allows the instantiation of a BSP, which is based
on the instantiation of one or several BioAPI_Units. The BSP can host more than one BioAPI_Unit of each
category, and when a session is attached, several units of each type can be selected, no presenting any kind
of limitation on the units to be used in a BSP. This makes it necessary for all methods to provide the reference
to the unit to be used in each of the operations.
It is not allowed that the application access BioAPI_Units directly. Therefore this International Standard does
not define a BioAPI_Unit interface, but only an object oriented hierarchical interface/class model that may
ease the implementation of the BSP. The BSP shall inherit all public methods and data structures of the
BioAPI_Units, and it is up to the implementation of the BSP implementation to decide which of them are
offered to the external world, and which of them are only returning the lack of support of such method. This is
represented in the following figure.
Programming an application using a direct connection with the BSPs, rises certain concerns in practical
situations. The first concern is dealing with industry providing elements to be used in applications. It may
happen that a provider is only providing sensors, and would like to include support to all its family of sensors
2 © ISO/IEC 2014 – All rights reserved

ISO/IEC DIS 30106-1
as a single entity (e.g. a library). That provider may consider implementing that as a single BSP, but not being
interested in providing monolithic methods (i.e. aggregated functionality such as Enrol, which does in one
single call the capture, the processing of the sample, the creation of the biometric reference and even the
archiving). Therefore it will need to request these kind of functions to be done at the application level,
exchanging biometric information between the BSP and the application. Then, the application may forward
that biometric data to another BSP to complete the action. So a possible solution for this inconvenience is to
allow those sensors to directly interact with other BSPs, instead of using the application for that. To achieve
this, the biometric product provider may create an entity (e.g. a library) containing several BioAPI_Units of the
same kind. This is called a Biometric Function Provider (BFP), which has mainly the following characteristics:
 The BFP shall only host BioAPI_Units of the same category.
 The BFP is meant to allow that a BSP is linked to one of its BioAPI_Units, in order to complete or
adapt the functionality of the BSP.
 The BFP shall not provide functionality to the application, but only the link to the BSP. It is the BSP
the one providing functionality to the application.
The above mentioned situation also solves a problem from developers' point of view, which deals with
simplicity in developing applications. If an application may require to use BioAPI_Units from different providers
(e.g. a sensor from one provider and processing, comparison and archive BioAPI_Units from other provider),
then it will have to load two different BSPs, calling each of the methods independently. As mentioned earlier,
this has the inconvenience that it won't be possible to call a monolithic method, such as Verify(), which
performs the data capture, the processing, extraction of the biometric reference from the database, the
comparison and taking the decision, all within the same single call. Then the application programmer will have
to know which individual methods have to be called from each of the BSPs, in order to get the same
functionality. So, by using a BSP that supports monolithic methods, and requesting that BSP to be linked to
those BioAPI_Units for the BFPs of other product providers, once that link is established, then the application
can call those monolithic methods without taking into account that the functionality is provided by different
vendors.
Last, but not least, there is a concern about security in certain operations. As biometric data is sensible
personal data, some clients may require that the biometric application will not be able to access directly the
user biometric data (i.e. the BIRs), avoiding the possibility of malware to tamper with such data. By using
BFPs, all sensible data will be handled at the BSP level, and no BIR may be accessible to the application, not
only simplifying the application development (by the use of monolithic methods), but also the security level
achieved.
The BFP shall not be accessed directly by the application. BioAPI calls are created to allow the application to
know the BioAPI_Units that are contained in the BFPs so that the application may later request one BSP to
attach one of those BioAPI_Units of the BFP. This is done through a component registry and the procedure is
further described in 6.4.
All the above ideas shall be implemented to allow the dynamic selection of components to be used by the
application, but with no a-priori knowledge from the application developer. This is achieved by the inclusion of
a common framework, which shall be installed in the system where the application is expected to be running.
Then the application shall request the framework for the list of the BSPs and BFPs installed, select the BSPs
(with the requested attachment of BioAPI_Units from BFPs) to be instantiated dynamically by the framework,
and then accessing their methods and data structures through the framework. The application shall never be
allowed to access the BSPs directly. This is summarized in the following figure.
© ISO/IEC 2014 – All rights reserved 3

ISO/IEC DIS 30106-1
Application
Component Registry
Framework
BSP1 BSPm
Unit1 Unit2 UnitQ
BFP
Unit1 Unit2 UnitN Unit1 Unit2 UnitP

Figure 1: Generic structure of a framework-based application
BSPs may be accessed by several applications at the same time, and it may also happen that BioAPI_Units in
the BFPs are also accessed by several BSPs at the same time. It is up to the implementation of the
framework the way that this implemented (e.g. this may be done by queuing requests from the different
sources, or by responding to occurring events).
For those developers that are familiar with ISO/IEC 19784, it is important to provide a relationship about the
interfaces there defined, and the different layers that compose this International Standards. The
correspondence between both International Standards is given in the following table:
Table 1 — Correspondence between ISO/IEC 30106 and ISO/IEC 19784 interfaces
Interface in ISO/IEC 30106 Interface in ISO/IEC 19784
IFramework API
IBSP SPI
IBFP SFPI
Along all parts of this International Standard, the Unit level will be also specified, but not as for specifying a
different interface, but for structuring in a hierarchical way the support for each of the categories of
BioAPI_Units at the IBSP or IBFP interfaces.
6.2 BioAPI compatibility requirements
This International Standard is defined as compatible with BioAPI version 3.0 (ISO/IEC 19784-1.revision 1), but
the framework may be developed as to allow the cross compatibility with previous versions of BioAPI, as to
allow BioAPI 2.x compliante BSPs and BFPs to be used in an ISO/IEC 30106 compliant application.
There is no provision to allow Object Oriented BSPs to be used in an ISO/IEC 19784 compliant framework
and application.
4 © ISO/IEC 2014 – All rights reserved

ISO/IEC DIS 30106-1
6.3 Graphical User Interface (GUI)
A BSP may handle by itself the interaction between the user and the system. For example, a BSP with a
sensor BioAPI_Unit may address all the interaction by the displaying messages, illuminating LEDs and/or
activating sounds at the sensor itself. Such kind of interaction may include providing feedback to the user on:
 the finger to be placed at the sensor,
 how to improve the location of the sample in the sensor (e.g. alignment of the biometric characteristic
in relation to the sensor active area),
 whether the acquisition has been done in a correct way, or
 whether the biometric comparison has led to a positive or negative decision.
But in certain cases, it may be requested that such interaction is handled by the application using such BSP,
showing all messages and illustrations in the computer screen. This may also be handled by the BSP itself,
but this can lead to certain kinds of inconveniences such as:
 the BSP graphical user interface may not be adaptable to the different sizes and resolutions that the
application screen is using,
 the feedback provided has to follow the same look & feel as the main application, including the use of
service provider logos,
 the feedback has to be adaptable to the language of the user being identified, or where the system is
deployed.
In those cases, it is recommended that, in order to avoid the re-programming of the BSP or increasing the
complexity of the BSP, the interaction is handled by the application itself. As the feedback depends on the
specific step that the BSP is executing, and those steps are mostly controlled by the BSP (i.e. most BSP
functions are offered to the application as monolithic methods), then the way to solve this is by using callback
functions.
Callback functions shall be designed for each step where the BSP requires to interact with the user, and for
each of the processes to be called, the application provides the BSP with the selected functions, so that the
BSP can call them within the execution of the process.
Therefore, if the BSP allows the use of callback functions for handling the GUI, the following development
actions shall be taken, for each of the processes requiring such interaction (e.g. Capture):
 The application shall implement all GUI related functions for such process. This functions are of the
following kinds:
 Select Function: to show the interaction with the user at the beginning or the end of the whole
process.
EXAMPLE At the beginning the process, the following message may be provided: "Capture process for
the index finger of the right hand". And at the end of the process the message to be given could be:
"Acquisition finished. Thank you!". Therefore the callback function shall know if it is being called at the
beginning of the process, or at the end. Also the callback function can also provide the BSP with
information about a user action, such as cancelling the capture process. All this information flow is provided
in parameters of the callback function.
 State Function: Sometimes the BSP process may take several internal steps, which can be
designed as different states. Therefore the state function will provide feedback depending on
whether a certain internal step is to be started or finished. This leads to the need for the State
Function to know which internal step is being processed, and that information will be provided as
© ISO/IEC 2014 – All rights reserved 5

ISO/IEC DIS 30106-1
parameters to the callback function. Also feedback provided by the user will be passed to the
BSP by the parameters involved, such as cancelling the whole process.
 Progress Function: In some other cases, it may be necessary to provide the user with real time
feedback on the progression of the process.
EXAMPLE A system may be showing in the screen the live image of the fingerprint or face within the
acquisition process. In such case, a Progress callback function may be implemented to show the data
stream.
 Once the callback functions have been implemented for the process, the application shall report the
BSP about the callback functions to be used, before calling the process. This will be done by
subscribing the BSP to those selected GUI events, and the relevant callback functions.
 Once subscribed, the application can call the process (e.g. Capture).
 Finally, when the process has been completed, the application can unsubscribe the BSP from the
previously subscribed events.
NOTE Further information can be found in ISO/IEC 19784-1.

6.4 Implementation guidelines
6.4.1 Basic concepts
The most common case of implementation is that one where the operating system has the Framework
integrated, so that BSPs and BFPs developers can generate their own products and offer them for being
installed into the Framework. Also, application developers do not have to even obtain the BSPs or BFPs, just
only asking the Framework which BSPs and BFPs are installed, analyse their schemas, either automatically or
allowing the user to select the ones he will like, and then perform the execution of the whole code by only
performing calls to the Framework. Therefore it will be the application developer the one to specify the end-
user about which kind of BSPs and/or BFPs will be required for the application and then it will have to be the
end-user the one acquiring his/her desired OO BioAPI components.
In this kind of implementations, three kinds of developers are involved in the use of this specification:
 Those developers providing services to be accessed by applications (i.e. BSPs or BFPs). For this
kind of developers, clauses 6.4.2, 6.4.3 and 6.4.4 are applicable.
 Those developers having to create the framework and integrate it into the system, so that it is
accessible for both, the BSPs and BFP products, and the final applications. For this kind of
developers, clause 6.4.5 is applicable.
 Those developers programing the final application and having to use some third party BSPs and/or
BSPs. For this kind of developers, clause 6.4.6 is applicable.
6.4.2 BioAPI_Unit development
BSPs and BFPs will implement BioAPI_Units. They shall be developed including all properties and methods
defined in this International Standard. If when implementing a certain BioAPI_Unit, the developer does not
want to provide a certain functionality, then the following indications shall be followed:
 For each of the methods, including the overloading of them, that are not to be supported, the method
shall be programmed and published, but containing only the throw of a BioAPIException indicating
that such function is not supported.
6 © ISO/IEC 2014 – All rights reserved

ISO/IEC DIS 30106-1
 Whatever public property is involved only in the non-supported functionality, its value shall be set to
NULL.
 The UnitSchema shall provide an accurate information on the functionality supported by the
BioAPI_Unit.
It is necessary to remark that the implementation of BioAPI_Units is entirely proprietary and is strictly
supported and implemented by BioAPI_BSP developer.
6.4.3 BFP development
As it was mentioned in 6.1, a Biometric Function Provider (i.e. BFP), is a set of BioAPI_Units of the same
category (i.e. either archive, comparison, processing or sensor), that are provided for the BSPs, so that a BSP
can attach one of such BioAPI_Units, either by its own decision, or by request of the application. This
relationship is implemented in the following way:
1) The application loads a BSP by using the BSPLoad method
2) When executing the BSPLoad() method, it is recommended that the BSP explores which BFPs are
included in the Component Registry, and which BioAPI_Units does each of the BFPs contains. This
is performed by using the callback function named BFPEnumerationCallback(), which obtains the
BFPSchemas.
i) For each of these BioAPI_Units, the BSP reads their UnitSchema structure to discover whether
that BioAPI_Unit is compatible with the BSP, and therefore a supported BioAPI_Unit.
ii) The BSP keeps an internal register of the supported BioAPI_Units and the BFP to which each of
them belongs. It also assigns for each of the supported BioAPI_Units a unique identifier, called
UnitID.
3) After the loading of the BSP, the application may ask the BSP about the supported BioAPI_Units, in
order to discover which BioAPI_Units are available. This is done with the QueryUnits() method.
4) Before starting the execution of biometric functionality, the application shall attach a session for the
selected BSP. This is done by using the BSPAttach() method, and it can be executed in two different
ways, for each of the four BioAPI_Unit categories (i.e. archive, comparison, processing and sensor):
i) The application can attach the session without telling the BSP which BioAPI_Unit to use for that
category. This is done by stating DontCare in the relevant parameter of BSPAttach().
I) Then the BSP can behave in the way it has been programmed to do. For example, if the
BSP already contains a BioAPI_Unit of that category, it can decide to use its own
BioAPI_Unit, forgetting about any other BioAPI_Units of that category in other BFPs, even if
they are compatible. Or it can be programmed in a way to choose its considered best option
among the BioAPI_Units available for that category.
II) In case the BSP decides to use a BioAPI_Unit of that category that is not implemented in its
own BSP (either because the BSP does not have such kind of BioAPI_Unit, or because it
has decided any other option), the BSP shall firstly detach the current BioAPI_Unit (e.g. its
own BioAPI_Unit), and then attach the one at the BFP by calling the UnitAttach() method for
that BFP.
ii) The application can decide to attach the session indicating the BioAPI_Unit selected for a certain
category (or for all), by filling in the UnitIDs of those BioAPI_Units selected in each of the
relevant parameters. In that case:
I) If the BSP does not have a current BioAPI_Unit attached for that category, then it will have
only to attach the requested BioAPI_Unit, by using the UnitAttach() method.
© ISO/IEC 2014 – All rights reserved 7

ISO/IEC DIS 30106-1
II) If the BSP has currently a BioAPI_Unit attached for that category, then it will have to firstly,
detach the current BioAPI_Unit by using UnitDetach(), and then attaching the new
BioAPI_Unit by using UnitAttach().
5) Once the BSP is attached with all its BioAPI_Units (either its directly managed BioAPI_Units or those
indirectly managed by it, belonging to a BFP), the application can be developed in the same way as if
it was using a single BSP.
In addition, the developer shall include also those methods needed for the installation, de-installation and the
dynamic instantiation of the available methods and properties. Also the dynamic relationship between BSPs
and BioAPI_Units into BFPs shall be covered.
Finally, when developing a BFP, all indications about the support for the implementation BioAPI_Units shall be
followed (see clause6.4.2).
6.4.4 BSP development
When developing a BSP, all defined methods shall be implemented, even those related to non-included
BioAPI_Units. It may also happen that a BSP is not willing to offer detailed functionality from its BioAPI_Units,
but only willing to provide the use of monolithic methods to the application (e.g. due to security concerns). For
all of these cases the following indications shall be followed:
 Unless the BSP does not want to publish the detailed functionality of a BioAPI_Unit, the BSP
methods that are related to BioAPI_Unit methods shall only contain the call to the method of the
attached BioAPI_Unit, returning the value returned by such method.
 If a method does not want to publish the detail functionality of one of its attached BioAPI_Units, then
the non-supported method shall throw a BioAPIException indicating the non-supported functionality.
Also, if there are properties related only to non-supported methods, its value shall be set to NULL.
And finally the BSPSchema shall denote this lack of functionality.
 For those cases where the BSP is not going to support the attachment of new BioAPI_Units from
BFPs, and that category of BioAPI_Unit is not included in the BSP, then the relevant methods shall
be implemented throwing the BioAPIException indicating the lack of that functionality.
 In case the BSP accepts the attachment of new BioAPI_Units, and when loaded it discovers the
existence of supported BioAPI_Units that cover that functionality, the BSP shall update its
BSPSchema in order to notify that functionality, and shall have a rule to attach one of the available
BioAPI_Units by default (e.g. the first one listed).
 If a certain method within the BSP requires the previous attachment of a BFP BioAPI_Unit, it shall be
developed in a way that, if not BioAPI_Unit attachment has been done, it throws the function not
supported BioAPIException, and if the BioAPI_Unit attachment has already occurred, it calls the
attached BioAPI_Unit method forwarding the request from the application.
In addition, the developer shall include also those methods needed for the installation, de-installation and the
dynamic instantiation of the available methods and properties. Also the dynamic relationship between BSPs
and BioAPI_Units into BFPs shall be covered.
6.4.5 Framework and component registry
The development of the framework is also related to the development of the component registry, which shall
be implemented in a way that a dynamic and non-volatile listing of the installed BSPs and BFPs is stored. Also
the framework shall guarantee that an interoperable installation procedure is available for the platform where it
is being executed and that the application has all BSPs and BFPs discovery mechanisms available.
8 © ISO/IEC 2014 – All rights reserved

ISO/IEC DIS 30106-1
6.4.6 Application development
An application developer shall be aware of the operations and options offered by the Framework, as well as
the BSPs available and the Units attachable. The application developer shall also check the exceptions
occurred with any call to any method, and check whether the called functionality is available in that BSP, or
any other kind of error has occurred. It is recommendable, for simplicity of the application code, that the
application developer uses the highest level methods available, e.g. those in which all the biometric data is
handled within the BSP and not circulated through the application.
In addition there are several features to be considered:
 Even before loading a BSP, the application can ask the Framework about which BSPs and BFPs are
installed, by calling the methods EnumBSPs() and EnumBFPs() respectively.
 Also the application can obtain further information about the BFPs, by calling QueryBFPs() method.

7 BioAPI C# CBEFF Patron Formats
Object Oriented BioAPI shall use biometric data coded as CBEFF Simple BIRs or as CBEFF Complex BIRs,
following the structure and definition give in clauses 15 and 16 of ISO/IEC 19785-3.

8 Constants
8.1 General
For the use of this International Standard in its different parts, the following constants apply, which are
grouped by expected use.
8.2 Biometric Types
 int NoValueAvailableValue = 0x000000;
 int MultipleBiometricTypesValue = 0x000001;
 int FaceValue = 0x000002;
 int VoiceValue = 0x000004;
 int FingerValue = 0x000008;
 int IrisValue = 0x000010;
 int RetinaValue = 0x000020;
 int HandGeometryValue = 0x000040;
 int SignatureOrSignValue = 0x000080;
 int KeystrokeValue = 0x000100;
 int LipMovementValue = 0x000200;
 int GaitValue = 0x001000;
© ISO/IEC 2014 – All rights reserved 9

ISO/IEC DIS 30106-1
 int VeinValue = 0x002000;
 int DNAValue = 0x004000;
 int EarValue = 0x008000;
 int FootValue = 0x010000;
 int ScentValue = 0x020000;
8.3 Biometric Subtypes
 byte NoValueAvailableValue = 0x00; // b'0000 0000'
 byte LeftValue = 0x01; // b'0000 0001'
 byte RightValue = 0x02; // b'0000 0010'
 byte LeftThumbValue = 0x05; // b'0000 0101'
 byte LeftIndexFingerValue = 0x09; // b'0000 1001'
 byte LeftMiddleFingerValue = 0x11; // b'0001 0001'
 byte LeftRingFingerValue = 0x21; // b'0010 0001'
 byte LeftLittleFingerValue = 0x41; // b'0100 0001'
 byte RightThumbValue = 0x06; // b'0000 0110'
 byte RightIndexFingerValue = 0x0A; // b'0000 1010'
 byte RightMiddleFingerValue = 0x12; // b'0001 0010'
 byte RightRingFingerValue = 0x22; // b'0010 0010'
 byte RightLittleFingerValue = 0x42; // b'0100 0010'
 byte LeftPalmValue = 0x85; // b'1000 0101'
 byte LeftBackOfHandValue = 0x89; // b'1000 1001'
 byte LeftWristValue = 0x91; // b'1001 0001'
 byte RightPalmValue = 0x86; // b'1000 0110'
...
