INTERNATIONAL ISO
STANDARD 877-1
First edition
2009-06-01
Plastics — Methods of exposure to solar
radiation —
Part 1:
General guidance
Plastiques — Méthodes d'exposition au rayonnement solaire —
Partie 1: Lignes directrices générales
Reference number
©
ISO 2009
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Principle. 2
5 Apparatus . 3
6 Test specimens . 4
7 Conditions of exposure of the test specimens. 6
8 Exposure stages . 7
9 Procedure . 8
10 Expression of results . 9
11 Test report . 10
Annex A (informative) Classification of climates. 11
Bibliography . 13
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 877-1 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 6, Ageing, chemical
and environmental resistance.
Together with the other parts (see below), it cancels and replaces ISO 877:1994, which has been technically
revised.
ISO 877 consists of the following parts, under the general title Plastics — Methods of exposure to solar
radiation:
⎯ Part 1: General guidance
⎯ Part 2: Direct weathering and exposure behind window glass
⎯ Part 3: Intensified weathering using concentrated solar radiation
iv © ISO 2009 – All rights reserved
Introduction
Outdoor-exposure tests of the type specified in the three parts of this International Standard are needed to
evaluate the performance of plastics when exposed to solar radiation. The results of such tests should be
regarded only as an indication of the effect of exposure to direct weathering (ISO 877-2:2009, method A) or to
indirect weathering using glass-filtered solar radiation (ISO 877-2:2009, method B) or to intensified solar
radiation (ISO 877-3) by the methods described. Results from tests conducted in accordance with any of the
parts of this International Standard will show some variability when comparing results from repeat exposures
conducted at the same location at a different time. This is much more important for materials that show
significant change after a year or less of exposure. In general, results from repeat exposures at the same
location are necessary to determine the range of performance of a material subjected to exposure to solar
radiation as specified in this International Standard. Since the type of climate can have a significant effect on
the rate and type of degradation, results from exposures conducted in different types of climate are necessary
to fully characterize the outdoor durability of a material. For solar-concentrating exposures conducted in
accordance with ISO 877-3, exposure duration is defined in terms of the total solar UV radiant exposure
because of the annual and seasonal variations in solar ultraviolet radiation.
Fresnel-reflecting concentrators of the type described in ISO 877-3, which employ solar radiation as the
source of ultraviolet radiation, are utilized to provide accelerated outdoor-exposure testing of many plastics
materials.
A system of classifying and characterizing climates in different parts of the world is given in Annex A.
The test method chosen is usually that designed to expose the material to the most severe conditions
associated with any particular climate. It should, therefore, be borne in mind that the severity of exposure in
actual use is, in most cases, likely to be less than that specified in this International Standard, and allowance
should be made accordingly when interpreting the results. For example, vertical exposure at 90° from the
horizontal is considerably less severe in its effects on plastics than near-horizontal exposure, particularly in
tropical regions, where the sun is most powerful at high zenith angles.
Polar-facing surfaces are much less likely to be degraded than equator-facing surfaces because they are less
exposed to solar radiation. However, the fact that they may remain wet for longer periods may be of
significance for materials affected by moisture or for materials that are susceptible to microbial growth.
INTERNATIONAL STANDARD ISO 877-1:2009(E)
Plastics — Methods of exposure to solar radiation —
Part 1:
General guidance
1 Scope
This part of ISO 877 provides information and general guidance on the selection and use of the methods of
exposure to solar radiation described in detail in subsequent parts of ISO 877. These methods of exposure to
solar radiation are applicable to plastics materials of all kinds as well as to products and portions of products.
It also specifies methods for determining radiant exposure.
It does not include direct weathering using black-box test fixtures, which simulate higher end-use
temperatures in some applications.
[1] [2]
NOTE ASTM G 7 and ASTM D 4141 describe black-box exposure tests.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 291, Plastics — Standard atmospheres for conditioning and testing
ISO 472, Plastics — Vocabulary
ISO 877-2:2009, Plastics — Methods of exposure to solar radiation — Part 2: Direct weathering and exposure
behind window glass
ISO 877-3, Plastics — Methods of exposure to solar radiation — Part 3: Intensified weathering using
concentrated solar radiation
ISO 2818, Plastics — Preparation of test specimens by machining
ISO 4582, Plastics — Determination of changes in colour and variations in properties after exposure to
daylight under glass, natural weathering or laboratory light sources
ISO 4892-1, Plastics — Methods of exposure to laboratory light sources — Part 1: General guidance
1)
ISO 9370:— , Plastics — Instrumental determination of radiant exposure in weathering tests — General
guidance and basic test method
1) To be published. (Revision of ISO 9370:1997)
ASTM G 179, Standard Specification for Metal Black Panel and White Panel Temperature Devices for Natural
Weathering Tests
ASTM G 183, Standard Practice for Field Use of Pyranometers, Pyrheliometers and UV Radiometers
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 472 and ISO 9370 apply.
[3]
NOTE ASTM G 113 defines terms used for artificially accelerated and natural weathering exposures. Submission
of these definitions has been proposed for inclusion in ISO 472 and/or ISO 9370, or ISO 877, as appropriate.
4 Principle
Specimens or, if required, sheets or other shapes from which specimens can be cut, are exposed to natural
solar radiation (ISO 877-2:2009, method A), or to window-glass-filtered solar radiation (ISO 877-2:2009,
method B) or to intensified solar radiation using a Fresnel-reflecting concentrator (ISO 877-3). After the
prescribed exposure period, the specimens are removed from exposure and, if a characterization is required,
tested for changes in optical, mechanical or other properties of interest. The exposure stage may be a given
period of time or may be expressed in terms of a given total radiant exposure or UV radiant exposure. The
latter is preferred whenever the main objective of the exposure is to determine resistance to solar radiation,
since it minimizes the effect of variations in spectral irradiance with climate, location and time.
Instrumental means of measuring irradiance, and means for integration to give the radiant exposure over a
period of time, are preferred.
NOTE 1 Physical standards that change in colour, or another property, upon exposure to solar radiation have been
used to determine radiant exposures. Determinations of radiant exposure using these procedures are less reliable
indicators than determination of radiant exposure by actual measurement of solar radiation.
When comparing the results of exposure using ISO 877-2:2009, method A or B, with ISO 877-3, differences in
specimen temperatures, ultraviolet radiant exposure levels and moisture deposition should be taken into
account. Additionally, when comparing ISO 877-2:2009, method B, to ISO 877-3, the glass or other
transparent material used as the filter must be identical. Comparison of results from ISO 877-3 to those from
ISO 877-2:2009, method A or B, must be based on equal radiant exposure levels
The climatic conditions during the test may be monitored and reported with the other conditions of exposure.
It is recommended that a similar material of known behaviour be exposed simultaneously with the
experimental material as a control.
Unless otherwise specified, test pieces for the determination of change in colour and change in mechanical
properties are exposed in an unstrained state.
ISO 877-2:2009, method B, excludes the effects of wind and rain. The devices used for ISO 877-3 are
typically equipped to provide moisture in the form of water spray.
Exposures in hot and wet and in hot and dry climates are often used to benchmark the outdoor durability of
materials such as plastics. Information on climate classification can be found in Annex A.
NOTE 2 More detailed information about the effects of different climates and different exposure parameters on the
[4]
variability of results from outdoor exposures can be found in ASTM G 141 .
2 © ISO 2009 – All rights reserved
5 Apparatus
5.1 General requirements
Exposure equipment consisting essentially of an appropriate test rack shall be used. The rack, specimen
holders and other fixtures shall be made from inert materials that will not affect the test results.
...
NORME ISO
INTERNATIONALE 877-1
Première édition
2009-06-01
Plastiques — Méthodes d'exposition
au rayonnement solaire —
Partie 1:
Lignes directrices générales
Plastics — Methods of exposure to solar radiation —
Part 1: General guidance
Numéro de référence
©
ISO 2009

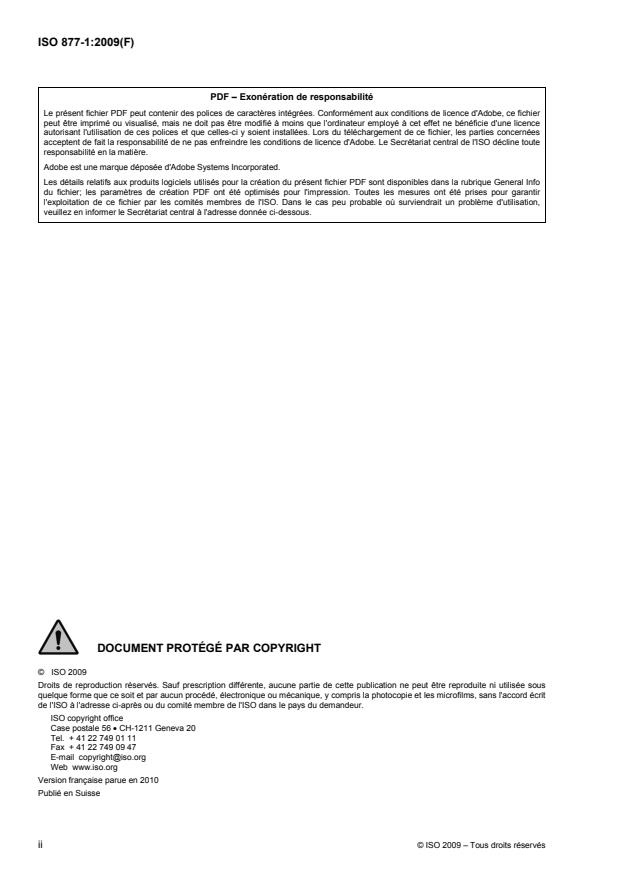

PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2009
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Version française parue en 2010
Publié en Suisse
ii © ISO 2009 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction.v
1 Domaine d'application .1
2 Références normatives.1
3 Termes et définitions .2
4 Principe.2
5 Appareillage .3
6 Éprouvettes.5
7 Conditions d'exposition des éprouvettes.7
8 Phases d'exposition.8
9 Mode opératoire.9
10 Expression des résultats.10
11 Rapport d'essai .11
Annexe A (informative) Classification des climats.13
Bibliographie.15

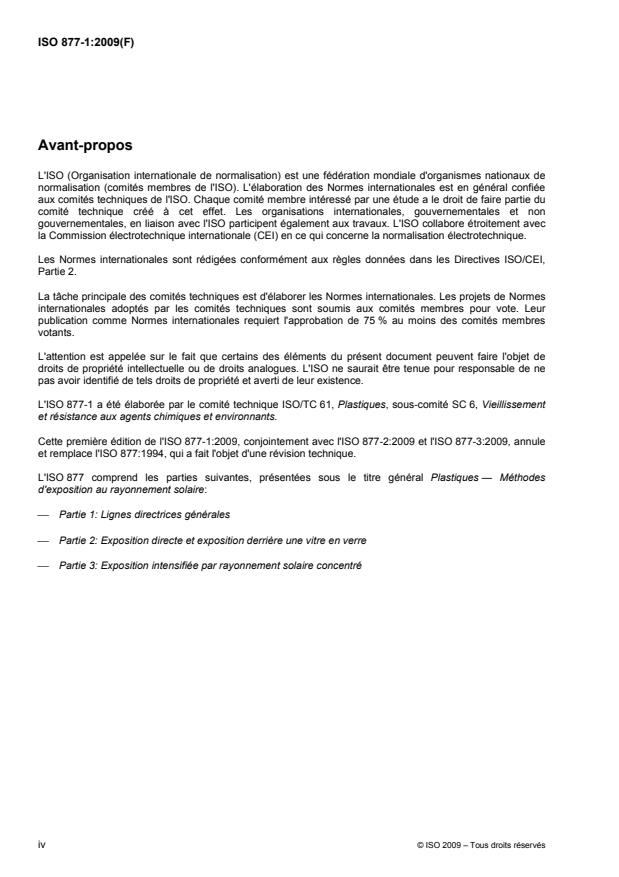

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 877-1 a été élaborée par le comité technique ISO/TC 61, Plastiques, sous-comité SC 6, Vieillissement
et résistance aux agents chimiques et environnants.
Cette première édition de l'ISO 877-1:2009, conjointement avec l'ISO 877-2:2009 et l'ISO 877-3:2009, annule
et remplace l'ISO 877:1994, qui a fait l'objet d'une révision technique.
L'ISO 877 comprend les parties suivantes, présentées sous le titre général Plastiques — Méthodes
d'exposition au rayonnement solaire:
⎯ Partie 1: Lignes directrices générales
⎯ Partie 2: Exposition directe et exposition derrière une vitre en verre
⎯ Partie 3: Exposition intensifiée par rayonnement solaire concentré
iv © ISO 2009 – Tous droits réservés
Introduction
Les essais d'exposition réalisés à l'extérieur, tels que spécifiés dans les trois parties de la présente Norme
internationale, sont nécessaires à l'évaluation de la performance des plastiques lorsqu'ils sont exposés au
rayonnement solaire. Il convient de considérer les résultats de ces essais uniquement comme une indication
des effets de l'exposition directe (ISO 877-2:2009, méthode A), de l'exposition indirecte aux intempéries
derrière une vitre en verre filtrant le rayonnement solaire (ISO 877-2:2009, méthode B) ou de l'exposition
intensifiée par un rayonnement solaire concentré (ISO 877-3), obtenus au moyen des méthodes décrites.
Les résultats des essais réalisés conformément à toutes les parties de la présente Norme internationale
montreront une certaine variabilité lors de la comparaison des résultats obtenus à partir des expositions
répétées effectuées au même endroit à un moment différent. Cette variabilité est beaucoup plus grande pour
les matériaux qui présentent un changement significatif après un temps d'exposition maximal d'une année. En
général, les résultats obtenus à partir d'expositions répétées au même endroit sont nécessaires à la
détermination de la plage de performance d'un matériau soumis au rayonnement solaire, tel que spécifié
dans la présente Norme internationale. Étant donné que le climat peut avoir des répercussions significatives
sur le rythme et le type des dégradations, les résultats obtenus à partir des expositions réalisées dans des
conditions climatiques différentes sont nécessaires à une description complète de la durabilité d'un matériau à
l'extérieur. Pour les expositions intensifiées par un rayonnement solaire concentré réalisées conformément à
l'ISO 877-3, la durée d'exposition est définie en termes d'exposition énergétique totale au rayonnement UV,
en raison des variations annuelles et saisonnières de rayonnement UV.
Les miroirs de Fresnel, tels que décrits dans l'ISO 877-3, qui utilisent le rayonnement solaire comme source
de rayonnement UV, sont destinés à la réalisation d'essais accélérés d'exposition à l'extérieur sur de
nombreux matériaux plastiques.
Un système de classification et de description des conditions climatiques existant dans différentes parties du
monde est donné dans l'Annexe A.
La méthode d'essai choisie est généralement celle destinée à exposer le matériau aux conditions les plus
sévères d'un climat particulier. Par conséquent, il convient de garder à l'esprit que la sévérité de l'exposition
dans des conditions d'utilisation réelles est, dans la plupart des cas, susceptible d'être moindre que celle
spécifiée dans la présente Norme internationale et il convient de prévoir une tolérance en conséquence lors
de l'interprétation des résultats. Par exemple, une exposition verticale à 90° par rapport à l'horizontale produit
des effets beaucoup moins sévères sur les plastiques qu'une exposition presque horizontale, en particulier
dans les régions tropicales où l'ensoleillement est beaucoup plus intense à des angles de zénith élevés.
Les surfaces orientées vers le pôle ont moins tendance à se dégrader que celles orientées vers l'équateur
parce qu'elles sont moins exposées au rayonnement solaire. Cependant, le fait qu'elles peuvent rester
humides plus longtemps peut avoir des répercussions sur les matériaux affectés par l'humidité ou sur les
matériaux susceptibles de subir une prolifération microbienne.
NORME INTERNATIONALE ISO 877-1:2009(F)
Plastiques — Méthodes d'exposition au rayonnement solaire —
Partie 1:
Lignes directrices générales
1 Domaine d'application
La présente partie de l'ISO 877 fournit des informations et des lignes directrices générales concernant le
choix et l'utilisation des méthodes d'exposition au rayonnement solaire, décrites de manière détaillée dans les
parties suivantes de l'ISO 877. Ces méthodes d'exposition au rayonnement solaire sont applicables à tous les
types de plastiques ainsi qu'aux produits et parties de produits.
Elle spécifie également les méthodes de détermination de l'exposition énergétique.
Elle n'inclut pas l'exposition directe aux intempéries au moyen d'installations d'essai d'exposition en boîte
noire, qui simule des températures finales plus élevées dans certaines applications.
[1] [2]
NOTE L'ASTM G 7 et l'ASTM D 4141 décrivent les essais d'exposition en boîte noire.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Pour les références non datées, la dernière édition du
document de référence s'applique (y compris les éventuels amendements).
ISO 291, Plastiques — Atmosphères normales de conditionnement et d'essai
ISO 472, Plastiques — Vocabulaire
ISO 877-2:2009, Plastiques — Méthodes d'exposition au rayonnement solaire — Partie 2: Exposition directe
et exposition derrière une vitre en verre
ISO 877-3, Plastiques — Méthodes d'exposition au rayonnement solaire — Partie 3: Exposition intensifiée
par rayonnement solaire concentré
ISO 2818, Plastiques — Préparation des éprouvettes par usinage
ISO 4582, Plastiques — Détermination des changements de coloration et des variations de propriétés
après exposition à la lumière du jour sous verre, aux agents atmosphériques ou aux sources lumineuses
de laboratoire
ISO 4892-1, Plastiques — Méthodes d'exposition à des sources lumineuses de laboratoire — Partie 1: Guide
général
1)
ISO 9370:— Plastiques — Détermination au moyen d'instruments de l'exposition énergétique lors d'essais
d'exposition aux intempéries — Lignes directrices générales et méthode d'essai fondamentale
ASTM G 179, Standard Specification for Metal Black Panel and White Panel Temperature Devices for Natural
Weathering Tests
ASTM G 183, Standard Practice for Field Use of Pyranometers, Pyrheliometers and UV Radiometers
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l'ISO 472 et l'ISO 9370
s'appliquent.
[3]
NOTE L'ASTM G 113 définit les termes utilisés pour les essais d'exposition accélérée artificiellement et les essais
d'exposition naturelle aux intempéries. Ces définitions ont été proposées pour être incluses dans l'ISO 472 et/ou
l'ISO 9370, ou l'ISO 877, le cas échéant.
4 Principe
Des éprouvettes ou, si nécessaire, des feuilles ou d'autres formes de pièces à partir desquelles des
éprouvettes peuvent être prélevées, sont exposées au rayonnement solaire naturel (ISO 877-2:2009,
méthode A), au rayonnement solaire derrière une vitre en verre (ISO 877-2:2009, méthode B) ou au
rayonnement solaire concentré au moyen d'un concentrateur à miroirs de Fresnel (ISO 877-3). À l'issue de la
période d'exposition recommandée, les éprouvettes sont retirées de la source d'exposition et, si une
caractérisation est requise, elles sont soumises à des essais afin de déterminer les modifications éventuelles
des propriétés optiques, mécaniques ou autres, présentant un intérêt. La phase d'exposition peut
correspondre à une durée déterminée ou être exprimée en termes d'exposition énergétique totale ou
d'exposition énergétique dans l'UV. La dernière solution est préférée dès lors que le principal objectif de
l'exposition est la détermination de la résistance au rayonnement solaire car il minimise l'effet des variations
de l'irradiance spectrale en fonction des conditions climatiques, spatiales et temporelles.
Il est préférable d'utiliser des moyens instrumentaux de mesure de l'irradiance et des moyens d'intégration
pour déterminer l'exposition énergétique pendant une période de temps donnée.
NOTE 1 Des étalons physiques, subissant des modifications de couleur ou d'une autre propriété à l'exposition au
rayonnement solaire, ont été utilisés pour déterminer l'exposition énergétique. Ces méthodes de détermination sont des
...
МЕЖДУНАРОДНЫЙ ISO
СТАНДАРТ 877-1
Первое издание
2009-06-01
Пластмассы. Методы воздействия
солнечного излучения.
Часть 1.
Общее руководство
Plastics — Methods of exposure to solar radiation —
Part 1: General guidance
Ответственность за подготовку русской версии несёт GOST R
(Российская Федерация) в соответствии со статьёй 18.1 Устава ISO
Ссылочный номер
©
ISO 2009

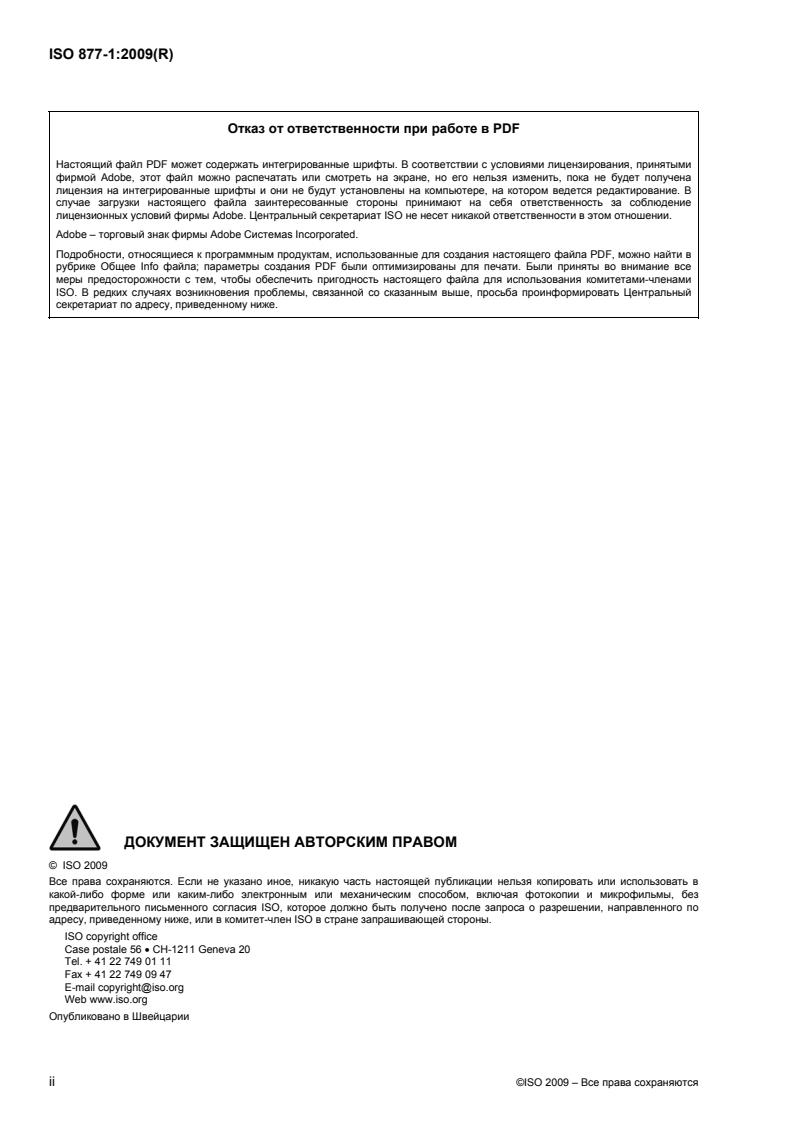

Отказ от ответственности при работе в PDF
Настоящий файл PDF может содержать интегрированные шрифты. В соответствии с условиями лицензирования, принятыми
фирмой Adobe, этот файл можно распечатать или смотреть на экране, но его нельзя изменить, пока не будет получена
лицензия на интегрированные шрифты и они не будут установлены на компьютере, на котором ведется редактирование. В
случае загрузки настоящего файла заинтересованные стороны принимают на себя ответственность за соблюдение
лицензионных условий фирмы Adobe. Центральный секретариат ISO не несет никакой ответственности в этом отношении.
Adobe – торговый знак фирмы Adobe Системаs Incorporated.
Подробности, относящиеся к программным продуктам, использованные для создания настоящего файла PDF, можно найти в
рубрике Общее Info файла; параметры создания PDF были оптимизированы для печати. Были приняты во внимание все
меры предосторожности с тем, чтобы обеспечить пригодность настоящего файла для использования комитетами-членами
ISO. В редких случаях возникновения проблемы, связанной со сказанным выше, просьба проинформировать Центральный
секретариат по адресу, приведенному ниже.
ДОКУМЕНТ ЗАЩИЩЕН АВТОРСКИМ ПРАВОМ
© ISO 2009
Все права сохраняются. Если не указано иное, никакую часть настоящей публикации нельзя копировать или использовать в
какой-либо форме или каким-либо электронным или механическим способом, включая фотокопии и микрофильмы, без
предварительного письменного согласия ISO, которое должно быть получено после запроса о разрешении, направленного по
адресу, приведенному ниже, или в комитет-член ISO в стране запрашивающей стороны.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Опубликовано в Швейцарии
ii ©ISO 2009 – Все права сохраняются
Содержание Страница
Предисловие .iv
Введение .v
1 Область применения .1
2 Нормативные ссылки .1
3 Термины и определения .2
4 Сущность метода.2
5 Аппаратура.3
6 Образцы для испытаний.5
7 Условия экспонирования образцов для испытания.7
8 Стадии экспонирования.8
9 Методика .9
10 Выражение результатов .10
11 Протокол испытания.11
Приложение А (информативное) Классификация климатов .13
Библиография.15
©ISO 2009 – Все права сохраняются iii

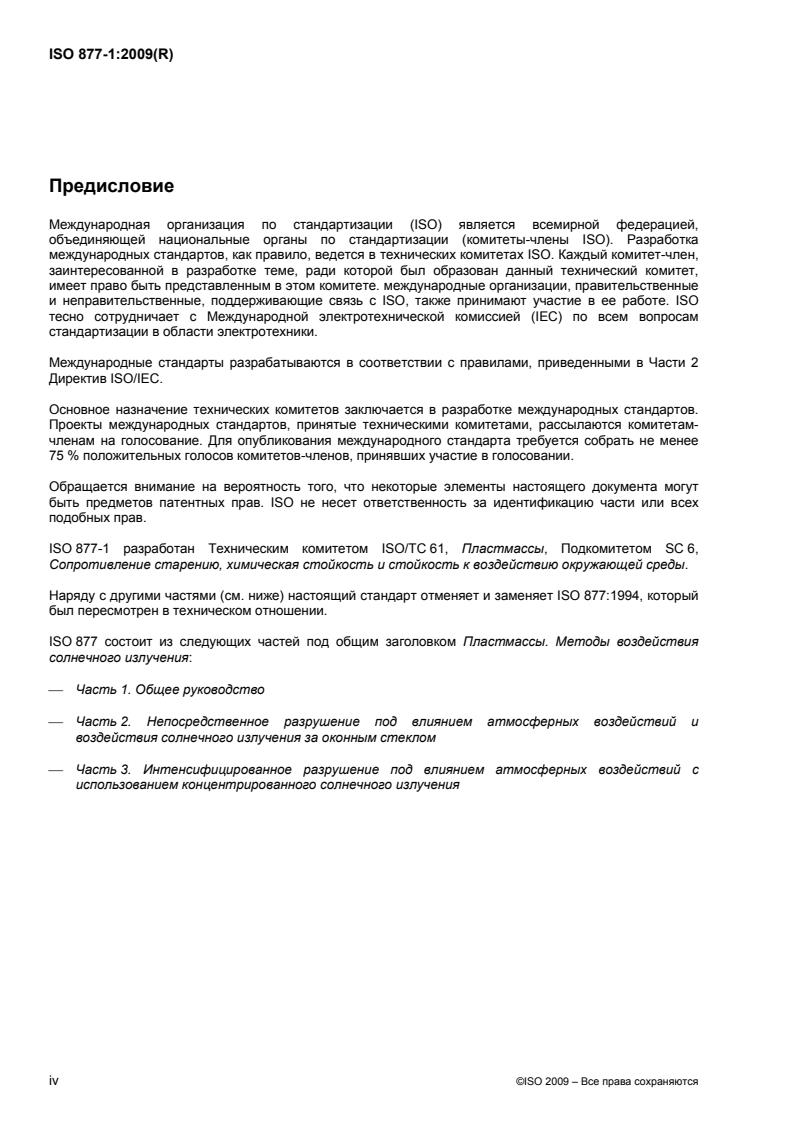

Предисловие
Международная организация по стандартизации (ISO) является всемирной федерацией,
объединяющей национальные органы по стандартизации (комитеты-члены ISO). Разработка
международных стандартов, как правило, ведется в технических комитетах ISO. Каждый комитет-член,
заинтересованной в разработке теме, ради которой был образован данный технический комитет,
имеет право быть представленным в этом комитете. международные организации, правительственные
и неправительственные, поддерживающие связь с ISO, также принимают участие в ее работе. ISO
тесно сотрудничает с Международной электротехнической комиссией (IEC) по всем вопросам
стандартизации в области электротехники.
Международные стандарты разрабатываются в соответствии с правилами, приведенными в Части 2
Директив ISO/IEC.
Основное назначение технических комитетов заключается в разработке международных стандартов.
Проекты международных стандартов, принятые техническими комитетами, рассылаются комитетам-
членам на голосование. Для опубликования международного стандарта требуется собрать не менее
75 % положительных голосов комитетов-членов, принявших участие в голосовании.
Обращается внимание на вероятность того, что некоторые элементы настоящего документа могут
быть предметов патентных прав. ISO не несет ответственность за идентификацию части или всех
подобных прав.
ISO 877-1 разработан Техническим комитетом ISO/TC 61, Пластмассы, Подкомитетом SC 6,
Сопротивление старению, химическая стойкость и стойкость к воздействию окружающей среды.
Наряду с другими частями (см. ниже) настоящий стандарт отменяет и заменяет ISO 877:1994, который
был пересмотрен в техническом отношении.
ISO 877 состоит из следующих частей под общим заголовком Пластмассы. Методы воздействия
солнечного излучения:
⎯ Часть 1. Общее руководство
⎯ Часть 2. Непосредственное разрушение под влиянием атмосферных воздействий и
воздействия солнечного излучения за оконным стеклом
⎯ Часть 3. Интенсифицированное разрушение под влиянием атмосферных воздействий с
использованием концентрированного солнечного излучения
iv ©ISO 2009 – Все права сохраняются
Введение
Испытания на стойкость к воздействию атмосферных условий типа, установленного в трех частях
настоящего международного стандарта, необходимы для оценки рабочих характеристик пластмасс,
которые подвержены воздействию солнечного излучения. Результаты подобных испытаний следует
рассматривать только как обозначение эффекта прямого воздействия атмосферных условий
(ISO 877-2:2009, метод A), или косвенного воздействия атмосферных условий при использовании
фильтрованного стеклом солнечного излучения (ISO 877-2:2009, метод B), или концентрированного
солнечного излучения (ISO 877-3) посредством описанных методов. Результаты испытаний,
проведенные в соответствии с любой из частей настоящего международного стандарта, покажут
определенную изменчивость при сравнении с результатами повторных облучений, проведенных на
одном и том же месте, но в различное время. Это тем более важно в отношении материалов, которые
претерпевают значительные изменения после облучения в течение года или более короткого срока. В
общем, результаты повторных облучений в одном и том же месте необходимы для определения
диапазона рабочих характеристик материала, на который воздействует солнечное излучение так, как
это установлено в настоящем международном стандарте. Поскольку тип климата может оказывать
значительное влияние на скорость и тип ухудшения свойств изделия, результаты воздействия,
полученные в климатических условиях различных типов, необходимы для полной характеризации
долговечности материала в атмосферных условиях. В отношении испытаний на воздействие
концентрированной солнечной энергии, проводимых в соответствии с ISO 877-3, продолжительность
экспонирования определяют через суммарную УФ энергетическую экспозицию вследствие годовых и
сезонных изменений солнечного ультрафиолетового излучения.
Отражающие концентраторы Фреснеля типа, описанного в ISO 877-3, которые использует солнечную
радиацию в качестве источника ультрафиолетового излучения, применяют с целью проведения
ускоренного испытания на стойкость к воздействию атмосферных условий многих материалов из
пластмассы.
Система классификации и определения климатов для различных частей света приводится в
Приложении A.
Выбранный метод испытания обычно относят к тому испытанию, которое предназначено для
воздействия на данный материал в наиболее неблагоприятных условиях, ассоциируемых с каким-либо
определенным климатом. Следовательно, следует учитывать, что степень облучения при фактическом
использовании в большинстве случаев будет, вероятно, меньше той, которая приводится в настоящем
международном стандарте, и в связи с этим при интерпретации полученных данных следует сделать
соответствующую поправку. Например, вертикальное облучение под углом 90° к горизонтали окажется
значительно менее жестким по своему воздействию на пластмассы, чем почти горизонтальное
воздействие, особенно в тропических регионах, где солнце наиболее активно при больших зенитных
расстояниях.
Обращенные к полюсам поверхности в значительно меньшей степени подвержены деградации, чем
поверхности, направленные к экватору, так как они менее подвержены солнечной радиации. Вместе с
тем, тот факт, что они остаются влажными в течение более продолжительных периодов, может иметь
значение для материалов, на которые воздействует влажность, или для материалов, которые
восприимчивы к росту микробов.
©ISO 2009 – Все права сохраняются v
МЕЖДУНАРОДНЫЙ СТАНДАРТ ISO 877-1:2009(R)
Пластмассы. Методы воздействия солнечного излучения.
Часть 1.
Общее руководство
1 Область применения
Настоящая часть ISO 877 приводит информацию и общие рекомендации по выбору и применению
методов воздействия солнечного излучения, которые детально описаны в последующих частях
ISO 877. Эти методы воздействия солнечного облучения распространяются на пластмассовые
материалы всех сортов, а также на их продукты или части продуктов.
Настоящая часть также оговаривает методы определения энергетической экспозиции.
Настоящая часть не включает прямое воздействие атмосферных условий с применением
приспособлений для испытаний типа черный ящик, которые моделируют высокие температуры
практического использования в некоторых областях применения.
[1] [2]
ПРИМЕЧАНИЕ Стандарты ASTM G 7 и ASTM D 4141 описывают испытания на воздействие окружающей
среды с применением черного ящика.
2 Нормативные ссылки
Нижеследующие нормативные документы являются обязательными для применения настоящего
документа. В отношении датированных ссылок действительными являются только указанные издания.
В отношении недатированных ссылок применимо последнее издание ссылаемого документа, включая
любые изменения к нему.
ISO 291, Пластмассы. Стандартные атмосферы для кондиционирования и испытания
ISO 472, Пластмассы.Словарь
ISO 877-2:2009, Пластмассы. Методы воздействия солнечного излучения. Часть 2. Непосредственное
разрушение под влиянием атмосферных воздействий и воздействия солнечного излучения за
оконным стеклом
ISO 877-3, Пластмассы. Методы воздействия солнечного излучения. Часть 3. Интенсивное
разрушение с использованием концентрированного излучения
ISO 2818, Пластмассы. Приготовление образцов для испытания с помощью механической
обработки
ISO 4582, Пластмассы. Определение изменений окраски и свойств после воздействия дневного
света под стеклом, естественных атмосферных условий или лабораторных источников
освещения
ISO 4892-1, Пластмассы. Методы экспонирования под лабораторными источниками света. Часть 1.
Общие руководящие положения
©ISO 2009 – Все права сохраняются 1
1)
ISO 9370:— , Пластмассы. Определение с помощью измерительных приборов энергетической
экспозиции при испытании на атмосферостойкость. Общее руководство и основной метод
испытания
ASTM G 179, Стандартные технические условия на устройства измерения температуры
металлических черных и белых панелей для проведения испытаний на воздействие естественных
природных условий
ASTM G 183, Установившаяся практика применения в полевых условиях пиранометров,
пиргелиометров и УФ-радиометров
3 Термины и определения
Исходя из назначения данного документа, будут применимы следующие термины и определения,
приведенные в ISO 472 и ISO 9370.
[3]
ПРИМЕЧАНИЕ ASTM G 113 определяет термины, используемые для испытания на искусственно
ускоренное и естественное воздействие метеорологических условий. Представление этих определений было
предложено для включения в ISO 472 и/или ISO 9370 или ISO 877, соответственно.
4 Сущность метода
Образцы для испытаний или, если требуется, листы (а также пробные экземпляры другой
конфигурации), от которых могут быть отрезаны эти образцы, подвергают воздействию на
естественное солнечное излучение (ISO 877-2:2009, метод A), или фильтруемое оконным стеклом
солнечное излучение (ISO 877-2:2009, метод B), или концентрированное солнечное излучения,
используя отражающий концентратор Фреснеля (ISO 877-3). После заданного периода экспонирования
образцы удаляют из зоны облучения и, если необходимо определить их параметры, испытывают на
изменение в представляющих интерес оптических, механических или других свойствах. Стадия
экспонирования может быть заданным периодом времени или может выражаться через заданную
суммарную энергетическую экспозицию или УФ энергетическую экспозицию. Последний метод
является предпочтительным во всех случаях, когда главная цель экспонирования заключается в
определении стойкости к солнечному излучению, т.к. этот метод позволяет свести к минимуму эффект
изменений в спектральной плотности потока солнечного излучения в зависимости от климата,
местоположения и времени.
Инструментальным средством измерения энергетической освещенности и средствам для
интегрирования с целью получения энергетической экспозиции в течение какого-то периода времени
следует отдавать предпочтение.
ПРИМЕЧАНИЕ 1 Физические эталоны, цвет или другое свойство которых изменяется под воздействием
солнеч
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
