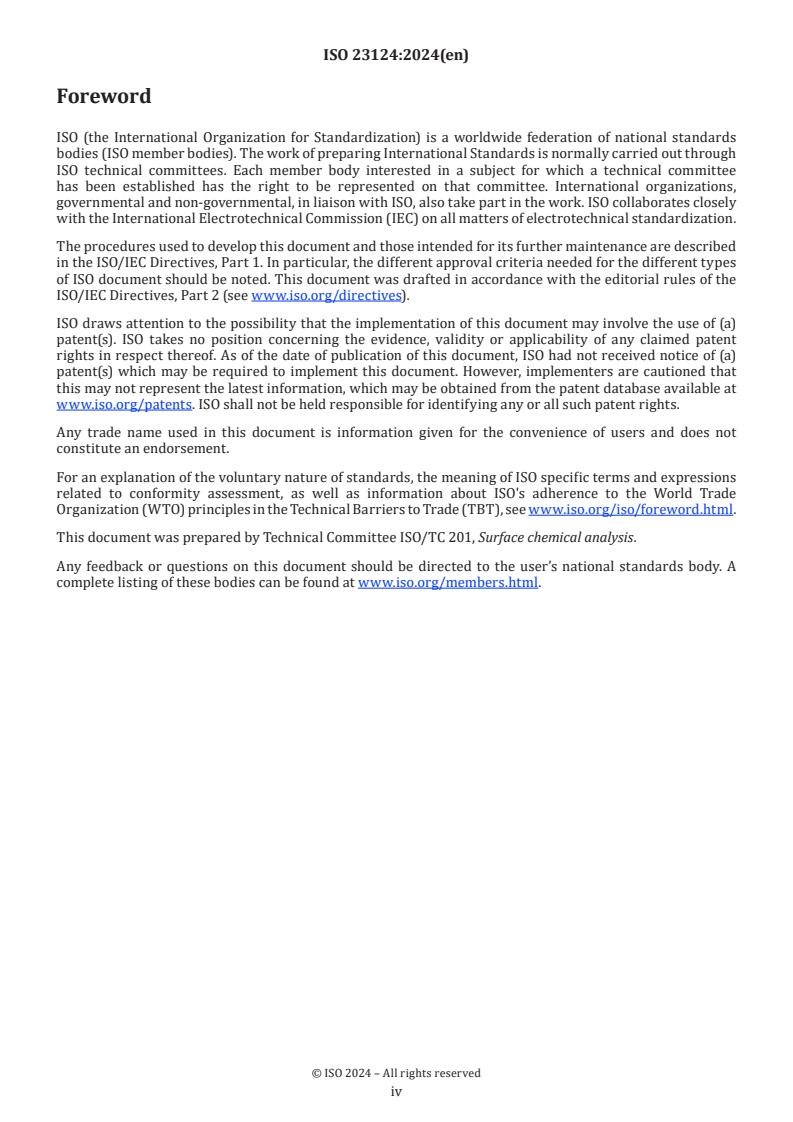

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 201, Surface chemical analysis.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
The Raman microscope is usually built on an optical micro-spectroscopy platform and integrated with laser
input, laser line filter and spectrometer output. The laser focus is scanned on the sample and the Raman-
scattered photons are collected from each pixel to record the full spectrum. Raman spectral images contain
a variety of spectral information, such as the intensity, peak position, or peak width of certain Raman bands.
Spatial resolution is one of the main specifications of the Raman microscope. However, the definition and
the measurement procedures largely vary depending on the manufacturers of the Raman microscope,
therefore the general assessment of the spatial resolution has been limited. In this document, we provide a
standardized protocol that describes the measurement of the spatial resolution of a Raman microscope by
performing simple measurements using specific standard specimens.
In the Raman microscope, spatial resolution includes the lateral resolution and axial resolution. For this
evaluation, there are several methods, such as the straight edge method, narrow line method and grating
method. This document describes only the narrow line method for evaluation of the spatial resolution for
Raman measurement. A case study of the measurement is provided in Annex A.

v
International Standard ISO 23124:2024(en)
Surface chemical analysis — Measurement of lateral and axial
resolutions of a Raman microscope
1 Scope
This document describes a method for measuring the spatial resolutions, lateral and axial, of the Raman
microscope.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
numerical aperture
NA
number originally defined by Abbe for objectives and condensers, which is given by the expression nsin(u),
where n is the refractive index of the medium between the lens and the object and u is half the angular
aperture of the lens
[SOURCE: ISO 10934:2020, 3.1.10.4, modified — Note 1 to entry removed]
3.2
full width at half maximum
FWHM
region of the axial response symmetrical to the maximum peak where the signal falls to one-half of the
maximum peak signal
[SOURCE: ISO 25178-607:2019, 3.8]
3.3
signal-to-noise ratio
ratio of the signal intensity to a measure of the total noise in determining that signal
[SOURCE: ISO 18115-1:2023, 3.23, modified — Notes to entry have been removed]
4 General information
4.1 Outline of the method
Spatial resolution is the capacity for imaging fine detail, which is determined by the minimum spatial
resolution of two-point objects required for their observation as distinct objects. Various methods have

[1]
been proposed to determine the resolution, such as the straight edge, narrow line, and grating methods .
This protocol describes a measurement based on the narrow line method.
In confocal microscopy, the resolution is described by the full width at half maximum (FWHM) of the
[2][3]
confocal point spread function (PSF) using small objects . Besides FWHM of PSF, the FWHM of the
line spread function (LSF) with line-shaped objects for lateral resolution and spread functions of ultra-
thin or low reflective materials as well as LSF for axial resolutions are also applicable to determine spatial
resolutions of confocal microscopy. In the narrow line method, these features are available to evaluate the
lateral and axial resolution.
4.2 Lateral resolution
For measurement of lateral resolution, small objects, or line-shaped objects such as carbon nanotubes
(CNTs) or semiconductor nanowires with widths of tens of nm that provide a strong Raman signal are
recommended. The apparent size of small or diameter of line-shaped objects in a Raman map is a legitimate
measure of the lateral resolution if the actual diameters of line-shaped objects are less than one-fourth of
[2]
the lateral resolution . See Figure 1.
Key
1 objective lens
2 laser light
3 sample
4 scan direction
5 FWHM
Figure 1 — Scanning of laser focus over a line-shaped object for measurement of lateral resolution
4.3 Axial resolution
For measurement of axial resolution, small, line-shaped, (air-suspended) ultra-thin or low reflective
materials are required as standard specimens. For small, line-shaped, ultra-thin or low reflective materials,
the size, diameter, thickness, or penetration depth, respectively, shall be smaller than one-fourth of the axial
[1]
resolution, respectively . See Figure 2.

Key
1 objective lens
2 laser light
3 sample
4 scan direction
5 FWHM
Figure 2 — Scanning of laser focus through suspended ultra-thin materials for the measurement of
axial resolution.
5 Sample requirements
5.1 Selection of the sample and sample requirement to measure the lateral resolution
It is known that an object size less than one-fourth of the PSF or LSF contributes to the size shown in the Raman
[2]
image by less than 1 % . Considering the uncertainty of the whole measurement, this discrepancy may be
regarded to be negligible. Therefore, the size of small objects or the diameter of the line-shaped objects for
the measurements of lateral resolution shall be chosen to be less than one-fourth of the expected resolution
value. The size or diameter of the reference sample should preferably be verified by independent traceable
measur
...
