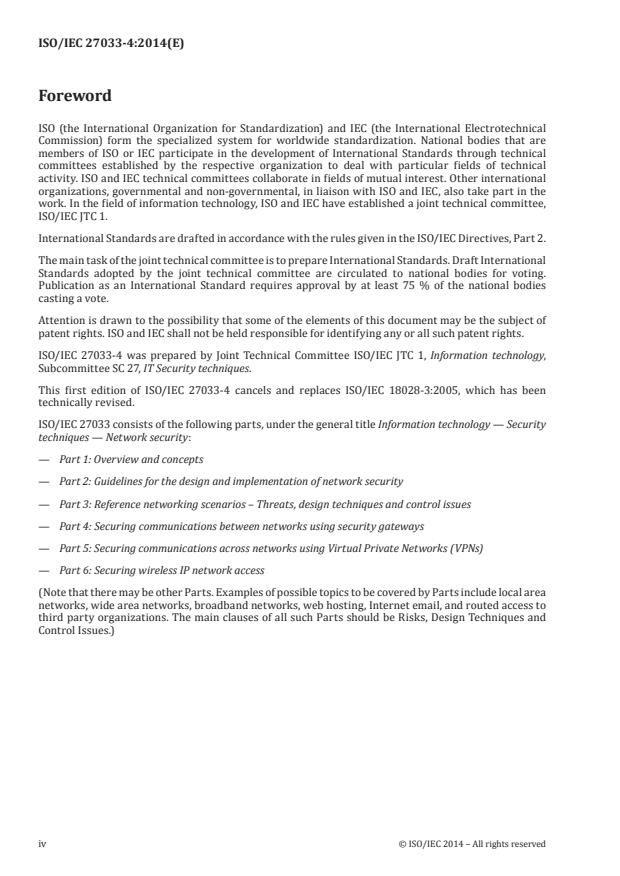

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 27033-4 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 27, IT Security techniques.
This first edition of ISO/IEC 27033-4 cancels and replaces ISO/IEC 18028-3:2005, which has been
technically revised.
ISO/IEC 27033 consists of the following parts, under the general title Information technology — Security
techniques — Network security:
— Part 1: Overview and concepts
— Part 2: Guidelines for the design and implementation of network security
— Part 3: Reference networking scenarios – Threats, design techniques and control issues
— Part 4: Securing communications between networks using security gateways
— Part 5: Securing communications across networks using Virtual Private Networks (VPNs)
— Part 6: Securing wireless IP network access
(Note that there may be other Parts. Examples of possible topics to be covered by Parts include local area
networks, wide area networks, broadband networks, web hosting, Internet email, and routed access to
third party organizations. The main clauses of all such Parts should be Risks, Design Techniques and
Control Issues.)
iv © ISO/IEC 2014 – All rights reserved

Introduction
The majority of both commercial and government organizations have their information systems
connected by networks, with the network connections being one or more of the following:
— within the organization.
— between different organizations.
— between the organization and the general public.
Further, with the rapid developments in publicly available network technology (in particular with
the Internet) offering significant business opportunities, organizations are increasingly conducting
electronic business on a global scale and providing online public services. The opportunities include
the provision of lower cost data communications, using the Internet simply as a global connection
medium, through to more sophisticated services provided by Internet Service Providers (ISPs). This
can mean the use of relatively low cost local attachment points at each end of a circuit to full scale online
electronic trading and service delivery systems, using web-based applications and services. Further,
the new technology (including the integration of data, voice and video) increases the opportunities for
remote working (also known as teleworking or telecommuting). Telecommuters are able to keep in
contact through the use of remote facilities to access organization and community networks and related
business support information and services.
However, while this environment does facilitate significant business benefits, there are new security
threats to be managed. With organizations relying heavily on the use of information and associated
networks to conduct their business, the loss of confidentiality, integrity, and availability of information
and services could have significant adverse impacts on business operations. Thus, there is a major need
to properly protect networks and their related information systems and information. In other words,
implementing and maintaining adequate network security is critical to the success of any organization’s
business operations.
In this context, the telecommunications and information technology industries are seeking cost-
effective comprehensive security solutions, aimed at protecting networks against malicious attacks
and inadvertent incorrect actions, thereby meeting the business requirements for confidentiality,
integrity, and availability of information and services. Securing a network is also essential to achieve
accurate billing for network usage. Security capabilities in products are crucial to overall network
security (including applications and services). However, as more products are combined to provide total
solutions, the interoperability, or the lack thereof, will define the success of the solution. Security must
not only be a thread of concern for each product or service, but must be developed in a manner that
promotes the interweaving of security capabilities in the overall security solution.
The purpose of ISO/IEC 27033-4, Securing communications between networks using security gateways,
is to provide guidance on how to identify and analyse network security threats associated with security
gateways, define the network security requirements for security gateways based on threat analysis,
introduce design techniques to achieve a network technical security architecture to address the threats
and control aspects associated with typical network scenarios, and address the issues associated with
implementing, operating, monitoring and reviewing network security controls with security gateways.
It is emphasized that the ISO/IEC 27033-4 is relevant to all personnel who are involved in the detailed
planning, design and implementation of security gateways (for example network architects and
designers, network managers, and network security officers).
© ISO/IEC 2014 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 27033-4:2014(E)
Information technology — Security techniques — Network
security —
Part 4:
Securing communications between networks using
security gateways
1 Scope
This part of ISO/IEC 27033 gives guidance for securing communications between networks using
security gateways (firewall, application firewall, Intrusion Protection System, etc.) in accordance with
a documented information security policy of the security gateways, including:
a) identifying and analysing network security threats associated with security gateways;
b) defining network security requirements for security gateways based on threat analysis;
c) using techniques for design and implementation to address the threats and control aspects
associated with typical network scenarios; and
d) addressing issues associated with implementing, operating, monitoring and reviewing network
security gateway controls.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 27033-1, Information technology — Security techniques — Network security — Part 1: Overview
and concepts
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 27033-1 and the following
apply.
3.1
bastion host
specific host with hardened operation system that is used to intercept packets entering or leaving a
network and the system that any outsider must normally connect with to access a service or a system
that lies within an organization’s firewall
3.2
end-point software-based firewall
software application running on a single machine, protecting network traffic into and out of that machine
to permit or deny communications based on an end user-defined security policy
© ISO/IEC 2014 – All rights reserved 1

3.3
hardened operating system
operating system which has been configured or designed specifically to minimize the potential for
comprise or attack
Note 1 to entry: This may be a general OS, such as Linux, which has been configured for this environment or may
be a more custom built solution.
3.4
Internet gateway
entry point to access the internet
3.5
packet
entity comprising a well-defined block of bytes consisting of ‘header’, ‘data’ and optional ‘trailer’ which
can be transmitted across networks or over telephone lines
Note 1 to entry: The format of a packet depends on the protocol that created it. Various communications standards
and protocols use special purpose packets to monitor and control a communications session. For example the
X.25 standard uses diagnostic, call clear and reset packets (among others), as well as data packets (or) a unit of
data that is transmitted over the network.
3.6
perimeter network
physical or logical subnetwork that contains and exposes an organization’s external services to a public
network
3.7
remote office
branch office
office externally connected to the organization’s main office through remote networks to provide users
with services (e.g. file, print and the other service) required to maintain their daily business routine
3.8
single point of failure
type of failure that if a part of a system fails, the entire system does not work
3.9
SIP gateway
perimeter device that sits between the internal VoIP network and an external network such as the public
telephone network
Note 1 to entry: Often a router is used to perform the role. Where VoIP is in use to external IP networks it is
important to ensure that the gateway contains sufficient security measures especially dynamic rule base changes
to all call setup to take place securely.
4 Abbreviated terms
ACL Access Control List
API Application Programming Interface
ASIC Application Specific Integrated Circuit
BGP Border Gateway Protocol
CPU Central Processing Unit
DDoS Distributed Denial-of-Service
2 © ISO/IEC 2014 – All rights reserved

DLL Dynamic Link Library
DMZ Demilitarized Zone
DNS Domain Name Server
DoS Denial-of-Service
FTP File Transfer Protocol
HTTP Hypertext Transfer Protocol
HTTPS Hypertext Transfer Protocol over Secure Socket Layer
ICMP Internet Control Message Protocol
IDS Intrusion Detection System
IP Internet Protocol
IPS Intrusion Prevention System
ISP Internet Service Provider
MIME Multipurpose Internet Mail Extensions
NAT Network Address Translation
NFS Network File System
NIS Network Information System
NNTP Network News Transport Protocol
NTP Network Time Protocol
OS Operating System
OSI Open System Interconnection
OSPF Open Shortest Path First
RIP Routing Information Protocol
RPC Remote Procedure Call
SIP Session Initiation Protocol
SMS Short Message Service
S/MIME Secure/Multipurpose Internet Mail Extensions
SMTP Simple Mail Transfer Protocol
SOAP Simple Object Access Protocol
SPA Switched Port Analyzer
SPOF Single Point Of Failure
SQL Structured Query Language
© ISO/IEC 2014 – All rights reserved 3

SSL Secure Sockets Layer protocol
SYN Synchronous
TCP Transmission Control Protocol
TLS Transport Layer Security
UDP User Datagram Protocol
VLAN Virtual Local Area Network
VM Virtual Machine
VoIP Voice over Internet Protocol
VPN Virtual Private Network
WAIS Wide-area Information Servers or Service
WLAN Wireless Local Area Network
XML Extensible Markup Language
5 Structure
The structure of ISO/IEC 27033-4 comprises:
— an overview of security gateway (see Clause 6);
— security threats associated with security gateway (see Clause 7);
— security requirements based on an analysis for security gateways (see Clause 8);
— security controls associated with typical network scenarios and network technology areas using
security gateway (see Clause 9);
— various design techniques for security gateways (see Clause 10); and
— guidelines for product selection (see Clause 11).
6 Overview
A security gateway is placed at the boundary between two or more network segments, for example,
between the organization’s internal network and a public network, to filter the traffic flowing across the
boundary in accordance with the documented security gateway service access policy for that boundary.
Another use of security gateways is to separate segments of the network when using services that may
have multiple tenants, for example when using cloud services a security gateway would protect an
organization’s information by applying the organization’s security policy.
An example network environment is shown in Figure 1 below which is only for illustrative purposes
in this overview. The DMZ, referred to as a perimeter network, is a physical or logical subnetwork that
contains and exposes an organization’s external services to a public network, usually the Internet. The
purpose of a DMZ is to add an additional layer of security to an organization’s internal network; an
external attacker only has access to services in the DMZ, rather than any other part of the internal
network. All external connections to services should terminate inside the DMZ and DMZ systems should
have little or no access to internal systems. Designing a network in this way does not eliminate the risk
of an internal network compromise, it merely makes it more difficult. Any intruder which can subvert
a service inside a perimeter network may then have the opportunity to identify another vulnerability
4 © ISO/IEC 2014 – All rights reserved

which could allow access to the internal network. For this reason, amongst others, the internal network
should still be made as secure as possible.
Figure 1 — Example Network Environment
Most organizations may have multiple “zones” or DMZ areas for web, application and database layers
and for meeting some compliance/regulatory requirements.
The “hybrid” solutions now exist which incorporate multiple areas of functionality. Many packet filtering
firewalls now have proxies for certain services and include more controls for context such as role, time
of day, etc.
The Intranet owned by the organization is managed and maintained by those authorized by the
organization. An organization of any significant size should have separate network segments between
which internal security gateways will control the traffic flow. Separate infrastructure may be used for
special purposes within the Intranet. For instance, if a WLAN is used as part of the intranet, it should
be isolated and require further authentication as it introduces additional risks. The internal security
gateway can be used to protect the organization’s assets against attacks from this segmentation.
The organization communicates and exchanges data with trusted third parties in a way extending the
Intranet towards the network of the partner’s network through the so-called Extranet. The extranet
security gateway can be used to address the threats induced from this extension. When using services
such as cloud computing the security gateway is used to restrict access and apply an organization’s
security policy to logical networks. The business of the organization necessitates communications and
data exchange with business partners, customers, and general public through the public network, of
which the Internet is the most common example. Since trust level of the public network is relatively low,
security gateways, so called Internet gateways, are needed to address risks induced from the public
network.
7 Security threats
For the foreseeable future, organizations can expect increasingly sophisticated attacks to be mounted
against their systems. Attempts at unauthorized access can be malicious, for example, leading to a Denial-
of-Service (DoS) attack, the misuse of resources, or the unauthorized access to valuable information.
Organizations should protect their internal network or assets from various threats, such as intentional
© ISO/IEC 2014 – All rights reserved 5

misuse of the assets, misconfiguration of the systems, unauthorized traffic transversal from different
trusted domains within the organization, or other threats from Internet application services.
The security gateway needs to protect the organization from intrusions from unauthorized users
accessing the network from the internal network, the Internet, or third party networks. Unmonitored
content leaving the organization may introduce legal issues and a potential loss of intellectual
property. In addition, as more organizations are connecting to the Internet to meet their organizational
requirements, they are faced with the need to control access to inappropriate or objectionable websites
or web applications and services. Without control, organizations face the threat of productivity losses,
liability exposure and misallocation of bandwidth due to non-productive web surfing. Thus, the key
security threats to be addressed include those associated with:
— Denial-of-Service to authorized users;
— unauthorized modification of data;
— unauthorized disclosure of data;
— unauthorized system re-configuration;
— unauthorized use of resources and assets of organization;
— unauthorized transversal of content e.g. virus and malware;
— violation of virtualization; and
— Denial-of-Service and Distributed Denial-of-Service attack against security gateway.
8 Security requirements
Security gateways control access to a network (OSI model layer 2, 3, and 4), or to an application (OSI
model layers 5 to 7) depicted in Figure 2.
OSI model
Data units in each layer
Application Layer
Layer 7 : Data
Presentation Layer
Layer 6 : Data
Session Layer
Layer 5 : Data
Transport Layer
Layer 4 : Data
Network Layer
Layer 3 : Data
Data Link Layer
Layer 2 : Data
Physical Layer
Layer 1 : Data
Figure 2 — OSI seven layers
Security gateways are used to fulfil the following security requirements:
— provide logical network segmentation;
— restrict and analyse the traffic which passes between the logical networks;
6 © ISO/IEC 2014 – All rights reserved

— control access to and from the organization ́s network, by inspection of connections or by proxy
operations on selected applications;
— enforce an organization ́s network security policy;
— log traffic for subsequent audit;
— hide internal network, host and application architecture; or
— provide the capability for facilitating network management functions, e.g. DoS or DDoS mitigation.
Table 1 illustrates the relationship between the threats in Clause 7 and the security requirements in this
clause.
Table 1 — Relationship between the threats and the requirements
Requirement
Provide Restrict Control access Enforce an Log traffic Hide internal Provide the
logical and analyse to and from the organiza- for subse- network, capability
network the traffic organization’s tion’s quent audit host and for facilitat-
segmenta- which passes network, by network application ing network
Threats
tion between the inspection of security architecture management
logical connections or by policy functions
networks proxy operations
on selected appli-
cations
Denial of X X X X
Service to
authorized
users
Unauthorized X X X X X X
modification
of data
Unauthorized X X X X X X
disclosure of
data
Unauthorized X X X X X
system re-
configuration
Unauthorized X X X X X X X
use of resources
and assets of
organization
Unauthorized X X X X X X X
transversal
of content e.g.
virus and
malware
Violation of X X X X X X
virtualization
Denial-of- X X X X
Service and
Distributed DoS
attack against
security
gateway.
© ISO/IEC 2014 – All rights reserved 7

9 Security controls
9.1 Overview
For each security gateway, a separate service access (security) policy document should be developed and
the content implemented to ensure that only the authorized traffic is allowed to pass. This document
should contain the details of the ruleset that the gateway is required to administer and the configuration
of the gateway. It needs to be ensured that the policy hierarchy is put into force: an organization of any
significant size is likely to have generic policy across the whole organization, possibly augmented by
a generic policy towards a whole class of security devices, possibly further augmented by a specific
policy for a particular device. Thus, in order to ensure that only valid users and traffic gain access from
communications connections, the policy should define and record in detail the constraints and rules
applied to traffic passing into and out of the security gateway and the parameters for its management and
configuration. With all security gateways, appropriate use should be made of available identification and
authentication, logical access control and audit facilities. In addition, they should be checked regularly
for unauthorized software and/or data and, if such is found, incident reports should be produced in
accordance with the organization and/or community’s information security incident management
scheme (see ISO/IEC 27035). A security patch is a change applied to a security gateway to correct the
weakness expressed by a vulnerability, in order to prevent successful exploitation and removes or
mitigates a threat’s capability in a gateway. Hence, security gateways should be regularly updated with
the latest patches and versions to ensure that they are effective against the latest vulnerabilities.
A security gateway should not be connected to an organization’s network until it has been established
that its configuration satisfies the requirements of its governing policies.
A firewall is a good example of a security gateway. Firewalls should normally be those that have achieved
an appropriate assurance level commensurate with the assessed threats, with the standard firewall
ruleset having an implicit deny all for any traffic between networks and adding explicit rules to satisfy
only the required communications paths.
The policies governing a security gateway used to protect a remote system may not warrant the expense
and specialist skills to support a dedicated hardware device. Instead, an end-point software-based
firewall, so-called a personal firewall, can be used, which controls the flow of traffic between the remote
computer and the network to which it is attached. As with any other security gateway, the organization
must be satisfied that the configuration of the ruleset in the end-point software-based firewall satisfies
the requirements of the governing policies.
There are many types of security gateways; including a packet filtering, a proxy firewall, a stateful packet
inspection, a content filtering and application firewall. The details of each type of security gateway will
be described in the following sub-clauses.
Security gateway may employ a virtualization technology to implement necessary functions. Virtual
machines should be well-isolated when sharing memory, CPU and storage capacities.
The hypervisor, also called virtual machine manager, should provide protection for itself and for hosted
VMs, e.g. by moving antivirus and anti-spam processing from VM to hypervisors.
Virtualization security protects both the hypervisor and its VMs. It protects the hypervisor from attacks
and enables VM isolation. This function also includes the protection of the VM images and suspended
VM instances in storage and during migration, and overall VM security life-cycle management.
9.2 Stateless packet filtering
A packet filter judges each packet in isolation from any other packet. The decision as to whether to allow
or deny its progress is based entirely on data within the packet itself. There is no attempt to associate
the packet with any preceding packets that may have been presented to the packet filter. The decision is
therefore based on factors such as:
— Source and/or destination IP address;
8 © ISO/IEC 2014 – All rights reserved

— Payload the packet is carrying (e.g. TCP, UDP, ICMP);
— Source and/or destination port for a TCP or UDP payload;
— Time/date of packet arrival/departure; and
— Network interface card of arrival/departure.
Packet filtering gateways are fast but do not track the significance of any packet within an overall
communication stream.
9.3 Stateful packet inspection
Stateful packet inspection extends (stateless) packet filtering by recording key events in the life cycle
of a communications exchange, typically tracking the state of transport layer protocols. Based upon
packet filtering technology, the stateful packet inspection approach intended and implemented in
some firewall products adds more security checks in an attempt to simulate the secure checks of an
application proxy firewall. Instead of simply looking at the address of each incoming packet individually,
the stateful packet inspection firewall intercepts incoming packets at the network layer until it has
enough information to determine the state of the attempted connection on upper layers. When deciding
the fate of a packet, a stateful packet filter will consider the packet in the context of other packets it has
already seen. This allows the filter, for example, to distinguish between a packet which is part of an
established TCP connection and a similar packet which has arrived on its own. A stateful packet filter
can therefore make more subtle decisions than a packet filter without state. This, however, requires
more resource (memory and processing power) to achieve the same packet throughput.
9.4 Application firewall
An application firewall analyses communications exchange at the application level protocol. For example,
a web application firewall would be configured with rules that represented the correct operation of
HTTP. The decision as to whether to allow an HTTP request or HTTP response can be based both on
the state of the HTTP conversation (for example, is this an appropriate response for a previously seen
request?) or some particular pattern in the data (for example, are characters present which indicate an
SQL injection attack?).
If an application firewall is to function on encrypted communication such as SSL /TLS, then end-to-
end encryption must be broken at the application firewall so that it can filter application data in the
clear. In these circumstances, the application firewall should operate a pair of back-to-back encrypted
communication channels between the source and destination. Should the integrity of such an application
firewall be compromised, then the consequences are especially severe due to the trust that users might
have had in the protection of end to end encryption.
Firewalls mask some of the threats described in Clause 7, for example, unauthorized use of resources
and assets of an organization, by limiting the access to an application or a computer system to a finite
set of identifiable tasks within the proxy itself.
The application firewall approach offers superior security control because it provides application-
level awareness of attempted connections by examining everything at the highest layer of the protocol
stack. The application firewall can be implemented in part of the application proxy which can improve
responsiveness and reduce duplicate traffic. The application proxy service has full visibility at the
application layer and can accordingly see the granular details of each attempted connection up front
and implement security policies accordingly. Application proxy services also feature a built-in proxy
function – terminating the client connection at the application gateway and initiating a new connection
to the internal protected network. The proxy mechanism provides added security because it separates
the external and internal systems and makes it more difficult for attackers on the outside to exploit
vulnerabilities on systems internally. The encrypted end-to-end communications cannot directly traverse
an application firewall but instead exist as two back-to-back encrypted streams with the message in the
clear within the application firewall. This makes the application firewall particularly attractive as an
attack target from which to launch man-in-the-middle attacks against encrypted connections.
© ISO/IEC 2014 – All rights reserved 9

Many firewalls now offer both the traditional proxy services, along with transparent proxy capabilities,
often referred to as “deep packet inspection” or application control. They are application aware and are
able to allow only certain functions within an application or to apply additional controls (for example,
anti-virus scanning of files transferred within an application or blocking video call within Instant
Messaging clients.).
Secure gateways using the application proxies provide the strongest security with the only drawback
being that the added security can negatively impact the performance. Furthermore, for new services it
often takes time before the proxy for this service becomes available.
9.5 Content filtering
Security gateways with application level proxies often implement content filtering. Content filtering is a
key protection against malicious or inappropriate code. It can help to defend against threats delivered as
application downloads or executed in the browser. This can range from Trojan horses to in-appropriate
ActiveX controls. As most of this malicious code is distributed over the Internet via email or HTTP-based
communication (e.g. downloads from a website or a FTP site), the protection should start at the point
where the security gateway interfaces to the Internet. Therefore, a virus scanner or more generally,
a content scanner is added to the screened subnet or the Demilitarized Zone (DMZ). In most of the
installations, the content scanner is linked directly to the firewall with a network interface so that the
services such as SMTP-based email traffic and the HTTP-based communication are routed to the content
filtering scanner.
The predominant technologies for content analysis are as follows:
— protocol analysis;
— Signature-based scanning (searching for known patterns);
— Investigative analysis (analysing code for functions and behaviour known to be associated with
malicious code); and
— Sandbox technology (essentially a content monitoring program, which quarantines suspect code in
a “sandbox”).
As the difference between content scanning and intrusion detection is small, especially regarding
network based intrusion detection, an Intrusion Detection System (IDS) can also be combined with the
firewall by implementing an IDS agent on the firewall device. See ISO/IEC TR 15947.
NOTE Selection, deployment and operations of intrusion detection or prevention systems form the subject of
an International Standard, ISO/IEC 27039.
Content filtering technology also has some limitations. If data is encrypted on the transport or application
layer (e.g. SSL/TLS or S/MIME), content screening is no longer possible unless the encrypted data is
decrypted and re-encrypted again on the firewall. This could pose security threats such as “man in the
middle” attacks.
There may be legal implications regarding content scanning and filtering, especially where a strong
data protection legislation is in effect. In such a scenario, only automatic scanning for malicious code
may be allowed, but not the scanning for specific content of an email because this may infringe upon the
privacy of the sender and of the recipient.
9.6 Intrusion prevention system and intrusion detection system
An intrusion is an unauthorized access to a network or a network-connected system, i.e. deliberate or
accidental unauthorized access to an information system, malicious activity against an information
system, or unauthorized use of resources within an information system. Intrusion prevention is a formal
process of actively responding to prevent intrusions. The intrusion prevention system is a variant on
intrusion detection systems that are specifically designed to provide an active response capability, while
10 © ISO/IEC 2014 – All rights reserved

intrusion detection systems simply detect possible intrusions that have been attempted, are occurring,
or have occurred and possibly notify the administrators of the intrusions.
9.7 Security management API
A centralized management function allows proper and efficient management of security gateways
deployed in the organization network.
The security management API should be provided by the security gateway for this remote centralized
management in an organization. This centralized management function should help remote management
of security gateways in terms of operation and configuration.
The remote security administrator should be identified and authenticated by the security gateway. This
remote management API should provide a network administrator with tools to administer, monitor, and
troubleshoot the security gateway.
10 Design techniques
10.1 Security gateway components
10.1.1 Switches
Switches are used to allow high-speed communications delivering full network bandwidth to each
physical port. Generally switches are layer 2 devices which are extensively used to segment local area
networks. Further, they can provide subnet isolation when VLAN techniques are implemented. The
traffic between a switch and the nodes connected to that switch can be controlled through the use
of Access Control Lists (ACLs). These can be applied to the OSI model layers 2, 3 and 4. Access control
functionality provided by switches makes them useful for inclusion as components of security gateway
architectures, especially for the implementation and structuring of any screened subnets’ respective
demilitarized zones. Switches used in a security gateway environment should not be connected directly
to a public network due to various threats, e.g. denial-of-service-attacks that can cause the exposed
switch to flood connected networks with packets.
There may be load-balanced switches that operate at layer 7. These are used to provide availability of
both firewalls and servers (though not layer 7 for firewalls usually).
10.1.2 Routers
Routers are normally designed to connect different networks by supporting multiple network protocols
and to optimize the network traffic and the routes between communicating hosts. In addition,
routers can be used as components for security gateways as they are able to filter the respective data
communication data packets based on packet filtering techniques. A router that utilizes this checking of
packet information to control network traffic is often referred to as a screening router. Routers normally
work on layer 3 of the OSI model (the network layer). At this level only packet level information, such as
source and destination ports, can be analysed. Routers can perform NAT and packet filtering.
There may be load-balanced switches that operate at layer 7. These are used to provide availability of
both firewalls and servers (though not layer 7 for firewalls usually).
10.1.3 Application level gateway
An application level gateway is a hardware and software based device or set of devices. Application level
gateways are specifically designed to restrict access between two separate networks. Primarily two
...
