ISO 17356-4:2005

INTERNATIONAL ISO
STANDARD 17356-4
First edition
2005-11-01
Road vehicles — Open interface for
embedded automotive applications —
Part 4:
OSEK/VDX Communication (COM)
Véhicules routiers — Interface ouverte pour applications automobiles
embarquées —
Partie 4: Communications (COM) OSEK/VDX

Reference number
©
ISO 2005
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Interaction Layer. 1
3.1 Overview . 1
3.2 Message reception. 4
3.3 Message transmission . 7
3.4 Byte order conversion and message interpretation . 14
3.5 Deadline monitoring . 16
3.6 Notification . 21
3.7 Communication system management. 22
3.8 Functional model of the Interaction Layer .26
3.9 Interfaces . 28
4 Minimum requirements of lower communication layers . 43
5 Conformance Classes . 44
Annex A (informative) Use of ISO 17356-4 (COM) with an OS not conforming to ISO 17356-3. 46
Annex B (informative) Application notes. 47
Annex C (informative) Callouts .54

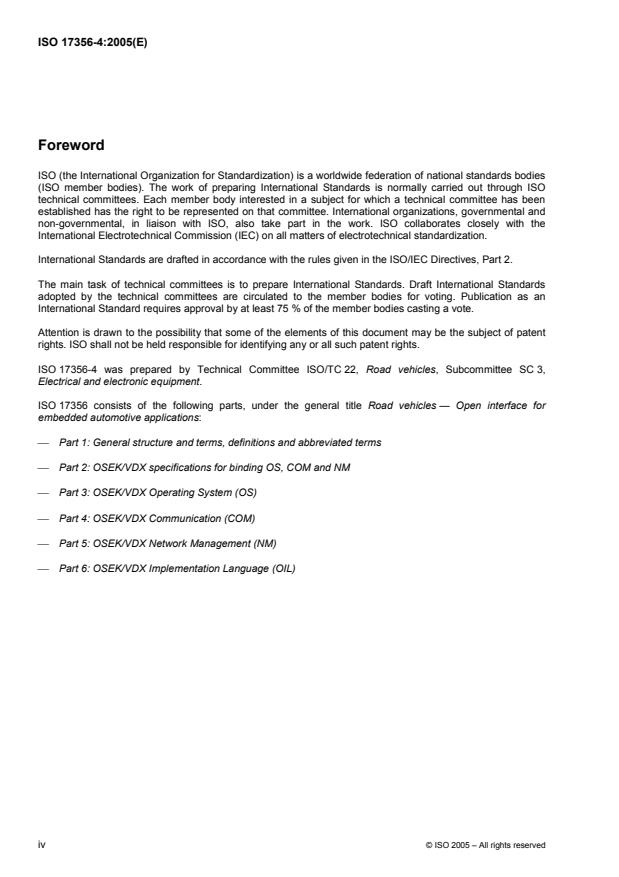

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 17356-4 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 3,
Electrical and electronic equipment.
ISO 17356 consists of the following parts, under the general title Road vehicles — Open interface for
embedded automotive applications:
⎯ Part 1: General structure and terms, definitions and abbreviated terms
⎯ Part 2: OSEK/VDX specifications for binding OS, COM and NM
⎯ Part 3: OSEK/VDX Operating System (OS)
⎯ Part 4: OSEK/VDX Communication (COM)
⎯ Part 5: OSEK/VDX Network Management (NM)
⎯ Part 6: OSEK/VDX Implementation Language (OIL)
iv © ISO 2005 – All rights reserved

Introduction
This part of ISO 17356 specifies a uniform communication environment for automotive control unit application
software. It increases the portability of application software modules by defining common software
communication interfaces and behaviour for internal communication [communication within an electronic
control unit (ECU)] and external communication (communication between networked vehicle nodes), which is
independent of the communication protocol used.
This part of ISO 17356 describes the behaviour within one ECU. It assumes that the communication
environment described in this part of ISO 17356 is used together with an operating system that conforms to
ISO 17356-3. For information on how to run the communication environment described in this part of
ISO 17356 on operating systems that do not conform to ISO 17356-3, refer to Annex A.
Requirements
The following main requirements are fulfilled by this part of ISO 17356:
General communication functionality
This part of ISO 17356 offers services to transfer data between tasks and/or interrupt service routines.
Different tasks may reside in one and the same ECU (internal communication) or in different ECUs (external
communication). Access to ISO 17356-4 services is only possible via the specified Application Program
Interface (API).
Portability, reusability and interoperability of application software
It is the aim of this part of ISO 17356 to support the portability, reusability and interoperability of application
software. The API hides the differences between internal and external communication as well as different
communication protocols, bus systems and networks.
Scalability
This part of ISO 17356 ensures that an ISO 17356-4 implementation can run on many hardware platforms.
The implementation requires only a minimum of hardware resources, therefore different levels of functionality
(conformance classes) are provided.
Support for ISO 17356-5 (Network Management-NM):
Services to support Indirect NM are provided. Direct NM has no requirements of this part of ISO 17356.
Communication concept
Figure 1 shows the conceptual model of this part of ISO 17356 and its positioning within the architecture
defined by ISO 17356. This model is presented for better understanding, but does not imply a particular
implementation of this part of ISO 17356.
Figure 1 — COM’s layer model
In this model, the scope of this part of ISO 17356 partly or entirely covers the following layers:
Interaction Layer
The Interaction Layer (IL) provides the ISO 17356-4 API which contains services for the transfer (send and
receive operations) of messages. For external communication it uses services provided by the lower layers,
whereas internal communication is handled entirely by the IL.
Network Layer
The Network Layer handles — depending on the communication protocol used — message
segmentation/recombination and acknowledgement. It provides flow control mechanisms to enable the
interfacing of communication peers featuring different levels of performance and capabilities. The Network
Layer uses services provided by the Data Link Layer. This part of ISO 17356 does not specify the Network
Layer; it merely defines minimum requirements for the Network Layer to support all features of the IL.
Data Link Layer
The Data Link Layer provides the upper layers with services for the unacknowledged transfer of individual
data packets (frames) over a network. Additionally, it provides services for the NM. This part of ISO 17356
does not specify the Data Link Layer; it merely defines minimum requirements for the Data Link Layer to
support all features of the IL.
vi © ISO 2005 – All rights reserved

Structure of this document
In the following text, the specification chapters are described briefly. Clauses 1 to 5 are normative, the
appendices are descriptive.
Clause 1: Scope
This clause describes the motivation and requirements for this part of ISO 17356, the conceptual model used
and the structure of the document.
Clause 2: Normative references
Clause 3: Interaction Layer
This clause describes the functionality of the IL of the ISO 17356-4 model and defines its API.
Clause 4: Minimum requirements of lower communication layers
This clause lists the requirements imposed by this part of ISO 17356 on the lower communication layers
(Network Layer and Data Link Layer) to support all features of the IL.
Clause 5: Conformance Classes
This clause specifies the Communication Conformance Classes, which allow the adaptation of the feature
content of ISO 17356-4 implementations to the target system’s requirements.
Annex A: Use of this part of ISO 17356 (Com) with an OS not conforming to ISO 17356-3
Annex A gives hints on how to run this part of ISO 17356 on operating systems that do not conform to
ISO 17356-3.
Annex B: Application notes
Annex B provides information on how to meet specific application requirements with the given ISO 17356-4
model.
Annex C: Callouts
Annex C supplies application examples for callouts.
INTERNATIONAL STANDARD ISO 17356-4:2005(E)

Road vehicles — Open interface for embedded automotive
applications —
Part 4:
OSEK/VDX Communication (COM)
1 Scope
This part of ISO 17356-4 (COM) specifies a uniform communication environment for automatic control unit
application software.
It increases the portability of application software modules by defining common software communication
interfaces and behaviours for internal communication (communication within an ECU) and external
communication (communication between networked vehicle nodes), which is independent of the used
communication protocol.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 17356-2, Road vehicles — Open interface for embedded automotive applications — Part 2 OSEK/VDX
specifications for binding OS, COM and NM
ISO 17356-3, Road vehicles — Open interface for embedded automotive applications — Part 3 OSEK/VDX
Operating System (OS)
ISO 17356-5, Road vehicles — Open interface for embedded automotive applications — Part 5 OSEK/VDX
Network Management (NM)
ISO 17356-6, Road vehicles — Open interface for embedded automotive applications — Part 6 OSEK/VDX
Implementation Language (OIL)
3 Interaction Layer
3.1 Overview
3.1.1 Presentation
1)
The communication in this part of ISO 17356 is based on messages . A message contains application-
specific data. Messages and message properties are configured statically via OIL (ISO 17356-6). The content
and usage of messages is not relevant to this part of ISO 17356. Messages with a length of zero (see zero-
length messages, Annex B) are allowed.

1) Messages are often called signals. Thus, COM offers a signal-based interface.
In the case of internal communication, the Interaction Layer (IL) makes the message data immediately
available to the receiver (see Figure 2). In the case of external communication, the IL packs one or more
messages into assigned Interaction Layer Protocol Data Units (I-PDU) and passes them to the underlying
layer. The functionality of internal communication is a subset of the functionality of external communication.
Internal-external communication occurs when the same message is sent internally as well as externally.
Administration of messages is done in the IL based on message objects. Message objects exist on the
sending side (sending message object) and on the receiving side (receiving message object).

Figure 2 — Simplified model for message transmission and reception in ISO 17356-4
The data that is communicated between the IL and the underlying layer is organized into I-PDUs which
contain one or more messages (see Figure 2). A message shall occupy contiguous bits within an I-PDU and
shall not be split across I-PDUs. Within an I-PDU messages are bit-aligned. The size of a message is
specified in bits.
The byte order (endianess) in a CPU can differ from the network representation or from other CPUs on the
network. Therefore, to provide interoperability across the network, the IL provides a conversion from the
network representation to the local CPU representation and vice versa, which is statically configured on a per-
message basis.
The IL offers an Application Program Interface (API) to handle messages. The API provides services for
initialization, data transfer and communication management. Services transmitting messages over network
are non-blocking. This implies, for example, that a service that sends a message is unable to return a final
transmission status because the transfer to the network is still in progress. This part of ISO 17356 provides
notification mechanisms for an application to determine the status of a transmission or reception.
The functionality of the IL can be extended by callouts. (3.8 contains a description of where callouts can be
inserted.)
2 © ISO 2005 – All rights reserved

3.1.2 Communication concept
Senders and receivers of messages are either tasks or interrupt service routines (ISRs) in an OS. Messages
are sent to sending message objects and received from receiving message objects.
Message objects are identified using message identifiers. Message identifiers are assigned to message
objects at system generation.
This part of ISO 17356 supports communication from “m” senders to “n” receivers (m:n communication). Zero
or more senders can send messages to the same sending message object. Sending message objects are
configured to store messages in zero or more receiving message objects for internal communication and in
zero or one I-PDUs for external communication.
One or more sending message objects can be configured to store messages in the same I-PDU for external
communication.
An I-PDU can be received by zero or more CPUs. In each CPU which receives the I-PDU, each message
contained in the I-PDU is stored in zero or more receiving message objects. Zero or more receivers can
receive messages from a receiving message object (see Annex B for additional information).
A receiving message object receives messages from either exactly one sending message object (internal
communication) or exactly one I-PDU, or it receives no messages at all.
A receiving message object can be defined as either queued or unqueued. While a message received by a
message object with the property “queued” (queued message) can only be read once (the read operation
removes the oldest message from the queue), a message received from a message object with the property
“unqueued” (unqueued message) can be read more than once; it returns the last received value each time it is
read.
The queue size for message objects with the property “queued” is specified per message object and shall not
be zero. If the queue of a receiving message object is full and a new message arrives, this message is lost.
This part of ISO 17356 is not responsible for allocating memory for the application messages, but it allows
independent access to message objects for each sender and receiver. In the case of unqueued messages, an
arbitrary number of receivers may receive the message. In the case of queued messages, only one receiver
may receive the message. The IL guarantees that the data in the application’s message copies are consistent
by the following means: the IL deals with messages automatically, and application message data is only read
or written during a send or receive service call.
An external message can have one of two transfer properties:
⎯ Triggered Transfer Property: the message in the assigned I-PDU is updated and a request for the I-PDU’s
transmission is made.
⎯ Pending Transfer Property: the message in the I-PDU is updated without a transmission request.
Internal messages do not have a transfer property. They are immediately routed to the receiver side.
There are three transmission modes for I-PDUs:
⎯ Direct Transmission Mode: the transmission is explicitly initiated by sending a message with Triggered
Transfer Property.
⎯ Periodic Transmission Mode: the I-PDU is transmitted repeatedly with a pre-set period.
⎯ Mixed Transmission Mode: the I-PDU is transmitted using a combination of both the Direct and the
Periodic Transmission Modes.
This part of ISO 17356 supports only static message addressing. A statically addressed message has zero or
more receivers defined at system generation time, each of which receives the message whenever it is sent. A
message has either a static length or its length may vary up to some statically defined maximum. Messages
with a maximum length are called dynamic-length messages.
This part of ISO 17356 provides a mechanism for monitoring the transmission and reception timing of
messages, called Deadline Monitoring. Deadline Monitoring verifies on the sender side that the underlying
layer confirms transmission requests within a defined time period and on the receiver side that periodic
messages are received within a defined time period. The monitoring is performed based on I-PDUs.
The IL provides a fixed set of filter algorithms. On the sender side, a filter algorithm may be used which,
depending on the message contents, discards the message. In this case, no external transmission is
performed and the I-PDU is not updated. There is no filtering on the sender side for internal transmission. On
the receiver side, a filter mechanism may be used per receiver in both internal and external transmission. For
more details on filtering see 3.2.3 and 3.3.6.
3.1.3 Configuration
The configuration of messages and of their senders and receivers shall be defined at system generation time.
Messages cannot be added or deleted at run-time, nor can the packing of messages to I-PDUs be changed.
This applies to all configuration elements and their attributes unless otherwise stated.
Examples for configurable items include:
⎯ Configuration of the transfer properties of messages and the transmission modes of I-PDUs,
⎯ Packing of the messages to I-PDUs, and
⎯ Usage of a queue by a receiver and the size of this queue.
The configuration of single CPUs is described in ISO-17356-6.
3.2 Message reception
3.2.1 General
This subclause states the services and functionality requirements of the message reception entity of the IL.
3.2.2 Message reception overview
The first few steps described in this section are applicable for external communication only.
Reception of a message starts with an indication of the delivery of its containing PDU from the underlying
layer. If this indication does not yield an error, the reception was successful. In this case, an I-PDU Callout is
called (if configured) and this PDU is copied into the I-PDU.
In the case of unsuccessful PDU reception error indication takes place and no data is delivered to the IL. Error
indication can lead to Message Reception Error notification (Notification Class 3, described in 3.6.2).
After copying the data into the I-PDU further processing is performed separately for each contained message.
If the I-PDU contains zero-length messages, these are processed last.
The Reception Deadline Monitoring takes place as described in Clause 3.5.1. Deadline Monitoring can invoke
Message Reception Error notification (Notification Class 3, described in 3.6.2) when the message reception
deadline is missed because the I-PDU that contains the message is not received in time.
The message data is then unpacked from the I-PDU and, if configured, a Network-order Message Callout is
called for the message. Message byte order conversion is performed to convert from network representation
4 © ISO 2005 – All rights reserved

to the representation on the local CPU and, if configured, a CPU-order Message Callout is called for the
message.
The following steps are applicable for both internal and external communication.
The filtering is applied to the message content. If the message is not filtered out, then the message data is
copied into the receiver message object.
After filtering, Message Reception notification (Notification Class 1, described in 3.6.2) is invoked as
appropriate. Notification is performed per message object.
Message data are copied from message object to application messages when the application calls the
ReceiveMessage or ReceiveDynamicMessage API services.
3.2.3 Reception filtering
Filtering provides a means to discard the received message when certain conditions, set by message filter,
are not met for the message value. The message filter is a configurable function that filters messages out
according to specific algorithms. For each message, a different filtering condition can be defined through a
dedicated algorithm.
Filtering is only used for messages that can be interpreted as C language unsigned integer types (characters,
unsigned integers and enumeration).
For zero-length messages and dynamic-length messages, no filtering takes place.
While receiving messages, only the message values allowed by the filter algorithms pass to the application. If
a value has been filtered out, the current instance of the message in the IL represents the last message value
that passed through the filter.
Message filtering is performed per message object.
The following attributes are used by the set of filter algorithms (see Table 1):
⎯ new_value: current value of the message;
⎯ old_value: last value of the message (initialized with the initial value of the message, updated with
new_value if the new message value is not filtered out);
⎯ mask, x, min, max, period, offset: constant values; and
⎯ occurrence: a count of the number of occurrences of this message.
If the message filter algorithm is F_Always for any particular message, no filter algorithm is included in the
runtime system for the particular message.
Table 1 — Message filter algorithms
Algorithm reference Algorithm Description
F_Always True No filtering is performed so that the
message always passes.
F_Never False The filter removes all messages.
F_MaskedNewEqualsX (new_value&mask) == x Pass messages whose masked value is
equal to a specific value.
F_MaskedNewDiffersX (new_value&mask) != x Pass messages whose masked value is not
equal to a specific value.
F_NewIsEqual new_value == old_value Pass messages which have not changed.
F_NewIsDifferent new_value != old_value Pass messages which have changed.
F_MaskedNewEqualsMaskedOld (new_value&mask) == Pass messages where the masked value
(old_value&mask) has not changed.
F_ MaskedNewDiffersMaskedOld (new_value&mask) != Pass messages where the masked value
(old_value&mask) has changed.
F_NewIsWithin min <= new_value <= max Pass a message if its value is within a
predefined boundary.
F_NewIsOutside (min > new_value) || Pass a message if its value is outside a
(new_value > max) predefined boundary.
F_NewIsGreater new_value > old_value Pass a message if its value has increased.
F_NewIsLessOrEqual new_value <= old_value Pass a message if its value has not
increased.
F_NewIsLess new_value < old_value Pass a message if its value has decreased.
F_NewIsGreaterOrEqual new_value >= old_value Pass a message if its value has not
decreased.
F_OneEveryN occurrence % period == offset Pass a message once every N message
occurrences.
Start: occurrence = 0.
Each time the message is received or
transmitted, occurrence is incremented by 1
after filtering.
Length of occurrence is 8 bit (minimum).
3.2.4 Copying message data into message objects data area
Message data that are not filtered out are copied into the message object’s data. One message may be
delivered to one message object or more than one message object. In the latter case, the message objects
may be a combination of any number of queued or/and unqueued messages.
Zero-length messages do not contain data. However, the notification mechanisms work in the same way as
for non zero-length messages.
3.2.5 Copying data to application messages
The message object’s data are copied to the application message by the API services ReceiveMessage or
ReceiveDynamicMessage. The application provides the application message reference to the service.
This transfer of information between IL and application occurs for internal, external and internal-external
communication.
For zero-length messages, no data is copied.
6 © ISO 2005 – All rights reserved

3.2.6 Unqueued and queued messages
3.2.6.1 Queued message
A queued message behaves like a FIFO (first-in first-out) queue. When the queue is empty, the IL does not
provide any message data to the application. When the queue is not empty and the application receives the
message, then the IL provides the application with the oldest message data and removes this message data
from the queue.
If new message data arrives and the queue is not full, this new message is stored in the queue. If new
message data arrives and the queue is full, this message is lost and the next ReceiveMessage call on this
message object returns the information that a message has been lost.
NOTE For m:n communication, a separate queue is supported for each receiver and messages from these queues
are consumed independently.
3.2.6.2 Unqueued message
Unqueued messages do not use the FIFO mechanism. The application does not consume the message
during reception of message data – instead, a message may be read multiple times by an application once the
IL has received it.
If no message has been received since the start of the IL, then the application receives the message value set
at initialization.
Unqueued messages are overwritten by newly arrived messages.
3.3 Message transmission
3.3.1 Message transmission overview
Sending a message requires the transfer of the application message to the I-PDU (external communication)
and/or the receiving message object(s) (internal communication).
A message that is transferred can be stored in zero or more message objects for internal receivers and in zero
or one I-PDU for external communication.
The application message is transferred upon calling a specific API service (SendMessage,
SendDynamicMessage or SendZeroMessage).
When the API service is called for internal communication, the message is directly handed to the receiving
part of the IL (see 3.2) for further processing.
The following description is for external communication only.
For external communication, filtering on the sending side is performed. If the message is discarded, no further
action takes place. No filtering takes place on zero-length messages or dynamic-length messages.
Thereafter, if configured, the CPU-order Message Callout is called, byte order conversion is performed, the
Network-order Message Callout is called and the message is stored in the I-PDU.
The transfer of information between the application and IL may use any of the applicable transfer properties of
messages: Triggered or Pending.
Transmission of messages via the underlying layers takes place based on I-PDUs. Transmission of I-PDUs
may use any of the applicable transmission modes of I-PDUs: Direct, Periodic or Mixed.
More than one message may be stored in an I-PDU. However, only the last message in an I-PDU may be a
dynamic-length message. Static-length messages may overlap each other, but it is not allowed for any
message to overlap a dynamic-length message. Two messages are defined as overlapping if they have at
least one I-PDU bit in common.
The moment when transmission is initiated, the I-PDU Callout is called.
The user can be notified if the I-PDU is transferred successfully (by confirmation from the underlying layer not
containing an error) or not (by confirmation from the underlying layer containing an error, or by a time-out).
3.3.2 Transfer of internal messages
Internal messages do not have transfer properties because the transfer is always executed in the same way.
The IL routes internal messages directly to the receiving part of the IL (see 3.2) for further processing. The
application is responsible for requesting each transfer of an internal message using the SendMessage or
SendZeroMessage API service.
No data transfer takes place for zero-length messages.
3.3.3 Transfer properties for external communication
3.3.3.1 Basics
This part of ISO 17356 supports two different transfer properties for the transfer of external messages from
the application to the I-PDU: Triggered and Pending.
The application is responsible for requesting each transfer of a message to the IL, using the SendMessage,
SendDynamicMessage or SendZeroMessage API services. Depending on filtering (for SendMessage only),
the message can be discarded. If the message is not discarded, the IL stores it in the corresponding I-PDU.
No data transfer takes place for zero-length messages.
Zero-length messages can only have Triggered Transfer Property.
Even if no transmission has taken place since the last call to SendMessage or SendDynamicMessage, the
I-PDU is updated.
3.3.3.2 Triggered Transfer Property
The Triggered Transfer Property causes immediate transmission of the I-PDU, except if Periodic Transmission
Mode is defined for the I-PDU.
3.3.3.3 Pending Transfer Property
The Pending Transfer Property does not cause transmission of the I-PDU.
3.3.4 Transmission modes
3.3.4.1 General
This part of ISO 17356 supports three different transmission modes for the transmission of I-PDUs via the
underlying layers: Direct, Periodic and Mixed.
8 © ISO 2005 – All rights reserved

3.3.4.2 Direct Transmission Mode
Transmission of an I-PDU with Direct Transmission Mode is caused by the transfer of any message assigned
to the I-PDU with Triggered Transfer Property. The transfer is immediately followed by a transmission request
from the IL to the underlying layer.

DTR = Direct Transmission Request
Figure 3 — Direct Transmission Mode

Figure 4 — Symbols used in figures
A minimum delay time between transmissions (I_TMD_MDT, greater than or equal to zero) shall be
configured per I-PDU. If a transmission is requested before I_TMD_MDT expires, the next transmission is
postponed until the delay time expires.
The minimum delay time for the next transmission starts the moment the previous transmission is confirmed. If
a transmission is seen as erroneous because of Transmission Deadline Monitoring, the next transmission can
start immediately.
DTR = Direct Transmission Request
Figure 5 — Direct Transmission Mode with minimum delay time
3.3.4.3 Periodic Transmission Mode
In Periodic Transmission Mode the IL issues periodic transmission requests for an I-PDU to the underlying
layer.
Each call to the API service SendMessage or SendDynamicMessage updates the message object with the
message to be transmitted, but does not issue any transmission request to the underlying layer. The Periodic
Transmission Mode ignores the transfer property of all messages contained in the I-PDU. (See Annex B for
more information.)
The transmission is performed by repeatedly calling the appropriate service in the underlying layer with a
period equal to the Periodic Transmission Mode Time Period (I_TMP_TPD).
10 © ISO 2005 – All rights reserved

PTR = Periodic Transmission Request
Figure 6 — Periodic Transmission Mode
3.3.4.4 Mixed Transmission Mode
Mixed Transmission Mode is a combination of the Direct and the Periodic Transmission Modes.
The transmission is performed by repeatedly calling the appropriate service in the underlying layer with a
period equal to the Mixed Transmission Mode Time Period (I_TMM_TPD).
Intermediate transmission of an I-PDU is caused by the transfer of any message assigned to this I-PDU with
Triggered Transfer Property. The transfer is immediately followed by a transmission request from the IL to the
underlying layer. These intermediate transmissions do not modify the base cycle (i.e. I_TMM_TPD).
A minimum delay time between transmissions (I_TMM_MDT, greater than or equal to zero) shall be
configured. If transmissions are requested before I_TMM_MDT expires, the next transmission is postponed
until the delay time expires.
The minimum delay time for the next transmission starts the moment the previous transmission is confirmed. If
a transmission is seen as erroneous because of Transmission Deadline Monitoring, the next transmission can
start immediately.
PTR = Periodic Transmission Request
DTR = Direct Transmission Request
Figure 7 — Mixed Transmission Mode with minimum delay time (simple cases)
An intermediate transmission request less than I_TMM_MDT before the next periodic transmission request
(PTR) delays this PTR and possibly also subsequent PTRs, as shown in Figure 8.
12 © ISO 2005 – All rights reserved

PTR = Periodic Transmission Request
DTR = Direct Transmission Request
Figure 8 — Mixed Transmission Mode with minimum delay time (MDT delays PTR)
3.3.5 Activation/Deactivation of periodic transmission mechanism
The periodic transmission mechanism in the Periodic and the Mixed Transmission Modes is activated by a call
to the StartPeriodic API service. The StartPeriodic service initializes and starts the Periodic or the Mixed
Transmission Mode Time Offset (I_TMP_TOF or I_TMM_TOF) timer.
The first transmission request is issued upon expiry of the Periodic or the Mixed Transmission Mode Time
Offset (I_TMP_TOF or I_TMM_TOF).
StartPeriodic shall be called after the StartCOM API service has completed and once the message object is
correctly initialized. The API service InitMessage can be used to perform this initialization (not shown in
Figure 9).
The periodic transmission mechanism is stopped by means of the StopPeriodic API service.
The Periodic or the Mixed Transmission Mode time offset is configured per I-PDU.
PTR = Periodic Transmission Request
Figure 9 — Activation of the periodic transmission mechanism
(example for an I-PDU with Periodic Transmission Mode)
3.3.6 Message filtering algorithm
Message filtering is used to suppress the transfer of messages. The IL compares the new message value to
the last sent message value and only transfers the message if the filtering condition is met. All other message
values are discarded.
For message filtering, the algorithms listed in Table 1 are supported.
No message filtering is performed for zero-length messages and dynamic-length messages.
3.4 Byte order conversion and message interpretation
The IL is responsible for the byte order conversion between the local CPU and the underlying layers and vice
versa. Byte order conversion (big-endian to little-endian and vice versa) takes place on the sender side before
messages are stored in the I-PDU and on the receiver side when they are retrieved from the I-PDU.
Messages are configured either to remain untouched, or to be interpreted as C unsigned integer types and
converted. No byte order conversion takes place on internal messages and dynamic-length messages.
The IL does not prescribe the byte order used in I-PDUs; different messages in the same I-PDU may have
different byte orders.
On the sender side, for messages which are interpreted as integers, the most significant bits are truncated, if
necessary.
On the receiver side, for messages which are interpreted as integers, the most significant bits are filled with 0,
if necessary.
Dynamic-length messages are always interpreted as byte arrays.
14 © ISO 2005 – All rights reserved

3.4.1 Bit and byte numbering in I-PDUs and messages
An I-PDU is a sequence of bytes numbered from 0 upwards. Within an I-PDU byte, bits are numbered from 0
upwards with bit 0 being the least significant bit.
A message, at the moment it is packed to the I-PDU, is regarded as a sequence of bits numbered from 0
upwards with bit 0 being the least significant bit.
I-PDU bits are numbered counting from 0 upwards from bit 0 of byte 0 of the sequence of bytes constituting
the I-PDU.
3.4.2 Little-endian byte order
A message placed at bit n of an I-PDU occupies bits n, n+1, n+2, etc. of the I-PDU up to the length of the
message.
The least significant bit of the message (LSB, message bit 0) is stored in I-PDU bit n.
The most significant bit of the message (MSB, message bit i) is stored in I-PDU bit n+i.
This byte order is called little-endian byte order (see Figure 10).

Figure 10 — Little-endian byte order
3.4.3 Big-endian byte order
A message placed at bit n of an I-PDU occupies bits n, n+1, n+2, etc. of the I-PDU up to the length of the
message or up to the next I-PDU byte boundary, whichever comes first.
If a message exceeds the boundary of I-PDU byte m, packing of message bits is continued from the least
significant bit of I-PDU byte m-1 upwards.
This byte order is called big-endian byte order (see Figure 11).
Figure 11 — Big-endian byte order
3.5 Deadline monitoring
3.5.1 Reception Deadline Monitoring
Reception Deadline Monitoring can be used to verify on the receiver side that periodic messages are received
within the allowed time frame. This mechanism is configured per message and is performed by monitoring the
reception of the I-PDU that contains the message.
Reception Deadline Monitoring is restricted to external communication.
The deadline monitoring mechanism monitors that a periodic message is received within a given time interval
(I_DM_RX_TO).
The monitoring timer is cancelled and restarted by the IL upon each new reception from the underlying layer
of the PDU that contains the message.
If there is no indication of the PDU’s reception by the underlying layer, the time-out occurs and the timer is
immediately restarted.
The timer for the first monitored time interval is started once message object initialization tasks are performed,
i.e. after the StartCOM API has completed. Depending on system design constraints, a specific value
(I_DM_FRX_TO) can be chosen for the first time-out interval.
The use of this mechanism is not restricted to monitoring the reception of messages (I-PDUs) transmitted
using Periodic Transmission Mode, but also can be applied to messages (I-PDUs) sent using the Direct and
Mixed Transmission Modes. Indirect NM or the application can be notified upon the expiry of a time-out.
16 © ISO 2005 – All rights reserved

Figure 12 — Deadline Monitoring for periodic reception
3.5.2 Transmission Deadline Monitoring
3.5.2.1 General
This section defines mechanisms for monitoring the transmission of messages.
Deadline Monitoring on the sender side can be used to verify that transmission requests (periodic or
otherwise) are followed by transmissions on the network within a given time frame.
Whether Transmission Deadline Monitoring shall be performed can be configured separately for each
message. However, the IL performs Transmission Deadline Monitoring per I-PDU. Therefore, the time-out
period is a property of the I-PDU.
For messages using Triggered Transfer Property, transmission monitoring is available for any transmission
mode. For messages using Pending Transfer Property, transmission monitoring is available for Periodic
Transmission Mode and the periodic part of Mixed Transmission Mode.
3.5.2.2 Direct Transmission Mode
The deadline monitoring mechanism monitors each call to SendMessage, SendDynamicMessage or
SendZeroMessage and checks that a confirmation by the underlying layer occurs within a given time interval
(I_DM_TMD_TO).
The monitoring timer is started upon completion of the call to the SendMessage, SendDynamicMessage or
SendZeroMessage API service.
The timer is cancelled upon confirmation of the transmission by the underlying layer and the application is
notified using the appropriate notification mechanism.
Figure 13 — Direct Transmission Mode: example of a successful transmission
If the transmission does not occur
...
