ISO 13606-2:2008

INTERNATIONAL ISO
STANDARD 13606-2
First edition
2008-12-01
Health informatics — Electronic health
record communication —
Part 2:
Archetype interchange specification
Informatique de santé — Communication du dossier de santé
informatisé —
Partie 2: Spécification d'échange d'archétype

Reference number
©
ISO 2008
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2008 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Conformance. 1
3 Normative references . 1
4 Terms and definitions. 2
5 Symbols and abbreviations . 3
6 Archetype representation requirements . 4
6.1 General. 4
6.2 Archetype definition, description and publication information. 4
6.3 Archetype node constraints . 6
6.4 Data value constraints. 8
6.5 Profile in relation to EN 13606-1 Reference Model. 10
7 Archetype model. 11
7.1 Introduction . 11
7.2 Overview . 14
7.3 The archetype package . 18
7.4 The archetype description package. 20
7.5 The constraint model package . 24
7.6 The assertion package . 31
7.7 The primitive package . 35
7.8 The ontology package. 42
7.9 The domain extensions package . 44
7.10 The support package. 47
7.11 Generic types package. 56
7.12 Domain-specific extensions (informative) . 57
8 Archetype Definition Language (ADL). 58
8.1 dADL — Data ADL. 58
8.2 cADL — Constraint ADL. 79
8.3 Assertions . 106
8.4 ADL paths . 110
8.5 ADL — Archetype definition language . 111
Bibliography . 123

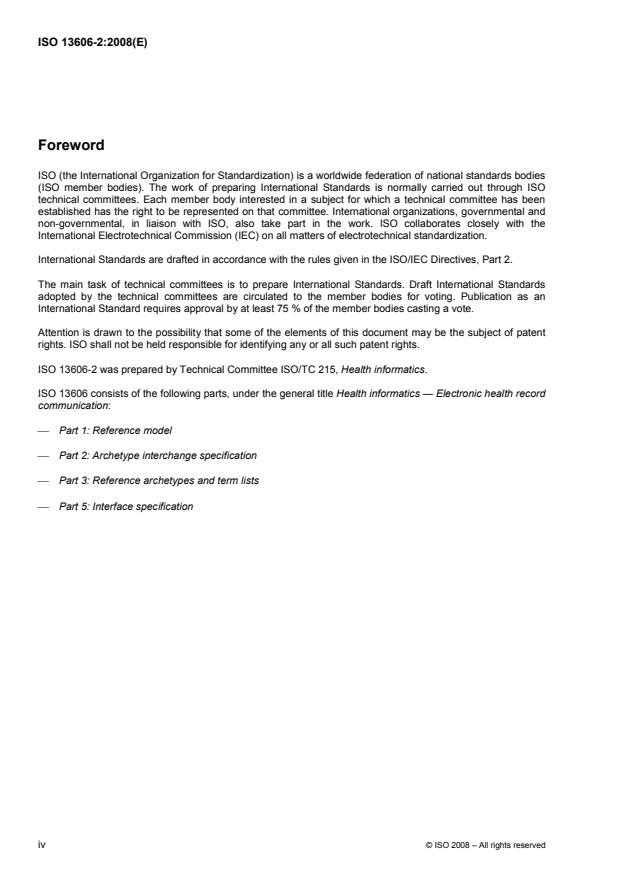

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 13606-2 was prepared by Technical Committee ISO/TC 215, Health informatics.
ISO 13606 consists of the following parts, under the general title Health informatics — Electronic health record
communication:
⎯ Part 1: Reference model
⎯ Part 2: Archetype interchange specification
⎯ Part 3: Reference archetypes and term lists
⎯ Part 5: Interface specification
iv © ISO 2008 – All rights reserved

Introduction
Comprehensive, multi-enterprise and longitudinal electronic health records will often in practice be achieved
through the joining up of multiple clinical applications, databases (and increasingly devices) that are each
tailored to the needs of individual conditions, specialties or enterprises.
This requires that Electronic Health Record (EHR) data from diverse systems be capable of being mapped to
and from a single comprehensive representation, which is used to underpin interfaces and messages within a
distributed network (federation) of EHR systems and services. This common representation has to be
sufficiently generic and rich to represent any conceivable health record data, comprising part or all of an EHR
(or a set of EHRs) being communicated.
The approach adopted in the ISO 13606 series of International Standards, underpinned by international
research on the EHR, has been to define a rigorous and generic Reference Model that is suitable for all kinds
of data and data structures within an EHR, and in which all labelling and context information is an integral part
of each construct. An EHR Extract (as defined in ISO 13606-1) will contain all the names, structure and
context required for it to be interpreted faithfully on receipt, even if its organization and the nature of the
clinical content have not been “agreed” in advance.
However, the wide-scale sharing of health records, and their meaningful analysis across distributed sites, also
requires that a consistent approach be used for the clinical (semantic) data structures that will be
communicated via the Reference Model, so that equivalent clinical information is represented consistently.
This is necessary in order for clinical applications and analysis tools to safely process EHR data that have
come from heterogeneous sources.
Archetypes
The challenge for EHR interoperability is therefore to devise a generalized approach to representing every
conceivable kind of health record data structure in a consistent way. This needs to cater for records arising
from any profession, speciality or service, whilst recognising that the clinical data sets, value sets, templates,
etc., required by different health care domains will be diverse, complex and will change frequently as clinical
practice and medical knowledge advance. This requirement is part of the widely acknowledged health
informatics challenge of semantic interoperability.
The approach adopted by this part of ISO 13606 distinguishes a Reference Model, used to represent the
generic properties of health record information, and Archetypes (conforming to an Archetype Model), which
are metadata used to define patterns for the specific characteristics of the clinical data that represent the
requirements of each particular profession, speciality or service.
The Reference Model is specified as an Open Distributed Processing (ODP) Information Viewpoint Model,
representing the global characteristics of health record components, how they are aggregated, and the
context information required to meet ethical, legal and provenance requirements. In the ISO 13606 series of
International Standards, the Reference Model is defined in ISO 13606-1. This model defines the set of classes
that form the generic building blocks of the EHR. It reflects the stable characteristics of an electronic health
record, and would be embedded in a distributed (federated) EHR environment as specific messages or
interfaces (as specified in ISO 13606-5).
Archetypes are effectively pre-coordinated combinations of named RECORD_COMPONENT hierarchies that
are agreed within a community in order to ensure semantic interoperability, data consistency and data quality.
For an EHR_Extract, as defined in ISO 13606-1, an archetype specifies (and effectively constrains) a
particular hierarchy of RECORD_COMPONENT subclasses, defining or constraining their names and other
relevant attribute values, optionality and multiplicity at any point in the hierarchy, the data types and value
ranges that ELEMENT data values may take, and may include other dependency constraints. Archetype
instances themselves conform to a formal model, known as an Archetype Model (which is a constraint model,
also specified as an ODP Information Viewpoint Model). Although the Archetype Model is stable, individual
archetype instances may be revised or succeeded by others as clinical practice evolves. Version control
ensures that new revisions do not invalidate data created with previous revisions.
Archetypes may be used within EHR systems to govern the EHR data committed to a repository. However, for
the purposes of this interoperability standard, no assumption is made about the use of archetypes within the
EHR provider system whenever this standard is used for EHR communication. It is assumed that the original
EHR data, if not already archetyped, may be mapped to a set of archetypes, if desired, when generating the
EHR_EXTRACT.
The Reference Model defined in ISO 13606-1 has attributes that can be used to specify the archetype to
which any RECORD_COMPONENT within an EHR_EXTRACT conforms. The class
RECORD_COMPONENT includes an attribute archetype_id to identify the archetype and node to which that
RECORD_COMPONENT conforms. The meaning attribute, in the case of archetyped data, refers to the
primary concept to which the corresponding archetype node relates. However, it should be noted that
ISO 13606-1 does not require that archetypes be used to govern the hierarchy of RECORD_COMPONENTS
within an EHR_EXTRACT; the archetype-related attributes are optional in that model. It is recognised that the
international adoption of an archetype approach will be gradual, and may take some years.
Archetype repositories
The range of archetypes required within a shared EHR community will depend upon its range of clinical
activities. The total set needed on a national basis is currently unknown, but there might eventually be several
thousand archetypes globally. The ideal sources of knowledge for developing such archetype definitions will
be clinical guidelines, care pathways, scientific publications and other embodiments of best practice. However,
de facto sources of agreed clinical data structures might also include:
⎯ the data schemata (models) of existing clinical systems;
⎯ the lay-out of computer screen forms used by these systems for data entry and for the display of analyses
performed;
⎯ data-entry templates, pop-up lists and look-up tables used by these systems;
⎯ shared-care data sets, messages and reports used locally and nationally;
⎯ the structure of forms used for the documentation of clinical consultations or summaries within paper
records;
⎯ health information used in secondary data collections;
⎯ the pre-coordinated terms in terminology systems.
Despite this list of de facto ways in which clinical data structures are currently represented, these formats are
very rarely interoperable. The use of standardized archetypes provides an interoperable way of representing
and sharing these specifications, in support of consistent (good quality) health care record-keeping and the
semantic interoperability of shared EHRs.
The involvement of national health services, academic organizations and professional bodies in the
development of archetypes will enable this approach to contribute to the pursuit of quality evidence-based
clinical practice. The next key challenge is to foster communities to build up libraries of archetypes. It is
beyond the scope of this part of ISO 13606 to assert how this work should be advanced, but, in several
countries so far it would appear that national health programmes are beginning to organize clinical-
informatics-vendor teams to develop and operationalize sets of archetypes to meet the needs of specific
healthcare domains. In the future, regional or national public domain libraries of archetype definitions might be
accessed via the Internet, and downloaded for local use within EHR systems. Such useage will also require
processes to verify and certify the quality of shared archetypes, which are also beyond the scope of this part
vi © ISO 2008 – All rights reserved

of ISO 13606 but are being taken forward by non-profit-making organizaitons such as the openEHR
Foundation and the EuroRec Institute.
Communicating archetypes
This part of ISO 13606 specifies the requirements for a comprehensive and interoperable archetype
representation, and defines the ODP Information Viewpoint representation for the Archetype Model and an
optional archetype interchange format called Archetype Definition Language (ADL).
This part of ISO 13606 does not require that any particular model be adopted as the internal architecture of
archetype repositories, services or components used to author, store or deploy archetypes in collaboration
with EHR services. It does require that these archetypes be capable of being mapped to the Archetype Model
defined in this part of ISO 13606 in order to support EHR communication and interoperability within an
EHR-sharing community.
Overview of the archetype model
This section provides a general informative description of the model that is specified in Clause 7.
The overall archetype model consists of identifying information, a description (its metadata), a definition
(expressed in terms of constraints on instances of an object model), and an ontology. Identifying information
and lifecycle state are part of the ARCHETYPE class. The archetype description is separated into revision
history information and descriptive information about the archetype. Revision history information is concerned
with the committal of the archetype to a repository, and takes the form of a list of audit trail items, while
descriptive information describes the archetype itself (regardless of whether it has been committed to a
repository of any kind).
The archetype definition, the “main” part of the archetype model, is an instance of a C_COMPLEX_OBJECT,
since the root of the constraint structure of an archetype shall always take the form of a constraint on a non-
primitive object type. The fourth main part of the archetype model, the ontology, is represented by its own
class, and is what allows the archetypes to be natural-language- and terminology-neutral.
An enumeration class, VALIDITY_KIND, is also included in the archetype package. This is intended to be
used as the type of any attribute in this constraint model whose value is logically “mandatory”, “optional”, or
“disallowed”. It is used in this model in the classes C_Date, C_Time and C_Date_Time.
Archetypes contain some natural language elements, including the description and ontology definitions. Every
archetype is therefore created in some original language, which is recorded in the original_language attribute
of the ARCHETYPE class. An archetype is translated by doing the following:
⎯ translating every language-dependent element into the new language;
⎯ adding a new TRANSLATION_DETAILS instance to ARCHETYPE.translations, containing details about
the translator, organization, quality assurance and so on.
The languages_available function provides a complete list of languages in the archetype.
The archetype definition
The main definitional part of an archetype consists of alternate layers of object- and attribute-constraining
nodes, each containing the next level of nodes. In this section, the word “attribute” refers to any data property
of a class, regardless of whether it is regarded as a “relationship” (i.e. association, aggregation, or
composition) or a “primitive” (i.e. value) attribute. At the leaves are primitive object constrainer nodes
constraining primitive types such as String, Integer, etc. There are also nodes that represent internal
references to other nodes, constraint reference nodes that refer to a text constraint in the constraint binding
part of the archetype ontology, and archetype constraint nodes, which represent constraints on other
archetypes allowed to appear at a given point.
The full list of node types is as follows:
⎯ C_complex_object: any interior node representing a constraint on instances of a non-primitive type, e.g.
ENTRY, SECTION;
⎯ C_attribute: a node representing a constraint on an attribute (i.e. UML “relationship” or “primitive
attribute”) in an object type;
⎯ C_primitive_object: a node representing a constraint on a primitive (built-in) object type;
⎯ Archetype_internal_ref: a node that refers to a previously defined object node in the same archetype; the
reference is made using a path;
⎯ Constraint_ref: a node that refers to a constraint on (usually) a text or coded term entity, which appears in
the ontology section of the archetype, and in ADL, and is referred to using an “acNNNN” code; the
constraint is expressed in terms of a query on an external entity, usually a terminology or ontology;
⎯ Archetype_slot: a node whose statements define a constraint that determines which other archetypes
may appear at that point in the current archetype; logically it has the same semantics as a
C_COMPLEX_OBJECT, except that the constraints are expressed in another archetype, not the current
one.
The archetype description
What is normally considered the “metadata” of an archetype, i.e. its author, date of creation, purpose, and
other descriptive items, is described by the ARCHETYPE_DESCRIPTION and
ARCHETYPE_DESCRIPTION_ITEM classes. The parts of this that are in natural language, and therefore
may require translated versions, are represented in instances of the ARCHETYPE_DESCRIPTION_ITEM
class. If an ARCHETYPE_DESCRIPTION has more than one ARCHETYPE_DESCRIPTION_ITEM, each of
these should carry exactly the same information in a different natural language.
When an archetype is translated for use in another language environment, each
ARCHETYPE_DESCRIPTION_ITEM needs to be copied and translated into the new language.
The AUDIT_DETAILS class is concerned with the creation and modification of the archetype in a repository.
Each instance of this class in an actual archetype represents one act of committal to the repository, with the
attributes documenting who, when and why.
NOTE Revision of an archetype should be limited to modifying the descriptive information and adding language
translations and/or term bindings. If the definition part of an archetype is no longer valid it should instead be replaced with
a new archetype to ensure that corresponding EHR data instances each conform to the same archetype specification.
The archetype ontology
All linguistic entities are defined in the ontology part of the archetype. There are four major parts in an
archetype ontology: term definitions, constraint definitions, term bindings and constraint bindings. The former
two define the meanings of various terms and textual constraints which occur in the archetype; they are
indexed with unique identifiers that are used within the archetype definition body. The latter two ontology
sections describe the mappings of terms used internally to external terminologies.
Archetype specialization
Archetypes may be specialized: an archetype is considered a specialization of another archetype if it specifies
that archetype as its parent, and only makes changes to its definition such that its constraints are “narrower”
than those of the parent. Any data created via the use of the specialized archetype shall be conformant both
to it and to its parent.
Every archetype has a “specialization depth”. Archetypes with no specialization parent have depth 0, and
specialized archetypes add one level to their depth for each step down a hierarchy required to reach them.
viii © ISO 2008 – All rights reserved

Archetype composition
Archetypes may be composed to form larger structures semantically equivalent to a single large archetype.
Archetype slots are the means of composition, and are themselves defined in terms of constraints.
Data types and the support package
The model is dependent on three groups of assumed types, whose names and assumed semantics are
described by ISO/IEC 11404.
The first group comprises the most basic types:
⎯ Any
⎯ Boolean
⎯ Character
⎯ Integer
⎯ Real
⎯ Double
⎯ String
The second comprises the assumed library types:
⎯ date
⎯ time
⎯ date_time
⎯ duration
These types are supported in most implementation technologies, including XML, Java and other programming
languages. They are not defined in this specification, allowing them to be mapped to the most appropriate
concrete types in each implementation technology.
The third group comprises the generic types:
⎯ List (ordered, duplicates allowed)
⎯ Set (unordered, no duplicates)
⎯ Hash (keyed list of items of any type)
⎯ Interval (interval of instances of any ordered type)
Although these types are supported in most implementation technologies, they are not yet represented in UML.
The semantics of these types are therefore defined in the Generic_Types package of the UML model.
The remaining necessary types are defined in the Support Package of the Archetype Model.
⎯ ARCHETYPE_ID
⎯ HIER_OBJECT_ID
⎯ TERMINOLOGY_ID
⎯ CODE_PHRASE
⎯ CODED_TEXT
The support package also includes two enumeration classes to provide controlled data sets needed by this
part of ISO 13606.
The constraint model package
Any archetype definition is an instance of a C_COMPLEX_OBJECT, which expresses constraints on a class
in the underlying Reference Model (see ISO 13606-1), recorded in the attribute rm_type_name. A
C_COMPLEX_OBJECT consists of attributes of the type C_ATTRIBUTE, which are constraints on the
attributes (i.e. any property, including relationships) of that Reference Model class. Accordingly, each
C_ATTRIBUTE records the name of the constrained attribute (in rm_attribute_name), the existence and
cardinality expressed by the constraint (depending on whether the attribute it constrains is a multiple or single
relationship), and the constraint on the object to which this C_ATTRIBUTE refers via its children attribute
(according to its reference model) in the form of further C_OBJECTs.
The key subtypes of C_OBJECT are:
⎯ C_COMPLEX_OBJECT
⎯ C_PRIMITIVE_OBJECT
⎯ ARCHETYPE_SLOT
ARCHETYPE_INTERNAL_REF and CONSTRAINT_REF are used to express, respectively, a “slot” where
further archetypes may be used to continue describing constraints; a reference to a part of the current
archetype that expresses exactly the same constraints needed at another point; a reference to a constraint on
a constraint defined in the archetype ontology, which in turn points to an external knowledge resource, such
as a terminology.
The effect of the model is to create archetype description structures that are a hierarchical alternation of object
and attribute constraints. The repeated object/attribute hierarchical structure of an archetype provides the
basis for using paths to reference any node in an archetype. Archetype paths follow a syntax that is a subset
of the W3C Xpath syntax.
All node types
All nodes in an archetype constraint structure are instances of the supertype ARCHETYPE_CONSTRAINT,
which provides a number of important common features to all nodes.
The any_allowed Boolean, if true, indicates that any value permitted by the reference model for that attribute
is allowed by the archetype; its use permits the logical idea of a completely “open” constraint being simply
expressed, avoiding the need for any further substructure.
Attribute nodes
Constraints on attributes are represented by instances of the two subtypes of C_ATTRIBUTE:
C_SINGLE_ATTRIBUTE and C_MULTIPLE_ATTRIBUTE. For both subtypes, the common constraint is
whether the corresponding instance (defined by the rm_attribute_name attribute) must exist. Both subtypes
have a list of children, representing constraints on the object value(s) of the attribute.
Single-valued attributes are constrained by instances of the type C_SINGLE_ATTRIBUTE, which uses the
children to represent multiple alternative object constraints for the attribute value.
Multiple-valued attributes are constrained by an instance of C_MULTIPLE_ATTRIBUTE, which allows multiple
co-existing member objects of the container value of the attribute to be constrained, along with a cardinality
constraint, describing ordering and uniqueness of the container.
x © ISO 2008 – All rights reserved

Cardinality is only required for container objects such as List, Set, Bag and so on, whereas
existence is always required. If both are used, the meaning is as follows: the existence constraint says
whether the container object will be there (at all), while the cardinality constraint says how many items shall be
in the container, and whether it acts logically as a list, set or bag.
Primitive types
Constraints on primitive types are defined by the classes inheriting from C_PRIMITIVE, namely C_STRING,
C_INTEGER and so on.
Constraint references
A CONSTRAINT_REF is a proxy for a set of constraints on an object that would normally occur at a particular
point in the archetype as a C_COMPLEX_OBJECT, but where the actual definition of the constraint is
expressed as the binding to a query or expression into an external service (such as an ontology or
terminology service), e.g.:
⎯ a set of allowed CODED_TERMs, e.g. the types of hepatitis;
⎯ an INTERVAL forming a reference range;
⎯ a set of units or properties or other numerical items.
Assertions
The C_ATTRIBUTE and subtypes of C_OBJECT enable constraints to be expressed in a structural fashion. In
addition to this, any instance of a C_COMPLEX_OBJECT may include one or more invariants. Invariants are
statements in a form of predicate logic, which may be used to state constraints on parts of an object. They are
not needed to state constraints on a single attribute (since this can be done with an appropriate
C_ATTRIBUTE), but are necessary to state constraints on more than one attribute, such as a constraint that
“systolic pressure should be W diastolic pressure” in a blood pressure measurement archetype. Such
invariants may be expressed using a syntax derived from the Object Management Group's (OMG) OCL
syntax.
Assertions are also used in ARCHETYPE_SLOTs, in order to express the “included” and “excluded”
archetypes for the slot.
Assertions are modelled as a generic expression tree of unary prefix (e.g. not p) and binary infix (e.g. p and q)
operators.
Node_id and paths
The node_id attribute in the class C_OBJECT and inherited to all subtypes has two functions:
⎯ it allows archetype object constraint nodes to be individually identified and, in particular, guarantees
sibling node unique identification;
⎯ it is the main link between the archetype definition (i.e. the constraints) and the archetype ontology,
because each node_id is a “term code” in the ontology.
The existence of node_ids in an archetype is what allows archetype paths to be created, which refer to each
node.
Domain-specific extensions
The main part of the archetype constraint model allows any type in a reference model to be archetyped — i.e.
constrained — in a standard way by a regular cascade of C_COMPLEX_OBJECT / C_ATTRIBUTE /
C_PRIMITIVE_OBJECT objects. However, lower level logical “leaf” types may need special constraint
semantics that are not conveniently achieved with the standard approach. To enable such classes to be
integrated into the generic constraint model, the class C_DOMAIN_TYPE is included. This enables the
creation of specific “C_” classes, inheriting from C_DOMAIN_TYPE, which represent custom semantics for
particular reference model types. For example, a class called C_QUANTITY might be created which has
different constraint semantics from the default effect of a C_COMPLEX_OBJECT / C_ATTRIBUTE cascade
representing such constraints in the generic way (i.e. systematically based on the reference model).
Assumed values
When archetypes are defined to have optional parts, an ability to define “assumed” values is useful. For
example, an archetype for the concept “blood pressure measurement” might contain an optional fragment
describing the patient position, with choices “lying”, “sitting” and “standing”. Since that part of the ENTRY is
optional, data could be created according to the archetype that does not contain this information. However, a
blood pressure cannot be taken without the patient in some position, so it may be clinically valid to define an
implied or “assumed” value. The archetype allows this to be explicitly stated so that all users/systems know
what value to assume when optional items are not included in the data. Assumed values are definable at the
leaf level only and may be specified in the C_PRIMITIVE classes.
The notion of assumed values is distinct from that of “default values”; default values do appear in data, while
assumed values do not.
The assertion package
Assertions are expressed in archetypes in typed first-order predicate logic (FOL). They are used in two places:
to express archetype slot constraints, and to express invariants in complex object constraints. In both of these
places, their role is to constrain something inside the archetype. Constraints on external resources such as
terminologies are expressed in the constraint binding part of the archetype ontology.
The concrete syntax of assertion statements in archetypes is designed to be compatible with the OMG Object
Constraint Language (OCL). Archetype assertions are statements that contain the following elements:
⎯ variables that are attribute names or ADL paths terminating in attribute names (i.e. equivalent of
referencing class feature in a programming language);
⎯ manifest constants of any primitive type, plus date/time types;
⎯ arithmetic operators: +, *, -, /, ^ (exponent);
⎯ relational operators: >, <, >=, <=, =, !=, matches;
⎯ Boolean operators: not, and, or, xor;
⎯ quantifiers applied to container variables: for_all, exists.
The primitives package
Ultimately, any archetype definition will devolve down to leaf node constraints on instances of primitive types.
The primitives package defines the semantics of constraint on such types. Most of the types provide at least
two alternative ways to represent the constraint; for example, the C_DATE type allows the constraint to be
expressed in the form of a pattern or an Interval.
The ontology package
All linguistic and terminological entities in an archetype are represented in the ontology part of an archetype,
whose semantics are given in the ontology package.
xii © ISO 2008 – All rights reserved

An archetype ontology comprises the following things.
⎯ A list of terms defined local to the archetype. These are identified by “atNNNN” codes, and perform the
function of archetype node identifiers from which paths are created. There is one such list for each natural
language in the archetype.
⎯ A list of external constraint definitions, identified by “acNNNN” codes, for constraints defined external to
the archetype, and referenced using an instance of a CONSTRAINT_REF. There is one such list for each
natural language in the archetype.
⎯ Optionally, a set of one or more bindings of term definitions to term codes from external terminologies.
⎯ Optionally, a set of one or more bindings of the external constraint definitions to external resources such
as terminologies.
Specialization depth
Any given archetype occurs at some point in a hierarchy of archetypes related by specialization, where the
depth is indicated by the specialisation_depth attribute. An archetype which is not a specialization of another
has a specialization depth of 0. Term and constraint codes introduced in the ontology of specialized
archetypes (i.e. which did not exist in the ontology of the parent archetype) are defined in a strict way using “.”
(period) markers. For example, an archetype of specialization depth 2 will use term definition codes like the
following:
⎯ “at0.0.1” — a new term introduced in this archetype, which is not a specialization of any previous term in
any of the parent archetypes;
⎯ “at0001.0.1” — a term which specializes the “at0001” term from the top parent. An intervening “.0” is
required to show that the new term is at depth 2, not depth 1;
⎯ “at0001.1.1” — a term which specializes the term “at0001.1” from the immediate parent, which itself
specializes the term “at0001” from the top parent.
This systematic definition of codes enables software to use the structure of the codes to make inferences
more quickly and accurately about term definitions up and down specialization hierarchies. Constraint codes
on the other hand do not follow these rules, and exist in a flat code space instead.
Term and constraint definitions
Local term and constraint definitions are modelled as instances of the class ARCHETYPE_TERM, which is a
code associated with a list of name-value pairs. For any term or constraint definition, this list shall at least
include the name-value pairs for the names “text” and “description”. It might also include such things as
“provenance”, which would be used to indicate that a term was sourced from an external terminology. The
attribute term_attribute_names in ARCHETYPE_ONTOLOGY provides a list of attribute names used in term
and constraint definitions in the archetype, including “text” and “description”, as well as any others that are
used in various places.
Generic types package
This package is included to confirm the semantics of the generic types used in this part of ISO 13606.
Although List, Set, Hash, and Interval are generic types supported by many programming
environments, they are not directly supported in UML. In this package, new types such as List are
defined using Binding Dependencies between a new Basic Type such as List and a Class (LIST in
this example) that defines the minimum required semantics for all Lists.
Domain-specific extension (informative)
Domain-specific classes can be added to the archetype constraint model by inheriting from the class
C_DOMAIN_TYPE. Subclause 7.12.1 (scientific/clinical computing types) shows the general approach used to
add constraint classes for commonly used concepts in scientific and clinical computing, such as “ordinal”,
“coded term” and “quantity”. The constraint types shown are C_ORDINAL, C_CODED_TEXT and
C_QUANTITY which can optionally be used in archetypes to replace the default constraint semantics
represented by the use of instances of C_OBJECT / C_ATTRIBUTE.
Overview of ADL
Archetype Definition Language (ADL) is a formal language for expressing archetypes. ADL uses two other
syntaxes, cADL (constraint form of ADL) and dADL (data definition form of ADL) to describe constraints on
data that are instances of the information model specified in Clause 7 of this part of ISO 13606.
Archetypes expressed in ADL resemble programming language files, and have a defined syntax. ADL itself is
a very simple glue syntax, which uses two other syntaxes for expressing structured constraints and data,
respectively. The cADL syntax is used to express the archetype definition, while the dADL syntax is used to
express data, which appears in the language, description, ontology, and revision_history sections of an ADL
archetype. The top-level structure of an ADL archetype is shown in Figure 1. The abbreviation FOPL stands
for First-Order Predicate Logic.)
xiv © ISO 2008 – All rights reserved

Figure 1 — ADL archetype structure
Clause 8 of this partof ISO 13606 specifies dADL, cADL, ADL path syntax, and the combined ADL syntax,
archetypes and domain-specific type libraries.
EXAMPLE
The following is an example of a simple archetype. The notion of guitar is defined in terms of constraints on a
generic model of the concept INSTRUMENT. The names mentioned down the left-hand side of the definition
section (INSTRUMENT, size, etc.) are alternately class and attribute names from an object model. Each block
of braces encloses a specification for some particular set of instances that conform to a specific concept, such
as guitar or neck, defined in terms of constraints on types from a generic class model. The leaf pairs of braces
enclose constraints on primitive types such as Integer, String and Boolean.
archetype (adl_version=1.4)
adl-test-instrument.guitar.draft
concept
[at0000]      -- guitar
language
original_language = <"en">
translations = <"de", .>
definition
INSTRUMENT[at0000] matches {
size matches {|60.120| }  -- size in cm
date_of_manufacture matches {yyyy-mm-??}
-- year & month ok
parts cardinality matches {0.*} matches {
PART[at0001] matches {  -- neck
material matches {[local::at0003]} -- timber
}
PART[at0002] matches {  -- body
material matches {[local::at0003]} -- timber

}
}
}
ontology
term_definitions = <
[en] = <
items = <
["at0000"] = <
text = <"guitar">;
description = <"stringed instrument">
>
["at0001"] = <
text = <"neck">;
description = <"neck of guitar">
>
["at0002"] = <
text = <"timber">;
description = <"straight, seasoned timber">
>
xvi © ISO 2008 – All rights reserved

["at0003"] = <
text = <"nickel alloy">;
description = <"frets">
>
>
>
>
Clinical examples of archetypes
NOTE 1 Clause 8 of this part of ISO 13606 contains many example code fragments of ADL, which are used to illustrate
specific features of the formalism. These are not to be considered normative clinical data specifications and are treated
only for illustrative purposes.
It is not feasible to include full clinical examples of archetypes within this part of ISO 13606 since they are
quite voluminous in document form, but the reader is encouraged to review a selection of archetypes that are
available on-line from:
http://svn.openehr.org/knowledge/archetypes/dev/index.html
This site offers both an ADL representation and an html view of a wide range of archetypes. These examples
include language translations and terminology bindings.
NOTE 2 The internal links given in this part of ISO 13606 will only function if http-prefixed.

INTERNATIONAL STANDARD ISO 13606-2:2008(E)

Health informatics — Electronic health record
communication —
Part 2:
Archetype interchange specification
1 Scope
This part of ISO 13606 specifies the information architecture required for interoperable communications
between systems and services that need or provide EHR data. This part of ISO 13606 is not intended to
specify the internal architecture or database
...
