ISO 14739-1:2014

INTERNATIONAL ISO
STANDARD 14739-1
First edition
2014‐12‐15
Document management — 3D use of
Product Representation Compact (PRC)
format —
Part 1:
PRC 10001
Gestion de documents — Utilisation en 3D du format compact de
représentation de produit (PRC) —
Partie 1: PRC 10001
Reference number
ISO 14739‐1:2014(E)
©
ISO 2014
©  ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any
means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.
Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

Contents Page
Contents  . iii
Foreword . v
1  Scope . 1
2  Normative references . 1
3  Terms and definitions . 2
4  Document syntax conventions . 2
4.1  Conventions . 2
4.2  Example Structure . 2
5  PRC file concepts . 3
5.1  The PRC file . 3
5.2  Versioning . 5
5.3  Unique identifiers . 6
5.4  Current data values . 7
5.5  Userdata . 7
5.6  Units . 8
5.7  Tolerances . 8
5.8  Compressed file sections . 9
5.9  Compressed geometry . 9
5.10  Compressed tessellation . 9
6  PRC file contents . 9
6.1  Fileheader . 9
6.2  Filestructure . 11
6.3  PRC Schema . 13
7  PRC basic types . 13
7.1  General . 13
7.2  Uncompressed types . 14
7.3  Compressed types . 15
8  Base entities . 21
8.1  General . 21
8.2  Abstract root types . 21
8.3  Structure and assembly . 25
8.4  Miscellaneous Data . 45
8.5  Gra phics . 56
8.6  Representation items . 72
8.7  Mark up . 77
8.8  Tessellation . 83
8.9  Topology . 114
8.10  Curve . 150
8.11  Surface . 182
8.12  Mathematical O pe rato r . 209
9  Schema Definition . 213
9.1  General . 213
9.2  Enumeration Of Schema Tokens . 214
© ISO 2014 – All rights reserved iii

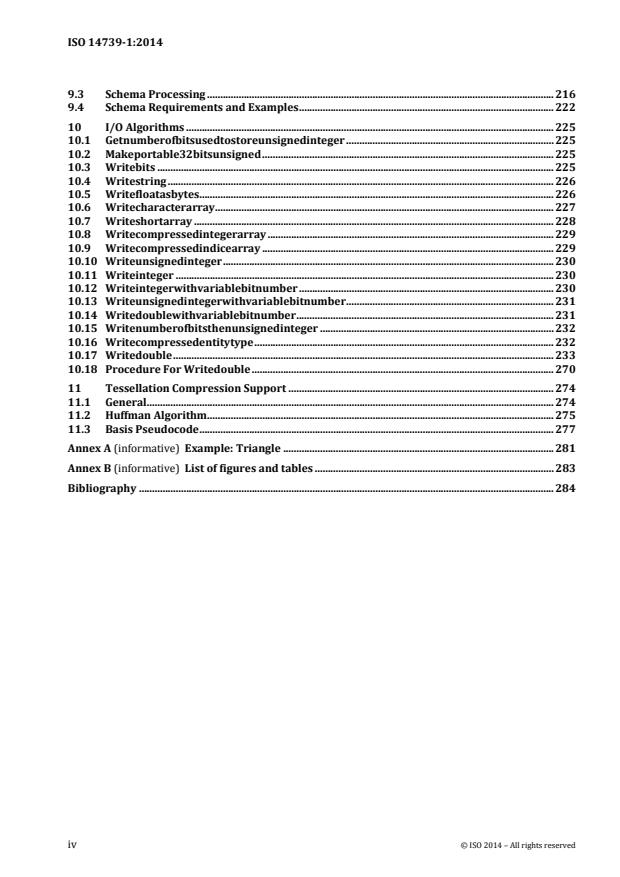

9.3  Schema Processing . 216
9.4  Schema Requirements and Examples . 222
10  I/O Algorithms . 225
10.1  Getnumberofbitsusedtostoreunsignedinteger . 225
10.2  Makeportable32bitsunsigned . 225
10.3  Writebits . 225
10.4  Writestring . 226
10.5  Writefloatasbytes. 226
10.6  Writecharact erar ray . 227
10.7  Writeshortarray . 228
10.8  Writecompressedintegerarray . 229
10.9  Writecompressedindicearray . 229
10.10  Writeunsignedinteger . 230
10.11  Writeinteger . 230
10.12  Writeintegerwithvariablebitnumber . 230
10.13  Writeunsignedintegerwithvariablebitnumber . 231
10.14  Writedoublewithvariablebitnumber . 231
10.15  Writenumberofbitsthenunsignedinteger . 232
10.16  Writecompressedentitytype . 232
10.17  Writedouble . 233
10.18  Procedure For Writedouble . 270
11  Tessellation Compression Support . 274
11.1  Genera l . 274
11.2  Huffman Algorithm. 275
11.3  Basis Pseudocode . 277
Annex A (informative) Example: Triangle . 281
Annex B (informative) List of figures and tables . 283
Bibliography . 284
iv © ISO 2014 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national
standards bodies (ISO member bodies). The work of preparing International Standards is normally
carried out through ISO technical committees. Each member body interested in a subject for which a
technical committee has been established has the right to be represented on that committee.
International organizations, governmental and non‐governmental, in liaison with ISO, also take part in
the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all
matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO's adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword ‐ Supplementary information
The committee responsible for this document is ISO/TC 171, Document management applications,
Subcommittee SC 2, Application issues.
© ISO 2014 – All rights reserved v

Introduction
The data representations in PRC allows 3D design data, typically created in CAD and PLM systems, to be
viewed and interrogated by visualization applications and to be integrated into complex documents.
This document specifies a wide range of data forms. The wide range is necessary to:
 Achieve a high fidelity, visually equivalent representation of 3D design data produced by an
advanced CAD or PLM system without requiring the original application.
 Allow applications to compute high accuracy product shape measurements.
PRC is intended to complement native or open standard CAD and PLM formats as a compact, concise
binary form for visualization and documentation. PRC is not intended as a data format for CAD
interoperability or use in factory automation systems, e.g. automated manufacturing and inspection
systems, which is addressed by the ISO 10303 standards.

vi © ISO 2014 – All rights reserved

INTERNATIONAL STANDARD ISO 14739-1:2014

Document management — 3D use of Product Representation
Compact (PRC) format —
Part 1:
PRC 10001
1 Scope
This International Standard describes PRC 10001 of a product representation compact (PRC) file format
for three dimensional (3D) content data. This format is designed to be included in PDF (ISO 32000) and
other similar document formats for the purpose of 3D visualization and exchange. It can be used for
creating, viewing, and distributing 3D data in document exchange workflows. It is optimized to store,
load, and display various kinds of 3D data, especially that coming from computer aided design (CAD)
systems.
This International Standard does not apply to:
 Method of electronic distribution
 Converting CAD system generated datasets to the PRC format
 Specific technical design, user interface, implementation, or operational details of rendering
 Required computer hardware and/or operating systems
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 12651:1999, Electronic imaging — Vocabulary
ISO 24517‐1:2008, Document management — Engineering document format using PDF — Part 1: Use of
PDF 1.6 (PDF/E-1)
ISO 32000, Document management — Portable document format
IEEE 754, Floating-Point Arithmetic
The OpenGL Graphics System, A Specification, Version 4.1 (Core Profile), July 25, 2010

Available at http://www.opengl.org/registry/doc/glspec41.core.20100725.pdf
© ISO 2014 – All rights reserved 1

3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 32000‐1, ISO 24517‐1 and
ISO 12651 and the following apply.
3.1
PRC File Writer
software application which writes a particular PRC file
3.2
PRC File Reader
software application which reads a particular PRC file
3.3
byte
group of eight bits processed as a single unit of data
4 Document syntax conventions
4.1 Conventions
The following conventions are used within this document to describe data within a PRC File.
Terms highlighted in bold within this document signify field names in the description of entity types.
Entity types are denoted in italic.
A table with three columns is used to describe the data within a contiguous portion of the file.
The first column indicates the name of the field. Field names are not unique and can be considered to
have a scope limited to the data class.
The second column describes the type of the data. This might be
 A simple data type such as a Boolean, UnsignedInteger, or Double
 A simple class of data such as PRC_TYPE_TOPO_Body or PtrTopology where the name of the
class is used to define the data stored for that class
 An Array[] which indicates an array of data of the specified class. An array
has elements. Elements of an array are referenced beginning at 0.
The third column indicates if the field is required or optional. If the field is optional a condition is
described when the field is present. The field may also be described.
4.2 Example Structure
2 © ISO 2014 – All rights reserved

Table 1 — PRC file structure example
Name Type Value
flag1 Boolean (Required) describe flag1
data_field1 (Optional; if flag1 is TRUE) describe data_field1
data_field2 (Optional; if flag1 is FALSE) describe data_field2
topological_body_data PRC_TYPE_TOPO_Body (Required) describe topological_body_data
data_type or Integer (Required) describe data_type
data_of_type3 (Optional; if data_type is 1) describe data_type3
data_of_type4 (Optional; if data_type is 2) describe data_type4
Size UnsignedInteger (Required) describe size
array_of_type5 Array[size] (Required) describe the array of

5 PRC file concepts
5.1 The PRC file
A PRC File is a sequential binary file, written in a way to make the file portable across machine
architectures and operating systems.
PRC is optimized to store various kinds of 3D data, especially those coming from computer‐aided design
(CAD) systems. Most of the main constructs of CAD systems are supported within the PRC File Format:
— Assemblies and parts
— Trees of 3D entities (coordinate systems, wireframes, surfaces, and solids)
— Exact geometry representation for curves, surfaces
— Tessellated (triangulated) representation
— Markup data
PRC is meant to be multipurpose. There are two ways to store exact geometry and tessellation
depending on the usage of the file and on the original information:
— Regular compression is used to directly represent CAD data without loss or transformation from
the originating CAD system.
— High compression is used to store very small files, which have a specified physical tolerance from
the originating shape. The tolerance is typically 0,001 mm for exact geometric data and 0,01 mm for
tessellation data.
Each PRC File corresponds to a single model file (see 8.3.3) which defines the root product occurrences
within the FileStructures of the PRC File. A PRC File is a collection of FileStructures which are
independent from each other and can come from various authoring PRC File Writers. A FileStructure is
the representation of an independent physical file denoting an independent 3D part, assembly, etc.
within a PRC file. Hence, there is one header for each FileStructure with specific information and one
global header for the model file which contains information about the PRC File Writer that assembled
all these individual FileStructures into the final PRC File. Header sections gather primarily information
on file version, FileStructure ids and offsets for reading / skipping sections.
© ISO 2014 – All rights reserved 3

Each FileStructure contains one or more product occurrences (see 8.3.10.2). The product occurrences
denote the assembly hierarchy of the FileStructure. A product occurrence can have child nodes, which
are also product occurrences. There is exactly one root product occurrence in each FileStructure. The
root product occurrence is the only entry point to the FileStructure. (refer to Figure 1 below)
In parallel to the FileStructures, the model file also contains an array of root product occurrences that
comprise the starting point for the entire assembly description. A product occurrence may refer to a
corresponding part definition (see 8.3.11) which in turn contains:
— Geometrical data stored in a tree of representation items (see 8.6.3)
— An optional tree of part markups, grouped into annotation entities and views (see 8.7.2)
A product occurrence can contain:
— A tree of product markups
— Filters used to redefine the loading and presentation of data defined in the child product
occurrences or in the part definition (see 8.3.12)
The representation items are defined through a combination of tessellation or topology and geometry
data, which may be highly compressed. The markups are defined by tessellation data.
F.S. Nut
P.O. Nut P.D. Nut
F.S. Bolt
P.O. Nut
P.O. Bolt
P.O. Washer
F.S. Washer
F.S. Tire
P.O. Washer P.D. Washer
P.O. Nuts
P.O. Bolts
P.O. Washers
P.O. Tire P.O. Nuts
Model File
P.O. Bolts
P.O. Washers
Key:
= Prototype
P.O. Rim
F.S. Rim
= Son Object
P.O.
= Product Occurrence
P.O. Rim P.D. Rim P.D. = Product De�inition
F.S. = File Structure
Figure 1 —Tessellation data
To optimize reading, a PRC File is arranged so that referenced entities are read before being referenced.
Therefore, the FileStructures are ordered using parts, then subassemblies, and finally, the top (root)
assembly.
A PRC File is composed of one header section, which starts with uncompressed data, one or more
FileStructures, and one model file (PRC_TYPE_ASM_ModelFile) data section at the end, each individually
compressed. Refer to 8.3.10 for more information about the PRC file structure.
4 © ISO 2014 – All rights reserved

Table 2 — PRC file structure
Section Sub Sections Compression Description
FileHeader Uncompressed Defines originating author of the
file; specifies start, and possibly
end, location of other sections in file
File Structure 1 FileStructureHeader Uncompressed Identifiers of other File Structures
referenced from within this
FileStructure;
Schema Compressed Description of changes between
minimal version and authoring
version of the FileStructure within
the PRC File Format Specification
Globals Compressed Referenced FileStructures and
colors, line styles, and coordinate
systems for each tree entity of the
FileStructure
Tree Compressed a description of the tree of items
(product occurrences, part
definitions, representation items,
and markup)
Tesselation Compressed All tessellated (triangulated) data in
the leaf entities of the tree
(representation items and
markups).
Geometry Compressed All exact geometry and topology
data of the leaf entities of the
tree(representation items)
Extra Geometry Compressed Geometry summary data, which
allow for partial loading of the
FileStructure without loading the
entire geometry
Additional FileStructure sections in
the PRC File
File Structure N Compressed Last FileStructure section in the
PRC File
Schema ModelFile Schema Compressed Description of changes between
minimal version and authoring
version of the ModelFile Section of
the PRC File Format Specification
Model File Data PRC_TYPE_ASM_ModelFile Compressed

5.2 Versioning
A file format version number is used to define the particular version of this international standard that
a PRC File Reader or PRC File Writer conforms to.
Version numbers consist of the year modulo 2000 followed by three digits representing the day of the
year. This international standard shall have the version 10001, corresponding to the 1st day of the year
2010.
© ISO 2014 – All rights reserved 5

The current_version is the maximum version number that a PRC File Reader or PRC File Writer
conforms to.
Each FileStructure and the FileHeader are independent and can be copied around or written by PRC File
Writers of different versions. Each of them have their own authoring_version and
minimal_version_for_read version numbers. The authoring_version represents the version of the
international standard that the PRC File Writer conformed to at the time the FileHeader or the
FileStructure was written. The minimal_version_for_read represents the version of the international
standard that a PRC File Reader shall conform to to successfully read the FileHeader or the
FileStructure. If the current_version of the PRC File Reader is less than the
minimal_version_for_read, then the PRC File Reader shall not continue to process the file and report
an error.
If minimal_version_for_read is lower than authoring_version, the PRC File Writer shall write a
schema description in the PRC File providing the differences between the two versions of this
international standard. This description will enable a PRC File Reader to read and skip new information,
since these new data cannot be interpreted as they are from a newer version.
A PRC File schema contains a description of new fields or new entity types added between the
minimal_version_for_read and the authoring_version. See 6.3 for a description of a schema.
A PRC File Reader uses the information in the schema to read and skip new information:
— After reading each entity type, the schema information is queried and new data are skipped
accordingly, following the tokens.
— Each time an entity type is read, if the type is unknown, the schema is searched and its data is
skipped.
5.3 Unique identifiers
5.3.1 General
A PRC File reader/writer shall generate (writer) or interprete (reader) unique identifiers for
information within the PRC File. Each FileStructure within a PRC File has an identifier (UUID) which
uniquely identifies this particular FileStructure among all of the FileStructures within the PRC File.
Within each FileStructure, unique identifiers for referenceable entities are generated using the order
that they are first encountered in the FileStructure. Thus, the first referenceable entity in the
FileStructure has the number 1 as its identifier. Subsequent identifiers of referenceable entities are
incremented by 1.
5.3.2 File structure
A PRC FileStructure is identified by an identifier (see UncompressedUniqueId) which is unique among all
of the FileStructures within a single PRC File.
The method to calculate a unique identifier for a given FileStructure is not part of this international
standard.
This approach offers an advantage, for example, such as when there is some intent to repurpose
FileStructures inside other PRC files without entirely rewriting them.
5.3.3 Base entities
The PRC format provides support for referencing entities. See Entity Types in 8.2.1 for a list of entity
types whose entities are referenceable.
The purpose of using references on entities is to enable an interpreter to handle the same entity several
times without any duplication of data, either by any other program, or by another structure in the same
or another PRC file.
6 © ISO 2014 – All rights reserved

A referenceable entity is retrieved using the following:
— The UUID of the FileStructure.
— The entity's unique identifier (a non‐zero unsigned 32‐bit integer) within the FileStructure.
Just as the FileStructure UUID is unique among all of the FileStructures in the PRC File, the entity
identifier is unique inside a FileStructure for all referenceable entities.
A PRC File Writer shall ensure that two referenceable entities inside the same FileStructure do not have
the same identifier. The next available index within a FileStructure is the maximum value that has been
assigned for identifiers to date, and is stored in the PRC File (see 8.3.4) so it is possible to safely add
new entities to a FileStructure and assign them a unique identifier greater than this maximum value.
Data within the FileStructure tessellation and geometry sections are not accessible from outside the
FileStructure using the approach for referenceable entities. These data are referenced only by data
within the tree section (see 5.1 above) of the same FileStructure. However, it is possible (see 8.4.8) to
reference topological data from outside the particular FileStructure which the topological entity lies in.
This is restricted to faces in the current version of PRC but may be extended to other data in future
versions of the format.
5.3.4 Other systems
In addition to the unique identifier mechanisms described above, this international standard provides
for storage of identifiers from the originating system. The external identifiers and their persistence flag
are stored as information in PRC strictly to support external workflows. These identifiers by themselves
only exist to convey information and do not play any role in PRC.
5.4 Current data values
A PRC File reader and writer shall implement the concept of CURRENT for various data.
NOTE This enables smaller file sizes since duplicate data need not be written to the file. It also enables faster
readers because some of the data is not being read. Default initial values are in parentheses.
— Current name (NULL)
— Current graphics
— Index of layer (‐1)
— Index of line style (‐1)
— Behavior bit field (‐1)
Current values shall be updated as they are encountered in the file. Values shall be reset when
serialization is flushed at the end of every flate‐compressed section (see 5.8 Compressed File Sections).
5.5 Userdata
The PRC File format provides a mechanism for a PRC File Writer to write private data within various
sections of a PRC File. Such data shall consist of a bit stream of data containing the size of the bit stream
followed by the specified number of bits.
NOTE Any PRC File Reader can read the bit stream and can even resave the private data, but it may not be
able to interpret the data.
Each FileStructure within a PRC File may contain UserData. UserData are defined in conjunction with an
application unique identifier (UUID) which allows for their interpretation. This application identifier
© ISO 2014 – All rights reserved 7

shall be stored in the FileStructurerHeading. By default, any user data within the FileStructure shall be
assumed to be written by this one writer. However, UserData may contain streams from different
writers. Therefore, different application UUIDs shall be stored accordingly with each of these other
data. UserData are meant to be interpreted only by software which is aware of its meaning according to
a given writers UUID. A conforming PRC File Reader should either ignore those UserData, or interpret
them according to the writers UUID. PRC also allows applications to define special attributes which
behave similarly to UserData,as discussed in 7.3.3.8.
Unique application identifiers are assigned through Adobe Systems, initially, and probably ISO in the
long term. Each company should have it’s own unique application identifier, and if they want to share
data with another company, they should share application identifiers.
5.6 Units
A conforming writer shall define the units used in a PRC File. This should be done at both the model file
level (see 8.3.3) and at the product occurrence level (see 8.3.10). The unit may come from an actual CAD
file and therefore be considered reliable to represent physical values in the data. If a unit is
valid/reliable, the flag unit_from_CAD_file shall be set to TRUE. However, some formats do not contain
units. Regardless, it is mandatory to define one unit at both the model file level and at the product
occurrence level .
The unit which shall be used is the first valid unit in the ModelFile / ProductOccurrence chain. If a valid
unit is defined at the ModelFile level, it will apply to all product occurrences. Once a valid unit is found,
the remainder of the data shall be interpreted with respect of that unit, even for occurrences higher in
the product occurrence hierarchy.
NOTE In other words, if a product occurrence having no valid unit has a child with a valid unit, it is assumed
that the entire hierarchy of model file and product occurrence are to be interpreted and used according to this
unit.
If no valid unit is found at either the ModelFile level or any ProductOccurrence level (i.e.
unit_from_CAD_file is always set to FALSE), a conforming PRC File Reader shall clearly indicate that the
unit defined is not valid for measurement purposes.
5.7 Tolerances
PRC distinguishes between several notions of tolerances:
— A first notion of tolerance represents the maximum deviation between compressed and original
data, as introduced by the lossy compression of geometry or topology. When provided, this
tolerance shall be a user‐defined value which represents a physical length given with a unit.
— A second notion of tolerance is introduced by numerical uncertainty inherent in every 3D
modelling system. This form of tolerance is non‐dimensional. Its purpose is to perform consistent
numerical operations. This tolerance value corresponds to coincidence (e.g. of two 3D vertices) and
is generally defined in conjunction with a minimal value representing zero and a maximal value
representing infinity. For instance, a system might define coincidence at 1e‐3, zero as any value less
than 1e‐12 and infinity as any value greater than 1e6. Then, additional logic outside the modelling
system should define the unit so that the numerical values can be interpreted by the computer as
physical values (i.e. in a particular unit).
In PRC, the 3D modelling system corresponds to entities in tessellation section (8.8) and topology
section (7.9). Hence the various tolerances stored within these sections are always numerical values
with no unit. A conforming writer shall never store a tolerance which can be directly interpreted as a
physical value.
NOTE For instance, brep_data_compressed_tolerance in 8.9.19 which represents the deviation introduced
between original data and compressed one is stored without unit, even if it might be derived from a user interface
8 © ISO 2014 – All rights reserved

which takes those units into account. Then, outside this 3D modelling system, unit is defined in
ProductOccurrences and ModelFile as discussed in previous chapter. The physical interpretation of those
tolerances should then be done from both indications. For instance, if a tolerance in a topology section is stored as
0,001 and if the unit of the ProductOccurrence it belongs to is 1000 meters, then the physical tolerance on data is
actually 1 meter.
5.8 Compressed file sections
Within a PRC File, all sections, except header sections, are individually compressed with a Flate method.
NOTE This form of compression is considered to be "lossless“. It occurs systematically whatever the actual
content of the PRC file, and even if it contains compressed geometry or tessellation.
5.9 Compressed geometry
Compression of geometry results in very small files. This compression is "lossy“ in that the geometry is
an approximation to geometry to within a specified tolerance (typically 0,001mm). See 8.9.21 and
8.9.20 for entities representing compressed geometry. Note that the methodology to determine an
approximation of the original geometry (e.g. analytic recognition) is not part of PRC standard. Only the
resulting entities and the method to store them are described in PRC.
5.10 Compressed tessellation
Compression of tessellation data results in very small files. This compression is "lossy“ in that the
tessellation data is an approximation to tessellation data to within a specified tolerance (typically
0,01mm). See 8.8.9 for an entity representing compressed tessellation. Tessellation data is not
necessarily generated from or considered as an “approximation“ of geometry; it is an alternative way to
convey data. Note that the methodology to determine an approximation of the original tessellation (e.g.
polygon decimation) is not part of PRC standard. Only the resulting entities and the method to store
them are described in PRC.
6 PRC file contents
6.1 Fileheader
6.1.1 General
The Header contains the file version for the authoring version (PRC Format Specification) that the PRC
File Writer is based on and the minimal version for read (PRC Format Specification) that a conforming
PRC File Reader is based on that write/read the data outside of the individual FileStructures in the PRC
File.
Each FileStructure has a identifier which is unique among all of the FileStructures within this PRC File.
Each application has a unique identifier which enables the interpretation of UserData. This identifier
shall be set to 0000 or to a valid application identifier. 0000 indicates that the authoring application is
not “registered“ but (as discussed above) there can still be user data from another application in the file.
Valid identifiers are distributed by Adobe Systems, Inc. upon request.
A valid PRC File shall contain at least one FileStructure.
© ISO 2014 – All rights reserved 9

Table 3 — Fileheader
Name Data Type Data Description

3 bytes: P, R, C (Required) Characters "PRC"
minimal_version_for_read UncompressedUnsignedInteger (Required) Minimal version for
read (see 5.2)
authoring_version UncompressedUnsignedInteger (Required) Authoring version
(see 5.2)
unique_id_file UncompressedUniqueId (Required) Unique ID for file
structure; The first and last
sections of PRC File (before and
after the FileStructures
themselves) are a kind of
special file structure which bear
an ID as well.
unique_id_application UncompressedUniqueId (Required) Unique ID for
application
filestructure_count UncompressedUnsignedInteger (Required) Number of
FileStructures in PRC file
file_info Array (Required) Information
[filestructure_count] describing each FileStructure in
PRC File; the ordering of this
array reflects the ordering of
the FileStructure within the file.
start_offset UncompressedUnsignedInteger (Required) Start offset of
ModelFileData section from
beginning of PRC File (in bytes)
end_offset UncompressedUnsignedInteger (Required) End offset of
ModelFileData section from
beginning of PRC File (in bytes)
file_count UncompressedUnsignedInteger (Required) Number of
uncompressed files that are
saved in the PRC File
files: Array [file_count] (Optional; if file_count is
greater than 0) Array of
uncompressed files stored in
the PRC File
6.1.2 FileStructureDescription
The FileStructureDescription contains information defining a particular FileStructure within the PRC
File:
 Each FileStructure has an identifier which is unique among the FileStructures within a PRC File.
 The starting offset (in bytes from the beginning of the PRC File) of each of the following sections
within a FileStructure: header, globals, tree, tessellation, geometry, and extra geometry.
10 © ISO 2014 – All rights reserved

Table 4 — FileStructureDescription
Name Data Type Data Description
unique_id UncompressedUniqueId (Required) Unique id for this file
structure
UncompressedUnsignedInteger (Required) Reserved; shall be 0
section_count UncompressedUnsignedInteger (Required) Number of sections in
this FileStructure (6 for header,
globals, tree, tesselation, geometry,
and extra geometry)
section_offsets Array (Required) Start offset (in bytes) of
[section_count each section from the beginning of
] PRC File
6.1.3 UncompressedFiles
Directly embeds private data inside a PRC File. This may be referenced by objects in the same PRC File
using the index of the uncompressed file within this array, and interpreted accordingly. Up to this
version of the PRC File Format Specification, only picture objects make reference to these files (see
8.5.5)
Table 5 — UncompressedFiles
Name Data Type Data Description
count UncompressedUnsignedInteger (Required) Number of uncompressed files
array_of_files Array[count] (Required) Arbitrary data to embed within a PRC File

6.2 Filestructure
6.2.1 General
Table 6 — Filestructure
Name Data Type Data Description
header FileStructureHeader (Required)
(Required) Define the schema for the entities in
this FileStructure which have changed between
schema FileStructureSchema
the minimal_version_for_read and the
authoring_version
(Required) Referenced FileStructures and
globals PRC_TYPE_ASM_FileStructureGlobals colors, line styles, and coordinate systems for
each tree entity of the file structure
(Required) a description of the tree of items
tree PRC_TYPE_ASM_FileStructureTree (product occurrences, part definitions,
representation items, and markup)
(Requireed) All tessellated (triangulated) data
tessellation PRC_TYPE_ASM_FileStructureTessellation in the leaf entities of the tree (representation
items and markups).
© ISO 2014 – All rights reserved 11

Table 6 (continued)
Name Data Type Data Description
(Required) All exact geometry and topology data
Geometry PRC_TYPE_ASM_FileStructureGeometry of the leaf entities of the tree (representation
items)
(Required) Geometry summary data, which
extra_geometry PRC_TYPE_ASM_FileStructureExtraGeometry allow for partial loading of the file structure
without loading the entire geometry

6.2.2 FileStructureHeader
A FileStructureHeader defines various properties of a FileStructure:
— The minimal file version of the a conforming
...
