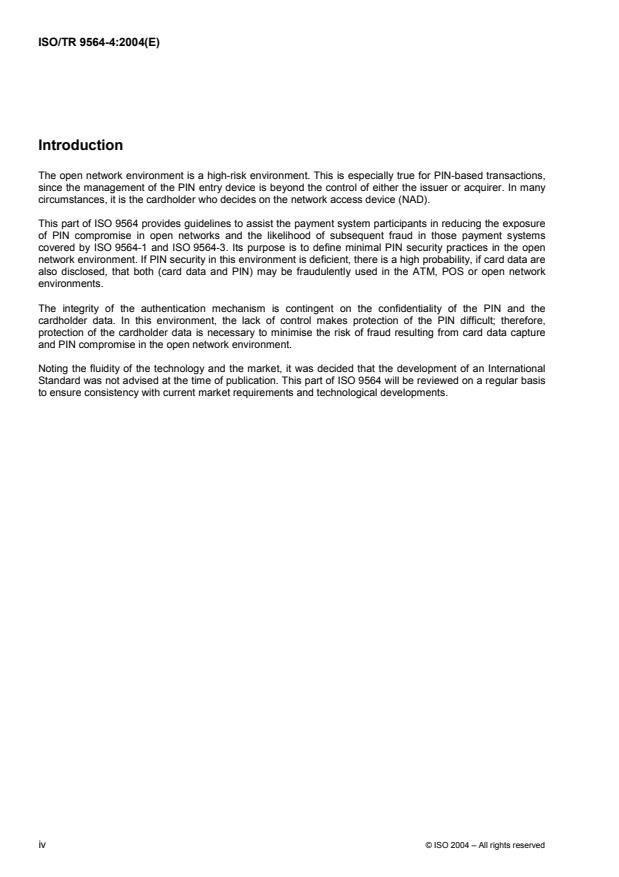

Introduction
The open network environment is a high-risk environment. This is especially true for PIN-based transactions,
since the management of the PIN entry device is beyond the control of either the issuer or acquirer. In many
circumstances, it is the cardholder who decides on the network access device (NAD).
This part of ISO 9564 provides guidelines to assist the payment system participants in reducing the exposure
of PIN compromise in open networks and the likelihood of subsequent fraud in those payment systems
covered by ISO 9564-1 and ISO 9564-3. Its purpose is to define minimal PIN security practices in the open
network environment. If PIN security in this environment is deficient, there is a high probability, if card data are
also disclosed, that both (card data and PIN) may be fraudulently used in the ATM, POS or open network
environments.
The integrity of the authentication mechanism is contingent on the confidentiality of the PIN and the
cardholder data. In this environment, the lack of control makes protection of the PIN difficult; therefore,
protection of the cardholder data is necessary to minimise the risk of fraud resulting from card data capture
and PIN compromise in the open network environment.
Noting the fluidity of the technology and the market, it was decided that the development of an International
Standard was not advised at the time of publication. This part of ISO 9564 will be reviewed on a regular basis
to ensure consistency with current market requirements and technological developments.

iv © ISO 2004 – All rights reserved

---------------------- Page: 4 ----------------------
TECHNICAL REPORT ISO/TR 9564-4:2004(E)

Banking — Personal Identification Number (PIN) management
and security —
Part 4:
Guidelines for PIN handling in open networks
1 Scope
This part of ISO 9564 provides guidelines for personal identification number (PIN) handling in open networks,
presenting finance industry best-practice security measures for PIN management and the handling of financial
card originated transactions in environments where issuers and acquirers have no direct control over
management, or where no relationship exists between the PIN entry device and the acquirer prior to the
transaction.
It is applicable to financial card-originated transactions requiring verification of the PIN and to those
organizations responsible for implementing techniques for the management of the PIN in terminals and PIN
entry devices when used in open networks.
It is not applicable to
 PIN management and security in the online and offline ATM and POS PIN environments, which are
covered in ISO 9564-1 and ISO 9564-3,
 approved algorithms for PIN encipherment, which are covered in ISO 9564-2,
 the protection of the PIN against loss or intentional misuse by the customer or authorised employees of
the issuer or their agents,
 privacy of non-PIN transaction data,
 protection of transaction messages against alteration or substitution, e.g. an online authorisation
response,
 protection against replay of the PIN or transaction,
 specific key management techniques,
 access to, and storage of, card data by server-based applications such as wallets, or
 financial institution sponsored, cardholder activated, secure PIN entry devices.
© ISO 2004 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO/TR 9564-4:2004(E)
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
acquirer
institution, or its agent, that acquires from the card acceptor the financial data relating to the transaction and
initiates such data into an interchange system
2.2
compromise
〈cryptography〉 breaching of secrecy and/or security
2.3
encipherment
rendering of text unintelligible by means of an encoding mechanism
2.4
integrated circuit card
ICC
ID-1 card type, as specified in ISO 7810, ISO 7811, ISO 7812 and ISO 7813, into which one or more
integrated circuits have been inserted
NOTE See ISO 7816-1.
2.5
issuer
institution holding the account identified by the primary account number (PAN)
2.6
network access device
NAD
personal computer, set top box, mobile phone, PDA or other devic
...
