ISO 24048:2022

INTERNATIONAL ISO
STANDARD 24048
First edition
2022-11
Plastics — Determination of bound
acrylonitrile content in the continuous
phase of acrylonitrile-butadiene-
styrene (ABS) by Dumas combustion
method
Plastiques — Détermination de la teneur en acrylonitrile lié dans
la phase continue d'acrylonitrile-butadiène-styrène (ABS) par la
méthode de combustion Dumas
Reference number
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Reagents . 1
6 Apparatus . 2
7 Sampling and preparation of the specimen . 3
7.1 Preparation of cold methanol and settlement of centrifuge . 3
7.2 Sample dispersion . 3
7.3 Centrifuge separation. 3
7.4 Precipitation of continuous phase . 3
7.5 Centrifuge and work-up . 3
8 Procedure .4
8.1 Calibration . 4
8.1.1 General . 4
8.1.2 Instrument set up . 4
8.1.3 Setting up calibration curve. 4
8.2 Measurement . 5
8.3 Calculation . 5
9 Precision . 6
9.1 General . 6
9.2 Repeatability, r. 6
9.3 Reproducibility, R . 6
10 Test report . 6
Annex A (informative) Summary of precision data . 7
Bibliography . 8
iii

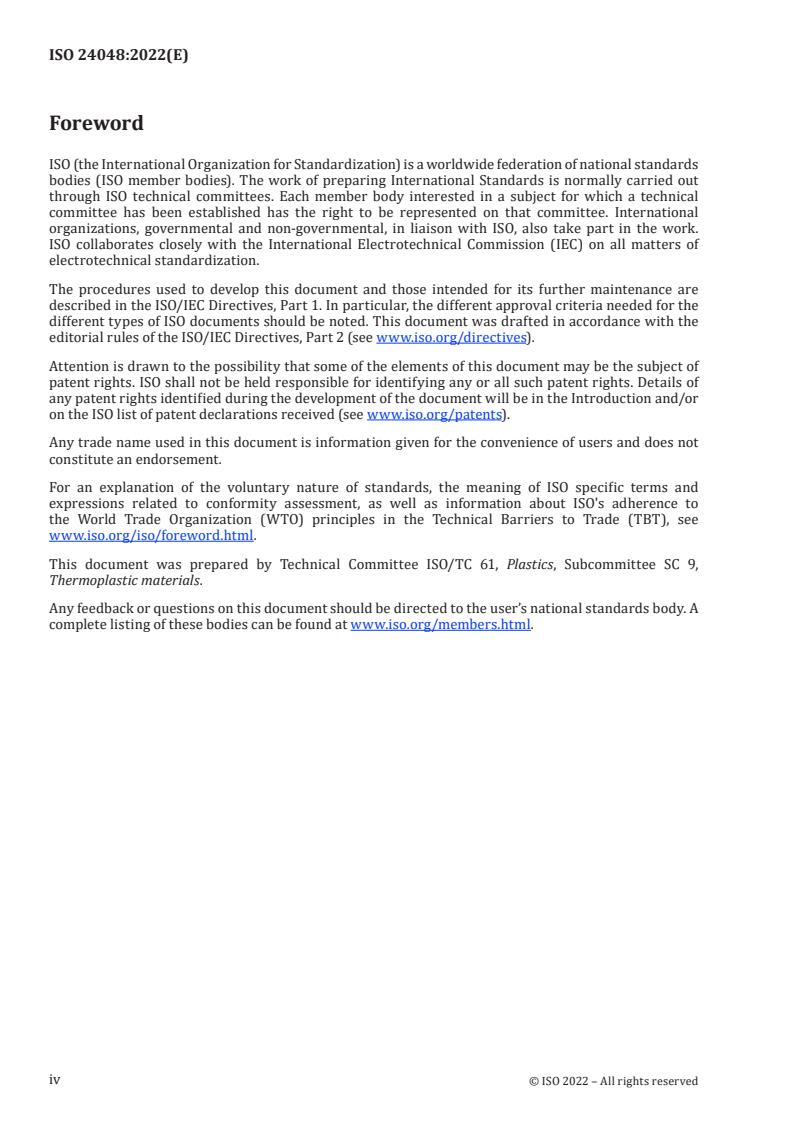

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 9,
Thermoplastic materials.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 24048:2022(E)
Plastics — Determination of bound acrylonitrile content
in the continuous phase of acrylonitrile-butadiene-styrene
(ABS) by Dumas combustion method
1 Scope
This document specifies a method for the determination of bound acrylonitrile content in the continuous
phase of acrylonitrile-butadiene-styrene (ABS) copolymer using Dumas combustion method. This
document is applicable to ABS resin with a mass fraction of bound acrylonitrile content in continuous
phase between 5 % and 50 %.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes the requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 472, Plastics — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 472 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Principle
The ABS samples are dispersed in acetone. The dissolved continuous phase is separated from the
dispersed elastomeric phase using a high-speed centrifuge. The separated supernatant is precipitated
by methanol and then washed by n-hexane. The nitrogen content of the precipitate is determined
through Dumas combustion method and the content of acrylonitrile in the continuous phase is
calculated.
5 Reagents
5.1 Reference materials:
Combustible organic compounds with known nitrogen content, purity ≥ 99,99 %.
EXAMPLE Acetanilide, ethylenediaminetetraacetic acid (EDTA), aspartic acid, atropine, etc.
5.2 Oxygen gas, purity ≥ 99,99 % or in accordance with the analyser manufacturer’s instruction.
5.3 Carrier gas, helium, argon or carbon dioxide, purity ≥ 99,995 % or in accordance with the
analyser manufacturer’s instruction.
5.4 Acetone, volume fraction ≥ 99,8 %.
5.5 Methanol, volume fraction ≥ 99,8 %.
5.6 N-hexane, volume fraction ≥ 95 %.
6 Apparatus
6.1 Automatic analyser
The automatic analyser consists of the following components:
a) a combustion unit, capable of complete combustion of the sample in an atmosphere of high-purity
oxygen;
b) an oxygen feeder, capable of feeding enough high purity oxygen for complete combustion;
c) a reduction unit, capable of fully converting liberated nitrogenous compounds to nitrogen gas;
d) an absorber (or another type of separator) of by-products, capable of separating nitrogen from
other combustion products;
NOTE 1 When helium or argon is used as the carrier gas, this unit normally separates nitrogen from
carbon dioxide and water; when carbon dioxide is used as the carrier gas, this unit normally separates
nitrogen from water.
e) a thermal conductivity detector (TCD), capable of detecting nitrogen formed;
f) a microprocessor, capable of calibrating the apparatus with a reference material and of converting
the detector response into the mass of nitrogen in the sam
...
