ISO/TS 29585:2010

TECHNICAL ISO/TS
SPECIFICATION 29585
First edition
2010-05-15

Health informatics — Deployment
of a clinical data warehouse
Informatique de santé — Déploiement d'un entrepôt des données
cliniques




Reference number
ISO/TS 29585:2010(E)
©
ISO 2010

---------------------- Page: 1 ----------------------
ISO/TS 29585:2010(E)

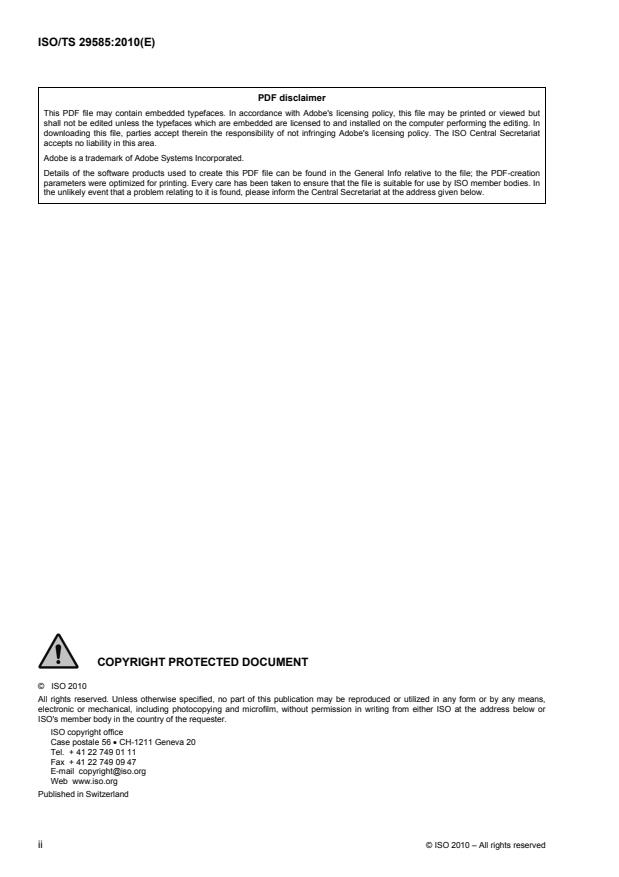

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2010 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TS 29585:2010(E)
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .1
4 Abbreviated terms .4
5 Principle.4
6 General considerations of deployment of a clinical data warehouse.4
6.1 Overview.4
6.2 Requirements.6
6.3 Scope.10
6.4 Planning and implementation .12
6.5 Design considerations.15
6.6 Data and metadata.19
6.7 Security and privacy .20
7 Clinical data warehouse: data aggregation and data modelling .25
7.1 Introduction.25
7.2 Data and decision making .25
7.3 Defining CDW dimensions according to business need and relation to process.27
7.4 Health system indicators.31
8 Architecture and technology.32
8.1 Introduction.32
8.2 General characteristics.32
8.3 Existing work on data warehousing .33
8.4 Presentation layer outputs .46
8.5 Security.53
Bibliography.56

© ISO 2010 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TS 29585:2010(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of document:
⎯ an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
⎯ an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 29585 was prepared by Technical Committee ISO/TC 215, Health informatics.
iv © ISO 2010 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TS 29585:2010(E)
Introduction
This Technical Specification furthers the work of ISO/TR 22221 by providing implementation guidance for a
clinical data warehouse and describing general considerations of development and deployment, issues and
applications of data aggregation and data modelling, and architecture and technology approaches.
The role of the clinical data warehouse is to enable data analyses in support of effective policies and decision-
making, to improve quality of care, to improve health services organizations, as well as to influence learning
and research. It will have relevance to both developing and more established health systems. It will enable
meaningful comparison of programmes and outcomes.
Although data warehouse technologies are becoming increasingly used in non-healthcare sectors, their use in
health is still at an early stage. ISO/TR 22221 had a primary goal of underpinning a coherent approach to the
diverse and multi-stakeholder perspectives of secondary use of data from various health system sources. This
Technical Specification is intended to have pragmatic relevance by indicating best practice in setting up a
clinical data warehouse and in using it from data abstraction and architectural perspectives. The clinical data
warehouse is distinguished by the complexity of the interactions of data and hence the challenges to provide
adequate methods for evaluating process and outcomes of care for different populations and sub-populations.
Currently such knowledge is relatively fragmented and it is too early to be integrated into an International
Standard. A Technical Specification will however benefit progression to an International Standard by aligning
emerging best practice from different international experience.
The clinical data warehouse is also, in health informatics, the place of the intersection of health services
delivery, organization and epidemiological expertise concerned with adequate and effective data abstraction
and presentation for different decision-making contexts as presented in ISO/TR 22221. Good use of the
clinical data warehouse will depend on furthering common approaches to frequently used data abstractions
that concern analysis of care delivery and organization. Effective data warehouse deployment will be enabled
by promoting good practice in furnishing dynamically accessible, interpretable data combinations, which will
depend on showing the relationship between clinical and health system need and the architectural properties
of the data warehouse.
This technical specification complements the ISO 13606 series in that competent extended use of data
beyond immediate care delivery depends on the effective organization of the original source data.

© ISO 2010 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL SPECIFICATION ISO/TS 29585:2010(E)

Health informatics — Deployment of a clinical data warehouse
IMPORTANT — The electronic file of this document contains colours which are considered to be
useful for the correct understanding of the document. Users should therefore consider printing this
document using a colour printer.
1 Scope
This Technical Specification has three sections, 1) general considerations of design and deployment, 2) data
aggregation and data modelling and 3) architecture and technology, and is intended to provide an overall set
of guidelines for clinical data warehouse deployment supported by useful descriptions concerning different
data aggregation and modelling approaches as well as particular aspects of information architecture that
contribute to successful deployment. The first section is of particular interest to healthcare decision-makers,
including information technology managers, of requirements and procedures that support successful clinical
data warehouse deployment. The second section supports the understanding, choice, instigation and
evaluation of methods that ensure reliable selection and aggregation of primary data for adequate compilation
and presentation to support decisions – this section is of particular interest to statisticians, epidemiologists,
healthcare evaluation specialists and others. Section three is of particular interest to informaticians concerned
with efficient architectures, data mining methods, dynamic data querying and visualization for clinical data
warehouses.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/TR 22221, Health informatics — Good principles and practices for a clinical data warehouse
ISO/TS 25237, Health informatics — Pseudonymization
ISO 27799, Health informatics — Information security management in health using ISO/IEC 27002
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
clinical data repository
CDR
operational data store that holds and manages clinical data collected from service encounters at point of
service locations
NOTE Data from a CDR can be fed to the EHR for that client, such that the CDR is recognised as a source system
for the EHR. The CDR can be used to trigger alerts in real time.
© ISO 2010 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TS 29585:2010(E)
3.2
clinical data warehouse
CDW
grouping of data accessible by a single data management system, possibly of diverse sources, pertaining to a
health system or sub-system and enabling secondary data analysis for questions relevant to understanding
the functioning of that health system, and hence supporting proper maintenance and improvement of that
health system
NOTE A CDW tends not to be used in real time. However, depending on the rapidity of transfer of data to the data
warehouse, and data integrity, near real-time applications are not excluded.
3.3
dashboard
user interface based on predetermined reports, indicators and data fields, upon which the end user can apply
filters and graphical display methods to answer predetermined business questions and which is suited to
regular use with minimal training
3.4
data dictionary
database used for data that refer to the use and structure of other data, i.e. a database for the storage of
metadata
3.5
data mart
subject area of interest within the data warehouse (3.6)
EXAMPLE An inpatient data mart.
NOTE Data marts can also exist as a standalone database tuned for query and analysis, independent of a data
warehouse.
3.6
data warehouse
subject-oriented, integrated, time-variant and non-volatile collection of data
NOTE See Reference [5].
3.7
data warehouse dimension
subject-oriented, often hierarchical business relevant grouping of data
3.8
drill down
exploration of multidimensional data which makes it possible to move down from one level of detail to the next
depending on the granularity of data
EXAMPLE Number of patients by departments and/or by services.
3.9
episode of care
identifiable grouping of healthcare-related activities characterized by the entity relationship between the
subject of care and a healthcare provider, such grouping determined by the healthcare provider
[ISO/TS 18308:2004, definition 3.23]
3.10
health indicator
single summary measure, most often expressed in quantitative terms, that represents a key dimension of
health status, the healthcare system, or related factors
NOTE A health indicator is informative and also sensitive to variations over time and across jurisdictions.
[ISO/TS 21667:2004, definition 3.1]
2 © ISO 2010 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TS 29585:2010(E)
3.11
metadata
information stored in the data dictionary which describes the content of a document
NOTE In a data warehouse context, metadata are data structure, constraints, types, formats, authorizations,
privileges, relationships, distinct values, value frequencies, keywords, interpretative notes and users of the database
sources loaded in the data warehouse and the data warehouse itself. Metadata help users, developers and administrators
manage and interpret information.
3.12
master data management
enablement of a program that provides for an organization's data definitions, source locations, ownership and
maintenance rules
3.13
online analytical processing
OLAP
set of applications developed for facilitating the collection, analysis and reporting of multidimensional data
NOTE See Reference [7].
3.14
organization
group of people who have their own structure rules and culture in order to work together to achieve goals
and/or to provide services through processes, equipment and technology, etc.
3.15
performance indicator
measure that supports evaluation of an aspect of performance and its change over time
3.16
persistent data
data in a final form intended as a permanent record, such that any subsequent modification is recorded
together with the original data
3.17
roll up
method of regrouping and aggregating multidimensional data to move up the hierarchy into larger units
EXAMPLE Weekly count of patients aggregated by quarter or by year.
3.18
secondary data use
expression sometimes employed to describe the use of data for additional purposes other than the primary
reason for their collection, adding value to these data
3.19
star schema
dimensional modelling concept that refers to a collection of fact and dimension tables
3.20
widget
standalone visualization component (e.g. a heat map, gauge or geographic map) that can be integrated with a
data warehouse source and presented in an end-user dashboard
NOTE Custom widgets can be developed using a business intelligence vendor software development kit (SDK) and
managed via the widget library.
© ISO 2010 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/TS 29585:2010(E)
4 Abbreviated terms
SM
⎯ DICOM Digital Imaging and Communications in Medicine
⎯ EHR Electronic Health Record
⎯ HL7 Health Level 7
©
⎯ ICD International Classification of Diseases

©
⎯ LOINC Logical Observation Identifiers, Names and Codes
©
⎯ SNOMED CT Systematized Nomenclature of Medicine — Clinical Terms
5 Principle
The roles and capacities of operational databases and informational databases (data warehouses) are
complementary. An operational database is designed to perform transactions in real time such as adding,
changing or deleting patient data, or displaying current data for immediate care decision making. It has a
limited capacity for data analysis and is focused on online support for care delivery. The exploitation of already
existing and persistent data for other purposes, sometimes referred to as secondary use of data, typically
involves data aggregation and/or linkage from multiple data sources. The concept of a clinical data warehouse
here is an application of the notion of data warehouse (that is the bringing together of data relevant to the
functioning of an enterprise), for clinical purposes understood in the broadest sense, including the ensemble
of healthcare system factors that can influence patient care. Emerging issues such as semantic
interoperability with research databases in the fundamental sciences are not considered in this Technical
Specification.
Deployment of a clinical data warehouse
ISO/TR 22221 provides an informative description of the uses and principles of implementation of a CDW,
including an overview of the issues that are further developed and addressed in this Technical Specification. A
CDW allows many perspectives of use and is therefore of interest to many categories of stakeholders. The
activities of CDW use in ISO/TR 22221 are considered under the headings of:
⎯ quality assurance and care delivery;
⎯ evaluation and innovation of health procedures and technologies;
⎯ disease surveillance, epidemiology, and public health;
⎯ planning and policy;
⎯ knowledge discovery;
⎯ education.
These titles give insight into the increasing relevance of the CDW to several aspects of the health system and
its mission of effective healthcare.
6 General considerations of deployment of a clinical data warehouse
6.1 Overview
This subclause guides the setting-up, deployment and ongoing management of a clinical data warehouse. It
should be of use to an array of management and deployment stakeholders by articulating the range of
considerations pertinent for successful planning, project management and ongoing governance, as well as
describing key issues of data sources and quality, choice of architecture and maintenance of privacy.
4 © ISO 2010 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/TS 29585:2010(E)
There is a distinction between an operational electronic health record system, designed to support direct
patient care, as opposed to a clinical data warehouse which will typically combine data from a number of
sources and/or organizations for analytical purposes, with a diverse group of users accessing highly sensitive
personal information, where use of this information is governed by multiple pieces of legislation and policy.
Sometimes the term “secondary uses” is used for the latter application.
A clinical data warehouse is typically used for many purposes such as planning, management, research, audit
and public health. The intention is that information is automatically collected or abstracted from operational
electronic health record systems and then organized and maintained for subsequent reporting. The range of
reporting applications can be very wide, however, and as illustrated in Figure 1 the different purposes have
different characteristics.
Operational Business Strategy, policy
Commissioning analysis,
operations
direct care and research
and service planning
Examples of characteristics of requirements
• Individual records  Frequent abstracts  Focus on classes
 Focus on classes or
 Selected “lists” of  Focus on classes of persons
cohorts of persons
records of persons  Actual compared
 Disease, service
 Immediate access  Time series with expected
and population
 Dynamic, up to date  Short time intervals (inputs, outcomes)
based forecasting
 Workflow,  Prospective  Ongoing
 Periodic
rules-based alerts indicators indicators
Identifiable Pseudonymized or anonymized

Figure 1 — Different types of information use
One of the issues, therefore, is to consider where to start. This subclause aims, therefore, to provide advice
for those considering the development of a clinical data warehouse, to assist in:
⎯ understanding the requirements;
⎯ clarifying the scope;
⎯ planning and implementation issues;
⎯ design considerations;
⎯ data and metadata;
⎯ security and privacy.
© ISO 2010 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/TS 29585:2010(E)
6.2 Requirements
6.2.1 Overview
Consideration is given to three levels of clinical data warehouses: national (global); regional; local. National
uses might be for statistical collection and comparison purposes including at a global level; regional might
(depending on the country) be state, province or regional health organizations; local might mean individual
organizations or hospitals.
Figure 2 illustrates how data may be collected at local level and the level of granularity within existing fields
can be abstracted and summarised for use at regional and national levels. See Reference [37]. Subclauses
6.2.2 to 6.2.8 consider potential uses for a clinical data warehouse at national, regional and local levels. While
it is often appropriate to have CDWs at each of these levels, each of which is attuned to the particular
information analysis and reporting requirements of the sponsoring organization, a coordinated strategy for
developing and populating the CDWs recognises there is a great deal of commonality in the underlying source
data.

Figure 2 — Levels of clinical data aggregation
6.2.2 Users
There is a large range of potential users, which might include:
⎯ national or regional government;
⎯ government agencies, e.g. analysis and reporting centres;
⎯ regulators;
⎯ international organizations, e.g. World Health Organization (WHO);
⎯ professional bodies, e.g. colleges;
6 © ISO 2010 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/TS 29585:2010(E)
⎯ medical research and education;
⎯ local care organizations, e.g. health providers;
⎯ local government, e.g. environment, education, housing;
⎯ other commercial users, e.g. pharmaceutical companies.
6.2.3 Requirements for local healthcare provider organizations
This subclause identifies typical requirements for healthcare providers, both as individual organizations and as
part of a group or network of care service providers. Similar requirements might exist at a district or
community level.
For individual providers, requirements might include:
⎯ care service planning, monitoring and review analysis via
⎯ demand and capacity;
⎯ quality (access to services, etc.);
⎯ costs, efficiency and productivity;
⎯ outcomes and effectiveness, including clinical or care audit;
⎯ benchmarking and comparison with “peer” service providers;
⎯ strategic service planning;
⎯ financial and contract management via
⎯ calculation of local costs (for reference cost comparison);
⎯ income estimation;
⎯ assignment of care provided to contracts;
⎯ monitoring of income against plans (budgets) and costs.
For provider networks, requirements might also include:
⎯ care service planning, monitoring and review (as above but requires analysis of patient activity data which
might have inputs from several networked providers);
⎯ capability for spanning organizational and geographical boundaries where appropriate (e.g. cancer
networks).
These functions require the capability to receive, manage, link and analyse data extracts from existing
systems. Typically, this will require standards to be defined for these local extracts. The following functional
components may be required:
⎯ functionality to produce mandatory datasets;
⎯ functionality to enable users to select and extract data from their operational systems (all elements of a
patient's record);
© ISO 2010 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/TS 29585:2010(E)
⎯ functionality to manage/store these extracts and combine them (via linkage) with data extracted from
other systems;
⎯ functionality to enable analysis and reporting of these data and to provide users with access to other
specialist analysis tools;
⎯ production of standard reports (both scheduled and ad hoc).
6.2.4 Regional requirements
This subclause identifies possible requirements for commissioners, insurers or purchasers of healthcare
services for a large geographic area. In some countries the purchasers may be government organizations or
insurance companies operating at regional level.
The requirements might include:
⎯ public health and planning via
⎯ analysis of the prevalence of risk factors and disease;
⎯ analysis of the incidence of disease/conditions;
⎯ early outbreak detection, bio-terrorism surveillance;
⎯ analysis of the demand for care services;
⎯ analysis of the outcome of care services (in both the short term and the longer term);
⎯ analysis of access to services;
⎯ analysis of preventative care;
⎯ evaluation of the quality, efficiency and outcomes of traditional and alternative health service
providers;
⎯ evaluation of the efficiency and effectiveness of alternative care approaches, service models and
configurations, including alternative primary care provision and prevention services;
⎯ programme monitoring;
⎯ allocation of services in relation to health needs, resource inputs, access, quality, etc.;
⎯ commissioning and contracting via
⎯ management of patient access to services, including achievement of access targets for pathways
which span care providers;
⎯ expenditure forecasting;
⎯ allocation of resources;
⎯ assignment of care received against agreed contracts with healthcare providers;
⎯ reimbursement, contract and grant management;
⎯ monitoring of expenditure against plans (budgets) and provider service levels.
8 © ISO 2010 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/TS 29585:2010(E)
The functionality required includes the capability to receive, manage, link and analyse data extracts from
relevant healthcare providers. The data requirements covering non-acute care events and settings might not
be covered by universal standards. It will typically be necessary to have the ability to maintain local “reference
data” relating to contracts, budgets, etc. and geographical analysis capability to support planning and
purchasing activities.
6.2.5 National requirements
There are many potential uses for a national or supra-regional data warehouse:
⎯ business and performance management;
⎯ capacity and demand planning, commissioning linked to reimbursement;
⎯ improving productivity, possibly through comparative analysis and benchmarking;
⎯ evaluation of health p
...
