ISO 12604-1:2017

INTERNATIONAL ISO
STANDARD 12604-1
First edition
2017-02
Aircraft ground handling — Checked
baggage —
Part 1:
Mass and dimensions
Traitement au sol des aéronefs — Bagages enregistrés —
Partie 1: Masses et dimensions
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 2
4.1 Standard baggage . 2
4.1.1 Mass . 2
4.1.2 Dimensions . 2
4.1.3 Conveyability . 2
4.2 Non-standard baggage . 2
4.2.1 Acceptance . 2
4.2.2 Mass . 3
4.2.3 Dimensions . 3
4.3 Information . 3
4.4 Handling. 3
Annex A (informative) Typical examples of heavy baggage identification labels .5
Bibliography . 6

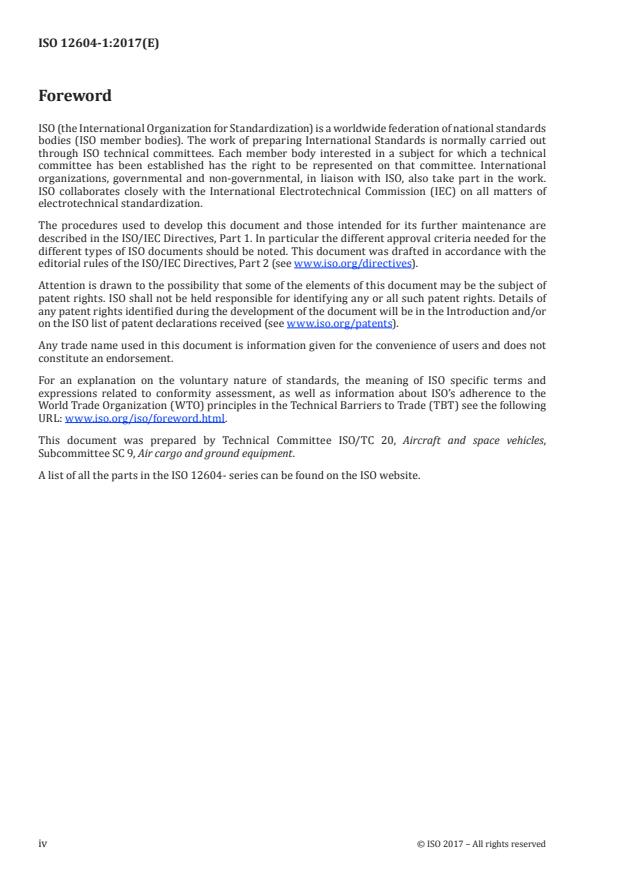

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 20, Aircraft and space vehicles,
Subcommittee SC 9, Air cargo and ground equipment.
A list of all the parts in the ISO 12604- series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

Introduction
This document specifies maximum weight and dimensions requirements for baggage checked in by
airline passengers to be carried in aircraft cargo compartments, in order to
— contribute to alleviating work conditions for baggage handling personnel and reducing the incidence
of musculo-skeletal disorders (MSD) in this population,
— facilitate enhancing the overall efficiency of baggage handling, and
— provide standards for designing automated baggage handling systems increasingly used at airports.
Throughout this document, the minimum essential criteria are identified by use of the key word “shall”.
Recommended criteria are identified by use of the key word “should” and, while not mandatory, are
considered to be of primary importance in providing safe and efficient baggage handling. Deviation
from the recommended criteria should only occur after careful consideration and thorough service
evaluation have shown alternate methods to provide an equivalent level of work safety.
INTERNATIONAL STANDARD ISO 12604-1:2017(E)
Aircraft ground handling — Checked baggage —
Part 1:
Mass and dimensions
1 Scope
This document specifies mass and dimensions requirements for individual pieces of baggage checked
in by airline passengers at airports to be carried in aircraft cargo compartments.
This document does not apply to cabin baggage carried on board by passengers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition indicated applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 11228-1, Ergonomics — Manual handling — Part 1: Lifting and carrying
ISO 11228-3, Ergonomics — Manual handling — Part 3: Handling of low loads at high frequency
ISO 10254, Air cargo and ground equipment — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 10254, ISO 11228-1, and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
baggage
bag, suitcase, trunk or similar article travelling with a checked passenger and containing those items
necessary for the passenger’s journey, such as clothing and personal articles within certain limitations
in accordance with the applicable carrier conditions of carriage, that is accepted and checked in for
loading and carriage aboard the same aircraft
Note 1 to entry: Does not include freight, express cargo, courier mail, or unacc
...
