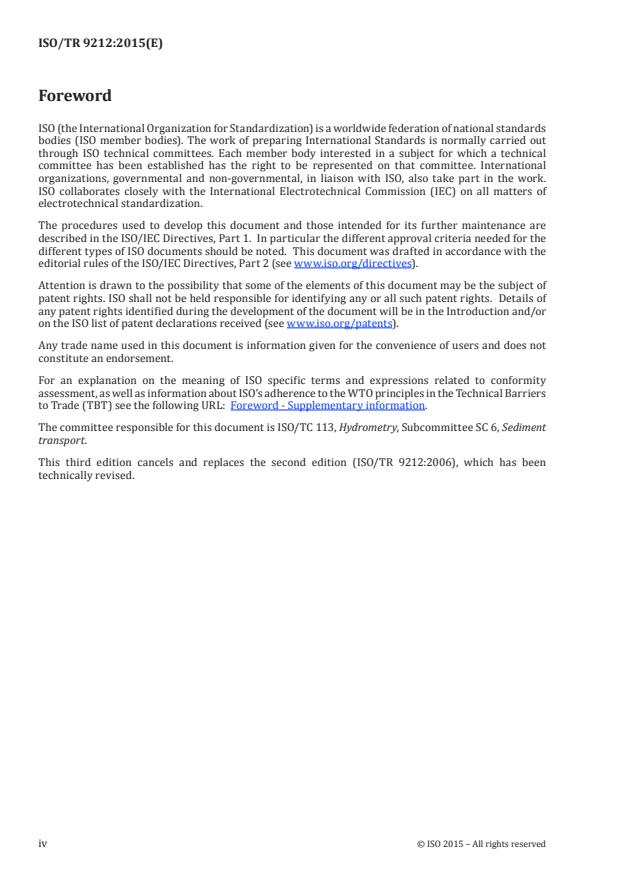

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information.
The committee responsible for this document is ISO/TC 113, Hydrometry, Subcommittee SC 6, Sediment
transport.
This third edition cancels and replaces the second edition (ISO/TR 9212:2006), which has been
technically revised.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 9212:2015(E)

Introduction
The knowledge of the rate of sediment transport in a stream is essential in the solution of practically all
problems associated with the flow in alluvial channels. The problems include river management, such
as design and operation of flood control works, navigation channels and harbours, irrigation reservoirs
and canals, and hydroelectric installations. The bedload and suspended load broadly constitute total
sediment load. The bedload is the material transported on or near the bed by rolling or sliding (contact
load) and the material bouncing along the bed, or moving directly or indirectly by the impact of bouncing
particles (saltation load). Knowledge of the bedload-transport rate is necessary in designing reservoir
capacity because virtually 100 % of all bedload entering a reservoir accumulates there. Bedload should
not enter canals and distributaries and diversion structures should be designed to minimize the transfer
of bedload from rivers to canals.
The bedload-transport rate can be measured either as mass per unit time or volume per unit time. Volume
measurements should be converted to a mass rate. Measurements of mass rate of movement are made
during short time periods (seconds, minutes), whereas measurements of volume rates of movement are
measured over longer periods of time (hours, days). Regardless of whether the mass or volume rate is
measured, the average particle-size distribution of moving material should be determined. Knowledge
of particle-size distribution is needed to estimate the volume that the bedload material will occupy after
it has been deposited. Knowledge of particle-size distribution also assists in the estimation of bedload-
transport rates in other rivers transporting sediment.
The movement of bedload material is seldom uniform across the bed of a river. Depending upon the
river, hydraulic, and sediment properties (size and gradation), the bedload may move in various forms,
such as ripples, dunes, or narrow ribbons. Its downstream rate of movement is also extremely variable.
It is difficult to actually sample the rate of movement in a river cross-section or to determine and verify
theoretical methods of estimation.
© ISO 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 9212:2015(E)
Hydrometry — Methods of measurement of bedload
discharge
1 Scope
This Technical Report reviews the current status of direct and indirect bedload-measurement
techniques. The methods are mainly based on grain size distribution of the bedload, channel width,
depth, and velocity of flow. This Technical Report outlines and explains several methods for direct and
indirect measurement of bedload in streams, including various types of sampling devices.
The purposes of measuring bedload-transport rates are to
a) increase the accuracy of estimating total sediment load in rivers and deposition in reservoirs,
b) gain knowledge of bedload transport that cannot be completely measured by conventional
suspended-sediment collection methods,
c) provide data to calibrate or verify theoretical transport models, and
d) provide information needed in the design of river diversion and entrainment structures.
NOTE The units of measurement used in this Technical Report are SI units.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 772, Hydrometry — Vocabulary and symbols
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 772 apply.
4 Measurement of bedload
4.1 General
Bedload can be measured by direct measuring bedload samplers or by indirect methods.
4.2 Direct measurement methods
a) Bedload samplers
In this method, a mechanical device or sampler is required for measuring the bedload-transport
rate. The bedload sampler is designed so that it can be placed directly on the channel bed in the flow,
to collect a sample of the bedload over a specific time interval. A sample thus obtained represents a
time-averaged mass per unit width per unit time.
© ISO 2015 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TR 9212:2015(E)

b) Bedload trap
The best measurement of bedload would occur when all of the bedload moving through the river
cross was measured. Slot or pit samplers or traps meet this goal with near 100 % efficiencies.
4.3 Indirect measurement methods
All other methods of bedload measurement in which no mechanical device or bedload sampler is used,
are indirect methods. These include differential measurements of total and suspended-sediment loads,
periodic volumetric measurements of accumulated sediment depositions, dune tracking, tracers, remote
sensing, and acoustic measurements of moving sediment.
5 Design and strategy of measurement of bedload discharge
Measurement of bedload is difficult because it is highly variable in both space and time. Bedload generally
varies greatly both longitudinally along the channel and transversely across a cross section. These
variations are caused by several factors and are difficult to predict. The design of bedload sampling
needs to account for the spatial and temporal variability inherent in the processes of bedload transport.
Pit, vortex-tube, or other samplers that sample for long periods of time and encompass a significant
portion of the width of a stream cross section integrate the fluctuations in bedload-transport rate in
a cross section. In many instances, time, monetary constraints, or logistics precludes the use of these
types of samplers.
The use of portable samplers that essentially only collect samples at a point for short periods of time
is often the only practical way to collect samples of bedload. To effectively use portable samplers, the
number and location of the samples collected shall be carefully designed. Sufficient information about
the temporal and spatial variability is collected. To accomplish this task, information on the scales of
spatial and temporal variability is needed. To design an adequate sampling strategy, these time and
length scales shall be known at least approximately before the sampling procedure is defined.
Flow in many streams and rivers are not steady for periods of hours to days. For streams in which
variable flow is the norm, portable samplers will not be practical unless many flow events can be
sampled. No single sampling design can be used at all stations. A sampling design should be derived for
each site where bedload is to be sampled. Initial samples collected can provide information to serve as
a basis for developing the sampling plan.
6 Site selection
a) Depending upon the method of measurement, the site for conducting bedload measurements can
be either a river reach or a cross-section. The site should be relatively close to the geographical
location where bedload-transport rate information is needed. There should be no inflow or outflow
from the river between the measuring site and the site where bedload transport estimates will be
used.
b) When using a method such as dune-tracking, a straight reach where the channel width and depth
are fairly uniform throughout the reach is desirable. Flow through the reach should be uniform and
steady during the bedload-measurement period (see 9.4).
c) A single cross-section site should be selected if the method of measurement is by bedload sampler.
The channel width and mean depth of the cross-section site should be representative of the
average channel width and depth upstream and downstream. Ideally, a cross-section used for
bedload measurement by bedload sampler should be at the centre of a straight reach selected for
measurement of bedload by the dune-tracking method.
d) If it is not possible to place the cross-section site in the centre of an ideal straight, uniform reach,
then the cross-section should be located at least 10 to 20 channel widths downstream from any
2 © ISO 2015 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 9212:2015(E)

bend in the channel. It should not be located at an excessively narrow section, such as might be
present at a bridge site, or at an excessively wide section.
7 Bedload samplers and traps
7.1 Bedload samplers
7.1.1 Requirements of an ideal bedload sampler
In order that the samples taken are truly representative of the bedload material of a river at the point of
sampling, the ideal bedload sampler should fulfil the following technical requirements.
a) It should be calibrated for bedload-sampler efficiency of specific sediment particle sizes.
b) It should be designed to minimize disturbances to normal bedload movement. In particular, local
erosion near the sampler mouth should be avoided so as to not form scour holes.
c) The lower edge of the sampler and nozzle should be in contact with the river bed.
d) The velocity of inflow at the mouth of the sampler should be as close as possible to the ambient
velocity of the stream at the sampling point, irrespective of what this velocity may be. This aspect
is very important if large sampling errors are to be avoided.
e) The mouth of the sampler should always face into the current and the sample should be taken
parallel to flow direction at the sampling point, into a specially designed chamber.
f) The mouth of the sampler should be outside the zone of the disturbances of the flow set up by the
body of the sampler and its operating gear and the flow lines should be as little disturbed as possible,
especially near the mouth.
g) The sampler should be able to collect only those particles moving as bedload, without contamination
by suspended sediment.
h) The sampler should be portable, yet sufficiently heavy to minimize deflection of the supporting
cable from the vertical due to current drag. A separate anchor is recommended for the sampler,
wherever possible.
i) The sampler should be simple in design and robust in construction and should require minimum
maintenance and care in operation.
j) It should be capable of collecting representative bedload samples under varying bed configurations.
k) The sampler should be designed for easy removal of the sampled material into a container for
transfer to a laboratory.
l) The volume of the sample collected should be sufficient for the determination of mass and particle-
size distribution.
m) The efficiency of the sampler should be independent of length of sampling over a reasonable time.
n) The efficiency of the sampler should be independent of the size of bedload particles and flow velocity.
7.1.2 Basket or box type sampler
This type of sampler consists of a basket or box, usually made of mesh material on all sides except the
front and bottom. The bottom may be solid or of loosely woven iron rings or steel mesh, to enable it to
conform to the irregular shape of the stream bed. The sampler is placed on the channel bed with the help
of a supporting frame and cables. A steering fin or vane(s) attached to the basket ensures positioning of
the instrument in the direction of the flow. The sediment is collected in the basket by causing a reduction
of the flow velocity and/or screening the sediment from flow for a measured time period.
© ISO 2015 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/TR 9212:2015(E)

Since a part of the bedload is dropped in front of the sampler, the efficiency of basket type samplers is
only about 45 %, for average sediment sizes varying from 10 mm to 50 mm. However, due to their large

capacity, basket type samplers are well suited for measuring of transport rate of large-sized sediment
[7]
.
7.1.3 Frame and net sampler
These are portable samplers consisting of a steel or aluminium frame and a trailing net for collecting
the sediment. The samplers can be used in small wadable streams. The samplers are anchored to the
streambed with steel rods driven through the frames. These samplers can be deployed for 1 h or more,
depending on the transport rate, so they can average out short-term temporal variations in transport
rates.
The sampler shown in Figure 1 was designed for use in small mountain streams. The frame, which was
fabricated from aluminium, 0,3 m wide, 0,2 m high, and 0,1 m deep. The netting, which extends about
1 m downstream from the frame, is sturdy nylon mesh with 3,5 mm openings. The sampler is able to
trap gravel particles as small as 4 mm and cobbles particles as large as 128 mm.
1
6
7
2
0
4
5
3
SCALE
APPROX. 0,3 m
Key
1 aluminium frame
2 bottom piece, bevelled
3 aluminium ground plate, inclined in front, with holes
4 adjustable nylon straps
5 slits at top and bottom on each side of the frame
6 smooth stakes, rolled steel
7 nylon netting
[2]
Figure 1 — Schematic diagram of a portable frame and net sampler
7.1.4 Pressure-difference sampler
This type of sampler is designed so that the velocity of water entering the sampler and the stream
velocity is approximately equal. Equalization of velocity is accomplished through creation of a pressure
drop at the exit due to a diverging configuration between the entrance and the exit. These are flow-
through samplers that trap coarse material behind baffles or in a mesh bag attached to the exit side or
in a specially designed chamber. The Scientific Research Institute of Hydrotechnics (SRIH) and Sphinx
samplers (see Figure 2 and Figure 5) are examples of samplers with internal baffles. The Arnhem, Helley-
Smith, US BLH-84, and US BL-84 are examples of mesh bag samplers (see Figure 3, Figure 4, Figure 6,
and Figure 7)
4 © ISO 2015 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/TR 9212:2015(E)

Key
1 transverse partitions
2 entrance
NOTE This is a pressure-difference bedload sampler. The SRIH sampler was the first of this type to be
developed. Such samplers can sample particles as small as fine sand to as large as 200 mm. Efficiencies are
extremely variable.
[10]
Figure 2 — Scientific Research Institute of Hydrotechnics (SRIH) sampler
7.1.5 Advantages and disadvantages
Portable samplers are generally inexpensive to acquire, but can be expensive to operate and suffer from
uncertain calibrations.
© ISO 2015 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/TR 9212:2015(E)

Dimensions in metres
Key
1 steering fin
2 entrance
3 rubber connection
4 mesh bag
NOTE This is a pressure-difference bedload sampler. The Arnhem or Dutch sampler comprises a rigid
rectangular entrance connected by a diverging rubber-neck to a basket of 0,2 mm to 0,3 mm mesh. Efficiencies
[13]
are variable, but generally about 70 % . It is suitable for collection of fine bedload material. The fine net of the
sampler can get clogged leading to a drop in efficiency of the sampler.
[14]
Figure 3 — Arnhem sampler
6 © ISO 2015 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/TR 9212:2015(E)

Dimensions in millimetres
Key
1 bag to tail attachment spring 6 rail attachment bolt
2 mesh polyester monofilament, 0,2 mm 7 hole for bag attachment spring
3 dot fastener 8 slot top rail to fit tail
4 aluminium alloy weld tail pieces except where side 9 aluminium tubing filled with lead after farming
rails join tail
5 sliding collar 10 tubing spacers, where necessary
NOTE This is a pressure-difference bedload sampler with a 76-mm square entrance nozzle and an area
[9]
expansion ratio of 3,22 . Field experiments indicate a nearly 100 % sampling efficiency for sizes from about
[6]
0,5 mm to 16 mm . Laboratory studies indicate that sampling efficiencies vary widely with particle size and
[11]
transport rate, ranging from 150 % for sand and small gravel and close to 100 % for coarse gravel .
[9]
Figure 4 — Helley-Smith bedload sampler
© ISO 2015 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/TR 9212:2015(E)

Dimensions in metres
NOTE This is a direct measurement sampler developed by Vinckers, Bijker and Schijft (see Reference [22]).
The hydraulic efficiency varies from about 1,09 for clear flow to about 1,0 for extreme conditions. Sampling
efficiency varies from about 93 % for particle sizes finer than 0,2 mm to about 85 % for sizes finer than about
0,09 mm.
[22]
Figure 5 — Sphinx sampler
NOTE The US BLH-84 is a hand-held 4,5 kg, wading type sampler used to collect bedload samples from a
stream of wading depth. The sampler consists of an expanding nozzle, a sampler bag, and a wading rod assembly.
Particle sizes less than 38 mm at mean velocities up to 3 m/s can be measured with this sampler. It was developed
by Reference [21]. Size of sampler: length: 711 mm, width: 140 mm, mass: 4,5 kg.
[5]
Figure 6 — US BLH-84 Wading type bedload sampler
8 © ISO 2015 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/TR 9212:2015(E)

NOTE The US BL-84 is a cable suspended 14,4 kg, sampler to collect bedload samples from a stream of any
depth. The sampler consists of an expanding nozzle mated to a frame, and a sampler bag. Particle sizes less than
38 mm at mean velocities up to 3 m/s can be measured with this sampler. It was developed by Reference [21]. Size
of sampler: length: 921 mm, width: 381 mm, mass: 14,4 kg.
[21]
Figure 7 — US BL-84 Cable suspended bedload sampler
7.1.6 Characteristics of bedload samplers
Since the sampling conditions encountered in streams vary widely, a single sampler for all conditions
cannot be recommended. Factors such as cost, availability, and specific requirements of the sampling
also influence the choice of the sampler to a great extent. Table 1, which summarizes the characteristics
of some commonly used samplers, can assist in the selection of a sampler in given conditions.
As the data obtained is affected by the sampling action and the mechanism of the sampler, any change
in the sampler would itself introduce a variable. Therefore, the results obtained from different samplers
might not be comparable.
Table 1 — Samplers commonly used for bedload measurement
Disturbance Acceptability to
Hydraulic Sampler
Type Description of flow various field
stability efficiency
characteristics conditions
Frame and Portable bedload trap with 0,3 m Near-bottom flow Anchored to Variable from −50 Suitable for sam-
net by 0,2 m opening and trailing velocity increases streambed. to +20 % pling coarse parti-
nylon
...
