ISO 2338:1997
(Main)Parallel pins, of unhardened steel and austenitic stainless steel
Parallel pins, of unhardened steel and austenitic stainless steel
Goupilles cylindriques en acier non trempé et en acier inoxydable austénitique
La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques en acier non trempé et en acier inoxydable austénitique de diamètre nominal, d, de 0,6 mm à 50 mm inclus.
General Information
- Status
- Published
- Publication Date
- 29-Oct-1997
- Technical Committee
- ISO/TC 2 - Fasteners
- Drafting Committee
- ISO/TC 2/WG 13 - Washer and non-threaded fasteners
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 15-Jun-2023
- Completion Date
- 13-Dec-2025
Relations
- Effective Date
- 06-Jun-2022
- Effective Date
- 15-Apr-2008
- Effective Date
- 15-Apr-2008
Overview
ISO 2338:1997 defines the characteristics and designation of parallel pins (also called cylindrical or straight pins) made from unhardened steel and austenitic stainless steel. The standard covers nominal diameters from 0.6 mm to 50 mm, specifies dimensional tolerances and commercial lengths, and gives requirements for material, surface finish, hardness and workmanship. ISO 2338 is a fasteners standard intended for manufacturers, designers and quality inspectors who need consistent, interchangeable pins for precision assembly and tooling.
Key Topics
- Size range and dimensions: Nominal diameters d = 0.6 mm to 50 mm; standard nominal lengths listed with acceptable min/max tolerances and commercial length steps (above 200 mm in 20 mm increments).
- Tolerance classes: Typical tolerance classes referenced are m6 and h8; tolerances apply before any plating or coating.
- Material and hardness:
- Unhardened steel (St): hardness specified in the standard (given as HV30 range).
- Austenitic stainless steel (A1): material grade referred to ISO 3506-1 with its own hardness range.
- Surface finish and coatings:
- Steel pins: plain (natural) finish or treated finishes such as black oxide, phosphate coating or zinc plating with chromate conversion; pins often supplied with protective lubricant unless otherwise agreed.
- Austenitic stainless steel: normally supplied plain (natural finish).
- Surface roughness:
- For m6 tolerance class: R < 0.8 µm
- For h8 tolerance class: R < 1.6 µm
- Workmanship and acceptability:
- Pins must be free from irregularities, detrimental defects and burrs.
- Acceptance inspection follows ISO 3269.
Applications
ISO 2338 parallel pins are widely used for:
- Alignment and location in assemblies (dowels and locating pins)
- Fixtures, jigs and tooling for machining and production
- Precision mechanical assemblies in automotive, machinery, electronics and other industrial equipment
- Replacement parts and procurement where interchangeability and conformity to standards are required
Who uses it:
- Fastener and precision pin manufacturers
- Mechanical designers and engineers specifying dowel/pin dimensions and tolerances
- Procurement and quality control personnel enforcing acceptance inspection criteria
Related Standards
- ISO 3269 - Fasteners: Acceptance inspection
- ISO 3506-1 - Mechanical properties of corrosion‑resistant stainless steel fasteners (referenced for austenitic grades)
- ISO 4042 - Fasteners: Electroplated coatings (referenced)
- ISO 9717 - Phosphate conversion coatings for metals
Designation example from ISO 2338:
- Parallel pin ISO 2338 – 6 m6 × 30 – St (steel)
- Parallel pin ISO 2338 – 6 m6 × 30 – A1 (austenitic stainless steel)
Keywords: ISO 2338, parallel pins, dowel pins, unhardened steel pins, austenitic stainless steel pins, pin dimensions, m6 tolerance, h8 tolerance, fasteners standard.
ISO 2338:1997 - Parallel pins, of unhardened steel and austenitic stainless steel
ISO 2338:1997 - Goupilles cylindriques en acier non trempé et en acier inoxydable austénitique
Frequently Asked Questions
ISO 2338:1997 is a standard published by the International Organization for Standardization (ISO). Its full title is "Parallel pins, of unhardened steel and austenitic stainless steel". This standard covers: La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques en acier non trempé et en acier inoxydable austénitique de diamètre nominal, d, de 0,6 mm à 50 mm inclus.
La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques en acier non trempé et en acier inoxydable austénitique de diamètre nominal, d, de 0,6 mm à 50 mm inclus.
ISO 2338:1997 is classified under the following ICS (International Classification for Standards) categories: 21.060.50 - Pins, nails. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 2338:1997 has the following relationships with other standards: It is inter standard links to ISO 3158:1976, ISO 2338:1986, ISO 2338:1972. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 2338:1997 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 2338
Second edition
1997-11-01
Parallel pins, of unhardened steel and
austenitic stainless steel
Goupilles cylindriques en acier non trempé et en acier inoxydable
austénitique
A
Reference number

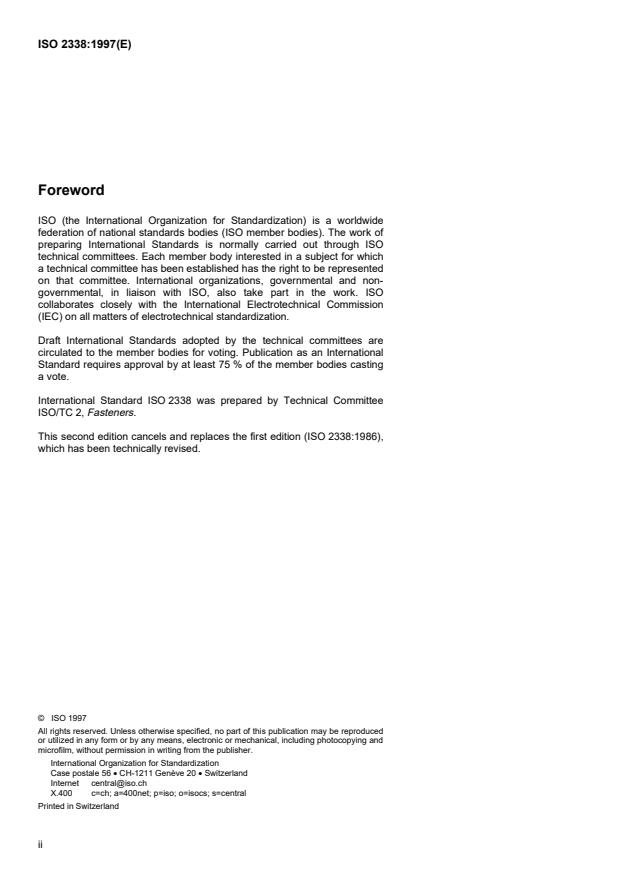

Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national standards bodies (ISO member bodies). The work of
preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented
on that committee. International organizations, governmental and non-
governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 2338 was prepared by Technical Committee
ISO/TC 2, Fasteners.
This second edition cancels and replaces the first edition (ISO 2338:1986),
which has been technically revised.
© ISO 1997
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet central@iso.ch
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Printed in Switzerland
ii
©
INTERNATIONAL STANDARD ISO ISO 2338:1997(E)
Parallel pins, of unhardened steel and austenitic
stainless steel
1 Scope
This International Standard specifies the characteristics of parallel pins of unhardened steel and austenitic
stainless steel, with nominal diameters d from 0,6 mm to 50 mm inclusive.
2 Normative references
The following standards contain provisions which, through reference in this text, constitute provisions of this
International Standard. At the time of publication, the editions indicated were valid. All standards are subject
to revision, and parties to agreements based on this International Standard are encouraged to investigate the
possibility of applying the most recent editions of the standards indicated below. Members of IEC and ISO
maintain registers of currently valid International Standards.
ISO 3269:1988, Fasteners – Acceptance inspection.
ISO 3506-1:1997, Mechanical properties of corrosion-resistant stainless steel fasteners – Part 1: Bolts, screws
and studs.
1)
ISO 4042:– , Fasteners – Electroplated coatings.
ISO 9717:1990, Phosphate conversion coatings for metals – Method of specifying requirements.
3 Dimensions

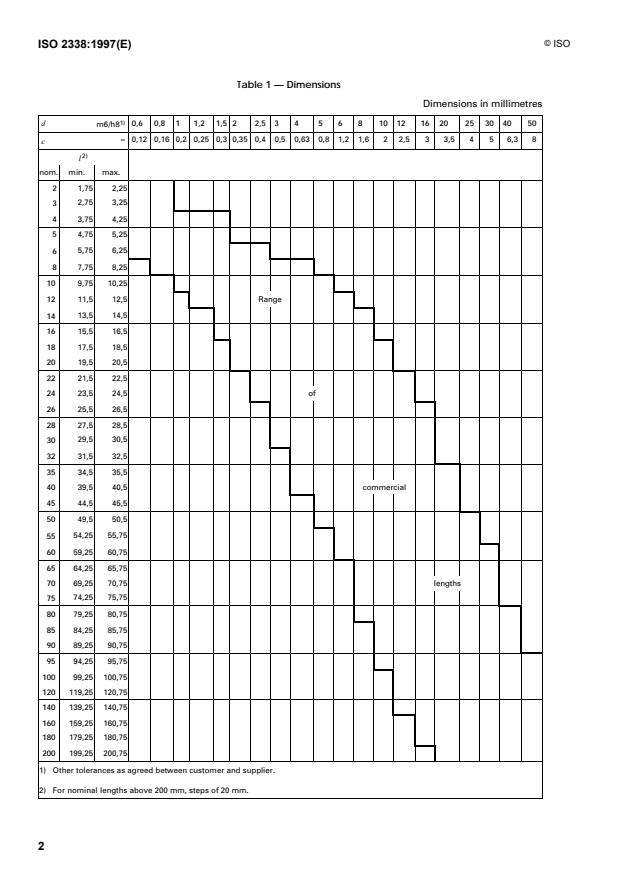

See figure 1 and ta
...
NORME ISO
INTERNATIONALE 2338
Deuxième édition
1997-11-01
Goupilles cylindriques en acier non trempé
et en acier inoxydable austénitique
Parallel pins, of unhardened steel and austenitic stainless steel
.
A
Numéro de référence

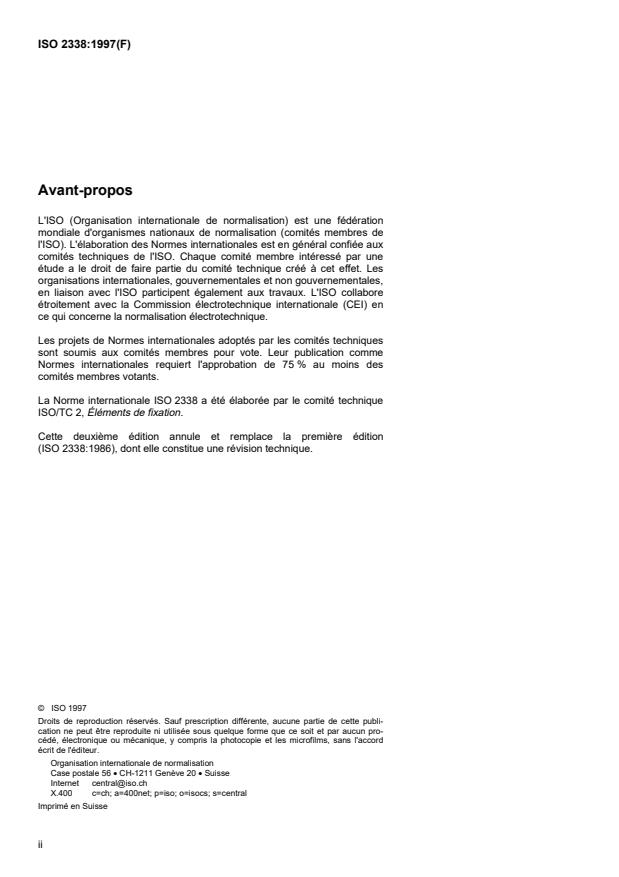

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération
mondiale d'organismes nationaux de normalisation (comités membres de
l'ISO). L'élaboration des Normes internationales est en général confiée aux
comités techniques de l'ISO. Chaque comité membre intéressé par une
étude a le droit de faire partie du comité technique créé à cet effet. Les
organisations internationales, gouvernementales et non gouvernementales,
en liaison avec l'ISO participent également aux travaux. L'ISO collabore
étroitement avec la Commission électrotechnique internationale (CEI) en
ce qui concerne la normalisation électrotechnique.
Les projets de Normes internationales adoptés par les comités techniques
sont soumis aux comités membres pour vote. Leur publication comme
Normes internationales requiert l'approbation de 75 % au moins des
comités membres votants.
La Norme internationale ISO 2338 a été élaborée par le comité technique
ISO/TC 2, Éléments de fixation.
Cette deuxième édition annule et remplace la première édition
(ISO 2338:1986), dont elle constitue une révision technique.
© ISO 1997
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publi-
cation ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun pro-
cédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord
écrit de l'éditeur.
Organisation internationale de normalisation
Case postale 56 • CH-1211 Genève 20 • Suisse
Internet central@iso.ch
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Imprimé en Suisse
ii
©
NORME INTERNATIONALE ISO ISO 2338:1997(F)
Goupilles cylindriques en acier non trempé et en acier
inoxydable austénitique
1 Domaine d'application
La présente Norme internationale prescrit les caractéristiques des goupilles cylindriques en acier
d
non trempé et en acier inoxydable austénitique de diamètre nominal, , de 0,6 mm à 50 mm inclus.
2 Références normatives
Les normes suivantes contiennent des dispositions qui, par suite de la référence qui en est faite,
constituent des dispositions valables pour la présente Norme internationale. Au moment de la
publication, les éditions indiquées étaient en vigueur. Toute norme est sujette à révision et les
parties prenantes des accords fondés sur la présente Norme internationale sont invitées à
rechercher la possibilité d'appliquer les éditions les plus récentes des normes indiquées ci-après.
Les membres de la CEI et de l'ISO possèdent le registre des Normes internationales en vigueur à
un moment donné.
Éléments de fixation — Contrôle de réception.
ISO 3269:1988,
Caractéristiques mécaniques des éléments de fixation en acier inoxydable
ISO 3506-1:1997,
résistant à la corrosion — Partie 1: Vis et goujons.
1)
ISO 4042:— , Éléments de fixation — Revêtements électrolytiques.
Couches de conversion au phosphate sur métaux — Méthode de spécification
ISO 9717:1990,
des caractéristiques.
3 Dimensions

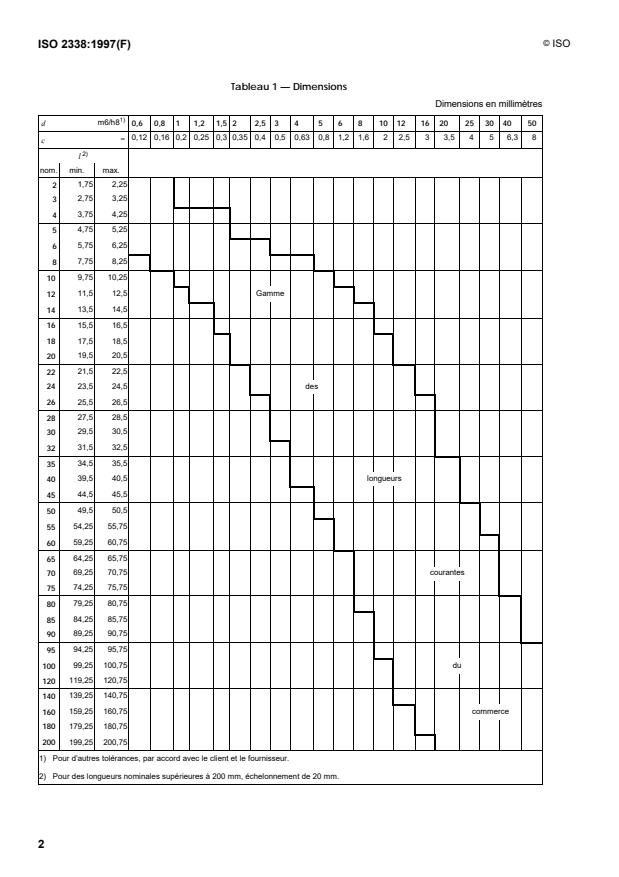

Voir figure 1 et tableau 1.
Figure 1
____________
1) À publier. (Révision de l'ISO 4042:1989)
...
