ISO 12647-7:2007

INTERNATIONAL ISO
STANDARD 12647-7
First edition
2007-12-15


Graphic technology — Process control
for the production of half-tone colour
separations, proof and production
prints —
Part 7:
Proofing processes working directly from
digital data
Technologie graphique — Contrôle des processus de confection de
sélections couleurs tramées, d'épreuves et de tirages —
Partie 7: Processus d'épreuve travaillant directement à partir de
données numériques




Reference number
ISO 12647-7:2007(E)
©
ISO 2007

---------------------- Page: 1 ----------------------
ISO 12647-7:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2007 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 12647-7:2007(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Requirements . 2
4.1 Data files, simulation of screens. 2
4.2 Proof print. 3
5 Test methods. 6
5.1 Control strip . 6
5.2 Additional test objects . 7
5.3 Colour measurement. 7
5.4 Measurement of tone values by tristimulus colorimeter or spectrocolorimeter . 8
5.5 Measurement of gloss. 8
5.6 Visual appraisal of proof-press-print matches . 8
Annex A (normative) Certification . 9
Annex B (normative) Rub resistance of the proof colorant. 11
Annex C (normative) Outer gamut patches. 15
Annex D (informative) Organizational certification routines for visual appraisal of proof-print
press-print matches. 18
Bibliography . 20

© ISO 2007 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 12647-7:2007(E)

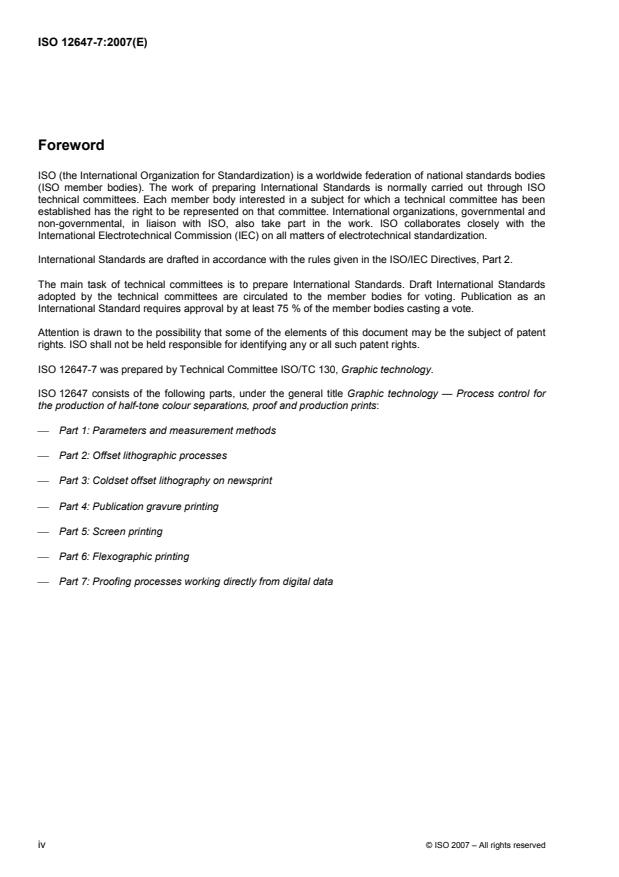

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 12647-7 was prepared by Technical Committee ISO/TC 130, Graphic technology.
ISO 12647 consists of the following parts, under the general title Graphic technology — Process control for
the production of half-tone colour separations, proof and production prints:
⎯ Part 1: Parameters and measurement methods
⎯ Part 2: Offset lithographic processes
⎯ Part 3: Coldset offset lithography on newsprint
⎯ Part 4: Publication gravure printing
⎯ Part 5: Screen printing
⎯ Part 6: Flexographic printing
⎯ Part 7: Proofing processes working directly from digital data

iv © ISO 2007 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 12647-7:2007(E)
Introduction
Part 1 of ISO 12647 serves to provide definitions, the general principles, the general order, the material to be
covered in the subsequent parts 2 to 7 of ISO 12647, the definition of the data, the measurement conditions
and the reporting style.
This part of ISO 12647 relates to the subject of digital proofing and establishes proofing requirements for the
most stringent part of the printing and publishing market.
This part of ISO 12647 mainly lists values or sets of values, and their tolerances, of the primary parameters
specified in ISO 12647-1, especially for digital proof printing. Primary parameters that define a printing
condition include the screening parameters, where applicable, the colours of the solids, the colour of the print
substrate, colours intermediate between these and the tone value increase curve. Adherence to these values
essentially ensures that a grey, which at the colour separation stage was composed for a particular printing
condition, also prints as a grey colour in proofing and printing. Remaining deviations from grey due to
differences in trapping can then be removed by adjusting the coloration within the tolerances provided. This
part of ISO 12647 further specifies test methods for those properties of digital proof prints and their substrates
that are considered relevant for stable and reliable conditions, and thus for a certification procedure.
The graphic technology industry makes extensive use of proofing to predict the rendering of digital data files
by a wide variety of high-definition, high-quality off-press printing processes and applications. Each such
prediction is based on a characterization data set that defines a particular printing condition.
Typically, the specified printing condition is defined through an International Color Consortium (ICC) profile or
the associated characterization data set, both of which relate source data and colorimetrically defined printed
colour. Such data may be derived from printing conditions conforming to the pertinent process standard of the
ISO 12647 series by industry trade groups or individuals.
The purpose of a proof print is to simulate the visual characteristics of the finished production print product as
closely as possible. In order to visually match a particular printing condition, proofing processes require a set
of parameters to be specified that are not necessarily identical to those put forward in ISO 12647-1 or another
part of ISO 12647. This is caused by differences in colorant spectra or phenomena such as gloss, light scatter
(within the print substrate or the colorant), and transparency. In such cases, it is also found that
spectrocolorimetry takes precedence over densitometry.
Another problem area is the matching of a double-sided production print on a lightweight printing substrate,
such as often used in heat-set web and publication gravure printing, to a digital proof on a nearly opaque
substrate. If the proof was produced using a colour management profile based on measurements with white
backing, there will be an unavoidable visual and measurable difference between the proof on the one hand
and the production print placed on black on the other hand. A black backing is required for double-sided
production printing on non-opaque prints, as specified in the pertinent parts of ISO 12647. The possible
occurrence of such differences needs to be well communicated, in advance, to all parties concerned.
Historically there has been no consistency in the way that either the characterization data or the criteria and
limits for a satisfactory match have been provided. This has led to significant redundancy and inconsistencies
in the evaluation of proofing systems for different, but similar, applications, and a cost and time burden on the
industry. This International Standard therefore attempts to provide guidance in this area by providing
specifications and associated testing procedures.
Annex A gives the requirements for the digital proof prints listed in the main body of this part of ISO 12647;
these are weighted with respect to their relevance in two typical situations:
⎯ requirements with which a proof print, made for a particular printing condition, must comply if it is to be
referenced in a contract between the printer and the provider of the digital data (“Certified Proofing
System”);
© ISO 2007 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 12647-7:2007(E)
⎯ requirements with which a vendor's proofing system, comprising hardware and software, must comply if it
is to be considered capable of reliably producing digital contract proofs for a particular printing condition
(“Certified Proofing System”).

vi © ISO 2007 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 12647-7:2007(E)

Graphic technology — Process control for the production of
half-tone colour separations, proof and production prints —
Part 7:
Proofing processes working directly from digital data
1 Scope
This part of ISO 12647 specifies requirements for systems that are used to produce hard-copy digital proof
prints intended to simulate a printing condition defined by a set of characterization data. Recommendations
are provided with regard to appropriate test methods associated with these requirements. In addition,
guidance with respect to the certification of proofing systems related to specific printing condition aims is also
included.
This part of ISO 12647 is independent of the method used to produce a digital proof print.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 3664, Viewing conditions — Graphic technology and photography
ISO 8254-1, Paper and board — Measurement of specular gloss — Part 1: 75° gloss with a converging beam,
TAPPI method
ISO 12040, Graphic technology — Prints and printing inks — Assessment of light fastness using filtered
xenon arc light
ISO 12639, Graphic technology — Prepress digital data exchange — Tag image file format for image
technology (TIFF/IT)
ISO 12640-1, Graphic technology — Prepress digital data exchange — Part 1: CMYK standard colour image
data (CMYK/SCID)
ISO 12642-2, Graphic technology — Input data for characterization of 4-colour process printing — Part 2:
Expanded data set
ISO 12647-1:2004, Graphic technology — Process control for the production of half-tone colour separations,
proof and production prints — Part 1: Parameters and measurement methods
ISO 13655:1996, Graphic technology — Spectral measurement and colorimetric computation of graphic arts
images
© ISO 2007 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 12647-7:2007(E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12647-1 and the following apply.
3.1
digital proof
soft proof or hard-copy proof produced directly from digital data, on a display or a substrate
3.2
digital proof print
digital hard-copy proof
digital proof produced as a reflection copy on a proofing substrate
3.3
proofing substrate
printing substrate used for hard-copy proofing processes
3.4
half-tone proof print
proof print made using the same screening technology (generally centre-weighted half-tone dots) as the
intended production printing
NOTE This is done to attempt to produce (and therefore check for the existence of) the same screening artefacts,
such as rosettes, moiré or aliasing patterns, as expected in the corresponding production print. One possibility is to base
proofing on the bitmap produced on the production plate or film setter.
3.5
print stabilization period
time elapsed since the production of a proof print until a stable colour is achieved
NOTE This property is to be specified by the manufacturer.
4 Requirements
4.1 Data files, simulation of screens
4.1.1 Data delivery
Digital proofing systems should accept digital data delivered as PDF/X data files as defined in ISO 15930 or
TIFF/IT files as defined in ISO 12639. Where TIFF/IT files are used, colour information shall be included using
tag 34675 or tag 34029 as defined in ISO 12639.
NOTE PDF/X requires that the intended printing condition be indicated. Where the intended printing condition is
included in the registry of characterizations maintained by the International Color Consortium (ICC) and the digital data is
cyan-magenta-yellow-key (black) (CMYK), the name used in the ICC registry is usually used for identification in lieu of
including an ICC output profile. If the intended printing condition is not included in said registry, PDF/X requires that an
ICC output profile be included. If the data is other than CMYK, the data is required to be defined colorimetrically using an
ICC input profile or another mechanism and an ICC CMYK output profile is required to be included; the rendering intent to
be used with the output profile is required to be communicated.
4.1.2 Screen frequency
Half-tone proofs should have the same nominal screen frequencies (screen rulings) as the production press
print to be simulated.
4.1.3 Screen angle
Half-tone proofs should have the same screen angles as the production print to be simulated.
2 © ISO 2007 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 12647-7:2007(E)
4.1.4 Dot shape and its relationship to tone value
Half-tone proofs should have the same general dot shape as the production print to be simulated.
4.2 Proof print
4.2.1 Proofing substrate colour and gloss
The digital proofing substrate should, if possible, be the same as the substrate to be used for production
printing. Where this is not possible, the digital proofing substrate should have the same gloss and CIELAB a*
and b* values as the intended production printing substrate within the tolerances listed in Table 1. Where the
characteristics of the printing substrate to be used for production printing are not exactly known, a suitable
proofing substrate conforming to one of the three types given in Table 1 shall be used.
The proof and production printing substrates should ideally have similar UV responses under the
recommended measurement conditions.
Annex A gives requirements for a digital proof print that are weighted with respect to their relevance.
Where the production printing substrate is not identical to the proofing substrate, the colour of the latter shall
not vary by more than a CIELAB 1976 colour difference of 1,5 when successively subjected to the following
keeping conditions in the dark:
a) 24 h at 25 °C and a relative humidity of 25 %;
b) 24 h at 40 °C and a relative humidity of 80 %;
c) one week at 40 °C and a relative humidity of 10 %.
For the same proofing substrate, the variability of colour under light exposure is limited by the condition that
the light fastness, as determined in accordance with ISO 12040, shall not be less than 3.
NOTE 1 A light fastness step of 3 corresponds approximately to a 300 d exposure to normal office lighting.
NOTE 2 In production printing, if the final print product is subjected to surface finishing, this might significantly affect
the gloss and often also the colour. In critical cases, the result of the colour separation stage is best judged by means of a
proof that closely matches the gloss of the final surface-finished print product. For processes with off-press finishing, in
order to facilitate the matching of the production image to the proof image at the make-ready stage, it is useful to provide
the press operator with two proof prints:
⎯ a proof print whose gloss matches that of the (unfinished) production print substrate;
⎯ a proof print which closely matches the gloss of the final surface-finished print product.
NOTE 3 If the substrate fails this test, it is in all likelihood not environmentally stable and thus not eligible for
certification.
Table 1 — CIELAB coordinates, gloss and tolerances for unprinted proofing substrate types
a a a b
L* a* b* Gloss
Proofing substrate type
%
Glossy white W 95 0 ± 2 0 ± 2 61 ± 15
Semi-matte white W 95 0 ± 2 0 ± 2 35 ± 10
Matte white W 95 0 ± 2 0 ± 2 < 25
NOTE The data specified in this table pertain to unprinted proofing substrates, not to be
confused with data pertaining to unprinted production substrate which are given in other parts of
ISO 12647.
a
Measurement in accordance with 5.3.
b
Measurement in accordance with 5.5.
© ISO 2007 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 12647-7:2007(E)
4.2.2 Coloration of printed parts
The measurement conditions shall be as specified in 5.3; the digital control strip specified in 5.1 shall be used.
The CIELAB colour coordinates of the process colour solids shall agree with the pertinent aim values of the
printing condition to be simulated as given by the data (see 4.1.1), within a CIELAB difference of 5; the
contribution of the CIE hue difference to the total CIELAB difference shall not exceed 2,5.
The variability of the coloration across the proof print format is limited by the provision that the colours of nine
measurement locations evenly spaced on the test object (see 5.2.4), which has been printed without prior
modification in view of the printing condition, shall have
⎯ a standard deviation of less than 0,5 each for values of L*, a* and b*;
⎯ a maximum CIELAB colour difference of 2 between the average value and any one point.
The print stabilization period shall be specified by the manufacturer. The variability (“fading”) of the primary
and secondary colour solids over time, in the dark, shall be limited by the condition that the CIELAB colour
difference that occurs in the first 24 h after the print stabilization period has elapsed shall not exceed 1,5.
The light fastness, as determined according to ISO 12040, of the primary colour solids shall not be less than 3.
The CIELAB colour coordinates of the control patches, defined in 5.1 or ISO 12642-2, shall agree with the
pertinent aim values of the printing condition to be simulated as given by the data (see 4.1.1) within the
tolerances specified in Table 2.
If the proofing conditions are such that the simulation of the production printing substrate patch (C=M=Y=K=0,
i.e. all the components are equal to zero) does require overprinting of the proofing substrate, the CIELAB
deviation tolerance for that patch shall be 3, irrespective of what the pertinent part of ISO 12647 stipulates for
this tolerance.
4.2.3 Repeatability of proof printing
The variability of the proof print primary and secondary colour solids and primary colour midtone patches from
one day to the following shall not exceed a CIELAB colour difference ∆E of 1,5 when the patches are being
measured at the same position on the sheet, and after the vendor-specified warming-up period and, if
necessary, recalibration.
NOTE For certain proofing systems, the same point on a proof print may be formed from a different source on
different days; strictly speaking, this is testing variability not repeatability. For these systems there is no true test of
repeatability.
4.2.4 Colorant rub resistance
Using the test apparatus and method specified in Annex B, the time required by printed solids to reach
mechanical stability against a rubbing action should not exceed 30 min or the print stabilization period,
whichever is longer. This test shall be performed for each combination of materials and operating conditions
for which the proofing system is to be certified.
NOTE A period of 30 min was chosen because this is believed to represent the expectation of the average user.
Where the colour (as distinct from the rub resistance of the colorant) takes longer to stabilize, this requirement can be
relaxed.


4 © ISO 2007 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 12647-7:2007(E)
Table 2 — Additional tolerances for control patches
Control patch description Tolerance
Simulated print substrate colour of the production printing
*
∆E u 3
a ab
condition
*
Maximum ∆E u 6
ab
All patches specified in 5.1
*
Average ∆E u 3
ab
Second half-tone scale composed of the primaries C, M, Y,
roughly replicating the colours of the first scale for an
Average ∆H u 1,5
average printing condition (“grey balance”) (same number
of patches as for colours of the first scale)
Outer gamut patches Average ∆E * u 4
ab
*
Average∆E u 4
ab
All patches of ISO 12642-2
*
95 % percentile ∆E u 6
ab
NOTE 1 The tolerances pertain to the deviation of the proof values from the values of the characterization data of the printing
condition to be simulated.
NOTE 2 The specification of ∆E * tolerances lower than 3 is presently not practical due to poor inter-instrument agreement.
ab
NOTE 3 If the final proof print is subjected to surface finishing, the final colours might deviate significantly from those of the
unfinished print. See also Note 2 in 4.2.1. In this case, a new proofer or simulation profile or other adjustments are required.
a
Required only where the proofing substrate is not identical with the production printing substrate.

4.2.5 Ink set gloss
The gloss of solid tone colours should be visually similar to that of the production print to be simulated. The ink
set gloss may be specified if deemed necessary; see 5.5 for the method.
NOTE If the gloss of the proof print is substantially changed by the applied colorants, a surface-finishing step might
improve the situation. See 4.2.2.
4.2.6 Tone value reproduction limits
Tints intermediate between the (simulated) substrate white and solid shall transfer onto the proof in a
consistent and uniform manner over a tone value range that includes at least the tone reproduction limits of
the printing condition to be simulated; see the pertinent part of ISO 12647 for this information.
NOTE It is good prepress practice that no image parts need to rely on tone values outside of the tone value
reproduction limits of the production printing process.
4.2.7 Tone value
In addition to the requirements of 4.2.2, the single-colour CMYK patches shall not deviate in tone value
(measured colorimetrically) from those of the aim characterization data by more than 5 % in tone value. For
the calculation of tone values from measured and characterization CIE data, use the method described in 5.4.
4.2.8 Reproduction of vignettes
The test objects specified in 5.2.2 shall show no easily visible steps within the tone value reproduction limits
(see 4.2.6), if viewed under ISO viewing condition P1 in accordance with ISO 3664.
© ISO 2007 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 12647-7:2007(E)
4.2.9 Image register and resolving power
The maximum deviation between the image centres of any two printed colours shall not be larger than
0,05 mm. The resolving power of the proof print shall be such that C, M, K positive, non-serif, type of 2-point
size, reverse (negative) of 8-point size and 2-point reverse line are legibly reproduced; the test object
specified in 5.2.3 shall be used. The above requirements shall not apply to rough or mechanically unstable
substrates such as newsprint and to cases where the tolerances for production printing are substantially
greater than 0,05 mm.
NOTE 1 This condition usually corresponds to an output addressability of at least 100 pixels per centimetre.
NOTE 2 This condition includes the effects of colorant migration, if at all present.
4.2.10 Margin information
Every digital proof shall bear a human-readable commentary line printed on a margin where the proofing
system designation, the colorant and substrate material types, the printing condition to be simulated, the
colour management profile(s) used and the time and date are given.
NOTE 1 For ink-jet printers, it is useful to print a nozzle test line next to the commentary line so that it is possible to
ascertain in retrospect that all nozzles were working.
NOTE 2 In some cases of recalibration, it is useful to reprofile the proofer.
4.2.11 Gamut
For each printing condition to be simulated, the 226 outer gamut patches of ISO 12642-2 shall be proof
printed. The average CIELAB 1976 colour difference between actual and aim values for those patches shall
not exceed 4; see also Table 2. See Annex C for the list of outer gamut patches of ISO 12642-2.
5 Test methods
5.1 Control strip
On every proof, print a CMYK digital control strip at the output intent of the printing condition to be simulated.
The control elements identified in the list below should be included while keeping the total number of patches
within reasonable limits. To provide compatibility with characterization data, as many control patches as
possible should be selected from ink value combinations of ISO 12642-2. Select the control patches such that
the following control patch types are covered:
a) solid tones of the chromatic primaries and their secondaries C,M,Y,R,G and B (6 patches);
b) mid- and shadow tones of the chromatic primaries and their secondaries C,M,Y,R,G and B (12 patches);
c) black (K) only half-tone scale with a minimum of six steps that includes the solid;
d) CMY overprint half-tone scale having the same number of steps as the scale in c) that approximately
replicates, for an average printing condition, the CIELAB values of the black only scale defined in c);
e) selection of critical tertiary colours such as flesh tones, brown, aubergine, violet (e.g. 15 patches);
f) simulated print substrate colour of the production printing condition (1 patch).
NOTE 1 There are two practical definitions for grey which are sometimes contradictory:
⎯ “A colour having the same a* and b* CIELAB values as the print substrate”;
⎯ “A colour having the same a* and b* CIELAB values as a half-tone tint of similar L* value printed with black ink”.
The latter definition is believed to be useful in the midtone and upwards whereas the former is believed to work best with
highlight tones.
6 © ISO 2007 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 12647-7:2007(E)
NOTE 2 Grey balance patches composed of suitable CMY mixtures serve a useful purpose for quick visual che
...
