ISO/IEC TR 20002:2012

TECHNICAL ISO/IEC
REPORT TR
First edition
2012-12-01
Information technology —
Telecommunications and information
exchange between systems — Managed
P2P: Framework
Technologies de l'information — Télécommunications et échange
d'informations entre systèmes — Réseaux pair-à-pair géré: Cadre
général
Reference number
©
ISO/IEC 2012

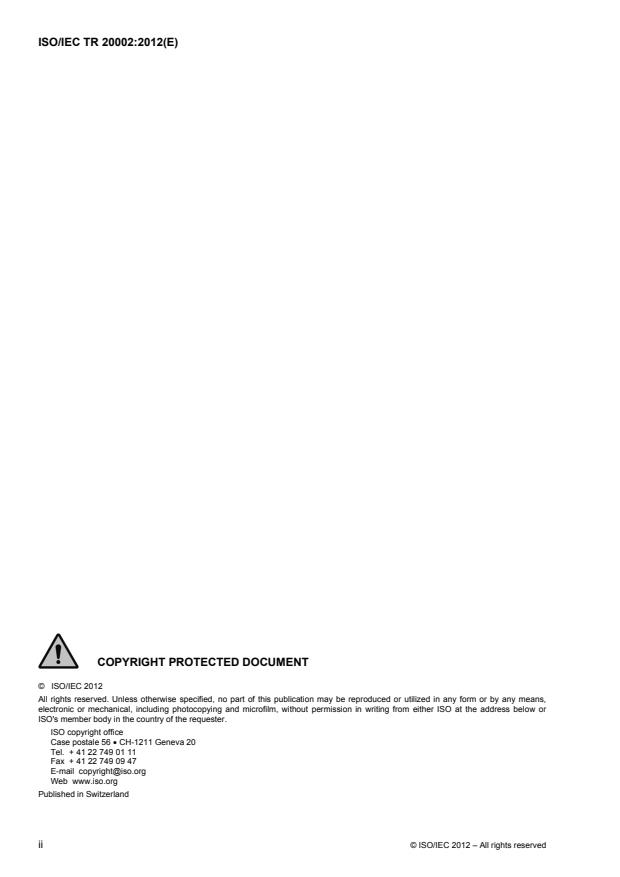

©  ISO/IEC 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2012 – All rights reserved

Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols (and abbreviated terms) . 2
5 Concept of Peer-to-Peer networking . 3
5.1 Characteristics of P2P network . 3
5.2 Classification of P2P network . 4
6 Problem statement . 5
6.1 Problems in the network-side . 6
6.2 Problems in the service-side . 6
6.3 Problems in the user-side . 6
7 Requirements of Managed P2P . 7
7.1 Traffic Management . 7
7.2 Cooperation Management . 9
7.3 Contents Management . 10
7.4 Service Management . 11
7.5 Resource Management . 12
7.6 P2P User Management . 13
7.7 Distribution Management . 14
7.8 P2P Network Management. 15
8 MP2P framework . 18
8.1 Domains . 18
8.2 Entities . 19
8.3 High-level information flows . 21
Annex A (informative) There are various types of P2P-based service and applications. This annex
describes some major P2P-based applications and use cases for managed P2P . 33
Bibliography . 42

© ISO/IEC 2012 – All rights reserved iii

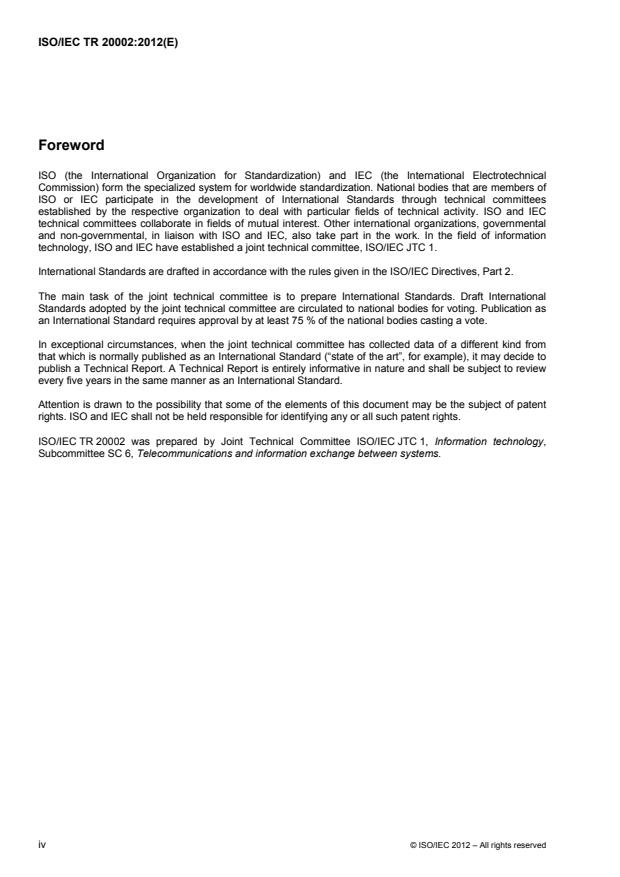

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
In exceptional circumstances, when the joint technical committee has collected data of a different kind from
that which is normally published as an International Standard (“state of the art”, for example), it may decide to
publish a Technical Report. A Technical Report is entirely informative in nature and shall be subject to review
every five years in the same manner as an International Standard.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC TR 20002 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 6, Telecommunications and information exchange between systems.
iv © ISO/IEC 2012 – All rights reserved

Introduction
Peer-to-Peer (P2P) is distributed network architecture composed of participants (peer) sharing resources
without intervention from the central coordination instances. Due to the advantages of scalability and
performance, P2P has emerged as viable service architecture for the large-scale Internet applications such as
file distribution, multimedia streaming, etc. By combining the resources of each user devices, P2P network
can be automatically self-organized and be adapted to changes in peer populations while providing stable
services for content sharing and personal communications. However, the unmanaged characteristics of P2P
have caused various technical and social problems such as inefficient use of network, copyright issue, etc.
This technical report suggests approaches to solve such problems by defining manageability and enhanced
capability to the P2P through the definition of managed P2P (MP2P). This technical report identifies problems
of the P2P, identifies requirements for MP2P, and provides framework for MP2P.
© ISO/IEC 2012 – All rights reserved v

TECHNICAL REPORT ISO/IEC TR 20002:2012(E)

Information technology — Telecommunications and information
exchange between systems — Managed P2P: Framework
1 Scope
This Technical Report:
 classifies problems of P2P networking;
 defines taxonomy and concept of managed P2P;
 specifies requirements to support managed P2P;
 specifies framework for managed P2P;
 specifies information flows to support various features of managed P2P.
This Technical Report does not define new P2P protocol or P2P-based applications. This Technical Report
does not define manageability features for interoperation with conventional P2P-based applications. The goal
of this Technical Report is to define a framework to provide manageability to the conventional P2P-based
application.
2 Normative references
None.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
Managed Peer-to-Peer (MP2P)
P2P with manageability features to manage the P2P-based service and P2P network by the P2P participants
such as P2P service provider, ISP, and peer
3.2
P2P Service Provider (P2PSP)
service provider providing a P2P-based service
3.3
Peer
equally privileged participant in the P2P network which has the capability to share its resources with other
participants
3.4
Peer-to-peer (P2P) networking
distributed networking composed of peers that share portion of the resources to be available to other peers
© ISO/IEC 2012 – All rights reserved 1

3.5
Content Fragment
data unit in a content that is exchanged among peers in the P2P network. Content fragment can also be a unit
stored in the peer
3.6
Relay Peer
peer relaying data for other peer(s)
3.7
Contributing Peer
peer providing resources to other peer(s)
3.8
Consuming Peer
peer consuming resources from other peer(s)
3.9
Super Peer
peer providing distributed control over P2P network. In general, it has powerful resources compared to other
types of peers in the P2P network and is connected to the public network
4 Symbols (and abbreviated terms)
The following acronyms are used in this document.
ALTO Application-Layer Traffic Optimization
CAN Content Addressable Network
CAPEX Capital Expenditure
DHT Distributed Hash Table
ICE Interactive Connectivity Establishment
IETF Internet Expert Task Force
ISP Internet Service Provider
MP2P Managed Peer-to-Peer
NAT Network Address Translation
P2P Peer-to-Peer
P2PSP Peer-to-Peer Service Provider
STUN Session Traversal Utilities for NAT
TURN Traversal Using Relays around NAT
UPnP Universal Plug and Play
2 © ISO/IEC 2012 – All rights reserved

5 Concept of Peer-to-Peer networking
A peer-to-peer (P2P) networking is a distributed networking that is composed of large number of individual
participants (called peers) that make a portion of their resources (such as processing power, disk storage or
network bandwidth) directly available to other participants in the P2P network, without the need of the central
coordination instances (such as servers or stable hosts). As opposed to traditional client-server architecture,
peers in the P2P networking have equal roles and act as a resource provider and a resource consumer. P2P
networking protocol provides a method for any two peers to communicate with one another. P2P network is
self-organized and is capable of adapting to failures and accommodates transient population of peers, while
maintaining acceptable connectivity and performance without requiring intermediation or support from a
centralized server or authority. P2P networking is highly distributed, highly scalable, and highly autonomous to
large numbers of peers. These characteristics shows advantages in services such as file-sharing, distributed
computing, and media streaming.

Figure 1 — P2P network
Figure 1 shows a P2P network in which the peers form an overlay network on top of the underlying physical
network. The application level routing is used to route data for P2P-based service. The architecture of P2P
network allows peers to create new service or application without the intervention from the network
infrastructure or central instance.
The peer-to-peer network should not be confused with concept of ad-hoc network, which is a self-configuring
infrastructureless network of mobile devices connected by wireless links. Ad-hoc networking involves wireless
devices to discover each other within the wireless range and to communicate in peer-to-peer fashion without
involving central access points. The P2P network is an application-level overlay network which is independent
of the underlying physical network, wired or wireless. The ad-hoc network is out of scope of this document.
5.1 Characteristics of P2P network
This clause describes the characteristics of P2P network.
© ISO/IEC 2012 – All rights reserved 3

5.1.1 Distributed resource sharing
P2P architecture is different from the client-server architecture in which the contents or resources are provided
by single or small group of server. P2P allows peer to share its resources which includes contents, computing
power, connectivity, etc. Peers can participate in content dissemination or distributed computing such as
SETI@home. Shared resources are distributed across the network which enables peers to easily utilize the
resources.
In P2P, a single peer conducts both client function and server function. It acquires needed resource from
multiple peers through client function. It shares its resource with multiple peers through server function.
Since the resource can be found in multiple peers, it is resilient to failure as compared to the server-based
architecture. The distributed resources enable distributed parallel processing which leads to increase in
throughputs and performances.
5.1.2 Content-based routing
Content-based routing can be realized in the P2P networking, since the target of routing is content or resource
not the physical address of the source.
5.1.3 Self-organization and dynamic adaptation
The P2P network is a self-organized network configured by the participating peers without any intervention
from the centralized server or authority. The peers participating in the P2P network join and leave the P2P
network dynamically. Thus, P2P network enables peer to find other contributing peer when the previous
contributing peer abruptly leaves the P2P network. Each node in the P2P network is reorganized
autonomously to accomplish dynamic adaptation. Self-organization is realized through this dynamic
adaptation feature.
5.1.4 Scalability
P2P network is composed of various types of network devices and accommodates large number of peers
without significant decrease in overall performance. In general, the performance of P2P network tends to
increase which is proportional to the number of participating peers.
5.1.5 Load distribution
P2P network can provide load distribution through partition tasks or workloads among peers. P2P network
shows excellent performance in distributing contents of large volume to large number of peers with much less
load concentration compared to client-server system. Contents provider can distribute contents to large
number of receivers by providing contents to only a small number of peers in the P2P network. The contents
are propagated to rest of the peers over the P2P network.
5.2 Classification of P2P network
5.2.1 Structured P2P network
Structured P2P network, e.g. Tapestry, Chord, CAN, and Kademlia, organizes P2P network according to the
predefined structure such as ring topology or two-dimensional coordinate. In order to position peer in
appropriate place on the P2P network with the predefined structure, peer uses algorithm based on the
distributed hash table (DHT). By use of DHT, the configured P2P network can be optimized in terms of
searching and retrieving contents. Although structured P2P network can provide efficient searching and
retrieving content, DHT requires global consistency among peers.
4 © ISO/IEC 2012 – All rights reserved

5.2.2 Unstructured P2P network
In unstructured P2P network, peers use different algorithm to configure P2P networks. Instead of being
configured in the predefined structure, the unstructured P2P network is shaped in varied format according to
the peer’s activities. The unstructured P2P network is categorized according to the existence of the central
server which is as follows.
 Pure P2P network: In pure P2P network such as the early version of Gnutella and Freenet, P2P
network consists of peers only. Since there is no central server, peer uses flooding mechanism to
acquire contents by sending query messages to all neighbouring peers. Peer with the requested
content responds with information for the consuming peer to initiate service connection. Absence of
central server helps to prevent the single point of failure but the use of flooding mechanism can
impose excessive overhead to the P2P network.
 Centralized P2P network: Centralized P2P network such as Napster, BitTorrent uses a central server
to maintain the information of the P2P networks and the information of the participating peers. Peer
connects to the central server in order to get the information of the P2P network, especially
information of the peers participating in the P2P network. However, the contents itself are directly
retrieved from peers participating in the same P2P network. The use of central server can increase
manageability of the P2P network or P2P-based service, but it may incur scalability problem and
single-point-of-failure issue.
 Hybrid P2P network: In order to overcome problems of the prior two systems, hybrid P2P network,
e.g. KaZaA and Skype, exploits a new type of peer called super peer. The central server may not be
used in the hybrid P2P network or may be used with minimal functions such as for authentication.
Super peers conduct functions for the P2P network on behalf of the central server. Peer may connect
to the central server and gets the information of the existing super peers. Then peer connects to
super peers to get the list of neighbouring peers or to query contents information. The super peer
communicates with other super peers in order to exchange information of peers and resources. The
super peer can relay the request to other super peers, if it cannot provide the requested information.
5.2.3 Mapping of contents with P2P network
A P2P network can constructed for a single content or multiple contents. The features and characteristics for
each type are as follows.
 Single content on a P2P network: In this relationship, single P2P network is configured for a single
content. This type of P2P network does not need to provide content searching because it is
configured only for one content. The peer needs to access a separate index server, such as web-
based bulletin board, to acquire information of the P2P networks and the metadata of the contents.
Based on the acquired information, peers can participate in the P2P network and receive the desired
content. BitTorrent is one example for this type of P2P network.
 Multiple contents a P2P network: In this relationship, single P2P network is organized for multiple
contents. Peer needs to join the P2P network with the initiation of the P2P-based service. Peer
queries to search for content in the P2P network. The peers with the queried contents respond to the
querying peer. Consuming peer makes a peer list consisting of contributing peers which can respond
to the query. eDonkey is one example for this type of P2P network.
6 Problem statement
Even though P2P networking has various advantages such as high scalability and high throughput, it incurs
various problems as well. This clause lists problems caused by P2P networking.
© ISO/IEC 2012 – All rights reserved 5

6.1 Problems in the network-side
6.1.1 Disregarding underlying networks
P2P networking does not consider the status of the underlying network in the process of the peer selection.
Selected peer has small possibility of being the most appropriate peer from the underlying network
perspective. This leads to inefficiency in P2P network. In addition to inefficient use of the network, P2P
networking may incur inter-ISP traffic which imposes monetary cost on ISP.
6.1.2 Load concentration on specific peers/networks
In P2P network, resources are not evenly distributed throughout the network which can result in network load
concentration on specific peer or specific part of the network. Network status changes frequently from extreme
peer dynamics and flash crowd. Unpredictable behavior of peers makes it impossible to predict traffic flows.
6.2 Problems in the service-side
6.2.1 High churn
Peers can join or leave P2P network any time during the service. This dynamic behavior called peer churn
may lead to instability of P2P networks and the P2P based services. If the churn rate is too high, P2P based
service may suffer from service discontinuity. This indicates that the extreme peer dynamics and flash crowd
results in lack of service reliability and robustness.
6.2.2 Illegal distribution of content
P2P network does not have method to prevent illegal distribution of contents. Copyright protection is one of
the serious issues in P2P based service.
6.2.3 Absence of distribution control
P2P network is a receiver-oriented system, which the content distribution is controlled by the receiver. P2P
network lacks feature for the contents provider to control the distribution. The peer providing contents may
want to manage the distributing area (serving region or consuming peers) or to receive report from the
consuming peer.
6.3 Problems in the user-side
6.3.1 Absence of authentication
There is lack of verification feature in the P2P system. The participants of P2P network can be peers who are
neither verified nor authenticated. It is hard to guarantee the reliability of the contents received from peers,
because it may contain viruses, worms, Trojan horses, malware, spyware, etc. There is no adequate penalty
to the peers for committing such malicious acts. Also, there is no protection scheme for the innocent victims.
6.3.2 Fairness and differentiation
P2P network is based on voluntary resource sharing among peers. This leads to selfish participants who
receive resources from other peers but intentionally do not share its resources. For effective P2P-based
service, it is important for the peers to share their resources. An adequate mechanism is needed to prevent or
to reduce intentional selfish participants. In order to provide fairness in terms of traffic among peers, P2P
networks have their own mechanism, e.g. optimistic unchoking and tit-for-tat, for fairness. However, those
mechanisms do not consider network capability of each peer but only reflect the amount of data sent and
received. Thus, peers with poor uplink capability cannot receive adequate service even if those peers are not
intentional selfish participants. In addition to fairness, appropriate incentive mechanism is needed to provide
differentiated service based on peer contribution.
6 © ISO/IEC 2012 – All rights reserved

7 Requirements of Managed P2P
Managed P2P (MP2P) is a P2P with manageability features to manage the P2P-based service and P2P
network by the participants such as P2PSP, ISP, and peer. It is possible to resolve or reduce various
problems of the P2P and to provide new features to enhance P2P-based services through managed P2P.
This clause defines requirements of the MP2P. The requirements should be understood with the following
conventions.
 The keywords “is required to” indicate a requirement which must be strictly followed and from which
no deviation is permitted if conformance to this document is to be claimed.
 The keywords “is recommended” indicate a requirement which is recommended but which is not
absolutely required. This requirement need not be present to claim conformance.
 The keywords “can optionally” indicate an optional requirement which is permissible, without implying
any sense of being recommended. This term is not intended to imply that the vendor’s
implementation must provide the option and the feature can be optionally enabled by the network
operator/service provider. Rather, it means the vendor may optionally provide the feature and still
claim conformance with the specification.
7.1 Traffic Management
P2P networking constructs P2P network to directly share data among peers without considering the status of
the underlying network. P2P traffic without considering underlying network status can cause congestion in the
network which leads to degradation of network performance. It is hard to control the P2P traffic directly
because the P2P traffics are directly exchanged among peers.
Therefore, if the ISP can provide information of the underlying network to P2P-based application, it is
beneficial for both the user and the ISP. This means that the user can experience better service quality
compared to the P2P networking not considering the underlying network, and ISP can be relieved from the
unnecessary traffic load created by the P2P-based applications.
Prior to P2P traffic control, measuring network traffic should be preceded. The traffic status can be measured
through cooperation among ISP, peer, and P2PSP.
P2P networking can provide NAT/Firewall traversal functionalities using a special relay peer such as super
peer or relay server. By the use of the relay peer, P2P-based application can control traffic congestion in the
application level. Congestion control in the network level is attained by queuing and re-routing traffics in the IP
routers. The peer application directly performs P2P traffic control, and it is possible to actively control P2P
traffic through cooperation among participating P2P entities.
7.1.1 P2P Traffic Measurement
It is important to recognize the traffic status of P2P network. However, it is impossible to fully comprehend the
whole status of P2P network. In the MP2P, each peer should report its traffic status information to the P2PSP,
and P2PSP and ISP should cooperate to distribute traffic to perform traffic localization. In the status report,
peer can include its network status, preference, and the other characteristics. P2PSP can manage the P2P
network based on the information gathered from peer and the ISP.
Network measurement can be divided into active measurement and passive measurement. Active
measurement is achieved through probing the network by generating artificial traffic or through observing the
network as an active participant. Passive measurement is achieved through monitoring of the network as an
observer.
All data stream in P2P network is transmitted directly among peers, so it is useless to perform traffic
measurement in the P2PSP. However, P2PSP can use the traffic status information gathered from ISP and
peers for managing the P2P network.
© ISO/IEC 2012 – All rights reserved 7

In the IETF ALT, ISP, third parties, and user communities participate in measuring the network traffic. ISP can
easily measure the traffic based on the information of the network. Third party can collect the information of
network independently from the ISP and can be a substitute to the role of ISP in delivering the network
information to P2PSP. User communities applies distributed algorithm to analyse the topology of the network.
Req-Traffic-010: P2PSP is required to acquire and maintain information of network status and preference of
each peer.
Req-Traffic-020: Peer is required to measure data traffic of its network interface and convey the measured
information to the P2PSP.
7.1.2 P2P Traffic Control
MP2P can control the traffic in two ways: direct control and indirect control. P2PSP constructs P2P network
with the list of participating peers and indirectly controls the P2P traffic based on the gathered P2P network
information. Peer can control its P2P traffic directly through controlling uplink and downlink traffic.
7.1.2.1 Direct P2P Traffic Control by Peer
Peers have ownership of their resources so that they can directly control the uplink/downlink traffic pattern.
The activity of peers within P2P network can be controlled by the user’s preferences. For example, user can
limit the uplink/downlink bandwidth and controls the maximum number of concurrent peers. Furthermore, user
can apply those parameters per peer or connection in providing differentiated services to the premium users.
Req-Traffic-030: Peer is required to be able to manipulate its preferences such as traffic pattern and
differentiated access control.
Req-Traffic-040: Peer is recommended to control its traffic pattern.
Req-Traffic-050: Peer is recommended to provide differentiated access control.

7.1.2.2 Indirect P2P Traffic Control by P2PSP
P2PSP provides the peer list to the consuming peer in P2P network. Consuming peer can select contributing
peer in the peer list to receive contents. During this process, P2PSP can indirectly control the traffic by
ordering and filtering peers in the peer list.
Req-Traffic-060: MP2P is required to provide the capability of ordering and filtering for traffic control when
providing peer list.
7.1.2.3 Network Level Traffic Control by ISP
ISP can perform traffic engineering in IP layer, but ISP cannot directly restrict or alter the P2P traffic since it
could arise some legal issues. In the other hand, ISP can control by applying different QoS to different type of
P2P-based services through DPI (Deep Packet Inspection). However, this is not only exhaustive task, but also
can damage the performance of the network. Thus, traffic measurement and control in ISP will not be
considered in this document.
8 © ISO/IEC 2012 – All rights reserved

7.1.3 NAT/Firewall Traversal & Traffic Relay
In general, peer behind NAT/Firewall cannot receive the incoming connection request from peer residing
outside the NAT/Firewall. For the peers behind the NAT/Firewall, NAT traversal techniques such as STUN,
TURN, ICE, and UPnP are applied to provide end-to-end communication. However, these techniques do not
guarantee NAT traversal in every situation.
NAT/Firewall traversal is not a critical issue for delay-tolerant P2P-based services such as file distribution,
because traffic does not have to be transferred symmetrically. However, for services such as streaming and
real-time communication, it is required to provide NAT/Firewall traversal for peers behind the NAT/Firewall.
Req-Traffic-070: MP2P is recommended to provide NAT/Firewall traversal.

For peers without NAT/Firewall traversal capability, peer can traverse NAT/Firewall by utilizing peer with
relaying function such as relay peer.
In the unmanaged P2P networking, it is up to the peer to traverse the NAT/Firewall. In certain occasion, peer
needs to build a pinhole through STUN or UPnP in order to use the service. Failing to build such pinhole can
result in service failure. This problem can be solved through the use of a relay peer. MP2P can provide
NAT/Firewall traversal by maintaining a relay peer. In addition, each relay peer should be managed in order
not to be overloaded. If a peer participates as a relay peer, P2PSP should consider an appropriate incentive
method for contribution.
Req-Traffic-080: P2PSP is required to manage the contributing peer such as relay peer and super peer in
order to keep track of the resource usage by consuming peers.

7.2 Cooperation Management
In non-manageable P2P networking, the peers are not selected based on topology and underlying network
status which can cause various problems such as traffic implosion, monetary cost from inter-domain traffic. In
order to solve these problems, the information of the underlying network should be considered through the
cooperation among peers, P2PSP, and ISP. ISP can provide various network information including network
bandwidth, network topology, routing policy, routing metric, distance, etc. Peer can provide own status such
as status of the access network, system load, preference, etc. This information can be provided to the P2PSP
in controlling P2P traffic, application congestion, and load distribution to improve the performance of the P2P
network. By cooperation with the ISP, it is possible to provide better performance to the user through
optimized P2P traffic routing and is possible to provide better traffic modelling for the ISP.
7.2.1 ISP-P2PSP Cooperation
P2PSP keeps track of all the peers participating in the P2P network and provides the list of peers that can
provide the service to the consuming peer. In order to realize optimized peer selection, P2PSP can make the
peer list based upon the information provided by the ISP and the participating peers. The ISP can assign
priority on the peers in the peer list that is the most appropriate for the consuming peer based on the
underlying networking prospective.
Req-Coop-010: MP2P is required to provide interfaces for cooperation with ISP and P2PSP.

However, it is important to keep the ISP’s network information confidentially and should prevent that
information from being open to the public, since it can cause problem in the network management and
© ISO/IEC 2012 – All rights reserved 9

network security perspective. Thus, it is important that the information exchanged between the ISP and
P2PSP should be delivered safely under bilateral agreements.
Req-Coop-020: MP2P is required to construct secure connection between P2PSP and ISP.

7.2.2 ISP-Peer Cooperation
The ISP can provide information on the network status to the peer directly to assist in optimal peer selection.
Req-Coop-030: MP2P is recommended to provide interfaces for cooperating between ISP and Peer.

7.2.3 Peer-P2PSP Cooperation
Peer can provide the information on the preferences, local network status, system load, size of data received,
and size of data sent. P2PSP analyses the status of each peer with the information provided. Thus, a unified
interface between peer and P2PSP is needed for this interaction.
Req-Coop-040: MP2P is recommended to provide interface for cooperation between the P2PSP and peer.
Req-Coop-050: Peer is required to provide information of its sharable resources to the P2PSP.
Req-Coop-060: P2PSP is required to provide functions to query resource information of the participating
peer.
Req-Coop-070: Peer is required to provide its status information to the P2PSP.
Req-Coop-080: MP2P is required to provide method for describing resources and its attributes.

7.3 Contents Management
The traditional P2P networking treats the contents as a merely data, it does not have the capability to classify
the contents based on its characteristics including copyright status. Since data can be broken or corrupted
during the transmission the consuming peers should be able to confirm the integrity of the received data.
Moreover, MP2P needs to provide search engine for contents to enhance usability.
7.3.1 Copyright Protection
One of the major problems of P2P-based service is illegal distribution of copyright contents. It is difficult to
stop proliferation of illegal distribution since the contents are located within user’s storage. P2PSP may try to
stop distribution of contents through removing information of the contents in the index server. This method can
prevent new peer(s) from acquiring information to retrieve contents but the contents can still be distributed
among peers already participating in the P2P network. Peer(s) can even retrieve the content through the DHT
as well, if the P2P network is based on DHT. In some cases, content owner tends to distribute fake contents
to prevent illegal distribution. However, this method results in waste of network resources which is not
acceptable to the ISP. However, MP2P needs to define method to protected P2P content from copyright
infringement and privacy violation.
10 © ISO/IEC 2012 – All rights reserved

Req-Content-010: MP2P is required to provide method to stop proliferation of distribution of contents.
Req-Content-020: MP2P is required to provide method to detect illegal distribution of copyright contents.

In order to stop the distribution of illegal contents, P2P network should be audited based on the informational
characteristics of contents. The detailed method of auditing contents is out of scope of this document.
7.3.2 Data integrity
In P2P networking, contents are fragmented into multiple fragments. Peer exchanges the fragments with other
peer(s), and the collected fragments are merged into a single content. In this process integrity and validation
checks are made to the merged content. For integrity and validation checks, most P2P-based applications use
hash functions.
Req-Content-030: Peer is required to check the validity of received fragments and contents.
Req-Content-040: Peer is required to send out the report to content provider or to the server if there is an
integrity check error from received data.
Req-Content-050: Peer is required to recheck for integrity if there is an error on certain fragments and
discard the fragments in order to receive the new fragment of data from other peers.

7.3.3 Contents searching
P2P network can be constructed in two methods. First method is constructing a single overlay network for a
single content, and second method is constructing a single overlay network for multiple contents. In the first
method, peer can query the index server for the information of the peers with the desired contents. In the
second method, peer can flood a query over the P2P network to find the list of peers that has the desired
contents or contents are queried to the third party, i.e. index server. No matter how the P2P overlay is
constructed, MP2P needs to provide efficient content searching method.
Req-Content-060: MP2P is required to provide a search method to find specific content.

7.4 Service Management
P2P networking is applied to various applications and services. Typical P2P-based application is multimedia
streaming service and file sharing services. The core concept is the same, but how the service is provided is
somewhat different among the applications or the services based on P2P networking. For instance, P2P
networks for file sharing and P2P network for live-streaming have different requirements and need to construct
a P2P network adequately according to the requirements. Thus, it is important to find the detailed
characteristics of the service and to allocate needed resources in the constructed P2P network.
P2PSP needs to provide the information of the characteristics of the P2P network to the P2P-based
application. The P2P-based application can be adjusted to construct the most appropriate P2P networks.
7.4.1 Capability description on P2P network
Service providers should consider whether the service is suitable for selected P2P network before providing
the service to the users. For example, services such as file distribution and network storage mirroring require
stable and reliable P2P network. On the other hand, interactive services like VoIP requires P2P network with
low latency and low jitter rather than reliability.
© ISO/IEC 2012 – All rights reserved 11

P2PSP can provide information of the network capability to the peer(s). P2PSP can assist in providing optimal
P2P network based on the requirements provided by the P2P-based application/service.
Req-Serv-010: P2PSP is required to provide description on the characteristics of the P2P network

7.4.2 Managing service-specific P2P network
P2PSP can construct a new P2P network or reuse the constructed P2P network based on the requirements
from the P2P-based application/service. It is possible to provide service in the separately isolated P2P
network or to provide service on the common single P2P network based on the characteristics of application.
In addition, it is possible to satisfy the requirements of the P2P-based application by installing cache server or
relay server to the adequate position in the P2P network.
Req-Serv-020: MP2P is recommended to configure appropriate P2P network based on the service
requirements.
7.5 Resource Management
Unlike the client/server model, resources of the P2P networks are scattered in unmanageable fashion along
the multiple user devices. MP2P can provide capability to collect the information of the resources scattered
over the P2P network and reorganize the resource to be optimally used in enhancing the P2P performance.
MP2P will need to provide standardized method in reserving and utilizing the P2P resources. Thus, MP2P will
need to identify the resources and to composite the resources available in the P2P network. Moreover, MP2P
needs to provide explicit method expressing the sharing policy based on the user’s preference.
7.5.1 Resource and peer identification
P2P needs to identify P2P service user, peer, and resource. One P2P service user can utilize one or more
peers. One peer can share one or more resources. Thus, MP2P needs to differentiate each P2P service
users, peers, and resources. Management of the P2P service user is in 7.6.1. This clause defines
requirements for resource and peer identification.
Resource needs to be identified in order to collect and organize the information of the resources scattered
over the P2P network. P2PSP should know the type, location, owner, sharing policy, usage, ratio and current
load of the identified resources. P2PSP can assign and organize the resources based on this information.
Req-Reso-010: MP2P is required to provide identification of the resource to identify the resource of each
peer in the P2P network.
Req-Reso-020: MP2P is required to gather the information of resources and to organize them based on
resource identifier.
Req-Reso-030: MP2P is required to locate resource information with resource identifier.
Req-Reso-040: P2PSP is required to collect and to maintain information of the behavior of each peer.

7.5.2 Resource Composition
Resource composition is a composition of resources which peer can provide. Resource composition provides
an abstract layer on top of the distributed physical resources. Peers in the P2P network can contribute
resource including contents, network bandwidth, storage, computing power, etc. These resources can be
12 © ISO/IEC 2012 – All rights reserved

provided selectively. For example, it is possible to configure virtual network storage by combining contribution
of network bandwidth and storage provided by peers.
Req-Reso-050: MP2P is recommended to provide resource composition through composition of resources.

7.5.3 Resource Sharing Policy
Peer can provide network, storage, and contents to other peers in the P2P network. The peer should
acknowledge the capacity of the resources by considering the time and system load when sharing its resource
selectively. P2PSP may collect
...
