ISO 17239:2004

INTERNATIONAL ISO
STANDARD 17239
First edition
2004-10-15
Fruits, vegetables and derived
products — Determination of arsenic
content — Method using hydride
generation atomic absorption
spectrometry
Fruits, légumes et produit dérivés — Détermination de la teneur en
arsenic — Méthode par spectrométrie d'absorption atomique à
génération de hydrure
Reference number
©
ISO 2004

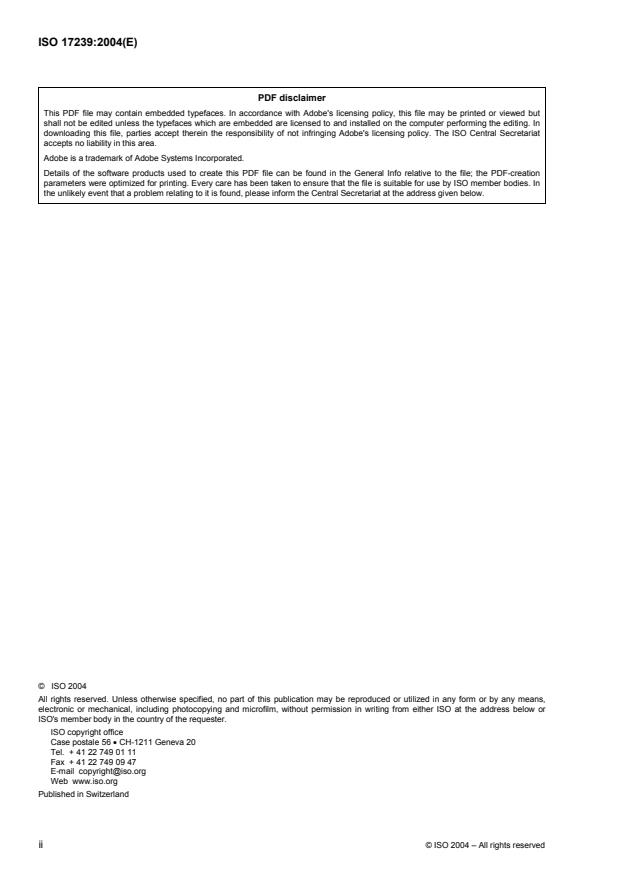

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2004 – All rights reserved

Contents Page
Foreword. iv
1 Scope. 1
2 Principle . 1
3 Reagents . 1
4 Apparatus . 2
5 Sample. 3
6 Procedure . 3
7 Calculation. 5
8 Precision . 5
9 Test report . 6
Annex A (normative) Apparatus . 7
Annex B (informative) Results of the interlaboratory test. 9
Bibliography . 10

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for
voting. Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the
subject of patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 17239 was prepared by Technical Committee ISO/TC 34, Food products,
Subcommittee SC 3, Fruit and vegetable products.

iv © ISO 2004 – All rights reserved

INTERNATIONAL STANDARD ISO 17239:2004(E)

Fruits, vegetables and derived products — Determination of
arsenic content — Method using hydride generation atomic
absorption spectrometry
1 Scope
This International Standard specifies a hydride generation atomic absorption spectrometric method for the
determination of the arsenic content of fruits, vegetables and derived products.
NOTE The method of arsenic determination in fruit, vegetables and derived products is based on AOAC Official
Methods for Analysis (see Reference [1]).
2 Principle
Organic matter is decomposed by digestion with HNO in a closed system. Arsenic(V) is reduced to
arsenic(III) with potassium iodide, and hydrides of arsenic are generated by the action of sodium borohydride
prior to atomization in a flame-heated quartz cell. Measurement is by atomic absorption spectrometry.
3 Reagents
Use only reagents of recognized analytical grade, unless otherwise specified, and distilled or demineralized
water or water of equivalent purity.
3.1 Nitric acid, concentrated, (ρ = 1,38 g/ml).
3.2 Hydrochloric acid, 8 mol/l solution.
Place 66 ml of concentrated hydrochloric acid (ρ = 1,19 g/ml) in a 100 ml one-mark volumetric flask and
make up to the mark with water. Mix.
3.3 Hydrochloric acid, diluted 1 + 1, by volume.
Mix one volume of concentrated hydrochloric acid (ρ = 1,19 g/ml) with one volume of water.
3.4 Magnesium chloride, 37,5 mg/ml solution.
Dissolve, in a 100 ml one-mark volumetric flask, 3,75 g of magnesium oxide by gradually adding
approximately 20 ml of hydrochloric acid solution (3.2) and make up to the mark with water. Mix.
3.5 Magnesium nitrate, 75 mg/ml solution.
Dissolve, in a 50 ml one-mark volumetric flask, 3,75 g of magnesium oxide with approximately 30 ml of water.
Slowly add approximately 10 ml of nitric acid (3.1) and mix. Make up to the mark with water.
3.6 Sodium borohydride, 4 % solution.
Dissolve, in a 100 ml one-mark volumetric flask, 4 g of NaBH in 4 % sodium hydroxide. Mix and make up to
the mark with 4 % sodium hydroxide.
3.7 Potassium iodide, 20 % solution.
Dissolve, in a 100 ml one-mark volumetric flask, 20 g of potassium iodide in water. Mix and make up to the
mark with water. Prepare just before use.
3.8 Arsenic, standard solution corresponding to 1,0 mg of arsenic per millilitre.
4 Apparatus
Rinse all glassware before using with a nitric acid solution (diluted 1 + 1), followed by a thorough rinse with
water.
Decontaminate the digestion vessels by digesting with reagents to be used in digestion. Rinse thoroughly with
water.
Usual laboratory apparatus and, in particular, the following.
4.1 Mechanical grinder, the inside and blades of which are coated with polytetrafluoroethylene (PTFE).
4.2 Atomic absorption spectrometer, provided with an air/acetylene burner (10 cm) and hydrogen-
nitrogen-entrained air flames, suitable for measurement at a wavelength of 193,7 nm and equipped with a
deuterium-arc background correction.
4.3 Decomposition vessel, 70 ml (see Figure A.1), consisting of a stainless steel body supporting a
polytetrafluoroethylene (PTFE) crucible having a screw-cap with a PTFE liner to provide a PTFE sealing
surface.
A PTFE spout is snapped on outside the rim to permit a quantitative transfer of the contents without contacting
the metal parts.
4.4 Oven, capable of maintaining a temperature of 150 °C.
4.5 Furnace, capable of maintaining a temperature of 450 °C.
4.6 Hydride generator, (see Figure A.2), constructed from the following:
4.6.1 Flat-bottom flask, borosilicate glass, 50 ml capacity.
4.6.2 Stoppers, two-hole (one through the centre), No 9 rubber stopper, with a gas-outlet tube of
polyethylene tubing, 100 mm long with a 3,2 mm id, fitted through the centre hole.
4.6.3 Reagent-cup assembly, consisting of the bottom 25 mm of a polyethylene test tube with a hole in the
bottom, through which the lower end of a gas-outlet tube is placed so that 3 mm of a tube protrudes below the
lower edge of the test tube.
1)
Connect the other end of the outlet tubing to the atomic absorption spectrometer (4.2) with 500 mm Tygon
tubing by cutting the auxiliary line approximately 75 mm from the mixing chamber and attaching the tubing.

1) Tygon is the trade name of a product. This information is only given for the convenience of users of this International
Standard and does not constitute an endorsement by ISO of this product.
2 © ISO 2004 – All rights reserved

4.6.4 N inlet tube, made by sealing the bottom end of a segment of polyethylene tubing, 75 mm long with
a 3,2 mm id, with a burner and then punching several holes in the sealed end with a 21-gauge needle which is
inserted through the second hole of the stopper. Alternatively, prepare a segment of polyethylene tubing
500 mm long with a 1,6 mm id in a similar manner which is secured in place in the stopper with a hole-through
septum.
4.6.5 Generator mount (optional), consisting of a segment of pipe, 64 mm long with a 1,3 m
...
