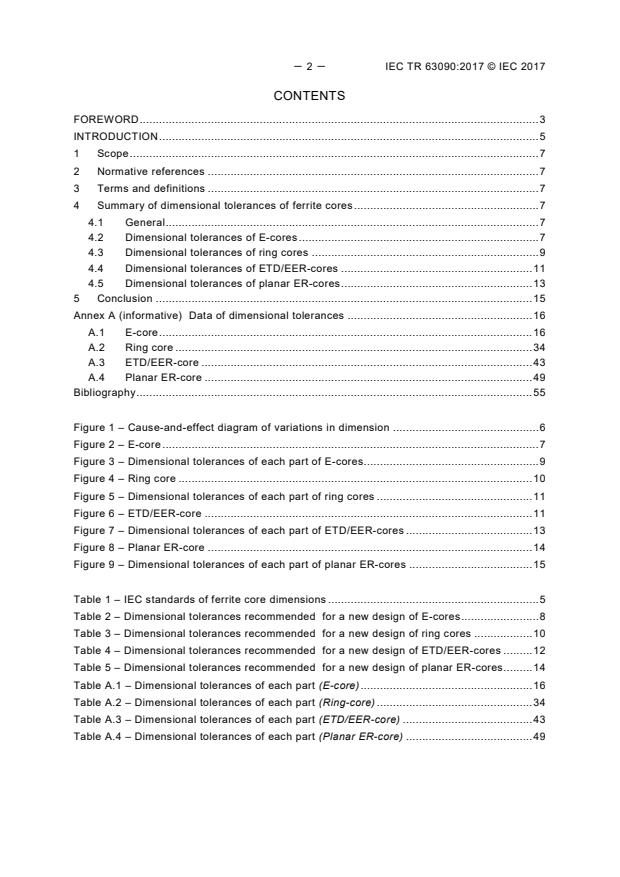

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Summary of dimensional tolerances of ferrite cores . 7
4.1 General . 7
4.2 Dimensional tolerances of E-cores . 7
4.3 Dimensional tolerances of ring cores . 9
4.4 Dimensional tolerances of ETD/EER-cores . 11
4.5 Dimensional tolerances of planar ER-cores . 13
5 Conclusion . 15
Annex A (informative) Data of dimensional tolerances . 16
A.1 E-core . 16
A.2 Ring core . 34
A.3 ETD/EER-core . 43
A.4 Planar ER-core . 49
Bibliography . 55

Figure 1 – Cause-and-effect diagram of variations in dimension . 6
Figure 2 – E-core . 7
Figure 3 – Dimensional tolerances of each part of E-cores . 9
Figure 4 – Ring core . 10
Figure 5 – Dimensional tolerances of each part of ring cores . 11
Figure 6 – ETD/EER-core . 11
Figure 7 – Dimensional tolerances of each part of ETD/EER-cores . 13
Figure 8 – Planar ER-core . 14
Figure 9 – Dimensional tolerances of each part of planar ER-cores . 15

Table 1 – IEC standards of ferrite core dimensions . 5
Table 2 – Dimensional tolerances recommended for a new design of E-cores . 8
Table 3 – Dimensional tolerances recommended for a new design of ring cores . 10
Table 4 – Dimensional tolerances recommended for a new design of ETD/EER-cores . 12
Table 5 – Dimensional tolerances recommended for a new design of planar ER-cores . 14
Table A.1 – Dimensional tolerances of each part (E-core) . 16
Table A.2 – Dimensional tolerances of each part (Ring-core) . 34
Table A.3 – Dimensional tolerances of each part (ETD/EER-core) . 43
Table A.4 – Dimensional tolerances of each part (Planar ER-core) . 49

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIMENSIONAL TOLERANCES OF FERRITE CORES

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 63090, which is a Technical Report, has been prepared by IEC technical committee
51: Magnetic components, ferrite and magnetic powder materials.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
51/1166/DTR 51/1186/RVDTR
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

－ 4 － IEC TR 63090:2017 © IEC 2017
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
This document shows the dimensional tolerances of ferrite cores that are generally used by
ferrite core suppliers. As a reference, this is useful for ferrite core suppliers and users when
they design ferrite cores and/or the components which use the ferrite cores.
IEC has published international standards regarding ferrite core dimensions and their
tolerances, as listed in the Table 1, and core sizes in each core shape were chosen from
industrial standards from Europe, Japan and USA. However, there are some cases that lack
unity in the dimensional tolerances even if ferrite core dimensions are close.
Because many new sizes are still designed for the E, ETD/EER, planar ER and ring core, this
document gives information about the dimensional tolerances for reference dimensions of
each core shape.
Table 1 – IEC standards of ferrite core dimensions
IEC standard Current standard
IEC 62317-1, Ferrite cores – Dimensions – Part 1: General specification ///
IEC 62317-2, Ferrite cores – Dimensions – Part 2: Pot-cores for use in ///
telecommunications, power supply, and filter applications
IEC 62317-3, Ferrite cores – Dimensions – Part 3: Half-pot cores (future standard) IEC 62323
IEC 62317-4, Ferrite cores – Dimensions – Part 4: RM-cores and associated parts ///
IEC 62317-5, Ferrite cores – Dimensions – Part 5: EP-cores and associated parts for use ///
in inductors and transformers
IEC 62317-6, Ferrite cores – Dimensions – Part 6: ETD-cores for use in power supplies ///
IEC 62317-7, Ferrite cores – Dimensions – Part 7: EER-cores ///
IEC 62317-8, Ferrite cores – Dimensions – Part 8: E-cores ///
IEC 62317-9, Ferrite cores – Dimensions – Part 9: Planar cores ///
IEC 62317-10, Ferrite cores – Dimensions – Part 10: PM cores (future standard) IEC 61247
IEC 62317-11, Ferrite cores – Dimensions – Part 11: EC-cores for use in power supply ///
applications
IEC 62317-12, Ferrite cores – Dimensions – Part 12: Ring cores ///
IEC 62317-13, Ferrite cores – Dimensions – Part 13: PQ-cores for use in power supply ///
applications
IEC 62317-14, Ferrite cores – Dimensions – Part 14: EFD-cores for use in power supply ///
applications
Cause of variations in dimension
The shrinkage of powders, the density of mouldings, the deformation of
ferrite cores, etc., are considered as causes of variations in dimension.
They are gathered in the following cause-and-effect diagram in Figure 1.

－ 6 － IEC TR 63090:2017 © IEC 2017

Sintering
powder
Profile deformation
(see IEC 60401-1:2002, 6.4.2)
Deformation
Shrinkage
Deflection-in or -out
Sintered density
(see IEC 60401-1:2002, 6.1.4.1 or 6.1.4.2)
Cause of variations
in dimension
Setting gap Moulding density
(dimension)
Setting gap
Non-uniformity of the density
(dimension)
Machining
Shaping
IEC
Figure 1 – Cause-and-effect diagram of variations in dimension
Consideration of the dimensional tolerance
The dimensional tolerance is considered according to the processing conditions, and the core
part is classified into the following three conditions:
– decided according to the mould and sintering, or
– decided according to the press direction, or
– grinding direction.
DIMENSIONAL TOLERANCES OF FERRITE CORES

1 Scope
This document gives guidelines on the dimensional tolerances of ferrite cores. This document
is considered as general information useful in the dialogue between ferrite core suppliers and
users.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Summary of dimensional tolerances of ferrite cores
4.1 General
Figures 3, 5, 7 and 9 show the plots of the specifications of IEC standards and the catalogues
of some ferrite core suppliers. The recommended boundary is the line connected by the
supposed maximum points of the specifications of the IEC standards. Most of the points are
under the recommended boundary.
4.2 Dimensional tolerances of E-cores
Figure 2 represents typical core geometry with the standard dimension nomenclature applied.
Dimensional tolerances to recommend for a new design of E-cores are shown in Table 2. The
scatter diagram of dimensional tolerances of each part of E-cores is shown in Figure 3.
Dimensional tolerances of each part in the specifications of IEC standards and the catalogues
of some ferrite core suppliers are shown in Table A.1.
B C
D
IEC
Figure 2 – E-core
A
F
E
－ 8 － IEC TR 63090:2017 © IEC 2017
Table 2 – Dimensional tolerances recommended
for a new design of E-cores
Decided
Decided according to mould and according to
Dimension Grinding direction
sintering press
direction
dimension dimension dimension dimension  dimension dimension
min max
A E F C B D
tolerance ± tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm mm
% % % % % %
5 < ≤ 10 4,5 3,5 5,0 5,0 3,0 4,0
10 < 4,0 2,5 3,5 3,0 2,5 3,0
≤ 15
15 < ≤ 20 4,0 2,5 3,0 3,0 2,5 2,5
20 < ≤ 25 3,0 2,5 2,0 2,0 1,5 2,0
25 < ≤ 30 2,5 2,5 － 2,0 1,5 －
30 < ≤ 35 2,5 2,0 1,0
－ － －
35 < ≤ 40 2,0 2,0 1,0
－ － －
40 < ≤ 50 2,0 2,0 － － － －
50 < ≤ 80 2,0 － － － － －
Tolerance of dimension A Tolerance of dimension E
IEC standard
IEC standard
6 6
Specs. in catalogues
Recommended boundary
5 5
Recommended boundary
4 4
3 3
2 2
1 1
0 0
0 10 20 30 40 50 60 70 80 0 10 20 30 40 50
Dimension (mm)
Dimension (mm)
IEC IEC
a) Dimension A b) Dimension E
Tolerance of dimension F
Tolerance of dimension C
IEC standard
IEC standard
Specs. in catalogues
Specs. in catalogues
Recommended boundary
6 Recommended boundary
0 0
30 30
0 5 10 15 20 25 0 5 10 15 20 25
Dimension (mm) Dimension (mm)
IEC IEC
c) Dimension F d) Dimension C
Tolerance of dimension B Tolerance of dimension D
IEC standard
IEC standard
Specs. in catalogues
Specs. in catalogues
Recommended boundaries
Recommended boundaries
0 0
30 40 30 40
0 10 20 0 10 20
Dimension (mm) Dimension (mm)
IEC IEC
e) Dimension B f) Dimension D

Figure 3 – Dimensional tolerances of each part of E-cores
4.3 Dimensional tolerances of ring cores
Figure 4 represents typical core geometry with the standard dimension nomenclature applied.
Dimensional tolerances to recommend for a new design of ring cores are shown in Table 3.
The scatter diagram of dimensional tolerances of each part of ring cores is shown in Figure 5.
Dimensional tolerances of each part in the specifications of IEC standards and the catalogues
of some ferrite core suppliers are shown in Table A.2.
Tolerance ± (%) Tolerance ± (%) Tolerance ± (%)
Tolerance ± (%) Tolerance ± (%) Tolerance ± (%)

－ 10 － IEC TR 63090:2017 © IEC 2017
C
IEC
Figure 4 – Ring core
Table 3 – Dimensional tolerances recommended
for a new design of ring cores
Decided
Decided according to mould and
Dimension
according to
sintering
press direction
min max dimension ϕA dimension ϕB dimension C
tolerance ± tolerance ± tolerance ±
mm mm
% % %
5 < ≤ 10 4,0 4,5 5,5
10 < ≤ 15 4,0 4,0 5,0
15 < 4,0 4,0 4,5
≤ 20
20 < ≤ 30 3,5 3,5 4,0
30 < ≤ 40 3,5 3,5 3,5
40 < ≤ 50 3,5 3,5 －
50 < 3,5 3,5 －
≤ 90
90 < 3,5 3,0 －
≤ 200
øB
øA
Tolerance of dimension øA Tolerance of dimension øB
IEC standard IEC standard
8 8
Specs. in catalogues Specs. in catalogues
7 7
Recommended boundary Recommended boundary
6 6
5 5
4 4
3 3
2 2
1 1
0 0
100 100
1 10 1 10
Dimension (mm) Dimension (mm)
IEC IEC
a) Dimension øA b) Dimension øB
Tolerance of dimension C
IEC standard
8 Specs. in catalogues
Recommended boundary
0 10 20 30
Dimension (mm)
IEC
c) Dimension C
Figure 5 – Dimensional tolerances of each part of ring cores
4.4 Dimensional tolerances of ETD/EER-cores
Figure 6 represents typical core geometry with the standard dimension nomenclature applied.
Dimensional tolerances to recommend for a new design of ETD/EER-cores are shown in
Table 4. The scatter diagram of dimensional tolerances of each part of ETD/EER-cores is
shown in Figure 7. Dimensional tolerances of each part in the specifications of IEC standards
and the catalogues of some ferrite core suppliers are shown in Table A.3.
B C
D
IEC
Figure 6 – ETD/EER-core
Tolerance ± (%)
Tolerance ± (%)
A
øF
Tolerance ± (%)
E
－ 12 － IEC TR 63090:2017 © IEC 2017
Table 4 – Dimensional tolerances recommended
for a new design of ETD/EER-cores
Dimension Decided according to mould and sintering Grinding direction
dimension dimension dimension dimension  dimension dimension
min max
A E ϕF C B D
tolerance ± tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm mm
% % % % % %
6 < - - 3,5 3,5 3,0 4,0
≤ 10
10 < ≤ 15 - - 3,0 3,0 3,0 3,0
15 < ≤ 20 - 3,5 3,0 3,0 2,0 3,0
20 < ≤ 25 3,0 3,5 2,5 2,5 2,0 2,0
25 < ≤ 30 3,0 3,5 - - 1,0 -
30 < ≤ 35 3,0 3,0 - - 1,0 -
35 < ≤ 40 2,5 3,0 - - - -
40 < ≤ 50 2,5 3,0 - - - -
50 < ≤ 60 2,5 - - - - -
Tolerance of dimension A Tolerance of dimension E
IEC standard
IEC standard
6 6
Specs. in catalogues Specs. in catalogues
5 5
Recommended boundary Recommended boundary
4 4
3 3
2 2
1 1
0 0
0 10 20 30 40 50 60
0 10 20 30 40 50
Dimension (mm)
Dimension (mm)
IEC IEC
a) Dimension A b) Dimension E
Tolerance of dimension øF Tolerance of dimension C
IEC standard IEC standard
6 6
Specs. in catalogues Specs. in catalogues
5 5
Recommended boundary Recommended boundary
4 4
3 3
2 2
1 1
0 0
0 5 10 15 20 25 0 5 10 15 20 25
Dimension (mm) Dimension (mm)
IEC IEC
c) Dimension øF d) Dimension C
Tolerance of dimension B Tolerance of dimension D
IEC standard
IEC standard
6 6
Specs. in catalogues
Specs. in catalogues
5 5
Recommended boundary
Recommended boundary
4 4
3 3
2 2
1 1
0 0
0 5 10 15 20 25 30 35 0 5 10 15 20 25
Dimension (mm) Dimension (mm)
IEC IEC
e) Dimension B f) Dimension D
Figure 7 – Dimensional tolerances of each part of ETD/EER-cores
4.5 Dimensional tolerances of planar ER-cores
Figure 8 represents typical core geometry with the standard dimension nomenclature applied.
Dimensional tolerances to recommend for a new design of planar ER-cores are shown in
Table 5. The scatter diagram of dimensional tolerances of each part of planar ER-cores is
shown in Figure 9. Dimensional tolerances of each part in the specifications of IEC standards
and the catalogues of some ferrite core suppliers are shown in Table A.4.
Tolerance ± (%) Tolerance ± (%) Tolerance ± (%)
Tolerance ± (%) Tolerance ± (%) Tolerance ± (%)

－ 14 － IEC TR 63090:2017 © IEC 2017
C B
D
IEC
Figure 8 – Planar ER-core
Table 5 – Dimensional tolerances recommended
for a new design of planar ER-cores
Dimension Decided according to mould and sintering Grinding direction
dimension dimension dimension dimension  dimension dimension
min max
A E ϕF C B D
tolerance ± tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm mm
% % % % % %
1 < - - - - - 5,0
≤ 2
2 < ≤ 3 - - - - 3,5 5,0
3 < ≤ 5 - - 4,5 - 3,5 5,0
5 < - 2,0 2,5 2,5 2,5 4,0
≤ 7
7 < 2,5 2,0 2,5 2,5 2,0 -
≤ 10
10 < ≤ 15 2,5 2,0 2,5 2,5 - -
15 < ≤ 20 2,0 2,0 - 2,0 - -
20 < 2,0 2,0 - 2,0 - -
≤ 25
25 < ≤ 30 2,0 2,0 - 2,0 - -
30 < ≤ 35 2,0 1,5 - - - -
35 < ≤ 40 1,5 - - - - -
A
E
G
øF
Tolerance of dimension A Tolerance of dimension E
IEC standard
IEC standard
6 6
Specs. in catalogues
Specs. in catalogues
5 5
Recommended boundary Recommended boundary
4 4
3 3
2 2
1 1
0 0
0 10 20 30 40 50 0 10 20 30 40
Dimension (mm) Dimension (mm)
IEC IEC
a) Dimension A b) Dimension E
Tolerance of dimension øF Tolerance of dimension C
IEC standard IEC standard
6 6
Specs. in catalogues
Specs. in catalogues
5 5
Recommended boundary
4 4
3 3
2 2
1 1
0 0
0 5 10 15 20 0 5 10 15 20 25 30 35
Dimension (mm) Dimension (mm)
IEC IEC
c) Dimension øF d) Dimension C
Tolerance of dimension B Tolerance of dimension D
IEC standard
IEC standard
6 6
Specs. in catalogues
Specs. in catalogues
5 5
Recommended boundary
Recommended boundary
4 4
3 3
2 2
1 1
0 0
0 5 10 15 0 5 10 15
Dimension (mm) Dimension (mm)
IEC IEC
e) Dimension B f) Dimension D
Figure 9 – Dimensional tolerances of each part of planar ER-cores
5 Conclusion
As a conclusion it is desirable that the dimensional tolerances of cores do not exceed the
recommended boundaries when new cores are designed.

Tolerance ± (%) Tolerance ± (%) Tolerance ± (%)
Tolerance ± (%) Tolerance ± (%) Tolerance ± (%)

－ 16 － IEC TR 63090:2017 © IEC 2017
Annex A
(informative)
Data of dimensional tolerances
A.1 E-core
Table A.1 – Dimensional tolerances of each part (1 of 18)
Dimension A
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm
mm % mm % mm % mm % mm %
E5,3/2 5,25 0,10 1,9 0,05 1,0 - - - - - -
E6,3/2 6,18 0,13 2,0 - - - - - - - -
- 6,50 - - 0,30 4,6 - - - - - -
E8/2 8,00 0,15 1,9 - - - - - - - -
- 8,30 - - - - 0,25 3,0 - - 0,20 2,4
E8,3/4 8,35 0,25 3,0 - - - - - - - -
E8,8/2 9,00 0,40 4,5 - - - - - - - -
E10/3 10,00 0,20 2,0 - - - - - - - -
- 10,20 - - 0,20 2,0 0,25 2,5 0,20 2,0 0,20 2,0
E10,2/5 10,25 0,25 2,5 - - - - - - - -
- 12,50 - - 0,30 2,4 0,30 2,4 0,30 2,4 - -
- 12,60 - - 0,45 3,6 - - - - - -
E13/4 12,65 0,45 3,5 - - - - - - - -
- 12,70 - - - - - - - - 0,40 3,1
E13/6 13,00 0,20 1,5 0,20 1,5 0,20 1,5 - - 0,20 1,5
- 13,00 - - 0,30 2,3 - - - - - -
- 14,00 - - 0,30 2,1 0,30 2,1 - - - -
E16/4,8 16,00 0,30 1,9 0,30 1,9 0,30 1,9 0,30 1,9 0,30 1,9
E16/5 16,00 - - 0,60 3,8 - - - - - -
- 16,10 0,60 3,8 0,25 1,6 - - - - 0,60 3,7
- 18,00 - - 0,35 1,9 - - - - - -
E19/5 19,00 0,40 2,1 0,30 1,6 0,35 1,8 - - - -
- 19,05 - - 0,38 2,0 - - - - - -
- 19,10 - - 0,30 1,6 - - 0,30 1,6 0,30 1,6
- 19,15 - - - - 0,50 2,6 - - - -
E19,3/4,8 19,29 0,32 1,7 0,32 1,7 - - 0,32 1,7 0,32 1,7
- 20,00 - - 0,40 2,0 0,30 1,5 - - 0,40 2,0
- 20,15 - - - - - - - - 0,55 2,7
E20/6 20,20 0,70 3,5 - - - - - - - -
- 20,40 - - 0,40 2,0 - - - - - -
- 21,00 - - 0,30 1,4 - - - - - -

Table A.1 (2 of 18)
Dimension A
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
- 21,80 - - 0,40 1,8 - - - - - -
- 22,00 - - 0,30 1,4 0,30 1,4 0,30 1,4 0,30 1,4
- 22,00 - - 0,50 2,3 0,45 2,0 0,45 2,0 - -
- 22,00 - - - - 0,50 2,3 - - - -
- 24,50 - - 0,35 1,4 - - - - - -
- 25,00 - - 0,30 1,2 0,50 2,0 - - - -
- 25,00 - - - - 0,75 3,0 - - - -
E25/7 25,05 0,75 3,0 0,75 3,0 - - - - 0,75 3,0
- 25,30   0,40 1,6 0,50 2,0 0,55 2,2 - -
E25,4/6 25,40 0,50 2,0 0,38 1,5 0,50 2,0 - - 0,50 2,0
E25,4/6,3 25,40 0,50 2,0 0,40 1,6 0,45 1,8 - - 0,76 3,0
- 26,00 - - 0,30 1,2 - - - - - -
- 27,00 - - - - 0,40 1,5 - - - -
- 27,30 - - 0,50 1,8 - - - - - -
- 28,00 - - 0,30 1,1 0,40 1,4 0,60 2,1 - -
- 28,00 - - 0,40 1,4 0,50 1,8 0,40 1,4 - -
- 28,00 - - 0,50 1,8 0,55 2,0 0,50 1,8 - -
- 28,20 - - 0,30 1,1 - - - - - -
- 29,80 - - 0,30 1,0 - - - - - -
- 29,80 - - 0,50 1,7 - - - - - -
- 30,00 - - 0,35 1,2 0,60 2,0 - - - -
- 30,00 - - 0,40 1,3 - - - - - -
- 30,00 - - 0,50 1,7 0,50 1,7 0,50 1,7 0,50 1,7
E30/11 30,05 0,55 1,8 - - - - - - - -
- 30,10 - - 0,30 1,0 - - - - 0,70 2,3
- 30,50 - - 0,50 1,6 - - - - - -
- 32,00 - - 0,80 2,5 - - - - - -
E32/9 32,10 0,80 2,5 - -   - - 0,80 2,5
E33/13 33,00 0,70 2,1 0,70 2,1 0,50 1,5 0,75 2,3 - -
- 33,00 - -   0,55 1,7 - - - -
- 33,00 - - - - 0,70 2,1 - - - -
- 33,10 - - 0,40 1,2 - - - - - -
- 33,20 - - 0,50 1,5 - - - - - -
- 34,32 - - - - 0,69 2,0 - - - -
- 34,40 - - - - - - 0,50 1,5 - -
- 34,54 - - - - - - - - 1,00 2,9
E34,6/9 34,60 0,70 2,0 0,50 1,4 - - - - 0,50 1,4
- 34,93 - - 0,50 1,4 - - - - - -

－ 18 － IEC TR 63090:2017 © IEC 2017
Table A.1 (3 of 18)
Dimension A
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
- 35,00 - - 0,50 1,4 0,50 1,4 0,65 1,9 - -
- 35,00 - - 0,60 1,7 0,60 1,7 - - - -
E35/10 35,10 0,60 1,7 - - - - - - - -
- 40,00 - - 0,50 1,3 0,60 1,5 0,50 1,3 0,50 1,3
- 40,00 - - 0,60 1,5 0,75 1,9 0,70 1,8 - -
E40/11 40,10 0,60 1,5 - - - - - - - -
- 40,64 - - - - 0,81 2,0 0,60 1,5 - -
- 40,80 - - 0,55 1,3 - - - - - -
E41/13 41,07 0,80 1,9 - - - - - - 0,80 1,9
- 41,28 - - 0,80 1,9 - - - - - -
- 42,00 - - 0,85 2,0 0,80 1,9 0,50 1,2
E42/15 42,15 0,85 2,0 - - - - - - - -
E42/20 42,15 0,85 2,0 - - - - - - 0,85 2,0
- 44,00 - - - - 0,60 1,4 0,60 1,4 - -
- 44,00 - - - - 0,75 1,7 - - - -
E47/16 46,99 0,89 1,9 - - - - - - - -
- 47,12 - - - - - - - - 0,48 1,0
- 49,07 - - 0,64 1,3 - - - - - -
- 50,00 - - 0,70 1,4 0,70 1,4 0,70 1,4 0,85 1,7
- 50,00 - - - - 0,85 1,7 - - - -
E50/15 50,15 0,85 1,7 - - - - - - - -
- 55,00 - - 1,05 1,9 0,95 1,7 - - - -
E55/21 55,15 1,05 1,9 - - - - - - 1,05 1,9
E55/25 55,15 1,05 1,9 - - - - - - - -
- 56,57 - - 0,55 1,0 - - - - 1,00 1,8
- 60,00 - - - - 0,95 1,6 0,80 1,3 0,95 1,6
- 60,00 - - - - 1,00 1,7 - - - -
E60/16 60,15 0,95 1,6 - - - - - - - -
- 65,00   - - 1,35 2,1 - - - -
E65/27 65,15 1,35 2,1 - -   - - - -
- 70,00 - - - - 0,80 1,1 - - - -
- 70,50 - - 1,50 2,1 - - - - - -
- 79,30 - - - - 1,60 2,0 - - - -
- 80,00 - - 1,00 1,3 - - - - - -

Table A.1 (4 of 18)
Dimension E
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
E6,3/2 3,70 0,10 2,7 - - - - - - - -
E5,3/2 3,90 0,10 2,6 - - - - - - - -
E8/2 5,70 0,10 1,8 - - - - - - - -
E8,3/4 6,30 0,20 3,2 - - - - - - - -
E8,8/2 5,20 0,13 2,5 - - - - - - - -
E10/3 7,15 0,15 2,1 - - - - - - - -
E10,2/5 7,80 0,20 2,6 - - - - - - - -
E13/4 9,20 0,30 3,3 - - - - - - - -
E13/6 10,20 0,20 2,0 - - - - - - - -
E16/4,8 12,00 0,30 2,5 - - - - - - - -
E16/5 11,60 0,30 2,6 - - - - - - - -
E19/5 14,50 0,30 2,1 - - - - - - - -
E19,3/4,8 14,38 0,33 2,3 - - - - - - - -
E20/6 14,40 0,30 2,1 - - - - - - - -
E25/7 17,90 0,40 2,2 - - - - - - - -
E25,4/6 19,00 0,40 2,1 - - - - - - - -
E25,4/6,3 19,18 0,63 3,3 - - - - - - - -
E30/11 20,00 0,50 2,5 - - - - - - - -
E32/9 23,20 0,50 2,2 - - - - - - - -
E33/13 23,60 0,50 2,1 - - - - - - - -
E34,6/9 25,60 0,60 2,3 - - - - - - - -
E35/10 25,00 0,50 2,0 - - - - - - - -
E40/11 28,00 0,50 1,8 - - - - - - - -
E41/13 29,07 0,52 1,8 - - - - - - - -
E42/15 30,10 0,60 2,0 - - - - - - - -
E42/20 30,10 0,60 2,0 - - - - - - - -
E47/16 32,14 0,42 1,3 - - - - - - - -
E50/15 35,00 0,70 2,0 - - - - - - - -
E55/21 38,10 0,60 1,6 - - - - - - - -
E55/25 38,10 0,60 1,6 - - - - - - - -
E60/16 44,50 0,80 1,8 - - - - - - - -
E65/27 44,95 0,75 1,7 - - - - - - - -

－ 20 － IEC TR 63090:2017 © IEC 2017
Table A.1 (5 of 18)
Dimension F
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
E5,3/2 1,35
0,05 3,7 0,05 3,7 - - - - - -
E6,3/2 1,35
0,05 3,7 - - - - - - - -
- 1,50 - - 0,15 1,0 - - - - - -
E8,3/4 1,80 0,20 11,1 - - 0,20 11,1 - - - -
- 1,85 - - - - - - - - 0,15 8,1
E8,8/2 1,90 0,12 6,3 - - - - - - - -
- 1,91 - - 0,13 6,7 - - - - - -
E8/2 2,35 0,05 2,1 - - - - - - - -
E10,2/5 2,40 0,20 8,3 - - 0,20 8,3 - - - -
- 2,45 - - 0,15 6,1 - - 0,15 6,1 0,15 6,1
- 2,50 - - - - - - 0,10 4,0 - -
- 2,60 - - 0,20 7,7 - - - - - -
E13/6 2,75 0,15 5,5 0,15 5,5 0,15 5,5 - - 0,15 5,5
E10/3 2,94 0,06 2,0 - - - - - - - -
- 3,00 - - 0,10 3,3 - - - - - -
- 3,18 - - - - - - - - 0,18 5,7
- 3,20 - - - - 0,18 5,5 - - - -
E13/4 3,55 0,15 4,2 - - - - - - - -
- 3,65 - - - - - - - - 0,15 4,1
- 3,70 - - 0,15 4,1 - - - - - -
- 3,80 - - 0,15 3,9 - - - - - -
E16/4,8 4,00 0,20 5,0 0,20 5,0 0,20 5,0 0,20 5,0 0,20 5,0
- 4,00 - - 0,10 2,5 - - - - - -
- 4,20 - - - - - - 0,20 4,8 - -
- 4,40 - - 0,15 3,4 - - - - - -
E19/5 4,50 0,20 4,4 0,20 4,4 0,20 4,4 - - - -
E16/5 4,55 0,15 3,3   0,15 3,3 - - 0,15 3,3
- 4,65 - - - - 0,15 3,2 - - - -
- 4,68 - - - - - - 0,15 3,2 - -
- 4,70 - - 0,15 3,2 - - 0,20 4,3 - -
E19,3/4,8 4,75 0,08 1,7 0,13 2,7 - - - - - -
- 4,75 - - - - - - - - 0,08 1,7
- 5,00 - - 0,20 4,0 - - - - 0,20 4,0
- 5,00 - - 0,10 2,0 - - - - - -
- 5,60 - - - - 0,20 3,6 - - - -
E20/6 5,70 0,20 3,5 0,20 3,5 0,20 3,5 - - 0,20 3,5
- 5,75 - - - - 0,25 4,3 - - 0,25 4,3
- 5,80 - - - - 0,30 5,2 - - - -

Table A.1 (6 of 18)
Dimension F
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
- 5,85 - - - - 0,15 2,6 - - - -
- 6,00 - - 0,25 4,2 - - 0,25 4,2 - -
E25,4/6 6,35 0,30 4,7 0,30 4,7 0,30 4,7 - - - -
E25,4/6,3 6,35 0,25 3,9 0,25 3,9 0,25 3,9 - - 0,25 3,9
- 6,40 - - 0,30 4,7 0,25 3,9 - - - -
- 6,40 - - 0,20 3,1 - - - - - -
- 6,50 - - 0,25 3,8 0,30 4,6 - - - -
- 6,80 - - - - - - 0,30 4,4 - -
- 6,90 - - 0,20 2,9 - - - - - -
- 6,95 - - - - - - - - 0,25 3,6
- 7,10 - - - - 0,20 2,8 - - - -
- 7,20 - - - - 0,25 3,5 - - - -
- 7,20 - - 0,30 4,2 0,30 4,2 - - - -
E25/7 7,25 0,25 3,4 0,25 3,4 0,25 3,4 - - 0,25 3,4
- 7,30 - - 0,20 2,7 - - - - - -
- 7,50 - - 0,25 3,3 - - 0,25 3,3 - -
- 7,50 - - - - - - 0,30 4,0 - -
- 7,80 - - 0,15 1,9 - - - - - -
- 8,00 - - 0,20 2,5 0,20 2,5 0,20 2,5 - -
- 8,10 - - 0,15 1,9 - - - - - -
- 8,10 - - 0,20 2,5 - - - - - -
- 8,50 - - 0,30 3,5 - - - - - -
- 9,00 - - 0,20 2,2 - - - - - -
E32/9 9,20 0,30 3,3 0,30 3,3 - - - - 0,30 3,3
- 9,27 - - 0,25 2,7 - - - - - -
- 9,32 - - - - 0,18 1,9 0,20 2,1 - -
- 9,39 - - - - - - - - 0,27 2,9
E34,6/9 9,40 0,30 3,2 0,30 3,2 - - - - 0,30 3,2
- 9,53 - - 0,25 2,6 - - - - - -
E33/13 9,70 0,30 3,1 0,30 3,1 0,30 3,1 - - - -
- 9,80 - - 0,30 3,1 - - - - - -
E35/10 10,00 0,30 3,0 0,30 3,0 0,30 3,0 0,30 3,0 - -
- 10,30 - - 0,25 2,4 - - 0,30 2,9 - -
E40/11 10,35 0,65 6,3 - - - - - - - -
- 10,50 - - 0,20 1,9 - - - - - -
- 10,69 - - 0,27 2,5 - - - - - -
E30/11 10,70 0,30 2,8 - - 0,30 2,8 - - 0,30 2,8
- 11,00 - - 0,30 2,7 - - 0,30 2,7 - -

－ 22 － IEC TR 63090:2017 © IEC 2017
Table A.1 (7 of 18)
Dimension F
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
- 11,65 - - - - 0,35 3,0 - - - -
- 11,70 - - - - 0,25 2,1 - - - -
- 11,70 - - - - 0,30 2,6 - - - -
E42/15 11,95 0,25 2,1 - - - - - - 0,25 2,1
E42/20 11,95 0,25 2,1 - - - - - - - -
- 12,00 - - 0,35 2,9 0,20 1,7 0,30 2,5 - -
- 12,00 - - - - - - 0,35 2,9 - -
- 12,20 - - 0,25 2,0 - - - - - -
- 12,45 - - - - 0,25 2,0 0,25 2,0 - -
- 12,50 - - 0,30 2,4 - - 0,25 2,0 - -
- 12,64 - - - - - - - - 0,45 3,6
E41/13 12,65 0,45 3,6 - - - - - - - -
- 12,70 - - 0,25 2,0 - - - - - -
E50/15 14,60 0,40 2,7 - - 0,40 2,7 - - 0,40 2,7
- 15,00 - - 0,40 2,7 - - 0,40 2,7 - -
E60/16 15,60 0,40 2,6 0,30 1,9 0,40 2,6 - - 0,40 2,6
E47/16 15,61 0,26 1,7 - - - - - - - -
- 15,62 - - 0,25 1,6 - - - - 0,25 1,6
- 16,00 - - - - - - 0,40 2,5 - -
E55/21 16,95 0,25 1,5 - - - - - - 0,25 1,5
E55/25 16,95 0,25 1,5 - - - - - - - -
- 17,00 - - - - 0,40 2,4 - - - -
- 17,20 - - 0,25 1,5 - - - - - -
- 18,70 - - 0,30 1,6 - - - - - -
- 18,80 - - - - - - - - 0,25 1,3
E65/27 19,65 0,35 1,8 - - 0,35 1,8 - - - -
- 19,75 - - - - 0,25 1,3 - - - -
- 19,80 - - 0,40 2,0 - - - - - -
- 22,00 - - 0,35 1,6 - - - - - -

Table A.1 (8 of 18)
Dimension C
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
- 1,80 - - 0,15 8,3 - - - - - -
E8,8/2 1,90 0,12 6,3 - - - - - - - -
- 1,91 - - 0,10 5,4 - - - - - -
- 1,92 - - - - 0,08 4,2 - - - -
E5,3/2 1,95 0,05 2,6 0,05 2,6 - - - - - -
E6,3/2 1,95 0,05 2,6 - - - - - - - -
E8/2 2,35 0,05 2,1 - - - - - - - -
E10/3 2,94 0,06 2,0 - - - - - - - -
E13/4 3,55 0,15 4,2 - - - - - - - -
E8,3/4 3,60 0,20 5,6 - - 0,20 5,6 - - 0,20 5,6
- 3,70 - - 0,15 4,1 - - - - - -
- 3,75 - - - - 0,15 4,0 - - - -
- 4,20 - - 0,20 4,8 - - - - - -
E16/5 4,50 0,20 4,4 - - - - - - 0,20 4,4
E10,2/5 4,70 0,20 4,3 - - 0,20 4,3 - - - -
- 4,70 - - 0,20 4,3 - - - - - -
E19,3/4,8 4,75 0,13 2,6 0,13 2,7 - - 0,13 2,7 0,13 2,7
- 4,75 - - 0,15 3,2 - - 0,15 3,2 0,15 3,2
E16/4,8 4,80 0,20 4,2 - - 0,20 4,2 - - - -
E19/5 5,00 0,20 4,0 0,20 4,0 0,20 4,0 0,20 4,0 0,20 4,0
- 5,00 - - 0,10 2,0   - - - -
- 5,10 - - - - - - - - 0,20 3,9
- 5,20 - - 0,20 3,8 - - 0,20 3,8 - -
- 5,60 - - - - 0,20 3,6 - - - -
E20/6 5,65 0,25 4,4 0,25 4,4 0,25 4,4 - - 0,25 4,4
- 5,75 - - - - 0,25 4,3 - - 0,25 4,3
- 5,80 - - - - 0,30 5,2 - - - -
- 6,00 - - 0,03 0,4 - - 0,03 0,4 - -
E13/6 6,15 0,15 2,4 0,15 2,4 0,15 2,4 - - 0,15 2,4
E25,4/6,3 6,29 0,19 3,0 - - 0,19 3,0 - - 0,19 3,0
E25,4/6 6,35 0,30 4,7 0,25 3,9 0,30 4,7 - - 0,25 3,9
- 6,35 - - 0,30 4,7 - - - - - -
- 6,40 - - 0,30 4,7 0,20 3,1 - - - -
- 6,50 - - 0,20 3,1 - - - - - -
- 6,50 - - 0,25 3,8 - - - - - -
- 6,60 - - 0,25 3,8 - - - - - -
- 6,75 - - - - 0,25 3,7 - - - -
- 6,80 - - - - 0,20 2,9 - - 0,20 2,9

－ 24 － IEC TR 63090:2017 © IEC 2017
Table A.1 (9 of 18)
Dimension C
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
- 6,90 - - 0,30 4,3 - - - - - -
- 7,00 - - 0,20 2,9 - - - - - -
- 7,00 - - 0,25 3,6 - - - - - -
- 7,05 - - - - - - - - 0,25 3,5
- 7,10 - - 0,20 2,8 0,20 2,8 - - - -
E25/7 7,20 0,30 4,2 0,30 4,2 0,30 4,2 - - 0,30 4,2
- 7,40 - - 0,25 3,4 - - - - - -
- 7,50 - - 0,20 2,7 - - - - - -
- 8,00 - - 0,15 1,9 - - - - - -
- 8,00 - - 0,30 3,8 - - - - - -
- 8,50 - - - - 0,20 2,4 - - - -
- 8,75 - - 0,15 1,7 - - - - - -
- 9,00 - - 0,20 2,2 - - - - - -
E32/9 9,15 0,35 3,8 0,35 3,8 - - - - 0,35 3,8
- 9,20 - - - - - - 0,30 3,3 - -
- 9,27 - - 0,25 2,7 - - - - - -
E34,6/9 9,31 0,41 4,4 - - - - - - 0,30 3,2
- 9,32 - - - - 0,18 1,9 - - - -
- 9,40 - - 0,15 1,6 - - - - - -
- 9,40 - - 0,30 3,2 - - - - - -
- 9,53 - - 0,25 2,6 - - - - 0,38 4,0
- 9,58 - - - - 0,18 1,9 - - - -
- 9,70 - - 0,20 2,1 - - - - - -
E35/10 10,00 0,30 3,0 0,30 3,0 0,30 3,0 0,30 3,0 - -
- 10,00 - - 0,20 2,0 - - - - - -
- 10,30 - - 0,25 2,4 - - - - - -
- 10,60 - - - - 0,20 1,9 - - - -
- 10,69 - - 0,30 2,8 - - - - - -
E30/11 10,70 0,30 2,8 0,15 1,4 0,25 2,3 - - 0,30 2,8
E35/10 10,70 0,30 2,8 0,23 2,1 0,30 2,8 - - - -
- 10,90 - - - - - - 0,20 1,8 - -
- 11,00 - - 0,30 2,7 - - 0,30 2,7 - -
- 11,65 - - - - 0,35 3,0 - - - -
- 11,70 - - 0,30 2,6 0,30 2,6 - - - -
- 11,75 - - - - 0,30 2,6 - - - -
- 12,00 - - 0,30 2,5 - - 0,30 2,5 - -
- 12,00 - - 0,35 2,9 - - 0,35 2,9 - -
- 12,40 - - 0,30 2,4 - - - - - -

Table A.1 (10 of 18)
Dimension C
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
- 12,45 - - - - - - 0,25 2,0 - -
E41/13 12,57 0,38 3,0 - - - - - - 0,38 3,0
E33/13 12,70 0,30 2,4 0,30 2,4 0,30 2,4 - - - -
- 12,70 - - 0,25 2,0 - - - - - -
- 13,00 - - - - - - 0,30 2,3 - -
E50/15 14,60 0,40 2,7 - - 0,40 2,7 - - 0,40 2,7
E42/15 14,95 0,25 1,7 - - - - - - 0,25 1,7
- 15,00 - - 0,30 2,0 0,25 1,7 0,40 2,7 - -
- 15,00 - - 0,40 2,7 0,40 2,7 - - - -
- 15,20 - - 0,25 1,6 - - 0,30 2,0 - -
- 15,30 - - - - - - 0,30 2,0 - -
E60/16 15,60 0,40 2,6 - - 0,40 2,6 - - 0,40 2,6
E47/16 15,61 0,26 1,7
- 15,62   0,30 1,9 - - - - 0,25 1,6
- 15,62 - - 0,43 2,8 - - - - - -
- 15,80 - - 0,30 1,9 - - - - - -
- 16,00 - - - - - - 0,40 2,5 - -
- 18,70 - - 0,30 1,6 - - - - - -
- 18,80 - - - - - - - - 0,25 1,3
E42/20 19,60 0,40 2,0 - - 0,40 2,0 - - - -
- 19,70 - - - - - - - - 0,30 1,5
- 19,80 - - 0,40 2,0 0,40 2,0 - - - -
- 20,00 - - 0,40 2,0 - - 0,30 1,5 - -
E55/21 20,70 0,30 1,4 - - 0,40 1,9 - - 0,30 1,4
- 21,00 - - 0,30 1,4 - - - - - -
E55/25 24,60 0,40 1,6 - - - - - - - -
- 25,00 - - 0,40 1,6 - - - - - -
- 26,90     0,50 1,9
E65/27 27,00 0,40 1,5 - -   - - - -
- 32,00 - - 0,40 1,3 - - - - - -

－ 26 － IEC TR 63090:2017 © IEC 2017
Table A.1 (11 of 18)
Dimension B
Specifications Specifications Specifications Specifications
IEC
in in in in
standard
Dimension
catalogue W catalogue X catalogue Y catalogue Z
IEC size
mm tolerance ± tolerance ± tolerance ± tolerance ± tolerance ±
mm % mm % mm % mm % mm %
E42/15 2,00 0,20 1,0 - - 0,30 1,4 0,30 1,4 - -
E42/20 2,00 0,20 1,0 - - - - - - - -
- 2,00 - - 0,15 5,0 - - - - - -
E5,3/2 2,65 0,08 3,0 0,05 1,9 - - - - - -
E6,3/2 2,85 0,05 1,8 - - - - - - - -
- 2,90 - - 0,10 3,4 - - - - - -
- 3,50 - - 0,10 2,9 - - - - - -
- 3,94 - - 0,13 3,2 - - - - - -
E8/2 4,00 0,05 1,3 0,10 2,5 0,10 2,5 - - 0,10 2,5
E8,3/4 4,00 0,10 2,5 - - - - - - - -
E8,8/2 4,00 0,15 3,8 - - - - - - - -
- 4,45 - - - - 0,20 4,5 - - - -
E10/3 4,94 0,06 1,2 - - - - - - - -
E10,2/5 5,50 0,15 2,7 0,20 3,6 0,25 4,5 0,10 1,8 0,20 3,6
- 5,60 - - 0,15 2,7 - - - - - -
- 5,65 - - 0,20 3
...
