IEC 61784-5-3
(First edition – 2007)
INDUSTRIAL COMMUNICATION NETWORKS – PROFILES
Part 5-3: Installation of fieldbuses – Installation profiles for CPF 3
CORRIGENDUM 1
Annex A CP 3/1 specific installation profile
A.4.3.2.4 Network characteristics for optical fibre cabling
In Table A.3, add the NA for Multimode silica, POF and Hard clad silica, so that it reads:
Optical fibre type Description
Multimode silica Core diameter (µm) 50
NA 0,20 ± 0,02
Multimode silica Core diameter (µm) 62,5
NA 0,275 ± 0,015
POF NA 0,50 ± 0,03
Hard clad silica NA 0,37 ± 0,04
A.4.4.1.2.2 Copper cables for non Ethernet based CPs
In Table A.4, instead of:
“DCR of conductors < 110 Ω/km”
February 2009
Read:
a
Characteristic CP 3/1 (PROFIBUS RS 485) CP 3/1 (PROFIBUS RS 485-IS)
DCR of conductors < 55 Ω/km
Annex C CP 3/3, CP 3/4, CP 3/5, CP 3/6 (PROFINET) specific installation profile

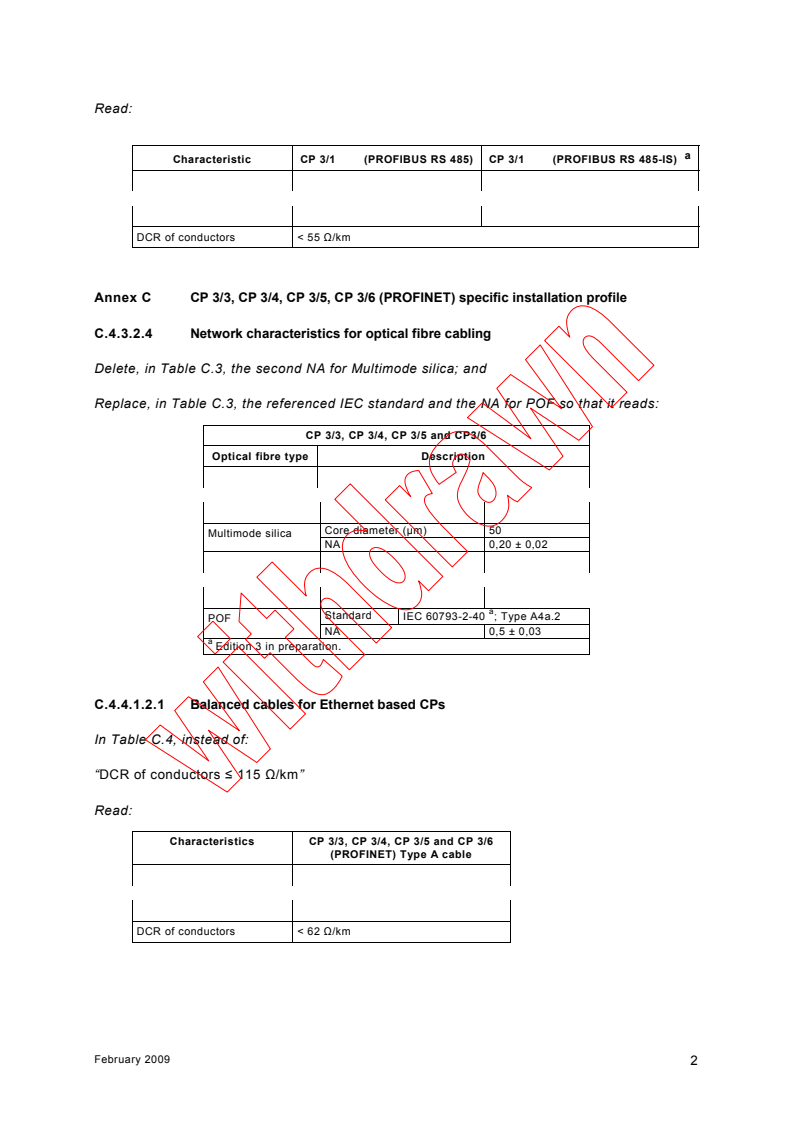

C.4.3.2.4 Network characteristics for optical fibre cabling
Delete, in Table C.3, the second NA for Multimode silica; and
Replace, in Table C.3, the referenced IEC standard and the NA for POF so that it reads:
CP 3/3, CP 3/4, CP 3/5 and CP3/6
Optical fibre type Description
Core diameter (µm) 50
Multimode silica
NA 0,20 ± 0,02
a
Standard
IEC 60793-2-40 ; Type A4a.2
POF
NA 0,5 ± 0,03
a
Edition 3 in preparation.
C.4.4.1.2.1 Balanced cables for Ethernet based CPs
In Table C.4, instead of:
“DCR of conductors ≤ 115 Ω/km”
Read:
Characteristics CP 3/3, CP 3/4, CP 3/5 and CP 3/6
(PROFINET) Type A cable
DCR of conductors < 62 Ω/km
February 2009
In Table C.5, instead of:
“DCR of conductors ≤ 115 Ω/km”
Read:
Characteristics CP 3/3, CP 3/4, CP 3/5 and CP 3/6
(PROFINET) Type B cable
DCR of conductors < 60 Ω/km
In Table C.6, instead of:
“DCR of conductors ≤ 115 Ω/km”
Read:
Characteristics CP 3/3, CP 3/4, CP 3/5 and CP 3/6
(PROFINET) Type C Cable
DCR of conductors < 62 Ω/km

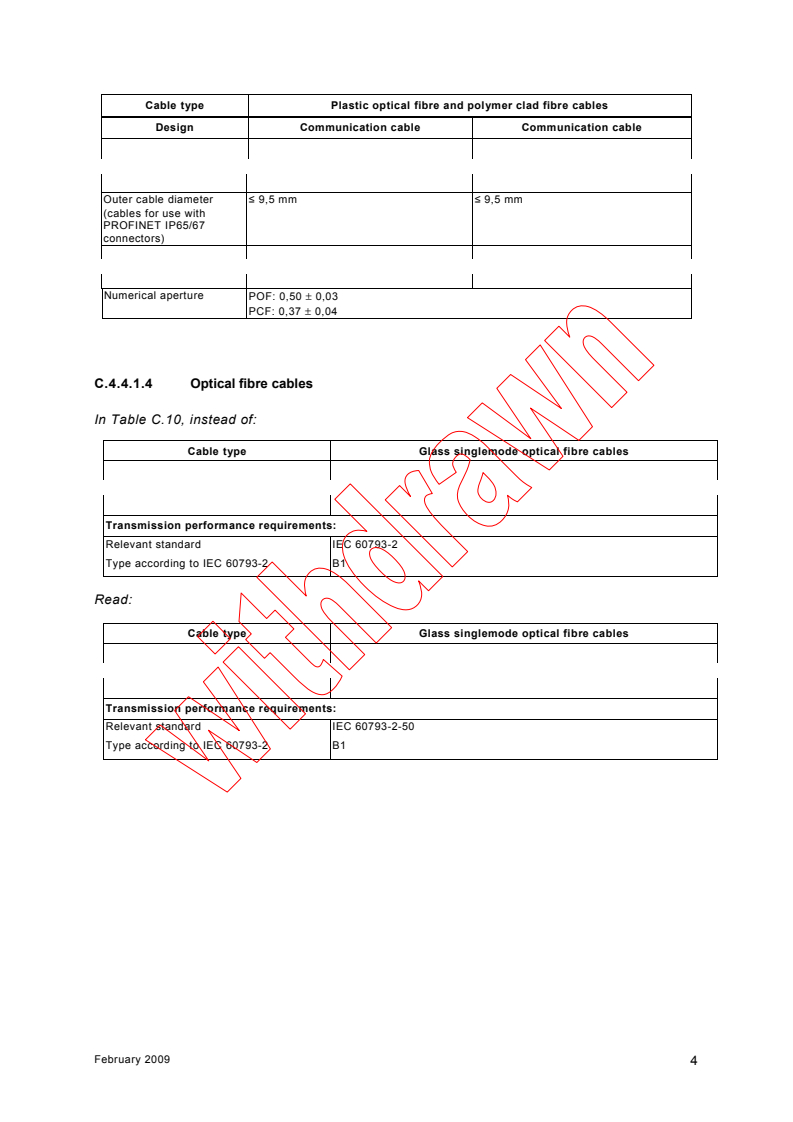

C.4.4.1.4 Optical fibre cables
In Table C.8, instead of:
Cable type
...
