IEC 60062:2016/AMD1:2019 is an important amendment to the international standard IEC 60062, which governs marking codes for resistors and capacitors. Prepared by the International Electrotechnical Commission (IEC) technical committee 40, this amendment introduces a special two-character code system for capacitors, designed to enhance clarity and efficiency in component marking, especially for small electronic parts. This amendment addresses practical challenges in labeling, improving the legibility and standardization of capacitance markings on electronic components.
Key Topics
Special Two-Character Coding System for Capacitors
The amendment introduces a new two-character code system for marking capacitance values, tailored for capacitors utilizing E6, E12, or E24 series values. This system is particularly useful when the surface area available for marking is limited and three or more characters cannot be printed legibly.Code Composition
The special code consists of:- A code letter representing the two significant digits of the capacitance value, based on a standardized Table (Table B.1).
- A numeric code indicating the multiplier (Table B.2), which defines the unit scale (from pF to µF).
These two characters appear without spaces, creating a concise but unambiguous indication of capacitance.
Standardized Letter and Number Assignments
Table B.1 associates each letter with specific significant numbers from the E24 series (e.g., 'A' = 1.0, 'L' = 2.7, 'S' = 4.7), while Table B.2 covers multipliers (e.g., '0' = 1pF, '4' = 10nF, '7' = 10µF). The coding is case-sensitive.Compatibility and Adoption
This coding method aligns with previously established industry standards, such as ANSI/EIA 198-1 for ceramic dielectric capacitors, and has been adopted by a variety of manufacturers for surface mount devices (SMD) multilayer capacitors and small film capacitors. A similar system is also used by CENELEC for certain multilayer ceramic capacitor specifications.Example
The code L4 indicates a capacitance value of 27 nF:- 'L' represents the significant digits "2.7"
- '4' represents a multiplier of 10,000 pF (or 10 nF)
Combined, they give 2.7 × 10 nF = 27 nF.
Applications
Component Labeling in Electronic Manufacturing
This amendment provides a standardized marking framework for capacitors used in compact electronic devices where space limitations hinder traditional marking approaches.Quality Control and Inventory Management
Manufacturers and distributors benefit from consistent and concise capacitance codes, facilitating easier identification and verification during production, assembly, and maintenance.Standardization in Global Supply Chains
Harmonized marking codes help reduce confusion and errors in multinational supply chains, supporting interoperability among varied manufacturers and regions.Consumer Electronics and Industrial Equipment
Enables smaller form-factor components with legible markings suitable for consumer gadgets, automotive electronics, telecom devices, and industrial control systems.
Related Standards
IEC 60062 (Base Standard)
The core standard that defines resistor and capacitor marking codes, now extended by the 2019 amendment.ANSI/EIA 198-1
An American industry standard referenced in the amendment, detailing characteristics and requirements for ceramic dielectric capacitors, supporting compatibility for the two-character code system.CENELEC CECC 32 101 Series
European specifications on surface mount multilayer ceramic capacitors employing a similar code system with slight differences in character assignments.IEC 60063
Defines preferred number series (E6, E12, E24) used for significant digits in electronic component values, underpinning the coding tables.
Practical Value
Implementing the special two-character code system from IEC 60062:2016/AMD1:2019 offers significant benefits by ensuring:
- Reduced marking space without sacrificing readability or accuracy
- Simplified component identification and classification
- Increased industry alignment on component labeling standards
- Support for surface mount technology (SMT) trends with miniaturized parts
This amendment exemplifies the IEC’s commitment to evolving electronic component standards to meet the modern technological demands and manufacturing constraints of the industry.
Keywords: IEC 60062 amendment, capacitor marking codes, resistor and capacitor coding, special two-character code, capacitance marking, E24 series capacitors, electronic component labeling, IEC standards, surface mount capacitors, capacitor code system
Frequently Asked Questions
IEC 60062:2016/AMD1:2019 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 1 - Marking codes for resistors and capacitors". This standard covers: Amendment 1 - Marking codes for resistors and capacitors
Amendment 1 - Marking codes for resistors and capacitors
IEC 60062:2016/AMD1:2019 is classified under the following ICS (International Classification for Standards) categories: 31.020 - Electronic components in general. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60062:2016/AMD1:2019 has the following relationships with other standards: It is inter standard links to IEC 60062:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60062:2016/AMD1:2019 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 60062 ®
Edition 6.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Marking codes for resistors and capacitors
Codes de marquage des résistances et des condensateurs
IEC 60062:2016-07/AMD1:2019-08(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.
IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60062 ®
Edition 6.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Marking codes for resistors and capacitors
Codes de marquage des résistances et des condensateurs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.020 ISBN 978-2-8322-7244-2

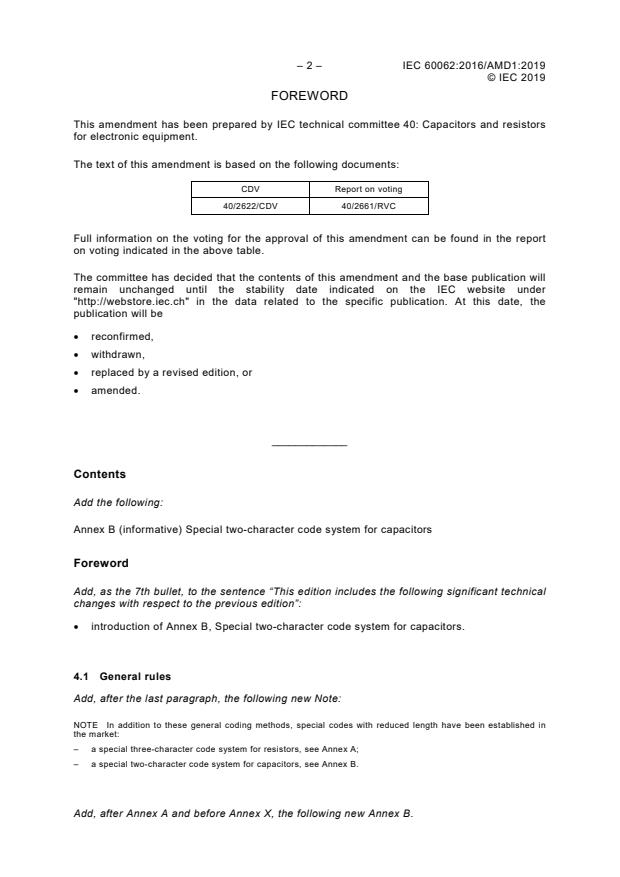

– 2 – IEC 60062:2016/AMD1:2019
