IEC 62386-101:2022
(Main)Digital addressable lighting interface - Part 101: General requirements - System components
Digital addressable lighting interface - Part 101: General requirements - System components
IEC 62386-101:2022 is applicable to system components in a bus system for control by digital signals of electronic lighting equipment. The control methods, algorithms and data exchange methods of application controllers used for lighting control are not within the scope of the IEC 62386 series. EMC requirements are not within the scope of the IEC 62386 series. This third edition cancels and replaces the second edition published in 2014 and Amendment 1:2018. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
the scope has been updated;
safety and earthing have been updated and extended;
references have been updated;
the use of bus-power and external-power has been clarified;
polarity sensitivity for bus units including a bus power supply has been updated;
frame sizes of 32 bits are no longer reserved.
Interface d'éclairage adressable numérique - Partie 101: Exigences générales - Composants de système
L'IEC 62386-101:2022 s'applique aux composants de système dans un système à bus pour la commande par des signaux numériques des appareils d'éclairage électroniques. Les méthodes et algorithmes de commande et les méthodes d'échange de données des contrôleurs d'application utilisés pour la commande d'éclairage ne relèvent pas du domaine d'application de la série IEC 62386. Les exigences relatives à la compatibilité électromagnétique (CEM) ne relèvent pas du domaine d'application de la série IEC 62386. Cette troisième édition annule et remplace la seconde édition parue en 2014 et l'Amendement 1:2018. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
le domaine d'application a été mis à jour;
les paragraphes relatifs à la sécurité et à la mise à la terre ont été mis à jour et élargis;
les références ont été mises à jour;
l'utilisation de l'alimentation du bus et de l'alimentation externe a été clarifiée;
la sensibilité à la polarité des bus, y compris l'alimentation électrique du bus, a été mise à jour;
les tailles de trames de 32 bits ne sont plus réservées.
General Information
Relations
Overview
IEC 62386-101:2022 - part of the IEC 62386 series for the Digital Addressable Lighting Interface (DALI) - specifies general requirements for system components in a bus system used to control electronic lighting equipment by digital signals. This third edition (2022) updates scope, safety and earthing, bus-power vs external-power rules, polarity sensitivity for bus units that include bus power supplies, and frame size reservations (32-bit frames are no longer reserved). The standard does NOT cover application controller control algorithms or EMC requirements.
Key topics and technical requirements
- Scope and system architecture: Defines bus units, single-master and multi‑master controllers, input devices, and sharing of interfaces.
- Electrical safety and earthing: Updated requirements for insulation, electric strength and touch current limitations, and guidance on earthing the bus.
- Bus power supply: Requirements for marking, voltage and current ratings, dynamic behavior, timing, short‑circuit behavior and how multiple or integrated bus power supplies interact.
- Signal and interface specifications: Marking, capacitors between interface and earth, signal voltage/current ratings, and polarity sensitivity for bus-powered units.
- Transmission protocol and frame structure: Frame types, bit encoding, start/stop encoding and the removal of reserved 32‑bit frame sizes.
- Timing and collision handling: Detailed timing for transmitters and receivers (single- and multi‑master), collision avoidance/detection/recovery, receiver timing violations and sequence timing.
- Operational rules: How frames and commands are processed, transactions, send‑twice frames, command iteration and shared-interface usage.
- Testing & annexes: Test procedures plus informative annexes on wiring, system architectures, collision detection, current calculations, communication layers and touch current.
Applications and who uses it
IEC 62386-101 is essential for:
- Lighting control manufacturers (DALI bus units, power supplies, control gear) designing compliant devices.
- System integrators and lighting designers specifying reliable, interoperable DALI installations.
- Test laboratories and certification bodies validating electrical safety, bus power behavior and protocol conformity.
- Installers and facility managers needing guidance on wiring, earthing and bus power planning.
This standard ensures interoperability and safe operation of digital lighting bus systems, enabling predictable behavior across multi‑vendor DALI installations.
Related standards
- Other parts of the IEC 62386 series (device type parts and application-level specifications) complement Part 101. Note: EMC and application-controller algorithms are intentionally outside the scope of this part.
Keywords: IEC 62386-101, DALI, digital addressable lighting interface, bus power supply, lighting control, bus units, transmission protocol, timing, safety, earthing.
Standards Content (Sample)
IEC 62386-101 ®
Edition 3.0 2022-11
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Digital addressable lighting interface –
Part 101: General requirements – System components
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a
Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62386-101 ®
Edition 3.0 2022-11
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Digital addressable lighting interface –
Part 101: General requirements – System components
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.140.50; 29.140.99 ISBN 978-2-8322-6101-9
– 2 – IEC 62386-101:2022 CMV © IEC 2022

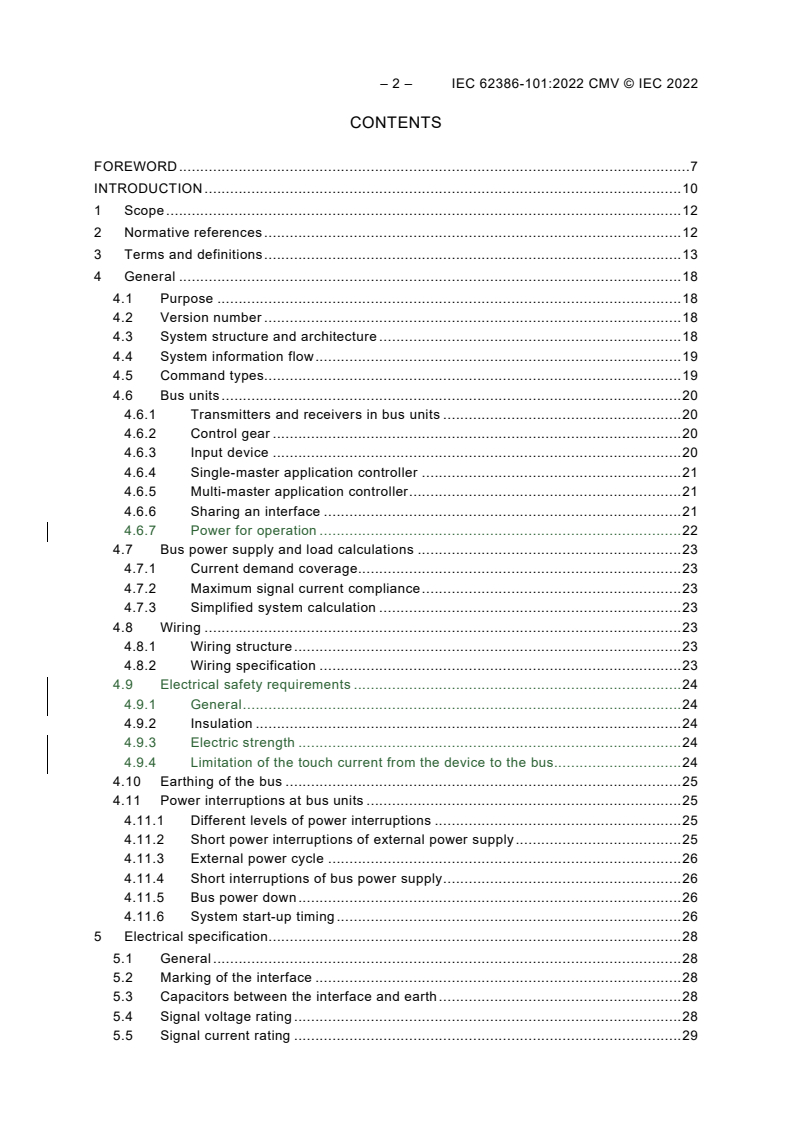

CONTENTS
