IEC TS 60871-2:2014/AMD1:2022

IEC TS 60871-2 ®
Edition 3.0 2022-03
TECHNICAL
SPECIFICATION
colour
inside
AMENDMENT 1
Shunt capacitors for a.c. power systems having a rated voltage above 1 000 V –
Part 2: Endurance testing
IEC TS 60871-2:2014-11/AMD1:2022-03(en)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC TS 60871-2 ®
Edition 3.0 2022-03
TECHNICAL
SPECIFICATION
colour
inside
AMENDMENT 1
Shunt capacitors for a.c. power systems having a rated voltage above 1 000 V –

Part 2: Endurance testing
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.240.99; 31.060.70 ISBN 978-2-8322-1096-2

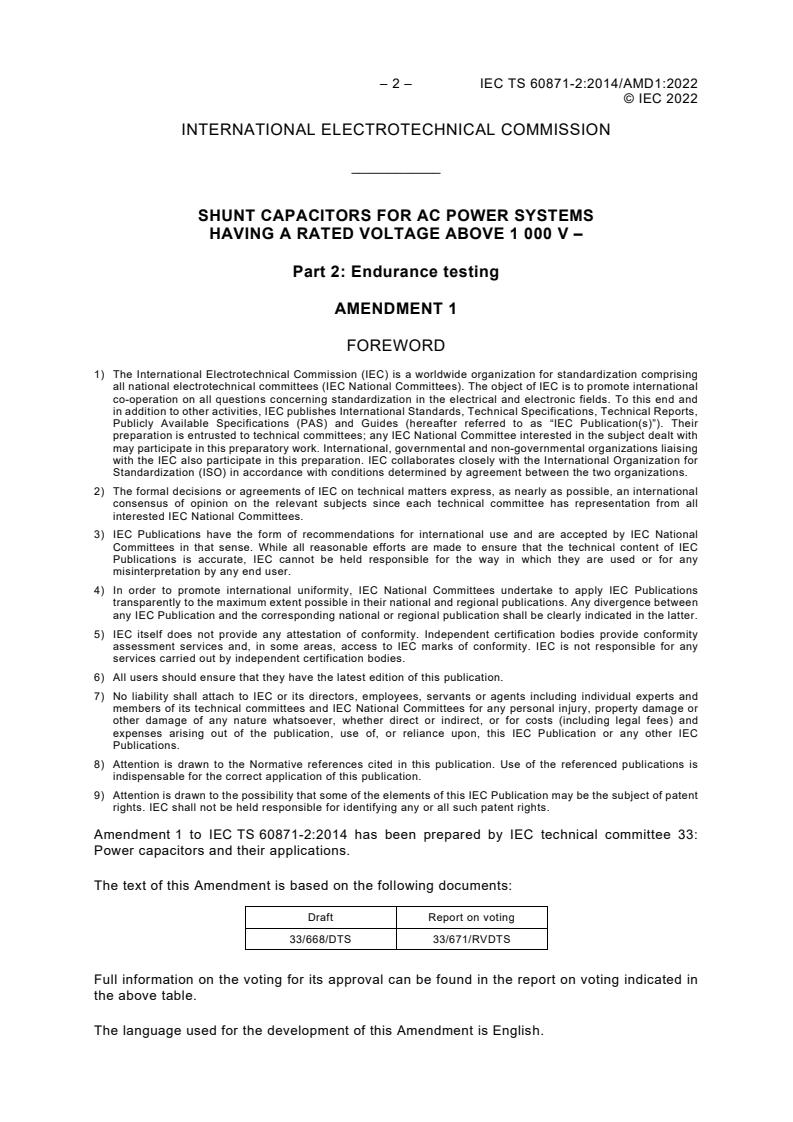

– 2 – IEC TS 60871-2:2014/AMD1:2022
© IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SHUNT CAPACITORS FOR AC POWER SYSTEMS
HAVING A RATED VOLTAGE ABOVE 1 000 V –

Part 2: Endurance testing
AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC TS 60871-2:2014 has been prepared by IEC technical committee 33:
Power capacitors and their applications.
The text of this Amendment is based on the following documents:
Draft Report on voting
33/668/DTS 33/671/RVDTS
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
___________
– 4 – IEC TS 60871-2:2014/AMD1:2022
© IEC 2022
Add, after Clause 4, the following new text:
5 Element fail safe test for fuseless capacitors
5.1 General
The proof of element fail safe is a design test applicable to fuseless power capacitors, as
defined in IEC 60871-1:2014, Clause E.4.
This proof is obtained by means of two separate tests, the low energy test and the high energy
test.
The low energy test is aimed to demonstrate that a failure of one capacitive element, caused
by a low voltage element failure event at the rated voltage, will result in reliable and secure foil
welding on the failed portion of the element without generation of hot spots and persistent
release of gas.
The high energy test is aimed to demonstrate that a failure of one or more capacitive elements,
caused by the occurrence of an overvoltage on the capacitor bank, will result in reliable and
safe behaviour without container rupture or explosion.
The physical location of the fault on the capacitor element is intended to represent the worst
possible location under the expected low or high energy level tested. A damage to the insulation
of the container is acceptable, provided that it maintains enough insulation in order to remain
in service until replacement.
5.2 Test unit
5.2.1 General
Two set-ups of the test unit are possible, as described in 5.2.2 and 5.2.3; the manufacturer
shall choose the set-up and manufacture the test unit accordingly.
5.2.2 Set-up of the test unit, first method
The test unit shall be a capacitor unit comparable to the units to be manufactured, as described
in Annex A, with the following features:
• The container shall be identical to that used for the units to be manufactured.
• The test unit shall contain a single active element, i.e. electrically connected to the bushings
for power supply; the other elements shall be passive, i.e. not electrically connected neither
to the active element nor to the bushings.
• The unit may be equipped
...
