Fibre optic interconnecting devices and passive components –
Part 03-01: Reliability – Design of an acceptance test for fibre pistoning failure
of connectors during temperature and humidity cycling: demarcation analysis

IEC/TR 62627-03-01:2011(E)

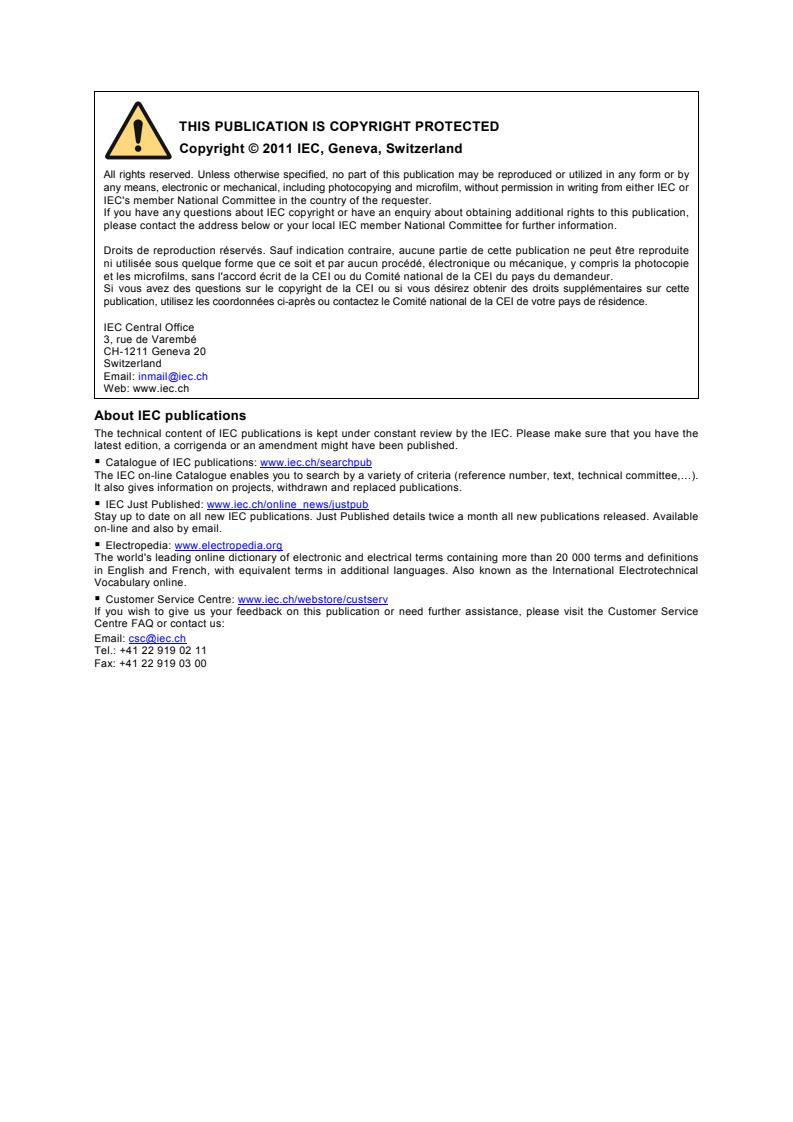

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC/TR 62627-03-01 ®
Edition 1.0 2011-04
TECHNICAL
REPORT
colour
inside
Fibre optic interconnecting devices and passive components –
Part 03-01: Reliability – Design of an acceptance test for fibre pistoning failure
of connectors during temperature and humidity cycling: demarcation analysis

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
R
ICS 33.180.01 ISBN 978-2-88912-449-7

– 2 – TR 62627-03-01  IEC:2011(E)

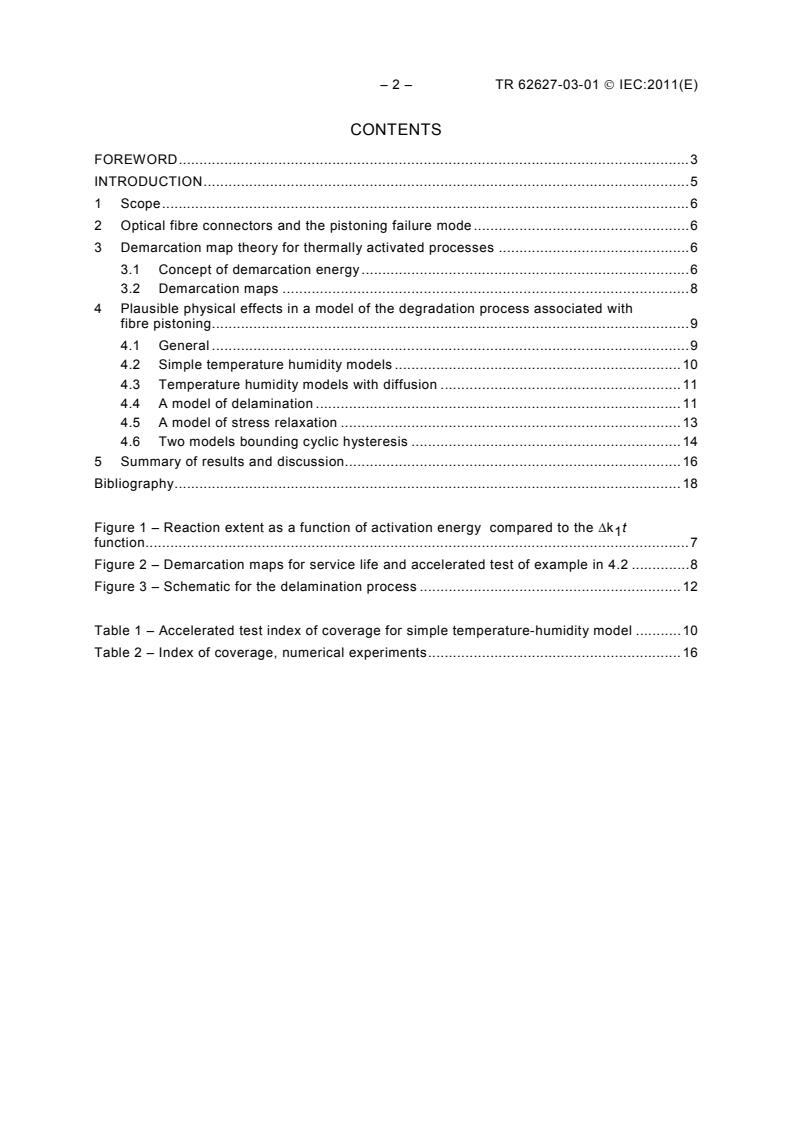

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Optical fibre connectors and the pistoning failure mode . 6
3 Demarcation map theory for thermally activated processes . 6
3.1 Concept of demarcation energy . 6
3.2 Demarcation maps . 8
4 Plausible physical effects in a model of the degradation process associated with
fibre pistoning . 9
4.1 General . 9
4.2 Simple temperature humidity models . 10
4.3 Temperature humidity models with diffusion . 11
4.4 A model of delamination . 11
4.5 A model of stress relaxation . 13
4.6 Two models bounding cyclic hysteresis . 14
5 Summary of results and discussion. 16
Bibliography . 18

Figure 1 – Reaction extent as a function of activation energy compared to the ∆k t
function. 7
Figure 2 – Demarcation maps for service life and accelerated test of example in 4.2 . 8
Figure 3 – Schematic for the delamination process . 12

Table 1 – Accelerated test index of coverage for simple temperature-humidity model . 10
Table 2 – Index of coverage, numerical experiments . 16

TR 62627-03-01  IEC:2011(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –

Part 03-01: Reliability – Design of an acceptance test for fibre pistoning
failure of connectors during temperature and humidity cycling:
demarcation analysis
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC 62627-03-01, which is a technical report, has been prepared by subcommittee 86B: Fibre
optic interconnecting devices and passive components, of IEC technical committee 86: Fibre
optics.
– 4 – TR 62627-03-01  IEC:2011(E)
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
86B/2996/DTR 86B/3038/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 62627 series, published under the general title Fibre optic
interconnecting devices and passive components, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
TR 62627-03-01  IEC:2011(E) – 5 –
INTRODUCTION
Fibre optic connectors rely on accurate positioning of the fibre with respect to an optical
interface to achieve and maintain acceptable performance. Degradation of performance due
to fibre motion (fibre pistoning) is a well known failure mode. It is activated by temperature
and humidity exposure, especially cyclic. Clause 3 provides background on the pistoning
failure mode.
An acceptance test is an accelerated test designed to detect degradation or failure modes if
they would occur during life, and to show no change if no degradation or failure modes will
occur. A perfect acceptance test is impossible [1] because (a) there can always be non-
accelerable failure modes and (b) some failures may occur under acceleration that may not
occur in service. However, a well-designed acceptance test provides for a supplier a
reasonable check of the space of accelerable modes and is of great value in testing for
reliability.
Demarcation mapping provides a method of viewing possible chemical and physical
processes that can occur during a given stress exposure over a given time [1-4] and allows
for selection of accelerating test conditions that will produce potential degradation or failure
mechanisms during service. Clause 2 provides an overview of the demarcation approach and
its application to developing acceptance tests.
Clause 3 provides a discussion of plausible physical processes accompanying degradation
and fibre pistoning, based on an assumed service environment. It includes some models
based on these processes, and mathematical tools necessary to develop the demarcation
maps. Clause 4 summarizes the results of a numerical experiment, using demarcation maps
for each of the processes developed in Clause 3, to compare 20-year life in an extreme
tropical climate with accelerated tests.

—————————
Figures in square brackets refer to the Bibliography.

– 6 – TR 62627-03-01  IEC:2011(E)
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –

Part 03-01: Reliability – Design of an acceptance test for fibre pistoning
failure of connectors during temperature and humidity cycling:
demarcation analysis
1 Scope
This part of IEC 62627 gives an example of the design of an acceptance test for ferrule style
connectors when the dominant failure mode is fibre pistoning. The example applies to
connectors which use epoxies or other adhesive polymers to bond the fibre into a ferrule.
It combines existing evidence, mechanistic hypotheses and the demarcation approximation to
develop an accelerated environmental exposure sequence that can be used on a pass-only
basis to help ensure reliable service. This technical report was developed to serve only as an
example of how accelerated acceptance tests can be designed. It is not intended as a
normative standard for any specific application.
2 Optical fibre connectors and the pistoning failure mode
The most commonly used fibre optic connector designs are based on butt-joint fibre alignment.
The fibre is generally adhesively-bonded inside a tightly toleranced ferrule capillary with a
thermally cured epoxy. The ferrule is precision polished to ensure accurate positioning of the
fibre endface for acceptable optical performance. Significant fibre motion during temperature-
humidity exposure, especially cycling, will degrade the performance, causing both insertion
loss and reflectance to increase and become unstable.
The stresses that drive fibre motion come from three sources: (i) residual stress from the
connector termination process, (ii) externally applied contact stress from a mating ferrule, or
(iii) and stress from differential thermal expansion of materials in the connector assembly.
Mechanisms within the adhesive which allow the motion to take place include creep, adhesive
failure and cohesive failure.
3 Demarcation map theory for thermally activated processes
3.1 Concept of demarcation energy
The demarcation approximation is derived from consideration of material systems where a
macroscopically observable degradation process is driven by a set of parallel thermally
activated (Arrhenius) processes. Assuming each process to consist of a single step, the rate
for each local process has the form:
− E
 
a
k =νexp (1)
 
kT
 
where
is a premultiplier,
ν
is Boltzmann’s constant,
k
T is absolute temperature, and
E is the activation energy (in the following, all activation energies are given in eV).
a
TR 62627-03-01  IEC:2011(E) – 7 –
The relative amount (normalized to total amount which can react, also called the reaction
extent) reacted over time for this local process then has the form:
(1− exp(−k t)) (2)
The value of Equation (2), for a given time, temperature and ν, is plotted across activation
energies in Figure 1 and compared to the approximation:
0,k t<1

∆(k ,t )= (3)

1,k t≥1
 1
The centre vertical line in Figure 1 is the approximation and the circles are the exponential
function calculated at discrete activation energies. The two outer vertical lines corresponds to
values of ν separated by two orders of magnitude, bounds which are important in the
following discussions.
The comparison of Equations (2) and (3) shows that k t = 1 is a reasonable demarcation
between reactions which are complete and those which are not. Substitution from Equation (1)
gives the demarcation approximation of Equation (4).
E =kT ln(νt) (4)
a
For fixed values of time and temperature, Equation (4) gives the relationship between E and
a
ν , where E is the activation energy below which reaction processes are complete and above
a
which they are not. This provides a tool for comparing reactions at potential test times and
(accelerating) temperatures with those of actual service conditions. Note that the
approximation in this figure does not depend on there being a distribution of activation
energies.
1,0
0,8
0,6
0,4
0,2
0,0
0,0 0,5 1,0 1,5 2,0
E , eV
a
IEC  691/11
Figure 1 – Reaction extent as a function of activation energy
compared to the ∆k t function
Reaction extent
– 8 – TR 62627-03-01  IEC:2011(E)
3.2 Demarcation maps
With the demarcation approximation of Equation (4), it is possible to map the boundaries of
completed reactions under given conditions of time and temperature in the two-dimensional
space of E and lnν and compare service life and accelerated tests conditions. For the simple
a
case of time at a fixed temperature, the boundaries are straight lines. For the more general
case where service or test temperatures are not constant, the demarcation boundaries take a
different form. For each value of ν time at one temperature can be transformed to an
equivalent time at a different temperature corresponding to the same value of E as follows:
a
( ) ( ) (5)
kT lnνt = E =kT lnνt
1 1 a 2 2
T
T
(νt )
or (6)
t =
ν
which implies that after a step in temperature, Equation (4) can be re-expressed:
T
 
 
T
(νt)
 
 1 
E =kT lnν t + (7)
a 2 2
 
 
ν
 
 
 
A transformation such as Equation (7) can be applied to situations such as the example of a
product which is first baked at 180 °C for 4 h, followed by 25 years service at 50 °C. Such a
product might be a device requiring metallization [11] of the fibre, or a fibre Bragg grating [3],
either of which might require a stabilization anneal. The demarcation map for this product is
shown in Figure 2. Clearly these temperatures are not appropriate for epoxy based
connectors, however the visual illustration is clearer for these more extreme temperatures.
The area above and left of line 1 corresponds to those reactions completed by the bake and
those within the shaded area correspond to those reactions subsequently completed by the 25
years service. This can be compared to an accelerated test consisting of the same bake
followed by 5 h exposure at 260 °C. The region between curves 1 and 2 corresponds to those
reactions completed during the 260 exposure °C after the bake. This accelerated test region
.
includes all reactions occurring during life for values of ν greater than 10
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
5 1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
–5
0,0 0,5 1,0 1,5 2,0 2,5 3,0
Demarcation energy
IEC  692/11
Figure 2 – Demarcation maps for service life and accelerated test of example in 4.2
Log(v)
TR 62627-03-01  IEC:2011(E) – 9 –
If the goal is to design an acceptance test, it is important for the test to provide coverage for
all the processes which might occur during life, while minimizing the chances of rejecting a
good material system, with the minimum cost and time expenditure. The plot and discussion
above suggest a single number that can be extracted from the demarcation maps which
provides a simple characterization of the degree of conservativeness of the accelerated test
where the
with respect to accelerable failure modes. That number is the minimum value of ν
accelerated test contains all the processes occurring during life. This is the simplest use of
demarcation mapping to design accelerated tests which will arguably reach end of life.
A conservative value of ν for the purpose both of including processes running totally to
completion, and some more complex processes is a value 3-orders of magnitude lower than
what one would estimate is the lowest value for a simple single step chemical process in the
materials under consideration. The minimum value of ν as described above is the index of
coverage of the accelerated test for life stress. For every value of ν above that value, all
reaction occurring during life will be reached.
4 Plausible physical effects in a model of the degradation process associated
with fibre pistoning
4.1 General
The objective in this subclause is to list a series of plausible physical effects of degradation
associated with fibre pistoning that can be used for demarcation approximation, and to
illustrate the demarcation calculations for the simplest of these. The calculations will be done
for an assumed service life of 20 years of a diurnal cycle between 20 °C, 70 % RH and 50 °C,
90 % RH, and compared with an accelerated cycle going between 25 °C, 85 % RH and 85 °C,
85 % RH. The diurnal cycle is approximated as four steps, 6 h each at the conditions: 20 °C
and 70 % RH, 35 °C and 80 % RH, 50 °C, 90 % RH, and 35 °C, 80 % RH. The accelerated
cycle has a 1 h dwell at 25 °C, 85 % RH and a 3 h dwell at 85 °C, 85 % RH, with a 2 h ramp
between. The accelerated cycle is approximated as six steps with 1 h at 25 °C, 85 % RH, 1 h
at 45 °C, 85 % RH, 1 h at 65 °C, 85 % RH, 3 h at 85 °C, 85 %, 1 h at 65 °C, 85 % RH, and 1 h
at 45 °C, 85 % RH.
The possible physical effects associated with the above exposures include:
a) thermal degradation process;
b) direct action of moisture in terms of relative humidity, absolute humidity, or the effect of
water accumulation at an interface;
c) diffusion of water into the actively degrading regions;
d) thermally induced mechanical stresses at interfaces;
e) thermally induced mechanical stresses within polymer adhesive;
f) the effect of cyclic fatigue on interfaces, and within the polymer.
In No.1 of Table 2, effects a) and b) were combined and in No.2 of Table 2, a) and b) (looking
at absolute humidity only) were combined with c). In 3.1, delamination at the edge of the
epoxy Equation (4) driven in part by thermal expansion mismatch is examined. Diffusion
(Equation (3)) is not considered important, but temperature and humidity are considered as a
function of a plausible model of an isotherm at an interface[12]. In No.4 of Table 2, the model
used in No.3 of Table 2 is adapted to stress relaxation of the epoxy, assuming diffusion,
temperature, and humidity as absolute humidity are important. In No.5 of Table 2, two
approaches are considered to bound the effect of cyclic fatigue. One slightly more primitive,
where some elements of the model of 4.4 are combined with a conservative approximate
calculation of an acceleration factor based on a Coffin-Manson [15] model for hysteresis, and
the other where a connection between the Coffin-Manson [15] model, and diffusion of defects
in the polymer is proposed.
– 10 – TR 62627-03-01  IEC:2011(E)
4.2 Simple temperature humi
...
