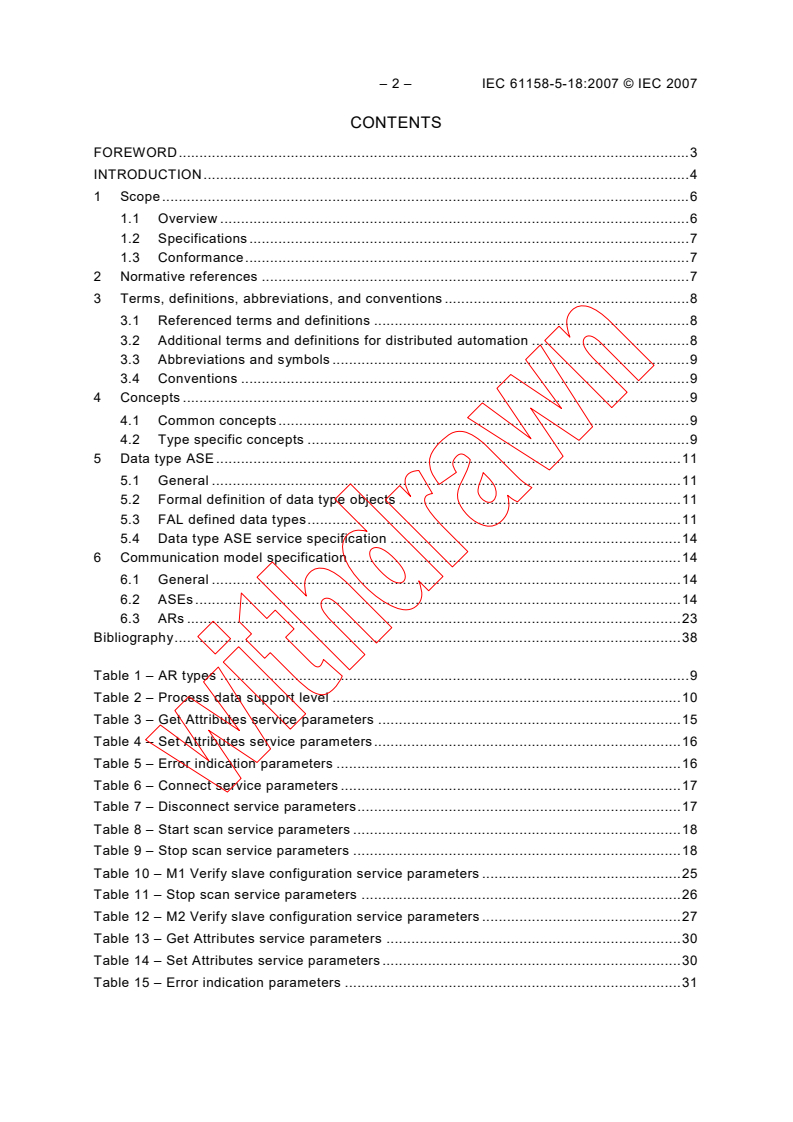

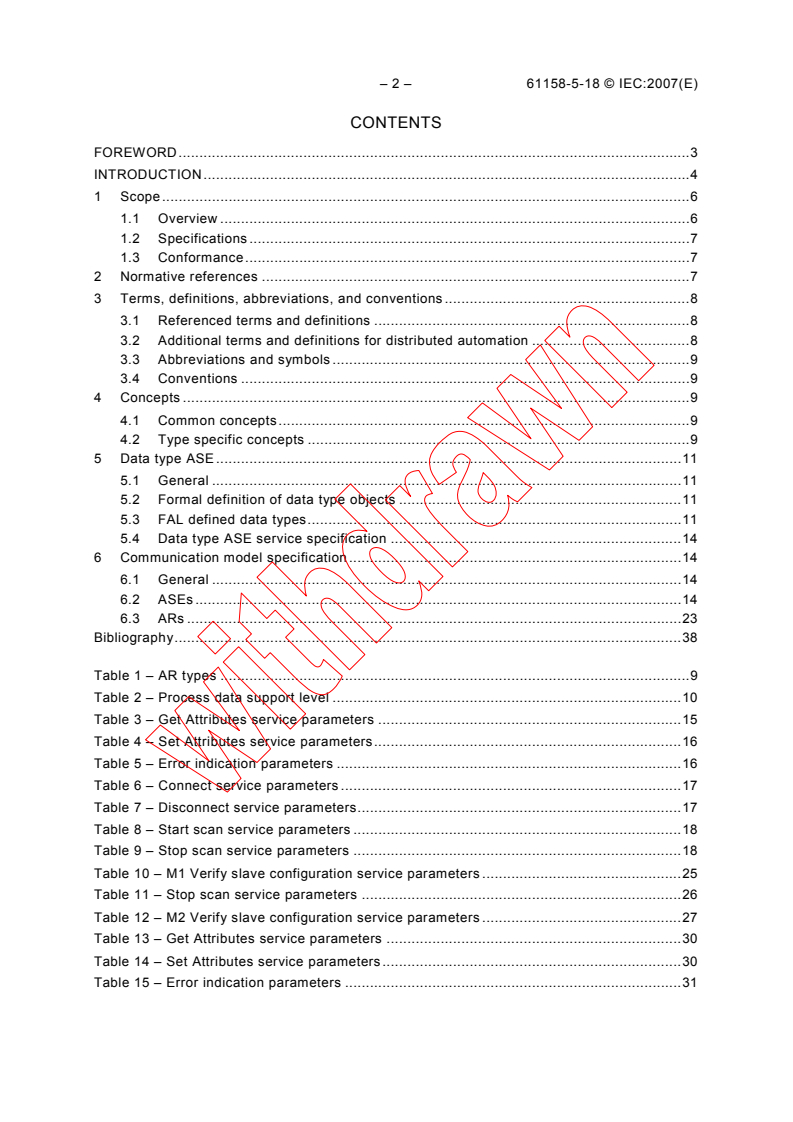

CONTENTS
FOREWORD.3

INTRODUCTION.4

1 Scope.6

1.1 Overview .6

1.2 Specifications .7

1.3 Conformance.7

2 Normative references .7

3 Terms, definitions, abbreviations, and conventions .8
3.1 Referenced terms and definitions .8
3.2 Additional terms and definitions for distributed automation .8
3.3 Abbreviations and symbols .9
3.4 Conventions .9
4 Concepts .9
4.1 Common concepts.9
4.2 Type specific concepts .9
5 Data type ASE.11
5.1 General .11
5.2 Formal definition of data type objects .11
5.3 FAL defined data types.11
5.4 Data type ASE service specification .14
6 Communication model specification .14
6.1 General .14
6.2 ASEs .14
6.3 ARs .23
Bibliography.38

Table 1 – AR types .9
Table 2 – Process data support level .10
Table 3 – Get Attributes service parameters .15
Table 4 – Set Attributes service parameters.16
Table 5 – Error indication parameters .16
Table 6 – Connect service parameters .17

Table 7 – Disconnect service parameters.17
Table 8 – Start scan service parameters .18
Table 9 – Stop scan service parameters .18
Table 10 – M1 Verify slave configuration service parameters .25
Table 11 – Stop scan service parameters .26
Table 12 – M2 Verify slave configuration service parameters .27
Table 13 – Get Attributes service parameters .30
Table 14 – Set Attributes service parameters.30
Table 15 – Error indication parameters .31

61158-5-18 © IEC:2007(E) – 3 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
INDUSTRIAL COMMUNICATION NETWORKS –

FIELDBUS SPECIFICATIONS –
Part 5-18: Application layer service definition - Type 18 elements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
NOTE  Use of some of the associated protocol types is restricted by their intellectual-property-right holders. In all

cases, the commitment to limited release of intellectual-property-rights made by the holders of those rights permits
a particular data-link layer protocol type to be used with physical layer and application layer protocols in type
combinations as specified explicitly in the IEC 61784 series. Use of the various protocol types in other
combinations may require permission of their respective intellectual-property-right holders.
International Standard IEC 61158-5-18 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This first edition and its companion parts of the IEC 61158-5 subseries cancel and replace
IEC 61158-4:2003. This edition of this part constitutes a technical addition.
This edition of IEC 61158-5 includes the following significant changes from the previous
edition:
a) deletion of the former Type 6 fieldbus for lack of market relevance;
b) addition of new types of fieldbuses;
c) partition of part 5 of the third edition into multiple parts numbered -5-2, -5-3, …

– 4 – 61158-5-18 © IEC:2007(E)

The text of this standard is based on the following documents:

FDIS Report on voting
65C/475/FDIS 65C/486/RVD
Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under http://webstore.iec.ch in the
data related to the specific publication. At this date, the publication will be:
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
NOTE  The revision of this standard will be synchronized with the other parts of the IEC 61158 series.
The list of all the parts of the IEC 61158 series, under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC web site.

61158-5-18 © IEC:2007(E) – 5 –

INTRODUCTION
This part of IEC 61158 is one of a series produced to facilitate the interconnection of

automation system components. It is related to other standards in the set as defined by the

“three-layer” fieldbus reference model described in IEC/TR 61158-1.

The application service is provided by the application protocol making use of the services

available from the data-link or other immediately lower layer. This standard defines the

application service characteristics that fieldbus applications and/or system management may

exploit.
Throughout the set of fieldbus standards, the term “service” refers to the abstract capability
provided by one layer of the OSI Basic Reference Model to the layer immediately above. Thus,
the application layer service defined in this standard is a conceptual architectural service,
independent of administrative and implementation divisions.

– 6 – 61158-5-18 © IEC:2007(E)

DIGITAL DATA COMMUNICATIONS FOR MEASUREMENT AND CONTROL –

FIELDBUS SPECIFICATIONS –
Part 5-18: Application layer service definition - Type 18 elements

1 Scope
1.1 Overview
The fieldbus application layer (FAL) provides user programs with a means to access the
fieldbus communication environment. In this respect, the FAL can be viewed as a “window
between corresponding application programs.”
This part of IEC 61158 provides common elements for basic time-critical and non-time-critical
messaging communications between application programs in an automation environment and
material specific to Type 18 fieldbus. The term “time-critical” is used to represent the
presence of a time-window, within which one or more specified actions are required to be
completed with some defined level of certainty. Failure to complete specified actions within
the time window risks failure of the applications requesting the actions, with attendant risk to
equipment, plant and possibly human life.
This part of IEC 61158 define in an abstract way the externally visible service provided by the
Type 18 fieldbus application layer in terms of
a) an abstract model for defining application resources (objects) capable of being
manipulated by users via the use of the FAL service,
b) the primitive actions and events of the service;
c) the parameters associated with each primitive action and event, and the form which they
take; and
d) the interrelationship between these actions and events, and their valid sequences.
The purpose of this part of IEC 61158 is to define the services provided to
1) the FAL user at the boundary between the user and the Application Layer of the Fieldbus
Reference Model, and
2) Systems Management at the boundary between the Application Layer and Systems
Management of the Fieldbus Reference Model.
This part of IEC 61158 specifies the structure and services of the Type 18 IEC fieldbus

Application Layer, in conformance with the OSI Basic Reference Model (ISO/IEC 7498) and
the OSI Application Layer Structure (ISO/IEC 9545).
FAL services and protocols are provided by FAL application-entities (AE) contained within the
application processes. The FAL AE is composed of a set of object-oriented Application
Service Elements (ASEs) and a Layer Management Entity (LME) that manages the AE. The
ASEs provide communication services that operate on a set of related application process
object (APO) classes. One of the FAL ASEs is a management ASE that provides a common
set of services for the management of the instances of FAL classes.
Although these services specify, from the perspective of applications, how request and
responses are issued and delivered, they do not include a specification of what the requesting
and responding applications are to do with them. That is, the behavioral aspects of the
applications are not specified; only a definition of what requests and responses they can
send/receive is specified. This permits greater flexibility to the FAL users in standardizing

61158-5-18 © IEC:2007(E) – 7 –

such object behavior. In addition to these services, some supporting services are also defined

in this standard to provide access to the FAL to control certain aspects of its operation.

1.2 Specifications
The principal objective of this part of IEC 61158 is to specify the characteristics of conceptual

application layer services suitable for time-critical communications, and thus supplement the

OSI Basic Reference Model in guiding the development of application layer protocols for time-

critical communications.
A secondary objective is to provide migration paths from previously-existing industrial

communications protocols. It is this latter objective which gives rise to the diversity of services
standardized as the various Types of IEC 61158, and the corresponding protocols
standardized in subparts of IEC 61158-6.
This specification may be used as the basis for formal Application Programming-Interfaces.
Nevertheless, it is not a formal programming interface, and any such interface will need to
address implementation issues not covered by this specification, including
a) the sizes and octet ordering of various multi-octet service parameters, and
b) the correlation of paired request and confirm, or indication and response, primitives.
1.3 Conformance
This part of IEC 61158 does not specify individual implementations or products, nor do they
constrain the implementations of application layer entities within industrial automation
systems.
There is no conformance of equipment to this application layer service definition standard.
Instead, conformance is achieved through implementation of conforming application layer
protocols that fulfill the Type 18 application layer services as defined in this part of IEC 61158.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60559, Binary floating-point arithmetic for microprocessor systems
IEC/TR 61158-1 (Ed.2.0), Industrial communication networks – Fieldbus specifications –

Part  1: Overview and guidance for the IEC 61158 and IEC 61784 series
ISO/IEC 7498-1, Information technology – Open Systems Interconnection – Basic Reference
Model – Part 1: The Basic Model
ISO/IEC 8822, Information technology – Open Systems Interconnection – Presentation service
definition
ISO/IEC 8824, Information Technology – Abstract Syntax notation One (ASN-1): Specification
of basic notation
ISO/IEC 9545, Information technology – Open Systems Interconnection – Application Layer
structure
– 8 – 61158-5-18 © IEC:2007(E)

3 Terms, definitions, abbreviations, and conventions

3.1 Referenced terms and definitions

3.1.1 ISO/IEC 7498-1 terms
For the purposes of this document, the following terms as defined in ISO/IEC 7498-1 apply:

a) application entity
b) application process
c) application protocol data unit

d) application service element
e) application entity invocation
f) application process invocation
g) application transaction
h) real open system
i) transfer syntax
3.1.2 ISO/IEC 8822 terms
For the purposes of this document, the following terms as defined in ISO/IEC 8822 apply:
a) abstract syntax
b) presentation context
3.1.3 ISO/IEC 9545 terms
For the purposes of this document, the following terms as defined in ISO/IEC 9545 apply:
a) application-association
b) application-context
c) application context name
d) application-entity-invocation
e) application-entity-type
f) application-process-invocation
g) application-process-type
h) application-service-element

i) application control service element
3.1.4 ISO/IEC 8824 terms
For the purposes of this document, the following terms as defined in ISO/IEC 8824 apply:
a) object identifier
b) type
3.2 Additional terms and definitions for distributed automation
For the purposes of this document, the following terms and definitions apply.
3.3
Register X
register containing bit-oriented cyclic data of type input data that is transmitted from a slave to
a master
61158-5-18 © IEC:2007(E) – 9 –

3.4
Register Y
register containing bit-oriented cyclic data of type output data that is transmitted from a

master to a slave
3.5
Register Wr
register containing word-oriented cyclic data of type input data that is transmitted from a slave

to a master
3.6
Register Ww
register containing word-oriented cyclic data of type output data that is transmitted from a
master to a slave
3.7 Abbreviations and symbols
RX Register X
RY Register Y
RWr Register Wr
RWw Register Ww
3.8 Conventions
There are no conventions defined specific to Type 18 FAL.
4 Concepts
4.1 Common concepts
IEC/TR 61158, Clause 9 describes the concepts of the application layer service descriptions
and the templates used in this document, except as specifically overridden in 4.2.
4.2 Type specific concepts
4.2.1 Overview
Described in this communication model specification are the Application Service Elements
(ASE) and the Application Process (AP) object class models. The syntax and related encoding
of attributes is described by the Type 18 Application layer protocol specification.

The Type 18 AL identifies two types of FAL user, master and slave. For each FAL user type
there are two classes of Data Link Entity (DLE), Class 1 and Class 2, corresponding to the
Polled and Packed class of the DLE, respectively. See appropriate definitions and
specifications in the Type 18 Data link for more information about the Polled and Packed class
of DLE. Therefore, there are 4 types of Application Relationship (AR) as shown in Table 1.
AR classes and device types share the same naming conventions.
Table 1 – AR types
AR class Symbol FAL user type DLE class
Master Class 1 M1 Master Polled
Master Class 2 M2 Master Packed
Slave Class 1 S1 Slave Polled
Slave Class 2 S2 Slave Packed
– 10 – 61158-5-18 © IEC:2007(E)

An Application Process (AP) object model consists of

• one Device Manager object,
• one Connection Manager object, and

• one or more Process Data objects.

The specific classes of objects included depend upon the type of device and are identified by

prefixes that match the symbol of the related AR class (or device type).

4.2.2 Stations and slots
Each device and its corresponding FAL is identified by a number. This identifying number is
named the Station number. The station number is the address used to identify the device and
the AR End Point (AREP) associated with the transmission and reception of its process data.
Cyclic process data is further addressed by slot number. One slot is the granularity of the
position dependent mapping of the cyclic data fields. A station may occupy more than one
slot. The slots belonging to an AREP are identified by the range of slots beginning with the
station number and with a length equal to the number of occupied slots as configured by the
FAL user.
4.2.3 Transmission methods
The Type 18 AL implements a master/slave type architecture. Only a master is able to initiate
transmissions. Slave devices respond to transmissions from the master. The access method
employed is scanning. A scan cycle is one where the master device transmits data to, and
receives data from, all the slaves connected to it. The particulars of the transmission methods
are described by the Type 18 Application layer protocol specification.
4.2.4 Process data structures
Symbols (RX, RY, RWr, and RWw) are used throughout the Type 18 specifications to refer to
types of cyclic data registers which are used to buffer process data for transmission and
reception.
In addition to cyclic data, some AR types support acyclic message transmissions, sometimes
named transient data transmissions by some industry users.
The type of data supported by an FAL is indicated by the level of process data support which
is specified with the nomenclature described in Table 2.
Table 2 – Process data support level

Process data Data type supported Type 18 industry users
support level Alias terminology
A bit-orineted i/o data Remote i/o station
B A + word-oriented i.o data Remote device station
C B + acyclic messaging Intelligent device station

61158-5-18 © IEC:2007(E) – 11 –

5 Data type ASE
5.1 General
An overview of the data type ASE and the relationships between data types is provided in

IEC/TR 61158-1, 10.1.
5.2 Formal definition of data type objects

The template used to describe the data type class in this clause is detailed in IEC/TR 61158-1,
10.2. This includes the specific ASE structure and the definition of its attributes.

5.3 FAL defined data types
5.3.1 Fixed length types
5.3.1.1 Boolean types
5.3.1.1.1 Boolean
CLASS: Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 1
2 Data type Name = Boolean
3 Format = FIXED LENGTH
4.1 Octet Length = 1
This data type expresses a Boolean data type with the values TRUE and FALSE.
5.3.1.2 Bitstring types
5.3.1.2.1 BitString8
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 22
2 Data type Name = Bitstring8
3 Format = FIXED LENGTH
5.1 Octet Length = 1
5.3.1.2.2 Octet
This data type is the same as Bitstring8.

5.3.1.2.3 BitString16
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 23
2 Data type Name = Bitstring16
3 Format = FIXED LENGTH
5.1 Octet Length = 2
5.3.1.2.4 Word
This data type is the same as Bitstring16.
5.3.1.2.5 BitString32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 24

– 12 – 61158-5-18 © IEC:2007(E)

2 Data type Name = Bitstring32

3 Format = FIXED LENGTH
5.1 Octet Length = 4
5.3.1.3 Numeric types
5.3.1.3.1 Floating Point types

5.3.1.3.1.1 Float32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 8

2 Data type Name = Float32
4 Format = FIXED LENGTH
4.1 Octet Length = 4
This type has a length of four octets. The format for Float32 is that defined by IEC 60559 as
single precision.
5.3.1.3.1.2 float
This data type is the same as Float32.
5.3.1.3.1.3 Float64
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 15
2 Data type Name = Float64
3 Format = FIXED LENGTH
4.1 Octet Length = 8
This type has a length of eight octets. The format for Float64 is that defined by IEC 60559 as
double precision.
5.3.1.3.1.4 double
This data type is the same as Float64.
5.3.1.3.2 Integer types
5.3.1.3.2.1 Integer8
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 2
2 Data type Name = Integer8
3 Format = FIXED LENGTH
4.1 Octet Length = 1
This integer type is a two’s complement binary number with a length of one octet.
5.3.1.3.2.2 char
This data type is the same as Integer8.
5.3.1.3.2.3 Integer16
CLASS:  Data type
ATTRIBUTES:
61158-5-18 © IEC:2007(E) – 13 –

1 Data type Numeric Identifier = 3

2 Data type Name = Integer16
3 Format = FIXED LENGTH
4.1 Octet Length = 2
This integer type is a two’s complement binary number with a length of two octets.

5.3.1.3.2.4 short
This data type is the same as Integer16.

5.3.1.3.2.5 Integer32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 4
2 Data type Name = Integer32
3 Format = FIXED LENGTH
4.1 Octet Length = 4
This integer type is a two’s complement binary number with a length of four octets.
5.3.1.3.2.6 long
This data type is the same as Integer32.
5.3.1.3.3 Unsigned types
5.3.1.3.3.1 Unsigned8
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 5
2 Data type Name = Unsigned8
3 Format = FIXED LENGTH
4.1 Octet Length = 1
This type is a binary number. The most significant bit of the most significant octet is always
used as the most significant bit of the binary number; no sign bit is included. This type has a
length of one octet.
5.3.1.3.3.2 unsigned char
This data type is the same as Unsigned8.

5.3.1.3.3.3 Unsigned16
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 6
2 Data type Name = Unsigned16
3 Format = FIXED LENGTH
4.1 Octet Length = 2
This type is a binary number. The most significant bit of the most significant octet is always
used as the most significant bit of the binary number; no sign bit is included. This unsigned
type has a length of two octets.
5.3.1.3.3.4 unsigned short
This data type is the same as Unsigned16.

– 14 – 61158-5-18 © IEC:2007(E)

5.3.1.3.3.5 Unsigned32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 7

2 Data type Name = Unsigned32

3 Format = FIXED LENGTH
4.1 Octet Length = 4
This type is a binary number. The most significant bit of the most significant octet is always

used as the most significant bit of the binary number; no sign bit is included. This unsigned

type has a length of four octets.

5.3.1.3.3.6 unsigned long
This data type is the same as Unsigned32.
5.4 Data type ASE service specification
There are no operational services defined for the type object.
6 Communication model specification
6.1 General
The Type 18 AL describes a master/slave type architecture with master transmission methods
employed to transfer process data between the master device and its connected slave devices.
6.2 ASEs
6.2.1 Management ASE
6.2.1.1 Overview
The management ASE manages the FAL components related to the type of device in which
the FAL is implemented.
6.2.1.2 Management class specification
6.2.1.2.1 Formal model
FAL ASE: Management ASE
CLASS:  Manager
CLASS ID: not used
PARENT CLASS: TOP
SERVICES:
1. (m) OpsService: Get
2. (o) OpsService: Set
3. (o) OpsService: Error
4. (c) Constraint: object class = M1/M2/S1/S2 Connection Manager
4.1. (m) OpsService: Connect
4.2. (m) OpsService: Disconnect
5. (c) Constraint: object class = M1/M2 Connection Manager
5.3. (m) OpsService: Start scan
5.4. (m) OpsService: Stop scan
6.2.1.2.2 Attributes
There are no attributes defined for this ASE.

61158-5-18 © IEC:2007(E) – 15 –

6.2.1.2.3 Services
Get
This service is used to read attribute values.

Set
This service is used to write attribute values.

Error
This indication is used to communicate error events.

Connect
This service is used to connect to the network.
Disconnect
This service is used to disconnect to the network.
Start scan
This service is used to initiate the master scanning.
Stop scan
This service is used to terminate the master scanning.
6.2.1.3 Management ASE service specifications
6.2.1.3.1 Get service
6.2.1.3.1.1 Service overview
This service is used to read attribute values.
6.2.1.3.1.2 Service primitives
The parameters for the Get service are listed in Table 3.
Table 3 – Get Attributes service parameters
Parameter name Req Ind Rsp Cnf
Requested attribute M M (=)
Response code  M M (=)
Attribute value  M M (=)
NOTE  The method by which a confirm primitive is correlated with its
corresponding preceding request primitive is a local matter. See 1.2.

Requested attribute
This parameter specifies the identity of the attribute whose value is being requested.
Response code
This parameter specifies the classification of the response as either successful or an error
code.
Attribute value
This parameter specifies the value of the requested attribute if successful. The format of the
parameter is that of the attribute requested.

– 16 – 61158-5-18 © IEC:2007(E)

6.2.1.3.1.3 Service procedure
The service request results in a returned value or an error code.

6.2.1.3.2 Set service
6.2.1.3.2.1 Service overview
This service is used to write attribute values.

6.2.1.3.2.2 Service primitives

The parameters for the Set service are listed in Table 4.
Table 4 – Set Attributes service parameters
Parameter name Req Ind Rsp Cnf
Requested attribute M M (=)
Attribute value M M (=)
Response code  M M (=)
NOTE  The method by which a confirm primitive is correlated with its
corresponding preceding request primitive is a local matter. See 1.2.

Requested attribute
This parameter specifies the identity of the attribute whose value is being set.
Attribute value
This parameter specifies the value to which the attribute is to be set. The format of the
parameter is that of the attribute being set.
Response code
This parameter specifies the classification of the response as either successful or an error
code.
6.2.1.3.2.3 Service procedure
The service request results in an attribute value being set or an error code.
6.2.1.3.3 Error indication
6.2.1.3.3.1 Service overview
This indication is used to communicate error events.
6.2.1.3.3.2 Service primitives
Table 5.
The parameters for the Error indication are listed in
Table 5 – Error indication parameters
Parameter name Ind
Error code M
Error code
This parameter specifies the classification of the error.

61158-5-18 © IEC:2007(E) – 17 –

6.2.1.3.3.3 Service procedure
The FAL user is notified of an error with the accompanying code.

6.2.1.3.4 Connect service
6.2.1.3.4.1 Service overview
This service is used to connect to the network.

6.2.1.3.4.2 Service primitives

The parameters for the Connect service are listed in Table 6.
Table 6 – Connect service parameters
Parameter name Req Cnf
Response code M
NOTE  The method by which a confirm primitive is
correlated with its corresponding preceding request
primitive is a local matter. See 1.2.

Response code
This parameter specifies the classification of the response as either successful or an error
code.
6.2.1.3.4.3 Service procedure
The Connect service request invokes an appropriate series of DL service requests through the
AP protocol in order to establish the specified AR.
For Connection Manger objects belonging to the master class, this service provides the FAL
user with connection to, and identification of, one or more slaves to which it has access.
For Connection Manger objects belonging to the slave class, this service provides the FAL
user with connection to, and identification of, its associated master and begins the behavior
associated with the slave class scanning of process data.
6.2.1.3.5 Disconnect service
6.2.1.3.5.1 Service overview
This service is used to disconnect from the network.
6.2.1.3.5.2 Service primitives
The parameters for the Disconnect service are listed in Table 7.
Table 7 – Disconnect service parameters
Parameter name Req Cnf
Response code M
NOTE  The method by which a confirm primitive is
correlated with its corresponding preceding request
primitive is a local matter. See 1.2.

– 18 – 61158-5-18 © IEC:2007(E)

Response code
This parameter specifies the classification of the response as either successful or an error

code.
6.2.1.3.5.3 Service procedure
The Disconnect service request invokes an appropriate series of DL service requests through

the AP protocol in order to terminate a previously established AR.

6.2.1.3.6 Start scan service
6.2.1.3.6.1 Service overview
This service is used to initiate the master scanning.
6.2.1.3.6.2 Service primitives
The parameters for the Start scan service are listed in Table 8.
Table 8 – Start scan service parameters
Parameter name Req Ind Rsp Cnf
Response code  M M (=)
NOTE  The method by which a confirm primitive is correlated with its
corresponding preceding request primitive is a local matter. See 1.2.

Response code
This parameter specifies the classification of the response as either successful or an error
code.
6.2.1.3.6.3 Service procedure
The Start scan service request invokes an appropriate series of DL service requests through
the AP protocol in order to begin the behavior associated with the scanning of process data.
6.2.1.3.7 Stop scan service
6.2.1.3.7.1 Service overview
This service is used to terminate the master scanning.

6.2.1.3.7.2 Service primitives
The parameters for the Stop scan service are listed in Table 9.
Table 9 – Stop scan service parameters
Parameter name Req Ind Rsp Cnf
Response code  M M (=)
NOTE  The method by which a confirm primitive is correlated with its
corresponding preceding request primitive is a local matter. See 1.2.

Response code
This parameter specifies the classification of the response as either successful or an error
code.
61158-5-18 © IEC:2007(E) – 19 –

6.2.1.3.7.3 Service procedure
The Stop scan service request invokes an appropriate series of DL service requests through

the AP protocol in order to terminate a previously started scan behavior.

6.2.1.4 M1 device manager class specification

6.2.1.4.1 Formal model
The M1 device manager class supports a master type FAL user on a Polled type DL

implementation.
FAL ASE: Management ASE
CLASS:  M1 device manager
CLASS ID: not used
PARENT CLASS: Manager
ATTRIBUTES:
1 (m) Attribute: Management information
1.1 (m) Attribute: Transmission speed
1.2 (m) Attribute: Number of occupied stations
1.3 (m) Attribute: Device information
1.3.1 (m) Attribute: Station number
1.3.2 (m) Attribute: Vendor code
1.3.3 (m) Attribute: Model code
1.3.4 (m) Attribute: Software version
2 (m) Attribute: Connected slaves management information
2.1 (m) Attribute: Slave information 1
2.1.1 (m) Attribute: Station number
2.1.2 (m) Attribute: Vendor code
2.1.3 (m) Attribute: Model code
2.1.4 (m) Attribute: Software version
2.1.5 (m) Attribute: Reserved field
… … … …
2.n (m) Attribute: Slave information n
2.n.1 (m) Attribute: Station number
2.n.2 (m) Attribute: Vendor code
2.n.3 (m) Attribute: Model code
2.n.4 (m) Attribute: Software version
2.n.5 (m) Attribute: Reserved field
… … … …
2.64 (m) Attribute: Slave information 64
2.64.1 (m) Attribute: Station number
2.64.2 (m) Attribute: Vendor code
2.64.3 (m) Attribute: Model code
2.64.4 (m) Attribute: Software version
2.64.5 (m) Attribute: Reserved field
6.2.1.4.2 Attributes
Management information
This attribute is a description of the master’s configuration; structure of:

– 20 – 61158-5-18 © IEC:2007(E)

Transmission speed
This element specifies the baud rate for the DL configuration.

Number of occupied stations
This element specifies the number of stations occupied.

Station number
This element specifies the station number for the DL configuration.

Vendor code
This element contains a unique code to identify the manufacturer of the device. Vendor

code assignment and management is beyond the scope of this specification.
Model code
This element specifies the type of device.
Software version
This element specifies the software version of the device.
Connected slaves management information
This attribute conatins a description of the configuration of all connected slaves; array of 64
structures:
Slave information n
This element is a description of the configuration of slave n; structure of:
Station number
This element specifies the station number for the DL configuration.
Vendor code
This element contains a unique code to identify the manufacturer of the device.
Vendor code assignment and management is beyond the scope of this specification.
Model code
This element specifies the type of device.
Software version
This element specifies the software version of the device.

Reserved field
This is a reserved field for future definition.
6.2.1.4.3 Services
There are no additional services defined for this class.
6.2.1.5 M2 device manager class specification
6.2.1.5.1 Formal model
The M2 device manager class supports a master type FAL user on a Packed type DL
implementation.
FAL ASE: Management ASE
CLASS:  M2 device manager
61158-5-18 © IEC:2007(E) – 21 –

CLASS ID: not used
PARENT CLASS: Manager
ATTRIBUTES:
1 (m) Attribute: Slave station information

1.1 (m) Attribute: Slave station information 1

… … … …
1.n (m) Attribute: Slave station information n

… … … …
1.64 (m) Attribute: Slave station information 64
2 (m) Attribute: Slave station status information

2.1 (m) Attribute: Slave station status information 1
… … … …
2.n (m) Attribute: Slave station status information n
… … … …
2.64 (m) Attribute: Slave station status information 64
6.2.1.5.2 Attributes
Slave station information
This attribute specifies a list of slave station information words collected from each connected
slave; array of 64 words:
Slave station information n
This element specifies the configuration of the referenced slave device.
Slave station status information
This attribute specifies a list of slave station status information fields collected from each
connected slave; array of 64, 4-bit elements:
Slave station status information n
This element specifies the status of the referenced slave device.
6.2.1.5.3 Services
There are no additional services defined for this class.
6.2.1.6 S1 device manager class specification
6.2.1.6.1 Formal model
The S1 device manager class supports a slave type FAL user on a Polled type DL
implementation.
FAL ASE: Management ASE
CLASS:  S1 device manager
CLASS ID: not used
PARENT CLASS: Manager
ATTRIBUTES:
1 (m) Attribute: Management information
1.1 (m) Attribute: Station number
1.2 (m) Attribute: Vendor code
1.3 (m) Attribute: Model code
1.4 (m) Attribute: Software version
1.5 (m) Attribute: Reserved field

– 22 – 61158-5-18 © IEC:2007(E)

6.2.1.6.2 Attributes
Management information
This attribute specifies a description of the slave’s configuration; structure of

Station number
This element specifies the station number for the DL configuration.

Vendor code
This element contains a unique code to identify the manufacturer of the device. Vendor

code assignment and management is beyond the scope of this specification.

Model code
This element specifies the type of device.
Software version
This element specifies the software version of the device.
Reserved field
This is a reserved fi
...
