IEC 60034-18-41:2014/AMD1:2019/COR1:2020

 IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 60034-18-41 IEC 60034-18-41
Amendment 1 to Edition 1.0  2019-06 Amendement 1 à l'Édition 1.0  2019-06

ROTATING ELECTRICAL MACHINES – MACHINES ÉLECTRIQUES TOURNANTES –

Part 18-41: Partial discharge free electrical Partie 18-41: Systèmes d’isolation électrique
insulation systems (Type I) used in sans décharge partielle (Type I)
rotating electrical machines fed from voltage utilisés dans des machines électriques
converters – Qualification and tournantes alimentées par des
quality control tests convertisseurs de tension – Essais de
qualification et de contrôle qualité

CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.

12.2 Routine withstand voltage test
Replace the text of the third paragraph with the following new text:
During the routine testing of quantity produced machines up to 200 kW (or kVA) and rated for
U ≤ 1 kV, the 1 min test may be replaced by a test of 1 s (see IEC 60034-1) at 120 % of the
N
test voltage specified in Table D.1, for example S – (manufacturer specified): (TVF · 2U +
N
1 kV ) · 1,2.
Table D.1 – Withstand test voltages according to IVIC for Type I insulation systems
Replace the table with the following new table:
Maximum allowable Maximum TVF Examples of routine phase
peak to peak allowable to ground test voltages for
operating voltages in enhancement a machine with U = 500 V
N
a
ratio for the
units of U
tested at 50/60 Hz
N
phase to ground
according to IEC 60034-1
peak to peak
(kV r.m.s.)
voltage
IVIC Phase to Phase to Converter-fed Line
b
phase ground (IVIC specified)
fed
U / U
IVIC N
None (line) 2,8 1,6  2
A – Benign 3,0 2,1 1,3 0,7 2,0 2
B – Moderate 4,1 2,8 1,7 1,0 2,0 2
C – Severe 5,4 3,8 2,3 1,3 2,3 2
IEC 60034-18-41:2014-03/AMD1:2019-06/COR1:2020-12 (en-fr)

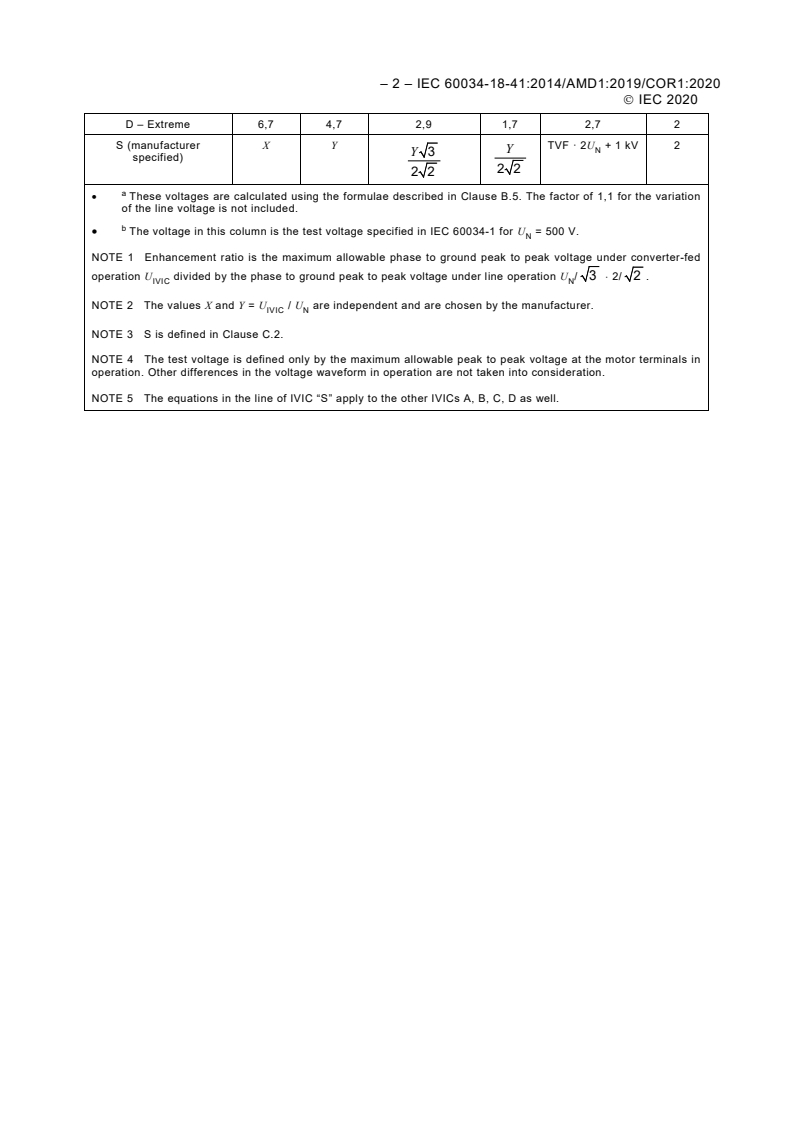

– 2 – IEC 60034-18-41:2014/AMD1:2019/COR1:2020
 IEC 2020
D – Extreme 6,7 4,7 2,9 1,7 2,7 2
S (manufacturer X Y TVF · 2U + 1 kV 2
Y N
Y 3
specified)
a
• These voltages are calculated using the formulae described in Clause B.5. The factor of 1,1 for the variation
of the line voltage is not included.
b
• The voltage in this column is the test voltage specified in IEC 60034-1 for U = 500 V.
N
NOTE 1 Enhancement ratio is the maximum allowable phase to ground peak to peak voltage under converter-fed
operation U divided by the phase to ground peak to peak voltage under line operation U / ⋅ 2/ 2 .
IVIC N
NOTE 2 The values X and Y = U / U are independent and are chosen by the manufacturer.
IVIC N
NOTE 3 S is defined in Clause C.2.
NOTE 4 The te
...
