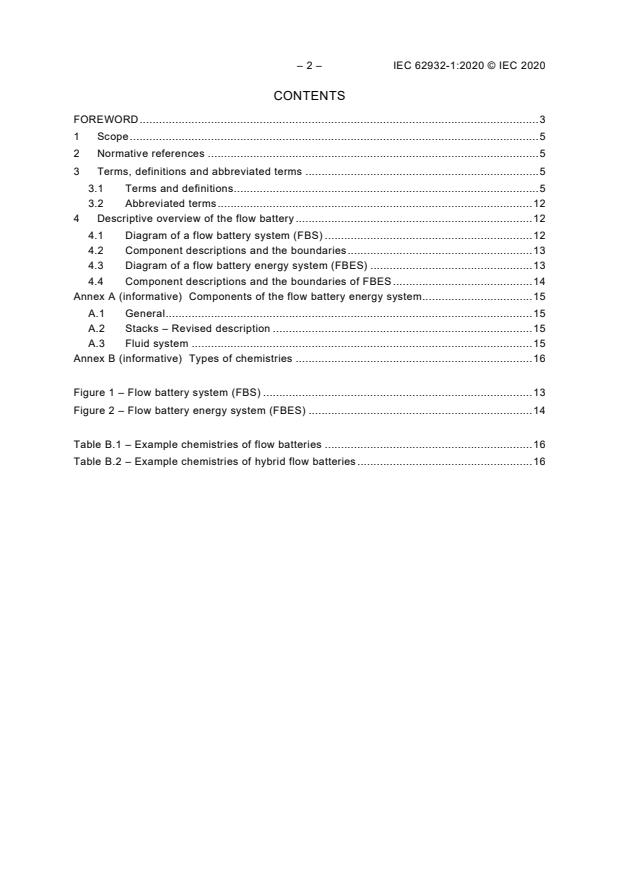

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviated terms . 5
3.1 Terms and definitions . 5
3.2 Abbreviated terms . 12
4 Descriptive overview of the flow battery . 12
4.1 Diagram of a flow battery system (FBS) . 12
4.2 Component descriptions and the boundaries . 13
4.3 Diagram of a flow battery energy system (FBES) . 13
4.4 Component descriptions and the boundaries of FBES . 14
Annex A (informative) Components of the flow battery energy system . 15
A.1 General . 15
A.2 Stacks – Revised description . 15
A.3 Fluid system . 15
Annex B (informative) Types of chemistries . 16

Figure 1 – Flow battery system (FBS) . 13
Figure 2 – Flow battery energy system (FBES) . 14

Table B.1 – Example chemistries of flow batteries . 16
Table B.2 – Example chemistries of hybrid flow batteries . 16

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLOW BATTERY ENERGY SYSTEMS FOR STATIONARY APPLICATIONS –

Part 1: Terminology and general aspects

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62932-1 has been prepared by IEC technical committee 21:
Secondary cells and batteries, in collaboration with IEC technical committee 105: Fuel cell
technologies.
The text of this International Standard is based on the following documents:
FDIS Report on voting
21/1027/FDIS 21/1037/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62932 series, published under the general title Flow battery energy
systems for stationary applications, can be found on the IEC website.

– 4 – IEC 62932-1:2020 © IEC 2020
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

FLOW BATTERY ENERGY SYSTEMS FOR STATIONARY APPLICATIONS –

Part 1: Terminology and general aspects

1 Scope
This part of IEC 62932 relates to flow battery energy systems (FBES) used in electrical energy
storage (EES) applications and provides the main terminology and general aspects of this
technology, including terms necessary for the definition of unit parameters, test methods, safety
and environmental issues.
2 Normative references
There are no normative references in this document.
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
ambient temperature
environmental temperature around a flow battery energy system
3.1.2
auxiliary energy
energy consumed by all the auxiliary equipment and components of a flow battery and of a flow
battery energy system
Note 1 to entry: The equipment and components include, but are not limited to, battery management system, battery
support system, fluid circulation system.
3.1.3
battery management system
BMS
electronic system associated with a flow battery energy system which monitors and/or manages
its state, calculates secondary data, reports that data and/or controls its environment to
influence the flow battery energy system’s performance and/or service life
Note 1 to entry: The function of the battery management system can be fully or partially assigned to the battery
pack and/or to equipment that uses flow battery energy store systems.
[SOURCE: IEC 61427-2:2015, 3.8, modified – admitted terms "battery management unit" and
"BMU" omitted, "battery" replaced by "flow battery energy system", Notes 2 to 4 deleted.]

– 6 – IEC 62932-1:2020 © IEC 2020
3.1.4
battery support system
BSS
auxiliary units, such as heat exchanger, ventilation system, safety system, and inert gas system,
used in an FBES, and which are not stacks, or part of the fluid circulation system, power
conversion system, or battery management system
Note 1 to entry: The battery support system is controlled by the battery management system.
3.1.5
charge
charging
operation during which a secondary cell or battery is supplied with electric energy
from an external circuit which results in chemical changes within the cell and thus the storage
of energy as chemical energy
Note 1 to entry: A charge operation is defined by its maximum voltage, current, duration and other conditions as
specified by the manufacturer.
[SOURCE: IEC 60050-482:2004, 482-05-27, modified – term "charging of a battery" separated
into "charge" and "charging" with "of a battery" as the domain, and addition of the note.]
3.1.6
cold standby
standby state requiring warm up before a demand to operate can be met
Note 1 to entry: A cold standby state may apply to redundant or stand-alone items.
Note 2 to entry: In this context "warm up" includes meeting any conditions required to operate as required (e.g.
achieving the required temperature, speed, pressure).
[SOURCE: IEC 60050-192:2015, 192-02-11, modified – "state" omitted from the term, and the
domain, "of an item", deleted.]
3.1.7
discharge
discharging
operation during which a secondary battery supplies electric energy to an
external circuit which results in chemical changes within the cell and the release of energy as
electrical energy
Note 1 to entry: A discharge operation is defined by its maximum voltage, current, duration and other conditions as
specified by the manufacturer.
3.1.8
emergency shutdown
rapid regulated shutdown of the flow battery energy system triggered by a protection system or
by manual intervention
[SOURCE: IEC 60050-415:1999, 415-01-11, modified – the word "regulated" added, and "wind
turbine" replaced by "flow battery energy system".]
3.1.9
emergency stop
function which is intended to avert arising or reduce existing hazards to persons, damage to
machinery or to work in progress and be initiated by a single action
[SOURCE: ISO 13850:2015, 3.1, modified – "(E-Stop)" omitted from the term, second
preferred term "emergency stop function" omitted, layout modified.]

3.1.10
energy efficiency
useful energy output at primary POC divided by the required energy input by the FBES/FBS
including all parasitic and auxiliary energy needed to run the system and evaluated during
FBES/FBS operation with the same final state of charge as the initial state of charge
Note 1 to entry: The energy efficiency for FBES includes necessary conversion loss of power conversion system
(PCS), auxiliary enrgy required for fluid circulation system, BMS and BSS.
Note 2 to entry: Efficiency is generally expressed in percentage.
[SOURCE: IEC 62933-1:2018, 4.12, modified – "EES" replaced by "FBES/FBS", Note 1 to
entry replaced.]
3.1.11
energy storage fluid
fluid that contains active materials and flows through the battery cell, consisting of liquid,
suspension or gas
3.1.12
end of charge
limit conditions specified by the manufacturer at which a charge is (to be) terminated
3.1.13
end of discharge
limit conditions specified by the manufacturer at which a discharge is (to be) terminated
3.1.14
flow cell
secondary cell characterized by the spatial separation of the electrodes and the movement of
the energy storage fluids
Note 1 to entry: Flow battery cell includes the hybrid flow cell.
3.1.15
flow battery energy system
FBES
system to store energy consisting of FBS(s) and power conversion system(s)
3.1.16
flow battery system
FBS
two or more flow cells electrically connected including all components for use in an electrochemical
energy storage system such as battery management system, battery support system and fluid
circulation system
3.1.17
fluid system
components and equipment destined to store and circulate energy storage fluids, such as tanks,
pipes, manual valves, electrical valves, pumps and sensors
3.1.18
forced ventilation
movement of air and its replacement with fresh air by mechanical means
[SOURCE: IEC 62282-3-300:2012, 3.9]

– 8 – IEC 62932-1:2020 © IEC 2020
3.1.19
fully charged
condition (status) where, after a charge process as specified by the manufacturer, the flow
battery energy system reaches the end of charge point
3.1.20
fully discharged
condition (status) where, after a discharge process as specified by the manufacturer, the flow
battery energy system reaches the end of discharge point
3.1.21
gas release
emission of gas from the flow battery energy system to the environment
3.1.22
grid-connected state
condition in which the flow battery energy system is connected to the point of connection
3.1.23
ground fault
occurrence of an accidental or an unplanned conductive path between a live conductor on the
fluid system of the battery and the earth
Note 1 to entry: A conductive path can pass through faulty insulation, liquid films, structures (e.g. poles, scaffoldings,
cranes, ladders), or vegetation (e.g. trees, bushes).
3.1.24
hot standby
standby state providing for immediate operation upon demand
Note 1 to entry: A hot standby state may apply to redundant or stand-alone items.
Note 2 to entry: In some applications, an item in a hot standby state is considered to be operating.
[SOURCE: IEC 60050-192:2015, 192-02-12, modified – "state" omitted from the term, and the
domain, "of an item", deleted.]
3.1.25
hybrid flow battery
hybrid flow cell
flow battery or flow cell in which one of the active materials is, depending on the state of charge,
a solid material deposited on one of the electrode surfaces
3.1.26
input power
electrical power supplied to the FBES during charge and standby
3.1.27
insulation resistance
resistance under specified conditions between two conductive elements separated by insulating
materials
[SOURCE: IEC 60050-151:2001, 151-15-43]
3.1.28
interlock
circuit linking mechanical, electrical or other devices, for example through auxiliary contacts,
intended to make the operation of a piece of apparatus dependent on the condition or position
of one or more others
[SOURCE: IEC 60050-811:2017, 811-25-13, modified – "circuit" omitted from the term.]
3.1.29
fluid leakage
unplanned escape of fluids from a cell or from an FBS
Note 1 to entry: Concentrating on leakage of energy storage fluids is incomplete as there is also leakage of fluid
which is considered in the "safety" standard text.
3.1.30
maximum ambient temperature
highest ambient temperature at which the battery is operable and should perform according to
specified requirements
3.1.31
maximum discharge energy
largest energy declared by the manufacturer that an FBS/FBES can provide under specified
discharge operating conditions
Note 1 to entry: The maximum discharge energy is normally expressed in watt hour (Wh).
Note 2 to entry: The maximum discharge energy of an FBES is customarily measured at the point of connection
(POC) to account for the auxiliary energy consumption.
3.1.32
maximum input power
highest level of power in watt that can be supplied to the FBES and at which it is operable and
performs according to specified conditions
Note 1 to entry: This level is specified by the manufacturer.
3.1.33
maximum output power
highest level of power in watt that can be supplied by the FBES and at which it is operable and
performs according to specified conditions
Note 1 to entry: This level is specified by the manufacturer.
3.1.34
minimum ambient temperature
lowest ambient temperature at which the battery is operable and should perform according to
specified requirements
3.1.35
natural ventilation
movement of air and its replacement with fresh air due to the effects of wind and/or temperature
gradients
[SOURCE: IEC 60050-426:2008, 426-03-07]
3.1.36
negative terminal
accessible conductive part provided for the connection of an external electric circuit to the
negative electrode of the cell
[SOURCE: IEC 60050-482:2004, 482-02-24]
3.1.37
non-operating state
state of not performing any required function

– 10 – IEC 62932-1:2020 © IEC 2020
Note 1 to entry: The adjective "non-operating" designates an item in a non-operating state.
[SOURCE: IEC 60050-192:2015, 192-02-06]
3.1.38
on-state
state of a flow battery energy system when it is actively delivering or absorbing energy
3.1.39
operating state
state of performing as required or ready to perform
Note 1 to entry: The adjective "operating" designates an item in an operating state.
Note 2 to entry: In some applications, an item in an idle state is considered to be operating.
[SOURCE: IEC 60050-192:2015, 192-02-04, modified – The domain "" omitted
and the words "or ready to perform" added to the definition.]
3.1.40
operational coordination
activity or status where all the different elements of a complex activity such as PCS, BMS and
BSS, are brought into a harmonious and efficient relationship
3.1.41
output power
electrical power supplied by the flow battery energy system during discharge
3.1.42
overcharge
continued charging of a fully charged FBS
[SOURCE: IEC 60050-482:2004, 482-05-44, modified – "secondary cell or battery" replaced
with "FBS" and note omitted.]
3.1.43
point of connection
POC
reference point in the electric power system where the FBES is connected to the grid or to the
final application point
[SOURCE: IEC 60050-617:2009, 617-040-1, modified – abbreviated term "POC" added,
"user's electrical facility" replaced by "FBES", and "to the grid or to the final application point"
added to the definition.]
3.1.44
point of measurement
POM
physical location in the (FBES) circuit where the energy delivered to or from the battery and the
energy consumed by the BMS/BSS is to be reproducibly measured/recorded
Note 1 to entry: This location is specified by the manufacturer and may be indicated in contractual documents.
3.1.45
positive terminal
accessible conductive part provided for the connection of an external electric circuit to the
positive electrode of the cell
[SOURCE: IEC 60050-482:2004, 482-02-25]

3.1.46
rated energy
manufacturer declared value of the energy content of the FBES system when discharged under
specified (rated) conditions and measured at the primary POC
Note 1 to entry: (J) is the base unit, other units may be chosen for convenience as well (kWh, MWh).
3.1.47
rated input power
manufacturer declared value of input power for a specific set of operating conditions of the
FBS/FBES
Note 1 to entry: The rated input power is expressed in watts (W).
3.1.48
rated maximum power
manufactuer declared highest power level that the FBS/FBES can accept or deliver
3.1.49
rated output power
manufacturer declared value of output power for a specific set of operating conditions of the
FBS/FBES
3.1.50
routine test
conformity test made on each individual item during or after manufacture
[SOURCE: IEC 60050-151:2001, 151-16-17]
3.1.51
sampling test
test on a sample
[SOURCE: IEC 60050-151:2001, 151-16-20]
3.1.52
sensor
device which detects or measures a physical property and records,
indicates or responds to it
3.1.53
service life
duration from the time of the FBES system commissioning test to the end of service life
Note 1 to entry: The term "commissioning test" is defined in IEC 60050-411:1996, 411-53-06.
3.1.54
short-circuit current
maximum current which should be delivered by a flow battery system or flow battery energy
system into an external circuit with zero electric resistance, or an external circuit which
depresses the cell or battery voltage to approximately zero volt
Note 1 to entry: Zero electric resistance is a hypothetical condition and in practice the short-circuit current is the
peak current following in a circuit of very low resistance compared to the internal resistance of the battery.
[SOURCE: IEC 60050-482:2004, 482-03-26, modified – "(related to cells or batteries)" omitted
from term, and "cell or battery" replaced by "flow battery system or flow battery energy system"
in the definition.]
– 12 – IEC 62932-1:2020 © IEC 2020
3.1.55
site requirement
prerequisite for the operation of the battery in conditions as specified by the manufacturer
3.1.56
stack
group of flow cells, assembled in a contiguous form and usually connected
electrically in series
Note 1 to entry: In theory, stacks can also be formed by connecting cells in parallel. But due to minimum voltage
requirements, the cells are usually connected in series.
3.1.57
standby state
state of a flow battery energy system when it is fully functional but not actively delivering or
absorbing energy
3.1.58
stopped state
operating state in which the FBES is in grid-disconnected state and the accumulation subsystem
is not connected with the power conversion subsystem
Note 1 to entry: In this state the auxiliary subsystem is energized.
[SOURCE: IEC 62933-1:2018, 6.1.8, modified – "EES system" replaced with "FBES" and
Note 1 to entry replaced.]
3.1.59
tank
large receptacle or storage chamber for energy storage fluid
3.1.60
type test
conformity test made on one or more items representative of the production
3.2 Abbreviated terms
BMS battery management system
BSS battery support system
EES electrical energy storage
FBES flow battery energy system
FBS flow battery system
PCS power conversion system
POC point of connection
POM point of measurement
4 Descriptive overview of the flow battery
4.1 Diagram of a flow battery system (FBS)
Figure 1 shows an example schema of a flow battery system (FBS).

Figure 1 – Flow battery system (FBS)
4.2 Component descriptions and the boundaries
A flow battery system consists of four main parts:
• Stack(s) (see 3.1.56)
• Fluid system (see 3.1.17)
• Battery support system (see 3.1.4)
• Battery management system (see 3.1.3).
NOTE See also Annex A and Annex B.
4.3 Diagram of a flow battery energy system (FBES)
Figure 2 shows an example diagram of a flow battery energy system (FBES).

– 14 – IEC 62932-1:2020 © IEC 2020

a) Flow battery energy system (FBES) in case of one POC

b) Flow battery energy system (FBES) in case of two POC
Figure 2 – Flow battery energy system (FBES)
4.4 Component descriptions and the boundaries of FBES
A flow battery energy system consists of a flow battery system and a power conversion system.
The complete system is connected to the final application at the point of connection.

Annex A
(informative)
Components of the flow battery energy system
A.1 General
This annex gives the non-exhaustive list of the components of a flow battery energy system.
A.2 Stacks – Revised description
Stacks are made up of cells. A cell may consist of the following components:
• current collector
• bipolar plate
• electrode
• membrane.
A.3 Fluid system
A fluid system may consist of the following components:
• pump
• tank
• piping
• valves
• sensors
• energy storage fluids
• heat exchanger
• filters.
– 16 – IEC 62932-1:2020 © IEC 2020
Annex B
(informative)
Types of chemistries
This annex gives the most conventional chemistries and associated fluid sytems' layout for the
different types of flow battery systems.
Table B.1 – Example chemistries of flow batteries
One-phase Two phases
(liquid solution) (gas/liquid solutiuon)
V/V H/Br
Cr/Fe H/Cl
H/Fe
H/V
Table B.2 – Example chemistries of hybrid flow batteries
Two phases
Zn/Ni
Zn/Br
Zn/Cl
Fe/Fe
Pb/Pb
Cu/Cu
___________
– 18 – IEC 62932-1:2020 © IEC 2020
SOMMAIRE
AVANT-PROPOS . 19
1 Domaine d’application . 21
2 Références normatives . 21
3 Termes, définitions et termes abrégés . 21
3.1 Termes et définitions . 21
3.2 Termes abrégés . 29
4 Aperçu descriptif de la batterie d’accumulateur à circulation d'électrolyte . 30
4.1 Diagramme d’un système de batterie d’accumulateur à circulation
d'électrolyte (FBS) . 30
4.2 Descriptions et limites des composants . 30
4.3 Diagramme d’un système de production d'énergie à batterie d’accumulateur
à circulation d'électrolyte (FBES) . 30
4.4 Descriptions et limites des composants d’un système FBES . 31
Annexe A (informative) Composants du système de production d'énergie à batterie
d’accumulateur à circulation d'électrolyte . 32
A.1 Généralités . 32
A.2 Empilages – Description révisée . 32
A.3 Système hydraulique. 32
Annexe B (informative) Types des compositions chimiques . 33

Figure 1 – Système de batterie d’accumulateur à circulation d'électrolyte (FBS) . 30
Figure 2 – Système de production d'énergie à batterie d’accumulateur à circulation
d'électrolyte (FBES) . 31

Tableau B.1 – Exemple de compositions chimiques des batteries d’accumulateurs à
circulation d’électrolyte . 33
Tableau B.2 – – Exemple de compositions chimiques des batteries hybrides
d’accumulateurs à circulation d’électrolyte . 33

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
SYSTÈMES DE PRODUCTION D'ÉNERGIE À BATTERIES
D’ACCUMULATEURS À CIRCULATION D'ÉLECTROLYTE
POUR LES APPLICATIONS STATIONNAIRES –

Partie 1: Terminologie et aspects généraux

AVANT-PROPOS
1) La Commission Électrotechnique Internationale (IEC) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électronique. À cet effet, l’IEC – entre autres activités – publie des Normes internationales,
des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au public (PAS) et des
Guides (ci-après dénommés « Publication(s) de l’IEC "). Leur élaboration est confiée à des comités d'études, aux
travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les organisations
internationales, gouvernementales et non gouvernementales, en liaison avec l’IEC, participent également aux
travaux. L’IEC collabore étroitement avec l'Organisation Internationale de Normalisation (ISO), selon des
conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de l’IEC concernant les questions techniques représentent, dans la mesure du
possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de l’IEC intéressés
sont représentés dans chaque comité d’études.
3) Les Publications de l’IEC se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de l’IEC. Tous les efforts raisonnables sont entrepris afin que l’IEC
s'assure de l'exactitude du contenu technique de ses publications; l’IEC ne peut pas être tenue responsable de
l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de l’IEC s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de l’IEC dans leurs publications nationales
et régionales. Toutes divergences entre toutes Publications de l’IEC et toutes publications nationales ou
régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) L’IEC elle-même ne fournit aucune attestation de conformité. Des organismes de certification indépendants
fournissent des services d'évaluation de conformité et, dans certains secteurs, accèdent aux marques de
conformité de l’IEC. L’IEC n'est responsable d'aucun des services effectués par les organismes de certification
indépendants.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à l’IEC, à ses administrateurs, employés, auxiliaires ou mandataires,
y compris ses experts particuliers et les membres de ses comités d'études et des Comités nationaux de l’IEC,
pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre dommage de quelque
nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais de justice) et les dépenses
découlant de la publication ou de l'utilisation de cette Publication de l’IEC ou de toute autre Publication de l’IEC,
ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L’attention est attirée sur le fait que certains des éléments de la présente Publication de l’IEC peuvent faire l’objet
de droits de brevet. L’IEC ne saurait être tenue pour responsable de ne pas avoir identifié de tels droits de
brevets et de ne pas avoir signalé leur existence.
La Norme internationale IEC 62932-1 a été établie par le comité d’études 21 de l’IEC:
Accumulateurs, en collaboration avec le comité d’études 105 de l’IEC: Technologies des piles
à combustible.
La présente version bilingue (2020-07) correspond à la version anglaise monolingue publiée en
2020-02.
La version française de cette norme n'a pas été soumise au vote.
Ce document a été rédigé selon les Directives ISO/IEC, Partie 2

– 20 – IEC 62932-1:2020 © IEC 2020
Une liste de toutes les parties de la série IEC 62932, publiées sous le titre général Systèmes
de production d'énergie à batterie d’accumulateurs à circulation d'électrolyte pour les
applications stationnaires, peut être consultée sur le site web de l'IEC.
Le comité a décidé que le contenu de ce document ne sera pas modifié avant la date de stabilité
indiquée sur le site web de l'IEC sous « http://webstore.iec.ch " dans les données relatives au
document recherché. À cette date, le document sera
• reconduit,
• supprimé,
• remplacé par une édition révisée, ou
• amendé.
IMPORTANT – Le logo « colour inside " qui se trouve sur la page de couverture de cette
publication indique qu'elle contient des couleurs qui sont considérées comme utiles à
une bonne compréhension de son contenu. Les utilisateurs devraient, par conséquent,
imprimer cette publication en utilisant une imprimante couleur.

SYSTÈMES DE PRODUCTION D'ÉNERGIE À BATTERIES
D’ACCUMULATEURS À CIRCULATION D'ÉLECTROLYTE
POUR LES APPLICATIONS STATIONNAIRES –

Partie 1: Terminologie et aspects généraux

1 Domaine d’application
La présente partie de l’IEC 62932 traite des systèmes de production d’énergie à batteries
d’accumulateurs à circulation d’électrolyte (FBES – Flow Battery Energy Systems) utilisés dans
les applications de stockage d'énergie électrique (EES – Electrical Energy Storage) et fournit
la terminologie principale et indique les aspects généraux de cette technologie, y compris les
termes nécessaires à la définition des paramètres unitaires, des méthodes d’essai, de la
sécurité et des problèmes environnementaux.
2 Références normatives
Le présent document ne contient aucune référence normative.
3 Termes, définitions et termes abrégés
3.1 Termes et définitions
Pour les besoins du présent document, les termes et définitions suivants s'appliquent.
L'ISO et l'IEC tiennent à jour des bases de données terminologiques destinées à être utilisées
en normalisation, consultables aux adresses suivantes:
• IEC Electropedia: disponible à l’adresse http://www.electropedia.org/
• ISO Online browsing platform: disponible à l’adresse http://www.iso.org/obp
3.1.1
température ambiante
température environnementale autour d’un système de production d'énergie à batterie
d’accumulateur à circulation d'électrolyte
3.1.2
énergie auxiliaire
énergie consommée par tous les équipements et composants auxiliaires d’une batterie
d’accumulateur et d’un système de production d'énergie à batterie d’accumulateur à circulation
d'électrolyte
Note 1 à l’article: Les équipements et les composants comprennent, entre autres, le système de gestion de batterie,
le système de support batterie et le système à circulation de fluide.
3.1.3
système de gestion de batterie
BMS
système électronique associé à un système de production d’énergie à batterie d’accumulateur
à circulation d'électrolyte qui surveille et/ou gère son état, calcule les données secondaires,
rapporte ces données et/ou contrôle son environnement pour influencer la performance et/ou
la durée de vie du système de production d’énergie à batterie d’accumulateur à circulation
d'électrolyte
– 22 – IEC 62932-1:2020 © IEC 2020
Note 1 à l’article: La fonction du système de gestion de batterie peut être entièrement ou partiellement assignée au
bloc de batteries et/ou aux équipements qui utilisent des systèmes de batteries d’accumulateurs à circulation
d'électrolyte pour stocker de l’énergie.
Note 2 à l'article: L’abréviation "BMS" est dérivée du terme anglais développé correspondant "battery management
system".
[SOURCE: IEC 61427-2:2015, 3.8, modifiée – les termes admis "unité de gestion de batterie"
et "BMU" ont été omis, et le terme "batterie" a été remplacé par "système de production
d’énergie à batterie d’accumulateur à circulation d'électrolyte"; les Notes 2 à 4 ont été
supprimées.]
3.1.4
système de support batterie
BSS
unités auxiliaires, telles que les échangeurs de chaleur, les systèmes de ventilation, les
systèmes de sécurité et les systèmes à gaz inerte, utilisées dans un système de production
d’énergie à batterie d’accumulateur à circulation d'électrolyte, et qui ne sont pas des empilages,
ou ne font pas partie du système à circulation de fluide, du système de conversion de puissance
ou du système de gestion de batterie
Note 1 à l’article: Le système de support batterie est commandé par le système de gestion de batterie.
Note 2 à l'article: L’abréviation "BSS" est dérivée du terme anglais développé correspondant "battery support
system".
3.1.5
charge
opération pendant laquelle un accumulateur ou une batterie d’accumulateurs
reçoit de l’énergie électri
...
