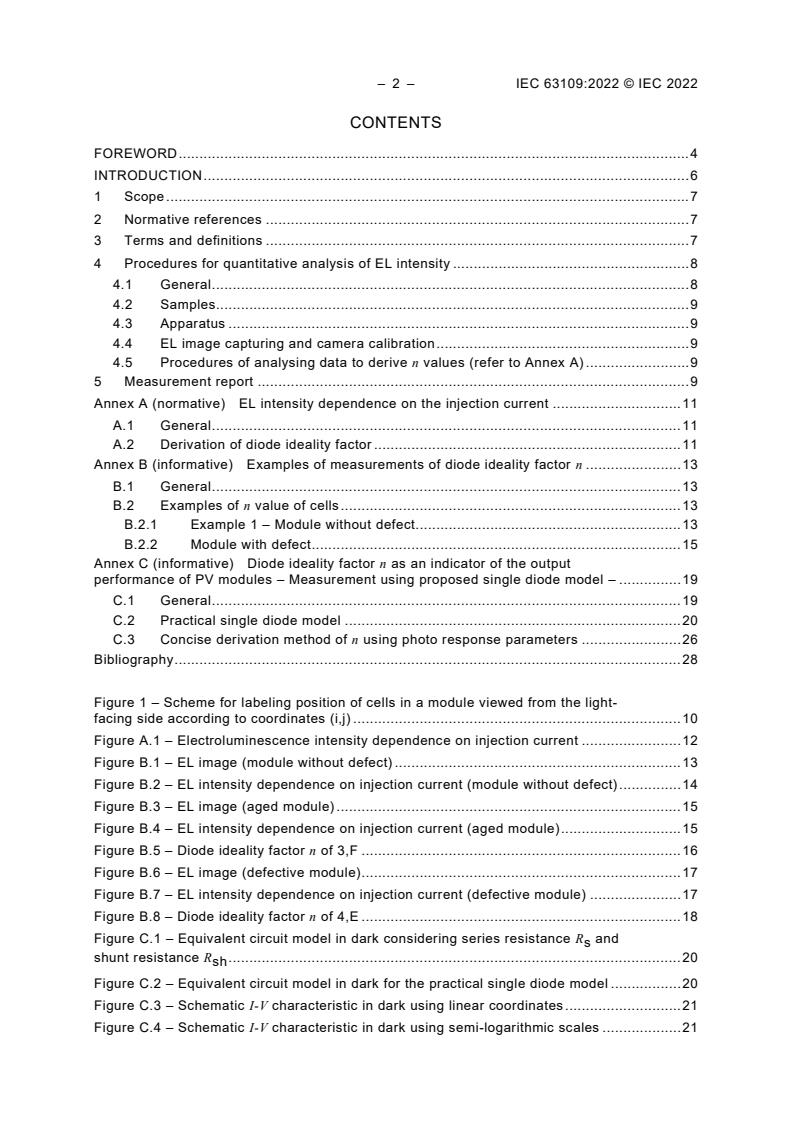

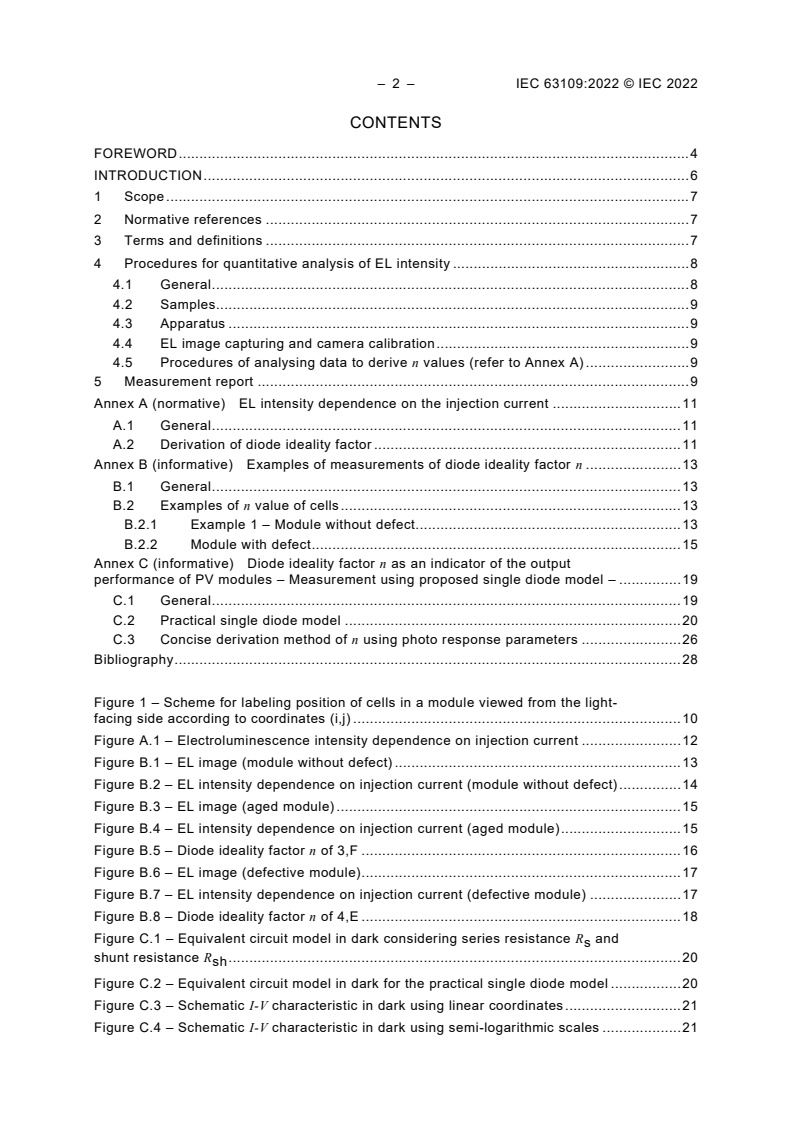

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Procedures for quantitative analysis of EL intensity . 8
4.1 General . 8
4.2 Samples. 9
4.3 Apparatus . 9
4.4 EL image capturing and camera calibration . 9
4.5 Procedures of analysing data to derive n values (refer to Annex A) . 9
5 Measurement report . 9
Annex A (normative) EL intensity dependence on the injection current . 11
A.1 General . 11
A.2 Derivation of diode ideality factor . 11
Annex B (informative) Examples of measurements of diode ideality factor n . 13
B.1 General . 13
B.2 Examples of n value of cells . 13
B.2.1 Example 1 – Module without defect. 13
B.2.2 Module with defect . 15
Annex C (informative) Diode ideality factor n as an indicator of the output
performance of PV modules – Measurement using proposed single diode model – . 19
C.1 General . 19
C.2 Practical single diode model . 20
C.3 Concise derivation method of n using photo response parameters . 26
Bibliography . 28

Figure 1 – Scheme for labeling position of cells in a module viewed from the light-
facing side according to coordinates (i,j) . 10
Figure A.1 – Electroluminescence intensity dependence on injection current . 12
Figure B.1 – EL image (module without defect) . 13
Figure B.2 – EL intensity dependence on injection current (module without defect) . 14
Figure B.3 – EL image (aged module) . 15
Figure B.4 – EL intensity dependence on injection current (aged module) . 15
Figure B.5 – Diode ideality factor n of 3,F . 16
Figure B.6 – EL image (defective module) . 17
Figure B.7 – EL intensity dependence on injection current (defective module) . 17
Figure B.8 – Diode ideality factor n of 4,E . 18
Figure C.1 – Equivalent circuit model in dark considering series resistance R and
s
shunt resistance R . 20
sh
Figure C.2 – Equivalent circuit model in dark for the practical single diode model . 20
Figure C.3 – Schematic I-V characteristic in dark using linear coordinates . 21
Figure C.4 – Schematic I-V characteristic in dark using semi-logarithmic scales . 21

IEC 63109:2022 © IEC 2022 – 3 –
Figure C.5 – Equivalent circuit model under photo irradiation considering series
resistance R . 23
s
Figure C.6 – Equivalent circuit model under photo irradiation for practical single diode

model . 23
Figure C.7 – Photo response showing I – V characteristic flowing through the load . 24
ph ph
Figure C.8 – Diode current as a function of the diode voltage . 25
Figure C.9 – Semi-logarithmic plot of diode current versus diode voltage . 25
Figure C.10 – Schematic consideration of photo-response change with increasing the
diode ideality factor n . 26

Table B.1 – Performance of module without defect (module A) (at STC) . 14
Table B.2 – Performance of aged module (module B) (at STC) . 16
Table B.3 – Performance of PID module (at STC) . 18

– 4 – IEC 63109:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PHOTOVOLTAIC (PV) MODULES AND CELLS –
MEASUREMENT OF DIODE IDEALITY FACTOR BY QUANTITATIVE
ANALYSIS OF ELECTROLUMINESCENCE IMAGES

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC TS 63109 has been prepared by IEC technical committee 82: Solar photovoltaic energy
systems. It is a Technical Specification.
The text of this Technical Specification is based on the following documents:
Draft Report on voting
82/1955/DTS 82/1992/RVDTS
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Technical Specification is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.

IEC 63109:2022 © IEC 2022 – 5 –
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 63109:2022 © IEC 2022
INTRODUCTION
EL (Electroluminescence) diagnosis technique has been widely used for the evaluation of
photovoltaic cells and modules photographically. EL images can identify various kinds of
deficiencies, such as cracks and pin-holes in substrates, breakdown and detachment of
electrodes, etc. In addition to these qualitative inspections, the quantitative analysis of EL
intensity can reveal the electronic performance of photovoltaic cells [1] to [7] . The EL intensity
is proportional to the total number of minority carriers in photovoltaic cell bodies. The injection
of minority carriers is governed by the I-V characteristics of pn junctions following the diode
rectification formula, which yields that the EL intensity dependence upon the injection current
will derive the diode ideality factor [8].
The proposed analysis method is not intended to give the criteria for the diagnosis of cells and
modules, but the measured values of n are informative for stakeholders to share a common
view about degradation phenomena among themselves. This standard measurement technique
may be useful for the following stakeholders:
a) Manufacturers ‒ checking validity of samples for both development and quality control (refer
to Annex C).
b) Power producers ‒ checking suspicious modules for potential failures (refer to Annex B).
c) Reuse ‒ evaluation of value of second-hand modules (refer to Annex B).

____________
Numbers in square brackets refer to the Bibliography.

IEC 63109:2022 © IEC 2022 – 7 –
PHOTOVOLTAIC (PV) MODULES AND CELLS –
MEASUREMENT OF DIODE IDEALITY FACTOR BY QUANTITATIVE
ANALYSIS OF ELECTROLUMINESCENCE IMAGES

1 Scope
This document specifies a method to measure the diode ideality factor of photovoltaic cells and
modules by quantitative analysis of electroluminescence (EL) images.
This document provides a definition of the term diode ideality factor n, as the inverse of
increment ratio of natural logarithm of current as a function of applied voltage, which is related
to the fill factor FF, and is useful as an effective indicator to represent the output efficiency of
photovoltaic cells and modules with the other key parameters open circuit voltage V and short
oc
circuit current I .
sc
This document is only applicable to crystalline silicon photovoltaic cells and modules.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC TS 60904-13:2018, Photovoltaic devices – Part 13: Electroluminescence of photovoltaic
modules
IEC TS 61836, Solar photovoltaic energy systems – Terms, definitions and symbols
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC TS 61836 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
electroluminescence
near infra-red light (NIR) and shortwave infra-red (SWIR) light emitted by crystalline silicon
photovoltaic cells under current injection in forward bias
Note 1 to entry: The dependence of EL intensity upon injection current is explained in Annex A.
[SOURCE: Reference [6] and IEC TS 60904-13:2018, 3.1]

– 8 – IEC 63109:2022 © IEC 2022
3.2
dark I-V
diagram representing the dependence of the current passing through the diode (i.e. the
photovoltaic cell) in the dark versus the applied voltage
3.3
diode ideality factor
n
inverse of increment ratio of natural logarithm of current as a function of applied voltage; value
is normalized by thermal voltage
kT
Note 1 to entry: Thermal voltage: V =
th
e
where
k is the Boltzmann constant;
T is the temperature;
e is the electron charge.
4 Procedures for quantitative analysis of EL intensity
4.1 General
The diode ideality factor n is an important metric to represent the electronic quality of pn
junctions based on the material physics. In general, it is defined by the diode current formula
(1):
𝑉𝑉
� �
(1)
𝑛𝑛×𝛽𝛽
𝐼𝐼 =𝐼𝐼 ×𝑒𝑒
where
I is the dark saturation current;
β is the thermal voltage.
The value of n reflects the current transport mechanisms through the diodes and is considered
to be parametric variable. It should be noted that n has been revealed to be related to the fill
factor FF [9] to [11], and will be an effective indicator to represent the output efficiency of
photovoltaic cells and modules with other key parameters of the open circuit voltage V and
oc
the short circuit current I .
sc
Usually n is derived from the slope of semi-logarithmic plot of the dark diode current as a
function of the applied voltage. Electrical lead wires are needed to measure current voltage (I‑V)
characteristics, and so the measurement of independent cells composing modules is very
difficult.
This newly proposed method utilizing quantitative analysis of EL images has the following novel
features:
• Non-contact and remote sensing measurement for both indoor and outdoor applications: It
can be used for modules after different accelerated stress tests and/or aged ones installed
in the fields.
• Non-destructive method for modules containing multiple cells: Independent measurement of
each cell is simultaneously possible by successive EL image capturing at various injection
current values.
IEC 63109:2022 © IEC 2022 – 9 –
• The EL intensity dependence on the injection current is analysed to derive n based on a
conventional solar cell diode model and dark I-V curve analysis. The use of EL intensity,
rather than voltage, simplifies the analysis because the lumped series resistance parameter
does not need to be known in order to perform the analysis.
4.2 Samples
Preparation of correlated sample cells and modules is recommended.
4.3 Apparatus
Apparatus of taking EL images shall meet the requirements in IEC TS 60904-13.
4.4 EL image capturing and camera calibration
Taking a sequence of EL images is described in IEC TS 60904-13. EL intensity is measured at
various injection current values in the range of 1 % ~ 100 % of I (short circuit current). In
sc
order to keep the injection current at the designated value during measurements the current
shall be set at the appointed value under the constant current (CC) mode control. The
fluctuation of sample temperature during measurements yields slight changes in current-voltage
characteristics of samples. Cameras with a linear intensity response shall be used. If non-linear,
this may be corrected to achieve a linear intensity response function.
4.5 Procedures of analysing data to derive n values (refer to Annex A)
The EL intensity of the test specimens should be taken without changing the capturing
conditions, i.e., the configuration of the position of test specimens and the camera and the
camera parameter settings (shutter speed, diaphragm, and focal length, brightness and contrast
in the software of image capturing).
The EL images should be corrected as described in IEC TS 60904-13. Next, select some cells
suitable for the desired analysis from the El images. Then, for those cells, calculate the average
intensity of whole cell area including the electrode part, and use it as EL intensity. The EL
intensity L is
...
