Overview

IEC 61000-4-13:2002/AMD2:2015 is an important amendment to the international standard addressing Electromagnetic Compatibility (EMC), specifically focused on testing and measurement techniques related to harmonics and interharmonics, including mains signalling at AC power ports. This amendment, published by the International Electrotechnical Commission (IEC), updates the low frequency immunity test procedures and frequency ranges critical for evaluating the impact of electrical disturbances on equipment performance in power systems.

The amendment refines existing parameters, such as shifting the mains signalling frequency range from "110 Hz to 3 kHz" to "100 Hz to 3 kHz" and updating testing methodologies with the introduction of the Meister curve, a benchmark for ripple control systems in public networks. It serves as a fundamental resource for ensuring electromagnetic compatibility in electrical and electronic devices connected to AC mains, focusing on immunity to harmonics, interharmonics, and ripple control signaling.

Key Topics

  • Harmonics and Interharmonics Testing
    The amendment addresses low-frequency immunity testing against both harmonics (integer multiples of the fundamental frequency) and interharmonics (non-integer multiples), which can cause functional disturbances in electrical equipment.

  • Mains Signalling (Ripple Control)
    Updated frequency range specifications to 100 Hz - 3 kHz for ripple control signals transmitted on the power network. Ripple control signals are crucial for remote control and management of electrical loads.

  • Meister Curve Application
    Introduces the Meister curve as a reference for immunity levels when testing ripple control systems. The curve defines allowable test levels across frequencies from 100 Hz up to 3 kHz, detailing immunity requirements for various equipment classes.

  • Test Levels and Frequency Steps
    The amendment revises the test levels defined for interharmonics and the application of the Meister curve for different equipment classes (Class 1, 2, 3, and X). These test levels dictate the percentage of nominal voltage (U1) used during testing over specified frequency ranges.

  • Test Procedures and Flowcharts
    Provides detailed test flowcharts for Classes 1 and 2, outlining the step-by-step testing sequence for harmonic combinations, individual harmonics/interharmonics, and the Meister curve sweep, ensuring systematic immunity evaluation.

Applications

  • Power Supply and Grid Equipment Testing
    Ensures power generation, transmission, and distribution equipment can withstand harmonics and ripple signals without malfunction.

  • Consumer and Industrial Electronics Certification
    Validates the immunity of appliances and industrial devices connected to the AC mains against interharmonics and mains signaling disturbances.

  • EMC Testing Laboratories
    Provides a standardized test method for labs performing compliance testing of electrical equipment under low frequency EMC conditions.

  • Grid Signalling and Control Systems
    Supports the reliable performance of remote control systems that use ripple control signaling on the public power network.

  • Product Development and Quality Assurance
    Assists manufacturers in designing products resilient to electromagnetic interference caused by harmonics and interharmonics, enhancing product reliability and safety.

Related Standards

  • IEC 61000-2-2:2007 – Provides the Meister curve referenced in this amendment for ripple control immunity levels.

  • IEC 61000-4-7 – Addresses general testing methods for harmonics and interharmonics.

  • IEC 61000-4-11 – Details immunity testing for voltage dips, short interruptions, and voltage variations.

  • IEC 61000-3 Series – Covers emission limits for harmonics and interharmonics in power distribution networks.

Summary

IEC 61000-4-13:2002/AMD2:2015 amendment plays a critical role in harmonizing international testing practices for electromagnetic immunity against low-frequency harmonics, interharmonics, and mains signaling. Enhanced by the introduction of the Meister curve and updated frequency ranges, it ensures equipment connected to AC supply networks maintain optimal functionality and reliability under electromagnetic disturbances. Its practical application spans across power utilities, manufacturers, testing labs, and regulatory bodies to uphold EMC standards essential for stable, interference-free electrical systems.

IEC 61000-4-13:2002/AMD2:2015 - Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test - Page 1 previewIEC 61000-4-13:2002/AMD2:2015 - Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test - Page 2 previewIEC 61000-4-13:2002/AMD2:2015 - Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test - Page 3 previewIEC 61000-4-13:2002/AMD2:2015 - Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test - Page 4 preview
PreviousNext
Standard

IEC 61000-4-13:2002/AMD2:2015 - Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test

English and French language
9 pages
sale 15% off
Preview
sale 15% off
Preview

Frequently Asked Questions

IEC 61000-4-13:2002/AMD2:2015 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test". This standard covers: Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test

Amendment 2 - Electromagnetic compatibility (EMC) - Part 4-13: Testing and measurement techniques - Harmonics and interharmonics including mains signalling at a.c. power port, low frequency immunity test

IEC 61000-4-13:2002/AMD2:2015 is classified under the following ICS (International Classification for Standards) categories: 33.100.20 - Immunity. The ICS classification helps identify the subject area and facilitates finding related standards.

IEC 61000-4-13:2002/AMD2:2015 has the following relationships with other standards: It is inter standard links to IEC 61000-4-13:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

IEC 61000-4-13:2002/AMD2:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


IEC 61000-4-13 ®
Edition 1.0 2015-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BA SIC EMC PUBLICATION
P UBLICATION FONDAMENTALE EN CEM

AMENDMENT 2
AMENDEMENT 2
Electromagnetic compatibility (EMC) –
Part 4-13: Testing and measurement techniques – Harmonics and
interharmonics including mains signalling at a.c. power port, low frequency
immunity tests
Compatibilité électromagnétique (CEM) –
Partie 4-13: Techniques d’essai et de mesure – Essais d’immunité basse
fréquence aux harmoniques et inter-harmoniques incluant les signaux transmis
sur le réseau électrique alternatif

IEC 61000-4-13:2002-03/AMD2:2015-12 (en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61000-4-13 ®
Edition 1.0 2015-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BA SIC EMC PUBLICATION
P UBLICATION FONDAMENTALE EN CEM

AMENDMENT 2
AMENDEMENT 2
Electromagnetic compatibility (EMC) –

Part 4-13: Testing and measurement techniques – Harmonics and

interharmonics including mains signalling at a.c. power port, low frequency

immunity tests
Compatibilité électromagnétique (CEM) –

Partie 4-13: Techniques d’essai et de mesure – Essais d’immunité basse

fréquence aux harmoniques et inter-harmoniques incluant les signaux transmis

sur le réseau électrique alternatif

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.20 ISBN 978-2-8322-3034-3

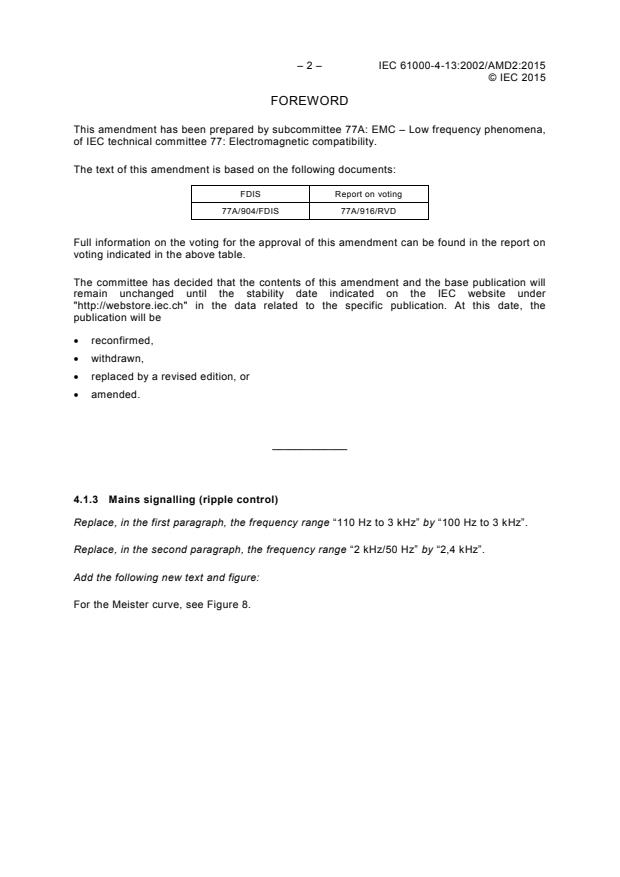

– 2 – IEC 61000-4-13:2002/AMD2:2015
