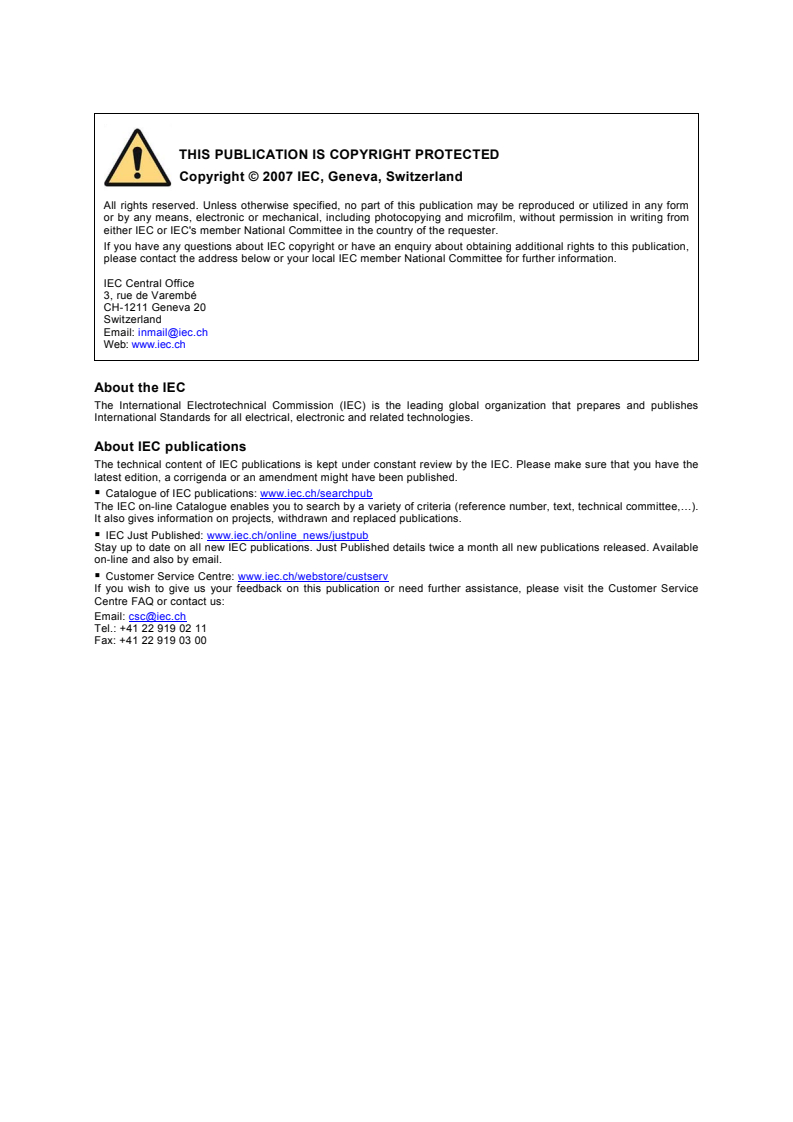

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60268-5 ®
Edition 3.0 2007-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Sound system equipment –
Part 5: Loudspeakers
Equipements pour systèmes électroacoustiques –

Partie 5: Haut-parleurs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX D
ICS 33.160.50 ISBN 978-2-8322-0774-1

– 2 – 60268-5 Amend. 1  IEC:2007

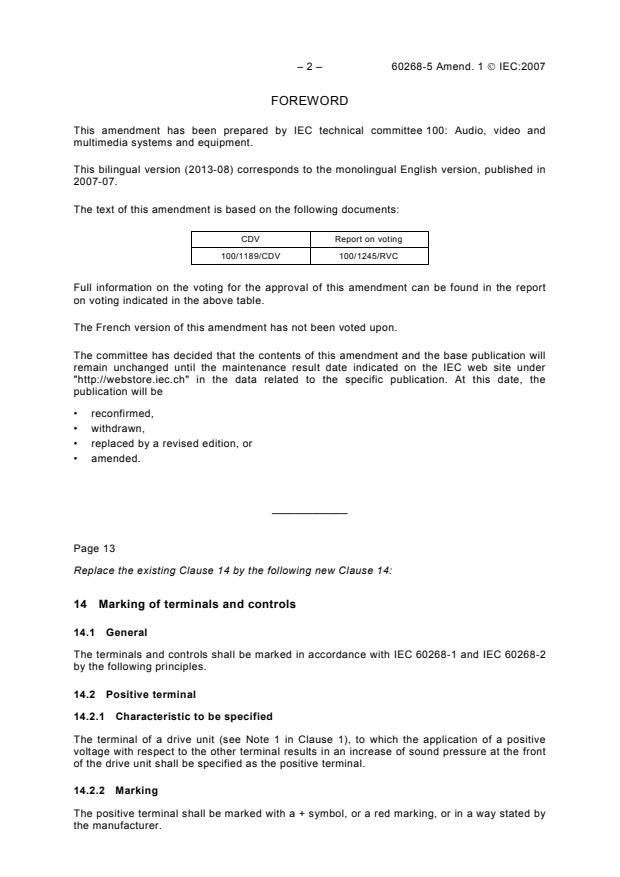

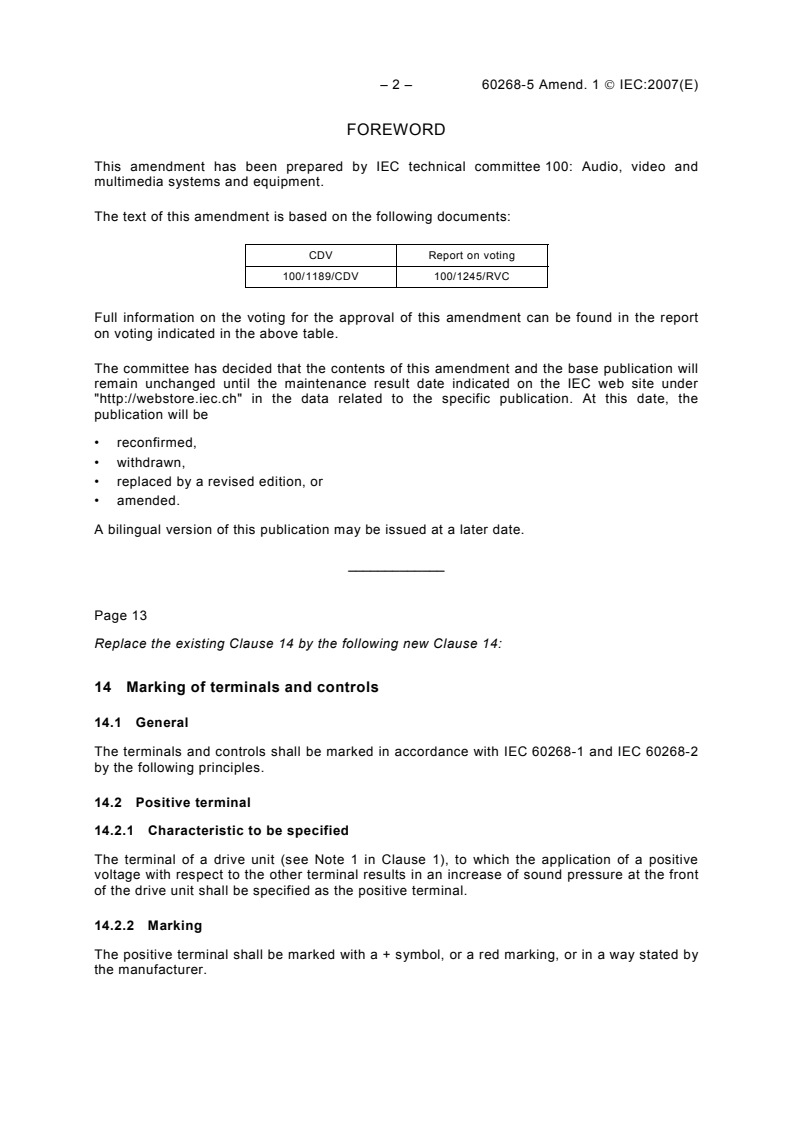

FOREWORD
This amendment has been prepared by IEC technical committee 100: Audio, video and
multimedia systems and equipment.
This bilingual version (2013-08) corresponds to the monolingual English version, published in
2007-07.
The text of this amendment is based on the following documents:
CDV Report on voting
100/1189/CDV 100/1245/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The French version of this amendment has not been voted upon.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Page 13
Replace the existing Clause 14 by the following new Clause 14:
14 Marking of terminals and controls
14.1 General
The terminals and controls shall be marked in accordance with IEC 60268-1 and IEC 60268-2
by the following principles.
14.2 Positive terminal
14.2.1 Characteristic to be specified
The terminal of a drive unit (see Note 1 in Clause 1), to which the application of a positive
voltage with respect to the other terminal results in an increase of sound pressure at the front
of the drive unit shall be specified as the positive terminal.
14.2.2 Marking
The positive terminal shall be marked with a + symbol, or a red marking, or in a way stated by
the manufacturer.
60268-5 Amend. 1  IEC:2007 – 3 –
14.2.3 Method of test
Apply a positive d.c. voltage briefly to the terminal marked as positive. Examine the change
of sound pressure at a point close to the front of the drive unit. Correct marking is confirmed
by an increase of sound pressure.
NOTE 1 The increase of sound pressure is produced by a positive excursion, i.e., the loudspeaker diaphragm
coming closer to the microphone.
NOTE 2 Any other method which produces the same result as the method described above can be used.
Page 17
17 Input voltage
Add the following new subclause:
17.1.3 Listening test for normal operation
A listening test for normal operation may be conducted according to Annex D.
Add, on page 19, the following new subclause:
17.4.3 Listening test for mechanical noise (rattles)
A listening test for mechanical noise (rattles) may be conducted according to Annex D.
Page 45
Annex B – Standard measuring enclosure type B
Replace, on page 46, the existing Table B.1 by the following new Table B.1:
Table B.1 – Dimensions and ratios of scalable enclosure type B
Enclosure dimensions Symbol Ratios
Width internal Wi 1
external We NA
Height internal Hi 1,202
external He NA
a
Depth 1 internal D1i
1,274
external D1e
NA
a
Depth 2 internal D2i
1,596
external D2e
NA
Radius R 100 mm
b
> 24 mm (Vn ≥ 100)
Panel thickness
b
> 18 mm (V < 100)
...
