IEC 61076-3-104:2006

IEC 61076-3-104 ®
Edition 2.0 2006-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Product requirements –
Part 3-104: Detail specification for 8-way, shielded free and fixed connectors
for data transmissions with frequencies up to 1 000 MHz

Connecteurs pour équipements électroniques – Exigences de produit –
Partie 3-104: Spécification particulière pour les fiches et les embases écrantées
à 8 voies pour la transmission de données à des fréquences jusqu'à 1 000 MHz

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 61076-3-104 ®
Edition 2.0 2006-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Product requirements –

Part 3-104: Detail specification for 8-way, shielded free and fixed connectors

for data transmissions with frequencies up to 1 000 MHz

Connecteurs pour équipements électroniques – Exigences de produit –

Partie 3-104: Spécification particulière pour les fiches et les embases écrantées

à 8 voies pour la transmission de données à des fréquences jusqu'à 1 000 MHz

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XC
ICS 31.220.10 ISBN 978-2-83220-884-7

– 2 – 61076-3-104 © IEC:2006

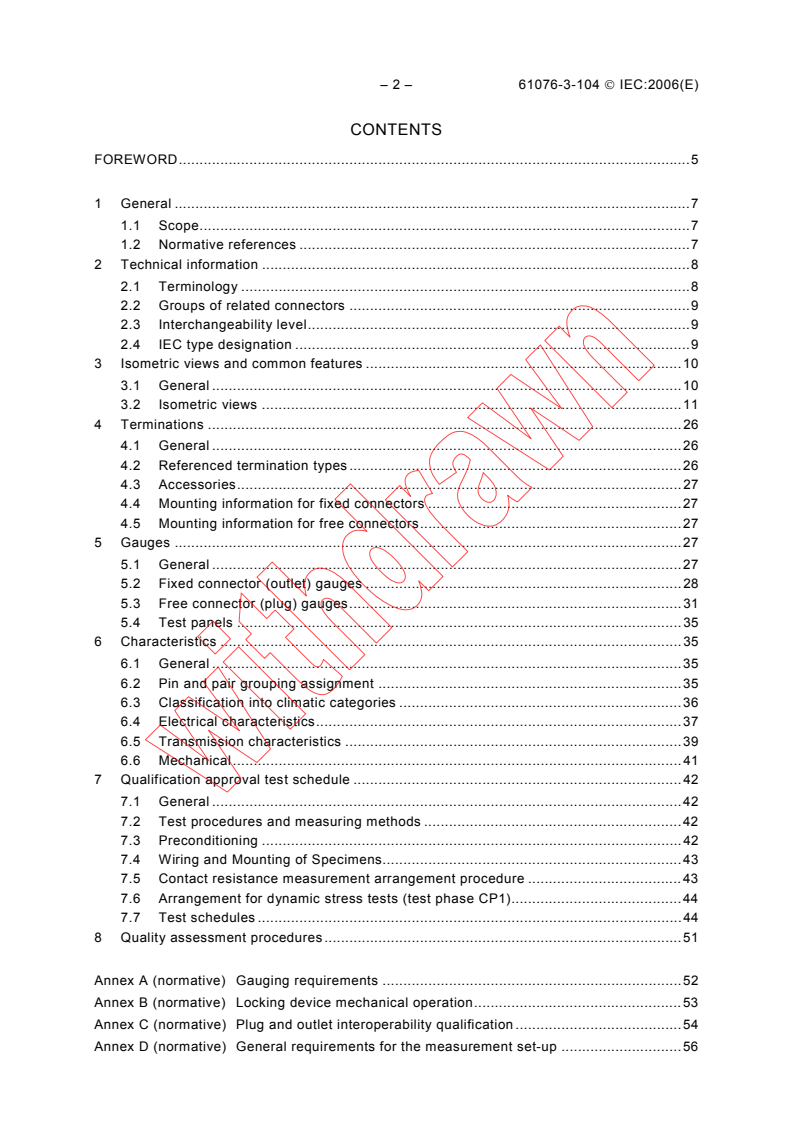

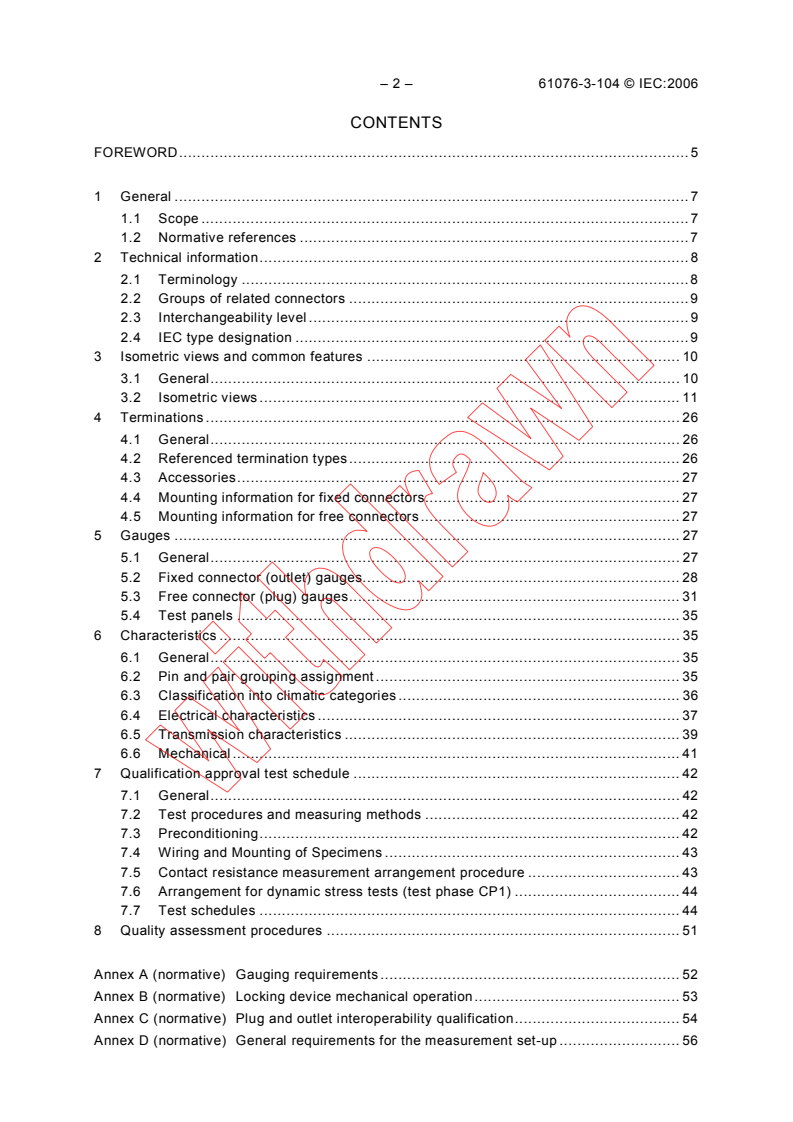

CONTENTS
FOREW ORD . 5
1 General . 7
1.1 Scope . 7
1.2 Normative references . 7
2 Technical information . 8
2.1 Terminology . 8
2.2 Groups of related connectors . 9
2.3 Interchangeability level . 9
2.4 IEC type designation . 9
3 Isometric views and common features . 10
3.1 General . 10
3.2 Isometric views . 11
4 Terminations . 26
4.1 General . 26
4.2 Referenced termination types . 26
4.3 Accessories . 27
4.4 Mounting information for fixed connectors . 27
4.5 Mounting information for free connectors . 27
5 Gauges . 27
5.1 General . 27
5.2 Fixed connector (outlet) gauges. 28
5.3 Free connector (plug) gauges . 31
5.4 Test panels . 35
6 Characteristics . 35
6.1 General . 35
6.2 Pin and pair grouping assignment . 35
6.3 Classification into climatic categories . 36
6.4 Electrical characteristics . 37
6.5 Transmission characteristics . 39
6.6 Mechanical . 41
7 Qualification approval test schedule . 42
7.1 General . 42
7.2 Test procedures and measuring methods . 42
7.3 Preconditioning . 42
7.4 Wiring and Mounting of Specimens . 43
7.5 Contact resistance measurement arrangement procedure . 43
7.6 Arrangement for dynamic stress tests (test phase CP1) . 44
7.7 Test schedules . 44
8 Quality assessment procedures . 51
Annex A (normative) Gauging requirements . 52
Annex B (normative) Locking device mechanical operation . 53
Annex C (normative) Plug and outlet interoperability qualification . 54
Annex D (normative) General requirements for the measurement set-up . 56

61076-3-104 © IEC:2006 – 3 –
Annex E (normative) Insertion loss . 61
Annex F (normative) Return loss . 63
Annex G (normative) Near end cross talk (NEXT) . 65
Annex H (normative) Far end cross talk (FEXT) . 68
Annex I (normative) Transfer impedance . 71
Annex J (normative) Transverse Conversion Loss (TCL) and Transverse Conversion
Transfer Loss (TCTL) . 78
Annex K (normative) Termination of balun . 81
Figure 1 – Isometric view of cable and PCB fixed connectors . 11
Figure 2 – Isometric view of 4, 2 and 1 pair free connectors . 11
Figure 3 – Variant 01 drawing 1 . 12
Figure 4 – Variant 01 drawing 2 . 14
Figure 5 – Variant 02 drawing . 15
Figure 6 – Variant 03 drawing 1 . 16
Figure 7 – Variant 03 drawing 2 . 18
Figure 8 – Variant 03 drawing 3 . 19
Figure 9 – Variant 04 drawing 1 . 20
Figure 10 – Variant 04 drawing 2 . 21
Figure 11 – Variant 05 drawing 1 . 22
Figure 12 – Variant 05 drawing 2 . 24
Figure 13 – Variant 05 drawing 3 . 25
Figure 14 – Fixed connector location "Go" gauge . 28
Figure 15 – Fixed connector location "No-Go" gauge. 28
Figure 16 – Fixed connector size "Go" gauge . 29
Figure 17 – Fixed connector size "No-Go" gauge . 30
Figure 18 – Free connector location "Go" gauge . 31
Figure 19 – Free connector location "No-Go" gauge . 31
Figure 20 – Free connector size "Go" gauge . 32
Figure 21 – Free connector size "No-Go" gauge . 33
Figure 22 – Fixed connector panel . 35
Figure 23 – Isometric views fixed connector . 36
Figure 24 – Isometric views free connector 4 pair . 36
Figure 25 – Connector de-rating curve . 38
Figure 26 – Arrangement for contact resiestance test . 43
Figure 27 – Arrangement for dynamic stress . 44
Figure C.1 – Precision test fixtures (covers) . 54
Figure D.1 – 180° hybrid used as a balun . 57
Figure D.2 – Calibration of reference loads . 58
Figure D.3 – Resistor load . 59
Figure D.4 – Definition of reference planes . 60
Figure E.1 – Calibration . 61
Figure E.2 – Measuring set-up . 62

– 4 – 61076-3-104 © IEC:2006
Figure G.1 – NEXT measurement differential mode only terminations . 65
Figure G.2 – NEXT measurement differential and common mode terminations . 66
Figure H.1 – FEXT measurement differential mode only terminations . 68
Figure H.2 – FEXT measurement differential and common mode terminations . 69
Figure I.1 – Preparation of test specimen . 72
Figure I.2 – Triaxial test set-up . 73
Figure I.3 – Impedance matching for R < 50W . 74
Figure I.4 – Impedance matching for R > 50W . 75
Figure J.1 – TCL measurement . 78
Figure J.2 – TCTL measurement . 79
Figure K.1 – Balanced attenuator for balun centre tap grounded. 81
Figure K.2 – Balanced attenuator for balun centre tap open . 81
Table 1 – Variant 01 drawing 1 dimensions . 13
Table 2 – Variant 01 drawing 2 dimensions . 14
Table 3 – Variant 02 drawing dimensions . 15
Table 4 – Variant 03 drawing 1 dimensions . 17
Table 5 – Variant 03 drawing 2 dimensions . 18
Table 6 – Variant 03 drawing 3 dimensions . 19
Table 7 – Variant 04 drawing 1 dimensions . 21
Table 8 – Variant 04 drawing 2 dimensions . 22
Table 9 – Variant 05 drawing 1 dimensions . 23
Table 10 – Variant 05 drawing 2 dimensions . 24
Table 11 – Variant 05 drawing 3 dimensions . 25
Table 12 – Fixed connector (outlet) gauge dimensions . 30
Table 13 – Free connector (plug) gauge dimensions . 34
Table 14 – Fixed connector panel dimensions . 35
Table 15 – Climatic categories – selected values . 37
Table 16 – Creepage and clearance distances . 37
Table 17 – Test group P . 45
Table 18 – Test group AP . 46
Table 19 – Test group BP . 48
Table 20 – Test group CP. 49
Table 21 – Test group DP. 49
Table 22 – Test Group EP . 50
Table 23 – Test Group FP . 51
Table D.1 – Test balun performance characteristics . 57
Table F.1 – Uncertainty band of return loss measurement at frequencies below
100 MHz . 64

61076-3-104 © IEC:2006 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 3-104: Detail specification for 8-way, shielded free and fixed
connectors for data transmissions with frequencies up to 1 000 MHz
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed that compliance
with this document may involve the use of a patent concerning connectors given in 3.2.2 and 3.2.4.
The IEC takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the IEC that he is willing to give free licences with applicants throughout
the world. In this respect, the statement of the holder of this patent right is registered with the IEC
Information may be obtained from:
The Siemon Company
Siemon Business Park
76 Westbury Park Road
Watertown, CT 06795-0400
USA
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights other than those identified above. IEC shall not be held responsible for identifying any or all such
patent rights.
International Standard IEC 61076-3-104 has been prepared by sub-committee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mechanical
structures for electronic equipment.

– 6 – 61076-3-104 © IEC:2006
This second edition of IEC 61076-3-104 cancels and replaces the first edition, published in
2003, and constitutes a technical revision.
Changes from the first edition of this standard (2003) include editorial changes throughout the
standard and:
1) an increase of upper frequency from 600 MHz to 1 000 MHz;
2) changes to the characteristics clause (Clause 6) and test schedules clause (Clause 7) to
align the document with test schedules of IEC 60603-7 series documents.
This bilingual version (2013-06) corresponds to the monolingual English version, published in
2006-07.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/1678/FDIS 48B/1702/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61076 series, under the general title Connectors for electronic
equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
 reconfirmed;
 withdrawn;
 replaced by a revised edition, or
 amended.
61076-3-104 © IEC:2006 – 7 –
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 3-104: Detail specification for 8-way, shielded free and fixed
connectors for data transmissions with frequencies up to 1 000 MHz
1 General
1.1 Scope
This part of IEC 61076 establishes uniform specifications, type testing requirements and
quality assessment procedures for 8-way, shielded free and fixed connectors for data
transmissions with frequencies up to 1 000 MHz, and intended to be used within cabling for
information and communications technology, home entertainment and multimedia. It contains
a choice of all test methods and sequences, severity and preferred values for dimensions and
characteristics.
1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-581, International Electrotechnical Vocabulary – Electromechanical components
for electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60068-2-6, Environmental testing – Part 2: Tests – Test Fc: Vibration (sinusoidal)
IEC 60169-16, Radio-frequency connectors. Part 16: R.F. coaxial connectors with inner
diameter of outer conductor 7 mm (0.276 in) with screw coupling – Characteristic impedance
50 ohms (75 ohms) (Type N)
IEC 60352 (all parts), Solderless connections
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements
IEC 60512-1-100, Connectors for electronic equipment – Tests and measurements – Part 1-
100: General – Applicable publications
IEC 60603-7, Connectors for frequencies below 3 MHz for use with printed boards – Part 7:
Detail specification for connectors, 8-way, including fixed and free connectors with common
mating features, with assessed quality
IEC 61076-1:2006, Connectors for electronic equipment – Product requirements – Part 1:
Generic specifications
IEC 61156-2, Multicore and symmetrical pair/quad cables for digital communications – Part 2:
Horizontal floor wiring – Sectional specification
IEC 61156-3, Multicore and symmetrical pair/quad cables for digital communications – Part 3:
Work area wiring – Sectional specification

– 8 – 61076-3-104 © IEC:2006
IEC 61156-4, Multicore and symmetrical pair/quad cables for digital communications – Part 4:
Riser cables – Sectional specification
IEC 61156-5, Multicore and symmetrical pair/quad cables for digital communications – Part 5:
Symmetrical pair/quad cables with transmission characteristics up to 600 MHz – Horizontal
floor wiring – Sectional specification
IEC 61196, Coaxial communication cables
ISO/IEC 11801, Information technology – Generic cabling for customer premises
EN 50289-1-14, Communication cables – Specifications for test methods – Part 1-14:
Electrical test methods – Coupling attenuation or screening attenuation of connecting
hardware
ISO 1302, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ITU-T G.117, Transmission aspects of unbalance about earth
ITU-T O.9, Measuring arrangements to assess the degree of unbalance about earth
2 Technical information
This detail specification covers connectors intended for use in cabling for information and
communications technology, home entertainment and multimedia.
2.1 Terminology
2.1.1 General
The terminology used in and applicable to this specification is stated in 2.1 of IEC 61076-1.
Some applicable terms are also covered in IEC 60512-1. (For definitions of terms used, refer
to IEC 60050-581.)
2.1.2 Transmission performance categories
In this IEC standard, the term “category”, when used in reference to transmission
performance, refers to those categories defined by ISO/IEC 11801:2002.
2.1.3 Interchangeability level
2.1.3.1 General
These connectors interchangeabey insofar as the intermateability and interoperability
requirements herein are ensured for mated connectors when individual connector halves are
from different sources.
2.1.3.2 Intermateability
Intermateability is ensured by applying the “Go” and “No-Go” gauge requirements herein, and
adherence to dimensional requirements herein.
2.1.3.3 Interoperability
Interoperability of different IEC 61076-3-104 connectors is assured by compliance with all
transmission requirements when the connector is mated with the respective “test” connector
as described in Annex C.
61076-3-104 © IEC:2006 – 9 –
2.2 Groups of related connectors
Groups of connectors within a subfamily having common features. Typical examples are same
type and range but different style. A group of related connectors is covered by a single detail
specification.
Type: Connectors within a particular subfamily such as a multicontact connector with one,
two or four pairs.
Range: The housing (shell) sizes and contacts arrangements within a type. For example, a
housing containing one, two or four pairs.
Style: A particular connector within a type, for example fixed panel, PCB or free
connector.
Variant: Variations within a type, style or range.
2.3 Interchangeability level
These connectors shall be fully interchangeable and intermateable. The mechanical and
electrical characteristics shall be met whatever the source of the connector is. Elements of
connecting hardware, e.g. plugs, sockets that terminate more than one cable are permitted.
The plug/socket interface may be constructed so as to permit the use of multiple modules e.g.
2´ 2 pairs or 4´ 1 pair plugs mated directly with a single 4 pairs socket.
2.4 IEC type designation
Connectors, connector bodies and connectors with pre-inserted contacts according to this
detail specification shall be designated by the following system.
Connectors conforming to this standard shall be identified by the following indications and in
the order given:
The letters “IEC”.
The number denoting this detail specification.
The number of the detail specification (without dashes), being nine characters (e.g.
IEC 610763104-B08S-C101-2 Shielded connector, fixed version B, having 8 female contacts,
solder termination, solid wire, gold, cable outlet, 250 operations)).

– 10 – 61076-3-104 © IEC:2006
IEC 61076 -3-104 L N N N
L N N L L N
Reference to this
detail specification
Number denoting
performance level (PL)
750 operations
Letters denoting connector 2 500 operations
type
Free Version A
Number denoting variant
01 Cable outlet
Fixed Version B
02 PCB outlet
03 Four pair plug
04 Two pair plug
05 1 pair plug
Number of contacts
Number denoting contact finish
1 Gold, gold-alloy
2 Palladium/nickel
Letter denoting type of contact
Female F
Male M
Letter denoting type of conductor
accommodation, or cable
Letter denoting type of termination
A Tinsel wire
Screw terminal A
B Stranded wire
Crimp C
C Solid wire
Insulation displacement D
D Tinsel or stranded wire
Insulation piercing P
E Stranded or solid wire
Solder S
F Tinsel, stranded or solid wire
Compliant pin T
X Customer specific req. for cables
Z
No terminations
Note: “L” stands for letter
“N” stands for number
3 Isometric views and common features
3.1 General
Original dimensions are in millimetres except where noted.

61076-3-104 © IEC:2006 – 11 –
3.2 Isometric views
3.2.1 General
IEC  1348/06
Figure 1 – Isometric view of cable and PCB fixed connectors
IEC  1349/06
Figure 2 – Isometric view of 4, 2 and 1 pair free connectors

– 12 – 61076-3-104 © IEC:2006
3.2.2 Fixed connector variant 01 (cable outlet) drawings
Third angle projection
See view A
View B
See view B
See view C
View C
Section U-U
IEC  1350/06
Figure 3 – Variant 01 drawing 1

61076-3-104 © IEC:2006 – 13 –
Table 1 – Variant 01 drawing 1 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
AX 1,91 1,98 1,83
BC 14,48 14,61 14,35
BD 2,39 2,54 2,24
BE 19,05 19,20 18,90
BF 1,78 1,85 1,70
BG 1,65 1,88 1,42
BH 2,03 2,18 1,88
BJ 2,26 2,34 2,18
BK
70° 73° 67°
BL
63° 66° 60°
BM 11,73 11,79 11,68
BN 10,92 11,00 10,85
BP 6,60 6,68 6,53
BR 0,66 0,71 0,61
BS 20° 23° 17°
BT 4,55 4,80 4,29
BU 10,07 1,12 1,02
BW 1,78 1,85 1,70
BX 0,79 0,99 0,69
BZ 5,21 5,41 5,00
CA 2,31 2,59 2,03
CB 0,57 0,75 0,39
CC 1,61 1,66 1,56
CD 4,24 4,29 4,19
CE 7° 8° 6°
CF 0,56 0,58 0,53
CG 0,51 0,58 0,43
CH 1,52 1,65 1,40
CJ
23° 24° 18°
CK 2,16 2,46 1,85
CL 1,19 1,24 1,14
– 14 – 61076-3-104 © IEC:2006
Section Z-Z View Z-Z
Section Y-Y
IEC  1351/06
Section V-V
Figure 4 – Variant 01 drawing 2
Table 2 – Variant 01 drawing 2 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
CK 2,21 2,34 2,08
CL 1,78
CM 7,11
CN 12,45 12,57 12,32
CP 0,76 0,84 0,69
CR 13,21 13,26 13,16
CS 6,10 6,15 6,05
CT 5,33 5,38 5,28
CU 5,49 5,51 5,46
CV 12,60 12,65 12,55
CW 13,36 13,41 13,31
CX 13,21 13,26 13,16
CY 6,10 6,15 6,05
CZ 5,49 5,51 5,46
CQ 11,73 11,79 11,68
CO 10,92 11,00 10,85
61076-3-104 © IEC:2006 – 15 –
3.2.3 Fixed connector variant 02, Printed Circuit Board (PCB) outlet drawing
Third angle projection
IEC  1352/06
Figure 5 – Variant 02 drawing
Table 3 – Variant 02 drawing dimensions
Dimensions in millimetres
Nominal Maximum Minimum
A 14,48 14,55 14,40
B 15,75 15,88 15,62
C 20,78 20,85 20,70
D 13,72 13,84 13,59
E 5,84 5,97 5,72
F 6,63 6,73 6,53
G 8,46 8,53 8,38
NOTE See Figure 3 and 4 for internal dimensions.

– 16 – 61076-3-104 © IEC:2006
3.2.4 Free connector (plug) dimensions
3.2.4.1 Free connector variant 03 (4-pair plug) drawings
Third angle projection
See view A See view A
See view B
Center of
Projection method: third angle
View B
Scale : 4´
IEC  1353/06
Figure 6 – Variant 03 drawing 1

61076-3-104 © IEC:2006 – 17 –
Table 4 – Variant 03 drawing 1 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
a
D 0,81 0,86 0,76
F 14,73 14,88 14,58
K 1,78
L 7,11
P 14,22 14,35 14,10
W 4,06 4,11 4,01
X 10,49 10,67 10,31
Y 11,68 11,86 11,51
Z 0,61 0,64 0,58
AA 0,46 0,48 0,43
AB 11,18 11,48 10,87
AC 45° 46° 44°
AD 1,70 1,75 1,65
AF 12,12 12,32 12,07
AG 0,64 0,71 0,56
AH 0,53 0,58 0,48
a
Dimension D is the same as ES in Figure 10 and GS in Figure 13.

– 18 – 61076-3-104 © IEC:2006
View A
IEC  1354/06
Section S-S
Figure 7 – Variant 03 drawing 2
Table 5 – Variant 03 drawing 2 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
B 5,99 6,05 5,94
C
60° 62° 58°
G 11,68 11,81 11,56
H 2,67 2,74 2,59
J 2,26 2,39 2,13
N 4,70 4,80 4,60
DN 15° 18° 12°
DP 9,12 9,45 8,79
DR
45° 46° 44°
DS
45° 46° 44°
DT 0,64 0,76 0,51
DU 0,64 0,71 0,56
DV 2,54 2,67 2,41
DW 0,64 0,76
DX 3,25 3,48 3,02
DY 7° 8° 6°
DZ 30° 31° 29°
EA R 0,51 R 0,66 R 0,38
EB 7,98
EC 1,14 1,27 1,02
61076-3-104 © IEC:2006 – 19 –
Section T-T Section W-W
IEC  1355/06
Figure 8 – Variant 03 drawing 3
Table 6 – Variant 03 drawing 3 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
A 13,11 13,16 13,06
E 0,81 0,86 0,76
M 5,41 5,46 5,36
S 1,14 1,22 1,07
T 0,76 0,84 0,69
U 4,27 4,60 3,94
V 0,53 0,58 0,48
AV 6,20 6,25 6,15
AZ R 2,03 R 2,11 R 1,96
BA 2,34 2,41 2,26
BB 1,37 1,55 1,19
– 20 – 61076-3-104 © IEC:2006
3.2.4.2 Free connector variant 04 (2-pair plug) drawings
Third angle projection
IEC  1356/06
Figure 9 – Variant 04 drawing 1

61076-3-104 © IEC:2006 – 21 –
Table 7 – Variant 04 drawing 1 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
DA 7,01 7,14 6,88
DB 11,18 11,48 10,87
DC 14,73 14,88 14,58
DD 5,08 5,21 4,95
DE 1,78 1,88 1,68
DF R 0,38 R 0,46 R 0,30
DG 10,49 10,67 10,31
DH 11,68 11,86 11,51
DJ 5,99 6,05 5,94
DK 60° 62° 58°
DL 6,20 6,25 6,15
DM 0,25 0,30 0,20
Section Z-Z
Section V-V
IEC  1357/06
Figure 10 – Variant 04 drawing 2

– 22 – 61076-3-104 © IEC:2006
Table 8 – Variant 04 drawing 2 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
EE 0,81 0,86 0,76
EF 0,76 0,84 0,69
EG 4,06 4,11 4,01
EH 0,53 0,58 0,48
EJ 5,41 5,46 5,36
EK 2,34 2,41 2,26
EL 5,64 5,69 5,61
EM 5,23 5,28 5,16
EN 1,14 1,22 1,07
EP 1,37 1,55 1,19
ER 4,27 4,60 3,94
a
ES 0,81 0,86 0,76
ET 45°X0,25 46°X0,38 44°X0,13
EU R 2,03 R2,11 R1,96
a
Dimension ES is the same as D in Figure 6 and GS in Figure 13
3.2.4.3 Free connector variant 05 (1-pair plug) drawings
Third angle projection
IEC  1358/06
Figure 11 – Variant 05 drawing 1

61076-3-104 © IEC:2006 – 23 –
Table 9 – Variant 05 drawing 1 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
FA 7,11 7,19 7,06
FC 7,37 7,45 7,29
FD 5,08 5,21 4,95
FE 1,78
FF R 0,25 R0,33 R 0,18
FG 10,67 10,67 10,62
FH 11,81 11,81 11,71
FK 45° 46° 44°
FL 1,14 1,27 1,02
FM 5,72 5,80 5,64
FN R 0,23 R 0,31 R 0,15
FP 5,28 5,33 5,23
FR R 0,25 R 0,33 R 0,18
FS 6,20 6,25 6,15
FU 6,02 6,11 5,93
FV 60° 62° 58°
FW 2,36 2,49 2,24
– 24 – 61076-3-104 © IEC:2006
View G
Section R-R
IEC  1359/06
Figure 12 – Variant 05 drawing 2
Table 10 – Variant 05 drawing 2 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
FT R 0,18 R 0,30 R 0,05
FZ
20° 21° 19°
GA 0,66 0,76 0,56
GB R 0,51 R 0,64 R 0,38
GC
30° 31° 29°
GD 1,63 1,78 1,47
GE
177,5° 178,5° 176,5°
GF 1,52 1,65 1,40
GG 0,38 0,46 0,30
GH 2,44 2,54 2,34
61076-3-104 © IEC:2006 – 25 –
Third angle projection
Section Y-Y
Section V-V
IEC  1360/06
Figure 13 – Variant 05 drawing 3
Table 11 – Variant 05 drawing 3 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
GJ 45°X0,25 46°X0,38 44°X0,13
GK 0,97 1,07 0,86
GL 2,11 2,21 2,01
GM 5,49 5,56 5,41
GP 2,34 2,41 2,26
GR 1,37 1,55 1,19
a
GS 0,81 0,86 0,76
GT 2,13 2,34 1,93
GU 6,03 6,07 5,97
GV R 2,03 R 2,11 R 1,96
a
Dimension GS is the same as D in Figure 6 and ES in Figure 10.

– 26 – 61076-3-104 © IEC:2006
4 Terminations
4.1 General
A connector may include multiple terminations between the cable termination and the
separable contact interface. These may include press-in (compliant pin) connections of jack
springs into PCBs, for example. All terminations shall meet the relevant termination
requirements.
If a type of solderless termination is used which is not covered by any IEC 60352 series
specification, the supplier shall assure its reliability by performing similar tests, and
demonstrating a similar level of performance, to those in IEC 60352.
Free connectors are intended to be terminated to cable to provide connector and cable
assemblies. The connector type designation provides basic terminations concerning the type
of conductor (tinsel, stranded, solid) to which the conductor may be applied, and the type of
connection used (solder, insulation displacement, etc.). Specific details concerning wire
gauge size, type and thickness of conductor insulation, size and shape of cordage or cable
jacket, etc., are not intended to be part of this specification. Minor variations in a free
connector’s interior details to accommodate differing wire gauge sizes, outer jackets, etc., do
not require the generation of new free connector specifications.
If the connector is able to be used with multiple cable types, the manufacturer shall assure
that all connection points comply with the relevant IEC standards with each of the cable types.
4.2 Referenced termination types
4.2.1 General
If a type of solderless termination is used, which is covered by a IEC 60352 series
specification, the supplier shall assure its reliability by performing tests and demonstrating a
level of performance, according to the IEC 60352 series.
4.2.2 Insulation displacement terminations
Shall conform to IEC 60352-3 or IEC 60352-4.
4.2.3 Crimp terminations
Shall conform to IEC 60352-2.
4.2.4 Insulation piercing terminations
Shall conform to IEC 60352-6.
4.2.5 Compliant pin (press-in)
Shall conform to IEC 60352-5.
4.2.6 Spring clamp terminations
Shall conform to IEC 60352-7.
4.2.7 Non-referenced termination types
If a type of termination is used which is not covered by any IEC 60352 series specification,
the supplier shall assure its reliability by performing similar tests, and demonstrating a similar
level of performance, to those covered by IEC 60352 series.

61076-3-104 © IEC:2006 – 27 –
4.2.8 Solder terminations
Solder terminations are not covered in the IEC 60352 series and are allowed.
4.3 Accessories
Accessories are not specified.
4.4 Mounting information for fixed connectors
4.4.1 General
Fixed connector mounting information is not specified.
4.4.2 Hole pattern on printed boards
Fixed connector printed board mounting is not specified.
4.4.3 Mounting on panels
Fixed connector mounting on panels is not specified.
4.5 Mounting information for free connectors
Mounting information for free connectors onto cables is not specified.
5 Gauges
5.1 General
Gauges shall be made according to the following requirements:
Material: tool steel, hardened.
√ = Surface roughness, according to ISO 1302.
Ra = 0,25mm max. (10min max.).
A 0,01 mm (0,000 4 in) wear tolerance shall be applied.
Clearance shall be provided for connector contacts.
Annex A has additional information about using the gauges.

– 28 – 61076-3-104 © IEC:2006
5.2 Fixed connector (outlet) gauges (see Table 12 for dimensions)
5.2.1 Fixed connector location "Go" gauge
Third angle projection
IEC  1361/06
Figure 14 – Fixed connector location "Go" gauge
5.2.2 Fixed connector location "No-Go" gauge
Third angle projection
IEC  1362/06
Figure 15 – Fixed connector location "No-Go" gauge

61076-3-104 © IEC:2006 – 29 –
5.2.3 Fixed connector size "Go" gauge
Third angle projection
IEC  1363/06
Figure 16 – Fixed connector size "Go" gauge
...
