Optical fibres - Part 2: Product specifications - General

IEC 60793-2:2011 contains the general specifications for both multimode and single-mode optical fibres. Sectional specifications for each of the four categories multimode class: A1, A2, A3, and A4 contain requirements specific to each category. Sectional specifications for each of the two single-mode classes, B and C, contain requirements common to each class. Each sectional specification includes family specifications (in normative annexes) that contain requirements for the applicable category or sub-categories. These sub-categories are distinguished on the basis of different fibre types or applications. The requirements of this standard apply to all classes. This seventh edition cancels and replaces the sixth edition published in 2007. This modification has been necessary because of the addition of new fibre categories to IEC 60793-2-10 and IEC 60793-2-50.
This publication is to be read in conjunction with IEC 60793-1 series.

Fibres optiques - Partie 2: Spécifications de produits - Généralités

La CEI 60793-2:2011 contient les spécifications générales applicables à la fois aux fibres optiques unimodales et multimodales. Les spécifications intermédiaires pour chacune des catégories des quatre classes multimodales: A1, A2, A3 et A4 contiennent les exigences spécifiques à chaque catégorie. Les spécifications intermédiaires pour chacune des deux classes unimodales, B et C, contiennent les exigences communes à chaque classe. Chaque spécification intermédiaire inclut des spécifications de famille (dans les annexes normatives) qui contiennent des exigences pour la catégorie ou les sous-catégories applicables. La distinction entre ces différentes sous-catégories se fonde sur les différents types de fibres ou les différentes applications. Les exigences de la présente norme s'appliquent à toutes les classes. Cette septième édition annule et remplace la sixième édition publiée en 2007. Cette modification a été rendue nécessaire par l'ajout de nouvelles catégories de fibres dans la CEI 60793-2-10 et la CEI 60793-2-50.
Cette publication doit être lue conjointement avec la série CEI 60793-1.

General Information

Status
Published
Publication Date
27-Nov-2011
Technical Committee
Drafting Committee
Current Stage
DELPUB - Deleted Publication
Completion Date
04-Nov-2015
Ref Project

Relations

Buy Standard

Standard
IEC 60793-2:2011 - Optical fibres - Part 2: Product specifications - General Released:11/28/2011
English and French language
26 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC 60793-2 ®
Edition 7.0 2011-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Optical fibres –
Part 2: Product specifications – General

Fibres optiques –
Partie 2: Spécifications de produits – Généralités

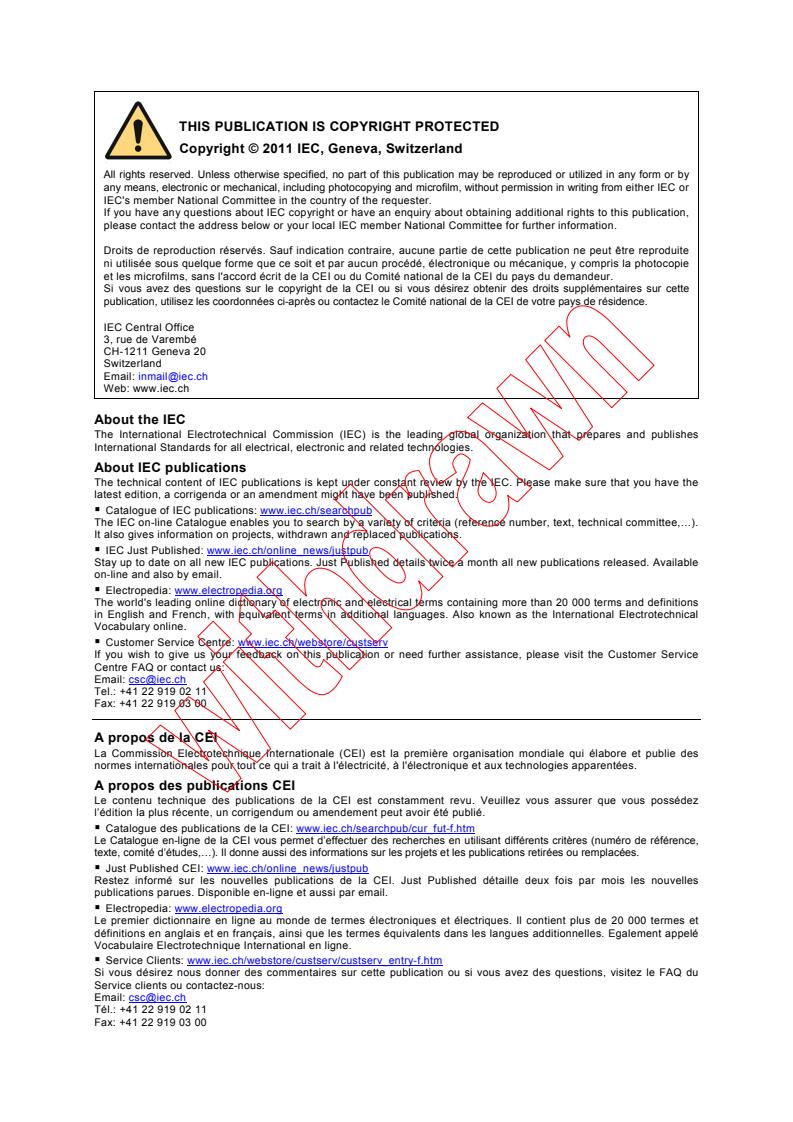

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60793-2 ®
Edition 7.0 2011-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Optical fibres –
Part 2: Product specifications – General

Fibres optiques –
Partie 2: Spécifications de produits – Généralités

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 33.180.10 ISBN 978-2-88912-798-6

– 2 – 60793-2 © IEC:2011

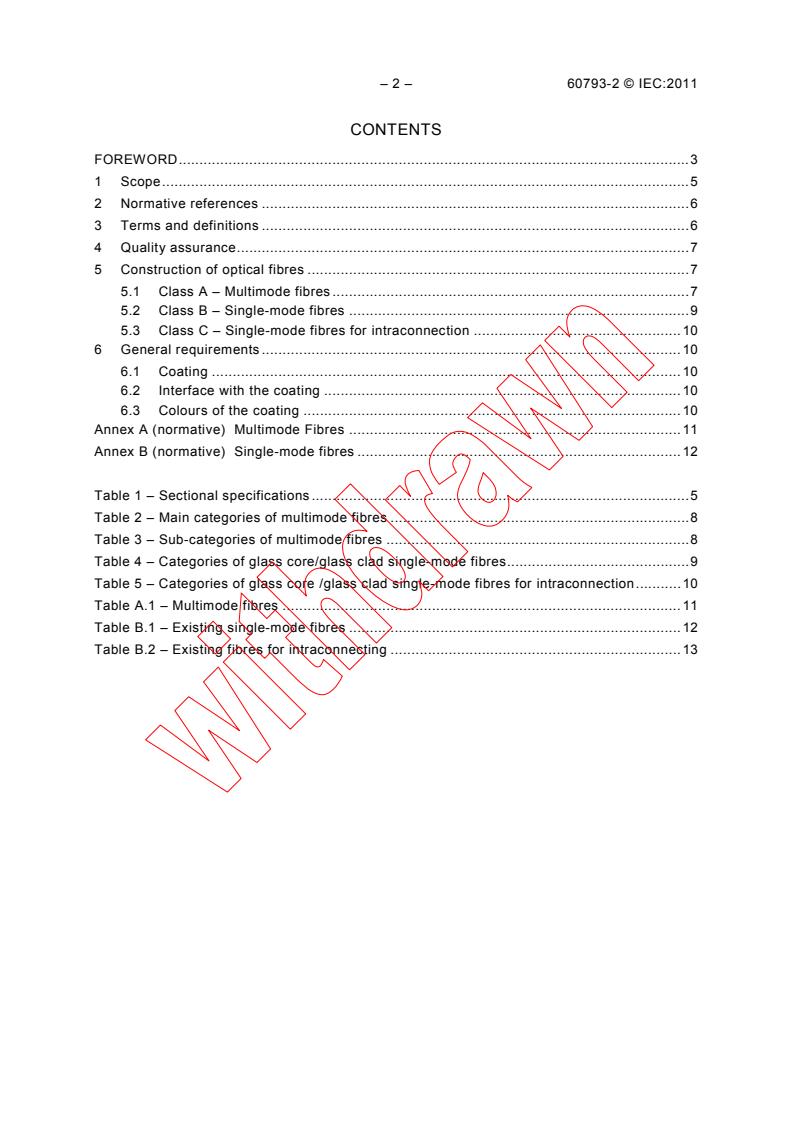

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 6
3 Terms and definitions . 6
4 Quality assurance . 7
5 Construction of optical fibres . 7
5.1 Class A – Multimode fibres . 7
5.2 Class B – Single-mode fibres . 9
5.3 Class C – Single-mode fibres for intraconnection . 10
6 General requirements . 10
6.1 Coating . 10
6.2 Interface with the coating . 10
6.3 Colours of the coating . 10
Annex A (normative) Multimode Fibres . 11
Annex B (normative) Single-mode fibres . 12

Table 1 – Sectional specifications . 5
Table 2 – Main categories of multimode fibres . 8
Table 3 – Sub-categories of multimode fibres . 8
Table 4 – Categories of glass core/glass clad single-mode fibres . 9
Table 5 – Categories of glass core /glass clad single-mode fibres for intraconnection . 10
Table A.1 – Multimode fibres . 11
Table B.1 – Existing single-mode fibres . 12
Table B.2 – Existing fibres for intraconnecting . 13

60793-2 © IEC:2011 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL FIBRES –
Part 2: Product specifications –
General
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60793-2 has been prepared by subcommittee 86A: Fibres and
cables, of IEC technical committee 86: Fibre optics.
This seventh edition cancels and replaces the sixth edition published in 2007. This
modification has been necessary because of the addition of new fibre categories to
IEC 60793-2-10 and IEC 60793-2-50.
Document ID Fibre category
60793-2-10 A1
60793-2-20 A2
60793-2-30 A3
60793-2-40 A4
60793-2-50 B (all)
60793-2-60 C
– 4 – 60793-2 © IEC:2011
This standard is to be read in conjunction with IEC 60793-1 series.
The text of this standard is based on the following documents:
CDV Report on voting
86A/1384/CDV 86A/1416/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60793 series, published under the general title Optical fibres, can
be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
60793-2 © IEC:2011 – 5 –
OPTICAL FIBRES –
Part 2: Product specifications –
General
1 Scope
This part of IEC 60793 contains the general specifications for both multimode and single-
mode optical fibres.
Sectional specifications for each of the four categories multimode class: A1, A2, A3, and A4
contain requirements specific to each category.
Sectional specifications for each of the two single-mode classes, B and C, contain
requirements common to each class.
Each sectional specification includes family specifications (in normative annexes) that contain
requirements for the applicable category or sub-categories. These sub-categories are
distinguished on the basis of different fibre types or applications.
The requirements of this standard apply to all classes.
Each sectional specification contains the requirements that are common to all the family
specifications that are within it. These common requirements are copied to the family
specification for ease of reference.
Tests or measurement methods are defined for each specified attribute. Where possible,
these definitions are by reference to an IEC standard – otherwise the test or measurement
method is outlined in the relevant sectional specification.
The following table defines the sectional specifications. The relevant family specifications are
defined within the sectional specifications as normative annexes (see Tables 2 to 5).
Annexes A and B summarize the existing fibre specifications.
Ta
...
